Product type	Ceiling fan
Brand	Cecotec
Model	Energysilence Aero 5600 Classic
Blade diameter	142 cm (56 inches)
Net weight	6.5 kg
Supply voltage	220-240 V ~ 50/60 Hz
Motor power	50 W
Number of speeds	3
Reversible function (summer/winter)	Yes
Remote control included	Yes
Maximum noise level	≤ 25 dB
Blade material	ABS
Motor material	Steel
Color	White
Maximum ceiling installation angle	15°
Warranty	2 years
Insulation class	Class II
Moisture protection	IP20 (indoor use)
Mounting type	Ceiling
Timer function	Yes (1, 2, 4 hours)
Integrated light	No
Package contents	Fan, remote control, mounting kit, manual

Frequently Asked Questions - Energysilence Aero 5600 Classic CECOTEC

How to install the Cecotec Energysilence Aero 5600 Classic ceiling fan?

Follow the instructions in the provided manual. Securely attach the mounting plate to the ceiling, connect the electrical wires according to the color codes (phase, neutral, ground), then assemble the blades and motor. Use the anti-wobble security cable for added stability. Make sure to cut off the power before installation.

How to clean the fan?

Use a soft, dry cloth to dust the blades and motor. Never use water or chemicals, as this could damage the motor or electrical components. For stubborn stains, lightly dampen the cloth with soapy water and wipe immediately. Wait until everything is dry before restarting.

The remote control does not work, what to do?

First check the remote control batteries (type CR2032). If they are dead, replace them. Make sure there are no obstacles between the remote and the fan receiver. If the problem persists, reset the remote control by following the procedure described in the manual (usually turning off and restoring power).

Why is my fan making noise?

Abnormal noise may come from blade imbalance or insufficient tightening. Check that all screws are tight. If the noise persists, use the balancing kit provided (small adhesive weights) to correct the imbalance. A grinding noise may indicate a motor defect, then contact customer service.

How to use the summer/winter function?

Use the reversibility button on the remote to reverse the rotation direction of the blades. In summer, the blades rotate counterclockwise to create a cooling airflow. In winter, in clockwise mode, the warm air accumulated at the ceiling is redirected to the floor for better heat distribution.

What is the power consumption of the fan?

The motor has a power of 50 W at maximum operation, which corresponds to very low consumption. At minimum speed, consumption drops to around 15 W. It is an economical and ecological device for your comfort.

What are the dimensions of the fan?

The blade diameter is 142 cm (56 inches), suitable for medium to large rooms (up to 25 m²). The total height under the ceiling is about 30 cm. Ensure your ceiling provides sufficient clearance (at least 2.3 m from the floor).

Can this fan be installed on a sloped ceiling?

Yes, the fan is compatible with sloped ceilings up to 15° angle. Use the provided downrod and follow the specific instructions for sloped ceilings. For greater inclinations, an adapter kit (not supplied) may be necessary.

What is the warranty period?

Cecotec offers a warranty of 2 years from the date of purchase, covering any manufacturing defects. Keep your receipt or invoice. For repairs, contact Cecotec customer service. Damages due to incorrect installation or power surges are not covered.

Where to find spare parts for this fan?

Spare parts (blades, remote control, mounting kit) are available from Cecotec customer service. Check the official website or contact customer support at the number indicated in the manual. Provide the exact model and serial number for fast ordering.

USER MANUAL Energysilence Aero 5600 Classic CECOTEC

Safety instructions 9

1. Parts and components 62

2. Before use 62

3. Assembling the appliance 63

4. Operation 64

5. Cleaning and maintenance 65

6. Technical specifications 65

7. Disposal of old electrical and

electronic appliances 66

1. Technical support and warranty 67

2. Copyright 67

3. Simplified EU Declaration of Conformity 67

SOMMAIRE

EU01_107146_EnergySilence Aero 5600 Classic EU01_107147_EnergySilence Aero 5600 Classic White EU01_107148_EnergySilence Aero 5600 Classic Black EU01_107149_EnergySilence Aero 5600 Classic Steel

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Keep a minimum distance of 2.3 cm between the fan blades and the floor.
• Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.
• Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.
• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service to avoid any type of danger.
• Do not use the appliance if its cable or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.

• The appliance must be installed in accordance with national wiring regulations.

• Never insert objects or body parts between the rotating fan blades.

• To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and only use parts and components provided and recommended by Cecotec.
• To avoid risk of electric shock, disconnect the main power supply by turning off the power switches before installing or repairing the fan.
• The electrical wiring must be in accordance with local regulations.
• The wire must be properly earthed to avoid possible accidents.
• The appliance must be installed in accordance with national wiring regulations.
• Never install the fan in a damp or wet room.
• Be careful when near the rotating fan blades.
• To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.
• Do not bend the blade-attachment system during the installation or cleaning process.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly. Turn off and unplug the appliance before cleaning it.
• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the appliance.
• This appliance is designed for indoor use.

Instructions on batteries

• Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical attention immediately.
• Do not allow children to replace batteries without adult supervision.
• Do not disassemble, open, or damage the batteries.
• Keep the batteries out of the reach of children. Keep especially small batteries out of the reach of children. In case of battery ingestion, please seek medical attention immediately.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.
• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.
• Do not use any batteries that are not designed for use with the appliance.
• Do not mix batteries of different manufacture, capacity, or

size. Supervise children to prevent them from playing with batteries.

• Always buy recommended batteries.
• Keep the batteries clean and dry. Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Whenever possible, remove the batteries when not in use.

INSTRUCTIONS DE SÉCURITÉ

Modelo: EU01_107146 / EU01_107147 / EU01_107148 / EU01_107149

Referencia del producto: EnergySilence Aero 5600 Classic / EnergySilence Aero 5600 Classic White / EnergySilence Aero 5600 Classic Black / EnergySilence Aero 5600 Classic Steel

Voltaje: 220-240 V \~

1. Mounting bracket
2. Remote control
3. Tools for assembly
4. Blades
5. Main body
6. LED-board bracket
7. Lampshade
8. LED board

NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the appliance if you need to transport it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Ceiling fan
• Remote control
• Assembly kit
• 1.5 V AAA batteries (x2)
• Instruction manual

Do not remove the serial number of the appliance in order to keep a correct traceability of it in case of assistance.

3. ASSEMBLING THE APPLIANCE

General assembly instructions

• If you hang the fan on a hook, the latter must withstand at least 100 kg.
• To prevent personal injury and damage, make sure that the location where the appliance is going to be installed allows a 2.3-metre clearance from the blades to the floor and a 76-cm clearance from the blades to any wall or object. Fig. 2
• Make sure that the building structure can hold the full weight of the fan.
• This fan can be installed on normal ceilings as well as on vaulted or sloped ceilings. The hanging length can be extended by using a longer downrod.

Assembly according to the type of ceiling:

• Wooden ceiling. Fig. 3

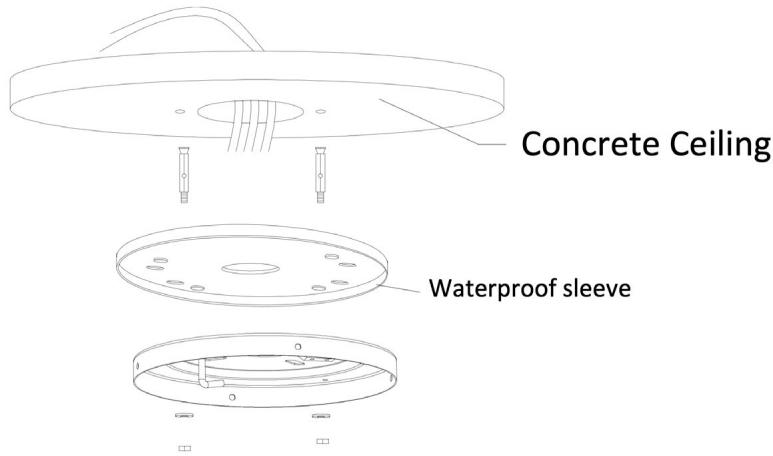

• Concrete ceiling. Fig. 4

To assemble this ceiling fan, follow the steps below (Fig. 3-9):

1. Follow the instructions in the installation section to install the mounting bracket according to ceiling type.
2. Then take the main body of the fan and attach it to the mounting bracket as shown in Figure 6.
3. Take the receiver and make the electrical connections. These connections must be done using quick connectors. Once the connections have been made, insert the receiver inside the upper part of the fan main body. Follow the wiring instructions shown in Figure 5.
4. Unhook the fan from the hook and screw the mounting bracket to the main body. Screw the two screws into the mounting bracket without over-tightening them. Then, attach the fan main body to the previously fixed screws and tighten the latter. Fig. 6
5. To install the blades, use the screws and washers supplied in the installation kit. Install the blade making sure the pointed end faces downwards. Align the blade with the holes on the underside of the main body and insert the screws. Repeat this step until all blades are installed. Fig. 7
6. Connect the LED board to the two electrical connectors and fix it to the LED-board bracket using the magnets provided on the LED board. Fig. 8-9

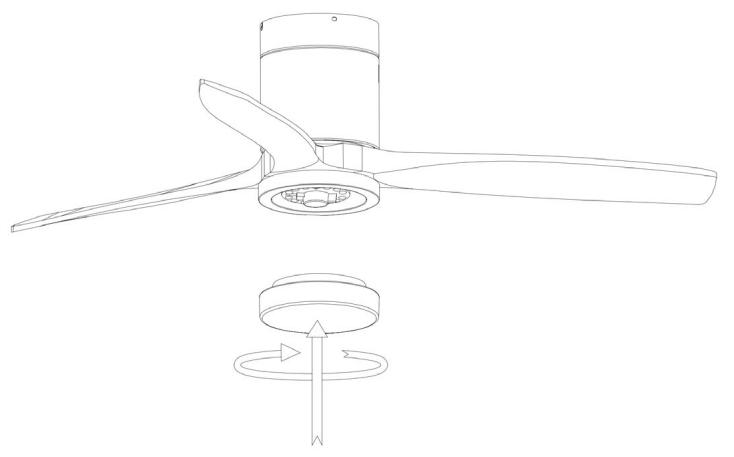

7. Finally, take the lamp and screw it onto the LED board bracket as shown in Figure 10.

Warning

Self-tapping screws are only suitable for wooden ceilings. In case of installing the ceiling fan to concrete ceilings or joists, use a drill for making the holes and plugs or expansion screws (not included).

4. OPERATION

Pairing the remote control with the fan: Press the power button for 5 seconds until you hear a beep.

Remote control. Fig. 11

1. Winter/Summer function
2. Speed settings
3. Light on/off
4. Timer settings
5. Natural-breeze mode
6. Power button
7. Light shade settings

8. Sound

9. Use the speed settings to select the air flow power level.

10. Press the power button to switch off the fan.
11. Use the timer settings to select the fan operating time. The fan will switch off once the selected time is over.
12. Press the light on/off button (1) to turn the LED light on or off.
13. Press the sound button to activate/deactivate the remote control sounds.
14. Use the light shade settings to change the light shade.
15. The remote control is powered by 2 x 1.5 V AAA batteries.

Natural Breeze mode: Activate this mode by pressing the corresponding button on the remote control. The fan will progressively vary the power level in cycles, providing a feeling of fresh air.

Winter function: The fan will distribute the air flow from the bottom upwards, bringing cold air to the top of the room.

Summer function: The fan will distribute the air flow from the top downwards, bringing cold air to the bottom of the room.

Warning:

Reverse the spinning direction of the fan while in operation. Hold down the button for approx. 3 seconds: the appliance will beep, and the blades will start slowing down until they stop spinning. After a few seconds, they will start spinning again in the opposite direction.

WARNING

- The remote control operates through RF Wireless digital transmission technology. If both the fan and the lamp are equipped with a switch, turn on the fan at top speed and turn the light on before using the remote control.

• If the fan or the light cannot be controlled through the remote control, check if the batteries in the remote control are in good conditions and if they make good contact, that the positive and negative electrodes are in the correct position, and if the batteries are charged.
• If the fan or the light cannot be controlled through the remote control, check if there are other remote-controlled appliances in the same area and check if the transmitter buttons are pressed. Appliances with similar remote-control systems may cause interference. This does not include infrared remote controls.
• Pay attention to the appliance voltage. Too low a voltage may cause the remote control not to work. The technical specifications are indicated in this manual.
• If the remote control is not going to be used for a long time, remove the batteries.

Changing the remote control batteries

1. Open the battery compartment.
2. Insert the batteries into the battery compartment observing the polarity.
3. Close the compartment.

5. CLEANING AND MAINTENANCE

• Make sure to disconnect the fan before cleaning it.
• Do not immerse any of the parts of the appliance in water or splash them with any other liquid.
• Do not use solvents or any other chemical products for cleaning.
• Use a soft, damp cloth to clean the surface of the appliance.

6. TECHNICAL SPECIFICATIONS

Model: EnergySilence Aero 5600 Classic / EnergySilence Aero 5600 Classic White / EnergySilence Aero 5600 Classic Black / EnergySilence Aero 5600 Classic Steel

Product reference: EU01_107146 / EU01_107147 / EU01_107148 / EU01_107149

Voltage: 220-240 V\~

Frequency: 50/60 Hz

Motor power: 40 W DC

Light power: 18 W LED

IP20

Description	Symbol	Value	Unit
Fan maximum flow	F	166.1	m^3/min
Fan power consumption	P	40.0	W
Service value	SV	4.2	(m^3/min)/W
Power consumption on standby mode	P_SB	0.4	W
Fan noise power level	L_WA	44.5	dB (A)
Maximum air speed	C	2.3	m/sec
Service value measurement standard	IEC 60879:2019
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos, No. 60, 46910, Alfafar, Valencia, Spain

This product features a light source with an energy efficiency grade E.

The power consumption in standby mode is 0.4 W using the guidelines of EN 50564:2011 and the European regulations 1275/2008/EC and 801/2013/EC. For this purpose, the appliance is connected to the mains without performing any function, waiting for the standby mode to be activated.

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the appliance and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information

concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

10. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested to meet the required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

Img. 1

Modell: EU01_107146 / EU01_107147 / EU01_107148 / EU01_107149

Referenz des Gerätes: EnergySilence Aero 5600 Classic / EnergySilence Aero 5600 Classic White / EnergySilence Aero 5600 Classic Black / EnergySilence Aero 5600 Classic Steel

Modello: EU01_107146 / EU01_107147 / EU01_107148 / EU01_107149

Codice prodotto: EnergySilence Aero 5600 Classic / EnergySilence Aero 5600 Classic White / EnergySilence Aero 5600 Classic Black / EnergySilence Aero 5600 Classic Steel

Tensione: 220-240 V \~

Frequenza: 50/60 Hz

Trocar as pilhas do controlo remoto

Modelo: EU01_107146 / EU01_107147 / EU01_107148 / EU01_107149

Referência: EnergySilence Aero 5600 Classic / EnergySilence Aero 5600 Classic White / EnergySilence Aero 5600 Classic Black / EnergySilence Aero 5600 Classic Steel

Tensão: 220-240 V\~

3. HET APPARAAT MONTEREN

Model: EU01_107146 / EU01_107147 / EU01_107148 / EU01_107149

Referentie van het product: EnergySilence Aero 5600 Classic / EnergySilence Aero 5600 Classic White / EnergySilence Aero 5600 Classic Black / EnergySilence Aero 5600 Classic Steel

Voltage: 220-240 V\~ Frequentie: 50/60 Hz Vermogen van de motor: 40 W DC Lichtvermogen: 18 W LED IP20

Model: EU01_107146 / EU01_107147 / EU01_107148 / EU01_107149

Referencja produktu: EnergySilence Aero 5600 Classic / EnergySilence Aero 5600 Classic White / EnergySilence Aero 5600 Classic Black / EnergySilence Aero 5600 Classic Steel

Model: EU01_107146 / EU01_107147 / EU01_107148 / EU01_107149

Ürün referansı: EnergySilence Aero 5600 Classic / EnergySilence Aero 5600 Classic White / EnergySilence Aero 5600 Classic Black / EnergySilence Aero 5600 Classic Steel

Voltaj: 220-240 V \~

Frekans: 50/60 Hz

Motor gücü: 40 W DC

Işık gücü: 18 W LED

IP20

Μοντέλο: EU01_107146 / EU01_107147 / EU01_107148 / EU01_107149

Αναφορά προϊόντος: EnergySilence Aero 5600 Classic / EnergySilence Aero 5600 Classic White / EnergySilence Aero 5600 Classic Black / EnergySilence Aero 5600 Classic Steel

Táση: 220-240 V\~

Συχνότητα: 50/60 Hz

Model: EU01_107146 / EU01_107147 / EU01_107148 / EU01_107149

Referència del producte: EnergySilence Aero 5600 Classic / EnergySilence Aero 5600 Classic White / EnergySilence Aero 5600 Classic Black / EnergySilence Aero 5600 Classic Steel

information/declaration-of-conformity

1	2	3
4	5	6
7	8

Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./ Rys. 3

Fig./Img./Abb./Afb./ Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./ Rys. 7

1

2

3

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 8

Fig./Img./Abb./Afb./ Rys. 9

Fig./Img./Abb./Afb./Rys. 10

Fig./Img./Abb./Afb./Rys. 11

www.cecotec.es
