Brand	Cecotec
Model	Energysilence Aero 5460 Daisy
Product type	Ceiling fan
Blade diameter	132 cm (52 inches)
Total height	Approx 40 cm
Net weight	6.5 kg
Blade material	ABS plastic
Number of blades	3
Motor type	Silent DC motor
Power supply	220-240 V, 50 Hz
Maximum power	50 W
Speeds	6 speeds
Reverse function (winter/summer)	Yes
Remote control	Included with wall-mounted remote holder
Lighting	Not integrated
Noise level	Less than 35 dB
Maximum airflow	150 m³/min
Blade pitch angle	12 degrees
Installation	Possible on sloped ceiling (up to 30°)
Warranty	2 years
Maintenance and cleaning	Clean blades with a damp cloth; do not use abrasive products
Safety	Automatic shut-off in case of overheating; balanced blades to avoid wobbling
Spare parts and repairability	Available on Cecotec website or through customer service

Frequently Asked Questions - Energysilence Aero 5460 Daisy CECOTEC

How to install the Cecotec Energysilence Aero 5460 Daisy ceiling fan?

Installation must be carried out by a qualified professional. Make sure to turn off the power at the circuit breaker before any handling. Follow the instructions provided in the manual: attach the bracket to the ceiling, connect the cables according to the color codes (live, neutral, earth), then attach the blades and the cover. Use the remote control after restoring power.

How to clean the fan blades?

Use a soft, slightly damp cloth to wipe the blades. Avoid chemical or abrasive products that could damage the plastic. Before cleaning, make sure the fan is turned off and the blades are stationary.

What to do if the fan makes noise or wobbles?

Check that all screws are tight and the fan is properly balanced. If wobbling persists, use the supplied balancing kit. Unusual noise may come from a loosely fixed motor or damaged blades. Contact customer service if the problem continues.

How to use the summer/winter reverse function?

The remote control has a button to reverse the direction of rotation. In summer, the blades rotate counterclockwise to create a cooling airflow. In winter, activate clockwise direction to redistribute warm air downward. The fan should be at low speed for this function.

What is the minimum ceiling height required?

The fan requires a ceiling height of at least 2.30 meters to ensure a safety distance of at least 2.10 meters between the floor and the blades.

Can I install the fan on a sloped ceiling?

Yes, this model is compatible with sloped ceilings up to 30 degrees. A specific mounting kit may be required. Check the instructions for the maximum allowed angle.

How to pair the remote control with the fan?

The remote control is pre-paired at the factory. If you need to re-pair it, cut the fan power for 5 seconds, then restore it. Within 30 seconds, press and hold the 'Pair' button on the remote until the fan flashes quickly. Release, the pairing is complete.

What is the power consumption of the fan?

The fan consumes up to 50 W at maximum speed. Thanks to the DC motor, it is very energy efficient. At low speed, consumption can be less than 10 W.

Does the fan have integrated lighting?

No, this model does not include a light fixture. It is a fan without lighting designed for purely air movement use.

Where to find spare parts for this fan?

Spare parts (remote control, balancing kit, blades, etc.) are available on the official Cecotec website or through customer service. Refer to the manual for exact references.

USER MANUAL Energysilence Aero 5460 Daisy CECOTEC

SAFETY INSTRUCTIONS....5

ESPAÑOL....60

ENGLISH....71

FRANÇAIS....82

DEUTSCH....93

ITALIANO....105

PORTUGUÊS....116

NEDERLANDS....127

POLSKI....138

ČEŠTINA....149

MAGYAR....160

ΕΛΛΗΝΙΚΑ 171

TÜRKÇE....182

العربية....192

CATALÀ....201

FIGURES......212

NOTA

EU01_123462 EnergySilence Aero 5460 Daisy

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Please read these instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

- This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given appropriate supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

- Keep a minimum distance of 2.3 cm between the fan blades and the floor.

- Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.

- Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.

- This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.

- Make sure that the mains voltage matches the voltage specified on the appliance rating label and that the wall outlet is earthed.

• Do not use the appliance if its cable or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.
• The appliance must be installed in accordance with national wiring regulations.
• Never insert objects or body parts between the rotating fan blades.
• To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and use only parts and components provided and recommended by Cecotec.
• Cut off the power completely before installing or repairing the fan to avoid the risk of electric shock.
• The electrical wiring must be in accordance with local regulations.
• The cable must be properly earthed to avoid possible accidents.
• The appliance must be installed in accordance with national wiring regulations.
• Never install the fan in a damp or wet room.
• Be careful when near the rotating fan blades.
• To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.
• Do not bend the blade-attachment system during the installation or cleaning process.

• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly. Turn off and unplug the appliance before cleaning it.

• Make sure the fan is not placed close to curtains or other objects it may become entangled with.

• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the appliance.
• This appliance is designed for indoor use.

Instructions on batteries

- Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.

- In case of battery ingestion, please seek medical attention immediately.

- Do not allow children to replace batteries without adult supervision.

- Do not disassemble, open, or damage the batteries.

- Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.

- Do not expose batteries to heat or fire. Avoid storage in direct sunlight.

- Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.

- Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your

skin and eyes away from the liquid. If the liquid comes into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, rinse them immediately with clean water for at least 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.

• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.
• Do not use any batteries that are not designed for use with the appliance.
• Do not mix batteries of different manufacture, capacity, or size. Supervise children to prevent them from playing with batteries.
  • Always buy recommended batteries.
• Keep the batteries clean and dry. Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Whenever possible, remove the batteries when not in use.

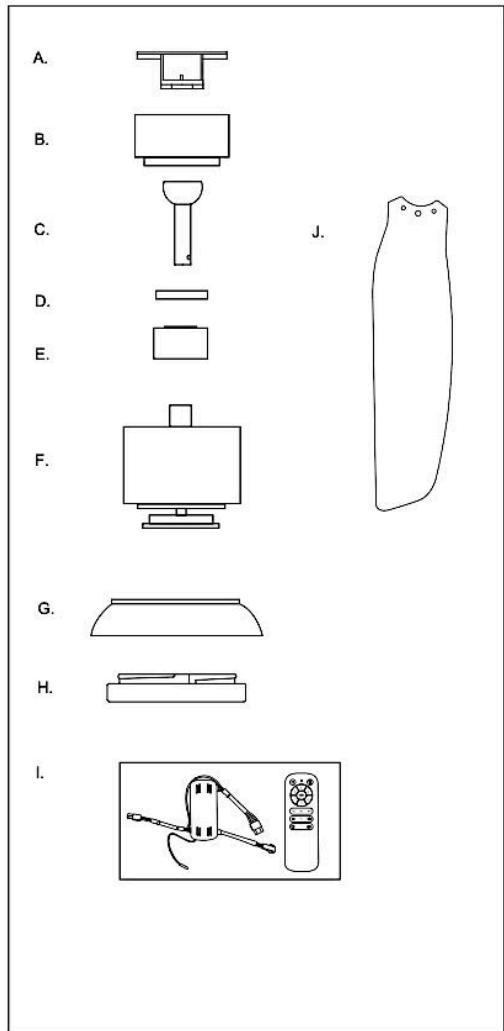

1. Parts and components

Fig. 1

A. Mounting bracket
B. Canopy
C. Downrod + hanging ball
D. Canopy cover
E. Coupling cover
F. Motor assembly
G. Light kit
H. Lampshade
I. Receiver + remote control
J. Fan blade

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. Before use

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

• Ceiling fan
• Remote control
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. Installation

Assembly

• Remove the pin and bolt from the downrod.
• Loosen the locking screw on the canopy until it is flush with the inner surface.
• Remove the downrod, canopy and canopy cover.
• Place the downrod inside the canopy, canopy cover and coupling cover.
• Thread the cables extending from the motor through the canopy, canopy cover and downrod.
• Insert the bolt through the shaft and downrod holes. Take care not to damage or cut the fan cables.
  ● Tighten the bolt. Secure with the pin through the hole at the end of the bolt.
• Secure the downrod in position by tightening the locking screws. Slide the canopy down until it sits flush with the motor housing.

Fig. 2

1. Clip
2. Bolt
3. Cover
4. Locking screw
5. Locking screw
6. Motor

A. Downrod + hanging ball
B. Canopy
C. Canopy decorative cover
D. Motor cover

• Remove the screws from the motor assembly.
• Secure the blade bracket to the motor with the screws as shown in Figure 3.
• Turn the blade slightly after installation and repeat the same procedure for the remaining blades.
  ● Ensure that all screws are tightened securely.

Fig. 3

1. Blade screw
2. Blade
3. Motor

Note: The fan includes three rubber stops (optional on some models) on the motor for transport only. Remove the stops before starting the motor or installing the blades on the motor.

Installing the mounting bracket

WARNING: To reduce the risk of fire, electric shock or personal injury, mount in a UL/CSA listed junction box marked as acceptable for fan support and use the mounting screws provided with the junction box.

1. Secure the mounting bracket and rubber seals to the metal junction box.

Fig. 4

1. Wooden beam
2. Junction box
3. Mounting bracket
4. Junction box screws
5. Ceiling
6. Canopy

A. Electrical connection

Connections according to diagram in Figure 5.

A. Use approved wire connectors to connect the house power supply to the receiver wires, following the diagram and steps below:

• Connect the blue wire from the mains to the blue wire on the receiver.
• Connect the brown wire from the network to the brown wire on the receiver.
• Connect mains ground to fan/metal structure ground, including the receiver if it has a ground terminal.
• Connect the lighting system terminals to the light outputs on the receiver.
• Connect the wires from the motor assembly to the motor outputs on the receiver.

NOTE: Once the earth cables are connected, carefully insert all cables and connectors inside the metal box. Ensure that the cables are kept away from the hanging ball on the downrod and mounting bracket housing to prevent pinching when hanging the assembly.

B. Placing the receiver and closing the canopy

● Push all connected cables inside the ceiling box.
● Place the receiver in the mounting bracket, as shown in Figure 6.
- When installing the canopy, ensure that it does not compress the aerial.
● Ensure that all earth cables are connected.

Fig. 6

1. Mounting bracket
2. Receiver
3. Canopy

Assembling the fan

• Place two screws and washers in the mounting bracket that correspond with the canopy slots. Screw them in two turns.
• Position the canopy on the mounting bracket, aligning the slots with the screws, and rotate to lock.
• Insert and tighten the two screws and washers, then tighten the two screws.

Attaching the hanging ball and closing the canopy

• Carefully rotate the fan assembly until the slot on the coupling cover fits over the tab on the canopy assembly.
• Loosen (do not remove) the two mounting bracket screws.
• Slide the canopy onto the mounting bracket and position the hole in the canopy over the screw in the bracket. Rotate the canopy until it locks into the narrow section of the holes.
• Align the canopy holes with the mounting bracket and secure with the two sets of screws until tight.

WARNING: Failure to insert the tab into the slot could damage the electrical wires and cause a risk of electric shock or fire.

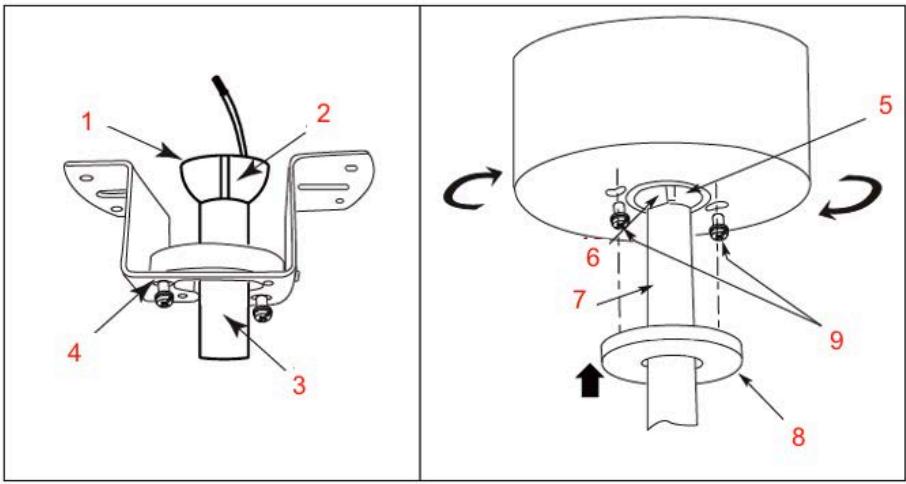

Fig. 7

1. Hanging ball
2. Slot
3. Downrod
4. Mounting bracket

ENGLISH

1. Slot
2. Hanging ball
3. Downrod
4. Decorative cover
5. Canopy screw

Installing the lampshade

WARNING: ENSURE THAT THE POWER SUPPLY IS SWITCHED OFF BEFORE INSTALLATION.

• Connect the cable terminal from the motor assembly to the corresponding LED bulb socket.
  ● Install the light kit to the fan motor assembly by tightening 3 screws.
  ● Carefully attempt to feed the electrical wiring back into the motor assembly.
  ● Place the inner lampshade inside the outer lampshade.
• Screw the lampshade to the light kit.

WARNING: Ensure that all connections, adjustment screws and screws are firmly tightened before the next step.

Fig. 8

1. Cable connectors
2. Light kit
3. Light kit screws
4. Lampshade

4. Operation

Remote control

To synchronise the remote control with the receiver, follow these steps:

1. Open the battery compartment cover on the remote control and insert two AAA batteries (1.5 V), not included.
2. If the remote control does not control the fan, synchronise the code between the remote control and the receiver. Switch on the power and, within the first 10
   seconds, press and hold the ⏻ button on the remote control for 5 seconds. A long beep will confirm successful synchronisation.

ENGLISH

1. If the control does not respond, check the battery switch contact, the correct position of the poles and the charge level.
2. Make sure that there are no other similar devices nearby that may interfere, as they may operate on the same frequency.
3. Remove the batteries if it is not to be used for an extended period.
4. When installing the fan, ensure that the ceiling cover does not press against the aerial or any cables, to prevent damage or short circuits.

Remote control button functions

Figure 9

1. Power/pairing button
2. Speed setting buttons
3. Light on/off button
4. Timer setting buttons
5. Comfort breeze mode on/off button
6. On/Off fan button
7. 5-minute timer button
8. Anti-theft mode on/off button

9. Operation indicator light

10. Rotation direction change button (summer/winter mode)

11. Silent mode activation button (no sound is emitted when pressing the buttons on the remote control)

5. Cleaning and maintenance

Inspection and retightening

• Normal use may loosen some fixings. A clicking, rattling or vibration sound usually indicates loose screws.
  ● Every 6 months, check and retighten if necessary:

Screws of the mounting bracket, hanging ball and downrod.

Blade fixing screws for the motor.

Lighting system and lampshade fixing system.

● Tighten firmly without forcing to avoid damaging threads.

Cleaning

• Clean the fan periodically with a soft cloth slightly dampened with mild detergent. Dry afterwards.
• Do not use solvents, alcohol, ammonia, abrasives or scouring pads.
• Remove dust from the blades with a soft cloth or brush. Metal parts are lacquered to prevent staining, do not polish with abrasive compounds.
• Do not spray cleaners directly onto the lighting system or the lampshade.

Lubrication

- The fan does not require greasing. The bearings are permanently sealed for quiet, long-lasting operation.

Safety

● Always disconnect the mains supply at the switchboard and verify absence of voltage before carrying out any adjustment, inspection or cleaning.
● Wait for the blades to come to a complete stop before working on the fan.

6. Troubleshooting

Use this section only if the fan exhibits any of the problems described. Follow the checks indicated for each case, in the proposed order, and verify the result after each step.

Only perform the basic maneuvers described in this section. Any intervention not contemplated here may invalidate the warranty.

If, after completing the checks, the problem persists, stop using the appliance and contact Cecotec's Official Technical Support Service for diagnosis and repair.

Stop use immediately and do not attempt further checks if you observe any of these situations:

● Burning smell, smoke, sparks, or repeated tripping of the circuit breaker.
- Blade strikes against the ceiling/obstacles, excessive vibration or abnormal noises that do not disappear after basic checks.
- Visible damage to cables, connectors, diffuser or housing.

The fan does not work

1. Check the fuses/circuit breakers on the main circuit and branch circuits.
2. Check the line conductor connections between the mains and the fan, and the connections inside the lower housing of the motor assembly.
   CAUTION: perform these checks with the power disconnected.
3. Ensure that the forward/reverse switch is firmly in the up or down position. The fan will not operate if the switch is in the intermediate position. If the change of

ENGLISH

direction is made from the remote control, select a valid direction and confirm the answer.

1. Confirm that the wall switch that powers the fan is turned on.

The fan makes noise

1. Ensure that all motor housing screws are tight (without over-tightening).
2. Check that the screws securing the blades to the motor assembly (or to their brackets, if applicable) are tightened securely.
3. Ensure that the cable connectors inside the lower housing of the motor assembly do not knock against each other or against the internal walls.
   CAUTION: Disconnect the power supply before accessing the housing.
4. If you are using an optional ceiling fan light kit, ensure that the screws securing the glass lampshades are finger-tight. Ensure that the bulb is securely fitted into the socket and does not touch the glass lampshades. If the vibration persists, remove the glass and install a 1/4" wide rubber band around the glass neck as insulation. Replace the glass and tighten the screws against the rubber band.
5. Some motors are sensitive to wall-mounted electronic speed controllers (Solid State). DO NOT USE solid state speed controllers.
6. After a 24-hour "running-in" period, most noises associated with a new fan will disappear.

The fan oscillates

All blades are grouped by weight, but natural wood can vary and cause oscillation. Follow these checks in order and verify the result after each step:

1. Check that all blades are firmly screwed to the blade brackets.
2. Check that all blade brackets are securely attached to the motor assembly.
3. Ensure that the canopy and mounting bracket are securely tightened and that the ceiling box is firmly anchored to the structure.
4. Blade height equalisation: select a reference point on the ceiling above the tip of one blade and measure the distance to the tip. Rotate the fan and repeat the measurement for each blade. Keep the difference within 1/8 in (≈3 mm). If the levels are not equal:

- To lower the tip of a blade: insert a thin washer (not supplied) between the blade and its bracket, together with the screw.

- To raise the tip: insert the washer (not supplied) between the blade and its bracket on the two screws furthest from the motor assembly.

1. If oscillation persists, swapping two adjacent blades may redistribute the weight and provide smoother operation.

If the light does not work:

1. Check the blue wire from the fan to make sure it is connected to the house live wire.
2. Check for loose or disconnected cables in the fan switch housing.
3. Check for loose or disconnected cables in the light kit.
4. Check for faulty light bulbs.

CAUTION: Ensure that the main power supply is disconnected before accessing the switch housing.

7. Technical specifications

Product: EnergySilence Aero 5460 Daisy

Product reference: EU01_123462

Voltage: 230 V\~

Frequency: 50 Hz

Power: 24 W

Lighting power: 18 W LED

Description	Symbol	Value	Unit
Maximum fan airflow	F	127	m^3/min
Fan power consumption	P	25	W
Service value	SV	5.08	(m^3/min)/W
Power consumption on standby mode	P_SB	0.43	W
Fan sound power level	L_WA	43	dB (A)
Maximum air speed	c	11	m/sec
Seasonal electricity consumption	Q		kWh/a
Service value measurement standard	IEC 60879:2019
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos, 60, 46910, Alfafar (Valencia), Spain

ENGLISH

The power consumption in standby mode is 0,43 W using the guidelines of standard EN 50564:2011 and the European regulations 1275/2008/EC and 801/2013/EC. For this purpose, the appliance is connected to the mains supply without performing any function, waiting for standby mode to be activated.

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

8. Recycling of electrical and electronic equipment

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Information regarding national packaging recycling systems and their marking can be found on our website.

Compliance with the above guidelines will help protect the environment.

9. Technical support and warranty

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of product delivery under the terms, conditions and deadlines established by applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. Copyright

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

11. Simplified EU Declaration of Conformity

Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website:

https://cecotec.es/es/information/declaration-of-conformity

FRANÇAIS

https://storececotec.it/it/information/declaration-of-conformity

PORTUGUÊS

Product: EnergySilence Aero 5460 Daisy

https://cecotec.es/es/information/declaration-of-conformity

ČEŠTINA

https://cecotec.es/es/information/declaration-of-conformity

ΕΛΛΗΝΙΚΑ

ΕΛΛΗΝΙΚΑ

https://cecotec.es/es/information/declaration-of-conformity

العربية

https://cecotec.es/es/information/declaration-of-conformity

CATALÀ

1. Peces i components

Figura 1

https://cecotec.es/es/information/declaration-of-conformity

FIGURES
FIG 1

FIG 2

FIG 3

FIG 4

FIG 5

FIG 6

FIG 7

FIG 8

FIG 9

www.cecotec.es

Cecotec Innovaciones S.L. Av. Reyes Católicos, 60 46910, Alfafar, Valencia (Spain)
