Product type	Ceiling fan
Brand	Cecotec
Model	Energysilence Aero 5400 Classic Whitewhite
Color	White
Blade diameter	132 cm (52 inches)
Number of blades	4
Net weight	5.5 kg
Power supply	220-240 V, 50/60 Hz
Motor power	55 W
Fan speeds	3 speeds
Maximum airflow	5400 m³/h
Maximum noise level	35 dB (A)
Reversible rotation direction	Yes (summer/winter)
Silent function	Yes (silent motor)
Remote control included	Yes, with wall mount
Integrated lighting	No
Installation required	Yes, ceiling mounting
Outdoor use	No, indoor use only
Blade material	ABS plastic
Warranty	2 years

Frequently Asked Questions - Energysilence Aero 5400 Classic Whitewhite CECOTEC

How to install the Energysilence Aero 5400 ceiling fan?

Installation must be carried out by a qualified professional. Make sure to cut off the power supply at the circuit breaker before starting. Follow the steps described in the provided manual: fix the ceiling mount, connect the electrical wires (phase, neutral, and ground), then assemble the blades and the remote control kit.

How to clean the fan?

Use a soft, dry or slightly damp cloth to dust the blades and motor. Never use abrasive products or solvents. Before cleaning, make sure the appliance is turned off and completely stopped.

The fan makes noise when operating, is this normal?

The Energysilence Aero 5400 model is designed to be particularly quiet (35 dB maximum). If you hear abnormal noise, check that the blades are well balanced and that the fixing screws are tightened. A slight hum may come from the speed controller.

How to use the remote control?

The remote control allows you to change the speed (3 levels), reverse the rotation direction, and turn off the fan. Insert the batteries (not included) into the compartment, then point towards the receiver. Maximum range: about 8 meters. If the remote control does not work, check the batteries or re-pair it by following the manual.

What is the rotation direction for summer and winter?

In summer, the blades should rotate counterclockwise (viewed from below) to create a cooling breeze. In winter, reverse the direction to clockwise to redistribute heat from the ceiling to the floor. The direction change is done via the remote control or the housing switch.

Can the fan be mounted on a sloped ceiling?

Yes, the mounting kit allows installation on sloped ceilings up to 30 degrees. Use the provided downrod and ensure the support is well fixed. Consult the manual for specific instructions.

What is the power consumption of the fan?

The maximum consumption is 55 watts at high speed. At low speed, it is about 20 watts. It is one of the most energy-efficient fans in its category, with a very low operating cost (about €0.01 per hour at full power).

Is the fan delivered with lighting?

No, this model does not include an integrated light kit. It is designed solely for ventilation. If you need lighting, you can add a separate lamp or choose another Cecotec model with a light fixture.

How to balance the blades if the fan wobbles?

Use the provided balancing kit (small adhesive weights). Place a weight on the blade that seems the lightest, starting from the middle. Test after each addition. If wobbling persists, check that all blades are properly aligned and that screws are tightened.

Where can I find spare parts for this model?

Spare parts (blades, remote control, brackets, etc.) are available from the Cecotec customer service or on their official website. Contact after-sales service with the exact product reference to obtain compatible parts.

USER MANUAL Energysilence Aero 5400 Classic Whitewhite CECOTEC

Safety instructions 7

1. Parts and components 43

2. Before use 43

3. Product assembly 44

4. Operation 45

5. Wi-Fi connectivity and mobile App 46

6. Cleaning and maintenance 47

7. Technical specifications 47

8. Disposal of old electrical and electronic appliances 48

9. Technical support and warranty 48

10. Copyright 49

11. Simplified Declaration of Conformity 49

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Keep a minimum distance of 2.3 cm between the fan blades and the floor.
• Keep a minimum distance of 76 cm between the fan blades

and the wall or any other object.

• Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.
• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service to avoid any type of danger.
• Do not use the appliance if its cord or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.
• The appliance must be installed in accordance with national wiring regulations.
• Never insert objects or body parts between the rotating fan blades.
• To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and use only parts and components provided and recommended by Cecotec.
• Cut off the power completely before installing or repairing the fan to avoid the risk of electric shock.
• The electrical wiring must be in accordance with the local regulations.
• The cable must be properly earthed to avoid possible accidents.
• The appliance must be installed in accordance with national wiring regulations.
• Never install the fan in a damp or wet room.

• Be careful when near the rotating fan blades.

• To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.

• Do not bend the blade-attachment system during the installation or cleaning process.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly. Turn off and unplug the appliance before cleaning it.
• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the appliance.
• This appliance is designed for indoor use.

Instructions on batteries

• Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical attention immediately.
• Do not allow children to replace batteries without adult supervision.
• Do not disassemble, open, or damage the batteries.
• Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other

metal objects.

• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.
• Do not use any batteries that are not designed for use with the appliance.
• Do not mix batteries of different manufacture, capacity, or size. Supervise children to prevent them from playing with batteries.
• Always buy recommended batteries.
• Keep the batteries clean and dry. Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Whenever possible, remove the batteries when not in use.

INSTRUCTIONS DE SÉCURITÉ

Modelo: EnergySilence Aero 5600 White Aqua Connected / EnergySilence Aero 5600 Black Aqua Connected / EnergySilence Aero 5600 Steel Aqua Connected / EnergySilence Aero 5600 Aqua Connected / EnergySilence Aero 5285 Sun WhiteTransparent / EnergySilence Aero 5285 Sun BlackTransparent / EnergySilence Aero 5600 Aqua Black&Black Connected / EnergySilence Aero 5600 Aqua GoldBlack Connected / EnergySilence Aero 5600 Aqua IronBlack Connected / EnergySilence Aero 5600 Aqua Black&White Connected / EnergySilence Aero 5600 Aqua White&Black Connected / EnergySilence Aero 5600 Aqua GoldDarkWood Connected / EnergySilence Aero 5600 Aqua IronDarkWood Connected / EnergySilence Aero 5600 Aqua GoldWhite Connected / EnergySilence Aero 5600 Aqua IronWhite Connected / EnergySilence Aero 5600 Aqua Black&WhiteWood Connected / EnergySilence Aero 5600 Aqua GoldWhiteWood Connected / EnergySilence Aero 5500 Aqua White&White Connected / EnergySilence Aero 5600 Aqua WhiteDarkWood Connected

https://cecotec.es/es/information/declaration-of-conformity

1. PARTS AND COMPONENTS

Fig. 1

1. Mounting bracket
2. Remote control
3. Tools for assembly
4. Blade
5. Main body
6. LED-board bracket
7. Lamp
8. LED board
9. Insulating plate

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the Official Cecotec Technical Support Service immediately.

Components:

• Ceiling fan
• Remote control
• Assembly kit
• Instruction manual

ENGLISH

3. PRODUCT ASSEMBLY

General assembly instructions

• If you hang the fan on a hook, the latter must withstand at least 100 kg.
• To prevent personal injury and damage, make sure that the location where the appliance is going to be installed allows a 2.3-metre clearance from the blades to the floor and a 76-cm clearance from the blades to any wall or object. Fig. 2
• Make sure that the building structure can hold the full weight of the fan.
• This fan can be installed on a normal or vaulted ceiling with a downrod. The hanging length can be extended by using a longer downrod.

Assembly according to the type of ceiling:

• Wooden ceiling. Fig. 3
• Concrete ceiling. Fig. 4

To assemble this ceiling fan, follow the steps below (Fig. 3-9):

1. Follow the instructions in the installation section to install the mounting bracket according to ceiling type.
2. Then take the main body of the fan and attach it to the mounting bracket as shown in Figure 6.
3. Take the receiver and make the electrical connections by means of quick connectors. Once connections are made, insert the receiver inside the upper part of the fan main body. Follow the wiring instructions shown in Figure 5.
4. Unhook the fan from the hook and screw the mounting bracket to the main body. Screw the two screws into the mounting bracket without over-tightening them. Then, attach the fan main body to the previously fixed screws and tighten the latter. Fig. 6.
5. To install the blades, use the screws and washers supplied in the installation kit. Install the blade making sure the pointed end faces downwards. Align the blade with the holes on the underside of the main body and insert the screws. Repeat this step until all blades are installed. Fig. 7
6. Connect the LED board to the two electrical connectors and fix it to the LED-board bracket using the magnets provided on the LED board. Fig. 8-9

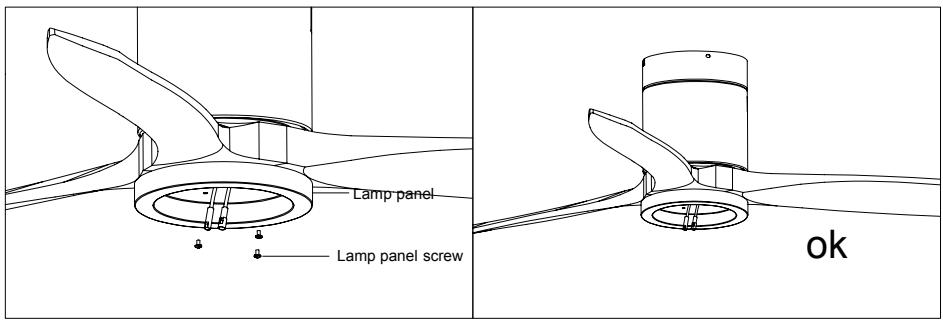

7. Finally, take the lamp and screw it onto the LED board bracket as shown in Figure 10.

Warning

Self-tapping screws are only suitable for wooden ceilings. In case of installing the ceiling fan to concrete ceilings or joists, use a drill for making the holes and plugs or expansion screws (not included).

4. OPERATION

Remote control. Fig. 11

1. Power button
2. Speed control
3. Winter function
4. Summer function
5. Natural Breeze
6. Natural Breeze shut-off
7. Timer

8. Light

9. Use the 6 speed buttons to select the air power level.

10. Press the power button to turn the device off.
11. Use the 3 timer buttons to select the fan's operation time: 1, 2, or 4 hrs. The fan will turn off once the selected time has elapsed.
12. Press the light button to turn the fan's lamp on and off.
13. The remote control requires 2 x 1.5 V-3 AAA batteries.

Winter Function: press button 3 for the fan to make air flow from the bottom upwards, bringing cold air to the top of the room.

Summer Function: press button 4 for the fan to make air flow from the top downwards, bringing cold air to the bottom of the room.

Natural Breeze: activate this mode by pressing the corresponding button on the remote control. The fan will run at different power levels in a cycle, producing a feeling of fresh air.

Warning:

Invert the spinning direction of the fan while in operation. Hold down the button for approx. 3 seconds: the appliance will beep, and the blades will start slowing down until they stop spinning. After a few seconds, they will start spinning again in the opposite direction.

Pairing the remote control with the fan: Press the power button for 5 seconds until you hear a beep.

Wi-Fi connection: press the 1h and 4h button simultaneously for 5 seconds until you hear a beep. Follow the instructions in section 5. Wi-Fi connectivity and mobile App.

ENGLISH

Warnings:

• The remote control operates through RF Wireless digital transmission technology. If both the fan and the lamp are equipped with a switch, turn on the fan at top speed and turn the light on before using the remote control.
• If the fan or the light cannot be controlled through the remote control, check if the batteries in the remote control are in good conditions and if they make good contact, that the positive and negative electrodes are in the correct position, and if the batteries are charged.
• If the fan or the light cannot be controlled through the remote control, check if there are other remote-controlled appliances in the same area and check if the transmitter buttons are pressed. Appliances with similar remote-control systems may cause interference. This does not include infrared remote controls.
• Pay attention to the appliance voltage. Too low a voltage may cause the remote control to not work. The technical specifications are indicated in this manual.
• If the remote control is not going to be used for a long time, remove the batteries.

5. WI-FI CONNECTIVITY AND MOBILE APP

By scanning the following QR code you will be able to access the app download option and an instruction manual explaining how to pair your appliance:

Automatic-scanning mode

1. Download the Cecotec app from Google Play or the App Store.
2. If it is the first time you use it, register an account. If not, log in.
3. Once you have entered the App, tap "+" on the top right-hand corner and tap "Air Treatment".
4. In the upper-right corner, tap on "Auto Scan", then long press the 1 h and 4 h buttons on the remote control for 5 seconds until the remote control beeps.
5. The device will appear on the display—tap on it.
6. Enter the password of the Wi-Fi the mobile device is connected to and select "confirm". Remember that the network must be 2.4 GHz.
7. Wait for the connection to complete.

Manual-connection mode

1. Download the Cecotec app from Google Play or the App Store.
2. If it is the first time you use it, register an account. If not, log in.
3. Once you have entered the App, press "+" on the top right-hand corner and tap "Aqua Connected".
4. Turn on your device, you must make sure that you do not have any mode selected by pressing the power button, the ceiling fan will go into standby mode. Then press the button

for about 5 seconds, the Wi-Fi indicator will start flashing. If the indicator flashes slowly, this operation must be repeated.

1. Enter your Wi-Fi password and press confirm. Remember the Wi-Fi network must be 2.4 GHz.
2. Then, pairing will start automatically.

6. CLEANING AND MAINTENANCE

• Make sure to disconnect the fan before cleaning it.
• Do not immerse any of the parts of the appliance in water or splash them with any other liquid.
• Do not use solvents or any other chemical products for cleaning.
• Use a soft, damp cloth to clean the surface of the device.

7. TECHNICAL SPECIFICATIONS

Model: EnergySilence Aero 5600 White Aqua Connected / EnergySilence Aero 5600 Black Aqua Connected / EnergySilence Aero 5600 Steel Aqua Connected / EnergySilence Aero 5600 Aqua Connected / EnergySilence Aero 5285 Sun WhiteTransparent / EnergySilence Aero 5285 Sun BlackTransparent / EnergySilence Aero 5600 Aqua Black&Black Connected / EnergySilence Aero 5600 Aqua GoldBlack Connected / EnergySilence Aero 5600 Aqua IronBlack Connected / EnergySilence Aero 5600 Aqua Black&White Connected / EnergySilence Aero 5600 Aqua White&Black Connected / EnergySilence Aero 5600 Aqua GoldDarkWood Connected / EnergySilence Aero 5600 Aqua IronDarkWood Connected / EnergySilence Aero 5600 Aqua GoldWhite Connected / EnergySilence Aero 5600 Aqua IronWhite Connected / EnergySilence Aero 5600 Aqua Black&WhiteWood Connected / EnergySilence Aero 5600 Aqua GoldWhiteWood Connected / EnergySilence Aero 5500 Aqua White&White Connected / EnergySilence Aero 5600 Aqua WhiteDarkWood Connected

Product reference: 08238 / 08239 / 08240 / 08242 / 08498 / 08499 / 08524 / 08525 / 08526 / 08527 / 08528 / 08529 / 08530 / 08531 / 08532 / 08533 / 08534 / 08535 / 08536

Voltage: 220-240 V\~

Frequency: 50/60 Hz

Power: 40 W

IP44

LED: 18 W

ENGLISH

Description	Symbol	Value	Unit
Fan maximum flow	F	170.6	m^3/min
Fan power consumption	P	35	W
Service value	SV	4.9	(m^3/min)/W
Power consumption on standby mode	P_SB	0.45	W
Fan sound power level	L_WA	47.0	dB (A)
Maximum air speed	C	2.75	m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos n°60, 46910, Alfajar (Valencia, Spain)

This product features a light source with an energy efficiency grade F.

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information

concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

11. SIMPLIFIED DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that these ceiling fans, models 08238_EnergySilence Aero 5600 White Aqua Connected, 08239_EnergySilence Aero 5600 Black Aqua Connected, 08240_EnergySilence Aero 5600 Steel Aqua Connected, 08242_EnergySilence Aero 5600 Aqua Connected, 08498_EnergySilence Aero 5285 Sun WhiteTransparent, 08499_EnergySilence Aero 5285 Sun BlackTransparent, 08524_EnergySilence Aero 5600 Aqua Black&Black Connected, 08525_EnergySilence Aero 5600 Aqua GoldBlack Connected, 08526_EnergySilence Aero 5600 Aqua IronBlack Connected, 08527_EnergySilence Aero 5600 Aqua Black&White Connected, 08528_EnergySilence Aero 5600 Aqua White&Black Connected, 08529_EnergySilence Aero 5600 Aqua GoldDarkWood Connected, 08530_EnergySilence Aero 5600 Aqua IronDarkWood Connected, 08531_EnergySilence Aero 5600 Aqua GoldWhite Connected, 08532_EnergySilence Aero 5600 Aqua IronWhite Connected, 08533_EnergySilence Aero 5600 Aqua Black&WhiteWood Connected, 08534_EnergySilence Aero 5600 Aqua GoldWhiteWood Connected, 08535_EnergySilence Aero 5500 Aqua White&White Connected and 08536_EnergySilence Aero 5600 Aqua WhiteDarkWood are in conformity with the Radio Equipment Directive 2014/53/EU.

The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Img. 1

Modèle : EnergySilence Aero 5600 White Aqua Connected / EnergySilence Aero 5600 Black Aqua Connected / EnergySilence Aero 5600 Steel Aqua Connected / EnergySilence Aero

5600 Aqua Connected / EnergySilence Aero 5285 Sun WhiteTransparent / EnergySilence Aero 5285 Sun BlackTransparent / EnergySilence Aero 5600 Aqua Black&Black Connected / EnergySilence Aero 5600 Aqua GoldBlack Connected / EnergySilence Aero 5600 Aqua IronBlack Connected / EnergySilence Aero 5600 Aqua Black&White Connected / EnergySilence Aero 5600 Aqua White&Black Connected / EnergySilence Aero 5600 Aqua GoldDarkWood Connected / EnergySilence Aero 5600 Aqua IronDarkWood Connected / EnergySilence Aero 5600 Aqua GoldWhite Connected / EnergySilence Aero 5600 Aqua IronWhite Connected / EnergySilence Aero 5600 Aqua Black&WhiteWood Connected / EnergySilence Aero 5600 Aqua GoldWhiteWood Connected / EnergySilence Aero 5500 Aqua White&White Connected / EnergySilence Aero 5600 Aqua WhiteDarkWood Connected

Référence : 08238 / 08239 / 08240 / 08242 / 08498 / 08499 / 08524 / 08525 / 08526 / 08527 / 08528 / 08529 / 08530 / 08531 / 08532 / 08533 / 08534 / 08535 / 08536

Voltage: 220-240 V\~

https://cecotec.es/es/information/declaration-of-conformity

DEUTSCH

1. TEILE UND KOMPONENTEN

Abb. 1

Modell: EnergySilence Aero 5600 White Aqua Connected / EnergySilence Aero 5600 Black Aqua Connected / EnergySilence Aero 5600 Steel Aqua Connected / EnergySilence Aero 5600 Aqua Connected / EnergySilence Aero 5285 Sun WhiteTransparent / EnergySilence Aero 5285 Sun BlackTransparent / EnergySilence Aero 5600 Aqua Black&Black Connected / EnergySilence Aero 5600 Aqua GoldBlack Connected / EnergySilence Aero 5600 Aqua IronBlack Connected / EnergySilence Aero 5600 Aqua Black&White Connected / EnergySilence Aero 5600 Aqua White&Black Connected / EnergySilence Aero 5600 Aqua GoldDarkWood Connected / EnergySilence Aero 5600 Aqua IronDarkWood Connected / EnergySilence Aero

5600 Aqua GoldWhite Connected / EnergySilence Aero 5600 Aqua IronWhite Connected / EnergySilence Aero 5600 Aqua Black&WhiteWood Connected / EnergySilence Aero 5600 Aqua GoldWhiteWood Connected / EnergySilence Aero 5500 Aqua White&White Connected / EnergySilence Aero 5600 Aqua WhiteDarkWood Connected

Referenz des Gerätes: 08238 / 08239 / 08240 / 08242 / 08498 / 08499 / 08524 / 08525 / 08526 / 08527 / 08528 / 08529 / 08530 / 08531 / 08532 / 08533 / 08534 / 08535 / 08536

5. CONNETTIVITÀ WI-FI E APP

Modello: EnergySilence Aero 5600 White Aqua Connected / EnergySilence Aero 5600 Black Aqua Connected / EnergySilence Aero 5600 Steel Aqua Connected / EnergySilence Aero 5600 Aqua Connected / EnergySilence Aero 5285 Sun WhiteTransparent / EnergySilence Aero 5285 Sun BlackTransparent / EnergySilence Aero 5600 Aqua Black&Black Connected / EnergySilence Aero 5600 Aqua GoldBlack Connected / EnergySilence Aero 5600 Aqua IronBlack Connected / EnergySilence Aero 5600 Aqua Black&White Connected / EnergySilence Aero 5600 Aqua White&Black Connected / EnergySilence Aero 5600 Aqua GoldDarkWood Connected / EnergySilence Aero 5600 Aqua IronDarkWood Connected / EnergySilence Aero 5600 Aqua GoldWhite Connected / EnergySilence Aero 5600 Aqua IronWhite Connected / EnergySilence Aero 5600 Aqua Black&WhiteWood Connected / EnergySilence Aero 5600 Aqua GoldWhiteWood Connected / EnergySilence Aero 5500 Aqua White&White Connected /

EnergySilence Aero 5600 Aqua WhiteDarkWood Connected

Codice prodotto: 08238 / 08239 / 08240 / 08242 / 08498 / 08499 / 08524 / 08525 / 08526 / 08527 / 08528 / 08529 / 08530 / 08531 / 08532 / 08533 / 08534 / 08535 / 08536

Tensione: 220-240 V\~

Frequenza: 50/60 Hz

Potenza: 40 W

IP44

LED: 18 W

Produtos: EnergySilence Aero 5600 White Aqua Connected / EnergySilence Aero 5600 Black Aqua Connected / EnergySilence Aero 5600 Steel Aqua Connected / EnergySilence Aero 5600 Aqua Connected / EnergySilence Aero 5285 Sun WhiteTransparent / EnergySilence Aero 5285 Sun BlackTransparent / EnergySilence Aero 5600 Aqua Black&Black Connected / EnergySilence Aero 5600 Aqua GoldBlack Connected / EnergySilence Aero 5600 Aqua IronBlack Connected / EnergySilence Aero 5600 Aqua Black&White Connected / EnergySilence Aero 5600 Aqua White&Black Connected / EnergySilence Aero 5600 Aqua GoldDarkWood Connected / EnergySilence Aero 5600 Aqua IronDarkWood Connected / EnergySilence Aero 5600 Aqua GoldWhite Connected / EnergySilence Aero 5600 Aqua IronWhite Connected / EnergySilence Aero 5600 Aqua Black&WhiteWood Connected / EnergySilence Aero 5600 Aqua GoldWhiteWood Connected / EnergySilence Aero 5500 Aqua White&White Connected / EnergySilence Aero 5600 Aqua WhiteDarkWood Connected

Referências: 08238 / 08239 / 08240 / 08242 / 08498 / 08499 / 08524 / 08525 / 08526 / 08527 / 08528 / 08529 / 08530 / 08531 / 08532 / 08533 / 08534 / 08535 / 08536

Tensão: 220-240 V\~

https://cecotec.es/es/information/declaration-of-conformity

1. ONDERDELEN EN COMPONENTEN

Fig. 1

Model: EnergySilence Aero 5600 White Aqua Connected / EnergySilence Aero 5600 Black Aqua Connected / EnergySilence Aero 5600 Steel Aqua Connected / EnergySilence Aero 5600 Aqua Connected / EnergySilence Aero 5285 Sun WhiteTransparent / EnergySilence Aero 5285 Sun BlackTransparent / EnergySilence Aero 5600 Aqua Black&Black Connected / EnergySilence Aero 5600 Aqua GoldBlack Connected / EnergySilence Aero 5600 Aqua IronBlack Connected / EnergySilence Aero 5600 Aqua Black&White Connected / EnergySilence Aero 5600 Aqua White&Black Connected / EnergySilence Aero 5600 Aqua GoldDarkWood Connected / EnergySilence Aero 5600 Aqua IronDarkWood Connected / EnergySilence Aero 5600 Aqua GoldWhite Connected / EnergySilence Aero 5600 Aqua IronWhite Connected / EnergySilence Aero 5600 Aqua Black&WhiteWood Connected / EnergySilence Aero 5600 Aqua GoldWhiteWood Connected / EnergySilence Aero 5500 Aqua White&White Connected / EnergySilence Aero 5600 Aqua WhiteDarkWood Connected

NEDERLANDS

Referentie van het product: 08238 / 08239 / 08240 / 08242 / 08498 / 08499 / 08524 / 08525 / 08526 / 08527 / 08528 / 08529 / 08530 / 08531 / 08532 / 08533 / 08534 / 08535 / 08536

Voltage: 220-240 V\~

Frequentie: 50/60 Hz

Vermogen: 40 W

IP44

LED: 18 W

Model: EnergySilence Aero 5600 White Aqua Connected / EnergySilence Aero 5600 Black Aqua Connected / EnergySilence Aero 5600 Steel Aqua Connected / EnergySilence Aero 5600 Aqua Connected / EnergySilence Aero 5285 Sun WhiteTransparent / EnergySilence Aero 5285 Sun BlackTransparent / EnergySilence Aero 5600 Aqua Black&Black Connected / EnergySilence Aero 5600 Aqua GoldBlack Connected / EnergySilence Aero 5600 Aqua IronBlack Connected / EnergySilence Aero 5600 Aqua Black&White Connected / EnergySilence Aero 5600 Aqua White&Black Connected / EnergySilence Aero 5600 Aqua GoldDarkWood Connected / EnergySilence Aero 5600 Aqua IronDarkWood Connected / EnergySilence Aero 5600 Aqua GoldWhite Connected / EnergySilence Aero 5600 Aqua IronWhite Connected / EnergySilence Aero 5600 Aqua Black&WhiteWood Connected / EnergySilence Aero 5600 Aqua GoldWhiteWood Connected / EnergySilence Aero 5500 Aqua White&White Connected / EnergySilence Aero 5600 Aqua WhiteDarkWood Connected

Referencja produktu: 08238 / 08239 / 08240 / 08242 / 08498 / 08499 / 08524 / 08525 / 08526 / 08527 / 08528 / 08529 / 08530 / 08531 / 08532 / 08533 / 08534 / 08535 / 08536

Model: EnergySilence Aero 5600 White Aqua Connected / EnergySilence Aero 5600 Black Aqua Connected / EnergySilence Aero 5600 Steel Aqua Connected / EnergySilence Aero 5600 Aqua Connected / EnergySilence Aero 5285 Sun WhiteTransparent / EnergySilence Aero 5285 Sun BlackTransparent / EnergySilence Aero 5600 Aqua Black&Black Connected / EnergySilence Aero 5600 Aqua GoldBlack Connected / EnergySilence Aero 5600 Aqua IronBlack Connected / EnergySilence Aero 5600 Aqua Black&White Connected / EnergySilence Aero 5600 Aqua White&Black Connected / EnergySilence Aero 5600 Aqua GoldDarkWood Connected / EnergySilence Aero 5600 Aqua IronDarkWood Connected / EnergySilence Aero 5600 Aqua GoldWhite Connected / EnergySilence Aero 5600 Aqua IronWhite Connected / EnergySilence Aero 5600 Aqua Black&WhiteWood Connected / EnergySilence Aero 5600 Aqua GoldWhiteWood Connected / EnergySilence Aero 5500 Aqua White&White Connected / EnergySilence Aero 5600 Aqua WhiteDarkWood Connected

Referenční číslo výrobku: 08238 / 08239 / 08240 / 08242 / 08498 / 08499 / 08524 / 08525 / 08526 / 08527 / 08528 / 08529 / 08530 / 08531 / 08532 / 08533 / 08534 / 08535 / 08536

Fig./Img./Abb./Afb./Rys.2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

1

2

3

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./ Rys. 7

Fig./Img./Abb./Afb./Rys. 8

Fig./Img./Abb./Afb./ Rys. 9

Fig./Img./Abb./Afb./Rys. 10

Fig./Img./Abb./Afb./ Rys. 11

www.cecotec.es
