USER MANUAL Energysilence Aero 5295 CECOTEC
Safety instructions 7
- Parts and components 40
- Before use 40
- Assembling the appliance 41
- Operation 43
- Cleaning and maintenance 45
- Troubleshooting 45
- Technical specifications 46
- Disposal of old electrical and electronic appliances 46
- Technical support and warranty 47
- Copyright 47
SOMMAIRE
Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.
- This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
- Keep a minimum distance of 2.3 cm between the fan blades and the floor.
- Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.
- Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.
- This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
- Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.
- If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service to avoid any type of danger.
- Do not use the appliance if its cord or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.
-
The appliance must be installed in accordance with national wiring regulations.
-
Never insert objects or body parts between the rotating fan blades.
- To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and use only parts and components provided and recommended by Cecotec.
- Cut off the power completely before installing or repairing the fan to avoid the risk of electric shock.
- The electrical wiring must be in accordance with the local regulations.
- The cable must be properly earthed to avoid possible accidents.
- Never install the fan in a damp or wet room.
- Be careful when near the rotating fan blades.
- To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.
- Do not bend the blade-attachment system during the installation or cleaning process.
- Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly. Turn off and unplug the appliance before cleaning it.
- Make sure the fan is not placed close to curtains or other objects it may become entangled with.
- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
- It is recommended that two people install the appliance.
- This appliance is designed for indoor use.
Instructions on batteries
- Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
- In case of battery ingestion, please seek medical attention immediately.
- Do not allow children to replace batteries without adult supervision.
- Do not disassemble, open, or damage the batteries.
- Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.
- Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
- Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.
INSTRUCTIONS DE SÉCURITÉ
EnergySilence Aero 5295 WhiteWood
EnergySilence Aero 5295 DarkWood
Voltaje: 220-240 V
| Number | Description | Quantity |
| 1 | Installation bracket | 1 |
| 2 | Hanging ball | 1 |
| 3 | Downrod | 1 |
| 4 | Canopy | 1 |
| 5 | Canopy screws | 2 |
| 6 | Clevis pin | 1 |
| 7 | Stop pin clip | 1 |
| 8 | Connections cover | 1 |
| 9 | Blade screw | 6 |
| 10 | Motor assembly | 1 |
| 11 | Blade | 3 |
| 12 | Lampshade | 1 |
| 13 | Remote control | 1 |
| 14 | Receiver | 2 |
NOTE:
The graphics in this manual are schematic representations and may not exactly match the device.
2. BEFORE USE
- This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
- Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.
Box content
- Fan
- Assembly kit
- Remote control
- Batteries 2 x AAA
- Instruction manual
3. ASSEMBLING THE APPLIANCE
Fan installation
Wooden ceiling
Fig. 2
Secure the mounting bracket firmly to the wooden ceiling beam with a drill bit.
Brick/concrete ceiling
Fig. 3
- You can enlarge the holes in the mounting bracket with a medium 8 mm drill bit. Use the M6 expansion bolts to attach the mounting bracket to the side of the screw hook.
- The distance between the screw hooks and the mounting bracket must be between 8 and 10 mm.
- The installation of the screw hook must not interfere with the mounting bracket and must not affect the positioning of the receiver.
Safety cable installation
Fig. 4
- Loosen the screw on the safety cable.
- Place the cable ring on the hook bolt and tighten the cable.
- Finally, retighten the screw.
NOTE: connect the cables according to the wiring instructions in the wiring diagram. Fig. 5
Fig. 5 key
L: Live wire
N: Neutral

Earth wire
Fan installation
- Attach the mounting bracket to the ceiling beam or to a suitable piece of wood inserted between the ceiling beams.
ENGLISH
NOTE: the mounting bracket must be secured with the washers and screws provided.

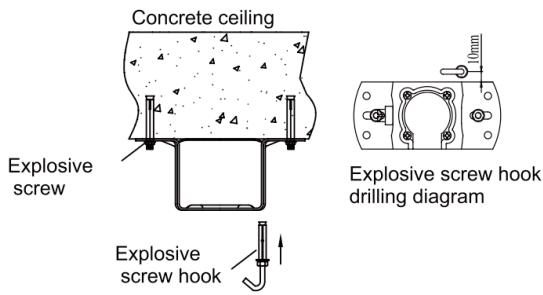

Brick/ concrete ceiling
Fig. 6.
- Drill holes with 8 mm drill bits, considering the length of the expansion screws used.
-
Then, fix the mounting bracket to the ceiling with the expansion screws.
-
Fit the blades, insert the screws, and tighten them with a nut. Fig. 7
-
Connect the cables according to the diagram.
-
Remove the clevis pin and clevis from the downrod. Slide the downrod through the canopy and the downrod cover. Fig. 8
-
Loosen the screws of the mounting bracket and then place the downrod. Fig. 9.
-
Pass the fan wires and the earth wire through the downrod. Align the holes in the clevis pin of the downrod with the holes in the bracket. Make sure to insert the straight part of the clevis pin through the hole in the end of the clevis pin and press until the crimped part snaps into position.
-
Finally, retighten the screws.
NOTE: it is very important that the downrod bracket pin is correctly installed and that the screws are tightened securely; if the pin, clevis, or screws are not correctly positioned, the fan may fall.
- Lift the fan carefully and place the downrod and hanging ball in the mounting bracket attached to the ceiling. Make sure that the groove in the hanging ball is properly aligned with the tab on the mounting bracket. Fig. 10
Fig. 10 key
a. Clip
b. Slot
c. Mounting bracket
WARNING: the fan must be placed at a minimum distance of 230 cm from the floor.

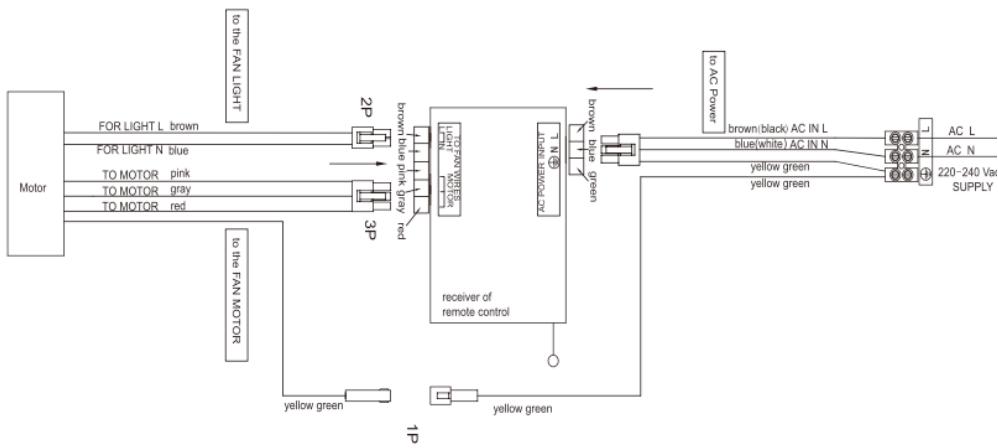

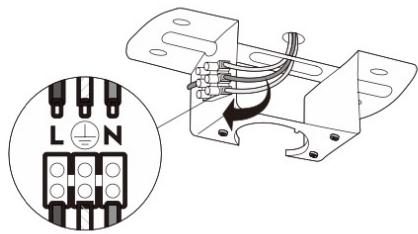

Connections
Fig. 11
WARNING: to avoid the risk of electric shock, be sure to disconnect the mains supply from the switchboard before connecting the cables.
-
Connect the main power supply (house) to the terminal block located on the mounting bracket.
-
Plug the receiver into the bracket with the flat side up.
-
Next:
-
Insert the 3P connector of the mounting bracket into the AC POWER INPUT socket of the receiver.
- Insert the 2P light connector from the fan motor assembly into the 2P LIGHT socket on the receiver.
- Insert the 3P connector of the fan motor into the 3P MOTOR socket of the receiver.
-
Connect the yellow/green 1P connectors of the motor and the mounting bracket.
-
Carefully attach the lampshade to the main frame and turn it clockwise to secure it. Fig. 12
WARNING: do not over tighten when installing the lampshade.
- Fit the canopy by tightening the two screws. Fig. 13.
4. OPERATION
Remote control
- Reconnect the mains supply from the electrical switchboard in the house.
- Remove the battery-compartment cover of the remote control, insert the batteries, and replace the cover.
Note:
- The remote control is powered by two AAA 1.5 V batteries.
- If the fan is not to be used for a long period of time, store the remote control in a dry place where it will not be exposed to heat or direct sunlight. Also, remove the batteries.
Fig. 14
- Power button
- Clockwise rotation
- Switch off the fan
- Light button with 3 selectable light shades
- Counterclockwise rotation
- Natural mode
- Setting the speed It has 6 speeds.
- Timer buttons
2 hrs: the fan will automatically switch off after two hours of operation.
4 hrs: the fan will automatically switch off after four hours of operation.
8 hrs: the fan will automatically switch off after eight hours of operation.
ENGLISH
Pairing between remote control and receiver
- Press the power button for 30 seconds and then, press any button on the remote control for 5 seconds. You will hear a beep, which means that the pairing has been completed successfully, so you can use the remote control normally.
- Be sure to press the power button for 30 seconds before pairing the remote control, otherwise you will not be able to pair it.
NOTE:
- If you notice that the transmitter does not control the receiver, check that the batteries are inserted correctly and that they are not dead.
- This may also be due to the proximity of similar products that also operate with a remote control, which, if they use the same frequency, could cause interference.
- If the batteries in the remote control are dead, replace them so that you can continue to use it normally.
- Remove the batteries from the remote control if you are not going to use it for a long period of time.
- Make sure that the earth wire is properly connected.
- When positioning the fan, make sure that no wires are pinched. If this happens, a short-circuit may occur.
Reminder
- The receiver must be correctly installed in the fan mounting bracket.
- Remove the batteries from the remote control if you are not going to use it for a long period of time.
- The isolation switch must be switched on.
- If the power is cut off (e.g. due to a blackout) the light will go out. When the power is restored, the light will switch on again.
Receiver protection functions
- The DC motor has a built-in safety feature against blade or motor obstruction during operation.
- During operation, if any object obstructs the fan blades or motor, the motor will attempt to run for 30 seconds and then stop operating. Remove obstructions and restart the motor. To restart it: Switch the fan off from the remote control and then switch it on again.
- The device will limit the maximum current output from the receiver/drive if the fan load has increased abnormally.
NOTE:
- It is not possible to control more than one fan in the same room if they share the same power supply. If you want to separately control more than one fan in the same room, you must use separate power supplies.
- When the fan is switched on and starts running in either direction (clockwise or counterclockwise), it will stop and change direction several times. This is normal. The fan will take some time to perform the selected function and to start up regularly.
5. CLEANING AND MAINTENANCE
- Clean the fan regularly.
- When cleaning, only use a soft brush or lint-free cloth to avoid scratching the finish.
- Abrasive cleaning agents are not necessary and should be avoided in order not to damage the finish.
RECOMMENDATION:
Periodically check that the blades are securely fastened to the motor with the screws.
WARNING: do not use solvents to clean the fan. Doing so may result in a risk of electric shock.
6. TROUBLESHOOTING
Wobble
- Note that not all ceiling fans are the same (not even those that are the same model), some move more than others.
- The fact that the fan moves a couple of centimetres does not indicate that it will fall over.
- Even if all blades are ballasted and grouped by weight, it is impossible to completely avoid wobble. This is not a problem. Ceiling fans tend to move during operation.
To reduce wobble, try the following:
- Check that all of the blade mounting screws are tightened and secure.
- Fan wobble may be caused by the unevenness of the fan blades. To check the blade level, measure the distance from each blade tip to the ceiling.
Note: If measurements are irregular:
-
Be sure the blade mount screws are not too tight or too loose, which may cause wobbling due to an unlevelled blade tip.
-
A deformed blade can cause wobbling. Check by removing the blade and placing on a flat surface.
-
Blade tracking may be checked simply by use of a household ruler. Place the ruler vertically against the ceiling and even with the outside leading edge of a blade. Note the distance of the edge of a blade compared to the others. Turn the blade slowly by hand to check the remaining blades.
-
If a blade is not in alignment, the blade is either out of shape, warped or the blade screws are not evenly tightened or either loose.
ENGLISH
7. TECHNICAL SPECIFICATIONS
Product reference: 08616 / 08617 / 08618 / 08619
Product:
EnergySilence Aero 5295 Black
EnergySilence Aero 5295 White
EnergySilence Aero 5295 WhiteWood
EnergySilence Aero 5295 DarkWood
Voltage: 220-240 V
Frequency: 50/60 Hz
Power: 40 W
LED: 18 W
| Description | Symbol | Value | Unit |
| Fan maximum flow | F | 180.29 | m^3/min |
| Fan power consumption | P | 40.12 | W |
| Service value | SV | 4.49 | (m^3/min)/W |
| Power consumption on standby mode | P_SB | 0.45 | W |
| Fan sound power level | L_WA | 49.89 | dB (A) |
| Maximum air speed | C | 2.85 | m/seg |
| Service value measurement standard | IEC 60879:2019 | ||
| Contact details to obtain more information | Cecotec Innovaciones SL.Av. Reyes Católicos, No 60, 46910, Alfafar(Valencia, Spain) | ||
Technical specifications may change without prior notification to improve product quality.
Made in China | Designed in Spain
8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the
local authorities.
Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.
Compliance with the above guidelines will help protecting the environment.
9. TECHNICAL SUPPORT AND WARRANTY
Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.
It is recommended that repairs be carried out by qualified personnel.
If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at +34 96 321 07 28.
10. COPYRIGHT
The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.
FRANÇAIS
1. PIÈCES ET COMPOSANTS
Img.1
EnergySilence Aero 5295 WhiteWood
EnergySilence Aero 5295 DarkWood
Voltage : 220-240 V
EnergySilence Aero 5295 WhiteWood
EnergySilence Aero 5295 DarkWood
Spannung: 220-240 V
Frequenz: 50/60 Hz
Leistung: 40 W
Led: 18 W
EnergySilence Aero 5295 WhiteWood
EnergySilence Aero 5295 DarkWood
Tensione: 220-240 V
Frequenza: 50/60 Hz
Potenza: 40 W
Led: 18 W
EnergySilence Aero 5295 WhiteWood
EnergySilence Aero 5295 DarkWood
Tensão: 220-240 V
6. PROBLEEMOPLOSSING
Ventilator schommelt
EnergySilence Aero 5295 WhiteWood
EnergySilence Aero 5295 DarkWood
Voltage: 220-240 V
Frequentie: 50/60 Hz
Vermogen: 40 W
LED: 18 W
EnergySilence Aero 5295 WhiteWood
EnergySilence Aero 5295 DarkWood
Napiecie: 220-240 V
EnergySilence Aero 5295 WhiteWood
EnergySilence Aero 5295 DarkWood
Napětí: 220-240 V
Frekvence: 50/60 Hz
Výkon: 40 W
Led: 18 W
Fig./Img./Abb./Afb./Rys./Obr. 2

Fig./Img./Abb./Afb./ Rys./Obr. 3

Fig./Img./Abb./Afb./Rys./Obr. 4
L - Live wire
N - Null line
Earth wire

Fig./Img./Abb./Afb./Rys./Obr. 5


Fig./Img./Abb./Afb./Rys./Obr. 6

Fig./Img./Abb./Afb./ Rys./Obr. 7

Fig./Img./Abb./Afb./Rys./Obr. 8

Fig./Img./Abb./Afb./ Rys./Obr. 9

Fig./Img./Abb./Afb./ Rys./Obr. 10

Fig./Img./Abb./Afb./ Rys./Obr. 11

Fig./Img./Abb./Afb./ Rys./Obr. 12

Fig./Img./Abb./Afb./ Rys./Obr. 13

Fig./Img./Abb./Afb./ Rys./Obr. 13
www.cecotec.es
