Product type	Side-by-side refrigerator
Brand	Cecotec
Model	Bolero Coolmarket Sbs 562 Dark E
Total capacity	562 liters
Dimensions (W x H x D)	90 x 180 x 70 cm
Net weight	95 kg
Power supply	220-240 V, 50 Hz
Energy class	E
Annual energy consumption	350 kWh/year
Refrigeration type	Ventilated (No Frost)
Interior lighting	LED
Water dispenser	No
Ice maker	No
Number of shelves	5 in the refrigerator, 3 in the freezer
Number of vegetable drawers	2
Number of door bins	4 in the refrigerator door, 2 in the freezer door
Freezing capacity	12 kg/24h
Power failure autonomy	15 h
Climate class	SN-ST
Maintenance and cleaning	Automatic defrost, clean with a soft cloth and soapy water
Spare parts	Available through Cecotec after-sales service
Safety	Automatic door closing

Frequently Asked Questions - Bolero Coolmarket Sbs 562 Dark E CECOTEC

What is the ideal temperature for the refrigerator and freezer?

The optimal temperature for the refrigerator is 4°C and for the freezer -18°C. Use the recommended settings to keep your food safe.

My refrigerator makes an abnormal noise, what should I do?

A slight humming is normal. If the noise is loud or irregular, check that the appliance is level and not in contact with furniture. If the noise persists, contact after-sales service.

How to adjust the temperature?

Turn the adjustment knob inside the refrigerator or use the digital control panel (depending on the model). Consult the manual for precise settings.

The refrigerator is not cooling enough, what should I check?

Make sure the door is properly closed, the seals are clean, and the ventilation grilles are not blocked. Also check that the condenser is clean.

How to clean the interior of the refrigerator?

Unplug the appliance, remove the shelves and wash them with soapy water. Clean the interior with a soft cloth and diluted baking soda. Rinse and dry before restarting.

How long does it take for the temperature to stabilize after installation?

After installation, wait about 24 hours before placing food to allow the temperature to stabilize.

Can I reverse the door opening direction?

Yes, for most side by side models, reversal is possible but complex. Consult the manual or call a qualified technician.

What to do in case of a power cut?

Avoid opening the doors. The refrigerator keeps the cold for about 15 hours. After a prolonged outage, check the condition of frozen food.

Where to buy spare parts?

Spare parts are available from Cecotec after-sales service or authorized dealers. Use original parts to ensure compliance.

How to defrost the freezer?

This model is equipped with the No Frost system, it defrosts automatically. No manual action is required.

USER MANUAL Bolero Coolmarket Sbs 562 Dark E CECOTEC

Instrucciones de seguridad 4
Safety instructions 11
Instructions de sécurité 17
Sicherheitshinweise 24
Istruzioni di sicurezza 31
Instruções de segurança 38
Veiligheidsvoorschriften 44
Instrukcja bezpieczeństwa 51
Bezpečnostní pokyny 58

ÍNDICE

1. Parts and components 79
2. Before use 79
3. Installation 80
4. Operation 81
5. Instructions on food storage 84
6. Cleaning and maintenance 86
7. Troubleshooting 87
8. Technical specifications 90
9. Disposal of old electrical and electronic appliances 91
10. Technical support and warranty 91
11. Copyright 91

SOMMAIRE

Read the instructions carefully before using the appliance for the first time and keep this instruction manual for future reference or new users.

• It is important to make sure all users are familiar with the operation and safety features of the appliance to prevent faults and unnecessary accidents.
• Make sure that the mains voltage in your house matches the voltage stated on the rating label of the appliance.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Do not store explosive substances such as aerosol cans with flammable propellant in this appliance.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• To avoid food contamination, please follow the instructions below:
• Opening the door for a long period of time may cause a significant increase in temperature in the appliance's compartments.
• Regularly clean food contact surfaces and accessible drainage systems.

• If the freezer appliance remains empty for a long period of time, unplug it, defrost it, clean it, dry it, and leave the door open to prevent interior mould formation.

• WARNING: when positioning the appliance, make sure the power cable does not get trapped or damaged. A crushed or damaged connector may heat up and cause a fire.

• Make sure the appliance plug is accessible after installation.
• WARNING: do not attach multi-socket adaptors or multiple power supplies to the rear part of the appliance.
• WARNING: keep the ventilation grilles on the enclosure of the appliance or the cabinet in which the appliance is located clear.
• WARNING: do not use mechanical appliances or other means to accelerate the defrosting process other than those recommended by Cecotec.
• WARNING: do not use electrical appliances inside the refrigerator.
• WARNING: do not damage the refrigeration circuit.
• If the cable is damaged, it must be replaced by the manufacturer, the supplier, or qualified personnel to avoid hazards.
• We recommend you check the power cable regularly to detect any sign of possible damage. Do not use the appliance if the cable is damaged.
• WARNING: to avoid any risk due to the instability of the refrigerator, you must install it according to the instructions.
• WARNING! It is dangerous for anyone other than authorised personnel to carry out maintenance or repairs involving the removal of covers. To prevent the electric shock risk do not attempt to repair the appliance yourself.
• Do not place carbonated beverages in the freezer compartment. Ice cream can cause “freezer burns”. This can happen if they are ingested after removal from the freezer.
• Do not remove items from the freezer with wet/moist hands, as this may cause skin abrasions or "frostbites". Bottles and

cans should not be placed in the freezer, as they may burst when their contents freeze.

• Frozen food can cause ice burns if consumed right after removing it from the freezer compartment.
• See the storage times recommended by the manufacturer.
• Do not allow children to play with the controls or the freezer. The appliance is a heavy appliance. Caution must be taken when moving the appliance. It is dangerous to alter specifications or attempt to modify this appliance in any way.
• WARNING: doors or covers fitted with locks and keys must be kept out of the reach of children and not in the vicinity of the freezing appliance to prevent children from being locked inside.
• WARNING: the refrigerant used in your appliance and the insulation materials must be disposed of correctly.
• Keep the packaging material away from children, as there is a risk of suffocation.
• WARNING: if the interior light is damaged, contact the official Cecotec Technical Support Service. Do not try to repair it on your own.
• Make sure the appliance plug is accessible after installation.
• Do not place food directly against the air outlet on the interior of the appliance.
• Do not place hot food or drinks in the refrigerator, allow them to cool down to room temperature beforehand.
• This appliance has a built-in earthed plug. Make sure the power supply in your house is properly earthed.
• Keep the ventilation openings clear from obstructions.

• Wait 5 minutes after a power failure before turning the appliance back on. Otherwise, the compressor may get damaged.

• Do not place carbonated or fizzy drinks in the freezer compartment, as this creates pressure in the container, which could explode and damage the appliance.

• To avoid injuries or death caused by electric shock, do not use the appliance with your hands wet or over a wet surface.
• You should never use this refrigerator with an extension lead or a multi-socket adaptor. Make sure the appliance is plugged in directly to a power supply.
• When positioning the appliance, make sure there is enough free space at the rear, as it is the main heat outlet. This will allow for adequate ventilation.
• Do not place any other appliance on the refrigerator and do not wet it.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• It is advisable to wait for at least four hours before connecting the appliance to allow oil to flow through the compressor.
• Do not use the appliance outdoors or in damp environments.
• Always handle the appliance carefully to avoid any damage on it.
• Never use the base, drawers, or door as support.
• Do not overload the door shelves or place too much food on the drawers to prevent items from falling off and damaging the appliance.
• Store raw meat and fish in proper containers in the freezer, so they do not come into contact with or leak on other food.
• The two-star compartments are suitable for storing pre-frozen food, storing, or making ice cream, and making ice cubes.
• Compartments with one, two, or three stars are not suitable for freezing fresh food.
• Air must flow around the appliance. Lack of air leads

to overheating. To achieve good ventilation, follow the installation instructions.

• Make sure the power cord is accessible after installation.
• All electrical work required to maintain this appliance must be carried out by a qualified electrician.

Temperature range

The appliance temperature range information can be found on its marking. Indicates the optimum room temperature for proper operation of the appliance.

Climate range	Optimum room temperature
SN	From +10 °C to +32 °C
N	From +16 °C to +32 °C
ST	From +16 °C to +38 °C
T	From +16 °C to +43 °C

WARNING: if the refrigerator is operated outside the climate class for which it is rated (SN/N/ST), it may not be able to maintain satisfactory internal temperatures.

Notes:

- Bearing in mind the limiting values of the room temperature range for the climates for which the cooling appliance is designed and that internal temperatures may be affected by factors such as the location of the cooling appliance, room temperature and frequency of door opening, it may be necessary to modify the setting of any temperature-control device according to these factors.

- If the appliance is operated in an environment other than the specified climate type (i.e. beyond the rated ambient temperature range), it may not be able to maintain the desired compartment temperatures.

Refrigerant

• This refrigerator uses freon-free refrigerant (R600a) and foaming insulation material (cyclopentane), which are environmentally friendly, do not cause damage to the ozone layer, and have a very low impact on global warming. R600a is flammable and does not leak during normal use when sealed in a refrigeration system. In the event of refrigerant leakage due to damage to the refrigerant circuit, be sure to keep the appliance away from open flames and open the windows to ventilate as soon as possible.
• WARNING: the refrigerant and the insulator gas are flammable. When disposing of the appliance, only dispose of it at an authorised waste-disposal facility. Do not expose it to flames.
• WARNING: the appliance contains refrigerant and gases in the insulation. The appliance and gases must be disposed of professionally, as they may cause injuries to eyes or ignition. Make sure the refrigeration-circuit pipe is not damaged before disposing of it correctly.
• This symbol means: Warning: Risk of fire/flammable materials
• If the refrigeration circuit is damaged:
• Avoid open flames and sources of ignition.
• Completely air the room where the appliance is located.

INSTRUCTIONS DE SÉCURITÉ

1. LED indicator light
2. Door shelves (freezer compartment)
3. Shelves (freezer compartment)
4. Drawer covers
5. Freezer-compartment drawer
6. Refrigerator-compartment drawer
7. Egg holder
8. Shelves (refrigerator compartment)
9. Door shelves (refrigerator compartment)

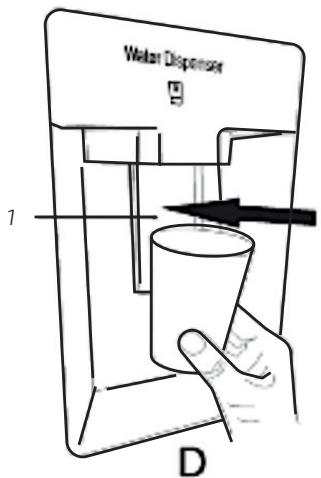

10. Water dispenser

Note

• The graphics in this manual are schematic representations and may not exactly match the device.
• To make the most out of the refrigerator in terms of energy, place all the shelves and drawers in their original position, that is, as shown in Figure 1.

2. BEFORE USE

• This refrigerator includes a packaging designed to protect it during transport. Take the refrigerator out of the box. You can keep the original box and other elements in a safe place, this will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or not in good condition, immediately contact the official Cecotec Technical Support Service.

Levelling

• Make sure you level your refrigerator with the front levelling feet. If it is not levelled, the refrigerator performance will be affected, or it can even cause a malfunction.
• After installing the refrigerator, wait 4 hours before using it to allow the refrigerant to stabilise.

Box content

• Refrigerator
• Instruction manual

3. INSTALLATION

• The location you choose for the refrigerator must be properly ventilated and away from heat sources. Do not place the refrigerator near heat sources, like a hob, and avoid direct sunlight to ensure the cooling effect and save on energy consumption. It is not recommended to place the refrigerator in a wet place, as it may rust and cause electrical leakage.
• During operation, the refrigerator releases heat into the environment. Therefore, you should leave at least 300 mm of free space at the top, more than 100 mm on both sides, and more than 50 mm at the rear of the refrigerator.

Width (mm)	Depth (mm)	Height (mm)	A (mm)	B (mm)	C (°)	E (mm)	F (mm)
912	704	1770	1524	1062	160	50	100

Figure 2 only illustrates the space required for the refrigerator.

Stable surface

• Place the freezer on a solid, flat surface to keep it stable, otherwise vibrations and noises will occur.
• Ensure a ventilation free of obstacles around the refrigerator.

Preparing for use

Waiting time

Once the refrigerator is installed and clean, do not turn it on immediately, wait at least 4 hours before connecting it to the power supply.

Cleaning

Check the position of the shelves and drawers in the interior of the refrigerator and clean the interior with a soft cloth.

Switch on

Connect the plug into a power socket to switch on the refrigerator. After one hour, open the freezer compartment door: if the temperature inside the freezer compartment has dropped, the cooling system is running normally.

Food storage

Once the refrigerator is running, insert the food.

When the temperature is high, food may take longer to cool down completely (try to open the refrigerator doors as infrequently as possible).

If the refrigerator is installed in a wet place, you must check the earth wire and the circuit breaker are working normally. If vibration noises occur due to contact of the refrigerator with the wall or if the wall turns black due to air convection around the compressor, keep the refrigerator further away from the wall.

The installation of the refrigerator may cause noise interference or image problems in mobile phones, landline phones, radio receivers, or televisions near the refrigerator, so in this case, keep the refrigerator as far away from these objects as possible.

4. OPERATION

Fig. 3. Control panel

1. Freezer-compartment indicator light
2. Smart indicator light (Holiday mode)
3. Inverter indicator light
4. Fast Freezing indicator light
5. Temp. button Zone
6. Function button
7. Unlock button
8. Refrigerator-compartment indicator light
9. Digital temperature indicator light
10. Temp. button

11. OK button

12. When you connect the refrigerator to the power supply for the first time, all indicator lights on the display will light up for 2 seconds, and the system will activate the Smart function by default. When all doors are closed, the display will automatically switch off if no button is pressed within 3 minutes. The display will light up if you open a door or press a button. Please note that the child lock is activated after 3 minutes of inactivity, so the buttons will be inactive until you deactivate the child lock.

13. The Inverter indicator light will light up when the refrigerator is connected to the mains and the compressor starts.

Functions

Temperature setting

Setting the refrigerator compartment temperature

• Press the Temp. Zone button. until the refrigerator-compartment indicator light starts flashing, then press the Temp. button to select the desired temperature; finally, press the OK button to confirm the setting.
• The temperature setting cycles of the refrigerator compartment are: 5^ 6^ 7^ 8^ 0FF 2^ 3^ 4^ 5^
• OFF means the refrigerator compartment is off, and when you activate this function, the refrigerator will stop cooling.
• Make sure you remove all the food from the refrigerator compartment before setting this function.

Setting the freezer compartment temperature

• Press the Temp. Zone button. until the freezer-compartment indicator light starts flashing, then press the Temp. button to select the desired temperature; finally, press the OK button to confirm the setting.
• The temperature setting cycles of the freezer compartment are:
  -18^ -17^ -16^ -24^ -23^ -22^ -21^ -20^ -19^ -18^

Fast freezing

• When you activate the fast freezing function, the freezer-compartment temperature will be set to -32^ automatically. The fast freezing function is used to prevent loss of nutritional quality and to preserve food freshness.
• With the fast freezing function, you cannot set the freezer compartment temperature.

Activating the fast freezing function

- Press the Function button until the fast freezing indicator light starts flashing, then press the OK button within 5 seconds to confirm your choice. If you do not press the OK button within 5 seconds, this function will not be activated.

Deactivating the fast freezing function

• After 26 hours of operation, the fast freezing function will be automatically deactivated.
• With the fast freezing function activated, press the Function button until the fast freezing indicator light starts flashing, then press the OK button to confirm and the fast freezing function will be deactivated.
• When you activate the Smart function, the fast freezing function deactivates automatically.

Smart

- When you activate the Smart function, the temperature in the refrigerator compartment will be set to 5 °C and the temperature in the freezer compartment will be set to -18 °C, so that food will be preserved in the best possible conditions and the refrigerator will operate as efficiently as possible.

With the Smart function, you cannot modify the temperature of any compartment.

Activating the Smart function

- Press the Function button until the Smart indicator light starts flashing, then press the OK button within 5 seconds to confirm your choice. If you do not press the OK button within 5 seconds, this function will not be activated.

Deactivating the Smart function

• With the Smart function activated, press the Function button until the Smart indicator light starts flashing, then press the OK button within 5 seconds to confirm your choice. The Smart function will be deactivated.
• When you activate the fast freezing function, the Smart function deactivates automatically.

Child Lock

• When you activate the child lock, you will not be able to modify the temperature and function to avoid undesired changes.
• If you do not press any button within 3 minutes, the child lock function will be activated automatically.

Manual deactivation of the child lock

- Hold down the Unlock button for 3 seconds to deactivate the child lock.

Please note

The child lock function is not available on the appliance with glass door.

Open door alarm

- If any door is open for more than 3 minutes, the refrigerator will emit an alarm sound, which can be stopped by pressing any button, but will sound again if the door is still open 3 minutes later. The alarm sound will not stop until you close the door.

Function memory after power failure

- In the event of a power failure, the refrigerator will save the functions set before the power failure and will activate them when the power is restored.

Delay Start

- To prevent damage to the refrigerator compressor in the event of a short power failure (i.e. less than 5 minutes), the compressor will not start immediately after switch-on.

Overheating warning (only after a power failure)

- When the refrigerator cooling system is on, if the freezer-compartment temperature is above -10 °C, the freezer-compartment temperature digits will flash on the display. The display will show the freezer-compartment temperature when you press any button, and it will return to its usual state when you press any button again or after 10 seconds.

Fault alarm

- If the display shows E0, E1, E2, EH, or EC, it indicates there's a fault in the refrigerator. Contact the official Cecotec Technical Support Service.

5. INSTRUCTIONS ON FOOD STORAGE

Use precautions

• The refrigerator may not operate consistently (there may be some defrosting of the contents, or the temperature may become too hot in the freezer compartment) if placed in locations with a temperature outside of the temperature range for which it's designed for a long period of time.
• The internal temperature may be affected by factors such as the location of the refrigerator, room temperature, and door opening frequency, etc., and you should take these factors into account if you decide to use any temperature-control device.
• Effervescent or carbonated drinks should not be stored in the freezer compartment or drawer of the refrigerator.

Food location

• Due to the circulation of cold air in the refrigerator, the temperature in each zone is different, so food must be placed in different zones.
• The refrigerator compartment is suitable to store food that does not need to be frozen, cooked food, beer, eggs, some seasonings that need to be kept cold, milk, fruit juice, etc. The crisper drawer is the best place to store fruit and vegetables.
• The freezer compartment is suitable to store ice cream, frozen foods, and foods that need to be kept for a long time.

Using the refrigerator compartment

• Shelves: to remove the shelves, first lift them up and then pull them out; to put them back, put them into their position before lowering them. Keep the rear edge of the shelf facing upwards to prevent food from coming into contact with the wall. When removing and fitting shelves, hold them firmly and handle them carefully to avoid damage.
• Refrigerator-compartment drawer: pull out the fruit and vegetable crisper drawer to access the food. After using or cleaning the bottom shelf of the refrigerator (the drawer cover), put it back in place so that the internal temperature of the drawer is not affected.

Drawer-humidity control (depending on model)

• If your refrigerator is equipped with a drawer-humidity regulator, follow the instructions below:
• The humidity regulator of the drawer is designed to preserve the humidity and freshness of the vegetables.
• If you slide the humidity regulator to the right, more gaps will be exposed, and the drawer will have a lower humidity level.
• If you slide the humidity regulator to the left, less gaps will be exposed, and the drawer will have a higher humidity level.

Care for food storage

• Clean and dry food completely before storing it in the refrigerator. Before introducing food in the refrigerator, it is advisable to seal it to prevent water evaporation and thus keep fruit and vegetables fresh on the one hand, and to prevent odours on the other.
• Leave enough space between the food; if they are too close together, they will block the flow of cold air, which will affect the cooling effect. Do not store too much or too heavy food to prevent the shelves from bending. When storing food, leave a distance from the interior wall; do not place water-rich food too close to the inner wall of the refrigerator to prevent it from freezing on the interior wall.
• Food storage by category: place daily food items at the front of the shelf so that you can reduce the door opening time and avoid food spoilage due to expiry.
• Energy saving tips: let hot food cool down to room temperature before putting it in the refrigerator. Place frozen food in the refrigerator compartment to defrost it.

Storing fruits and vegetables

- Please note that some types of fresh vegetables and fruits are sensitive to cold and therefore not suitable for storage in the refrigerator crisper drawer.

Using the freezer compartment

• The freezer-compartment temperature is kept at -18 °C, so it is advisable to store food that you wish to keep for a long period of time in the freezer compartment, always respecting the storage time indicated on the food packaging.
• The freezer-compartment drawers are suitable to store food which needs to be frozen. Large fish and meat should be cut into small pieces and placed in freezer bags before placing them in the freezer-compartment drawers.
• Let hot food cool down to room temperature before putting it in the freezer compartment.
• Do not place a glass container with liquid or sealed canned liquid in the freezer compartment to prevent them from exploding due to volume expansion after freezing the liquid.
• Divide food into small portions.
• Food should be packed or covered with suitable materials that are firm, tasteless, impermeable to air and water, non-toxic, and non-polluting to avoid cross-contamination and odour transfer.

Using the ice cube tray

- Place the ice cube tray in the upper part of the freezer compartment so that it freezes as quickly as possible.

Tips on the water dispenser (only for models 02440\_Bolero CoolMarket SBS 559 Inox E and 02442\_Bolero CoolMarket SBS 559 Dark E)

If your refrigerator includes a water dispenser, follow these instructions:

1. Open the refrigerator door and make sure the water dispenser is properly fixed.
2. Turn the water tank cap to the left to open the water-tank filling cap and fill the water tank avoiding spillage until full. Finally, close the water tank. Fig. 4
3. Once the water tank is full, set the temperature on the lower mode or the Fast Cool mode, and after an hour you will be able to dispense cold water. Fig. 5
4. When you use the water dispenser, it may drip, and some water may accumulate on the lower part of the dispenser. Clean it with a cloth if necessary.

Fig. 4 key:

1. Water-tank cap
2. Water-tank filling cap
3. Water tank

Fig. 5 key:

1. Water dispenser button

Please note

• Do not exceed the maximum filling line.
• Do not remove the container until water stops dripping.

6. CLEANING AND MAINTENANCE

If the refrigerator will not be used for a long period of time:

• Turn off the refrigerator and unplug it from the power supply.
• Remove all the food.
• Clean and dry the interior completely. To prevent mould or unpleasant odours, leave the door slightly open: lock it open or remove it if necessary.
• Store the appliance in a ventilated and dry place, away from heat sources; place the appliance carefully and do not place heavy objects on it.
• The unit must be kept out of the reach of children to prevent them from playing with it.
• Before cleaning, disconnect the power plug; do not connect or disconnect the power plug with your hands wet, as there is a risk of electric shock and injury. Do not spill water directly on the refrigerator to avoid rust, electrical leakage, and accidents. Do not reach into the bottom of the refrigerator, as you may get scratched by the sharp metal corners.

Cleaning the interior and exterior

• Food residues in the refrigerator can cause undesired odours, so you should clean the refrigerator regularly. The refrigerator compartment should be cleaned once a month.
• Remove all shelves, the crisper drawer, etc., and clean them with a soft cloth or sponge dampened with warm water or neutral detergent.
• Clean the dust that accumulates on the rear panel and side plates of the refrigerator regularly.
• After using detergent, make sure you rinse it with clean water, and then dry it with a cloth.
• Do not use bristle brushes, steel wire brushes, detergent, soap powder, alkaline detergent, benzine, petrol, acid, hot water, or other corrosive elements to clean the refrigerator surface, door gasket, plastic decorative parts, etc. to avoid damage.
• Carefully dry the door gasket and clean the slot with a wooden stick wrapped with cotton. After cleaning, fix the four corners of the door gasket and then gradually push it into the slot in the door.

Power failure or cooling system fault

• If you receive an early power failure warning:
• Activate the fast freezing function, so that food is completely frozen. Set the temperature back to the original setting when the power supply returns to normal.

Please note

It is advisable to run the refrigerator uninterruptedly once you start using it.

Defrost

- This refrigerator includes an automatic defrost function, so there is no need to defrost it manually.

Replacing the light bulb

- The refrigerator has a LED light with low consumption and a long shelf life. In case of malfunction, contact the official Cecotec Technical Support Service. The light bulb can only be replaced by the manufacturer.

Please note

If the power cord and/or plug are damaged or dusty, electric shock and fire may occur. If there is any malfunction, disconnect the cord and contact the Technical Support Service of Cecotec.

7. TROUBLESHOOTING

For the following minor malfunctions, please try to solve the problem by yourself before contacting the official Cecotec Technical Support Service.

Fault	Possible causes	Possible solutions
The refrigerator does not work	The refrigerator is not connected to the mains.The circuit breakers or fuses are damaged.There is no electricity or there has been a power cut.	Plug the refrigerator into the mains.Open the door and check the light is on.
Abnormal noise	The refrigerator is not stable.The refrigerator is in contact with the wall.	Set the adjustable feet of the refrigerator.Separate the refrigerator from the wall.
Low cooling efficiency	The food inside is hot or there is too much food.You open the door too often.The door gasket has objects that do not allow to close it completely.The refrigerator receives direct sunlight or is close to a heat source.The refrigerator is not well ventilated.The selected temperature is too high.	Store food in the refrigerator when at room temperature.Check and close the door.Remove the refrigerator from the heat source.Keep the recommended distances in the installation section so the refrigerator is well ventilated.Set a suitable temperature.
Unpleasant smells in the refrigerator	There is spoiled food inside.The refrigerator is dirty.Food with a strong odour stored inside the refrigerator.	Dispose of food which is spoiled.Clean the refrigerator.Pack food, especially if it has a strong smell.
The buttons do not work	Check if the child lock is active.	Hold down the Unlock button for 3 seconds to deactivate the child lock and press any button (to get more information, read the instructions on the child lock).
You cannot set the temperature	Check if the Smart or fast freezing functions are not active on the control panel.	Deactivate the special functions and then set the temperature (for more details, check the Functions section).
The freezer-compartment temperature is shown on the panel, but it flashes	Check that the power supply has not been cut off before.	Press any button to activate the alarm (check the overheating warning section) and check that the food inside the refrigerator is not spoiled.

Please note

If none of these situations match your problem, do not attempt to disassemble, or repair the refrigerator yourself. Repairs carried out by unqualified persons may result in injury or serious malfunctions. Please contact the place where you bought the appliance or the official Cecotec Technical Support Service. The repair must be carried out by an authorised technician, and you must use only original spare parts.

Error code	Error type
E0 (while the freezer-compartment indicator light is light up)	Fault of the freezer compartment sensor
E0 (while the refrigerator-compartment indicator light is light up)	Fault of the refrigerator compartment sensor
E1	Fault of the refrigerator evaporator sensor
EC	Fault in the communication
EH	Fault of the room temperature sensor

If faults E0 and E1 should light up simultaneously, E2 will light up instead.

• In case the sensor or compartment faults are more than two, the number will be shown.
• If any of these codes is shown, contact the Technical Support Service of Cecotec.

8. TECHNICAL SPECIFICATIONS

You can find more information on this model by scanning the QR code on the energy label.

Product	Bolero CoolMarket SBS 562 Inox E	Bolero CoolMarket SBS 562 Dark E	Bolero CoolMarket SBS 559 Inox E
Reference	02096	02097	02440
QR code
Voltage	220-240 V~
Rated frequency	50-60 Hz
Rated current	1.6 A		2.0 A
Climate class	SN/N/ST*
Refrigerant	R600a/84 g
Base plate	Cyclopentane

Product	Bolero CoolMarket SBS 559Dark E	Bolero CoolMarket SBS 559Glass E
Reference	02442	02444
QR code
Voltage	220-240 V~
Rated frequency	50 Hz
Rated current	1.6 A
Climate class	SN/N/ST/*
Refrigerant	R600a/ 84 g
Base plate	Cyclopentane

(*) Refrigerator intended for use at room temperatures between 10 °C and 43 °C. This appliance features a light source with an energy efficiency grade G.

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

9. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

10. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

11. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording, or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

7. PROBLEEMOPLOSSING

Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./ Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./ Rys. 5

www.cecotec.es
