Energysilence Aero 5290 Natural - Ceiling fan CECOTEC - Free user manual and instructions

Product Type	Ceiling Fan
Brand	Cecotec
Model	Energysilence Aero 5290 Natural
Blade Diameter	132 cm (52 inches)
Number of Blades	5
Blade Material	Natural wood (plywood)
Finish	Natural (light wood)
Total Height	34.5 cm (without rod)
Weight	6.2 kg
Power Supply	220-240 V ~ 50/60 Hz
Motor Power	55 W
Speeds	3 adjustable speeds
Max Noise Level	38 dB(A) (quiet)
Maximum Airflow	185 m³/min
Reverse Function	Yes (summer/winter)
Remote Control Included	Yes, with timer
Blade Pitch Angle	12 degrees
Min/Max Mounting Height	2.30 m / 3.00 m
Mounting Type	Ceiling (requires included rod)
Integrated Light	No
Motor Material	Pure copper
Warranty	3 years

Frequently Asked Questions - Energysilence Aero 5290 Natural CECOTEC

How to install the Cecotec Energysilence Aero 5290 Natural ceiling fan?

Installation must be carried out by a qualified electrician. First attach the mounting plate to the ceiling using the provided plugs and screws, then hang the motor. Connect the wires according to the diagram (phase, neutral, ground) and attach the blades. Refer to the full manual for details.

What is the minimum ceiling height required?

The recommended minimum height is 2.30 m from floor to blades. The fan can be mounted with a 20 cm or 30 cm rod depending on your ceiling height.

How to reverse the rotation direction of the fan?

Use the reverse switch on the motor housing or the remote control. In summer, the blades rotate counterclockwise to create a cooling breeze. In winter, clockwise to redistribute heat.

The fan is making noise, what should I do?

Check that the blades are properly balanced and the screws are tightened. A slight noise may come from the motor, but the maximum noise level is 38 dB(A), which is very quiet. If the noise persists, contact customer service.

How to clean the ceiling fan?

Use a soft, dry cloth or slightly damp. Do not use abrasive products. Gently wipe the blades and motor. Be careful not to bend the blades.

Can I use the fan with a light bulb?

This model does not include a light fixture. No bulb is provided. If you want lighting, choose a model with a light kit.

What is the power consumption of the fan?

The motor power is 55 W at maximum speed. With 8 hours of daily use, the annual consumption is approximately 160 kWh.

How to replace a lost remote control?

You can order a replacement remote control from Cecotec after-sales service. Refer to the model indicated in the manual (usually RC-XXX).

The fan wobbles, how to balance it?

Use the provided balancing kit (small adhesive weights). Attach a weight to the highest blade while operating according to instructions. If the problem persists, check that the bracket is securely attached to the ceiling.

How to use the timer on the remote control?

Press the Timer button on the remote to set the fan to turn off after 1, 2, 4, or 8 hours. The remote uses a CR2025 battery.

USER MANUAL Energysilence Aero 5290 Natural CECOTEC

Safety instructions 7

1. Parts and components 45

2. Before use 46

3. Operation 46

4. Operation 48

5. Cleaning and maintenance 50

6. Technical specifications 50

7. Disposal of old electrical and electronic appliances 51

8. Technical support and warranty 51

9. Copyright 51

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

- This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

- Keep a minimum distance of 2.3 cm between the fan blades and the floor.

• Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.
• Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.
• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service to avoid any type of danger.
• Do not use the appliance if its cord or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.
• The appliance must be installed in accordance with national wiring regulations.
• Never insert objects or body parts between the rotating fan blades.
• To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and use only parts and components provided and recommended by Cecotec.
• Cut off the power completely before installing or repairing the fan to avoid the risk of electric shock.
• The electrical wiring must be in accordance with the local regulations.
• The cable must be properly earthed to avoid possible accidents.

• The appliance must be installed in accordance with national wiring regulations.

• Never install the fan in a damp or wet room.

• Be careful when near the rotating fan blades.
• To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.
• Do not bend the blade-attachment system during the installation or cleaning process.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly. Turn off and unplug the appliance before cleaning it.
• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the appliance.
• This appliance is designed for indoor use.

Instructions on batteries

• Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical attention immediately.
• Do not allow children to replace batteries without adult supervision.
• Do not disassemble, open, or damage the batteries.
• Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.

• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.

• Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.

• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.
• Do not use any batteries that are not designed for use with the appliance.
• Do not mix batteries of different manufacture, capacity or size. Children should be allowed to handle the batteries only under adult supervision.
• Always buy recommended batteries.
• Keep the batteries clean and dry. Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Whenever possible, remove the batteries when not in use.

INSTRUCTIONS DE SÉCURITÉ

1. Canopy
2. Downrod and hanging ball
3. Downrod
4. Mounting bracket
5. Decorative cover
6. Motor
7. Blade
8. Lamp panel
9. Lamp
10. LED lamp
11. Remote control and remote control receiver
12. Assembly kit

Fig. 2 key:

1. Mounting bracket
2. Remote control receiver
3. Canopy
4. Downrod
5. Decorative cover
6. Spring pin
7. R clip
8. Motor
9. Blade
10. Lamp panel
11. LED lamp
12. Lamp

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

ENGLISH

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Fan
• Assembly kit
• Remote control
• Batteries (2*AAA)
• Instruction manual

3. OPERATION

Pre-assembly preparation

• To prevent personal injury and damage, make sure that the location where the appliance is going to be installed allows a 2.3-metre clearance from the blades to the floor and a 76-cm clearance from the blades to any wall or object. Fig. 3
• Make sure that the building structure can hold the full weight of the fan.
• This fan can be installed on a normal or vaulted ceiling with a downrod. The hanging length of the fan can be extended with a longer rod.
• Ensure that the junction box is securely fastened to the building structure and can support the full weight of the fan.
• Installation requires the following tools: screwdriver, flat screwdriver, adjustable pliers or spanner, ladder, wire cutters and electrical tape.
• This fan can be mounted with a rod on a normal or vaulted ceiling. Fig. 4

Fig. 4 key:

A. Standard assembly
B. Pitched roof mounting

Hanger bracket installation

Wooden ceiling. Fig. 5

Concrete ceiling. Fig. 6.

1. Drill a 8 mm hole in the ceiling and insert the bolt. Align the bracket with the hole and tighten it with the nut.

Fan assembly and suspension. Fig. 7

Fig. 7 key:

1. Electric wiring
2. Hanging ball holes
3. R clip
4. Adapter
5. Canopy
6. Decorative cover
7. Spring pin

8. Locking screw

9. If you want the fan to hang lower, you must remove the hanging ball from the supplied 6-inch downrod for use with a longer rod (included). (If you wish to use the 6-inch downrod, follow the steps below).

10. To remove the hanging ball, loosen the suspension ball fixing screw and remove the pin and clip. Lower the hanging ball and remove the clevis pin. Slide the hanging ball off the downrod, and slide it onto the longer rod (note that the top of the rod has a hole for the fixing screw). Insert the stop pin into the top of the extended downrod and raise the hanging ball. Make sure the clevis pin is aligned with the holes on the inside of the hanging ball and tighten the set screw securely.

Tip: To prepare for passing the electrical wires through the rod, attach a small piece of electrical tape to the ends of the electrical wires to hold them together when passing them through the rod.

1. Loosen the main-body attachment fixing bolts and nut at the top of the motor housing. Remove the pin and rod clip (if you have not already done so). Slide the rod down through the canopy.
2. Pass the electrical wires through the rod and pull the wires protruding from the top of the rod end.
3. Place the main-body attachment downrod into the main body anchorage of the motor housing and insert the pin and clip previously removed. Tighten the fixing bolts and the main-body attachment nut securely. Lower the canopy onto the motor housing

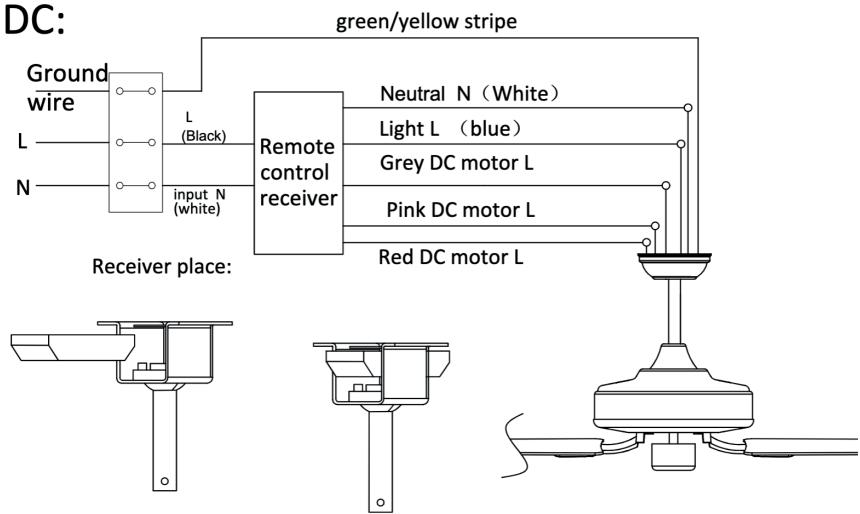

Connection of the remote control receiver. Fig. 8

Canopy assembly. Fig. 9

1. Lift the canopy up to the mounting bracket, aligning the loosened screws in the bracket

ENGLISH

with the holes in the canopy. Turn the canopy to lock it. Re-insert the screws and secure them all with a screwdriver.

1. Once you have secured the mounting bracket to the connection cover, you can hang the fan. Hold the fan firmly with both hands. Slide the downrod through the opening in the mounting bracket and allow the ball to rest on the bracket. Rotate the hole in the hanging ball until it aligns with the tab on the mounting bracket.

Tip: Have someone else hold the ladder securely and bring the fan closer to you once it is on the ladder.

Blade assembly. Fig. 10

Time saver: Blade bolt washers can be installed on each blade prior to installation.

1. Align the holes in the blades with the screw holes in the motor. Once all blades are attached, tighten all the screws. Before securing screws permanently, repeat with remaining blade arms.

Note: Tighten the blade screws a second time.

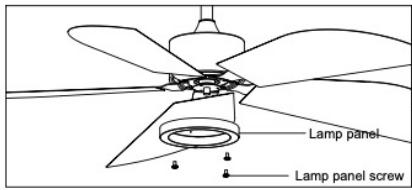

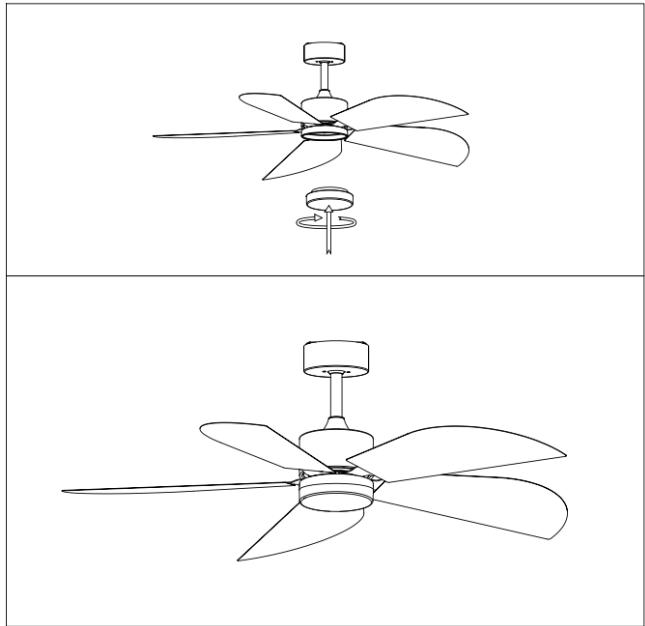

LED-Lamp assembly. Fig. 11-12-13

1. Unscrew the screws. Attach the LED plate to the bottom of the fan by inserting the fixing screws into the holes. Then turn it until it is firmly in place. Then screw in the previous fixing screw by aligning the hole in the screw and the hole in the bottom of the fan. Finally, tighten the other two fixing screws to secure the LED plate. Fig. 11

NOTE: During the installation or when the LED lamp is removed, keep the insulation pads intact. Over-tightening the screws may damage them.

1. Replace the lamp cover and lamp shade. Fig. 12

2. Align the decorative cover with the engine tread and tighten it clockwise. Fig. 13

4. OPERATION

Remote control. Fig. 14

1. Power button
2. Speed control
3. Winter function
4. Summer function
5. Natural Breeze
6. Natural Breeze shut-off
7. Timer controls

8. Light button

9. Use the speed buttons to select the air power level.

10. Press the power button to turn the appliance off.
11. Use the timer buttons to select the fan operating time. The fan will turn off once the selected time has elapsed.
12. Press the light button to turn the fan's lamp on and off.

Winter Function

Press button 3 to activate the winter function. The fan will make air flow from the bottom upwards, bringing cold air to the top of the room.

Summer Function

Press button 4 to activate the summer function. The fan will make air flow from the top downwards, bringing cold air to the bottom of the room.

Warning:

Invert the spinning direction of the fan while in operation. Hold down the button for approx. 3 seconds: the appliance will beep, and the blades will start slowing down until they stop spinning. After a few seconds, they will start spinning again in the opposite direction.

Natural breeze

Activate this mode by pressing button 5. The fan will run at different power levels in a cycle, producing a feeling of fresh air.

Pairing the remote control with the fan

Press the power button for 5 seconds until you hear a beep.

Warnings:

• The remote control operates through RF Wireless digital transmission technology. If both the fan and the lamp are equipped with a switch, turn on the fan at top speed and turn the light on before using the remote control.
• If the fan or the light cannot be controlled through the remote control, check if the batteries in the remote control are in good conditions and if they make good contact, that the positive and negative electrodes are in the correct position, and if the batteries are charged.
• If the fan or the light cannot be controlled through the remote control, check if there are other remote-controlled appliances in the same area and check if the transmitter buttons are pressed. Appliances with similar remote-control systems may cause interference. This does not include infrared remote controls.
• Pay attention to the appliance voltage. Too low a voltage may cause the remote control to not work. The technical specifications are indicated in this manual.
• If the remote control is not going to be used for a long time, remove the batteries.

ENGLISH

Changing the remote control battery

The remote control requires 2 x 1.5 V-3 AAA batteries.

1. Open the battery compartment.
2. Insert the batteries into the battery compartment observing the polarity.
3. Close the compartment.

5. CLEANING AND MAINTENANCE

• Make sure to disconnect the fan before cleaning it.
• Do not immerse any of the parts of the appliance in water or splash them with any other liquid.
• Do not use solvents or any other chemical products for cleaning.
• Use a soft, damp cloth to clean the surface of the device.

6. TECHNICAL SPECIFICATIONS

Product reference: 08472

Product: EnergySilence Aero 5290 Natural

Voltage: 220 - 240 V

Frequency: 50 / 60 Hz

Power: 40 W

LED: 18 W

Description	Symbol	Value	Unit
Fan maximum flow	F	170.57	m^3/min
Fan power consumption	P	34.98	W
Service value	SV	4.88	(m^3/min)/W
Power consumption on standby mode	P_SB	0.45	W
Fan sound power level	L_WA	47.0	dB (A)
Maximum air speed	C	2.75	m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos n°60, 46910, Alfafar(Valencia, Spain)

This product features a light source with an energy efficiency grade F.

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Image 1

Product: EnergySilence Aero 5290 Natural

Voltage: 220 - 240 V

Fig./Img./Abb./Afb./Rys./Obr. 4

Fig./Img./Abb./Afb./ Rys./Obr. 5

Fig./Img./Abb./Afb./Rys./Obr. 6

Fig./Img./Abb./Afb./Rys./Obr. 7

Fig./Img./Abb./Afb./Rys./Obr. 8

①

②

③

Fig./Img./Abb./Afb./ Rys./Obr. 9

①

②
Fig./Img./Abb./Afb./Rys./Obr. 10

Fig./Img./Abb./Afb./ Rys./Obr. 11

Fig./Img./Abb./Afb./ Rys./Obr. 12

Fig./Img./Abb./Afb./ Rys./Obr. 13

Fig./Img./Abb./Afb./Rys./Obr. 14

www.cecotec.es
