Product Type	Combined Refrigerator Freezer
Brand	Cecotec
Model	Bolero Coolmarket Fd 436 E
Dimensions (HxWxD)	1850 x 700 x 650 mm
Net Weight	65 kg
Power Supply	220-240 V ~ 50 Hz
Energy Class	E (scale from A to G)
Total Net Capacity	436 L
Freezer Capacity	110 L
Refrigerator Capacity	326 L
Main Features	No Frost in freezer, LED lighting, Clay Box for food preservation
Climate Class	SN-T (from 10 °C to 43 °C)
Noise Level	42 dB(A)
Defrost	Automatic in refrigerator, manual in freezer (No Frost)
Maintenance and Cleaning	Clean interior with a soft cloth and warm soapy water. Defrost the freezer if ice layer exceeds 3 mm.
Safety	Child lock not available. Door open alert after 60 seconds.
Spare Parts and Repairability	Parts available via Cecotec after-sales service. Repairability index: 7.2/10
Included Accessories	Vegetable drawer, glass shelves, ice cube tray, butter compartment
Installation	Requires 10 cm clearance at back and sides. Connect to grounded outlet.
Warranty	2 years

Frequently Asked Questions - Bolero Coolmarket Fd 436 E CECOTEC

How to adjust the refrigerator temperature?

Use the control panel inside the refrigerator. Turn the adjustment knob to a position from 1 to 5, where 1 is least cold and 5 is coldest. Recommended temperature is 4 °C for refrigerator and -18 °C for freezer.

What should I do if my refrigerator is too noisy?

Check that the appliance is level and feet are adjusted. Ensure no contact with furniture or wall. A gurgling noise is normal (refrigerant circulation). If noise is abnormal, call after-sales service.

How to reverse the door opening direction?

The Bolero Coolmarket Fd 436 E model allows door reversibility. Follow steps in manual: unscrew top and bottom hinges, remove door, install hinges on the other side, and replace door. Consult installation manual for specific screws.

What is the annual electricity consumption?

Annual consumption is approximately 280 kWh, which corresponds to energy class E. It may vary depending on usage, ambient temperature, and frequency of door openings.

Can I freeze fresh food in this refrigerator?

Yes, the freezer compartment is suitable for freezing fresh food. Do not exceed the maximum freezing capacity of 4 kg per 24 hours. Pack food in airtight bags or containers and respect expiry dates.

How to clean the door gasket?

Use a damp cloth with mild detergent. Do not use abrasive products. Dry thoroughly to prevent mold. Check gasket condition regularly to ensure a good seal.

What to do if the interior light does not turn on?

Check that the appliance is plugged in and the bulb is not burnt out. To change bulb, unplug appliance, remove light cover, and replace with an identical bulb (E14, 15 W max). If problem persists, contact technical support.

How to install the refrigerator in a built-in kitchen?

This model is not designed for full built-in installation. It requires free ventilation at back and sides (minimum 10 cm). Do not block ventilation grille. Installation must be on a flat, solid surface.

Why is water accumulating in the vegetable drawer?

This may be due to excessive condensation. Ensure food is dry before storing. The defrost water drain may be blocked: clean it with a soft rod. Adjust drawer humidity according to vegetables.

Where to find spare parts for this model?

Spare parts are available from Cecotec after-sales service or on the official website. You can also contact authorized resellers. Have the model number and serial number from the rating plate inside the refrigerator ready.

USER MANUAL Bolero Coolmarket Fd 436 E CECOTEC

bolero

Safety instructions 10

1. Parts and components 81

2. Before use 81

3. Assembling the appliance 81

4. Operation 83

5. Instructions on food storage 85

6. Cleaning and maintenance 89

7. Troubleshooting 91

8. Technical specifications 93

9. Disposal of old electrical and electronic appliances 94

10. Technical support and warranty 94

11. Copyright 94

SOMMAIRE

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• It is important to make sure all users are familiar with the operation and safety features of the appliance to prevent faults and unnecessary accidents.
• Make sure that the mains voltage in your house matches the voltage stated on the rating label of the appliance.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Do not store explosive substances such as aerosol cans with flammable propellant in this appliance.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• To avoid food contamination, please follow the instructions below.
• Opening the door for a long period of time may cause a significant increase in temperature in the appliance's compartments.
• Regularly clean the surfaces that might be in contact with food and accessible evacuation systems.
• If the freezer appliance remains empty for a long period of time, unplug it, defrost it, clean it, dry it, and leave the door open to prevent interior mould formation.
• WARNING: when positioning the appliance, make sure the

power cable does not get trapped or damaged. A crushed or damaged connector may heat up and cause a fire.

• Make sure the appliance plug is accessible after installation.
• WARNING: do not attach multi-socket adaptors or multiple power supplies to the rear part of the appliance.
• WARNING: keep the ventilation grilles on the enclosure of the appliance or the cabinet in which the appliance is located clear.
• WARNING: do not use mechanical appliances or other means to accelerate the defrosting process other than those recommended by Cecotec.
• WARNING: do not use electrical appliances inside the refrigerator.
• WARNING: do not damage the refrigeration circuit.
• If the cable is damaged, it must be replaced by the manufacturer, the supplier, or qualified personnel to avoid hazards.
• We recommend you check the power cable regularly to detect any sign of possible damage. Do not use the appliance if the cable is damaged.
• WARNING: to avoid any risk due to the instability of the refrigerator, you must install it according to the instructions.
• WARNING! It is dangerous for anyone other than authorised personnel to carry out maintenance or repairs involving the removal of covers. To prevent the electric shock risk do not attempt to repair the appliance yourself.
• Do not place carbonated beverages in the freezer compartment. Ice cream can cause “freezer burns”. This can happen if they are ingested after removal from the freezer.
• Do not remove items from the freezer with wet/moist hands, as this may cause skin abrasions or “frostbites”. Bottles and cans should not be placed in the freezer, as they may burst

when their contents freeze.

• Frozen food can cause ice burns if consumed right after removing it from the freezer compartment.
• See the storage times recommended by the manufacturer.
• Do not allow children to play with the controls or the freezer. The appliance is a heavy appliance. Caution must be taken when moving the appliance. It is dangerous to alter specifications or attempt to modify this appliance in any way.
• WARNING: doors or covers fitted with locks and keys must be kept out of the reach of children and not in the vicinity of the freezing appliance to prevent children from being locked inside.
• WARNING: the refrigerant used in your appliance and the insulation materials must be disposed of correctly.
• Keep the packaging material away from children, as there is a risk of suffocation.
• WARNING: if the interior light is damaged, contact the official Cecotec Technical Support Service. Do not try to repair it on your own.
• Make sure the appliance plug is accessible after installation.
• Do not place food directly against the air outlet on the interior of the appliance.
• Do not place hot food or drinks in the refrigerator, allow them to cool down to room temperature beforehand.
• This appliance has a built-in earthed plug. Make sure the power supply in your house is properly earthed.
• Keep the ventilation openings clear from obstructions.
• Wait 5 minutes after a power failure before turning the appliance back on. Otherwise, the compressor may get damaged.
• Do not place carbonated or fizzy drinks in the freezer

compartment, as this creates pressure in the container, which could explode and damage the appliance.

• To avoid injuries or death caused by electric shock, do not use the appliance with your hands wet or over a wet surface.
• You should never use this refrigerator with an extension lead or a multi-socket adaptor. Make sure the appliance is plugged in directly to a power supply.
• When positioning the appliance, make sure there is enough free space at the rear, as it is the main heat outlet. This will allow for adequate ventilation.
• Do not place any other appliance on the refrigerator and do not wet it.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• It is advisable to wait for at least four hours before connecting the appliance to allow oil to flow through the compressor.
• Do not use the appliance outdoors or in damp environments.
• Always handle the appliance carefully to avoid any damage on it.
• Never use the base, drawers, or door as support.
• Do not overload the door shelves or place too much food on the drawers to prevent items from falling off and damaging the appliance.
• Store raw meat and fish in proper containers in the freezer, so they do not come into contact with or leak on other food.
• The two-star compartments are suitable for storing pre-frozen food, storing, or making ice cream, and making ice cubes.
• Compartments with one, two, or three stars are not suitable for freezing fresh food.
• Air must flow around the appliance. Lack of air leads to overheating. To achieve good ventilation, follow the

installation instructions.

• Make sure the power cord is accessible after installation.
• All electrical work required to maintain this appliance must be carried out by a qualified electrician.

Temperature range

The appliance temperature range information can be found on its marking. Indicates the optimum room temperature for proper operation of the appliance.

Climate range	Optimum room temperature
SN	From +10 °C to +32 °C
N	From +16 °C to +32 °C
ST	From +16 °C to +38 °C
T	From +16 °C to +43 °C

- WARNING: if the refrigerator is operated outside the climate class for which it is rated (SN/N/ST/T), it may not be able to maintain satisfactory internal temperatures.

Notes:

• Bearing in mind the limiting values of the room temperature range for the climates for which the cooling appliance is designed and that internal temperatures may be affected by factors such as the location of the cooling appliance, room temperature and frequency of door opening, it may be necessary to modify the setting of any temperature-control device according to these factors.
• If the appliance is operated in an environment other than

the specified climate type (i.e. beyond the rated ambient temperature range), it may not be able to maintain the desired compartment temperatures.

Cooling

• This refrigerator uses freon-free refrigerant (R600a) and foaming insulation material (cyclopentane), which are environmentally friendly, do not cause damage to the ozone layer, and have a very low impact on global warming. R600a is flammable and does not leak during normal use when sealed in a refrigeration system. In the event of refrigerant leakage due to damage to the refrigerant circuit, be sure to keep the appliance away from open flames and open the windows to ventilate as soon as possible.
• WARNING: the refrigerant and the insulator gas are flammable. When disposing of the appliance, only dispose of it at an authorised waste-disposal facility. Do not expose it to flames.
• WARNING: the appliance contains refrigerant and gases in the insulation. The appliance and gases must be disposed of professionally, as they may cause injuries to eyes or ignition. Make sure the refrigeration-circuit pipe is not damaged before disposing of it correctly.

- This symbol means: Warning: Risk of fire/flammable materials

- If the refrigeration circuit is damaged:

• Avoid open flames and sources of ignition.
• Completely air the room where the appliance is located.

INSTRUCTIONS DE SÉCURITÉ

Bolero CoolMarket FD 436 Dark E

Bolero CoolMarket FD 436 Black Glass E

Referencia	01951	01952	01953
Modelo	Bolero CoolMarket FD 436 Inox E	Bolero CoolMarket FD 436 Dark E	Bolero CoolMarket FD 436 Black Glass E
Código QR
Voltaje nominal	220-240 V
Frecuencia nominal	50 Hz
Corriente nominal	1.2 A
Clase climática	SN/N/ST/T*
Refrigerante	R600a/75g
Espuma aislante	Ciclopentano
Medias (mm)	Anchura: 836Profundidad: 636Altura: 1830

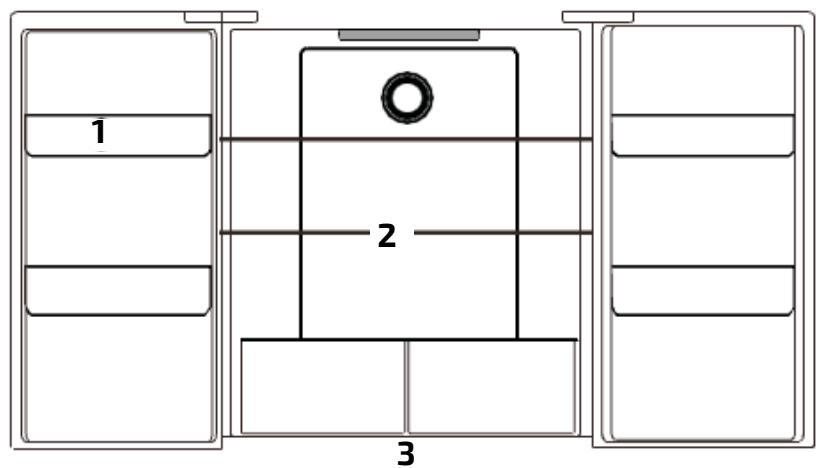

A. Refrigerator compartment
1. Door shelves
2. Glass shelves
3. Crisper drawer
B. Freezer compartment
4. Drawers

NOTE:

The graphics in this manual are schematic representations and may not exactly match the appliance

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Refrigerator
• Instruction manual

3. ASSEMBLING THE APPLIANCE

NOTE:

• This refrigeration appliance is not suitable for built-in installation.
• Remove all packaging, including the plastic protection on the bottom of the appliance and the adhesive tape securing the shelves.
• Place the refrigerator in a suitable position and adjust the feet to level it. It is recommended to clean the appliance with a cloth dampened with warm water and a little soap, and to dry it thoroughly before use.
• Place the refrigerator and adjust its height, clean it, let it stand idle for 4 to 6 hours and

then switch it on. This will help ensuring that the compressor oil has properly settled, and that the appliance is running normally.

Installation

• Place the refrigerator in a flat and easily accessible place. Avoid placing the appliance near heat sources, under direct sunlight, or in moist environments.
• In figure 2, you can see the dimensions required for the installation. The measurements in the figure are indicative for installation purposes. Actual sizes may vary slightly. They are detailed below:

A	B	C	D	E	F	H	M
551	836	1774	1830	636	1521	382	1006

- To ensure that the appliance operates at maximum efficiency, allow enough space around it.

Transport

• Do not transport the refrigerator horizontally or lying down. Fig. 3
• Do not carry the refrigerator by the door or handle; it must be carried by lifting the bottom.
• Never carry the appliance on your own, at least two people are required for safe lifting or carrying of the appliance.

Where to install

• The refrigerator must be placed on a solid, flat surface.
• If cushioning is necessary, use stable, solid, and non-flammable cushioning blocks.
• DO NOT USE FOAM PACKAGING AS CUSHIONING BLOCKS!
• The appliance should be kept away from damp or wet environments. Water or dirt should be removed from any surface of the appliance as soon as possible with a soft cloth. This will help prevent rust and help your appliance run at maximum efficiency.
• Place the refrigerator in a well-ventilated place. Leave some space around and behind the refrigerator, and do not cover or block the air grille of the compressor rear cover plate (located at the rear of the appliance). Keep the refrigerator away from heat sources or direct sunlight. Fig. 4

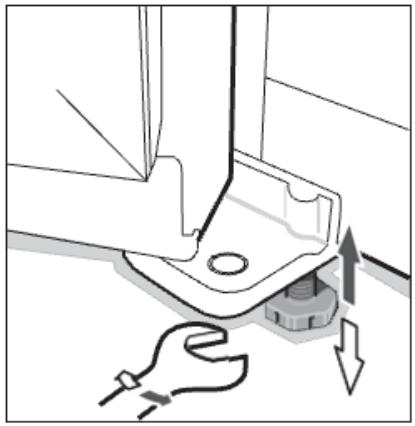

Adjustable plastic feet.

Fig. 5

- In the refrigerator packing box, feet come tightly packed. After removing the refrigerator from the box, be sure to adjust the two front plastic feet to the desired height. Tighten the two plastic feet with a spanner or directly by hand.

• The plastic feet and rear rollers must touch the floor to prevent the refrigerator from moving, vibrating, or rattling.
• When moving the refrigerator, adjust the plastic feet counterclockwise so that they do not touch the floor, then gently tilt the refrigerator to start moving it.

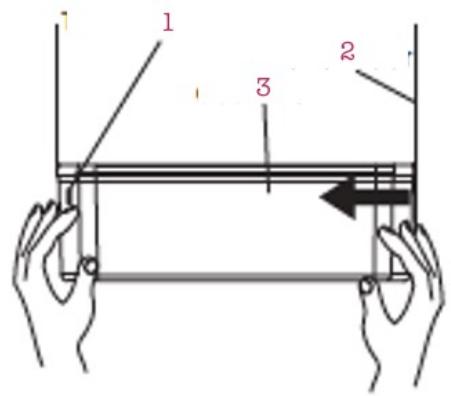

Door shelf

Fig. 6.

Removing a shelf:

- Hold both sides of the door shelf with both hands. From the side without the guide, push the shelf inwards until the edge of the shelf separates from the door lining.

Installing a shelf:

- Hold both sides of the shelf with both hands. Place the guide side first. Then, push the other side slightly inwards until it fits completely into the guide. Make sure that the shelf is correctly positioned before use.

Fig. 6 key

1. Door-shelf guide
2. Door lining
3. Shelf

4. OPERATION

Overall features

• This refrigerator has the options of fast freezing, energy saving, noise reduction and optimal cooling.
• Precise temperature setting: microcomputer control systems are able to control the refrigerator and freezer separately with greater precision.
• Automatic defrosting: the appliance is equipped with a programme that controls the frequency and duration of freezer defrosting. This allows for the freezer to defrost automatically, sparing you the trouble.
• LED display and temperature control: the display shows the temperature of the refrigerator compartment and the freezer compartment respectively.
• Safe and reliable tempered glass: tempered glass is safe and reliable, easy to clean and long-lasting.
• Door seal easy to remove and clean: the door seal is easy to remove and clean, allowing the appliance to operate efficiently for longer.
• Open door alarm system: if any door is left open for more than 1 minute, the alarm system will remind you to close it.

Start-up

• Connect the power cable and turn on the switch.
• When switching on the refrigerator for the first time, the display will show the respective preset temperature values. The default temperature of the refrigerator compartment is 5 °C, and the default temperature of the freezer compartment is -18 °C.
• The default mode is power saving mode: the display will be on for 20 seconds, after which time it will switch off. This mode saves energy and extends the lifespan of the LED lights.

Functions

Control panel

Figure 7

1.	Refrigerator temperature display
2.	Freezer temperature display
3.	Fast Cooling mode indicator light
4.	Holiday mode indicator light
5.	Lock indicator light
6.	Refrigerator temperature icon
7.	Freezer temperature icon
8.	Fast Freezing mode indicator light
9.	Modes icon
10.	Lock icon

Mode selection

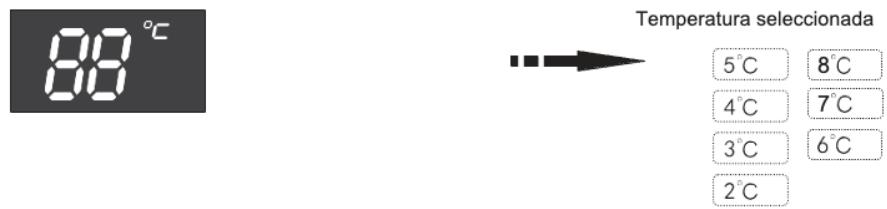

Press the modes icon to cycle through the different operating modes. The following modes are available:

• Holiday mode: the refrigerator compartment will operate at 8 °C while the freezer compartment will operate at -15 °C.
• Fast Freezing mode ❄: when you select this mode, the compressor runs continuously to freeze food faster.

NOTE: this mode will be automatically deactivated 24 hours after its activation or when the freezer compartment reaches -28 °C. When deactivated, the indicator light will switch off and the freezer compartment will return to the set temperature.

NOTE: this mode will be active for a maximum of 150 minutes, and then it will be automatically deactivated. When deactivated, the indicator light for this mode will switch off and the refrigerator temperature will return to the last temperature selected before activating Fast Cooling mode.

Freezer compartment settings

• The default temperature of the freezer compartment is -18 °C.
• Press the 🎨️ icon to modify it. The temperature selection sequence is as shown in Figure 8.

WARNING: do not place fresh food directly on top of frozen food.

Refrigerator compartment settings

• The default temperature of the refrigerator compartment is 5 °C.
• Press the 📋 icon to modify it. The temperature selection sequence is as shown in Figure 9.

Lock

• This appliance features a function that allows the control panel to be locked.
• Pressing the LOCK icon will activate the lock function, and the lock indicator light will light up.

NOTE:

• While this mode is activated, the icons on the display will not operate. If you press them, the appliance will beep and the indicator light will flash.
• To deactivate the lock function, press and hold the LOCK icon for 3 seconds until the lock indicator light switches off.

Open door alarm

• When the refrigerator door stays open for more than 1 minute, an alarm will sound to remind the user to close the door.
• Once the door is closed, the alarm will automatically turn off.

Switching the refrigerator on and off

• Press and hold the 📂 icon for 10 seconds to switch the refrigerator compartment on and off.
• When the refrigerator compartment is switched off, the corresponding temperature indicator will switch off as well. Press the 🎨 icon again for 10 seconds to switch on the compartment again.

5. INSTRUCTIONS ON FOOD STORAGE

- Fridge: the refrigerator compartment is to be used primarily for storing food that will be consumed within a short time. Check figure 10 for reference.

Fig. 10 key

1. Door shelves
2. Glass shelves

3. Refrigerator-compartment drawers

- Freezer: the freezer compartment is used for freezing food, storing deep-frozen food, and making ice cubes. It can preserve food for a long time.

Warning: if food stains the inside of the refrigerator, clean it immediately, otherwise the stain may corrode the coating.

NOTES:

• The two-star freezer compartment drawers (※※) are suitable for storing pre-frozen food, storing, or making ice cream, and making ice cubes.
• Compartments with one (*), two (**), or three (***) stars are not suitable for freezing fresh food.
• If the appliance is to be left empty for long periods of time, turn it off, allow it to defrost, clean it, dry it, and leave the door open to prevent mould growth.

WARNING

• When storing frozen foods, put them inside the freezer compartment.
• Do not put bottled or canned foods in the freezer to prevent cracking due to ice formation. Before putting hot food in the refrigerator compartment, cool it down to room temperature first for lower energy consumption.
• Label the freezing date on the packaging bag according to the different shelf life of the food.
• Divide food into portions and package them separately, so that they freeze more easily and do not stick together.
• Packaging materials must be odourless, airtight, impermeable, and non-contaminating, so that the packaged food does not lose quality.
• Do not put too much fresh food in the freezer compartment at once.
• Defrosted food cannot be refrozen unless you cook them.
• Glass bottles or containers must not be placed in the freezer compartment or in the air outlet of the refrigerator compartment, otherwise they may explode.
• Do not place food in such a way that it blocks the air outlet.

Food storage

In this section we offer you tips on how to store food optimally in the different parts of the refrigerator. The glass shelves and crisper drawer can be removed for food storage if necessary.

Note: do not allow food to touch the appliance surface directly.

Dairy products and eggs

- Most pre-packaged dairy products have an expiry date. Store them in the refrigerator compartment and consume them before the best-before date.

- Butter can be easily contaminated by strong odours, so it is best to keep it in a sealed container. Eggs must be stored in the refrigeration compartment.

Red meat

• Place fresh red meat in a dish and cover it without pressing it with wax paper, plastic, or aluminium foil.
• Store raw and cooked meat in different dishes. This will prevent liquids from transferring from raw meat and contaminating cooked meat.

Poultry

• Rinse whole birds inside and out with cold tap water. Afterwards, dry them and place them on a plate. Cover them without pressing with plastic or aluminium foil.
• Store poultry parts in the same way. Stuff whole poultry right before cooking it. Otherwise, it can lead to food poisoning.

Fish and seafood

• You must consume whole fish and fillets on the day of purchase. Until then, store them in the refrigerator covered without pressing with plastic, wax paper, or aluminium foil. If you wish to store food at night or for a longer period of time, try to select really fresh fish.
• Rinse the whole fish with cold water to remove scales and dirt, then pat dry with kitchen paper. Place whole fish or fillets in an airtight plastic bag.
• Keep seafood refrigerated at all times. Consume it within 1-2 days.

Convenience food and leftovers

• You can store this food in appropriate, closed containers so that the food does not dry out. Conserve it only for 1-2 days.
• Reheat the leftovers only once until they give off steam.

Crisper drawer

• This drawer is ideal for storing fresh fruit and vegetables.
• Do not store the following foods at temperatures below 6 °C for long periods of time: Citrus fruits, melon, aubergine, pineapple, papaya, courgette, passion fruit, cucumber, pepper, and tomatoes.
• There may be undesired changes at low temperature, like softening, browning or accelerated decomposition
• Do not store avocados (until ripe), bananas or mangoes.

FOOD	Storage place (refrigerator compartment)
Butter, cheese	Door top shelf
Eggs	Door shelves
Fruits and vegetables	Crisper drawer
Meat, sausages, cheese, milk	Low area (lower shelf, 1 drawer cover)
Dairy products, canned food, cans	Top door shelf
Drinks and bottles	Door shelf
FOOD	Location (Freezer)
Small frozen food	Door shelf
Frozen packaged food	Freezer drawer
Fish, meat, ice cream	Low area (bottom shelf or drawer)

Note: do not allow food to touch the appliance surface directly.

Storing and freezing food in the freezer

• For storing fully frozen food.
• For making ice cubes.
• For freezing food.

Note: make sure the freezer door is properly closed.

Buying frozen food

• The packaging must be intact.
• Consume before the expiry date.
• If possible, transport fully frozen food in an insulated bag and place it immediately in the freezer.

Storing frozen food

- Store at -18 °C or below. Avoid opening the freezer-compartment door unnecessarily.

Freezing fresh food

• Freeze only food that's fresh and in good conditions.
• To best preserve nutritional value, flavour, and colour, vegetables should be blanched before freezing. Aubergines, peppers, courgettes, and asparagus do not require blanching.
• The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat,

game, poultry, vegetables, fruits, herbs, shelled eggs, dairy products such as cheese and butter, ready meals, and leftovers such as soups, stews, boiled meat and fish, potato dishes, soufflés, and desserts.

- The following foods are not suitable for freezing: Types of vegetables that are usually eaten raw, such as lettuce or radishes, shell eggs, grapes, apples, whole apples, pears and peaches, hard-boiled eggs, yoghurt, sour milk, sour cream, and mayonnaise.

Recommended storage times for frozen foods in the freezer

- These times vary depending on food type. Frozen food can be stored for 1 to 12 months (-18 °C minimum).

FOOD	Storage time
Bacon, stews, milk	1 month
Bread, ice cream, sausages, cakes, cooked seafood, oily fish, etc.	2 months
White fish, seafood, pizza, buns and muffins	3 months
Ham, cakes, biscuits, veal, and lamb chops, poultry meat	4 months
Butter, vegetables (blanched), whole eggs and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dried or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

6. CLEANING AND MAINTENANCE

• Precautions for cleaning the inside and outside of the refrigerator:
• Before cleaning, always switch off the appliance and unplug it from the mains.
• During cleaning, make sure that no water enters the switch, display, door light, and top control panel.
• Remove dirt from the outside of the refrigerator with a soft, clean cloth and allow the refrigerator to dry naturally.
• When cleaning the door seal, always use clean water and a dry cloth and allow it to dry naturally. Dampen a soft cloth with lukewarm water or a neutral cleaning agent to clean

the body of the refrigerator. Do not wipe the door seal with this cloth.

• Do not clean the refrigerator directly with water, as this will affect the electrical insulation properties, among other things.
• The refrigerator must not be cleaned with metal scouring pads, brushes, abrasive cleaning agents, strong alkaline detergents, or flammable or toxic cleaning liquids.

Defrosting

- The refrigerator features an automatic defrosting function, eliminating the need to do it manually.

Cleaning

Precautions for cleaning the inside and outside of the refrigerator:

• Before cleaning, always switch off the appliance and unplug it from the mains.
• During cleaning, make sure that no water enters the socket, display, door light or control panel.
• Remove dirt from the outside of the refrigerator with a soft, clean cloth and allow the refrigerator to dry naturally.
• When cleaning the door seal, always use clean water and a dry cloth and allow it to dry naturally. Dampen a soft cloth with lukewarm water or a neutral cleaning agent to clean the body of the refrigerator. Do not wipe the door seal with this cloth.
• Do not clean the refrigerator directly with water, as this will affect the electrical insulation properties, among other things.
• The refrigerator must not be cleaned with metal scouring pads, brushes, abrasive cleaning agents, strong alkaline detergents, or flammable or toxic cleaning liquids.

NOTE: after cleaning, connect the power plug of the refrigerator and switch it on again.

Holiday mode

- When you want to go on holiday, it is better not to turn off the refrigerator and not to take out food that can be preserved during your holiday period. If you wish to turn off the refrigerator, remove all food, disconnect the power plug, clean the inside of the refrigerator thoroughly, and open the door to prevent unpleasant odours.

In case of power failure

• Generally, a short power failure will not affect the temperature of the refrigerator abruptly. However, if the power failure lasts for a long time, you should decrease door-opening frequency and not put fresh food in the refrigerator (to avoid accelerating the interior temperature increase).
• If you are aware of possible power failures, you can enable the Fast freezing mode in advance to keep the refrigerator temperature at the lowest value.

Switch-off

- It is generally not recommended to switch off the refrigerator or unplug the power cable, otherwise the lifetime of the refrigerator may be affected.

Energy-saving tips

• Make sure to keep the refrigerator away from heat sources and direct sunlight.
• Before storing hot food, cool it down to room temperature and store it in the refrigerator.
• Do not leave the door open. Reduce the door-opening frequency and shorten the opening time.
• When defrosting frozen food, you can put it in the refrigerator compartment.
• Make sure the temperature sensor is not obstructed or covered by food and maintain an adequate distance between the food.

7. TROUBLESHOOTING

Normal occurrences

• Faulty icons: check if the refrigerator control panel is locked, if so, the icons will not work.
• Low voltage, compressor cannot be started: it is recommended to install a pressure regulator of more than 1000 W in the installation area of the refrigerator to better protect it.
• The refrigerator takes a long time to start up: when the room temperature is too high, the refrigerator takes a long time to start.
• The central separators of the compartments heat up: the central separators of the compartments heat up after some time of operation of the appliance. This is quite normal.
• Condensation droplets are formed: when outside air enters the cold inner surface of the refrigerator, condensation droplets may appear. If it's rainy season or humidity at the place of installation is high, condensation droplets may appear on the outside of the refrigerator. This is a natural phenomenon, simply wipe off the water droplets with a dry cloth.
• The refrigerator makes some noise: when the refrigerator is switched on for the first time, it will run at high speed to cool down quickly and may emit a louder sound. When the internal temperature drops below a certain level, the noise will decrease.

NOTE: you will hear some noises when the compressor starts or stops, when some parts expand or contract or when the temperature inside the refrigerator changes. This is normal.

- The refrigerator heats up: during operation, the temperature of the compressor is higher than 80°C. Do not touch it, as this could cause serious injury.

- The refrigerator takes a long time to cool down: if room temperature is too high or you put too much fresh food in the refrigerator, it will take a long time to bring the temperature down to the set values.

Problem	Possible causes	Solution
Nothing is shown on the display	1. The plug of the appliance is not properly inserted in the socket.	1. Check for power supply.
Alarm sounds	1. Door is slightly open or has not been closed for more than 1 minute.	1. Close the door completely.
The refrigerator does not work	1. Defrost mode enabled.2. The appliance is not properly connected.	1. This is normal if it is defrosting.2. Check if the appliance is properly connected.
The refrigerator takes a long time to cool down	1. The refrigerator has recently been switched off.2. You have put in too much fresh or hot food.3. Doors are opened too often or for too long.	1. The refrigerator takes a few hours to cool down completely.2. Hot food causes the refrigerator to take longer to reach the desired temperature.3. The warm air entering the refrigerator causes the compressor to run longer. Do not open the door too often.
The refrigerator vibrates	1. The floor is uneven or loose.2. Vibration comes from food placed on top of the refrigerator.3. The refrigerator touches the wall or a piece of furniture.	1. Make sure that the floor is level, solid, and can support the weight of the refrigerator.2. Remove the food placed on top.3. Move the refrigerator so that it does not touch the wall or furniture.

8. TECHNICAL SPECIFICATIONS

Product reference: 01951 / 01952 / 01953

Product:

Bolero CoolMarket FD 436 Inox E

Bolero CoolMarket FD 436 Dark E

Bolero CoolMarket FD 436 Black Glass E

Reference	01951	01952	01953
Model	Bolero CoolMarket FD 436 Inox E	Bolero CoolMarket FD 436 Dark E	Bolero CoolMarket FD 436 Black Glass E
QR code
Voltage	220-240 V
Rated frequency	50 Hz
Rated current	1.2 A
Climate class	SN/N/ST/T*
Refrigerant	R600a/75g
Insulating foam	Cyclopentane
Dimensions (mm)	Width: 836Depth: 636Height: 1830

(*) Refrigerator intended for use at room temperatures between 10 °C and 43 °C.

This product features a light source with a Class F energy efficiency.

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

9. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

10. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

11. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Image 1

Bolero CoolMarket FD 436 Dark E

Bolero CoolMarket FD 436 Black Glass E

Bolero CoolMarket FD 436 Dark E

Bolero CoolMarket FD 436 Black Glass E

Referenz	01951	01952	01953
Modelo	Bolero CoolMarket FD 436 Inox E	Bolero CoolMarket FD 436 Dark E	Bolero CoolMarket FD 436 Black Glass E
QR Code
Nennspannung	220-240 V
Nennfrequenz	50 Hz
Nennstrom	1.2 A
Klimaklasse	SN/N/ST/T*
Kältemittel	R600a/75g
Isolierschaum	Cyclopentan
Durchschnittswerte (mm)	Breite: 836Tiefe: 636Höhe: 1830

Bolero CoolMarket FD 436 Dark E

Bolero CoolMarket FD 436 Black Glass E

Codice prodotto	01951	01952	01953
Modello	Bolero CoolMarket FD 436 Inox E	Bolero CoolMarket FD 436 Dark E	Bolero CoolMarket FD 436 Black Glass E
Codice QR
Tensione nominale	220-240 V
Frequenza nominale	50 Hz
Corrente nominale	1.2 A
Classe climatica	SN/N/ST/T*

Bolero CoolMarket FD 436 Dark E

Bolero CoolMarket FD 436 Black Glass E

3. HET APPARAAT MONTEREN

OPMERKINGEN:

7. PROBLEEMOPLOSSING

Bolero CoolMarket FD 436 Dark E

Bolero CoolMarket FD 436 Black Glass E

Referentie	01951	01952	01953
Model	Bolero CoolMarket FD 436 Inox E	Bolero CoolMarket FD 436 Dark E	Bolero CoolMarket FD 436 Black Glass E
QR-code
Nominale spanning	220-240 V
Nominale frequentie	50 Hz
Nominale stroom	1.2 A
Klimaatklasse	SN/N/ST/T*
Koelvloeistof	R600a/75g
Isolatieschuim	Cyclopentaan
Afmetingen (mm)	Breedte: 836Diepte: 636Hoogte: 1830

Bolero CoolMarket FD 436 Dark E

Bolero CoolMarket FD 436 Black Glass E

Bolero CoolMarket FD 436 Dark E

Bolero CoolMarket FD 436 Black Glass E

Fig./Img./Abb./Afb./Rys./Obr. 3

Fig./Img./Abb./Afb./Rys./Obr. 4

Fig./Img./Abb./Afb./ Rys./Obr. 5

Fig./Img./Abb./Afb./Rys./Obr. 6

Fig./Img./Abb./Afb./Rys./Obr. 7

Fig./Img./Abb./Afb./Rys./Obr. 8

Fig./Img./Abb./Afb./Rys./Obr. 9

Fig./Img./Abb./Afb./Rys./Obr. 10

www.cecotec.es
