Energysilence Aero 5200 Light M - Ceiling fan CECOTEC - Free user manual and instructions

Product Type	Ceiling fan with LED lighting
Brand	Cecotec
Model	Energysilence Aero 5200 Light M
Blade Diameter	132 cm (52 inches)
Number of Blades	3 wood/ABS blades
Motor Type	Silent reversible DC motor
Motor Power	35 W
Integrated Lighting	18 W LED, adjustable color temperature 3000K-6000K
Speeds	6 speeds + night mode
Reverse Function	Yes (summer/winter)
Remote Control	Yes, included (range 10 m)
Timer	1, 2, 4, 8 hours
Noise Level	< 30 dB at low speed
Dimensions (D x H)	132 cm x 30 cm
Net Weight	5.8 kg
Power Supply	220-240 V ~ 50 Hz
Minimum Ceiling Height	2.5 m
Blade Pitch Angle	12°
Installation	Requires ceiling mounting (kit included)
Maintenance	Clean blades with a soft, dry cloth; do not use abrasive products
Protection Rating	IP20 (indoor use)
Warranty	2 years
Spare Parts	Available on Cecotec website (blade kit, remote control, LED bulb)

Frequently Asked Questions - Energysilence Aero 5200 Light M CECOTEC

How to install the Energysilence Aero 5200 Light M ceiling fan?

Installation must be carried out by a qualified electrician. First fix the bracket to the ceiling using the screws provided, then connect the electrical wires (phase, neutral, ground) according to the diagram in the manual. Then mount the motor, blades and LED bulb. Use the remote control for commissioning.

How to clean the fan blades?

Turn off the fan and wait for it to stop completely. Use a slightly damp soft cloth to remove dust. Never use chemical or abrasive products that could damage the blade surface.

What to do if the remote control does not work?

First check the batteries of the remote control (two AAA batteries). Ensure the receiver is properly connected and no obstacle blocks the signal. If the problem persists, reset the fan by turning off the power for 10 seconds.

How to change the LED bulb of the fan?

Turn off the fan and cut the power at the circuit breaker. Unscrew the bulb cover, remove the old LED bulb and replace it with a compatible bulb (type E27, 18 W max). Screw the cover back on and restore power.

How to use the reverse function for winter?

Press the 'Reverse' button on the remote control to reverse the rotation direction. In winter, the fan should rotate clockwise (view from below) to push warm air down. In summer, counterclockwise creates a cooling breeze.

My fan is making an abnormal noise, what to do?

Check that all screws of the blades and bracket are tight. Ensure the blades are not unbalanced (a balancing kit is provided). If the noise persists, the motor may be defective; contact Cecotec after-sales service.

Can the color temperature of the lighting be adjusted?

Yes, the remote control allows switching between three temperatures: warm white (3000K), neutral white (4500K) and cool white (6000K). Press the 'Color' button to change.

What is the minimum ceiling height required?

The fan must be installed at least 2.5 meters from the floor and 30 cm from the ceiling. Ensure the blades do not obstruct any obstacles (furniture, walls).

How to set the timer?

On the remote control, press the 'Timer' button to choose a duration of 1, 2, 4 or 8 hours. The fan will automatically stop at the end of the countdown. A beep confirms the programming.

Where to find spare parts for this model?

Spare parts (blades, remote control, bulb, mounting kit) are available on the official Cecotec website (www.cecotec.fr) or from authorized dealers. Use the reference 'Energysilence Aero 5200 Light M' for the search.

USER MANUAL Energysilence Aero 5200 Light M CECOTEC

ceiling fan with 40W DC motor.

Safety instructions 7

1. Parts and components 45

2. Before use 45

3. Assembly 46

4. Operation 47

5. Cleaning and maintenance 50

6. Technical specifications 50

7. Disposal of old electrical and electronic appliances 51

8. Technical support and warranty 51

9. Copyright 52

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

- This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards

involved. Children must not play with the appliance.

Cleaning and user maintenance should not be carried out by unsupervised children.

• Keep a minimum distance of 2.3 cm between the fan blades and the floor.
• Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.
• Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.
• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service to avoid any type of danger.
• Do not use the appliance if its cord or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.
• The appliance must be installed in accordance with national wiring regulations.
• Never insert objects or body parts between the rotating fan blades.
• To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and use only parts and components provided and recommended by Cecotec.

• Cut off the power completely before installing or repairing the fan to avoid the risk of electric shock.

• The cable must be properly earthed to avoid possible accidents.

• The appliance must be installed in accordance with national wiring regulations.
• Never install the fan in a damp or wet room.
• Be careful when near the rotating fan blades.
• To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.
• Do not bend the blade-attachment system during the installation or cleaning process.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly. Turn off and unplug the appliance before cleaning it.
• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the appliance.
• This appliance is designed for indoor use.

Instructions on batteries

• Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical attention immediately.
• Do not allow children to replace batteries without adult supervision.
• Do not disassemble, open, or damage the batteries.

• Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.
• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.
• Do not use any batteries that are not designed for use with the appliance.
• Do not mix batteries of different manufacture, capacity, or size. Children should be allowed to handle the batteries only under adult supervision.
• Always buy recommended batteries.
• Keep the batteries clean and dry. Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Whenever possible, remove the batteries when not in use.

INSTRUCTIONS DE SÉCURITÉ

1. Mounting bracket
2. Hanging ball
3. Downrod
4. Canopy
5. Canopy screws
6. Pin
7. Clevis pin
8. Decorative cover
9. Motor
10. Blade
11. Washers
12. Blade screw
13. LED light
14. Lampshade

15. Remote control

16. Remote control receiver

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Fan
• Remote control
• Assembly kit
• Instruction manual
• Remote control batteries (2 x AAA)

ENGLISH

3. ASSEMBLY

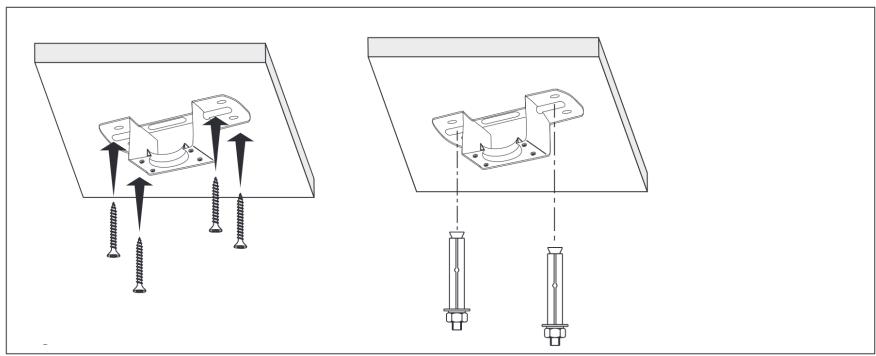

Fig. 2 key:

1. Wood screws
2. Mounting bracket

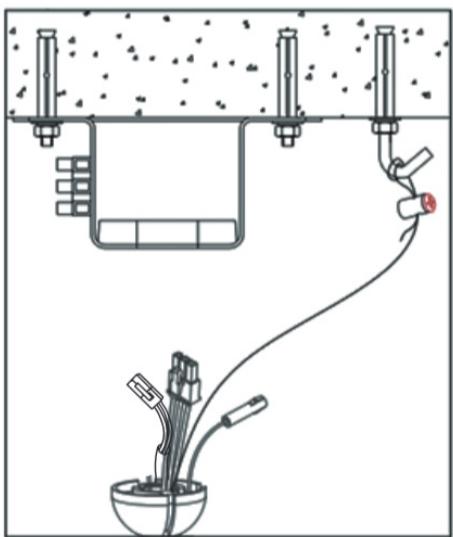

Fig. 3 key:

1. Expansion bolt
2. Screw hook
3. Drilling diagram

Fig. 5 and 8 key:

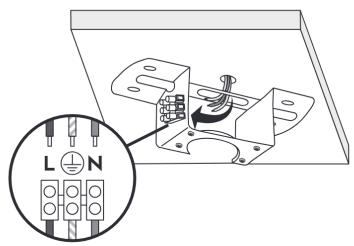

L: Live wire

N: Neutral ⊥: Earth wire

Fig. 11 key:

1. Clip
2. Mounting bracket

3. Slot

4. Wooden ceiling: secure the mounting bracket firmly to the wooden ceiling beam with a drill bit. Fig. 2

5. Concrete ceiling: you can enlarge the holes in the mounting bracket with an 8 mm ø medium drill bit. Use the M6 expansion bolts to attach the mounting bracket to the side of the screw hook. The distance between the screw hooks and the mounting bracket must be between 8 and 10 mm. The installation of the screw hook must not interfere with the mounting bracket and must not affect the positioning of the receiver. Fig. 3

6. Loosen the safety rope screw, place the rope ring on the screw hook and tighten the rope. Finally, retighten the screw. Fig. 4

7. Connect the cables according to the wiring instructions shown in Fig. 5
8. Attach the mounting bracket to the ceiling beam or to a suitable piece of wood inserted between the ceiling beams. The mounting bracket must be secured with the washers and screws provided. In case of a concrete ceiling, drill holes with 8 mm drill bits, taking into account the length of the expansion screws used. Then, fix the mounting bracket to the ceiling with the expansion screws. Fig. 6.

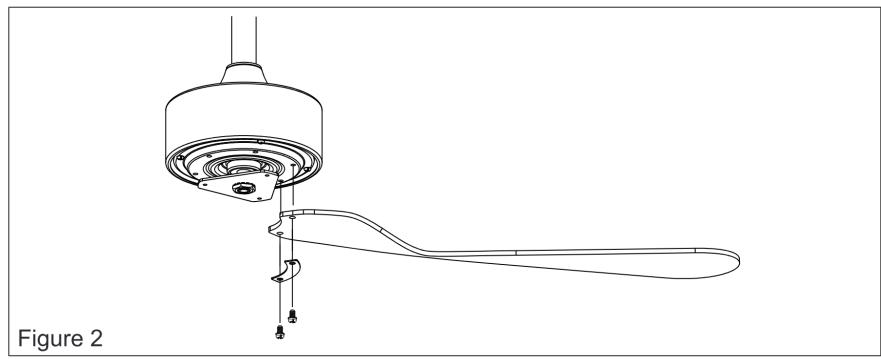

9. Fit the blades, insert the screws and tighten them with a nut. Fig. 7
10. Connect the cables as shown in Fig. 8.
11. Remove the clevis pin and clevis from the downrod. Slide the downrod through the canopy and the downrod cover. Fig. 9

ENGLISH

1. Loosen the screws of the downrod bracket and then place the downrod (Fig. 10). Pass the fan wires and the earth wire through the downrod. Align the holes in the clevis pin of the downrod with the holes in the bracket. Make sure to insert the straight part of the pin through the hole in the end of the clevis pin and press until the crimped part snaps into position. Finally, retighten the screws.

NOTE

It is very important that the downrod bracket pin is correctly installed and that the screws are tightened securely.

If the pin, clevis, or screws are not correctly positioned, the fan may fall down.

1. Lift the fan carefully and place the downrod and hanging ball in the mounting bracket attached to the ceiling. Make sure that the groove in the hanging ball is properly aligned with the tab on the mounting bracket. Fig. 11

Connections. Fig. 12

WARNING

To avoid the risk of electric shock, be sure to disconnect the mains supply from the switchboard before connecting the cables.

1. Connect the main power supply (house) to the terminal block located on the mounting bracket. Plug the receiver into the bracket with the flat side up.

2. Insert the 3P connector of the mounting bracket into the AC POWER INPUT socket of the receiver.

3. Insert the 2P connector from the motor light into the 2P LIGHT socket on the receiver.
4. Insert the 3P connector from the motor light into the 3P MOTOR socket on the receiver.

5. Connect the yellow/green 1P connectors of the motor and the mounting bracket.

6. Carefully attach the LED light to the main frame and turn it clockwise to secure it. Fig. 13

Note: the lampshade shall be positioned at an oblique angle. Fig. 14

1. Fit the canopy by tightening the two screws. Fig. 15

4. OPERATION

Remote control

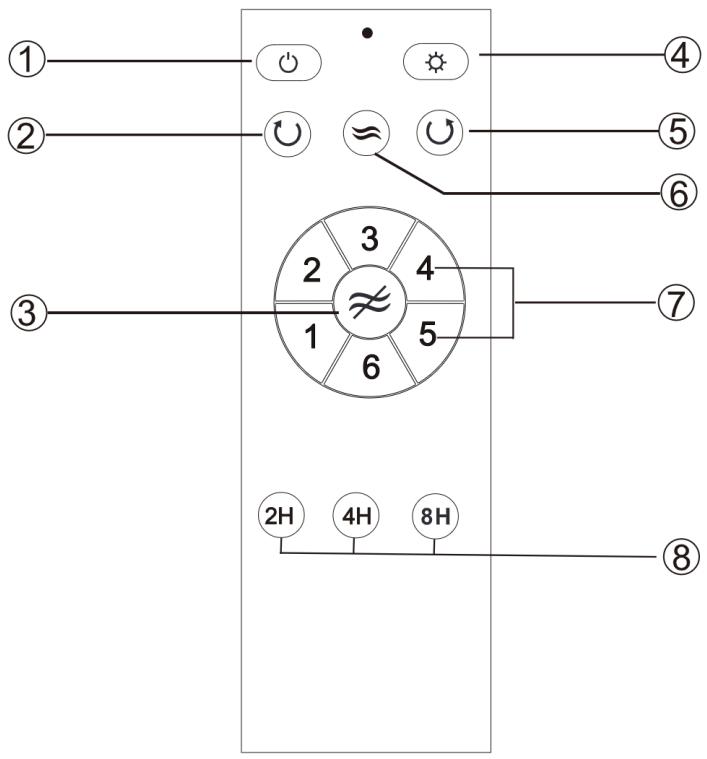

Fig. 16 key:

1. Power button
2. Winter Function

ENGLISH

1. Natural Breeze shut-off
2. Light button
3. Summer Function
4. Natural Breeze button
5. Speed buttons

6. Timer controls

7. Use the speed buttons to select the air power level.

8. Press the power button to switch the appliance off.
9. Use the timer buttons to select the fan operating time. The fan will switch off once the selected time has elapsed.
10. Press the light button to turn the fan's lamp on and off.

Winter Function

Press button 2 to activate the winter function. The fan will make air flow from the bottom upwards, bringing cold air to the top of the room.

Summer Function

Press button 5 to activate the summer function. The fan will make air flow from the top downwards, bringing cold air to the bottom of the room.

Natural breeze

Activate this mode by pressing button 6. The fan will progressively vary the power level in cycles, providing a feeling of fresh air.

Changing the remote-control battery

The remote control is powered by 2 x 1.5 V AAA batteries.

1. Open the battery compartment.
2. Insert the batteries into the battery compartment observing the polarity.
3. Close the compartment.

Note:

If the fan is not to be used for a long period of time, store the remote control in a dry place where it will not be exposed to heat or direct sunlight. Also remove the batteries.

Pairing between remote control and receiver

To operate the remote control, reconnect the mains power supply from the electrical switchboard in the house.

1. Press the power button for 5 seconds and then you will hear a beep, which means that the pairing has been completed successfully and you can use the remote control normally.

ENGLISH

NOTE: be sure to press the power button for 30 seconds before pairing the remote control, otherwise you will not be able to pair it.

1. If you notice that the transmitter does not control the receiver, check that the batteries are inserted correctly and that they are not dead.
2. This may also be due to the proximity of similar products that also operate with a remote control, which, if they use the same frequency, could cause interference.
3. If the batteries in the remote control are dead, replace them so that you can continue to use it normally.
4. Remove the batteries from the remote control if you are not going to use it for a long period of time.
5. Make sure that the earth wire is properly connected.
6. When positioning the fan, make sure that no wires are pinched. If this happens, a short-circuit may occur.

Reminder

• The receiver must be correctly installed in the fan mounting bracket.
• Remove the batteries from the remote control if you are not going to use it for a long period of time.
• The isolation switch must be switched on.
• If the power is cut off (e.g. due to a blackout) the light will go out. When the power is restored, the light will switch on again.

Receiver protection functions

• The DC motor has a built-in safety feature against blade or motor obstruction during operation.
• During operation: if an object obstructs the fan blades or the fan motor, the motor will attempt to run for 30 seconds and then stop running. Remove obstructions and restart the motor. To restart it: switch the fan off from the remote control and then switch it on again.
• The device will limit the maximum current output from the receiver/drive if the fan load has increased abnormally.

Recommendations

• If your fan runs automatically when you switch it on for the first time after installation, it has memorised the previous factory setting.
• If the fan or light does not work, reset the fan. To do this, turn it off for at least 5 seconds and then turn it on again.
• It is not possible to control more than one fan in the same room if they share the same power supply. If you want to separately control more than one fan in the same room, you must use separate power supplies.

ENGLISH

- When the fan is switched on and starts running in either direction (clockwise or counterclockwise), it will stop and change direction several times. This is normal. The fan will take some time to perform the selected function and to start up regularly.

5. CLEANING AND MAINTENANCE

• Clean the fan regularly.
• When cleaning, only use a soft brush or lint-free cloth to avoid scratching the finish.
• Abrasive cleaning agents are not necessary and should be avoided in order not to damage the finish.

RECOMMENDATION:

Periodically check that the blades are securely fastened to the motor with the screws.

WARNING: do not use solvents to clean the fan. Doing so may result in a risk of electric shock.

• Make sure to disconnect the fan before cleaning it.
• Do not immerse any of the parts of the appliance in water or splash them with any other liquid.
• Do not use solvents or any other chemical products for cleaning.
• Use a soft, damp cloth to clean the surface of the device.

6. TECHNICAL SPECIFICATIONS

Product reference: 08620 / 08621

Product: EnergySilence Aero 5200 Light White / EnergySilence Aero 5200 Light Black

Power: 40 W

LED: 20 W

Voltage: 220 - 240 V

Frequency: 50 / 60 Hz

Description	Symbol	Value	Unit
Fan maximum flow	F	146.35	m^3/min
Fan power consumption	P	38.56	W
Service value	SV	3.8	(m^3/min)/W

ENGLISH

Power consumption on standby mode	P_SB	0.45	W
Fan sound power level	L_WA	50.38	dB (A)
Maximum air speed	C	2.95	m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos, No 60, 46910,Alfafar (Valencia, Spain)

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

ENGLISH

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Image 1

(Figure 1)
Fig./Img./Abb./Rys./Obr. 2

Fig./Img./Abb./Rys./Obr. 3

Fig./Img./Abb./Rys./Obr. 4

Fig./Img./Abb./Rys./Obr. 5

ENERGYSILENCE AERO 5200 LIGHT WHITE / BLACK

Fig./Img./Abb./Rys./Obr. 6

Fig./Img./Abb./Rys./Obr. 7

L - Live wire
N - Null line
Earth wire

Figure 3
Fig./Img./Abb./Rys./Obr. 8

Figure 4
Fig./Img./Abb./Rys./Obr. 9

Figure 5
Fig./Img./Abb./Rys./Obr. 10

Fig./Img./Abb./Rys./Obr. 11

Fig./Img./Abb./Rys./Obr. 12

Fig./Img./Abb./Rys./Obr. 13

Fig./Img./Abb./Rys./Obr.14

Fig./Img./Abb./Rys./Obr.15

Fig./Img./Abb./Rys./Obr. 16

ENERGYSILENCE AERO 5200 LIGHT WHITE / BLACK

www.cecotec.es
