SMEG KSET66 - Range hood
📄 9 pages English EN Download 💬 AI Question 10 questions ⚙️ Specs
Notice SMEG KSET66 - page 5
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Built-in Range Hood
Model KSET66
Brand Smeg
Width 60 cm
Depth 50 cm
Height (min - max) 62 - 110 cm
Net Weight 15 kg
Power Supply 230 V ~ 50 Hz
Motor Power 240 W
Lighting 2 x 20 W Halogen
Number of Speeds 3 + Intensive
Controls Electronic Push Button
Filter Type Aluminum Grease Filter (washable)
Charcoal Filter Optional (for recirculation mode)
Noise Level (max) 65 dB(A)
Extraction Capacity (max) 640 m³/h
Duct Diameter 150 mm
Installation Type Wall-mounted or Recirculation
Energy Efficiency Class A
Grease Filter Indicator Yes

Frequently Asked Questions - KSET66 SMEG

How to install the Smeg KSET66 range hood?
Installation should be performed by a qualified professional. Ensure the hood is mounted at a minimum distance of 65 cm from the cooking surface for gas hobs or 50 cm for electric hobs. Use the provided mounting template and secure to the wall with appropriate anchors.
How to clean the grease filters?
Remove the aluminum grease filters and wash them in warm water with mild detergent. Alternatively, they can be cleaned in a dishwasher at low temperature (max 65°C). Dry thoroughly before reinstalling.
How to replace the charcoal filter?
The charcoal filter is used in recirculation mode. To replace, remove the grease filters, unlock the charcoal filter clips, and insert a new filter. Replace every 6 months or when indicator alerts.
What is the recommended maintenance schedule?
Clean the grease filters monthly or more often if heavy usage. Replace charcoal filters every 6 months. Clean the exterior with a soft damp cloth. Check the ductwork for blockages annually.
Why is the hood not extracting air properly?
Possible causes include clogged grease filters, blocked ductwork, or incorrect recirculation mode settings. Check and clean filters, ensure the duct is not obstructed, and confirm the hood is set to extraction (not recirculation) if ducted.
How to reset the filter indicator?
After cleaning or replacing filters, press and hold the speed button for about 3-5 seconds until the indicator light turns off. Refer to the manual for exact procedure.
Can the hood be used in recirculation mode?
Yes, the KSET66 can be used in recirculation mode by installing a charcoal filter (sold separately). This mode recirculates purified air back into the kitchen.
What are the dimensions of the duct connection?
The duct connection diameter is 150 mm. Use rigid or flexible ducting with matching diameter for optimal performance.
How to change the halogen bulbs?
Disconnect power, remove the filter to access the bulb, push and turn the bulb to release. Replace with a new 20W halogen (G4 base) and reassemble. Do not touch bulbs with bare hands.
The hood is noisy even at low speed. What to do?
Check for loose parts or unbalanced fan. Ensure filters are properly installed. If noise persists, it may indicate a motor issue; contact Smeg service for assistance.

User questions about KSET66 SMEG

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Range hood in PDF format for free! Find your manual KSET66 - SMEG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KSET66 by SMEG.

USER MANUAL KSET66 SMEG

If you follow the recommendations contained in this Instruction Manual, your appliance will give you constant high performance and will remain efficient for many years to come.

CONTENTS

RECOMMENDATIONS AND SUGGESTIONS 10

CHARACTERISTICS 11

INSTALLATION 12

USE 14

MAINTENANCE 15

INSTALLATION

  • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

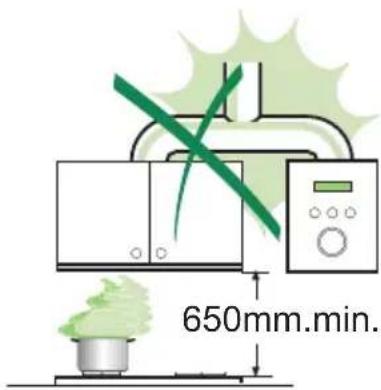

  • The minimum safety distance between the cooker top and the extractor hood is 650 mm.
  • Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
  • For Class I appliances, check that the domestic power supply guarantees adequate earthing.
  • Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
  • Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
  • If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.

USE

  • The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
  • Never use the hood for purposes other than for which it has been designed.
  • Never leave high naked flames under the hood when it is in operation.
  • Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
  • Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
  • The hood should not be used by children or persons not instructed in its correct use.

MAINTENANCE

  • Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
  • Clean and/or replace the Filters after the specified time period.
  • Clean the hood using a damp cloth and a neutral liquid detergent.

MIL 22A-24B 1V~50 Hz TOT, TIME DCOIE IN C E TOT, 17A UENOM

650mm.min.

Illustration of a laboratory setup with a beaker and a flame, crossed by a green diagonal line (no text or symbols)

Dimensions
Ø150 260 L 0÷152 280

Hood Type 60 90

L 598 898

Components

12a 1 20

Ref. Q.ty Product Components

11 Hood Body, complete with: Controls, Light, Blower, Filters

20 1 Closing element

Ref. Q.ty Installation Components

12a 4 Screws 4,2 x 44,4

Q.ty Documentation

1 Instruction Manual

Drilling the Support surface and Fitting the Hood

SCREW FITTING

  • The hood support surface must be 220 mm above the bottom surface of the wall units.
  • Drill the support with a φ 4,5 mm drill bit, using the drilling template provided.
  • Cut a hole 150 mm in size on the support surface, using the drilling template provided.
    • Fix using the 4 screws 12a (4,2 x 44,4) provided.

3D architectural diagram showing a room with green walls, a central circular opening, and a wall-mounted platform (no text or symbols)

SNAP-ON FITTING

  • The hood can be installed either directly on the bottom surface of the wall units (min. 650 mm above the hob) using snap-on side supports.
  • Cut a fitted opening in the bottom surface of the wall unit, as shown.
  • Insert the hood until the side supports snap into place.
  • Lock in position by tightening the screws Vf from underneath the hood.

Hood Type 60 90

L 598 898

264 15 L1 Vf

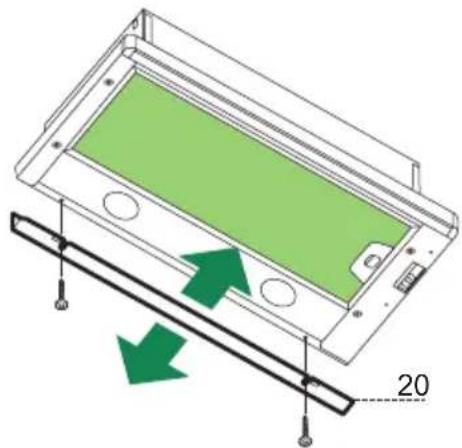

CLOSING ELEMENT

- The space between the edge of the hood and the rear wall can be closed by applying the element 20 provided, using the screws supplied for this purpose.

Diagram of a device casing with green internal panel and directional arrows indicating movement, labeled '20' (no text or symbols on the diagram itself)

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 mm, the choice of which is left to the installer.

  • Fix the pipe in position using sufficient pipe clamps (not supplied).
  • Remove any activated charcoal filters.

Ø150

RECIRCULATION VERSION AIR OUTLET

  • Cut a hole φ 150 mm in the wall unit over the hood.
  • Connect the hood body outlet to the top part of the wall unit using a rigid or flexible pipe 150 mm, to be selected by the installer.
  • Fix the pipe in position using sufficient pipe clamps (not supplied).
  • Ensure that the activated charcoal filters have been inserted.

150

ELECTRICAL CONNECTION

  • Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.
  • When opening the sliding carriage for the first time after installing the hood, pull it out briskly until it clicks.

Control panel

L 0 1 V

L Light Switches the lighting system on and off.

M Motor Switches the extractor motor on and off.

V Speed Sets the operating speed of the extractor:

  1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour.
  2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.
  3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods

Grease filters

CLEANING METAL GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage.
- Remove the filters, one at a time, after disconnecting the relative fastening elements.
- Wash the filters, taking care not to bend them. Allow them to dry before refitting.
- When refitting the filters, make sure that the handle is visible on the outside.

Diagram illustrating a hand using a tool to adjust a green circular component, with three views of the device showing internal components.

Odour filters (Recirculation version)

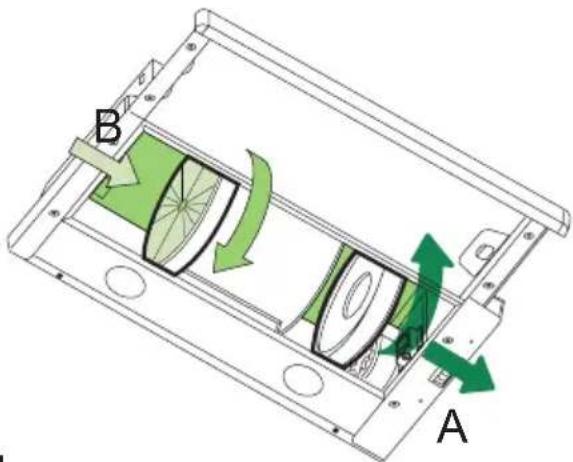

REPLACING ACTIVATED CHARCOAL FILTERS

• These filters are not washable and cannot be regenerated, and must be replaced approximately every four months of operation, or more frequently with heavy usage.
- Remove the grease filters.
- Remove the saturated activated charcoal filters, as shown (A).
• Fit new filters (B), as shown.
- Replace the grease filters.

B A

Lighting

LIGHT REPLACEMENT

  • 20 W halogen light.
  • Remove the 2 Screws fixing the Lighting support, and pull it out of from the Hood.
  • Extract the Lamp from the Support.
  • Replace with another of the same type, making sure that the two pins are properly inserted in the lamp holder socket holes.
  • Replace the Support, fixing it in place with the two Screws removed as above.

Illustration of a hand holding a small electronic component with a magnified inset showing internal structure (no text or symbols)

CE

This appliance conforms to European Low Voltage Directive 73/23/CEE governing electrical safety, European Directive 89/336/CEE on Electromagnetic Compatibility and Directive 93/68/CEE regarding CE Marking.
