Energysilence Aero 4300 Lnvisible Double Metal - Ceiling fan CECOTEC - Free user manual and instructions

Product type	Ceiling fan
Brand	Cecotec
Model	Energysilence Aero 4300 Lnvisible Double Metal
Blade diameter	132 cm (52 inches)
Blade material	Double metal (Double Metal)
Number of blades	3 blades
Motor	Silent DC motor (Energysilence)
Power	35 W
Speeds	6 speeds
Reverse function	Yes (summer/winter)
Remote control	Yes, included
Lighting	No
Noise level	30 dB (silent)
Weight	6.5 kg
Power supply	220-240 V, 50/60 Hz
Installation	Ceiling, mounting kit included
Ceiling slope angle	Up to 15°
Maintenance	Clean the blades with a damp cloth
Safety	Automatic shut-off in case of overheating
Warranty	2 years

Frequently Asked Questions - Energysilence Aero 4300 Lnvisible Double Metal CECOTEC

How to install the Energysilence Aero 4300 ceiling fan?

Follow the steps in the manual: attach the mounting plate to the ceiling, connect the electrical wires (live, neutral, ground), then assemble the blades and the canopy. Make sure the power is off before installation.

Can this fan be used in winter?

Yes, thanks to the reverse function. In winter mode, the blades rotate clockwise to redistribute warm air from the ceiling to the floor, improving thermal comfort.

How to clean the fan blades?

Use a soft, slightly damp cloth to wipe the metal blades. Do not use abrasive products or solvents. Make sure the fan is off before cleaning.

The fan is making noise, what should I do?

Check that the blades are properly balanced and the screws are tight. If the noise persists, contact customer service. This model is designed to be silent (30 dB).

The remote control is not working, how to reset it?

Replace the remote control batteries. If the problem persists, turn off the fan's power for 10 seconds, then turn it back on. Re-pair the remote control following the manual.

What is the electrical power of the fan?

The DC motor consumes only 35 W at full speed, making it economical and eco-friendly.

Can I install this fan on a sloped ceiling?

Yes, the mounting kit allows installation on a sloped ceiling up to 15 degrees. Use a suitable downrod if necessary.

How to change the fan rotation direction?

Use the button on the remote control or the switch on the motor housing (depending on the model). An indicator shows summer mode (counterclockwise) or winter mode (clockwise).

Are the blades removable for cleaning?

Yes, the blades unscrew from the motor. Clean them separately and screw them back tightly. Be careful not to lose the screws.

Where to find spare parts for this fan?

Contact Cecotec customer service or visit their website. Parts such as blades, remote control, or mounting kit are available subject to availability.

USER MANUAL Energysilence Aero 4300 Lnvisible Double Metal CECOTEC

Safety instructions 9

1. Parts and components 68

2. Before use 68

3. Installation 69

4. Operation 71

5. Cleaning and maintenance 72

6. Troubleshooting 72

7. Technical specifications 73

8. Disposal of old electrical and electronic

appliances 74

1. Technical support and warranty 74

2. Copyright 74

3. SIMPLIFIED EU DECLARATION

OF CONFORMITY 75

SOMMAIRE

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Keep a minimum distance of 2.3 cm between the fan blades and the floor.
• Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.
• Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Make sure that the mains voltage matches the voltage specified on the appliance rating label and that the wall outlet is earthed.
• Do not use the appliance if its cable or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.
• The appliance must be installed in accordance with national wiring regulations.
• Never insert objects or body parts between the rotating fan blades.
• To reduce the risk of injury, attach the fan directly to

the support structure of the building as indicated in this manual and only use parts and components provided and recommended by Cecotec.

• To avoid risk of electric shock, disconnect the main power supply by turning off the power switches before installing or repairing the fan.
• The electrical wiring must be in accordance with local regulations.
• The wire must be properly earthed to avoid possible accidents.
• The appliance must be installed in accordance with national wiring regulations.
• Never install the fan in a damp or wet room.
• Be careful when near the rotating fan blades.
• To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.
• Do not bend the blade-attachment system during the installation or cleaning process.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly. Turn off and unplug the appliance before cleaning it.
• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the appliance.
• This appliance is designed for indoor use.

Instructions on batteries

- Battery ingestion can cause burns, soft-tissue perforation,

and death. It can cause severe burns within two hours of the ingestion.

• In case of battery ingestion, please seek medical attention immediately.
• Do not allow children to replace batteries without adult supervision.
• Do not disassemble, open, or damage the batteries.
• Keep the batteries out of the reach of children. Keep especially small batteries out of the reach of children. In case of battery ingestion, please seek medical attention immediately.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.
• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid comes into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, rinse them immediately with clean water for at least 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.
• Do not use any batteries that are not designed for use with the appliance.

• Do not mix batteries of different manufacture, capacity, or size. Supervise children to prevent them from playing with batteries.

• Always buy recommended batteries.

• Keep the batteries clean and dry. Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Whenever possible, remove the batteries when not in use.

INSTRUCTIONS DE SÉCURITÉ

1. Canopy
2. 13 cm downrod
3. 25 cm downrod
4. Mounting bracket
5. Decorative cover
6. Motor
7. Lampshade
8. Remote control and receiver
9. Installation kit

a. Fixing screws (x4)
b. Expansion screws (x2)
c. Balance weight (x1)
d. Balance magnet (x1)

NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Fan
• Remote control
• AAA batteries (x2)
• Instruction manual
• Do not remove the serial number of the appliance in order to keep a correct traceability of it in case of assistance.

3. INSTALLATION

Installation preparation

• To avoid any damage, make sure that you hang the fan at least 2.3 m from the floor and 76 cm from any walls or obstacles. Fig. 2
• Make sure that the ceiling structure can hold the full weight of the fan.

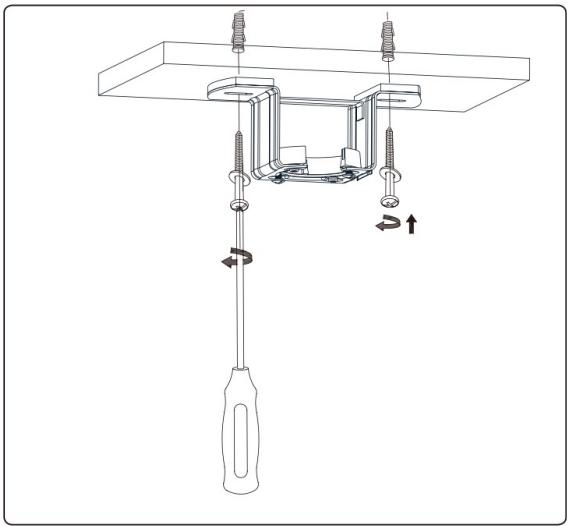

3.1 Mounting bracket installation

Wooden ceiling

Fix the mounting bracket to the wooden ceiling with wood screws (of at least 7-cm thickness) as shown in figure 3.

Concrete ceiling

Drill two holes of a proper depth and insert the expansion screws into the holes. Align the holes in the mounting bracket with the screws and secure it with the nuts as shown in figure 4.

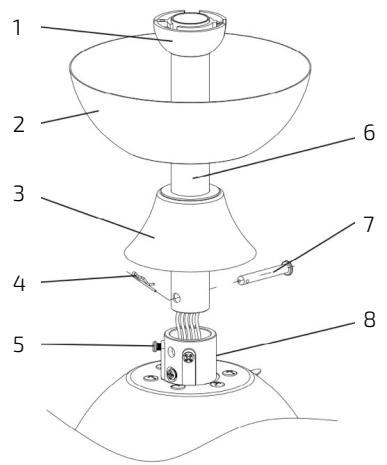

Hanging system installation

Fig. 5

A. Choosing the fan height

Two downrods are included, a short one of 13 cm and a longer one of 25 cm. The short downrod is already attached to the hanging ball, providing a length of 45 cm from the ceiling to the fan. If you want the fan to hang lower, use the longer downrod.

To remove the hanging ball, loosen the fixing screws and remove the pin and clip. Lower the hanging ball off the downrod and slide it onto the longer downrod. When the hanging ball is in the desired position, insert the pin and clip and tighten the fixing screws securely.

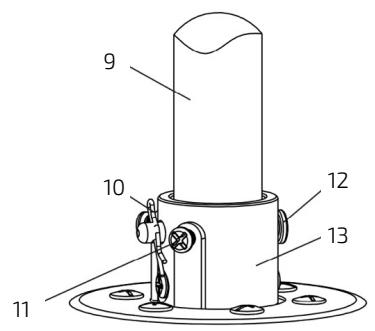

B. Attaching the downrod to the motor

Remove the pin from the downrod and slide the canopy and decorative cover through the downrod.

Pass the electrical wires through the downrod and pull the wires protruding from the top of the downrod end. Pass the downrod through the coupling piece and fix it to the motor's main body with the pin and clip R previously removed. Tighten the fixing screws securely. Lower the decorative cover onto the motor housing.

Fig. 5 key:

1. Hanging ball

2. Canopy

3. Decorative cover
4. R clip

ENGLISH

1. Fixing screw
2. Downrod
3. Pin
4. Coupling piece
5. Downrod
6. R clip
7. Fixing screw
8. Pin
9. Coupling piece

3.2 Installing the motor in the mounting bracket

• Place the fan motor on the mounting bracket. Fig. 6
• Make sure to fit the grooves on the hanging ball with the tabs on the mounting bracket. Fig. 7-8

Fig. 7 key

1. Groove
2. Tab

3.3 Electrical installation

a. Place the receiver on the mounting bracket. Fig. 9-10
b. Connect the fan input wires to the corresponding wires on the receiver.
c. Connect the motor wires to the corresponding wires on the receiver. Fig. 11
d. Connect the LED light wires to the corresponding wires on the receiver. Fig. 11

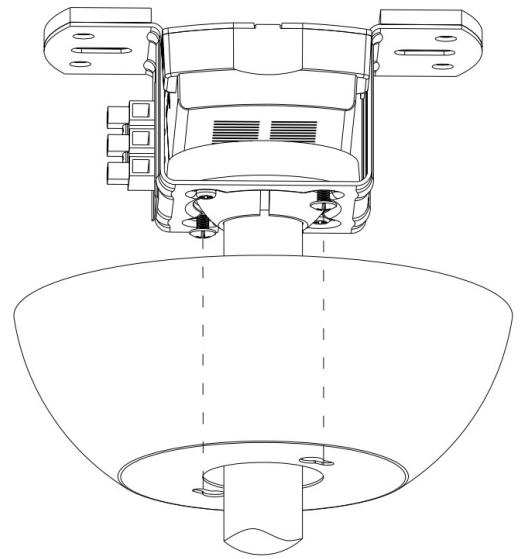

3.4 Canopy assembly Fig. 12-13

a. Lift the canopy to the ceiling to cover the mounting bracket.
b. Secure it in place with the screws provided.

Fig. 12 key

1. Canopy

3.5 Lampshade assembly LED. Fig. 14

a. Align the grooves on the lampshade with the grooves on the fan's main body,
b. then turn it clockwise to fix it into place.

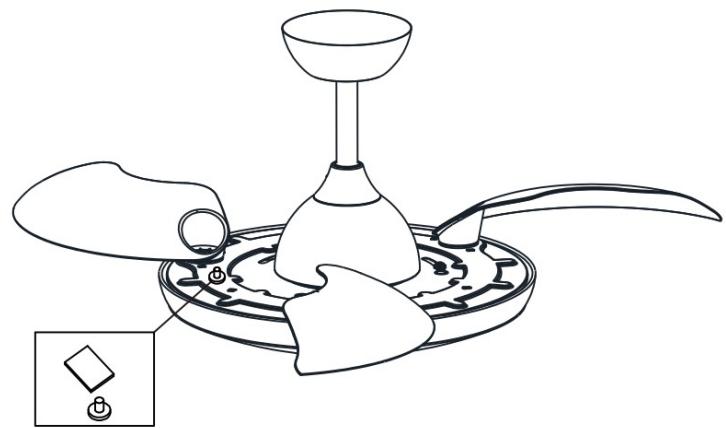

3.6 How to balance the fan

Fig. 15

a. If you notice that the blades are vibrating, wobbling or tilted when you switch on the fan, switch it off and place the balance magnet on the edge of one of the blades.
b. Switch the fan back on to check if the tilt has improved or worsened.

c. If the problem persists, change the magnet to another blade and repeat the process until the fan is correctly balanced.
d. Place the balance weight at the height of the balance magnet and remove the magnet. Then switch on the fan and check that it is operating normally.

Warning

To avoid risk of fire and electric shock, only use the switch provided with this fan.

4. OPERATION

Remote control

Fig. 16

1. Power indicator light
2. Speed setting buttons: allow you to adjust the speed of the fan blades.
3. Power button: press it to switch the fan on or off.
4. Reverse blade spin button: it changes the blade rotation direction. It is useful to adjust the air flow according to the season: in summer, the blades should spin counterclockwise to create a cool breeze, and in winter, clockwise to distribute the warm air.
5. Natural mode button: when this mode is activated, the fan simulates a natural breeze by automatically adjusting the speed of the blades.
6. Light button (on/off/light shade change): this button controls the fan's built-in light. You can turn the light on or off and change the light shade.
7. Timer buttons: allow you to programme the fan to switch off automatically after a set time.

How to synchronise the remote control and receiver

Switch on the fan and press the ⚙️ button to synchronise the receiver and the remote control. When the synchronisation is successful, the fan will beep twice.

• To control the fan, the remote control uses RF wireless technology.
• If there is enough space, you can use the receiver at any angle, without having to worry about the direction.

Note:

1. If the remote control cannot synchronise with the receiver, check if the batteries make contact, are inserted correctly and have not run out of power.
2. If the remote control cannot synchronise with the receiver, check if there are other appliances operating with a remote control nearby, as they may cause interference. If you

remove these appliances from the room where the fan is located, the remote control will work properly again.

1. Use this appliance with the correct voltage. If the voltage is too low, the remote control will not work. Technical specifications are given in this manual.
2. If you are not going to use the remote control for a long period of time, remove the batteries.

Changing the remote control batteries

The remote control is powered by 2 x 1.5 V AAA batteries.

1. Open the battery compartment.
2. Insert the batteries into the battery compartment observing the polarity.
3. Close the compartment.

5. CLEANING AND MAINTENANCE

Warning

Before cleaning or repairing the fan, disconnect it from the mains.

1. It is recommended to check at least once a year the connecting parts of the fan, such as the mounting bracket, screws and blades, to ensure that they are securely fixed.
2. Clean the fan regularly to keep the surface clean. To remove dust, use a soft brush or cloth. If the fan has grease on it, wipe it off with a slightly damp cloth. Do not clean the fan directly with water.
3. The motor bearing is already greased, do not add lubricating oil. Avoid scratching the surface.

6. TROUBLESHOOTING

Problem	Solution
The fan does not turn on.	1. Make sure that the mains power supply is working.2. Make sure that the voltage is higher than 176 V.3. Check if the fan is correctly installed.Note: if the problem persists after completing the above three checks, please contact the official Cecotec Technical Support Service.

The fan makes noise.

1. Before mounting the fan, make sure that it is not damaged.2. Make sure that the downrod bolt is correctly positioned and that the screws are tightened securely.3. Some new ceiling fans make noise for the first 24 hours, after that time they stop making noise.4. It is not recommended to install this fan on wooden ceilings, steel structures or prefabricated slabs, as they amplify the sound of the fan.5. Check if the fan is wobbling and, if so, use the blade-balancing kit provided by the manufacturer.

The fan light does not turn on.

1. Check if the lamp cable connection is loose.2. Check that the light switch contact is not damaged or loose.3. Check if the bulb is blown.

7. TECHNICAL SPECIFICATIONS

Product reference: EU01_108201

Product: EnergySilence Aero 4300 Invisible Double Metal

Voltage: 220-240 V\~

Frequency: 50 Hz

Motor power: 35 W DC

Light power: 36 W LED

Description	Symbol	Value	Unit
Fan maximum flow	F	119.9	m^3/min
Fan power consumption	P	32.1	W
Service value	SV	3.7	(m^3/min)/W
Power consumption on standby mode	P_SB	0.5	W
Fan noise power level	L_WA	44.8	dB (A)
Maximum air speed	C	2.9	m/s
Service value measurement standard	IEC 60879:2019
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos, No 60, 46910, Alfafar, Valencia, Spain

This product features a light source with an energy efficiency grade E.

The power consumption in standby mode is 0.5 W, using the guidelines of EN 50564:2011 and the European regulations 1275/2008/EC and 801/2013/EC. For this purpose, the appliance is connected to the mains without performing any function, waiting for the standby mode to be activated.

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the appliance and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on how to properly dispose of electrical and electronic appliances and/or batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

11. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the

European Union. This appliance has been designed, manufactured and tested to meet the required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

Img. 1

Trocar as pilhas do controlo remoto

6. PROBLEEMOPLOSSING

information/declaration-of-conformity

1	2	3
4	5	6
		a b c d
7	8	9

Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./ Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./ Rys. 5

Fig./Img./Abb./Afb./ Rys. 6

Fig./Img./Abb./Afb./ Rys. 7

Fig./Img./Abb./Afb./ Rys. 8

Fig./Img./Abb./Afb./ Rys. 9

Fig./Img./Abb./Afb./ Rys. 10

Fig./Img./Abb./Afb./ Rys. 11

Fig./Img./Abb./Afb./ Rys. 12

Fig./Img./Abb./Afb./Rys. 13

Fig./Img./Abb./Afb./Rys. 14

Fig./Img./Abb./Afb./ Rys. 15

Fig./Img./Abb./Afb./Rys. 16

www.cecotec.es
