Product type	Built-in cooker
Brand	Bosch
Model	HEIP056C
Dimensions (H x W x D)	85 x 60 x 60 cm
Weight	55 kg
Power supply	220-240 V ~ 50-60 Hz, 16 A
Cooking type	Induction with 4 burners
Oven type	Electric multifunction
Oven capacity	71 L
Oven functions	Natural convection, fan-forced, grill, base heat, defrosting
Oven cleaning	Catalytic cleaning aid
Child safety	Control lock
Residual heat indicator	Yes, for each burner
Automatic safety shut-off	Yes, programmable
Spare parts	Available for 10 years
Energy class	A+

Frequently Asked Questions - HEIP056C BOSCH

How to activate the child lock?

Press the Lock key (often a padlock) for 3 seconds until the symbol appears. To deactivate, repeat the operation.

What to do if the oven does not heat?

Check that the oven is switched on and the timer is not activated. Ensure the power supply is correct. If the problem persists, contact after-sales service.

How to clean the induction burners?

Use a soft cloth and a specific induction cleaner. Avoid abrasive sponges. Wipe after each use to avoid marks.

Why does the hob switch off automatically?

The Automatic safety shut-off function turns off the cooking after a certain period of non-use. This is normal to save energy and prevent accidents.

How to set the oven clock?

Press the Timer or Clock key (depending on model). Use the + and - keys to set the time. Confirm by pressing again.

What do the displayed error codes mean?

Codes like E011 indicate a communication fault. Consult the manual for the exact meaning. Generally, unplug and replug the appliance after 30 seconds.

How to replace the oven bulb?

Unplug the appliance. Remove the protective glass (often with a screwdriver). Unscrew the replacement bulb (type G9, 40W max). Reassemble.

Can I use aluminum containers on induction?

No, aluminum containers are not compatible with induction. Use pots and pans with a ferromagnetic bottom (stainless steel, cast iron).

How to activate the pyrolysis function?

This model is equipped with Catalysis (cleaning by heat). Select the special program at 250°C for about 2 hours. Remove removable accessories beforehand.

Where to find spare parts?

Spare parts are available from authorized Bosch dealers or on the official website. Use the model number HEIP056C to identify parts.

USER MANUAL HEIP056C BOSCH

bosch-home.com/us/mybosch

Electric Slide-In Ranges

1.1 Safety definitions.... 3
1.2 General information.... 3
1.3 Intended use 3
1.4 Restriction on user group 3
1.5 Safe use.... 3
1.6 Child safety 6
1.7 Food safety 7
1.8 Cleaning function 7
1.9 Proper installation and maintenance 7
1.10 State of California Proposition 65 Warnings ...... 8

2 Preventing material damage 10

2.1 Preventing oven cavity damage 10
2.2 Preventing cooktop damage.... 10

3 Environmental protection and energy-saving ..... 10

3.1 Disposal of packaging.... 10
3.2 Saving energy when using the oven.... 10
3.3 Saving energy when using the cooktop.... 11

4 Familiarizing yourself with your appliance ..... 12

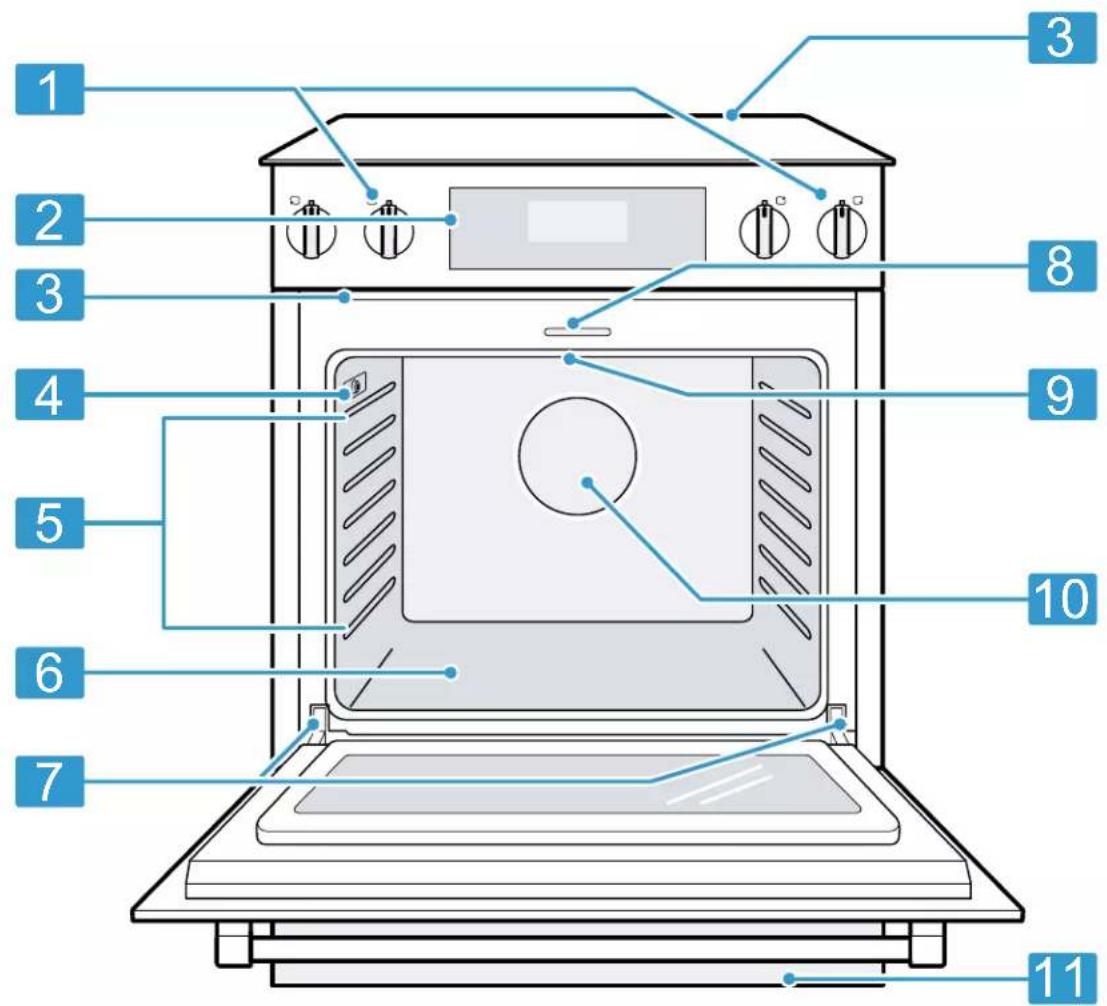

4.1 Appliance 12

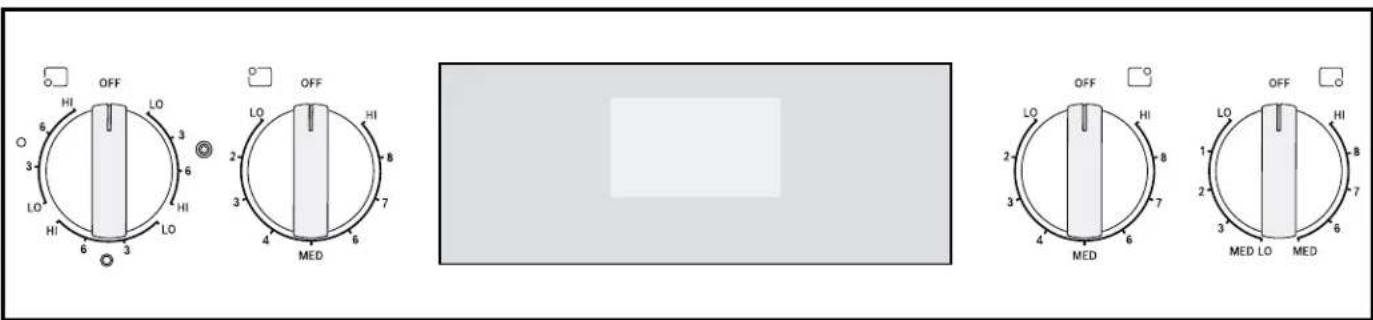

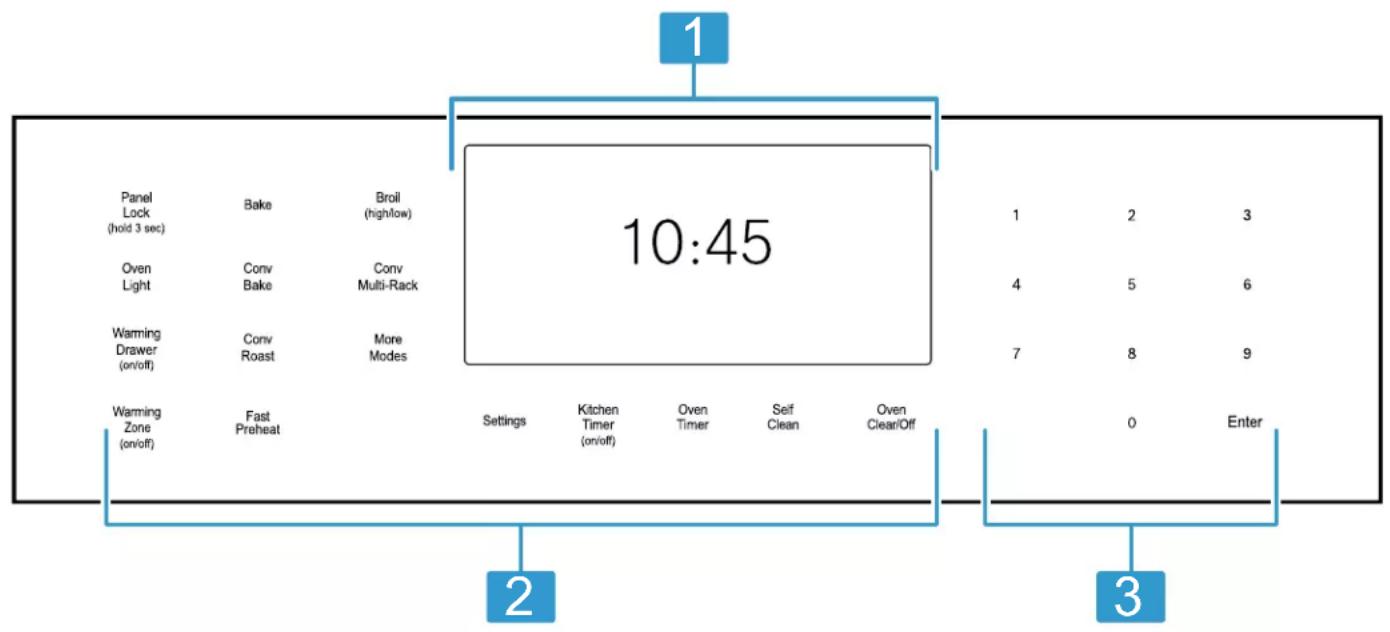

4.2 Control panels.... 13

5 Accessories.... 17

5.1 Other accessories 17

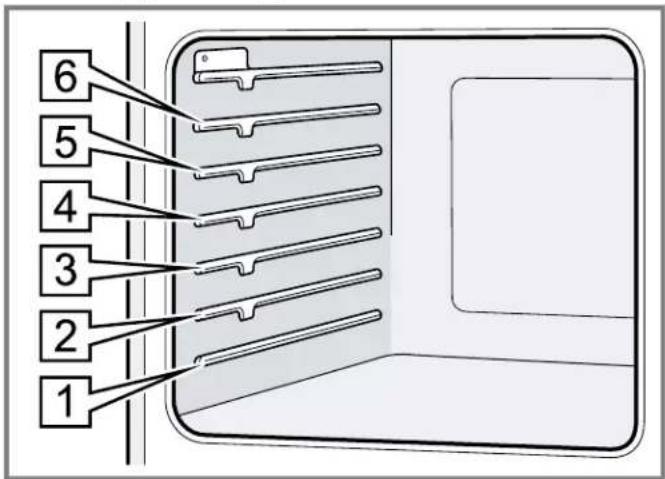

5.2 Rack positions.... 17
5.3 Safe use of oven racks.... 17

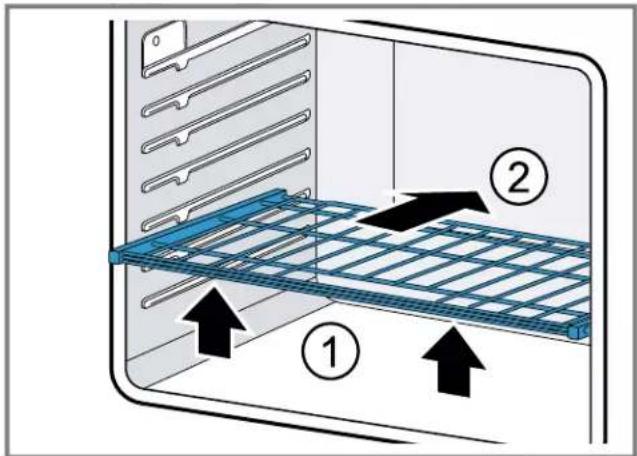

5.4 Inserting the wire rack.... 18
5.5 Inserting the telescopic rack.... 18

6 Before using for the first time 18

6.1 Cleaning the appliance before using it for the first time.... 18
6.2 Setting the clock.... 18

7 Oven operation.... 19

7.1 Setting the heating mode and temperature 19
7.2 Turning the oven off 19
7.3 Temperature range by heating mode 19
7.4 Heating time limitation.... 19
7.5 Fast preheat.... 19
7.6 Meat probe.... 19
7.7 Turning the panel lock on or off.... 20
7.8 Kitchen timer.... 20
7.9 Oven timer 20
7.10 Sabbath mode.... 20
7.11 Basic settings.... 21
7.12 General tips for heating modes 22
7.13 Getting the best results 23

8 Cooktop operation 24

8.1 Setting the cooking zone.... 24
8.2 Using the warming zone.... 24
8.3 Recommended cooking settings 24

9 Warming drawer operation.... 24

9.1 Warming drawer levels.... 25
9.2 Turning the warming drawer on.... 25
9.3 Turning the warming drawer off.... 25
9.4 Using the warming drawer in Sabbath mode...... 25

9.5 Warming empty serving bowls and plates.... 25
9.6 Crisping stale items 25
9.7 General tips for the warming drawer 25
9.8 Warming drawer temperature recommendations ..... 25
10.1 Cleaning agents.... 26
10.2 Cooktop cleaning and maintenance.... 26
10.3 Oven cleaning and maintenance.... 28
10.4 Cleaning the warming drawer 31

10 Cleaning and maintenance 26

11 Troubleshooting 33

12 Disposal.... 34

12.1 Disposal of your old appliance 34

13 Customer service.... 34

13.1 Model number (E-Nr.) and production number (FD) 34
13.2 Rating plate location 34

14 STATEMENT OF LIMITED PRODUCT WARRANTY.... 35

14.1 What this warranty covers & Who it applies to ..... 35
14.2 How long the warranty lasts.... 35
14.3 Repair/replace as your exclusive remedy.... 35
14.4 Out of warranty product 35
14.5 Warranty exclusions 35
14.6 Obtaining warranty service 36

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

Read all instructions carefully before use. These precautions will reduce the risk of electrical shock, fire and injury to persons. When using kitchen appliances, basic safety precautions must be followed including those in the following pages.

1.1 Safety definitions

Here you can find explanations of the safety signal words used in this manual.

WARNING

This indicates that death or serious injuries may occur as a result of non-observance of this warning.

CAUTION

This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.

NOTICE:

This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.

Note: This alerts you to important information and/or tips.

1.2 General information

■ Read this manual carefully.
- Keep the manual and the product information in a safe place for future reference or for the next owner.
- Do not connect the appliance if it has been damaged in transit.

1.3 Intended use

Only a qualified professional may connect appliances without plugs. The manufacturer is not responsible for damage caused by incorrect connections. Please see the Statement of Limited Product Warranty → Page 35.

Only use this appliance:

■ To prepare meals and drinks.
■ Under supervision. Never leave the appliance unattended when cooking for short periods.
- In private households and in enclosed spaces in a residential environment.

Do not use the appliance:

■ On boats or in vehicles.
■ as a room heater.

1.4 Restriction on user group

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

When children become old enough to use the appliance, it is the responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualified persons.

Children should be supervised to ensure that they do not play with the appliance.

Do not let children play with the appliance.

1.5 Safe use

WARNING

When properly cared for, your new appliance has been designed to be safe and reliable.

▶ Read all instructions carefully before use. These precautions will reduce the risk of burns, electric shock, fire, and injury to persons.
- When using kitchen appliances, basic safety precautions must be followed, including those in the following pages.

WARNING

Overheated materials can cause fire or burns.

▶ Do not allow aluminum foil, plastic, paper or cloth to come in contact with a hot surface element, burner or grate.
▶ Do not allow pans to boil dry.

Unattended cooking on a cooktop with fat or oil can be dangerous and may result in a fire.

▶ Do not leave the cooktop unattended when in use.
Never leave the cooktop unattended when in use.
▶ Boilovers cause smoking and greasy spillovers may ignite.

If materials inside an oven or warming drawer should ignite, keep door closed.

▶ Turn off the appliance and disconnect the circuit at the circuit breaker box.

A fire could occur during cooking.

▶ Always have a working smoke detector near the kitchen.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

▶ Have an appropriate fire extinguisher available, nearby, highly visible and easily accessible near the appliance.

NEVER cover any slots, holes or passages in the oven bottom or cover an entire rack with materials such as aluminum foil.

▶ Doing so blocks air flow through the oven.

- Aluminum foil linings may also trap heat, causing a fire hazard.

If the cooktop is near a window, forced air vent or fan, be certain that flammable materials such as window coverings do not blow over or near the burners or heating elements.

▶ They could catch on fire.

Cooking fires can spread if extinguished incorrectly.

▶ Never use water on cooking fires.

WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE

▶ Never Leave Surface Units Unattended at High Settings - Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.

▶ Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe').

▶ Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.

▶ Use proper pan size. Always use cookware appropriate for the size of the surface element.

Flames can be drawn into the ventilation system.

▶ Whenever possible, do not operate the ventilation system during a cooktop fire. However, do not reach through fire to turn it off.

Cookware Handles Should be Turned Inward and Not Extend Over Adjacent Surface Units.

▶ To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the cookware, the handle of a cookware should be positioned so that it is turned inward, and does not extend over adjacent surface units.

Wear Proper Apparel. Loose-fitting or hanging garments, such as ties, scarves, jewelry, or dangling sleeves, should never be worn while using the appliance.

▶ Tie long hair so that it does not hang loose.

- Secure all loose garments, etc. before beginning.

Use Proper Pan Size. This appliance is equipped with one or more surface units of different size.

▶ Select cookware having flat bottoms large enough to cover the surface unit heating element.
The use of undersized cookware will expose a portion of the heating element or burner to direct contact and may result in ignition of clothing. Proper relationship of cookware to heating element or burner will also improve efficiency.

Boilovers can cause smoke and some foods and oils may catch fire if left on high temperature settings.

▶ When using a timer, always supervise the cooktop.
▶ Do not allow anything to boil over or burn.

If the cooktop turns off automatically and can no longer be operated, it may turn itself on unintentionally at a later point.

▶ Switch off the circuit breaker in the fuse box.
▶ Contact Customer Service for support.

If the display does not work when a cooking area is heating up

• disconnect the circuit breaker or fuse in the electrical panel.
  ▶ contact an authorized service provider.

Do not store items on the cooking surfaces.

In the event that personal clothing or hair catches fire, drop and roll immediately to extinguish flames.

Do Not Use Water on Grease Fires.

▶ Smother fire or flame or use dry chemical or foam-type extinguisher.

CAUTION

The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

The oven vents are important for air circulation. Covering the oven vents will cause the oven to overheat. Refer to the appliance overview for the location of the oven vents.

→ Page 12
▶ Do not obstruct oven vents.

WARNING

Use Only Dry Potholders. Moist or damp potholders on hot surfaces may result in burns from steam.

▶ Do not let potholders touch hot heating elements.
▶ Do not use a towel or other bulky cloth.

Hot oil is capable of causing extreme burns and injury.

▶ Use high heat settings on the cooktop only when necessary.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

▶ To avoid bubbling and splattering, heat oil slowly on no more than a low-medium setting.
▶ Never move a pan of hot oil, especially a deep fat fryer. Wait until it is cool.

Spills of hot food may cause burns.

▶ Hold the handle of the pan when stirring or turning food. This helps prevent spills and movement of the pan.

DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS. Surface units may be hot even though they are dark in color. Areas near surface units may become hot enough to cause burns.

▶ During and after use, do not touch, or let clothing, potholders, or other flammable materials contact surface units or areas near units until they have had sufficient time to cool. Among these areas are the cooktop and areas facing the cooktop.

DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SURFACES OF OVEN - Heating elements may be hot even though they are dark in color. Interior surfaces of an oven become hot enough to cause burns.

▶ During and after use, do not touch, or let clothing, potholders, or other flammable materials contact heating elements or interior surfaces of oven until they have had sufficient time to cool. Other surfaces of the appliance may become hot enough to cause burns. Among these surfaces are oven vent openings, surfaces near these openings and oven doors.

Exercise caution when opening the appliance.

▶ Standing to the side, open the door (or drawer) slowly and slightly to let hot air and/or steam escape.
- Keep your face clear of the opening and make sure there are no children or pets near the unit.
▶ After the release of hot air and/or steam, proceed with your cooking.
- Keep doors shut unless necessary for cooking or cleaning purposes.
▶ Do not leave open doors unattended.

Clean Cooktop With Caution.

▶ If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn.

- Some cleaners can produce noxious fumes if applied to a hot surface.

▶ Do not clean the appliance while it is still hot.

CAUTION

Use caution when cooking foods with high alcohol content (e.g. rum, brandy, bourbon) in the oven. Alcohol evaporates at high temperatures. There is a risk of burning as the alcohol vapors may catch fire in the oven.

▶ Use only small quantities of alcohol in foods, and open the oven door carefully.

The oven racks and the oven cavity surfaces become very hot during cooking.

• Place oven racks in the desired positions before turning oven on.
  ▶ Always use oven mitts when the oven is warm.
  ▶ If a rack must be moved while the oven is hot, do not let oven mitts contact hot heating elements.
  ▶ Use caution when removing oven racks from the lowest rack position to avoid contact with the hot oven door.

WARNING

Do not touch the interior surfaces of the drawer while it is in use. The interior of the drawer could become hot enough to cause burns.

- Allow drawer and rack (if equipped) to cool before handling.

Avoid reaching or leaning over the appliance.

▶ Be aware that certain clothing and hair sprays may contain flammable chemicals that could be ignited if brought in to contact with hot surface units or heating elements and may cause severe burns.

WARNING

Storage in or on Appliance - The use of corrosive chemicals in heating or cleaning will damage the appliance and could result in injury.

▶ Flammable materials, corrosive chemicals, vapors or non-food products should not be stored or used in an oven or on or near surface units.
▶ The appliance is specifically designed for use when heating or cooking food.

This appliance is intended for normal family household use only.

▶ It is not approved for outdoor use.
▶ See the Statement of Limited Product Warranty. If you have any questions, contact the manufacturer.

Using this appliance other than for its intended use can cause fire or injury to persons.

▶ Use this appliance only for its intended use as described in this manual.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

▶ NEVER use your appliances as a space heater for warming or heating the room. Doing so may result in overheating the appliance.
▶ Never use the appliance for storage. TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING
▶ SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
▶ NEVER PICK UP A FLAMING PAN – You may be burned.
▶ DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.
▶ Use an extinguisher ONLY if:

• You know you have a Class ABC extinguisher, and you already know how to operate it.
• The fire is small and contained in the area where it started.
• The fire department is being called.
• You can fight the fire with your back to an exit.

Do not heat or warm unopened food containers.

▶ Build-up of pressure may cause the container to burst and cause injury.

Liquid between the pot base and the cooktop may build up steam pressure. This may cause the pot to jump suddenly causing injury.

▶ Always keep the cooktop and bases of pots dry.

Failure to operate knobs properly may result in personal injury and damage to the appliance.

Glazed Cooking Utensils - Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for cooktop or range-top service without breaking due to the sudden change in temperature.

▶ Use only pans that are appropriate for ceramic cook-tops.
▶ Cookware not approved for use with ceramic cooktops may break with sudden temperature changes.
Cooking or roasting bags might explode.
- Follow the manufacturer's directions when using cooking or roasting bags.

CAUTION

To avoid possible injury or damage to the appliance, ensure oven rack is installed exactly per installation instructions and not backwards or upside down.

Do not place food directly on the oven cavity bottom.

WARNING

Moisture intrusion may cause an electric shock.

▶ Do not use any steam cleaners or high-pressure cleaners to clean the appliance.

If the appliance or the power cord is damaged, this is dangerous.

▶ Never operate a damaged appliance.
▶ Never operate an appliance with a cracked or broken surface.
▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the power outlet.
▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the breaker in the circuit breaker box.
▶ Call Customer Service. → Page 34

If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

Do Not Cook on a Broken Cooktop - If the cooktop should break, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock.

▶ Contact an authorized service provider immediately.

1.6 Child safety

Do not let children play with the appliance.

CAUTION

Do not store items of interest to children in cabinets above a range or on the backguard of a range. Children climbing on the range to reach items could be seriously injured.

Do Not Leave Children Alone.

▶ Children should not be left alone or unattended in the area where the appliance is in use.
▶ They should never be allowed to sit or stand on any part of the appliance.
▶ Always check inside the oven before turning it on.

WARNING

Do not allow anyone to climb, stand, lean, sit, or hang on any part of an appliance, especially a door, warming drawer, or storage drawer.

This can damage the appliance, and the unit may tip over, potentially causing severe injury.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

Do not allow children to use this appliance unless closely supervised by an adult.

▶ Children and pets should not be left alone or unattended in the area where the appliance is in use. They should never be allowed to play in its vicinity, whether or not the appliance is in use.

1.7 Food safety

CAUTION

To maintain food safety, follow these guidelines

▶ DO NOT use a warming drawer to heat cold food. It is safe to use the drawer to crisp crackers, chips or dry cereal and to warm plates.
▶ Be sure to maintain proper food temperature. The USDA recommends holding hot food at 140° F or warmer.
▶ DO NOT leave food in the warming drawer for more than one hour before or after cooking.
▶ Plastic containers, plastic wrap or aluminum foil can melt if in direct contact with the drawer or a hot cooking container. If it melts onto the drawer, it may not be removable.

1.8 Cleaning function

Follow these safety instructions when using the cleaning function.

WARNING

Do not block the oven vent(s) during the self-cleaning cycle.

▶ Always operate the unit according to the instructions in this manual.

WARNING

During the elimination of soil during self-cleaning, small amounts of carbon monoxide can be created and the fiberglass insulation could give off very small amounts of formaldehyde during the first several cleaning cycles.

▶ To minimize exposure to these substances, provide good ventilation with an open window, or use a ventilation fan or hood.

The oven heats up to a very high temperature during self cleaning. Opening the door can result in injury.

• When self-cleaning, confirm that the door locks and will not open.
  ▶ If the door does not lock, do not run Self Clean. Contact Customer Service.

CAUTION

Remove broiler pans, pots, and other utensils and excess spillage before self-cleaning.

CAUTION

Birds have very sensitive respiratory systems.

• Keep pet birds out of the kitchen or other rooms where kitchen fumes could reach them.
  ▶ During self clean, fumes are released that may be harmful to birds.
  ▶ Other kitchen fumes such as overheating margarines and cooking oils may also be harmful.

1.9 Proper installation and maintenance

WARNING

TIP OVER HAZARD! A child or adult can tip the range over and be killed.

▶ Verify that the anti-tip bracket is securely installed. Ensure the anti-tip bracket is engaged whenever the range is moved to a new location.
▶ Do not operate the range without the anti-tip bracket in place. Failure to follow the instructions in this manual can result in death or serious burns to children and adults.
▶ Check for proper installation and use of the anti-tip bracket. Carefully tip the range forward pulling from the back to ensure that the anti-tip bracket engages the range leg and prevents tip-over. The range should not move more than 1" (2.5 cm).
- It is the home owner's responsibility to ensure the anti-tip bracket is installed.

WARNING

In the event of a malfunction, it might become necessary to turn off the power supply.

▶ Have the installer show you the circuit breaker or fuse. Mark it for easy reference.

To avoid electrical shock hazard, before servicing the appliance, turn power off at the service panel and lock the panel to prevent the power from being switched on accidentally.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

Proper Installation - Improper installation or grounding can cause electric shock.

• This appliance must be properly installed and grounded by a qualified technician.
  ▶ Connect only to properly grounded outlet.
  ▶ Refer to installation instructions for details.

User Servicing - Do not repair or replace any part of the appliance unless specifically recommended in this manual.

▶ All other servicing should be referred to an authorized service provider.

Light socket is live when door is open if main power supply is not turned off.

▶ Turn off main power supply at the service panel before changing the light bulbs.

WARNING

Make sure the appliance and lights are cool and power to the appliance has been turned off before replacing the light bulb(s). Failure to do so could result in electrical shock or burns.

▶ The lenses must be in place when using the appliance.
▶ The lenses serve to protect the light bulb from breaking.
The lenses are made of glass. Handle carefully to avoid breaking. Broken glass can cause an injury.

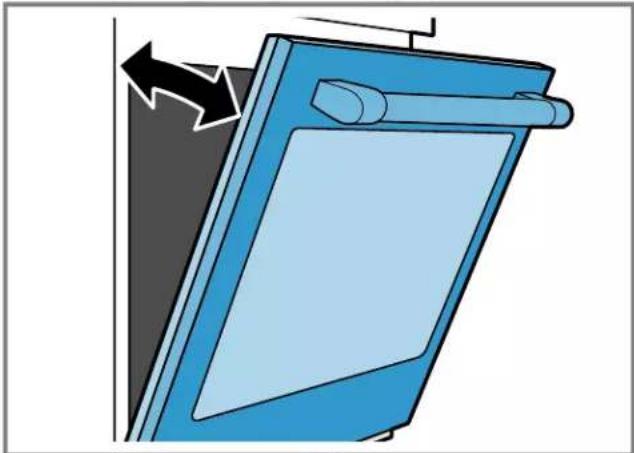

Failure to follow these instructions when removing the oven door may lead to personal injury or product damage.

▶ Make sure oven is cool and power to the oven has been turned off before removing the door. Failure to do so could result in electrical shock or burns.
▶ The oven door is heavy and parts of it are fragile. Use both hands to remove the oven door.
▶ The door front is glass. Handle it carefully to avoid breakage.
▶ Grasp only the side of the oven door. Do not grasp the handle. It may swing in your hand and cause damage or injury. Failure to grasp the oven door firmly and properly could result in personal injury or product damage.

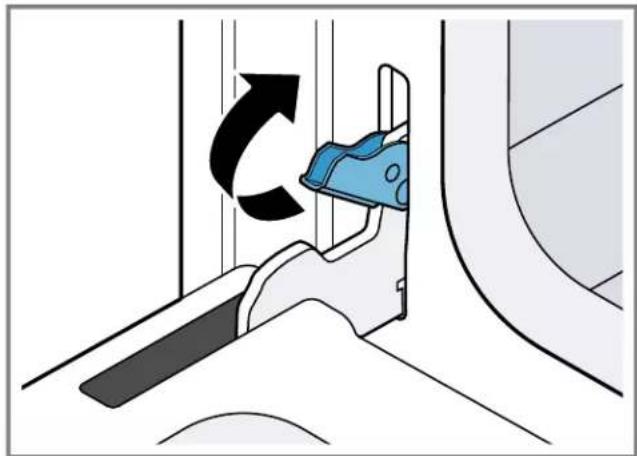

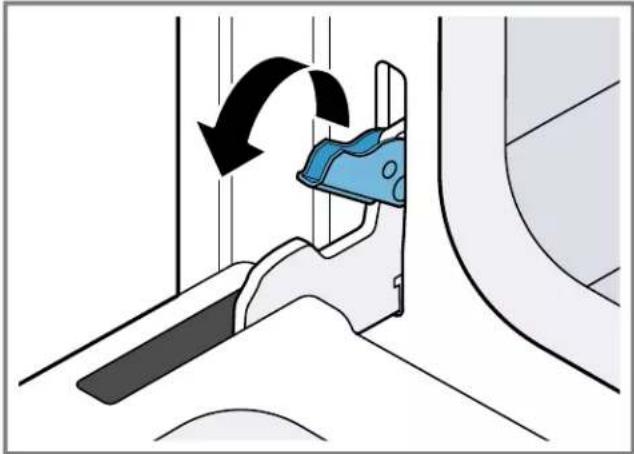

▶ To avoid injury from hinge bracket snapping closed, be sure both levers are securely in place before removing the door.
▶ Do not force the door open or closed. The hinge could be damaged and cause damage or injury.
▶ Do not lay the removed door on sharp or pointed objects as this could break the glass. Lay it on a flat, smooth surface, positioned so that the door cannot fall over.

WARNING

If the supply cord is damaged, it must be replaced by the manufacturer, its authorized service provider or similar qualified persons in order to avoid hazard.

WARNING

Grease and fat can ignite when heated.

- Keep the oven free from grease build up.

CAUTION

In the event of an error the display flashes and beeps continuously.

▶ Disconnect appliance from the power supply and call an authorized service provider.

WARNING

Malfunctions can cause injuries.

▶ Do not operate this appliance if it is not working properly, or if it has been damaged. Contact an authorized service provider.

1.10 State of California Proposition 65 Warnings

This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:

STATE OF CALIFORNIA PROPOSITION 65 WARNING:

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

IMPORTANT SAFETY NOTICE: The California Safe Drinking and Toxic Enforcement Act requires the Governor of California to publish a list of substance known to the state to cause cancer, birth defect or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances. The burning of gas cooking fuel and the elimination of soil during self-cleaning can generate small amounts of carbon monoxide. The fiberglass insulation in self clean ovens gives off very small amounts of formaldehyde during the first several cleaning cycles. California lists formaldehyde as a potential cause of cancer. Carbon monoxide is a potential cause of reproductive toxicity. Exposure to these substances can be minimized by:

■ Providing good ventilation when cooking with gas.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

■ Providing good ventilation during and immediately after self-cleaning the oven.
- Operating the unit according to the instructions in this manual.

2 Preventing material damage

2.1 Preventing oven cavity damage

NOTICE:

When the oven cavity is hot, any water inside it will create steam. The change in temperature may cause damage.

▶ Never pour water into the oven cavity when it is still hot.

▶ Never place cookware containing water on the oven cavity bottom.

The prolonged presence of moisture in the oven cavity leads to corrosion.

- Allow the oven cavity to dry after use.

- Do not keep moist food in the oven cavity for a long time with the door closed.

- Do not store food in the oven cavity.

Leaving the appliance to cool down with the door open will damage the front of neighboring kitchen units over time.

▶ Always allow the oven cavity to cool down with the door closed after cooking at high temperatures. Only leave the oven cavity to dry with the door open if a lot of moisture was produced during operation.

▶ Take care not to trap anything in the appliance door.

Fruit juice dripping from the baking tray leaves stains that cannot be removed.

- When baking very juicy fruit pies, do not pack too much on the baking tray.

Sitting or placing objects on the appliance door may damage it.

▶ Do not place or hang objects on the appliance door.

- Do not place cookware or accessories on the appliance door.

Carrying the appliance by the door handle could break it. The door handle cannot support the weight of the appliance.

- Do not carry or hold the appliance by the door handle.

2.2 Preventing cooktop damage

NOTICE:

Cookware with rough bottoms scratch the glass ceramic surface.

- Check the bottom of the cookware before setting it down.

Salt, sugar or grains of sand scratch the glass ceramic surface.

▶ Never use the cooktop as a working surface or for setting things down.

Overheating can damage the cookware.

▶ Do not heat empty pots or pans.

Hot cookware can cause the electronics to overheat.

- Never set down hot pans and pots on the control panel or the cooktop frame.

When hard or sharp objects fall on the cooktop, they can cause damage.

- Do not let hard or pointed objects fall on the cooktop.

Aluminum foil and plastic melt on hot cooking zones.

- Do not let aluminum foil or plastic come into contact with hot cooking zones.

▶ Do not use cooktop protective film.

Unsuitable cleaning agents can cause shimmering metallic discolorations on the glass ceramic surface.

▶ Refer to the cleaning recommendations in this manual.

→ "Cleaning and maintenance", Page 26

Overview of the most common types of damage

Here you can find an overview of the most common types of damage and suggestions how to avoid them.

Stains

Cause Remedy
Boiled-over food Remove boiled-over food immediately with a glass scraper.
Unsuitable cleaning agents	Use cleaning agents that are suitable for glass ceramic cooktops.

Scratches

Cause Remedy
Salt, sugar and sand	Do not use the cooktop as a work surface or storage space.
Cookware with rough bases	Check the cookware.

Discolorations

Cause Remedy
Unsuitable cleaning agents	Use cleaning agents that are suitable for glass ceramic cooktops.
Pot abrasion (e.g. aluminum)	Lift pots and pans when moving them.

Blisters

Cause Remedy
Sugar, food with a high sugar content	Remove boiled-over food immediately with a glass scraper.

3 Environmental protection and energy-saving

3.1 Disposal of packaging

The packaging materials are environmentally compatible and can be recycled.

- Sort the individual components by type and dispose of them separately.

3.2 Saving energy when using the oven

If you follow these tips, your appliance consumes less energy.

Only preheat the appliance if the recipe or the recommended settings tell you to do so.

√ Not preheating the appliance can reduce the energy used.

Use dark-colored, black-coated or enameled baking pans.

√ These types of baking pans absorb the heat particularly well.

Open the appliance door as little as possible during operation.

√ This will maintain the temperature in the oven cavity and eliminate the need for the appliance to reheat.

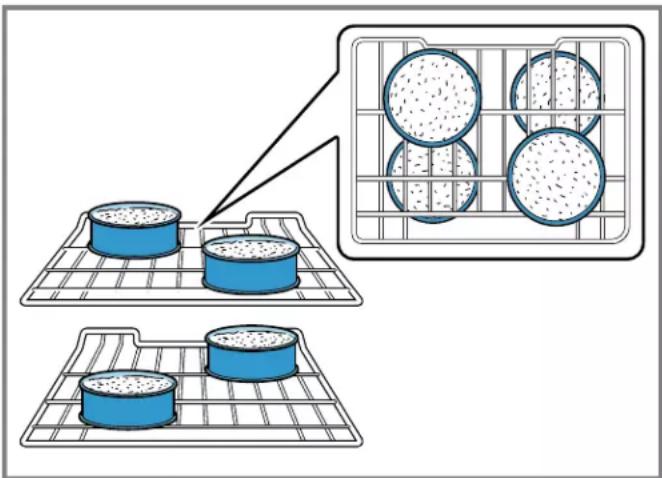

When baking multiple dishes, do so in succession or in parallel.

√ The oven cavity is heated after baking the first dish. This reduces the baking time for the second dish.

If the cooking time is relatively long, you can switch the appliance off 10 minutes before the cooking time ends.

√ There will be enough residual heat to finish cooking the dish.

Remove any accessories that are not being used from the oven cavity.

√ Accessories that are not being used do not need to be heated.

Allow frozen food to defrost before cooking.

√ This will save the energy that would otherwise be required to defrost it.

3.3 Saving energy when using the cooktop

If you follow these tips, your appliance consumes less energy.

Select a cookware diameter that matches the cooking zone. Center the cookware on the cooking zone.

Tip: Cookware manufacturers usually state the top diameter of the cookware. The diameter of the cookware base is usually smaller.

√ The energy is targeted at the cookware. If you use cookware that is too small, energy is wasted. If the cookware is too large, much energy is used to heat up the cookware.

Close cookware with a fitting lid.

√ Cooking without a lid consumes more energy.

Only lift the lid when necessary.

√ If you lift the lid, a lot of energy can escape.

Use a glass lid.

√ If you use a glass lid, you can look inside the cookware without lifting the lid.

Use cookware with a solid flat bottom.

√ Curved cookware bases increase energy consumption.

Use a cookware size that matches the amount of food you want to cook.

√ Cookware with little content consumes a lot of energy.

Cook with a small amount of water.

√ More water requires more energy to heat it up.

Select a lower power level as soon as possible. Select a suitable power level to continue cooking.

√ For ongoing cooking a lower power level is sufficient.

Use the residual heat of the cooking zone. For longer cooking times, turn the cooking zone off 5-10 minutes before the end of the cooking time.

√ If you use the residual heat you can save energy.

4 Familiarizing yourself with your appliance

4.1 Appliance

Here you can find an overview of the parts of your appliance.

1	Cooktop control panel
2	Oven control panel
3	Oven vent
4	Socket for meat probe
5	Oven rails
7	Oven cavity bottom
8	Door latch
9	Broil element
10	Convection fan
11	Warming drawer

Oven cavity

Here you can find information about the features of the oven cavity.

CAUTION

Do not place food directly on the oven cavity bottom.

Convection fan

Convection baking uses a fan to circulate the oven's heat evenly and continuously within the oven.

This improved heat distribution allows for even cooking and excellent results using multiple racks at the same time.

Cooling fan

The cooling fan runs during all cooking modes.

The fan can be heard when it is running, and warm air may be felt as it is released from the oven vent. The fan may also run after the oven is off.

Oven vents

Warm air may be released from the oven vents before, during and after cooking. It is normal to see steam escaping from the vents, and condensation may collect in this area. This area may be warm when the oven is in use.

CAUTION

The oven vents are important for air circulation. Covering the oven vents will cause the oven to overheat. Refer to the appliance overview for the location of the oven vents.

→ Page 12
▶ Do not obstruct oven vents.

Cooking zones

Here you can find an overview of the cooking zones available on your cooktop. Place the cookware on the cooking zone that best matches its size.

The embedded panel near the front of the cooktop surface has an indicator light for each cooking zone. When a cooking zone is active, the corresponding indicator lights up.

Symbol Cooking zone Function

○	Single cooking zone Only one cooking zone size is available.
◎	Dual cooking zone Two cooking zone sizes are available.
◎	Triple cooking zone Three cooking zone sizes are available.

○ Warming zone Use for keeping food warm.

The warming zone is controlled via the oven control panel. There is only one heat level available.

Residual heat indicator

The cooktop is equipped with a residual heat indicator for each cooking zone.

The cooking zone indicator at the front of the cooktop surface stays lit as long as the cooking zone is still warm. Do not touch the cooking zone while the indicator lights up.

4.2 Control panels

You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.

Note: This User Manual covers several models. Your model may have some but not all of the features or displays listed.

Oven control panel

1	Display Depending on your oven model the display shows information on the currently active modes and features.In standby mode the display shows the time of day.
2	Touch keys Touch keys are touch sensitive areas. You only have to press on the keys lightly to operate them. The touch keys will not work if you press several of them at once, such as when cleaning them.
3	Numeric keypad Used for entering numeric values, such as timer values.

Basic featuresHere you can find information on the basic operating fea-tures of your oven.		Touch key Function
		Oven Light	While the oven door is closed, press the oven light keypad to turn the light on and off. When the oven door is opened, the oven light will automatically turn on.During self clean the oven light cannot be turned on.
Touch key Function
Oven Clear/ Off	Clear entered value / turn appliance off
Enter Confirm	entered values / Start heating mode	Warming	Activating the warming drawer
		Drawer
Settings Access the basic settings		Warming	Activating the cooktop warming zone
Panel Lock Activate or deactivate the panel lock ⚙ is displayed.		Zone

Heating modes and functions

Here you can find a list of heating modes and other features of your appliance.

This User Manual covers several models. Your model may have some but not all of the features or displays listed.

Touch key/Display	Display symbol	Heating mode/function	How it works and what it is used for
Bake Bake Cooks with dry, heated air.			For a variety of foods, such as cakes, cookies, pastries, quick breads, quiche and casseroles.→ "How to use bake mode", Page 22
Conv Bake Convection bake Similar to bake, but air is circulated by a fan at the back of the oven. Best for baked goods such as cakes, cornbread, pies, quick breads, tarts, and yeast breads.→ "How to use convection bake mode", Page 22
Conv Multi-Rack Mulcrack convection / true convection			Well suited for cooking individual serving-sized foods such as cookies and biscuits. It is also good for cooking on multiple racks (2 or 3) at the same time. Baking cookies is possible on 6 racks simultaneously.→ "How to use convection multi-rack/true convection mode", Page 22
Broil Broil high intensityBroil low intensity			Use for tender cuts of meat 1" (2.5 mm) or less thick, poultry, browning bread and casseroles.
Conv Broil Convection broil Combines intense heat from upper element with fan circulation.Use for tender cuts of meat more than 1" (2.5 mm) thick, poultry and fish. Not for browning.→ "How to use convection broil mode", Page 23Press More Modes to access this mode.
Warm Warm	Maintains a low temperature in order to keep food hot.Best for baked goods such as cakes, cornbread, pies, quick breads, tarts, and yeast breads.→ "How to use warm mode", Page 23Press More Modes to access this mode.
Roast	Roast	Best suited for meats, poultry, less tender cuts of meats and roasting vegetables.→ "How to use roast mode", Page 22Press More Modes to access this mode.
Conv Roast Convection roast Uses intense heat and air circulated by a fan.Use for tender cuts of meat and poultry and roasting vegetables. Meats are more juicy and moist than results with roast mode.→ "How to use convection roast mode", Page 23
Proof Proofing doughMaintains the warm, non-drafty environment needed forproofing yeast leavened products.→ "How to use proof mode", Page 23Press More Modes to access this mode.
Pizza Pizza Heat is circulated throughout the oven by the convectionfan. Use for fresh or frozen pizza.→ "How to use pizza mode", Page 22Press More Modes to access this mode.
Probe Meat probe Use to determine the internal temperature of many foods,especially meats and poultry during cooking.→ "Meat probe", Page 19
More Modes - More modes Some models have a more modes button for accessing additional heating modes.Depending on your model these may include:■ Convection broilIn the More Modes section Convection Broil has two choices HI/LO. Press the #2 to change■ Pizza■ Proof■ Roast■ Warm
Fast Preheat Fast preheat Fast preheat heats the oven quicker than standard preheat.→ "Fast preheat", Page 19
Sabbath Sabbath The Sabbath mode enables those of particular faiths to usetheir ovens on the Sabbath.→ "Sabbath mode", Page 20
Self Clean	Pyrolytic self-cleaning	The oven reaches a high temperature to burn off food soil.→ "Self clean function", Page 29The door is locked during self clean.
Oven Timer Oven timer	The oven timer is a countdown timer which upon reaching00:00 turns the oven off, stopping the current mode. The oven timer is used to set how long a mode will run.→ "Oven timer", Page 20
Kitchen Timer	Kitchen timer	The kitchen timer is a countdown timer that has no affect on oven heating. The kitchen timer is used for general kitchen timing needs.→ "Kitchen timer", Page 20

Cooktop control panel

The markings around the control knobs show the available power levels. If you turn on any cooking zone, the indicator light at the front of the cooktop surface lights up.

Knob position
OFF Cooking zone turned off
HI Highest power level
MED Medium power level
MED LO Lowest power level
○	Use single ring of dual or triple cooking zone
◎	Use two rings of dual or triple cooking zone
◎	Use entire triple cooking zone

Cooking zone positions

The markings next to each of the control knobs show which cooking zone they control.

	Front left cooking zone
	Front right cooking zone
	Back left cooking zone
	Back right cooking zone

Residual heat indicator

The cooktop is equipped with a residual heat indicator for each cooking zone.

The cooking zone indicator at the front of the cooktop surface stays lit as long as the cooking zone is still warm. Do not touch the cooking zone while the indicator lights up.

5 Accessories

Only use original accessories. These are designed especially for your appliance.

Accessories Use

Wire rack ■ These racks can be used for most

Telescopic rack Use with heavier dishes to make place.

Meat probe and plug The meat probe can be used to deter

Broiler pan and grid Use for broiling and roasting

5.1 Other accessories

You can purchase other accessories from our customer service, specialist retailers or online.

You will find a comprehensive range of products for your appliance in our brochures and online: www.bosch-home.com

Accessories are appliance-specific. When purchasing them, always give the exact designation (E no.) of your appliance.

You can find out which accessories are available for your appliance in our online shop or from our customer service.

5.2 Rack positions

Your oven has six rack positions. The rack positions are counted from bottom to top.

Use rack positions 1 through 6 only. DO NOT attempt to use the top guide to support an oven rack.

Rack position	Best for
6 Broiling hamburgers and 1" (2.5 cm) steaks
5 Broiling 1 1/2 " (4 cm) steaks, toasting bread, broiling most meats, melting cheese
4 Thicker meats
3 Broiling poultry, most baked goods on a cookie sheet or baking pan using a single rack, includes frozen convenience foods, cakes, casseroles, frozen pizza
2 Small roasts or poultry, Bundt 1 cakes, pies, breads
1 Large roasts, turkey, angel food cake
1 These marks are registered trademarks of their respective owners. All other trademarks are trademarks of BSH Home Appliances Corporation or its affiliated companies.

5.3 Safe use of oven racks

For your safety, follow these recommendations on how to use the oven racks correctly.

CAUTION

The oven racks and the oven cavity surfaces become very hot during cooking.

• Place oven racks in the desired positions before turning oven on.
  ▶ Always use oven mitts when the oven is warm.
  If a rack must be moved while the oven is hot, do not let oven mitts contact hot heating elements.
• Use caution when removing oven racks from the lowest rack position to avoid contact with the hot oven door.

CAUTION

To avoid possible injury or damage to the appliance, ensure oven rack is installed exactly per installation instructions and not backwards or upside down.

5.4 Inserting the wire rack

Requirement: You have read the recommendation on

→ "Safe use of oven racks", Page 17.

1. Grasp the rack firmly on both sides.
2. Tilt the rack up to allow the stop into rack guide①.
3. Bring the rack to a horizontal position and push it in the rest of the way ②

The rack should be straight and flat, not crooked.

5.5 Inserting the telescopic rack

Requirement: You have read the recommendation on → "Safe use of oven racks", Page 17.

1. Slide the rack in evenly until the rear of the rack is about 2" (5 cm) from the back of the oven.
2. Tilt the front of the rack up about 3/4" (2 cm)①and finish pushing the rack all the way back ②

Note: Avoid striking the oven light cover glass when pushing the rack into position.

√ The back of the telescopic rack drops in to place.
3. Pull the rack forward to engage the bottom of the rack onto the rear of the rack position guide.

1. Lower the front of the rack to finish seating it on the rack guide. The rack should feel stable when properly seated.
2. Slide the movable part of the telescopic rack in and out a few times to make sure it is able to move freely and that the non-moving part of the telescopic rack is securely anchored.

6 Before using for the first time

Carry out these steps before using your appliance.

■ The appliance must be properly installed by a qualified service provider before use.
- Read and understand all safety precautions →Page 3 and information in the User Manual prior to operating.
■ This User Manual covers several models. Not all features are available on all models.

6.1 Cleaning the appliance before using it for the first time

Clean the oven cavity and accessories before using the appliance to prepare food for the first time.

1. Remove all packaging materials from the oven cavity. For double ovens, check both oven cavities.
2. Before heating the appliance, wipe the smooth surfaces in the oven cavity with a soft, damp cloth.
3. Keep the room ventilated while the appliance is heating.
4. Set the heating mode and temperature.

Heating mode Convection bake

Temperature maximum

Duration 1 hour

1. Switch off the appliance after the specified cooking time.

2. Wait until the oven cavity has cooled down.

3. Clean the smooth surfaces with soapy water and a dish cloth.

4. Clean the accessories using soapy water and a dish cloth or soft brush.

√ There may be a slight odor during first uses. This is normal and will disappear.

6.2 Setting the clock

Requirement: The oven is in standby mode.

1. Press Settings.
   √ The display shows "SET CLOCK".
2. Press enter.
3. Use the numeric keypad to enter the desired time. The numbers fill in from right to left. To enter 10:45, type 1, 0, 4, 5.
4. Press enter.

7 Oven operation

Here you will find out everything you need to know about operating your oven.

7.1 Setting the heating mode and temperature

1. Press the button for the desired heating mode.
   √ The heating mode and the default temperature are displayed.

√ The temperature flashes to show it can be edited.
2. If desired, enter a temperature using the numeric keypad.
3. Press Enter.

√ The oven begins to preheat. The "preheating" is displayed and the preheat bar begins to fill up until the set temperature is reached.

7.2 Turning the oven off

▶ Press Oven Clear/Off.
√ The oven turns off and the clock is displayed.

7.3 Temperature range by heating mode

Heating mode Lowest in °F (°C) Highest in °F (°C)
Bake 100 (38) 550 (285)
Roast 100 (38) 550 (285)
Broil (low, high) 450 (230) 550 (285)
Warm 150 (65) 225 (105)
Proof 85 (30) 125 (52)
Convection bake 100 (38) 550 (285)
Convection multi-rack/True convection 100 (38) 550 (285)
Convection roast	100 (38) 550 (285)
Pizza	100 (38) 550 (285)
Convection broil (low, high)	450 (230) 550 (285)

7.4 Heating time limitation

The maximum heating time is limited. If you forget to turn off the oven, it turns off automatically after a set period of time. The maximum time for Sabbath mode is 74 hours. For all other heating modes the maximum allowed time is 24 hours.

Temperature °F	Temperature °C	Max. time allowed without activity
100 - 200	30 - 120	24 hours
201 - 550	121 - 300	12 hours

7.5 Fast preheat

With this function you can shorten the time the oven needs to reach the set temperature.

Fast preheat is available for the following heating modes:

■ bake
■ true convection / convection multi-rack
■ convection bake
■ convection roast
- pizza

Fast preheat is not available for the following heating modes:

■ roast
■ broil
■ convection broil
■ proof
warm

Setting fast preheat

1. Set the desired heating mode.
2. Enter the desired temperature using the numeric keypad.
3. Press Fast Preheat.

Note: If fast preheat is not allowed for the selected heating mode an error tone sounds.

1. To turn off fast preheat press Fast Preheat again.

7.6 Meat probe

The meat probe measures the internal temperature of the food. You can set a core temperature and the heating mode turns off automatically as soon as the set temperature is reached.

• The meat probe can be used with the heating modes bake, roast, and all convection modes, except convection broil.
  ■ The probe function is not available when an oven timer has been set.
• You can set a temperature between 100°F (40 °C) and 200°F (100 °C). If you enter a temperature outside this range, an error is displayed.
• The current and target temperature of the probe are displayed in the format "105/180". The current temperature will display "<80" until the food temperature reaches 80°F.
  ■ The probe temperature is updated in increments of 5° during the cooking process.
  ■ Do not store the probe in the oven cavity.

Inserting the meat probe

Requirements

■ Food must be completely thawed before inserting the probe into the meat.

■ The probe ships with a black plastic safety cap over the pointed metal end of the probe. The cap must be removed prior to use.

1. Insert the tip of the probe in the middle and thickest part of the meat or the breast for poultry. Make sure the probe is not touching fat, bone or parts of the oven or the pan.

Always use the handle of the probe for inserting and removing.

1. Insert the plug of the probe into the socket at the side of the oven cavity.

Setting the meat probe

Requirement: → "Inserting the meat probe", Page 20

1. Set the desired heating mode and temperature.
2. Press Probe.

√ and "SET PROBE TEMP" is displayed.
√ A three digit input prompt "-" - - " blinks on the display.
3. Set the desired core temperature with the numeric keypad.
4. Press Enter.

√ The current and target temperature of the probe are displayed.
√ When the set probe temperature is reached, the heating mode turns off. "COOKING COMPLETE" blinks in the display. An alarm tone sounds every 10 seconds for 2 minutes.
5. Press Oven Clear/Off or remove the probe to turn off the display.

- Always use the handle of the probe for inserting and removing.

- The probe becomes hot during use. Always use potholders to remove the probe.

√ The display goes to standby mode.

7.7 Turning the panel lock on or off

With the panel lock you can disable all touch keys on the control panel.

Requirement: The oven is in standby mode.

1. Press and hold Panel Lock for 3 seconds.
2. Press and hold Panel Lock again for 3 seconds to turn off the panel lock.
   √ The display returns to standby mode.

7.8 Kitchen timer

The kitchen timer is a countdown timer that has no affect on oven heating.

You can set a kitchen timer value up to 99:59 hours.

Setting the kitchen timer

1. Press Kitchen Timer.

√ 0:00 blinks in the display.
2. Enter the desired timer value in H/MM format using the numeric keypad.

1. Press Enter.

√ The timer starts to count down.
√ When the kitchen timer has counted down an alarm tone sounds for 2 minutes.
√ Press Kitchen Timer to cancel the timer or to turn off the alarm tone.

Editing the kitchen timer

1. Press Kitchen Timer.

√ The current timer value blinks and can be edited.
2. Enter the desired timer value using the numeric keypad.
3. Press Enter.

7.9 Oven timer

If you set an oven timer, operation of the oven stops automatically once this time has elapsed.

Setting the oven timer

The oven timer automatically ends a heating mode after a set period of time.

Note: The oven timer is not available for the heating modes broil, convection broil, proof, or self clean.

1. Set a heating mode and temperature.
2. Press Oven Timer.
3. Press Enter.
4. Enter the desired timer value in H/MM format using the numeric keypad.
5. Press Enter.

√ The oven timer starts to count down.
√ When the oven timer reached 0:00 the cooking mode ends and "OVEN TIMER FINISHED" is displayed.
√ The oven timer alarm tone sounds every 10 seconds for 2 minutes.

7.10 Sabbath mode

The Sabbath mode enables those of particular faiths to use their ovens on the Sabbath.

■ Sabbath mode is only available in bake mode.
■ The temperature range may be set between 100°F (38 °C) and 450°F (230 °C).
■ You can set a duration of up to 74 hours.
■ Kitchen timer, oven timer or probe feature are not available in Sabbath mode.
- Pressing any of the buttons while the oven is in Sabbath mode will have no effect.
- If the oven light is on when Sabbath Mode is set, the light remains on. If it is off when Sabbath Mode is set, the light remains off.

Setting Sabbath mode

Requirement: No kitchen timer or oven timer is running, otherwise the display indicates that Sabbath mode is not available.

1. Set Bake mode and a temperature within the allowed temperature range.
2. Press Enter to start the heating mode.

If you want to use Sabbath mode for the warming drawer, set the warming drawer temperature before you continue.

1. Press and hold Oven Timer for 5 seconds.

√ In the Sabbath mode timer the default value 74:00 hours blinks.

1. Set the desired time using the numeric keypad. If you want to keep the default value you do not have to enter anything.

2. Press Oven Timer.

√ Sabbath mode begins. If you do not press Enter within
5 seconds Sabbath mode auto starts.
"x" is displayed.
"x" is displayed in the temperature display.

√ The timer counts down until it reaches :00, then "x" is displayed.
√ The heating mode ends, but the oven stays in Sabbath mode. No changes can be made at this point.

Tip: You can change the temperature while Sabbath mode is running. Enter the desired value with the numeric keypad and press Enter. There is no visual or audible response to the input.

Canceling Sabbath mode

▶ Press Oven Clear/Off.

√ Sabbath mode is ended.

7.11 Basic settings

You can configure your appliance to meet your needs.

Overview of the basic settings

Here you can find an overview of the basic settings and factory settings. The basic settings depend on the features of your appliance.

Menu Description Settings item
1 Temperature unit ▪ °F	1▪ °C
2 Display brightness ▪ High	1▪ Medium▪ Low
3 Volume ▪ High	1▪ Medium▪ Low
4 Clock mode ▪ 12-hour/12HR	1▪ 24-hour/24HR
5 Auto convection conversionDecreases the set oven temperature by 25°F for convection bake and convection multi-rack/true convection heating modes.	On▪ Off
6 Button beepTone when a button is pressed.	On▪ Off
7 Standby clock display ▪ On	1▪ Off
8 Language ▪ EN	1▪ FR
9 Temperature offsetSets the temperature offset value for bake, convection bake, roast, convection roast and convection multi-rack/true convection. When an offset value is entered, the actual oven temperature is increased or decreased by this value. This feature is useful if food is either too brown or too light.	Between +/- 35°F (+/- 19 °C) in 1° increments01

¹ Factory setting (may vary according to model)

Changing the basic settings

1. Press Settings.
   √ The display shows "SET CLOCK".
2. Press Settings to enter the settings menu.
3. Press Settings to cycle through the settings list.
4. Press Enter to access the menu for a setting.

5. Enter the desired value with the numeric keypad.
   √ The new value is automatically accepted as the display reverts from edit mode back to standby mode.

6. Press Oven Clear/Off to leave the basic settings menu.

Oven temperature offset

The oven is calibrated to provide accurate results. This feature is useful if you prefer your foods lighter or darker.

• When an offset temperature is selected, the actual oven temperature is raised or lowered by this value.
• Do not use residential oven thermometers to evaluate oven temperatures as they will fluctuate throughout cooking.

- You can set a temperature offset from the factory baseline. Each time you enter the temperature offset in the basic settings menu, the factory baseline temperature is restored so you can set a new offset value.

Auto convection conversion

Convection bake and convection multi-rack modes require a 25° F reduction in temperature. Auto convection conversion reduces the temperature you enter automatically.

■ Simply enter the package or recipe temperature when setting the mode. The control calculates the correct temperature and it is shown in the display.

7.12 General tips for heating modes

How to use bake mode

Use the bake mode to prepare a variety of food items, from pastries to casseroles. Refer to recipe or package directions for oven temperature and baking time.

Note

■ Fully preheat the oven before baking items like cakes, biscuits and breads.
■ Use the convection bake function for best results when baking cookies on multiple racks.
- Allow at least 2" (5 cm) of space between bakeware for proper air circulation.
■ Dark or dull bakeware absorbs more heat than shiny bakeware, resulting in dark or over browned foods. It may be necessary to reduce oven temperature or cook time to prevent overbrowning of some foods.
■ Shiny pans are recommended for cakes, cookies, and muffins.
- Do not open oven door often. Opening the door will reduce the temperature in the oven and may increase cook time.

How to use convection bake mode

Use the convection bake mode for bar cookies and breads. This mode takes advantage of the bottom heat, yielding a better crust on baked items.

The benefits of convection bake include a slight decrease in cook time and a higher dough volume, for example yeast items rise higher with this mode.

Note

■ Conv Bake is the best function to use for baking cakes.
■ Reduce recipe temperature by 25° F. Refer to the cooking chart.
■ Place food in shallow, uncovered pans, such as cookie sheets without sides.
■ If baking more than one pan on a rack, allow at least 1" to 1½" (2.5 to 4 cm) of air space around the pan.
- Allow at least 2" (5 cm) of space between bakeware for proper air circulation.
■ For cakes use rack positions 2 and 5. Stagger pans so that one is not directly above the other.

How to use convection multi-rack/true convection mode

Use convection multi-rack or true convection for cooking individual serving-sized foods such as cookies and biscuits. It is also good for cooking on multiple racks (2 or 3) at the same time.

The benefits of convection multi-rack include even browning and time savings as a result of using multiple racks at one time.

Note

■ Baking cookies is possible on 6 racks simultaneously. In this case, the baking time increases slightly.
■ Reduce recipe temperature by 25° F if auto convection conversion is not activated.
- Place food in low-sided, uncovered pans such as cookie sheets without sides.
If baking more than one pan on a rack, allow at least 1" to 1½" (2.5 to 4 cm) of air space around the pan.
■ Stagger pans so that one is not directly above the other.

How to use pizza mode

Note

Follow these recommendations:

■ There might be a slight decrease in baking time. Check before minimum package time.
■ When baking a frozen pizza: For a crispy crust, place directly on the rack. For a softer crust, use a pizza pan.
- When proofing pizza dough, coat dough with olive oil and cover it in a bowl tightly with plastic wrap to prevent crust formation.
■ If par baking handmade pizza dough, prick the dough with a fork before baking.
If using a pizza pan, choose a dark, perforated pan for a more crisp crust and a non-perforated pan for a softer crust.
■ Preheat baking stones following manufacturer's recommendations while the oven is preheating.
■ Bake homemade pizzas on rack position 2 in the center of the rack.
- Follow manufacturer's directions for frozen pizza.
■ The convection fan cycles on and off when using pizza mode.

How to use roast mode

Use roast mode for large cuts of meat and poultry.

Note

■ Preheating the oven is not necessary.

■ Use a high-sided broil pan or roasting pan. Cover dish with a lid or foil for less tender cuts of meat.
■ For less tender cuts of meat, add liquids, such as water, juice, wine, bouillon or stock for flavor and moisture.
■ Roasting bags and using a liquid are suitable for use in this mode.
■ When roasting whole chicken or turkey, tuck wings behind back and loosely tie legs with kitchen string.

How to use convection roast mode

Use the convection roast mode for preparing tender cuts of meat and poultry. It is also suitable for roasting vegetables.

The benefits of convection roast mode include as much as 25% faster cooking than non-convection modes and rich, golden browning.

Note

■ Preheating the oven is not necessary.
■ Use the same temperature as indicated in the recipe.
- Check doneness early, since roasting time may decrease.
■ Do not cover meat or use cooking bags.
■ Use a broil pan with a rack and grid or a shallow, uncovered pan with a rack for roasting.
■ Use a meat thermometer to determine the internal temperature of the meat.
If the meat is browned to your liking, but is not yet done, foil can be placed over the meat to prevent overbrowning.
■ Let meat stand covered with foil 10-15 minutes after removing it from the oven.

How to use convection broil mode

Use the convection broil mode for cooking thick, tender cuts of meat, poultry and fish. Convection broil is not recommended for browning breads, casseroles and other foods.

In addition to the benefits of standard broiling, convection broiling is faster.

Note

■ Always use convection broil with the oven door closed.
■ Preheat the oven for 3 to 4 minutes. Do not preheat for more than 5 minutes.
■ Steaks and chops should be at least 1½" (4 cm) thick.
■ Use the broil pan and grid or a deep pan with a metal rack, for broiling.
- Do not cover the broil grid with foil. It is designed to drain fats and oils away from the cooking surface to prevent smoking and spattering.
■ Turn meats once during the recommended cook time. Fish does not need to be turned.
■ Never use heat-proof glass, such as Pyrex®; it cannot tolerate the high temperature.

How to use proof mode

Use the proof mode to raise yeast dough.

Note

■ Start with a cool oven when using the proof mode.
■ Allow frozen dough to thaw first.
■ The ideal temperature for proofing will be maintained until the mode is turned off. Dough has proofed when it has doubled in size.
■ Loosely cover the bowl or pan and use any rack that accommodates the size of the container.
- Keep the door closed and use the oven light to check the rising of the dough.

Size Time in min.

Loaf, 1 lb (4.5 kg) 60 - 75

Rolls, 0.1 lb (50 g) 30 - 45

How to use warm mode

Use the warm mode to keep hot, cooked foods at serving temperature.

CAUTION

Food may spoil when kept warm for too long.

• Do not use the warm mode to heat cold food.
  ▶ Be sure to maintain proper food temperature. The USDA recommends holding hot food at 140° F ( 60° C) or warmer.
  ▶ DO NOT warm food longer than one hour.

Note

■ ALWAYS start with hot food. DO NOT use this mode to heat cold food other than for crisping crackers, chips, and dry cereal.
■ Serving dishes, plates, and cups may be kept warm with this mode.
- Foods that must be kept moist should be covered with a lid or aluminum foil.
■ Aluminum foil may be used to cover food. Use only heat-safe dishes.
■ DO NOT open the oven door unnecessarily. Opening the door will reduce the temperature of the oven.
- When keeping cooked food warm, allow time for the oven to preheat before placing the item in the oven.

7.13 Getting the best results

■ Minimize opening the oven door.
■ Use the rack position recommended by the recipe.
■ Use the bakeware recommended in the recipe.
■ Store pans outside the oven. An extra pan without food affects the browning and cooking.
■ The type of pan used affects the browning.
- For tender, golden brown crusts, use light non-stick/anodized or shiny metal pans.
- For brown crisp crusts, use dark non-stick, anodized or dark, dull metal pans or glass bakeware. These may require lowering the bake temperature 25°F .

Preheating the oven

■ Most cooking times in recipes are designed for a preheated oven and require that the oven already be at a certain temperature before cooking starts. Refer to your recipe for preheating recommendations.
■ Preheating time depends on the temperature setting and the number of racks in the oven.

Bakeware type

■ Metal bakeware with or without a non-stick finish, heat-proof glass, glass-ceramic, pottery, or other utensils are suitable for the oven.
- Suitable cookie sheets have a small lip on one side. Heavy sheets or those with more than one side may affect the baking time.

Pan placement

- Allow at least 1" (2.5 cm) of space between the pans and the oven walls so heat can circulate around each pan.

■ Stagger bakeware so that one is not directly above another. Allow 1½" (4 cm) above and below each pan.

High altitude baking

When cooking at high altitudes, recipes and cooking times will vary. For accurate information, go to www.csuextstore.com, or write to the Extension Service, Colorado State University, Fort Collins, Colorado 80521. There may be a cost for the guides. Specify which high altitude food preparation guide you prefer: general information, cakes, cookies, breads, etc.

Condensation

It is normal for a certain amount of moisture to evaporate from the food during any cooking process. The amount depends on the moisture content of the food. The moisture will condense on any surface cooler than the inside of the oven, such as the control panel.

8 Cooktop operation

Here you will find out everything you need to know about operating your cooktop.

8.1 Setting the cooking zone

▶ Push the control knob in and turn it in to the left or right. Depending on the cooking zone, the control knob has different options to set the power level.

Single cooking zone Turn the control knob to the desired power level.

Dual cooking zone

■ To use the inner ring, select a power level within the left segment marked with ○

■ To use the inner and outer ring, select a power level within the right segment marked with Ⓞ

Triple cooking zone

■ To use the inner ring, select a power level within the left segment marked with ○

■ To use the inner and middle ring, select a power level within the bottom segment marked with Ⓞ

■ To use all three rings, select a power level within the right segment marked with Ⓞ

Power cooking zone

■ Select a power level within the left segment between LO and MED LO for simmer setting.

■ Select a power level within the right segment between HI and MED for fast boil setting.

8.2 Using the warming zone

The warming zone uses a preset temperature. Use this cooking zone to keep food warm.

1. Press Warming Zone on the oven control panel to turn the warming zone on.

2. Press Warming Zone again to turn the warming zone off.

8.3 Recommended cooking settings

Here you can find recommendations on cooking and an overview of various dishes with suitable heat levels.

■ Select heat level 8 or 9 for bringing to a boil or initial frying.
■ Stir thick liquids occasionally.
- Food that needs to be seared quickly, or food which loses a lot of liquid during initial frying, is best seared in several small portions.
■ When you cook with a lid on, turn the heat setting down as soon as steam escapes between lid and cookware.
- Keep the lid on the cookware after cooking until you serve the food.
- When you cook with a pressure cooker, observe the manufacturer's instructions.
- Do not cook food for too long or in too much water. Otherwise the nutrients will be lost. You can use the kitchen timer to set the optimum cooking time.
- Do not heat oil or grease until it smokes. You will achieve healthier cooking results.
■ When you brown food, fry small portions one after the other.
■ Cookware may become very hot during cooking. We recommend the use of pot holders.

Cooking chart

Cooking process Heat setting
Bringing water to a boil High
Pan frying, sauteing, browning meat, deep fat frying	Medium high
Most frying, eggs, pancakes, slow boil	Medium
Simmering, finish cooking covered foods, steaming	Medium low
Melting chocolate and butter, simmering tomato sauces, soups, stews	Low

9 Warming drawer operation

The warming drawer will keep hot, cooked foods at serving temperature.

Always start with hot food. DO NOT use to heat cold food. It is safe to use the drawer to crisp crackers, chips or dry cereal and to warm plates.

CAUTION

To maintain food safety, follow these guidelines

▶ DO NOT use a warming drawer to heat cold food. It is safe to use the drawer to crisp crackers, chips or dry cereal and to warm plates.
▶ Be sure to maintain proper food temperature. The USDA recommends holding hot food at 140° F or warmer.
▶ DO NOT leave food in the warming drawer for more than one hour before or after cooking.
- Plastic containers, plastic wrap or aluminum foil can melt if in direct contact with the drawer or a hot cooking container. If it melts onto the drawer, it may not be removable.

The warming drawer has a push-to-open (PTO) mechanism. Press on the center of the warming drawer front panel to open it.

9.1 Warming drawer levels

You can set 3 different heating levels for the warming drawer.

For best results, preheat the warming drawer when warming food.

Level Preheat time in min.

LOW 10

MED 15

HIGH 20

9.2 Turning the warming drawer on

You can operate the warming drawer with the oven control panel.

1. Press Warming Drawer.
   √ The default level med is displayed.
2. Press Warming Drawer to cycle the available warming drawer settings.
3. Press Enter to confirm.
   √ The warming drawer icon is displayed below the clock.

9.3 Turning the warming drawer off

▶ Press Warming Drawer.
√ The warming drawer symbol turns off.

9.4 Using the warming drawer in Sabbath mode

You can use the warming drawer in Sabbath Mode, while the oven is in Sabbath mode. It is not possible to run Sabbath Mode only in the warming drawer.

1. Set the desired warming drawer temperature.
2. Set Sabbath mode for the oven cavity.

→ "Sabbath mode", Page 20

√ The warming drawer and oven will operate in Sabbath mode until the oven timer reaches zero.

9.5 Warming empty serving bowls and plates

Requirements

■ Do not preheat drawer prior to placing dishes.
■ Use only heat-safe dishes.

1. Place empty plates or dishes in the cold warming drawer.
2. Select the warming drawer temperature "LOW".
3. Check the dish temperature during the warming period.

9.6 Crisping stale items

1. Place the food in a low-sided dish or pan.
2. Select the warming drawer temperature "LOW".
3. Preheat the warming drawer for 10 minutes, then place the food in the warming drawer.
4. Set the warming timer.
5. Check the crispness after 45 minutes. Continue crisping if needed.

9.7 General tips for the warming drawer

■ To keep several different foods hot, set the temperature for the food needing the highest setting.
- Place items needing the highest setting toward the side of the drawer and items needing less heat in the center of the drawer.
- You can warm empty serving dishes while the warming drawer is preheating.
■ Place cooked, hot food in the warming drawer in its original cooking container or in a heat-safe serving dish.
- You can use aluminum foil to cover the food. DO NOT line the warming drawer with aluminum foil.
■ Do not use the warming drawer for storage purposes.

9.8 Warming drawer temperature recommendations

Food Temperature setting Cover dish
Bacon HIGH No
Beef, medium and well done LOW Yes
Beef, medium rare LOW Yes
Bread, hard rolls MED	No
Bread, soft rolls, coffee cakes	LOW Yes
Biscuits	MED	Yes
Casseroles	MED	Yes
Eggs	MED	Yes
Fish, seafood	MED	Yes
Fried foods	HIGH No
Gravy, cream sauces	MED	Yes

Food Temperature setting Cover dish

Ham MED Yes

Pancakes LOW Yes

Pies, one crust MED Yes

Pies, two crusts MED No

Pizza HIGH No

Pork MED Yes

Potatoes, baked HIGH Yes

Potatoes, mashed MED Yes

Poultry, roasted MED Yes

Vegetables MED Yes

Plates HIGH No

Plate of food MED Yes

10 Cleaning and maintenance

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

10.1 Cleaning agents

Only use suitable cleaning agents to avoid damage to the appliance surfaces.

You can purchase suitable cleaners for your appliance online at www.bosch-home.com/us/shop or through our distributors in Canada.

Brand names

■ The use of brand names is intended only to indicate a type of cleaner. This does not constitute an endorsement.
■ The omission of any brand name cleaner does not imply its adequacy or inadequacy.
■ Many products are regional in distribution and can be found in local markets.
■ It is imperative that all cleaning products be used in strict accordance with the instructions on its package.

Avoid these cleaners

Do not use commercial oven cleaners such as Easy Off® ¹ . They may damage the oven finish or parts. Chlorine or chlorine compounds in some cleansers are corrosive to stainless steel. Check ingredients on label. Never use scouring pads or abrasive cleaners.

WARNING

Be sure the entire appliance (including the light bulb) has cooled and grease has solidified before attempting to clean any part of the appliance.

WARNING

To avoid risk of electrical shock, DO NOT use a steam cleaner or high pressure cleaners to clean the appliance. Penetrating moisture may cause electrical shock.

10.2 Cooktop cleaning and maintenance

Cleaning agents

You can purchase suitable cleaners and glass scrapers from Customer Support or in our online shop www.bosch-home.com/us/shop.

Tip: Bosch cleaners have been tested and approved for use on Bosch appliances. Other recommended cleaners do not constitute an endorsement of a specific brand.

Recommended cleaning agents

■ Glass ceramic cooktop cleaner
BonAmi®
■ Soft Scrub® (without bleach)
■ White vinegar

Unsuitable cleaning agents

■ Glass cleaners which contain ammonia or chlorine bleach. These cleaners may damage or permanently stain the cooktop.
■ Caustic cleaners such as Easy Off®. These cleaners may stain the cooktop surface.
■ Abrasive cleaners.
■ Metal scouring pads and scrub sponges such as Scotch Brite®¹. These cleaners may scratch the cooktop surface and/or leave metal marks.
- Soap-filled scouring pads such as SOS®. These cleaners may scratch the cooktop surface.
■ Powdery cleaners containing chlorine bleach. These cleaners may permanently stain the cooktop surface.
■ Flammable cleaners such as lighter fluid or WD-40.

Cleaning the glass ceramic cooktop

WARNING

Clean Cooktop With Caution.

▶ If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn.
- Some cleaners can produce noxious fumes if applied to a hot surface.
- Do not clean the appliance while it is still hot.

Requirements

■ The cooktop has cooled off.
■ Exception: Remove dry sugar, sugar syrup, milk and tomato products immediately.
→ "Cleaning recommendations", Page 27

1. Wipe off spatters with a clean, damp sponge or a paper towel.

2. Rinse and dry.

3. If a smudge remains use white vinegar.

4. Rinse and dry again.

5. Apply a small amount of cooktop cleaner with a clean paper towel or cloth and let it dry.

6. Buff the surface with a clean paper towel or cloth.

Cleaning the cooktop frame

Notes

■ Wipe the cooktop frame with the grain.
■ For moderate to heavy soil, use BonAmi® or Soft Scrub® ¹ (no bleach).

1. Wipe using a damp sponge or cloth.

2. Rinse and dry.

Cleaning recommendations

Follow these cleaning instructions for removing common soiling.

WARNING

The blade of the glass scraper is extremely sharp. You can cut yourself.

• Replace the blade immediately, when you see any imperfections.
  ▶ Follow the manufacturer's instructions.

NOTICE:

Diamond rings may scratch the ceramic cooktop surface.

▶ Take off any rings before you clean the ceramic cooktop surface.

Type of soil Recommendation

Dry sugarSugar syrupMilkTomato spillsMelted plastic film or foil

REMOVE IMMEDIATELY. Failure to remove these substances immediately can permanently damage the ceramic cooktop surface.Remove the soil with the razor blade scraper while the cooktop surface is still hot.Use a new, sharp razor in the razor blade scraper.Remove the cookware and turn off the cooking zone.Put on an oven mitt.Hold the razor scraper at 30° angle and scrape off the soil.Be careful not to gouge or scratch the glass ceramic surface.Push the soil off the heated area.Let the surface cool.Remove the residue and apply glass ceramic cooktop cleaner.

Type of soil Recommendation

Burned-on food soilDark streaksDark specks	Lay a damp paper towel or sponge on top of the soil for 30 minutes to soften the soil.Remove the soil with a plastic scrubber and glass ceramic cooktop cleaner or with the razor blade scraper.Rinse the cooktop surface and dry it.
Greasy spattersRemove grease with a soapy sponge or cloth.Rinse the cooktop surface thoroughly and dry it.Apply glass ceramic cooktop cleaner.
Metal marks: iridescent stain	Pans with aluminum, copper or stainless steel bases may leave marks.Treat metal marks immediately after the cooktop surface has cooled off. Failure to do so makes removal very difficult.Clean the cooktop surface with glass ceramic cooktop cleaner.If this does not remove the marks, clean the cooktop surface with a damp paper towel and a mild abrasive (Bon Ami®, Soft Scrub® without bleach).Rinse the cooktop surface and apply glass ceramic cooktop cleaner.
Hard water spots Hot cooking liquids may drip or spill on the cooktop surface. The minerals in some water can be transferred onto the surface and cause stains.Remove boilovers and stains before using the cooktop again.Clean the cooktop surface with undiluted white vinegar.Rinse the cooktop surface and dry it.Apply glass ceramic cooktop cleaner.
Surface scratches Small scratches are common and do not affect cooking. They become smoother and less noticeable with daily use of the glass ceramic cooktop cleaner.Apply glass ceramic cooktop cleaner before cooking. to remove sand-like grains and grit such as salt and seasoningScratches can be reduced by using pans with bases that are smooth, clean, and dry before use. Use recommended glass ceramic cooktop cleaner daily.

Maintenance

This appliance requires no maintenance other than daily cleaning.

For best results, apply cooktop cleaning cream daily.

10.3 Oven cleaning and maintenance

Cleaning recommendations

Clean only those parts of you oven that are listed in this cleaning chart.

Part Suitable cleaning method Recommendations
Flat rack ■ Wash with soapy water.■ Rinse thoroughly and dry, or gently rub with cleansing powder or soap-filled pads as directed.	■ DO NOT CLEAN USING THE SELF CLEAN FUNCTION.■ If the flat racks remain in the oven during the self clean mode, they will loose their shiny finish and may not glide smoothly. If this happens, wipe the rack edges with a small amount of vegetable oil. Then wipe off excess oil.
Telescopic rack ■ Wash with soapy water.■ Rinse thoroughly and dry, or gently rub with cleansing powder or soap-filled pads as directed.	■ DO NOT CLEAN USING THE SELF CLEAN FUNCTION.■ Avoid getting cleansing powder in the telescopic slides. Re-lubrication may become necessary. Use only high-temperature food-grade lubricants to re-lubricate the slides.
Door gasket None ■ DO NOT CLEAN THE DOOR GASKET.	■ The door gasket is essential for a good seal. Care should be taken not to rub, damage, or move the gasket.
Glass ■ Wash with soap and water or glass cleaner.■ Use Fantastik® on a clean sponge or paper towel and wipe clean.	Avoid using powder cleaning agents, steel wool pads and oven cleaners.
Painted surfaces Clean with hot soapy water or apply Fantastik®1 to a clean sponge or paper towel and wipe clean.	Avoid using powder cleaning agents, steel wool pads and oven cleaners.
Porcelain surfaces ■ Immediately wipe up acid spills like fruit juice, milk, and tomatoes with a dry cloth.■ When cool, clean with hot soapy water or apply Bon-Ami®1 or Soft Scrub®1 to a damp sponge. Rinse and dry.■ For stubborn stains, use soap-filled pads.	Do not use a moistened sponge/cloth on hot porcelain. It is normal for porcelain to show fine lines with age due to exposure to heat and food soil.
Heat resistant enamel and polished components in the oven cavity	Use the self clean function for heavy soiling.	These surfaces can become discolored over time. This is normal and does not affect operation.Do not use scouring pads or abrasive cleaners to treat discolorations.
Stainless steel surfaces	Clean with soapy water and soft cloth, then rinse and dry with a soft cloth.■ Condition steel with the Bosch Stainless Steel Conditioner (part # 00576696).■ Remove water spots with a cloth dampened with white vinegar.■ Remove heat discoloration with Bar Keeper's Friend®1.	Never allow food stains or salt to remain on stainless steel for any length of time.Always wipe or rub in the direction of the grain.Chlorine or chlorine compounds in some cleansers are corrosive to stainless steel. Check the ingredients on the label of the cleanser.
Black stainless surfaces/ anti-fingerprint surfaces	Clean with a soft, dry towel.■ For stubborn dirt, use warm water diluted with a non-abrasive, mild cleansing soap.	Never use stainless steel polish.
1 These marks are registered trademarks of their respective owners. All other trademarks are trademarks of BSH Home Appliances Corporation or its affiliated companies.

Part Suitable cleaning method Recommendations

Plastic and controls When cool, clean with soapy water, rinse and dry.
Probe Wipe with soapy water. ■ Do not submerge in water. ■ Do not wash in the dishwasher.
Printed areas (words and numbers)	Do not use abrasive cleaners or petroleum based solvents.

¹ These marks are registered trademarks of their respective owners. All other trademarks are trademarks of BSH Home Appliances Corporation or its affiliated companies.

Self clean function

With pyrolytic self cleaning the oven is heated to a very high temperature. Stubborn soil is burnt off and can be wiped out after self clean is finished.

After the completion of a self-clean cycle, the oven will not allow you to start another self-clean cycle for 24 hours.

All surface elements are automatically disabled during Self Clean. This is normal. Once the Self Clean cycle is complete and the oven has cooled, the elements become operable once again.

Surface elements disabled during self clean

WARNING

To avoid risk of personal injury, while the Self Clean cycle is operating, do not operate the cooktop and ensure that all surface controls are turned off.

All surface elements are automatically disabled during Self Clean operation only. This is normal. Once the Self Clean cycle is complete and the oven has cooled, the elements become operable once again.

Preparing self clean

WARNING

During the elimination of soil during self-cleaning, small amounts of carbon monoxide can be created and the fiberglass insulation could give off very small amounts of formaldehyde during the first several cleaning cycles.

▶ To minimize exposure to these substances, provide good ventilation with an open window, or use a ventilation fan or hood.
During the self clean cycle, parts of the appliance may become potentially harmful to persons who lack adult knowledge of appliances and adult reactions to potentially harmful conditions.
- Children should not be left alone or unattended in an area where appliances are in use.
The oven heats up to a very high temperature during self cleaning. Opening the door can result in injury.
- When self-cleaning, confirm that the door locks and will not open.
- If the door does not lock, do not run Self Clean. Contact Customer Service.

CAUTION

Remove broiler pans, pots, and other utensils and excess spillage before self-cleaning.

Do not leave food or cooking utensils, etc., in the oven during the pyrolytic self-cleaning mode of operation.

CAUTION

The oven vents are important for air circulation. Covering the oven vents will cause the oven to overheat. Refer to the appliance overview for the location of the oven vents.

→ Page 12
▶ Do not obstruct oven vents.

NOTICE:

Do not clean parts or accessories with the self clean function.

1. Remove all accessories and racks from the oven.
2. Wipe out excessive spillage from the oven cavity.

Starting self clean

Requirements

■ All heating modes or timers are canceled.
■ You have carried out the steps for preparing the oven for self clean.

→ "Preparing self clean", Page 29

1. Press Self Clean.

√ lights up on the display.
√ The default self clean time "4:00" blinks on the timer display.
2. You can set a self clean time between 2 and 4 hours with the numeric keypad.

Tip: Use a longer setting for a heavily soiled oven.

1. Press Enter.

√ The oven door locks blinks on the display and then remains lit until the oven has cooled down after self clean is finished.

"SELF CLEAN" lights up on the display.
√ The timer starts to count down.
√ When self clean is finished, the display shows 0:00. The oven remains locked until it has cooled down sufficiently. "COOLING DOWN" is displayed.
√ When the oven has cooled down the door unlocks and "SELF CLEAN FINISHED" is displayed.

1. Press Oven Clear/Off.
2. Wipe the remaining ash from the oven with a moist cloth.

Canceling self clean

1. Press Oven Clear/Off.

"COOLING DOWN" is displayed.
√ The door remains locked.
√ When the oven has cooled down the door unlocks and "SELF CLEAN FINISHED" is displayed.

1. Press Oven Clear/Off.

2. Wipe the remaining ash from the oven with a moist cloth.

Maintenance

Replacing an oven light bulb

When the oven light fails you can replace the light bulbs.

WARNING

Light socket is live when door is open if main power supply is not turned off.

▶ Turn off main power supply at the service panel before changing the light bulbs.

WARNING

Make sure the appliance and lights are cool and power to the appliance has been turned off before replacing the light bulb(s). Failure to do so could result in electrical shock or burns.

▶ The lenses must be in place when using the appliance.
The lenses serve to protect the light bulb from breaking.
The lenses are made of glass. Handle carefully to avoid breaking. Broken glass can cause an injury.

Removing the oven door from bottom hinge conventional ovens

For ease of cleaning you can remove the oven door of bottom hinge ovens.

WARNING

Failure to follow these instructions when removing the oven door may lead to personal injury or product damage.

▶ Make sure oven is cool and power to the oven has been turned off before removing the door. Failure to do so could result in electrical shock or burns.
▶ The oven door is heavy and parts of it are fragile. Use both hands to remove the oven door.
▶ The door front is glass. Handle it carefully to avoid breakage.
- Grasp only the side of the oven door. Do not grasp the handle. It may swing in your hand and cause damage or injury. Failure to grasp the oven door firmly and properly could result in personal injury or product damage.
To avoid injury from hinge bracket snapping closed, be sure both levers are securely in place before removing the door.
- Do not force the door open or closed. The hinge could be damaged and cause damage or injury.
- Do not lay the removed door on sharp or pointed objects as this could break the glass. Lay it on a flat, smooth surface, positioned so that the door cannot fall over.

1. Open the oven door to its fully open position.

2. Flip levers on hinges toward you.

If necessary, use a tool, such as a screwdriver, to gently pry the upper part of the lever away from the housing. Take care to avoid scratching the housing.

1. Bring both door hinge levers to their fullest down position. The left and right door hinges differ slightly but operate in the same manner.

2. CAUTION - Risk of injury! Follow the instructions below to prevent the latch from slamming shut and pinching or cutting your hand.

Close the oven door until it catches on the hinge stop levers, locking the hinges at the proper angle for door removal.

√ The door will be open about 7" (18 cm) at the top.

1. ⚠️ CAUTION - Risk of injury! The door is heavy.

▶ Do not grip the door by the handle.
▶ Use both hands to firmly grip it by the sides.

Maintaining the door angle, lift the door straight up approximately 3/4" (2 cm) to unhook the hinges from the slots and then pull it out towards you until the hinges are clear of the oven housing.

1. Place the door in a convenient and stable location. Do not lay the door on its handle. This could cause dents or scratches.

Reinstalling the oven door

1. Hold the door firmly in both hands. Grip it on either side, not by the handle.
2. Tilt the door back slightly towards you at an angle that would open the door about 7" (18 cm) at the top.
3. Slide the hinges into the slots as far as they will go ① and lower the door straight down ②

The angle of the door may need to be adjusted slightly to allow the hinges to engage properly and the door to be lowered into place. The door should lower about 3/4" (2 cm) and stop. If it does not, the hinges have not engaged properly and the door could fall if it is released.

1. Once both hinges are fully engaged, gently open the door until it is fully open.

2. Push the levers on both the hinges up and forward until they are locked into the slot and flush with the front of the oven body.

1. Close and open the door slowly to be sure it is correctly and securely in place.

10.4 Cleaning the warming drawer

Note: You can remove the warming drawer for cleaning. Refer to the Installation Instructions for your appliance.

WARNING

To prevent burns, do not remove the drawer while hot.

▶ Be sure the drawer is empty before removing.

Part Recommendations

Drawer interior, polished stain-less steel	Use dish detergent. Wash, rinse well and dry.For hard water spots or scale, use white vinegar. Apply with a sponge or cloth, rinse and dry.Chlorine or chlorine compounds in some cleansers are corrosive to stainless steel and can cause injury. Check the ingredients on the label.
Painted surfaces	Use hot, soapy water or mild cleaners such as Fantastik or Formula 409 . Wash, rinse well and dry.Do not use abrasive cleaning agents, steel wool pads and oven cleaners.
Drawer exterior frame, brushed stainless steel	Always wipe or rub in the direction of the grain.Clean with a soapy sponge, then rinse and dry or wipe with Fantastik or Formula 409 sprayed on a paper towel.Protect and polish with Stainless Steel Magic and a soft cloth.Remove water spots with a cloth dampened with white vinegar.Use Bar Keeper's Friend to remove heat discoloration.

¹ These marks are registered trademarks of their respective owners. All other trademarks are trademarks of BSH Home Appliances Corporation or its affiliated companies.

Part Recommendations

	■ Chlorine or chlorine compounds in some cleansers are corrosive to stainless steel and can cause injury. Check the ingredients on the label.
1	These marks are registered trademarks of their respective owners. All other trademarks are trademarks of BSH Home Appliances Corporation or its affiliated companies.

11 Troubleshooting

You can eliminate minor faults on your appliance yourself. Please read the information on eliminating faults before contacting Customer Service. This may avoid unnecessary repair costs.

WARNING

Improper repairs are dangerous.

▶ Only authorized service providers should repair the appliance.

▶ If the appliance has an issue, call Customer Support.

WARNING

Improper repairs are dangerous.

- Repairs to the appliance should only be performed by authorized service providers.

- Only original spare parts may be used to repair the appliance.

11.1 Oven troubleshooting

Fault Cause and troubleshooting
Oven door is locked and will not open, even after cooling	The door lock is engagedTurn the oven off at the circuit breaker and wait five minutes.Turn breaker back on.The oven should reset itself and will be operable.
Oven is not heating There is no power supply to the applianceCheck circuit breaker or fuse box to your house.Make sure there is proper electrical power to the oven.
Baking results are not as expected The rack position in not idealRefer to the cooking charts for the recommended rack position.Check "Getting the most out of your appliance" for tips and suggestions.
Food takes longer to cook than expected The oven temperature needs to be recalibratedNote:The oven is carefully calibrated to provide accurate results.If food is consistently too brown or too light the temperature can be offset.→ "Oven temperature offset", Page 21
Food is overcooked The oven temperature needs to be recalibratedNote:The oven is carefully calibrated to provide accurate results.If food is consistently too brown or too light the temperature can be offset.→ "Oven temperature offset", Page 21
Oven light is not working properly The oven light bulb is loose or defectiveReplace or reinsert the light bulb.→ "Replacing an oven light bulb", Page 30Tip:Touching the bulb with fingers may cause the bulb to burn out.
Oven light does not turn off The oven door does not close properlyCheck the oven door for obstructions.Check to see if the hinge is bent.
Cannot remove lens cover on light There is soil build-up around the lens coverWipe the lens cover area with a clean, dry towel, then try to remove the lens cover.
Oven is not self-cleaning properly The oven is too hot to start self cleanAllow the oven to cool before running self clean.Always wipe out loose soils or heavy spillovers before running self clean.If the oven is heavily soiled, set the maximum self clean time.
Clock and timer are not working properly There is no power supply to the applianceCheck circuit breaker or fuse box to your house.Make sure there is proper electrical power to the oven.
"E" and a number appears in display and control beeps	An electronics fault has occurred1. Press any button or turn any knob to stop the beeping.2. Reset the oven if necessary.3. Call an authorized service provider.
With a new oven there is a strong odor when oven is turned on	This is normal with a new oven and will disappear after a few uses► Operate the self clean mode to burn-off the smell more quickly.
Control does not react when a key is touched	The control is wet or soiled► Clean the control panel an wipe it dry.
	The touch keys are not pressed correctly1. Press the center of the button.2. Use the flat part of your finger.
Warm air or steam escapes from oven vent	It is normal to see or feel steam or warm air escaping from the oven ventCAUTIONThe oven vents are important for air circulation. Covering the oven vents will cause the oven to overheat. Refer to the appliance overview for the location of the oven vents. → Page 12► Do not obstruct oven vents.
Cooling fan runs even when the oven is turned off	The cooling fan will continue to run, even after the oven has been turned off, until the oven has cooled sufficiently► This is normal. There is no action required.

12 Disposal

Find out here how to dispose of old appliances correctly.

12.1 Disposal of your old appliance

Environmentally compatible disposal allows valuable raw materials to be recycled.

1. Unplug the appliance from the power supply.
2. Cut through the power cord.
3. Dispose of the appliance in an environmentally compatible manner.

Information about current disposal methods can be obtained from your specialist dealer or local authority.

13 Customer service

If you have any questions on use, are unable to eliminate an issue in the appliance yourself, or the appliance needs to be repaired, please contact our Customer Service. We will work to find an appropriate solution for you thereby avoiding unnecessary visits by a service provider. With any warranty repair, we will make sure your appliance is repaired by a trained authorized service provider using genuine replacement parts. We use only genuine replacement parts for all repairs. Detailed information on the warranty period and terms of warranty can be found in the Statement of Limited Product Warranty, from your retailer, or on our website. If you contact the Customer Service, you will require the model number (E-Nr.) and the production number (FD) of your appliance. USA: 1-800-944-2904 www.bosch-home.com/us/owner-support/get-support www.bosch-home.com/us/shop CA:

1-800-944-2904

www.bosch-home.ca/en/service/get-support

www.bosch-home.ca/en/service/cleaners-and-accessories

13.1 Model number (E-Nr.) and production number (FD)

You can find the model number (E-Nr.) and the production number (FD) on the appliance's rating plate.

You can see the rating plate with these numbers when you open the appliance door.

Making a note of your appliance's details and the Customer Service telephone number will enable you to find them again quickly.

13.2 Rating plate location

Refer to this section to see where the rating plate of your appliance is located.

■ on the backside of the drawer front. Open the drawer to view it.

14 STATEMENT OF LIMITED PRODUCT WARRANTY

14.1 What this warranty covers & Who it applies to

The limited warranty provided by BSH Home Appliances ("Bosch") in this Statement of Limited Product Warranty applies only to the Bosch appliance sold to you ("Product"), provided that the Product was purchased:

■ For your normal, household (non-commercial) use, and has in fact at all times only been used for normal household purposes.
■ New at retail (not a display, "as is", or previously returned model), and not for resale, or commercial use.
■ Within the United States or Canada, and has at all times remained within the country of original purchase.

The warranties stated herein apply to the original purchaser of the product warranted herein and to each succeeding owner of the product purchased for ordinary home use during the term of the warranty.

Please make sure to return your registration card; while not necessary to effectuate warranty coverage, it is the best way for Bosch to notify you in the unlikely event of a safety notice or product recall.

14.2 How long the warranty lasts

Bosch warrants that the Product is free from defects in materials and workmanship for a period of three hundred sixty-five (365) days from the date of the original purchase. The foregoing timeline begins to run upon the date of the original purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. This Product is also warranted to be free from cosmetic defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage to the finish) of the Product, for a period of thirty (30) days from the date of purchase or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, "As Is", or "B" stock appliances.

14.3 Repair/replace as your exclusive remedy

During this warranty period, Bosch or one of its authorized service providers will repair your Product without charge to you (subject to certain limitations stated herein) if your Product proves to have been manufactured with a defect in materials or workmanship. If reasonable attempts to repair the Product have been made without success, then Bosch will replace your Product (upgraded models may be available to you, in Bosch's sole discretion, for an additional charge). Nothing in this warranty requires damaged or defective parts to be replaced with parts of a different type or design than the original part. All removed parts and components shall become the property of Bosch at its sole option. All replaced and/or repaired parts shall assume the identity of the original part for purposes of this warranty and this warranty shall not be extended with respect to such parts. Bosch's sole liability and responsibility hereunder is to repair manufacturer-defective Product only, using a Bosch authorized service provider during normal business hours. For safety and property damage concerns, Bosch highly recommends that you do not attempt to repair the Product yourself, or use a non-authorized service provider; Bosch will have no responsibility or liability for repairs or work performed by a non-authorized service provider. Authorized service providers are those persons or companies that have been specially trained on Bosch products, and who possess, in Bosch's opinion, a superior reputation for customer service and technical ability (note that they are independent entities and are not agents, partners, affiliates or representatives of Bosch). Notwithstanding the foregoing, Bosch will not incur any liability, or have responsibility, for the Product if it is located in a remote area (more than 100 miles from an authorized service provider) or is reasonably inaccessible, hazardous, threatening, or treacherous locale, surroundings, or environment; in any such event, if you request, Bosch would still pay for labor and parts and ship the parts to the nearest authorized service provider, but you would still be fully liable and responsible for any travel time or other special charges by the service company, assuming they agree to make the service call.

14.4 Out of warranty product

Bosch is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, prorates, or Product replacement, once this warranty has expired.

14.5 Warranty exclusions

The warranty coverage described herein excludes all defects or damage that are not the direct fault of Bosch, including without limitation, one or more of the following:

■ Use of the Product in anything other than its normal, customary and intended manner (including without limitation, any form of commercial use, use or storage of an indoor product outdoors, use of the Product in conjunction with air or water-going vessels).
- Any party's willful misconduct, negligence, misuse, abuse, accidents, neglect, improper operation, failure to maintain, improper or negligent installation, tampering, failure to follow operating instructions, mishandling, unauthorized service (including selfperformed "fixing" or exploration of the appliance's internal workings).
■ Adjustment, alteration or modification of any kind.
- A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fire and building codes and regulations.
■ Ordinary wear and tear, spills of food, liquid, grease accumulations, or other substances that accumulate on, in, or around the Product.
■ Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God.
■ Service calls to correct the installation of your Product, to instruct you how to use your Product, to replace house fuses or correct house wiring or plumbing.

In no event shall Bosch have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures or objects

around the Product. Also excluded from this warranty are Products, on which the serial numbers have been altered, defaced, or removed; service visits to teach you how to use the Product, or visits where there is nothing wrong with the Product; correction of installation problems (you are solely responsible for any structure and setting for the Product, including all electrical, plumbing or other connecting facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors, shelving, etc.); and resetting of breakers or fuses TO THE EXTENT ALLOWED BY LAW, THIS WARRANTY SETS OUT YOUR EXCLUSIVE REMEDIES WITH RESPECT TO PRODUCT, WHETHER THE CLAIM ARISES IN CONTRACT OR TORT (INCLUDING STRICT LIABILITY, OR NEGLIGENCE) OR OTHERWISE. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED. ANY WARRANTY IMPLIED BY LAW, WHETHER FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR OTHERWISE, SHALL BE EFFECTIVE ONLY FOR THE PERIOD THAT THIS EXPRESS LIMITED WARRANTY IS EFFECTIVE. IN NO EVENT WILL THE MANUFACTURER BE LIABLE FOR CONSEQUENTIAL, SPECIAL, INCIDENTAL, INDIRECT, "BUSINESS LOSS", AND/OR PUNITIVE DAMAGES, LOSSES, OR EXPENSES, INCLUDING WITHOUT LIMITATION TIME AWAY FROM WORK, HOTELS AND/OR RESTAURANT MEALS, REMODELLING EXPENSES IN EXCESS OF DIRECT DAMAGES WHICH ARE DEFINITIVELY CAUSED EXCLUSIVELY BY BOSCH, OR OTHERWISE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, AND SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. No attempt to alter, modify or amend this warranty shall be effective unless authorized in writing by an officer of BSH.

14.6 Obtaining warranty service

To obtain warranty service for your product, you should contact Bosch Customer Support at 1-800-944-2904 to schedule a repair.

Table des matières

1 IMPORTANTES CONSIGNES DE SÉCURITÉ ..... 38

14 ÉNONCÉ DE LA GARANTIE LIMITÉE DU PRODUIT

Thank you for buying a Bosch Home Appliance!

Register your new device on MyBosch now and profit directly from:

• Expert tips & tricks for your appliance
• Warranty extension options
  • Discounts for accessories & spare-parts
  • Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service

Free and easy registration – also on mobile phones:

www.bosch-home.com/welcome

BOSCH HOME APPLIANCES SERVICE

Looking for help? You'll find it here.

Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you:

www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.

BSH Home Appliances Corporation

1901 Main Street, Suite 600

Irvine, CA 92614

USA

www.bosch-home.com

© 2020 BSH Home Appliances Corporation

8001203808 (001217)

en-us, fr-ca
