Product type	Ceiling fan with integrated LED lighting
Brand	Cecotec
Model	Energysilence Aero 4260 Full Sunlight
Blade diameter	106 cm (42 inches)
Blade material	ABS
Number of blades	3
Lighting type	Integrated LED, adjustable color temperature (3000K-6000K)
Luminous power	24 W
Number of speeds	6
Reverse function	Yes (summer/winter)
Remote control	Included, with 10 m range
Timer	Yes, programmable (1/2/4/8 hours)
Power supply	220-240 V ~ 50/60 Hz
Motor power	45 W
Maximum noise level	35 dB
Weight	5.2 kg
Housing dimensions	30 x 30 x 15 cm (motor)
Recommended mounting height	2.5 to 3 m
Care and cleaning	Clean with a soft dry cloth. Do not use abrasive products.
Safety	Secure mounting to ceiling. Do not insert objects into blades.
Spare parts and repairability	Remote control and mounting kit available. Repair by authorized service.
Warranty	2 years

Frequently Asked Questions - Energysilence Aero 4260 Full Sunlight CECOTEC

How to install the Cecotec Energysilence Aero 4260 Full Sunlight ceiling fan?

Follow the instructions in the manual: fix the mounting plate to the ceiling using the provided anchors, connect the electrical wires (phase, neutral, ground), then mount the motor and blades. Make sure the installation is carried out by a qualified electrician if you are not familiar with wiring.

How to pair the remote control with the fan?

Turn off the power supply for 10 seconds, then turn it back on. Immediately press the 'PAIR' button on the remote control (located in the battery compartment). The fan emits a beep confirming pairing. If this does not work, check the batteries and try again.

How to reverse the fan direction for winter?

Use the remote control: press the 'REV' (or 'INVERSE') button. The fan will rotate clockwise in winter to redistribute heat. In summer, counterclockwise is recommended for cooling effect. You can also reverse direction via the switch on the motor housing if present.

How to set the fan timer?

On the remote control, press the 'TIMER' button. Each press cycles through options: 1h, 2h, 4h, 8h, then off. The fan will automatically turn off after the selected duration. An indicator on the receiver may flash to confirm.

What to do if the fan makes noise?

Check that the blades are balanced and the screws are tight. Make sure the fan is securely attached to the ceiling. If the noise persists, there may be a motor defect; contact after-sales service. A slight hum is normal, but clicking indicates a problem.

How to clean the fan and blades?

Use a soft slightly damp cloth (not wet) to wipe the blades and motor. Never use chemical or abrasive products. For hard-to-reach areas, you can use a duster. Always unplug the device before cleaning.

Can I replace the LED bulb of the fan?

The LED module is integrated and not user-replaceable. In case of failure, contact Cecotec after-sales service for replacement under warranty or repair. Do not attempt to disassemble the module yourself.

What is the recommended minimum ceiling height?

The recommended minimum height is 2.5 meters from floor to blades. For optimal operation, blades should be at least 30 cm from the ceiling and 2.2 m from the floor. Respect these distances to avoid any risk of injury.

How to activate the 'fan only' function without light?

Use the remote control: press the 'LIGHT' button to turn the light on or off independently. You can thus use the fan without lighting. The last state is remembered when powering on.

What to do if the remote control stops responding?

First check the batteries: replace them with new batteries (CR2032). Make sure no obstacle blocks the signal between the remote and the receiver. If the problem persists, re-pair the remote (see pairing question) or contact customer service.

USER MANUAL Energysilence Aero 4260 Full Sunlight CECOTEC

1. Parts and components 44
2. Before use 44
3. Product assembly 45
4. Operation 46
5. Cleaning and maintenance 48
6. Technical specifications 48
7. Disposal of old electrical and electronic appliances 49
8. Technical support and warranty 49
9. Copyright 50

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

- This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

- Keep a minimum distance of 2.3 cm between the fan blades and the floor.

- Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.

- Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.

- This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.

- Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.

- If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service to avoid any type of danger.

- Do not use the appliance if its cord or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.

- The appliance must be installed in accordance with national wiring regulations.

- Never insert objects or body parts between the rotating fan blades.

• To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and only use parts and components provided and recommended by Cecotec.
• Cut off the power completely before installing or repairing the fan to avoid the risk of electric shock.
• The electrical wiring must be in accordance with the local regulations.
• The cable must be properly earthed to avoid possible accidents.
• The appliance must be installed in accordance with national wiring regulations.
• Never install the fan in a damp or wet room.
• Be careful when near the rotating fan blades.
• To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.
• Do not bend the blade-attachment system during the installation or cleaning process.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly. Turn off and unplug the appliance before cleaning it.
• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the appliance.
• This appliance is designed for indoor use.

Instructions on batteries

• Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical attention immediately.
• Do not allow children to replace batteries without adult supervision.
• Do not disassemble, open, or damage the batteries.
• Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.
• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.
• Do not use any batteries that are not designed for use with the appliance.
• Do not mix batteries of different manufacture, capacity, or

size. Children should be allowed to handle the batteries only under adult supervision.

• Always buy recommended batteries.
• Keep the batteries clean and dry. Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Whenever possible, remove the batteries when not in use.

INSTRUCTIONS DE SÉCURITÉ

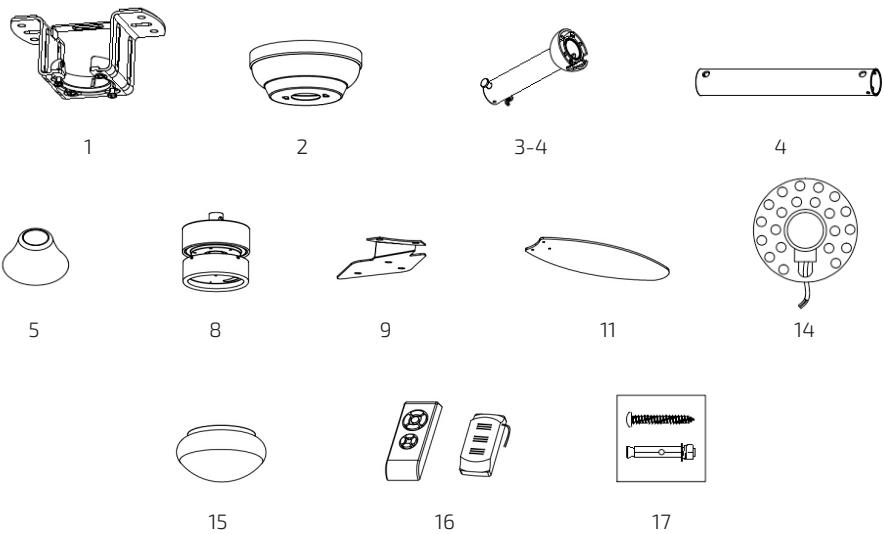

1. Mounting bracket
2. Canopy
3. Hanging ball
4. Downrod
5. Decorative cover
6. Upper housing
7. Motor coupling
8. Motor
9. Blade bracket
10. Screws
11. Blades
12. Connector cover
13. LED-light bracket
14. LED plate
15. Lamp
16. Remote control
17. Tools for assembly

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content:

• Ceiling fan
• Remote control
• Assembly kit
• Instruction manual

3. PRODUCT ASSEMBLY

General assembly instructions

• If you hang the fan on a hook, the latter must withstand at least 100 kg.
• To prevent personal injury and damage, make sure that the location where the appliance is going to be installed allows a 2.3-metre clearance from the blades to the floor and a 76-cm clearance from the blades to any wall or object. Fig. 3
• Make sure that the building structure can hold the full weight of the fan.
• This fan can be installed on a normal or vaulted ceiling with a downrod. The hanging length can be extended by using a longer downrod.

Assembly according to the type of ceiling. (Fig. 4):

1. Normal ceilings
2. Sloped ceilings (might require a longer downrod, not supplied by Cecotec)
3. Wooden ceiling. Fig. 5
4. Concrete ceiling. Fig. 6.

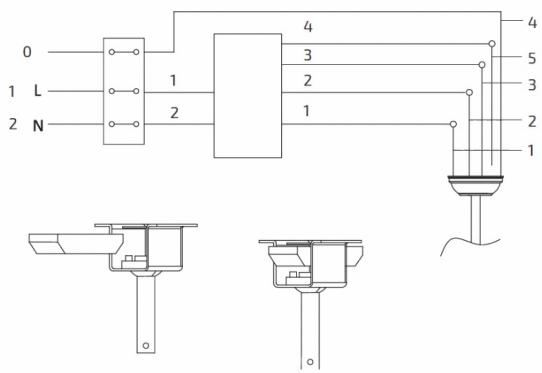

Fig. 7 key:

1. Black and Blue
2. White
3. Earth
4. Phase (Brown/Black)
5. Neutral (Blue)
6. Earth

To assemble this ceiling fan, follow the steps below (Fig. 3-12):

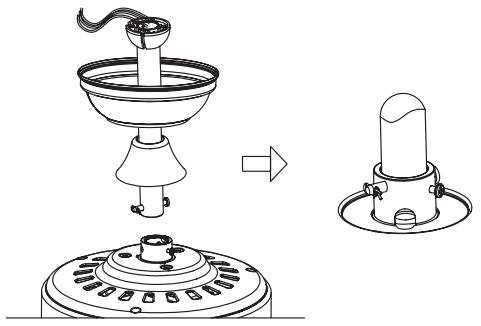

1. Remove the lower and upper pins from the downrod and release the hanging ball at the top of the rod.
2. Pass the wiring from the main body through the downrod.
3. Attach the downrod to the main body by inserting the pin through the downrod and the main-body attachment. Tighten the screws provided on the main-body attachment to properly secure the downrod.
4. Remove the 4 screws that fix the upper canopy and the installation bracket. Insert the upper canopy through the downrod.
5. Insert the pin through the pin holes located on the upper end of the downrod. Once inserted, slide the hanging ball upward to the upper end of the downrod and fix it with one of the screws provided. Fig. 8-9
6. Make sure the pin fits in the slots located inside the hanging ball before screwing it.
7. Mark the centre of the installation bracket and use both self-tapping screws provided with their corresponding washers and pressure washers to fix the installation bracket to a wooden ceiling.

ENGLISH

Warning

Self-tapping screws are only suitable for wooden ceilings. In case of installing the ceiling fan to concrete ceilings or joists, use a drill for making the holes and plugs or expansion screws (not included).

1. Remove the screws located on the lower part of the motor through the lamp holder. Fig. 10
2. Screw the blades to the blade brackets using the bolts, washers, and nuts provided, then screw the blade-bracket assembly to the main body. Given that the blades are reversible, choose the side you want to screw them on. Fig. 10
3. Fix the LED-light bracket to the main body of the motor by means of the screws on the bottom of the main body. Fig. 11
4. Once the installation bracket is screwed, connect the wiring. First connect the quick-connect cable to the terminal block on the installation bracket. Following the colour code (Fig. 8). From the opposite end of the terminal block, connect the wiring from the installation of your home.
5. Lift the fan previously mounted to the installation bracket and insert the hanging ball through the installation-bracket hole.
6. Connect the cables that come out from the downrod to those from the installation bracket using both quick connectors.
7. Slide the canopy upwards so that all the connections are stored inside it and screw it to the installation bracket using the 4 screws (2 to each side) removed at the beginning of the installation process.

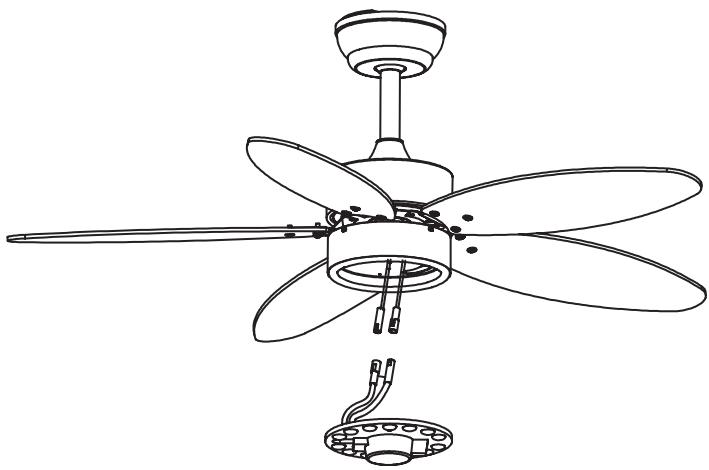

8. Connect the LED board to the quick connector on the main body and attach it to the LED-light bracket with the three built-in magnets.

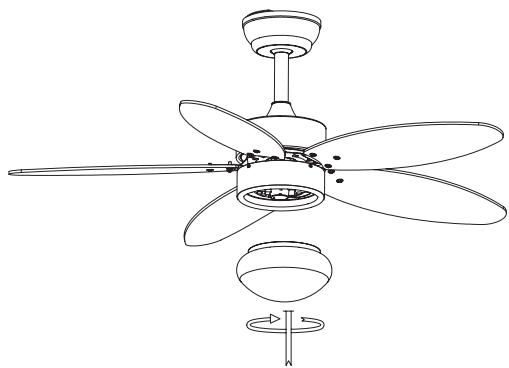

9. Place the lamp on the bottom of the appliance, using the tabs of the lamp holder to clamp the glass and fully secure it. Fig.12

Please note

The reversible blades have 2 different high-quality finishes.

By inverting the blades, the appliance produces a decorative effect and adapts to different room designs.

4. OPERATION

Remote control. Fig. 13.

1. Power button
2. Speed control
3. Winter/summer function (reversal of blade rotation direction)
4. Timer
5. Light

6. Natural Breeze

7. Use the speed buttons to select the air power level.

8. Press the power button to turn the appliance off.
9. Use the timer buttons to select the fan operating time. The fan will turn off once the selected time has elapsed.
10. Press the light button to turn the fan's lamp on and off.

Winter Function

Press the Winter/Summer button. The fan will make air flow from the bottom upwards, bringing cold air to the top of the room.

Summer Function

Press the Winter/Summer button. The fan will make air flow from the top downwards, bringing cold air to the bottom of the room.

Warning

Invert the spinning direction of the fan while in operation. Hold down the button for approx. 3 seconds: the appliance will beep, and the blades will start slowing down until they stop spinning. After a few seconds, they will start spinning again in the opposite direction.

Pairing the remote control with the fan

Press the off button for 5 seconds until you hear a beep. Then, press the low-speed button.

Natural breeze

Activate this mode by pressing the corresponding button on the remote control. The fan will run at different power levels in a cycle, producing a feeling of fresh air.

Warnings

• The remote control operates through RF Wireless digital transmission technology. If both the fan and the lamp are equipped with a switch, turn on the fan at top speed and turn the light on before using the remote control.
• If the fan or the light cannot be controlled through the remote control, check if the batteries in the remote control are in good conditions and if they make good contact, that the positive and negative electrodes are in the correct position, and if the batteries are charged.
• If the fan or the light cannot be controlled through the remote control, check if there are other remote-controlled appliances in the same area and check if the transmitter buttons are pressed. Appliances with similar remote-control systems may cause interference. This does not include infrared remote controls.
• Pay attention to the appliance voltage. Too low a voltage may cause the remote control to not work. The technical specifications are indicated in this manual.
• If the remote control is not going to be used for a long time, remove the batteries.

ENGLISH

Changing the remote-control battery

The remote control requires 2 x 1.5 V-3 AAA batteries.

Please note: follow the instructions for use and recycling procedures on the battery packaging.

1. Open the battery compartment by sliding the cover downwards.
2. Insert the batteries into the battery compartment observing the polarity.
3. Close the compartment.

5. CLEANING AND MAINTENANCE

• Make sure to disconnect the fan before cleaning it.
• Do not immerse any of the parts of the appliance in water or splash them with any other liquid.
• Do not use solvents or any other chemical products for cleaning.
• Use a soft, damp cloth to clean the surface of the device.

6. TECHNICAL SPECIFICATIONS

Model: EnergySilence Aero 4260 Full SunLight / EnergySilence Aero 4260 Full Orange / EnergySilence Aero 4260 Full Sky / EnergySilence Aero 4260 Full Mint / EnergySilence Aero 4260 Full Purple

Product reference: 08481 / 08482 / 08483 / 08484 / 08485

Power: 40 W

Voltage: 220 - 240 V

Frequency: 50 / 60 Hz

LED: 18 W

Description	Symbol	Value	Unit
Fan maximum flow	F	170.6	m3/min
Fan power consumption	P	35	W
Service value	SV	4.9	(m3/min)/W
Power consumption on standby mode	PSB	0.45	W
Fan sound power level	LWA	47.0	dB (A)
Maximum air speed	C	2.75	m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos n°60, 46910,Alfafar (Valencia, Spain)

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

ENGLISH

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1-2

3. HET APPARAAT MONTEREN

Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./Rys. 8

Fig./Img./Abb./Afb./Rys. 9

Fig./Img./Abb./Afb./Rys. 10

Fig./Img./Abb./Afb./Rys. 11

Fig./Img./Abb./Afb./Rys. 12

Fig./Img./Abb./Afb./ Rys. 13

www.cecotec.es
