Energysilence Aero 4250 Fresh - Ceiling fan CECOTEC - Free user manual and instructions

Product type	Ceiling fan
Brand	Cecotec
Model	Energysilence Aero 4250 Fresh
Blade diameter	106 cm (42 inches)
Net weight	5.5 kg
Power supply	220-240 V ~ 50 Hz
Motor power	50 W
Number of speeds	3
Reverse function	Yes (summer/winter mode)
Control type	Infrared remote control
Noise level	25 dB (silent)
Blade material	ABS
Color	White
Integrated lighting	No
Blade pitch	12°
Minimum mounting height	2.3 m
Maintenance and cleaning	Dust with a soft, dry cloth. Do not use abrasive products.
Safety	Do not insert objects into the housing. Unplug before any maintenance.
Available spare parts	Remote control, replacement blades, mounting kit
Warranty	2 years

Frequently Asked Questions - Energysilence Aero 4250 Fresh CECOTEC

How to install the Energysilence Aero 4250 Fresh ceiling fan?

Follow the provided installation manual. Securely fix the bracket to the ceiling, connect the wires according to the electrical diagram (live, neutral, ground) and mount the blades. Make sure the power switch is off before starting.

How to use the remote control?

The infrared remote control allows you to adjust the 3 speeds, activate the summer/winter reverse mode, and turn off the fan. Point it towards the receiver on the central housing. Replace the batteries if the range decreases.

What is the reverse mode for?

In summer, the blades rotate counterclockwise to create a cooling breeze. In winter, activate clockwise rotation (via the remote control) to redistribute warm air trapped at the ceiling, thus improving heating.

The fan is noisy, what should I do?

Check that the blades are well balanced and that the screws are tight. A slight motor noise is normal (25 dB). If the noise is excessive, clean the blades and motor, and make sure the ceiling is stable.

How to maintain the fan?

Dust the blades and housing with a soft, dry cloth. Never use solvents or abrasive products. Unplug the device before any cleaning. Avoid moisture.

Can I install the fan on a sloped ceiling?

Yes, thanks to the included orientation ball joint, it can be mounted on a ceiling with a slope of up to 30 degrees. Use the supplied mounting kit and follow the instructions.

The fan does not respond to the remote control, what should I check?

Check the remote control batteries (AAA type) and their polarity. Make sure no obstacles are blocking the infrared signal between the remote and the receiver. If the problem persists, contact customer service.

What is the minimum height required to install this fan?

The recommended minimum height between the floor and the blades is 2.3 meters for safety reasons. For rooms with a low ceiling, a short rod kit can be used.

Is this fan suitable for outdoor use?

No, this fan is designed for indoor use only. Do not use it in humid environments or exposed to weather.

How to get spare parts or technical support?

Contact Cecotec customer service via their website or by phone. You can order remote controls, replacement blades, mounting kits, and other parts. Keep the proof of purchase for the warranty.

USER MANUAL Energysilence Aero 4250 Fresh CECOTEC

1. Parts and components 42
2. Before use 42
3. Product assembly 42
4. Operation 44
5. Cleaning and maintenance 45
6. Technical specifications 46
7. Disposal of old electrical and electronic appliances 46
8. Technical support and warranty 47
9. Copyright 47

SOMMAIRE

Read these instructions thoroughly before using the product. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Keep a minimum distance of 2.3 cm between the fan blades and the floor.
• Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.
• Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.
• This appliance is designed for domestic use only and is not

intended for bars, restaurants, farmhouses, hotels, motels, and offices.

• Make sure that the mains voltage matches the voltage stated on the product marking and that the wall outlet is grounded.
• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service to avoid any type of danger.
• Do not use the appliance if its cord or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.
• The device must be installed in accordance with national wiring regulations.
• Never insert objects or body parts between the rotating fan blades.
• To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and use only parts and components provided and recommended by Cecotec.
• Cut off the power completely before installing or repairing the fan to avoid the risk of electric shock.
• The electrical wiring must be in accordance with the local regulations.
• The cord must be properly earthed to avoid possible accidents.
• The device must be installed in accordance with national wiring regulations.
• Never install the fan in a damp or wet room.
• Be careful when near the rotating fan blades.
• To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.
• Do not bend the blade-attachment system during the installation or cleaning process.
• Cleaning and maintenance must be carried out according

to this instruction manual to make sure the device works properly. Turn off and unplug the appliance before cleaning it.

• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the product.
• This product is designed for indoor use.

Instructions on batteries

• Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical attention immediately.
• Do not allow children to replace batteries without adult supervision.
• Do not disassemble, open, or damage the batteries.
• Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.
• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid gets into contact with skin,

wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.

• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.
• Do not use any batteries that are not designed for use with the appliance.
• Do not mix batteries of different manufacture, capacity, or size. Supervise children to prevent them from playing with batteries.
• Always buy recommended batteries.
• Keep the batteries clean and dry. Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Whenever possible, remove the batteries when not in use.

INSTRUCTIONS DE SÉCURITÉ

1. Canopy
2. Downrod and hanging ball
3. Downrod
4. Mounting bracket
5. Decorative cover
6. Motor
7. Blades
8. LED-light bracket
9. Lamp
10. LED plate
11. Remote control
12. Assembly tools

NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

3. PRODUCT ASSEMBLY

General assembly instructions

• If you hang the fan on a hook, the latter must withstand at least 100 kg.
• To prevent personal injury and damage, make sure that the location where the device is going to be installed allows a 2.3-metre clearance from the blades to the floor and a 76-cm

clearance from the blades to any wall or object. Fig. 2

• Make sure that the building structure can hold the full weight of the fan.
• This fan can be installed on a normal or vaulted ceiling with a downrod. The hanging length can be extended by using a longer downrod.

Assembling the fan based on ceiling type (Fig. 3):

1. Normal ceilings
2. Sloped ceilings (might require a longer downrod, not supplied by Cecotec)
3. Wooden ceiling. Fig. 4
4. Concrete ceiling. Fig. 5

To assemble this ceiling fan, follow the steps below (Fig. 3-12):

1. Remove the lower and upper pins from the downrod and release the hanging ball at the top of the rod. Fig. 6
2. Pass the wiring from the main body through the downrod. Fig. 6
3. Attach the downrod to the body by inserting the pin through the downrod and the main-body attachment. Tighten the screws provided on the main-body attachment to properly secure the downrod.
4. Remove the 4 screws that fix the upper canopy and the installation bracket. Insert the upper canopy through the downrod. Fig. 6
5. Insert the pin through the pin holes located on the upper end of the downrod. Once inserted, slide the hanging ball upward to the upper end of the downrod and fix it with one of the screws provided.
6. Make sure the pin fits in the slots located inside the hanging ball before screwing it.
7. Mark the centre of the installation bracket and use both self-tapping screws provided with their corresponding washers and pressure washers to fix the installation bracket to a wooden ceiling.

Warning

Self-tapping screws are only suitable for wooden ceilings. In case of installing the ceiling fan to concrete ceilings or joists, use a drill for making the holes and plugs or expansion screws (not included).

1. Remove the screws located on the lower part of the motor through the lamp holder. Fig. 9
2. Insert the blades through the slots in the main body of the motor. Fig. 9
3. Screw the blades to the blade brackets using the screws, washers, and nuts provided. Given that the blades are reversible, choose the side you want to screw them on. Fig. 9
4. Fix the LED-plate bracket to the main body of the motor by means of the screws on the bottom of the main body. Fig. 10
5. Once the installation bracket is screwed, connect the wiring. First connect the quick-connect cord to the terminal block on the installation bracket. Following the colour

code (Fig. 7). From the opposite end of the terminal block, connect the wiring from the installation of your home.

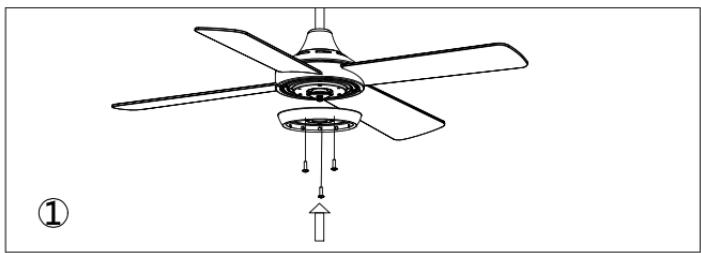

1. Lift the fan previously mounted to the installation bracket and insert the hanging ball through the installation-bracket hole.

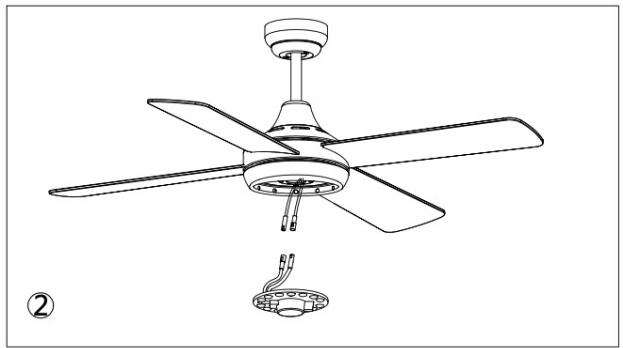

2. Connect the cords that come out from the downrod to those from the installation bracket using both quick connectors. Fig. 7
3. Slide the canopy upwards so that all the connections are stored inside it and screw it to the installation bracket using the 4 screws (2 to each side) removed at the beginning of the installation process. Fig. 8
4. Connect the LED board to the quick connector on the main body and attach it to the LED-light bracket with the three built-in magnets. Fig. 11
5. Place the lamp on the bottom of the appliance, using the tabs of the lamp holder to clamp the glass and fully secure it. Fig. 12

Please note

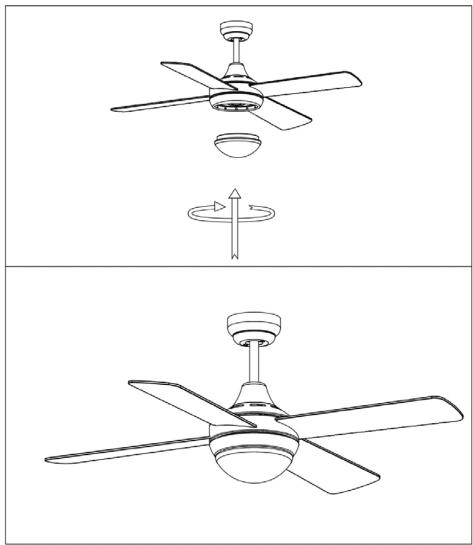

• The reversible blades have 2 different high-quality finishes.
• By inverting the blades, the device produces a decorative effect and adapts to different room designs.

4. OPERATION

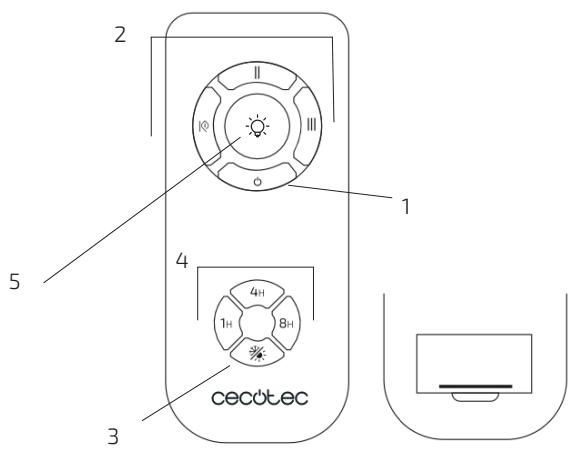

Remote control. Fig. 12

1. Power button
2. Speed control
3. Winter/summer function (reversal of blade rotation direction)
4. Timer

5. Light

6. Use the 6 speed buttons to select the air power level.

7. Press the power button to turn the device off.
8. Use the 4 timer buttons to select the fan operating time: 1, 4, and 8 hours. The fan will turn off once the selected time has elapsed.
9. Press the light button to turn the fan's lamp on and off.
10. The remote control requires 2 x 1.5 V-3AAA batteries.

To activate the switch, press the Winter/Summer Function button on the remote control. This button allows you to change the rotating direction (clockwise or counterclockwise) of the fan blades.

Winter Function

Press the Winter/Summer Function button. The fan will make air flow from the bottom upwards, bringing cold air to the top of the room.

Summer Function

Press the Winter/Summer Function button. The fan will make air flow from the top downwards, bringing cold air to the bottom of the room.

Warning

Invert the spinning direction of the fan while in operation. Hold down the button for approx. 3 seconds, the device will beep, and the blades will start slowing down until they practically stop spinning. After a few seconds, they will start spinning again in the opposite direction.

Natural breeze

Activate this mode by pressing the corresponding button on the remote control. The fan will run at different power levels in a cycle, producing a feeling of fresh air.

Pairing the remote control with the fan

Press the power button for 5 seconds until you hear a beep. Then, press the low-speed button.

Warnings

• The remote control operates through RF Wireless digital transmission technology. If both the fan and the lamp are equipped with a switch, turn on the fan at top speed and turn the light on before using the remote control.
• If the fan or the light cannot be controlled through the remote control, check if the batteries in the remote control are in good conditions and if they make good contact, that the positive and negative electrodes are in the correct position, and if the batteries are charged.
• If the fan or the light cannot be controlled through the remote control, check if there are other remote-controlled products in the same area and check if the transmitter buttons are pressed. Product with similar remote-control systems may cause interference. This does not include infrared remote controls.
• Pay attention to the product voltage. Too low a voltage may cause the remote control to not work. The technical specifications are indicated in this manual.
• If the remote control is not going to be used for a long time, remove the batteries.

5. CLEANING AND MAINTENANCE

• Make sure to disconnect the fan before cleaning it.
• Do not immerse any of the parts of the device in water or splash them with any other liquid.
• Do not use solvents or any other chemical products for cleaning it.
• Use a soft, damp cloth to clean the surface of the device.

6. TECHNICAL SPECIFICATIONS

Model: EnergySilence Aero 4250 Fresh

Product reference: 05995

55 W, 220-240 V \~ 50/60 Hz

18 W LED

Description	Symbol	Value	Unit
Fan maximum flow	F	155.6	m^3/min
Fan power consumption	P	55.2	W
Service value	SV	2.8	(m^3/min)/W
Power consumption on standby mode	P_SB	0.5	W
Fan sound power level	L_WA	46	dB (A)
Maximum air speed	C	2.7	m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones S.L.C/ de la Pinadeta s/n, 46930Quart de Poblet, Valencia (Spain)

This product features a light source with an energy efficiency grade E.
Technical specifications may change without prior notification to improve product quality.
Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information

concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1.

Model: EnergySilence Aero 4250 Fresh

Productreferentie: 05995

55 W, 220-240 V \~ 50/60 Hz

18 W LED

Model: EnergySilence Aero 4250 Fresh

Model: EnergySilence Aero 4250 Fresh

Reference produktu: 05995

55 W, 220-240 V \~ 50/60 Hz

18 W LED

Fig./Img./Abb./Rys./Obr. 4

Fig./Img./Abb./Rys./Obr. 5

Fig./Img./Abb./Rys./Obr. 6

Fig./Img./Abb./Rys./Obr. 7

Fig./Img./Abb./Rys./Obr. 8

Fig./Img./Abb./Rys./Obr. 9

Fig./Img./Abb./Rys./Obr. 10

Fig./Img./Abb./Rys./Obr. 11

Fig./Img./Abb./Rys./Obr. 12

Fig./Img./Abb./Rys./Obr. 13

www.cecotec.es
