Product Type	Freestanding Dishwasher
Brand	Gorenje
Model	GS65261XCN
Energy Class	E (EU energy label)
Place Settings	13 place settings
Width	60 cm
Height	85 cm
Depth	60 cm
Weight	45 kg
Power Supply Voltage	220-240 V / 50 Hz
Water Consumption per Cycle	9.5 L
Noise Level	47 dB(A)
Programs	ECO 50°C, Auto, Intensive, Quick 60min, Glass, Pre-rinse
Functions	Delay start (1-24h), Half load, ExtraDry, AquaStop
Drying System	Heat exchanger + fan drying
Cutlery Basket	Yes, removable cutlery tray
Adjustable Upper Basket	Height adjustable (3 positions)
Safety Features	Child lock, AquaStop hose, overflow protection
Cleaning and Maintenance	Self-cleaning filter, automatic rinse aid dosage
Spare Parts Availability	At least 10 years after model discontinuation (EU regulation)
Repairability Index	8.0 / 10 (based on user rating)

Frequently Asked Questions - GS65261XCN GORENJE

How to start the dishwasher?

Load the dishes, add detergent, close the door, select a program using the control panel, and press the start button. The ECO 50°C program is recommended for everyday use.

What does the AquaStop feature do?

AquaStop is a safety system that prevents water leaks. If a leak is detected, the water supply is automatically shut off.

How to clean the filter?

Remove the lower basket, turn the cylindrical filter counterclockwise, lift it out, rinse under running water, and reassemble. Clean the filter monthly to maintain performance.

Can I use regular dishwasher tablets?

Yes, you can use standard all-in-one tablets. For best results, ensure the rinse aid compartment is filled and the water softener is set according to your water hardness.

What is the delay start function?

The delay start allows you to set the dishwasher to begin its cycle in 1 to 24 hours. Press the delay button repeatedly to set the desired hour.

How to adjust the upper basket height?

Pull out the upper basket, lift the side levers, reposition the basket to one of three levels, and release the levers. This accommodates larger items.

What does the ExtraDry function do?

ExtraDry improves drying performance by extending the drying phase at a higher temperature. Use for plastics or when you need completely dry dishes.

How to reset the dishwasher?

Press and hold the start button for 3 seconds to cancel a running cycle. Then select a new program. If the unit is unresponsive, turn off the power for 1 minute.

Where is the rinse aid dispenser?

The rinse aid dispenser is located inside the door, next to the detergent compartment. Open the cap and pour rinse aid up to the max level. Adjust the setting from 1 to 6.

What does the child lock do?

The child lock prevents children from changing the program or starting the dishwasher. Activate it by pressing and holding the relevant button combination (see manual).

USER MANUAL GS65261XCN GORENJE

OPERATING INSTRUCTIONS

DISHWASHER

GS65261 CN

gorenje

Your dishwasher 2.

Safety instructions 3.

Before washing for the first time 4.

Loading the dishwasher 6...

Using the dishwasher 8...

Settings 1.3

Care and cleaning 16...

Troubleshooting 20

Installation 27

Service 31

Technical information 32.

Your dishwasher

1. Main power switch
2. Auto wash
3. Intensive wash
4. Eco wash
5. Quick wash
6. Rinse

7. SpeedWash

8. Auto open

9. Extra hygiene
10. Delayed start
11. Display
12. Rinse aid indicator
13. Salt indicator
14. Self-cleaning programme

General

• Read the operating instructions and keep them in a safe place!
• Never use the dishwasher for any purpose other than that specified these operating instructions.
• Do not load the dishwasher door dishwasher baskets with anything of than dishes.
• Never leave the dishwasher door as someone may trip on it.
  • Use only dishwasher detergent!
• This machine can be used by aged 8 and upwards, and by pe with reduced physical capacity, me

ability, memory loss or lacking experience and knowledge. These individuals must be supervised who using the machine or have instruction on how to use the machine and understand the risks that can occur

Cleaning of the machine must not carried out by children without supervision.

• Damaged mains cables must only replaced by a qualified electrician.
• Only use the dishwasher in household-type environments for dishwashing household dishes. All other use is prohibited.
• Never place dishes with solvent residues in the dishwasher due to risk of explosion. Nor may dishes contain ash, wax or lubricants be washed in the dishwasher.

WARNING!

Knives and other pointed items must placed horizontally in the dishwasher's special cutlery baskets.

Installation

See the chapter Installation.

Child safety

Children must be watched. Do not a in children to use or play with the dishwasher. Be especially vigilant when or the door is open. Some detergent m ther remain inside! After adding detergent, always start the dishwasher immediatel open

WARNING!

Children must be supervised – dishwasher detergent is corrosive!

Winter storage/transport

Store the dishwasher above freezing a avoid long transport distances in very en weather. Transport the dishwasher upri of laying on its back.

@overflow guard function

The overflow protection starts pumping out the machine and turns off the supply if the water level in the dish exceeds the normal level. If the over protection is triggered, turn off the w supply and call the service department

Packing material

The packaging protects the product du transport. The packaging material is recyclable. Separate the different packaging materials to help reduce raw material use and waste. Your dealer take the packaging for recycling or do you to the nearest recycling centre.

packaging is comprised of:

st be Garrugated cardboard made from up to 100% recycled material.

- Expanded polystyrene (EPS) with no added chlorine or fluorine.

• Protective plastic made from polyethylene (PE).

• Supports made from untreated wooChecking water hardness

Disposal

The dishwasher is manufactured and labelled for recycling.

When the dishwasher has reached end of its service life and is to of, it should immediately be made unusable. Pull out the power cable cut it as short as possible.

Contact your local authority for inform about where and how your dishwash should be correctly recycled.

Checking water hardness

In order to achieve good dishwashing results, the dishwasher needs soft water (water with low mineral content). Hard water leaves a white coating on dish and the dishwasher.

Water hardness is specified using the German water hardness scale (°dH) of the disposed French water hardness scale (°fH).

A water supply with a water hardness excess of 6° dH ( 9° fH) must be softer. This is done automatically with the addition of the built-in water softener. In order for water softener to function optimally, it must be adjusted to the hardness of water supply. Once you have adjusted water softener, use detergent and rinsed aid doses suitable for soft water.

Contact the local waterworks to check water hardness in your area.

Make a note of the water hardness: ____

If the water hardness exceeds 50° dH ( 89° fH), we recommend connecting an external water softener.

WARNING!

Hard water leaves a white coating of dishes and inside the dishwasher. It therefore important that you select the right setting for the water softener! Water hardness.

Never run the dishwasher with an e salt compartment if the water supply a water hardness in excess of 6° dl- (9° fH).

Set the Water hardness

Chapter Settings describes how to the water softener.

Top up with salt

1. Unscrew the salt compartment lid.
   2 Place the funnel supplied with the dishwasher in the salt compartment top-up hole. First, pour in about water.
2. Then add salt, a maximum of 1.0 kg, until the compartment is full. Use large grain salt or special dishwasher salt.
3. Wipe up any excess salt so that the lid can be screwed on firmly.

In order to avoid rust stains a dishwashing programme must be started immediately after adding salt.

Set the Rinse aid

The section Settings describes how to set the rinse aid dosage.

Top up with rinse aid

Drying is faster and a better result is achieved if you use rinse aid. You will also

achieve a better dishwashing result w adjust and spotless dishes.

1. Open the rinse aid compartment lic
   2 Carefully top up with rinse aid to level marked max.
2. Wipe up any splashes of rinse aid around the compartment.
3. Close the lid firmly.

Greener dishwashing

• Do not rinse under running water. Simply scrape off large food partic before loading the dishwasher.
• Choose an environmentally-friendly detergent. Read the environmental declaration on the packaging!
• Do not start the dishwasher until fully loaded to save energy.
• If the dishes are only slightly dirty, you can select a programme with a low temperature.

• Better drying results are achieved use the Auto open option, which automatically opens the dishwasher door. Wait until the dishwasher indicates that the programme has ended and the dishes have cooled before unloading the dishwasher. (I dishwasher is built-in the surround furnishings must be resistant to a condensation from the dishwasher.)

• Angle dishes with hollows, such as cups, so that the rinse water will lies. This is also important for plastic it
  • Make sure small items cannot fall through the dishwasher basket; place them in the top cutlery tray.

NOTE!

it is Check that the spray arms can rota freely.

The dishwasher's baskets

The dishwasher is equipped with a t cutlery tray, an upper basket and a basket.

WARNING!

Be careful with fully loaded dishwash baskets. Push the baskets in to avoid the risking the dishwasher tipping over.

Top cutlery tray

Fragile dishes

Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot withstand strong heat, others can be damaged by dishwashing detergent.

Exercise caution with, for example, handmade items, fragile decoration, crystal/glassware, silver, copper, tin, aluminium, wood and plastic. Look "Dishwasher safe" marking.

Points to consider

• All dirty surfaces should face and downwards!
- Dishes should not be placed in each other.

The top cutlery tray has space for ladles, whisks, serving cutlery and sin afe. items.

Upper basket

Place glasses, cups, bowls, side plate and saucers in the upper basket. All surfaces should face inwards and

downwards! Wine glasses are placed Foldable tines

the wine glass shelf and knives are The placedable tines can be folded up in the knife stand on the right (if fitted). to make it easier to load pots and glasses. Release the foldable tine by pressing the catch inwards before adjusting their position.

Lower basket

Place plates, side plates, serving dish and pots in the lower basket.

Raising and lowering the upper basket

1. Pull out the upper basket.
   2 Grab the sides of the upper basket with both hands and lift it up.
2. Repeatedly lift the basket with both hands to change its position. (The upper basket can be set in three positions.) When the upper basket is the highest position lifting it will re it to the lowest position. Note that sides of the basket must always be to the same height.

is in Foldable tines return

Fold down the foldable tines (plate supports) when dishwashing pots. Release the foldable tines by pressing catch inwards before adjusting their position.

Add detergent

1. Prewash detergent compartment
   2 Main wash detergent compartment

Detergent is added according to wat hardness.

detergent will not be released properly the lid is tight and will not open c

NOTE!

Dishwasher tablets are not recommended for short programmes (less than 75 minutes). Use powder liquid dishwasher detergent instead.

All-in-one detergent

There are many types of all-in-one detergents on the market. Read through the directions for these products caref

Follow the instructions on the detergent packaging. This dishwasher is fitted a water softener, so use detergent rinse aid doses suitable for soft water. Too much detergent can result in effective dishwashing and also entails greater environmental impact.

The detergent compartment must be when adding detergent. There is one compartment for the prewash and on the main wash. If powder or liquid dishwasher detergent is used, add a amount of the detergent to the pre compartment. Contact the detergent manufacturer if you have questions a the detergent.

NOTE!

Use only dishwasher detergent! Wa up liquid must not be used as that forms prevents the dishwashe operating effectively.

Chapter Settings describes how to activate TAB (3-in-1/ All-in-one detergent node that salt must be put in the compartment. If you are not satisfied the dishwashing or drying results, less deactivate the setting TAB (3-in-1/ All-in-one detergent) and top up with detergent and rinse aid. See Chapter Before washing for the first time.

NOTE: Optimal washing and drying results a achieved by using normal dishwasher wastergent together with separately dispensed rinse aid and salt. about

① The main power switch

Press and hold the main power swit until the display lights up. Also chec e foam the water tap is on. from

PROGRAMS - Select a program Select a programme to suit the type dishes and how dirty they are.

Dishwasher tablets

Halve the tablet if it is difficult to dispenser lid. There is a risk that

Rales the desired programme until the programme symbol is activated.

auto

45-65° Auto wash

The dishwasher can measure how d the dishes are and adjust water consumption and temperature according! When newly installed, the programme needs to be run five times before adapted and can provide the best

Rinse

Used to rinse dishes while you wait dishwasher to become fully loaded.

EXTRA - Select an option

To select an option, press one of the options. buttons until the option is active. The available options vary between programmes and some options cannot combined (available options glow dimly

auto

45-65° Auto wash + SpeedWash +

Auto open

An effective programme for daily use for

slightly dried leftovers. (This programme is not intended for burnt food, such as

oven dishes.)

SpeedWash

This option shortens the programme time but uses more energy and water.

70° Intensive wash

Programme for very dirty dishes, such pans, casserole dishes and oven dish. If these dishes do not completely find dishwasher, you can add plates and like.

Auto open

The dishwasher door opens automatical which improves the drying results. Wa until the dishwasher indicates that the programme has ended and the dishes have cooled before unloading the dishwasher. (If the dishwasher is built the surrounding furnishings must be resistant to any condensation from the dishwasher.)

eco

55° Eco wash

This programme is intended for clean normally dirty dishes and is the most effective programme in terms of common energy and water consumption.

NOTE!

ning

st

blocked when set to open autom

This can disrupt door lock functi

35° Quick wash

This programme is used for glasses porcelain that is slightly dirty, such coffee cups.

In combination with SpeedWash, a s programme is achieved (15 minutes).

Extra hygiene

This option is intended for situations where demands on hygiene are especially high, such as when dishwashing baby bottles and cutting boards. The heater temperature is increased in both the wash and the final rinse.

Delayed start

When you select Delayed start the dishwasher will start 1-24 hours after close the door.

1. Press the button once to activate Delayed start. Press the button set times – or hold it in – to set number of hours.
   2 Close the door and the dishwashe counts down 1 hour at a time a after the selected delay.

If you want to cancel the Delayed option, open the door and press an the main power switch until the dis turns off.

Starting the dishwasher

Close the door to start the dishwas the main power switch is on the dishwasher will start automatically who the door is closed.

TIME - Time remaining

Once you have chosen a programme options, the time the programme too when last used is displayed.

Once you have started the dishwash the display shows the remaining programme time. The remaining time updated after the water for the fina has been heated.

This may differ somewhat from time, time depending on the temperature of water supply, the amount of dishes, ambient temperature and other factors

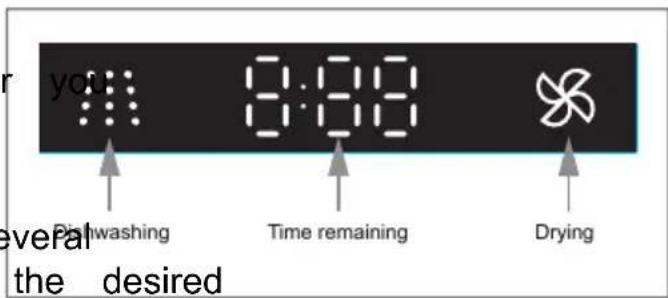

Front display

Stopping or changing a program If you want to change programme at and starts starting the dishwasher, open the door then press and hold the main power switch until the display turns off. Add detergent if the lid of the detergent dispenser has opened. Then press the main power switch, choose a new programme and close the door.

If fer. you want to load more dish Open the door. The dishwasher stops automatically. Add the dishes and cloth the door. After a while, the dishwash continues the programme.

If the dishwasher is turned off to a power failure

If the dishwashing programme was not finished, the interrupted programme has continues when power is restored.

is NOTE! rinse During drying, the programme is interrupted if the power is cut or th iso open for more than 2 minutes.

Once the programme has finish Once the programme has finished, "E appears on the display.

At the end of the programme one's signal will sound. Chapter Settings describes how to change this function

The dishwasher switches off automatically dishwasher detergent or citric acid. after the programme ends. Shut off Special dishwasher cleaners are also water tap after each use. available on the market. For the ren

How to get the best drying

results

available on the market. For the rem of limescale deposits, see The dishwas results tub in the chapter Care and cleaning

• Fully load the dishwasher.
• Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important for plastic items.
• Top up with rinse aid or increase the rinse aid dosage level.
• Activate the Auto open option.
• Allow the dishes to cool before unloading the dishwasher.

Unloading the dishwasher

Hot porcelain is more fragile. Leave the dishes to cool in the dishwasher before unloading them.

Unload the lower basket first to avoid any water drops from the upper basket falling onto the dishes in the lower basket.

Special programmes

Press and hold the associated option buttons to activate a special programme. The programme starts when the door is closed.

Self-cleaning programme (CLn)

Self-cleaning programme for hygienic cleaning of the dishwasher tub, spray arms and spray pipes.

This programme should be run (with no dishes in the machine) using normal

Programme chart

PROGRAMS- Programme	Detergent, compartment 1 / (ml)	- Options 2		Main wash	Prewashes EXTRinses	Anal rinse	Number of consumption values1)
							Dishwashing time (approx. hrs:min)	Energy (approx. kWh)	Water cons. (L)
									11-200.9-1.52:
Intensive wash	10 / 25		2	70 °C	2	70 °C	2:55	1.7	17
Eco wash	--- / 25	Auto open	1	55 °C	2	49 °C	3:00	0.86	9.5
					--- / 10Quick wash		35 °C25 °C1		100.20:20
Rinse	--- / ---				1	--- °C	0:07	0.01	3

1) Consumption values vary depending on the temperature of the incoming water, room temperature, load size, selected additional functions and more.

Open the settings menu:

1. First, open the door. Turn off the machine. Press and hold power switch until the display lights up.

1. Within 10 seconds:

- press the programme button for Auto wash and the option SpeedWash.

1. The display shows the settings menu (current setting and its set value).

(Exit the menu by browsing through the menu or pressing power switch.)

Navigate the settings menu:

You can now adjust the following settings:

		OptionsSettings
			Rinse aid dosage setting.1:00 - 1:0Increase the rinse aid dosage:If the dishes have water marks.Decrease the rinse aid dosage:If the dishes have a sticky white film.If the dishes are streaked.Build-up of foam. If you have v soft water, the rinse aid can be diluted 50:50 with water.Pre-selected at factory: 05
		2:00 - 2:09Water	Adjusting2.the water softener. Select setting depending on the hardness the water supply. It is important th this setting is correct!
			German water hardness scale	French wa ter hard-ness scale	Recommended setting
					2:000-9°fH0-5°dH
					2:0110-14°fH6-8°
					2:0215-20°fH9-11
					2:0321-25°fH12-1
					2:0426-34°fH15-1
					2:0535-43°fH22-2
					2:0644-52°fH25-2
					2:0753-70°fH30-3
					2:0871-88°fH40-4
					2:0989°fH50°dH
			Do not forget to put salt in the compartment after you have set the water softener to 2:01 - 2:09.For a water supply with a hardness under 6°dH (9°fH), select 2:00. The water softener is deactivated and n salt is needed.Pre-selected at factory: 04
3.	TAB(3-in-1/all-in-onedetergent)	3:00 (Off)3:01 (On)	You can activate this setting when using 3-in-1/ All-in-one detergent. Th dishwashing programmes automatically adapt to provide the best possible dishwashing and drying results every time. If this setting is activated the no need to add rinse aid since the option disables rinse aid dispensing. also reduces the amount of salt a to the water softener. Note that sa must be put in the salt compartmentNOTE!In order to achieve good dishwashi results, it is essential to check wh type of detergent or all-in-one prod best suits your needs! Read the detergent packaging carefully for information on proper use. Always follow the directions for use or information on the detergent packaging!
		4:00 - 4:03Buzzer	Toudishwasher uses a buzzer to indicate when a programme is or when a fault has occurred.

Top up with rinse aid

When the rinse aid needs topping above symbol lights on the display.

1. Open the rinse aid compartment
   2 Carefully top up with rinse aid level marked max.
2. Wipe up any splashes of rinse around the compartment.
3. Close the lid firmly.

After topping up, it may take a before the symbol goes out.

while

Top up with salt

When the salt needs topping up, the above symbol lights on the display.

When the salt runs out, unscrew the cap and fill the container with salt. Water is only needed the first time! Wipe clean and tighten. Run a programme to ensure that any salt in the dishwasher is rinsed away

After topping up, it may take a while before the symbol goes out.

WARNING!

up, order to avoid rust stains a dishwashing programme must be starte immediately after adding salt.

Never pour dishwasher detergent into the salt compartment. This destroys 1 water softener!

Coarse filter

The coarse filter traps larger food lid particles, which cannot get past the drainage pump. Empty the coarse filter when necessary.

1. Lift the coarse filter by the handle
   2 Empty the coarse filter. Remember refit it!

Fine filter

Debris that collects on the fine filter automatically rinsed away during each wash. Clean the fine filter when necessary.

1. Turn the handle anticlockwise.

2 Lift the filter straight up using the Lower spray arm handle. Free the coarse filter to ele Pull the lower spray arm straight the fine filter. release it.

1. Refit in reverse order. Check that the edges seal properly when refitting the fine filter.

2. Lock the filter in place by turning the handle clockwise to the stop position. The handle should point straight out from the dishwasher.

NOTE!

Dishwashing results may be affected if the filters are incorrectly fitted. Note that the dishwasher must not be used without the filters in place!

NOTE!

Check that the coloured stop on the right in the bottom drain is in place.

Spray arms

Holes and bearings can sometimes become blocked. Remove any debris using a pin or the like. The spray also have holes underneath.

Upper spray arm

1. Pull out the upper basket.
   2 Unscrew the spray arm bearings counterclockwise to remove the spray arm from the upper basket.

The door and the door seal Regularly clean the sides of the doo the door seal. Use a slightly damp (with a little cleaner if necessary).

Front panel

Keep the buttons clean and free from grease. Wipe them clean with a dry slightly damp cloth. Never use clean they can scratch the surface. Use the main power switch to turn off the dishwasher before cleaning the buttons to avoid activating any buttons unintentionally.

To facilitate cleaning you can remove the spray arms. Remember to fit them firmly back into place afterwards.

The dishwasher tub

- Remove the plug from the wall

The dishwasher tub is made of stainless

socket.

steel and is kept clean through normal Call the service department.

use.

Limescale deposits

If you have hard water, limescale deposits may build up in the dishwasher. If this happens, run a self-cleaning programme with two tablespoons of citric acid in the detergent compartment (with no dishes in the machine). See Self-cleaning programme in the chapter Using the dishwasher. NOTE! Do n

NOTE!

Do not forget to refit the drainage stop.

Unblocking the drainage pump

If the dishwasher still contains water, the programme has finished, something may be blocking the drainage pump. items are easily removed.

1. Turn off the machine using the power switch and unplug it from wall socket.
   2 Remove the coarse filter and the filter.
2. Scoop out the water from the dishwasher tub.
3. In order to inspect the drainage remove the coloured stop on the in the bottom drain.
4. Turn the pump wheel located behind the drainage pump stop by hand. Carefully remove any items.
5. Refit the drainage pump stop along the fine and coarse filters.
6. Plug the machine in again. that If the dishwasher still does not start and a whirring sound is heard, the overflow protection has been activated.

- Shut off the water.

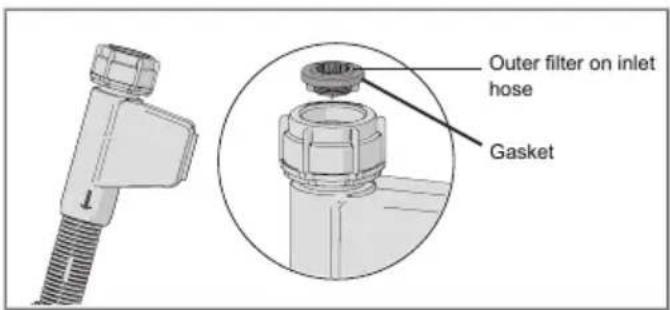

Unblocking the inlet hose filter

If Sub the water supply contains small particles, the outer filter on the inlet may become blocked, which results in main water inlet fault.

1. Turn off the machine using the m power switch and unplug it from t wall socket.
   2 Turn off the water tap.
2. Unscrew the inlet hose.

Aurefully remove the outer filter fro right inlet hose and clean it.
5. Refit the filter and check that the

indis correctly positioned.

1. Screw the inlet hose firmly into pl
2. Plug the machine into the wall so with turn on the water tap. Allow pressure to settle for a while and that the connection is watertight.

play		ActionType of fault on the dis-
	OverfillingF10	Clear the drainage pump. See the chapter Care cleaning. If the problem persists, call the service department.
	Water outlet faultF13	See “Water remains in the dishwasher” in the tal “Problem” below. If the problem persists, call the department.
	Water inlet faultF12	Check that the water tap is on. Check that the on the inlet hose is not blocked. See Unblocking hose filter in the chapter Care and cleaning. If the persists, call the service department.
		Turn off the water tap and call the service depa
	Water level faultF52	Clean the coarse and fine filters. Check that the filter on the inlet hose is not blocked. Also checked drainage hose is fitted in accordance with the ins instructions. If the problem persists, call the service department.
		Turn off the water tap and call the service depa
		Call the service department.Circulation faultF56

Press any button to clear the error message.

		ActionPossible causesProble
The buttons do not re when pressed.	You have pressed the buttons too soon after opening the door.	Wait a moment then try again.
	The buttons are dirty.	Clean with a dry or slight damp cloth.
	The door is closed.	Open the door. The button only react to use when the door is open.
Cannot close door.	The baskets are not correctly positioned.	Check that the baskets are correctly positioned horizontally.
		Check that the dishes are not blocking the baskets from sliding properly into place.
	The door lock does not click the door lock.	If it does not click into place a lock, open the door. Press and hold the button for the Auto open option for 15 seconds. Then wait 30 seconds. Close the door. Check that the door lock clicks into place and locks
The dishwasher does not start.	not closed.	Check.The door is not prop
	You have opened the dishwasher to add more dishes while a program is in progress.	Close the door and wait.After a while, the dishwasher continues the programme.
	The door lock has not clicked into place and locked.	Check the door lock. If it not clicked into place and locked, open the door. Pres and hold the button for the Auto open option for 15 seconds. Then wait 30 seconds. Close the door. Check that the door lock clicks into place and locks
	been tripped.	Check.A fuse/circuit breaker
	the wall socket.	Check.The plug is not plug
		Check.The water tap is turn
		Check.Overflow/leaks.
	A whirring sound (the drainage pump) is heard out the plug and call from the dishwasher and service department. does not stop when the main power switch is turned.	Turn off the water tap. Pr the
	Check that the Delayed option has not been selected.	Pstart and hold the main power switch until the display turns off if you want to cancel the Delayed option. Restart the dishwasher.

		ActionPossible causes	Problem
The dishes are not clear.	Time spray arms do not rotate.	Remove the arms and them.	clear are arm See
		Check that the dishes not blocking the spray
	Spray arm holes or be blocked.	Drugs the spray arms. the chapter Care and cleaning.
	Unsuitable dishwashing programme.	Choose a longer programme.
	Incorrect detergent dosage.	Pose according to water hardness. Far too much or far too little detergent in poorer dishwashing results.
	a perishable product.	Avoid large packages.Old do
	Dishes loaded incorrectly.	Do not cover porcelain with large bowls or the like. A placing very tall glasses in the corners of the baskets
	toppled over during the programme.	Place dishes to sit steady.
	The filters are not fitted correctly.	Check that the filter handle is locked in the stop position. The handle should point straight out from the dishwasher.
	Drainage pump stop missing.	Check that the coloured stool on the right in the bottom drain is in place. See the chapter Care and cleaning.

		ActionPossible causesProble
Spots on stainless steel.	Some foodstuffs, such mustard, mayonnaise, lemon, vinegar, salt and dressings, can mark stainless steel if left for too long.	Rinse off these types of foodstuffs if not starting the dishwasher immediately. Use the Rinse programme.
	All stainless steel can spots on silver if they into contact during dishwashing. Aluminium also cause spots on dishes. and aluminium.	caus order to avoid marks a tonishing, separate dishes made from different metals, such as silver, stainless
Spots or films on the	The water softener is leaking salt.	Check that the salt compartment lid is properly tightened. Otherwise call the service department.
	setting.	See the chapter Settings.Inc
	setting.	See the chapter Settings.Inc
	Salt compartment empty.	Top up with salt. See the chapter Before washing for the first time.
	3-in-1/ All-in-one detergent is used and the setting (3-TAB All-in-one detergent) (3-in-1/ All-in-one detergent) is activated.	activate the setting TAB
	Too high temperature and water is used and the setting (3-TAB All-in-one detergent) is activated.	top up salt and rinse aid.
	Too much detergent can be repaired, only prevent detergent manufacturer.	wash crystal at a low temperature and with a conservative amount of detergent. Contact the detergent manufacturer.
The dishes have a sticty white/blue film.	Rinse aid dosage setting high.	Replace the amount. See the sections Before washing for the first time and Settings. you have very soft water, you may want to dilute the rinse aid 50:50 with water.
Spots left after washing	Lipstick and tea can be difficult to wash off.	Use a detergent with a bleaching agent.
Detergent residue in the detergent compartment dishwashing.	The detergent compartment was damp when adding detergent.	The detergent compartment must be dry when adding detergent.
Rattling sound when dishwashing.	The dishes are not placed or the spray am not rotating.	Check that the dishes are placed securely. Spin the spray arms to make sure they can rotate.
1 minute appears in display.	The programme is taking longer than estimated.	No action. The programme time is stored and next to the programme is run the corrected time will be displayed.
dishwasher.	The filters are blocked.	Water remains are the filter.
	The filters are not fitted correctly.	Check that the filter handle is locked in the stop position. The handle should point straight out from the dishwasher.
	Debris in the drainage pump.	Clean the drainage pump. See the chapter Care and cleaning.
	Drainage pump stop missing.	Check that the coloured stop on the right in the bottom drain is in place. See the chapter Care and cleaning.
	Kink in drainage hose.	Check that the hose is from kinks and sharp bend
	Blocked drainage hose.	Disconnect the drainage hose where it connects to the sink unit's water trap. Check that no debris has fastened and that the connection has an inner diameter of at least 14 m
Bad odour in dishwash	Dirt around the seals corners.	Clearin with washing-up brush and low foaming cleaner.
	Low temperature programmes have been selected for a prolonged period.	Run a programme with a higher temperature about once a month.
The dishes are not dry enough.	The Auto open option activated.	Activate the Auto open option.
	loaded.	Fully load the dishwasher.TI
	Rinse aid needs topping or dosage is set too	Top up with rinse add or increase the rinse aid dosage. See the sections Before washing for the first time and Settings.
	3-in-1/ All-in-one detergent is used and the setting (3-in-1/ All-in-one detergent) is activated.	Activate the setting TAB (3-in-1/ All-in-one detergent) top up salt and rinse aid.

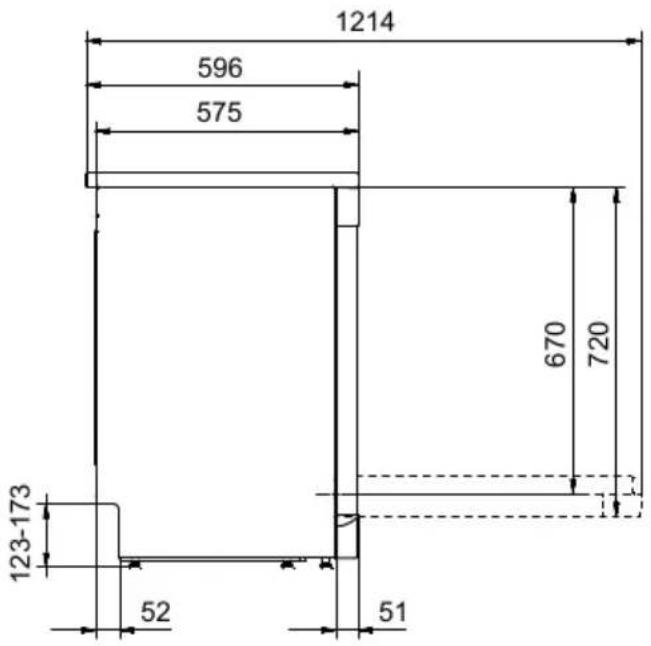

Nominal dimensions. Actual measurements may vary.

[mm]

Safety instructions

• Connections to electricity, water and drainage must be performed by a qualified professional.
  • Always follow applicable regulations water, drainage and electricity.
  • Take care during installation! Wear protective gloves! There must always be two people!
• Place a drip tray on the floor by the dishwasher to prevent damage any water leaks.
• Before screwing the dishwasher into place, test the dishwasher by running the Rinse programme. Check that the dishwasher fills with water and drains.

Check also that none of the connections leak.

WARNING!

Turn off the water supply when inst the dishwasher!

The plug must be disconnected or p for the socket turned off while the v is carried out!

Transport protection for the doo

Do not forget to remove the transpo eath protection for the door when unpackir from the dishwasher.

REMOVE

Placing the dishwasher

The dishwasher is intended for freestanding installation, but can also installed under a worktop.

Adjust the height and slide the dishwasher into place

Freestanding

1. Make sure the area on which the dishwasher is to be installed is firm. Adjust the dishwasher's height using the four feet so that the dishwasher level. The dishwasher may lean no more than 5 mm.
   2 Once the feet are properly adjusted, tighten the anti-tip feet firmly against the floor.

Built-in

1. Start by measuring the height from tighten the anti-tip feet firmly against floor to the bottom edge of the worktopfloor.
   2 Measure the height from the floor to the top edge of the dishwasher. The dishwasher can also be installed recess without its worktop. See Rams
2. Adjust the front feet by turning them to process without its dishwasher worktop. clockwise to raise and anticlockwise to lower the dishwasher.
   m tighten the anti-tip feet firmly again: worktopfloor.

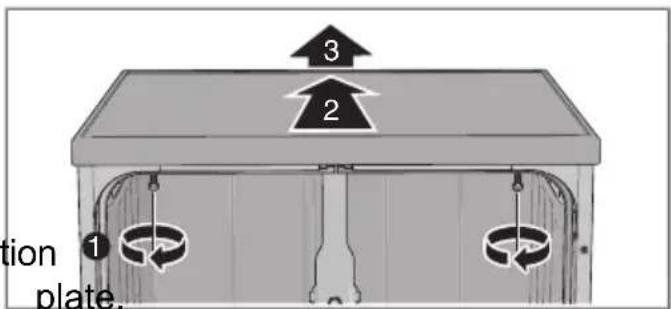

   The dishwasher can also be installed recess without its worktop. See Remc
   dishwasher worktop.

Lean the dishwasher forwards a litt and adjust the rear foot with the at the front of the dishwasher. Tu clockwise to lower or anticlockwise raise.

Check that there is an air gap of 3 mm between the underside of the worktop and the top edge of the dishwasher.

1. Slide the dishwasher into place.

2. Pull through the drainage and su hoses when the machine is slid place.

3. Check that the hoses have no or sharp bends, and check that is nothing that can damage the hoses.

- Check that the machine is install such that the door opens freely, otherwise door lock functionality may be disrupted.

1. Make any final adjustments to the feet (the dishwasher may lean no than 5 mm).
2. Once the feet are properly adjusted

Attach the plinth

(Packed inside the dishwasher.)

Drainage connection

No part of the drainage hose may be than 950 mm above the bottom of dishwasher. The hose must not be directly to a floor drain or the like. cases, the hose can act as a siphoc empty the dishwasher.

The hose must always discharge at 350 mm above the bottom of the m

Attach the drainage hose with a hos clamp. Ensure that the drainage hose no kinks.

NOTE!

When the drainage hose is routed to connection nipple on the sink unit's v trap, the hose must be attached at same height as the underside of the unit (1), otherwise dishwater from the sink may flow back into the dishwas. There are other connection alternatives (2, 3). The water trap must be ven

Connection to water supply

Use only the inlet hose supplied with dishwasher. Do not re-use old or other spare by hoses.

The drainage hose may be extended by a maximum of 3 m (the total length of the supply pipe must be fitted with drainage hose must not exceed 4.5 m) water tap (stopcock). The water tap any joins and connecting pipes must have been easily accessible, so that the water an internal diameter of at least 14 mm be shut off if the dishwasher has to However, the drainage hose should ideally moved.

be replaced with a new hose without joins.

Once the installation is complete, turn the water tap and allow the pressure

settle for a while. Check that all connections are watertight.

Connection to cold water supply

Connect the dishwasher to the cold supply if the building is heated using electricity or gas.

Connection to hot water supply

Connect the dishwasher to the hot supply (max. 70 °C) if the building heated using an energy-efficient measure such as district heating, solar power geothermal power. Choosing a hot connection cuts dishwashing times and reduces the dishwasher's energy consumption.

NOTE!

Do not exceed the permitted water supply temperature. Certain materials used in some cookware cannot withstand strong heat. See Fragile dishes in the chapter Loading the dishwasher.

Electrical connection

Information about the electrical connec can be found on the serial number This specification must match the electricity supply.

The dishwasher must be connected earthed socket.

The electric wall socket must be placed outside of the installation area to be easily accessible after installing the dishwasher.

Do not use an extension cord!

NOTE!

Change of electrical cables as well repairs and maintenance relating to safety or performance must be carried out by the manufacturer's service age or someone with similar professional qualifications.

water

Remove dishwasher worktop

The dishwasher can be installed in a recess without its worktop. If the

dishwasher's worktop is removed, the dishwasher must be installed so that

enclosed on both sides and is under separate worktop. If the dishwasher is installed so that one of the sides is a brace must be fitted to the rear the dishwasher. Accessories can be purchased where you bought the dishwasher.

For recess installation, see the section Placing the dishwasher.

Read the chapter Troubleshooting before contacting the service department. If you have encountered a problem that you cannot resolve, please contact your nearest dealer, see www.gorenje.com.

When making contact, provide the details on the serial number plate. Include the article number (1) and the serial number (2).

Technical data

Gorenje

848-898 mmHeight:

600 mmWidth:

596 mmDepth:

Weight: 55 kg

16 Place settingsCapacity:

0.03–1.0 MPaWater pressure:

See serial number plateElectrical connection:

See serial number plateRated power:

47 dB(A) re 1 pWNoise emissions:

1) Weight can vary due to different specifications.
