Product type	Robot vacuum
Brand	Cecotec
Model	Conga 999 Map X Treme
Dimensions	34 cm diameter, 9 cm height
Weight	3.5 kg
Power supply	Li-ion 2600 mAh battery, rechargeable
Battery life	Up to 120 minutes in standard mode
Suction power	2000 Pa
Main functions	Suction, brushing, laser mapping, obstacle detection, scheduling via app
Noise level	65 dB
Dustbin capacity	500 ml
Filter	Washable HEPA filter
Sensors	Anti-drop, anti-collision, dirt sensor
Connectivity	Wi-Fi, Cecotec mobile app
Scheduling	Yes, via app or remote control
Maintenance and cleaning	Empty the bin regularly, clean the brushes and filter, wipe the sensors
Safety	Anti-drop and anti-collision sensors, automatic shutdown in case of overload
Spare parts and repairability	Side brushes, main brushes, filters, batteries, wheels available
General information	Cecotec Conga 999 Map X Treme robot vacuum, year 2021, black color

Frequently Asked Questions - Conga 999 Map X Treme CECOTEC

How to clean the dustbin?

Press the bin unlock button, remove it, empty the contents into a trash, then rinse the bin with clean water if necessary. Let it dry completely before putting it back.

How to reset the vacuum's Wi-Fi?

Press and hold the WiFi button for 5 seconds until the indicator flashes quickly. Then follow the instructions in the Cecotec app to reconnect the device.

How to schedule a cleaning?

Open the Cecotec app, select your device, go to the Scheduling tab, set the desired time and days, then confirm. The vacuum will start automatically at the scheduled times.

How to replace the side brushes?

Remove the worn brushes by gently pulling them downward. Insert the new brushes by snapping them in until you hear a click. Make sure they spin freely.

How to empty the auto-empty base (if equipped)?

This model is not equipped with an auto-empty base. The dustbin must be emptied manually after each cycle or when full.

How to charge the vacuum?

Place the vacuum on the charging station or plug the cable directly into the device. The indicator light shows charging. A full charge takes about 3 hours.

What do the flashing error codes mean?

Main codes: 1 flash = low battery, 2 flashes = brush jam, 3 flashes = sensor obstructed. Refer to the manual for the full list.

How to maintain the anti-drop sensors?

Use a soft, dry cloth to gently clean the sensors located under the device. Avoid chemical products. Regular cleaning improves obstacle detection.

How to use mapping to set no-go zones?

After an initial mapping cycle, open the app, access the map, add no-go zones by drawing rectangles or lines. The vacuum will avoid these areas during subsequent cleanings.

How to update the firmware?

Ensure the vacuum is connected to Wi-Fi and the app is up to date. The app will notify you if an update is available. Follow the instructions to install it automatically.

USER MANUAL Conga 999 Map X Treme CECOTEC

Safety instructions 8

1. Parts and components 55

2. Before use 56

3. Installation 57

4. Operation 57

5. Cleaning and maintenance 60

6. Troubleshooting 62

7. Technical specifications 63

8. Disposal of old electrical and electronic appliances 63

9. Technical support and warranty 63

10. Copyright 63

11. Declaration of conformity 64

SOMMAIRE

• Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.
• All safety instructions must be closely followed when using the appliance.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Check the power cable regularly for visible damage. If the cable is damaged, it must be replaced by the official Cecotec Technical Support Service in order to avoid any type of danger.
• Do not try to repair the appliance by yourself. Contact the

official Cecotec Technical Support Service for advice.

• Do not use the appliance to vacuum liquids, lit matches, cigarette ends, hot ash, or on wet surfaces.
• Do not use this appliance on concrete, asphalt, or other rough surfaces.
• Stop using the appliance if you notice an abnormal sound or sense a temperature higher than usual.
• Do not block the appliance openings or airflow. Keep openings free of any objects, and do not block them with clothes or your fingers.
• Turn off and unplug the appliance from the mains supply when it is not going to be used for a long period of time, before cleaning or repairing, before attaching components, and before removing the battery. Pull from the plug, not the cable, to disconnect it from the outlet.
• The appliance must be powered at a low safety voltage as stated on the marking.
• This appliance can be used by children aged 8 years old and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Do not use the appliance with non-rechargeable batteries.
• Unplug the appliance from the mains before removing the battery.
• Unplug the power cable of the charging base before cleaning or maintenance.
• Before turning the appliance on, make sure to remove objects and cords that may get in the way and affect proper

operation of the appliance.

• This icon means: do not use the power cable if the plug is damaged.
• CAUTION: hazards may occur if the appliance runs over the power cable.
• WARNING: the appliance has rotating parts which may pose a risk of entrapment. Exercise extreme caution.
• Supervise children to prevent them from playing with the appliance. Close supervision is necessary when the appliance is being used by or near children.
• This appliance must be used in accordance with this instruction manual. Cecotec will not be held liable or responsible for any damages or injuries caused by improper use.
• Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.
• This appliance can only be disassembled by qualified personnel.
• Do not touch the cable, the socket, or the charging base with wet hands.
• Keep the robot vacuum cleaner away from clothing, curtains, and any other similar materials.
• Do not expose the robot to direct sunlight, open fire, or wet environments.
• Do not sit or place heavy or sharp objects on top of the appliance.
• Always place the appliance on a flat and stable surface. Avoid placing it on unstable surfaces it could fall from (such as tables or chairs).

• Turn off the robot vacuum cleaner if it is not going to be used for an extended period of time.

• Before turning the robot vacuum cleaner on, check that all connections, both on the robot and on the charging base, are in good condition.

• Avoid operating the robot vacuum cleaner under extremely high or low temperatures.
• The appliance can only be used with the supply unit provided with it.
• The appliance must only be used with the battery supplied with the appliance or with compatible charging units approved by Cecotec.
• Do not use accessories that are not compatible and/or not approved by Cecotec.
• Disconnect the appliance from the power socket before removing the battery or carrying out any maintenance tasks.
• Remove the battery from the appliance interior before disposing of the robot vacuum cleaner.
• The charging base must not be plugged to the mains socket when cleaning or maintenance tasks are to be carried out.

Battery instructions

• The appliance includes a Li-ion battery. Do not incinerate or expose it to high temperatures, as it may explode.
• Batteries may leak under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Avoid contact between the battery and small metallic objects such as paper clips, coins, keys, nails, or screws.
• Before a new battery is used or the battery is used for the

first time after long-term storage, fully charge the battery.

• After long periods of storage, it may be necessary to charge and discharge the battery several times to obtain maximum performance.
• Keep batteries out of the reach of children when there is a risk of ingestion.
• Battery ingestion can cause burns, soft tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical help immediately.
• Keep the original instruction manual for future reference.
• Use the battery only for its intended purpose.
• Never modify the charger in any way.
• Batteries must be removed from the appliance for safe disposal.
• The batteries' supply terminals must not be short-circuited.
• If the appliance is to be stored for a long period of time, it is advisable to remove the batteries.
• Batteries must be inserted in the correct position. Check polarity when replacing them.
• WARNING: to recharge the battery, only use the power supply included with the appliance, with reference BZ015-190060-AG.

INSTRUCTIONS DE SÉCURITÉ

https://cecotec.es/es/information/declaration-of-conformity

1. PARTS AND COMPONENTS

Robot vacuum cleaner. Fig. 1.1:

1. Back Home
2. Start/Pause button
3. Top cover
4. Anti-collision sensor
5. Water-tank release button
6. Dust tank
7. Fall-detection sensor
8. Side brushes
9. Drive wheels
10. Charging terminals
11. Omnidirectional wheel
12. Battery
13. Suction mouth

Robot vacuum cleaner indicator lights

• Steady blue light: the robot is cleaning or fully charged
• Steady blue light: robot in standby mode
• Fast flashing blue light: looking for charging base
• Slow flashing blue light: charging
• Fast flashing red light: error

Charging base. Fig. 1.2:

1. Operation indicator light
2. Charging connector
3. Charging terminals

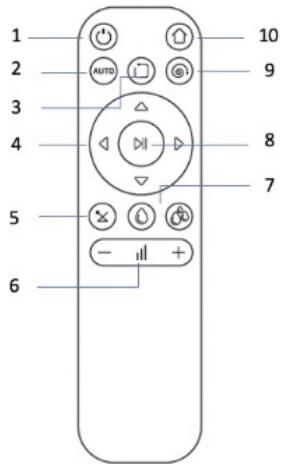

Remote control. Fig. 1.3:

1. Power button
2. Auto mode
3. Edge mode
4. Manual mode
5. Random mode
6. Suction power level

7. Scrubbing level

8. Start/Pause

9. Spiral mode
10. Back Home

Note:

the graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This robot vacuum cleaner includes a package designed to protect it during transport. Take the robot vacuum cleaner out of the box. Keep the original box and other elements in a safe place, as this will help you prevent damage to the robot vacuum cleaner when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content. Fig. 1.4:

1. Robot vacuum cleaner
2. Charging base
3. Charger
4. Mop and mop bracket
5. Water tank
6. Dust tank
7. Self-cleaning brush
8. 2 side brushes
9. Remote control
10. AAA batteries
11. Instruction manual

Warnings

• Remove all objects around the robot vacuum cleaner such as clothing, papers, cables, curtains, or other fragile objects which may block or slow down the operation of the robot vacuum cleaner. Fig. 2
• If the room to be cleaned is near a balcony or stairs, a physical barrier must be placed to prevent damage to the robot vacuum cleaner and ensure safe operation. Fig. 3
• Direct exposure to sunlight or heavy light contrasts may affect the correct operation of the sensors. If this happens, the robot vacuum cleaner will cease operation. Move it to a new

location for it to start running again.

- Do not use the robot vacuum cleaner for liquids.

3. INSTALLATION

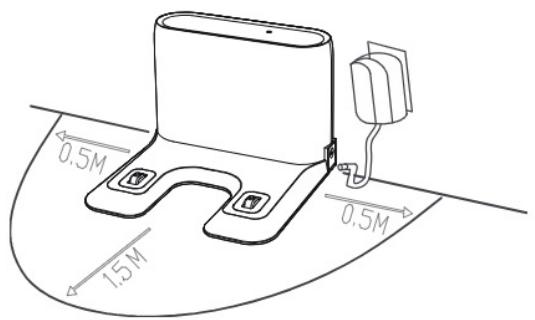

1. Place the charging base against a wall and leave a minimum free space of 1.5 metres to the front and 0.5 metres to each side. Fig. 4
2. Connect the charging base to a power socket.

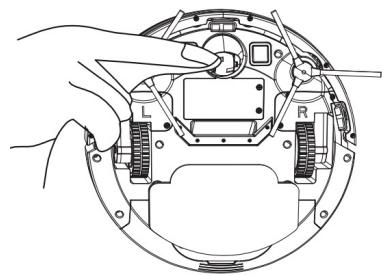

3. Install both side brushes in their corresponding slots, located on the bottom part of the robot vacuum cleaner. Press until they click well into place. Fig. 5
4. Place the robot vacuum cleaner in the charging base and make sure the charging terminals on the robot match those of the base. Once the robot vacuum cleaner is properly placed, it will beep once, and the indicator light will switch on. If the light is flashing, it means the battery is not completely charged. To ensure the maximum cleaning time, wait until the light turns steady, as this will indicate the battery is fully charged and the robot vacuum cleaner is ready to clean. Fig. 6.

4. OPERATION

Mobile App

1. To use all available functions, it is recommended to control the robot vacuum cleaner via the app.

Scan the QR code below for more information.

1. Make sure the robot vacuum cleaner is plugged to the electric circuit.
2. Before you start, make sure your smartphone is connected to a working Wi-Fi network.
3. Enter the Wi-Fi password on the smartphone app, tap on "Next", and follow the instructions shown on the app.

Note

• Due to the improvement and update of the app, operation may differ slightly from the above description. Follow the instructions shown on the app.
• The robot vacuum cleaner supports only 2.4 GHz Wi-Fi networks, and the Wi-Fi name cannot contain double quotes.

Start cleaning

- Hold down the Start/Pause button on the robot vacuum cleaner to switch it on.

- Press the Start/Pause button on the robot vacuum cleaner, on the remote control, or on the app to start cleaning.

Note

• If the robot vacuum cleaner runs out of battery while cleaning, it will automatically return to the charging base. Once the battery is fully charged, the robot can start a new cleaning cycle.
• If there is no good access to the charging base, the robot vacuum cleaner will not be able to return to it. If this happens, place it manually on the charging base.

Pause cleaning

• Press the Start/Pause button on the robot vacuum cleaner, on the remote control, or on the app to pause the cleaning process.
• Press the Start/Pause button on the robot vacuum cleaner, on the remote control, or on the app to resume the cleaning process.

Return to the charging base

Press the Back Home button on the robot vacuum cleaner, on the remote control (house symbol), or select the option in the app to send the robot vacuum cleaner to the charging base.

The robot vacuum cleaner will stop vacuuming until it reaches the base.

Switch-off

Hold down the Start/Pause button on the robot vacuum cleaner to switch it off.

Warning

If you are not going to use the robot vacuum cleaner for an extended period of time, it is advisable to leave it switched off until new use.

Cleaning modes

This robot vacuum cleaner includes different modes and functions that can be activated from the remote control or the app.

Auto Mode

• Press the Start/Pause button on the robot vacuum cleaner, Auto mode on the remote control, or the automatic cleaning mode in the app for the robot vacuum cleaner to start automatic cleaning.
• The robot vacuum cleaner will clean the whole surface, edges, around objects such as tables, chairs etc., until the battery is low, then it will return to the charging base.

Random mode

- The robot vacuum cleaner will clean randomly until the battery percentage is low and it will return to the charge base.

- To activate this mode, press the random cleaning button on remote control or on the app.

Spiral mode

• When you select this mode, the robot vacuum cleaner will intensively clean a specific spot at maximum power. It will start cleaning at a specific spot and will move outwards in a spiral motion (1 metre). Then, it will return to the starting spot in an inwards spiral motion again.
• Before using this mode, place it in the spot you wish to clean.
• When it finishes and returns to the starting point, the robot vacuum cleaner will stop at the same point where it started cleaning and will start to return to the base.
• Press the Spiral cleaning button on the remote control or the app to activate this mode.

Square Spiral mode

• When you select this mode, the robot vacuum cleaner will intensively clean a specific spot at maximum power. It will start cleaning at a specific spot and will move outwards in a square-spiral motion (1 metre), and it will return to the starting spot in an inwards square-spiral motion.
• Before using this mode, place it in the spot you wish to clean.
• When it finishes and returns to the starting point, the robot vacuum cleaner will stop at the same point where it started cleaning and will start to return to the base.
• Press the Spiral cleaning button on the remote control or the app to activate this mode.

Edge Mode

• When you select this mode, the robot vacuum cleaner will clean along the wall and around furniture (table legs, chair legs, etc.) until it goes back to the charging base.
• Press the Edge cleaning button on the remote control or on the app.

Scrubbing mode. Fig. 7

1. Remove the water tank.
2. Lift the tank silicone lid and fill it with water.
3. Refit the water tank.
4. Attach the mop to the mop holder and the latter to the robot vacuum cleaner.
5. Select the scrubbing level on the remote control or in the app. There are three scrubbing levels: low, medium, and high.
6. Once the desired scrubbing level has been selected, the robot vacuum cleaner will enter All in One mode to simultaneously vacuum, scrub, sweep, mop, and dry.

Note

- If the tank is full, the robot vacuum cleaner will rotate on its own to moisten the mop as it leaves the base.

• To ensure perfect mopping right from the start, it is recommended to evenly dampen the mop before fixing it in place. It is also recommended to wash the mop after every use.
• It is recommended to be present when the robot vacuum cleaner is scrubbing.
• When the robot vacuums cleaner returns to the charging base, you must remove the mop. Do not leave the robot vacuum cleaner charging with the mop assembled.

Back Home mode

Press the Back home button on the robot, vacuum cleaner, on the remote control, or on the app (with a house icon) to send the robot to the charging base. The robot vacuum cleaner will stop vacuuming until it reaches the base.

Manual mode

Select the manual cleaning option in the app or use the directional arrows on the remote control to manually control your robot vacuum cleaner.

Power Level function

Select the power level on the remote control or on the app to control the robot vacuum cleaner's suction power level during cleaning. There are four suction power levels: Off, light, normal and strong.

Cleaning schedule

To make cleaning easier, the robot vacuum cleaner has a function that allows it to be programmed daily from the app. According to the setting, the robot vacuum cleaner will automatically start cleaning in the selected days at the desired time.

5. CLEANING AND MAINTENANCE

Dirt tank. Fig. 8

1. Lift the top cover of the robot vacuum cleaner and remove the dirt tank.
2. Open the tank by unlocking the side flap and empty it.
3. Once you have finished, put the dirt tank back into the robot vacuum cleaner.

High-efficiency filter. Fig. 9

• The high-efficiency filter is designed with fibres that help trap dust particles, dust mites, pollen... It is very important to periodically clean the filter, to prevent these particles from building up in the filter, causing efficiency loss. It is convenient to carry out this maintenance once a week.
• It is recommended to replace the high-efficiency filter with a new one without exceeding 160 cleaning hours.

Recommendation

You can remove dirt from the high-efficiency filter with a small brush or gently shake the filter on a hard surface to remove the dust. The high-efficiency filter cannot be washed.

Primary mesh filter and sponge filter. Fig. 9

The filtering system is featured with a primary mesh filter and a sponge filter, located next to the high-efficiency filter. It is suggested to replace them either after a maximum of 160 hours of use or when they are worn out due to operation.

Recommendation

Dirt can be removed with a small brush or by shaking carefully against a hard surface for dust to fall off. You can also use warm water without detergents to obtain better results. Always make sure they are completely dry before installing them again; otherwise, moisture can reach the robot vacuum cleaner's motor and damage it.

Cleaning the fall-detection sensors. Fig. 10

Use a clean, dry, and soft cloth to wipe off any dust from the fall-detection sensors located on the robot vacuum cleaner's lower part.

Warning

Do not apply cleaning products directly on the sensors.

Side brushes

Side brushes are designed with multiple bristles and are used to push dirt towards the suction mouth and to thoroughly clean edges and corners. These brushes can wear out over time, negatively affecting cleaning efficiency. For this reason, it is suggested to replace each side brush after a maximum of 220 hours or less.

Recommendation

It is recommended to clean the side brushes once a week with the help of the self-cleaning brush.

Sensors

• The robot vacuum cleaner has different types of sensors, for example, proximity sensors that allow the robot to move around while detecting obstacles or fall-detection sensors that help the robot detect slopes or possible gaps/unevenness such as staircases. These sensors are always in contact with dust particles, and therefore can deteriorate over time, causing possible navigation errors.
• It is suggested to clean all the robot sensors with a dry and soft cloth after a maximum of 35 hours of operation or less.

Cleaning the drive wheels and the omnidirectional wheel Fig. 11

Use a clean, dry, soft cloth to wipe dust off the drive wheels and the omnidirectional wheel located on the bottom of the robot vacuum cleaner.

Charging base. Fig. 12

Use a clean, dry, soft cloth to wipe dust off the infrared lens and charging terminals. It is recommended to clean them once a month.

Charging and replacing the battery. Fig. 13

• To lengthen the battery shelf life, leave the robot vacuum cleaner to charge in the charging base when not in use.
• Remove the battery and store it in a safe, dry place if the robot vacuum cleaner will not be used for a long period of time.

To replace the battery, follow the instructions below

1. Unscrew the battery compartment screws and remove the battery-compartment cover and the battery.
2. Insert the new battery with the battery label facing up.
3. Put the battery and the battery-compartment cover back in place and properly fix the screws again.

6. TROUBLESHOOTING

Beeps	Error	Solution
1	Low battery	Place the robot in the charging base.
	Bumper error	Carefully clean the sensors with a clean, dry cloth.Restart the robot vacuum cleaner. To do this, switch the robot off and on.
2	Fall-detection sensor error	Carefully clean the sensors with a clean, dry cloth.Restart the robot vacuum cleaner. To do this, switch the robot off and on.
4	Driving-wheel fault	Check if the drive wheel is blocked.
0	Charging error	Check if the charging base indicators are on. Otherwise, contact the official Technical Support Service of Cecotec.Clean the charging terminals with a clean, dry cloth.Check if the robot vacuum cleaner beeps when it gets to the charging base. Contact the official Technical Support Service of Cecotec.

7. TECHNICAL SPECIFICATIONS

Product: Conga 999 Map Genesis

Product reference: 08065

Input: 19V 0.6 A

Battery: 14.4 V Li-ion 2000mAh

Frequency bands: 2.4 GHz + Bluetooth

Maximum Transmission Power: 17.5 dBm

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the appliance and/or batteries must be disposed of separately from household waste. When this product reaches the end of its lifetime, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old electrical and electronic appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic,

mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

11. DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this robot vacuum cleaner, model 08065_Conga 999 Map Genesis is in conformity with the Radio Equipment Directive 2014/53/EU.

The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

https://cecotec.es/es/information/declaration-of-conformity

1. TEILE UND KOMPONENTEN

Saugroboter. Abb. 1.1:

https://cecotec.es/es/information/declaration-of-conformity

1. PEÇAS E COMPONENTES

Robô aspirador. Fig. 1.1:

https://cecotec.es/es/information/declaration-of-conformity

1. ONDERDELEN EN COMPONENTEN

6. PROBLEEMOPLOSSING

https://cecotec.es/es/information/declaration-of-conformity

Fig./Img./Abb./Afb./Rys. 1.1

Fig./Img./Abb./Afb./Rys. 1.2

Fig./Img./Abb./Afb./ Rys. 1.3

Fig./Img./Abb./Afb./Rys. 1.4

Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./ Rys. 8

Fig./Img./Abb./Afb./Rys. 9

Fig./Img./Abb./Afb./Rys. 10

Fig./Img./Abb./Afb./ Rys. 11

Fig./Img./Abb./Afb./Rys. 12

www.cecotec.es
