Product Type	Robot vacuum and mop
Brand	Cecotec
Model	Conga 8290 Immortal Ultra Power Genesis
Dimensions (L x W x H)	34 x 34 x 9.8 cm
Weight	3.2 kg
Color	Black
Power supply	Lithium-ion battery 14.4 V / 3200 mAh
Runtime	Up to 120 minutes
Charging time	Approximately 4 hours
Dust bin capacity	500 ml
Water tank capacity	250 ml
Suction power	2700 Pa
Navigation system	Gyroscopic laser
Mop function	Yes, with adjustable water flow
Connectivity	Wi-Fi, Cecotec Smart app
Voice control	Compatible with Alexa and Google Assistant
Obstacle detection	Infrared and anti-drop sensors
Scheduling	Yes, via app
Noise level	65 dB
Filter	High-efficiency HEPA filter
Maintenance	Regular cleaning of filter and brushes
Spare parts available	Yes, filter, brush, tank, battery
Warranty	2 years

Frequently Asked Questions - Conga 8290 Immortal Ultra Power Genesis CECOTEC

How to start my Conga 8290 Immortal Ultra Power Genesis robot?

Press the Power button on the robot or use the Start button on the remote control. Make sure the robot is charged and the water tank is filled if you wish to mop.

How to connect the robot to the Cecotec Smart app?

Download the Cecotec Smart app on your smartphone, create an account, then follow the instructions to add a device. Make sure Wi-Fi is enabled and the robot is in pairing mode (press and hold the Wi-Fi button).

What to do if the robot does not charge?

Check that the charging base is plugged in and the contacts are clean. Make sure the robot is correctly positioned on the base. If the problem persists, try resetting the robot by holding the Power button for 10 seconds.

How to clean the HEPA filter?

Remove the dust bin, take out the filter and tap it to remove dust. If necessary, wash it with warm water and let it dry completely before putting it back. Replace it every 3 to 6 months.

My robot makes abnormal noise, what to do?

Stop the robot and check the side brushes and the main brush: they may be blocked by hair or debris. Clean them with the provided tool. Also check that the filter is not clogged.

The robot does not detect obstacles, why?

Clean the infrared sensors and the laser with a soft cloth. Make sure there is no dust or dirt on them. Avoid placing the robot in a room with too many reflections.

How to schedule automatic cleaning?

Open the Cecotec Smart app, select your robot, then go to Scheduling. Choose the desired days and times, then confirm. The robot will start automatically at the set time.

Can I use the robot without the mop function?

Yes, simply remove the water tank and use the robot in vacuum-only mode. You can also disable mopping in the app.

How to replace the battery?

Turn the robot over, remove the battery cover by unscrewing the screws, disconnect the connector and replace the battery with a new one of the same reference. Screw the cover back on. Refer to the manual for more details.

What to do if the robot does not return to its base?

Make sure the charging base is placed in an open area and the path is clear. Check that the infrared signals from the base are not obstructed. If necessary, clean the charging contacts on the robot and the base.

USER MANUAL Conga 8290 Immortal Ultra Power Genesis CECOTEC

Safety instructions 9

1. Parts and components 52
2. Before use 53
3. Operation 55
4. Cleaning and maintenance 58
5. Troubleshooting 61
6. Technical specifications 63
7. Disposal of old electrical and electronic appliances 63
8. Technical support and warranty 63
9. Copyright 63
10. Declaration of conformity 64

SOMMAIRE

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• This appliance must be used in accordance with these operating instructions. Cecotec will not be held liable or responsible for any damages or injuries caused by improper use.
• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is earthed.

• Inspect the power cable regularly for visible damage, especially the cable, plug, and charger casing. If the cable is damaged, it must be repaired by the official Cecotec Technical Support Service to avoid any type of danger.

• This appliance is exclusively designed for household use. It is not suitable for commercial or industrial use.

• Do not try to repair the appliance by yourself. Contact the official Cecotec Technical Support Service for advice.
• Do not use the appliance to vacuum liquids, lit matches, cigarette ends, hot ash, or on wet surfaces.
• Do not use this appliance on concrete, asphalt, or other rough surfaces.
• Stop using the appliance if you notice an abnormal sound or sense a temperature higher than usual.
• Do not block the appliance openings or airflow. Keep openings free of any objects, and do not block them with clothes or your fingers.
• Turn off and unplug the appliance from the mains supply when it is not going to be used for a long period of time, before cleaning or repairing, before attaching components, and before removing the battery. Pull from the plug, not the cable, to disconnect it from the outlet.
• WARNING: The appliance has rotating parts which may pose a risk of entrapment. Exercise extreme caution.
• Do not immerse the cable, plug, or any other part of the appliance in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.

• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

• Never touch the cable or the power socket with wet hands.

• Do not expose the appliance to direct sunlight, fire, water, or moisture.
• Do not sit or place sharp or heavy objects on top of the appliance.
• Before operating the robot vacuum cleaner, prepare the room and supervise it. To do so, remove any objects and cables that may affect its operation.
• Keep the appliance away from clothing, curtains, and similar materials.
• Always place the appliance on a flat and stable surface. Avoid placing it on unstable surfaces it could fall from (such as tables or chairs).
• Before operation, make sure all the robot vacuum cleaner and charging base connections are in good condition.
• Avoid operating the robot vacuum cleaner under extremely high or low temperatures.
• The appliance must only be used with the battery and charging base supplied with the appliance or with compatible charging units approved by Cecotec.
• Make sure the appliance is not plugged to a mains socket before cleaning it or carrying out maintenance on it.
• Make sure the charging base is not plugged to a power outlet before cleaning it.

Battery instructions

• This appliance includes a Li-ion battery. Do not incinerate or expose it to high temperatures, as it may explode.
• Batteries may leak under extreme conditions. Should that be the case, do not touch the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with

clean water for a minimum of 10 minutes and seek medical attention. Wear gloves when handling the battery or cells and dispose of it immediately in accordance with local regulations.

• Avoid contact between batteries and small metal objects such as paper clips, coins, keys, nails, or screws.
• Never modify the charger in any way.
• Batteries must be removed from the appliance for safe disposal.
• Keep batteries out of the reach of children if they can be swallowed.
• Battery ingestion can cause burns, perforation of soft tissue, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical help immediately.
• WARNING: to recharge the battery, use only the detachable power supply provided with the appliance.
• Non-rechargeable batteries should not be recharged.
• The batteries' supply terminals must not be short-circuited.
• If the appliance is to be stored for a long period of time, it is advisable to remove the batteries.
• Batteries must be inserted in the correct position. When replacing batteries, check the polarity.

INSTRUCTIONS DE SÉCURITÉ

1. Back Home button
2. Start/Pause button
3. Laser
4. Reset button
5. Bumper
6. Top cover
7. Mixed-tank release button
8. Fall-detection sensors
9. Side brush
10. Drive wheels
11. Mixed tank
12. Charging terminals
13. Omnidirectional wheel
14. Main brush
15. Battery

Robot vacuum cleaner accessories. Fig. 1.2:

1. Charging base
2. Power cable
3. Mop
4. Instruction manual
5. Self-cleaning brush
6. Side brush

Charging base. Fig. 2:

1. Operation indicator light
2. Power cable connection
3. Charging terminals

Mixed tank. Fig. 3:

1. High-efficiency filter cover
2. Sponge filter
3. High-efficiency filter
4. Charging terminals
5. Water inlet
6. Water tank
7. Bracket anchor button
8. Mop bracket
9. Mop

Please note

The graphics in this manual are schematic representations and may not exactly match the appliance.

2. BEFORE USE

• This robot vacuum cleaner includes a package designed to protect it during transport. Take the robot vacuum cleaner out of the box. Keep the original box and other elements in a safe place, as this will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or not in good condition, immediately contact the official Cecotec Technical Support Service.

Warnings

• Remove all objects around the robot vacuum cleaner such as clothing, papers, cables, curtains, or other fragile objects which may block or slow down the operation of the robot vacuum cleaner. Fig. 4
• If the room to be cleaned is near a balcony or stairs, a physical barrier should be placed to prevent the robot vacuum cleaner from falling and getting damaged, thus ensuring safe operation. Fig. 5
• Do not use the robot vacuum cleaner for liquids. Fig. 6
• Direct exposure to sunlight or heavy light contrasts may affect the correct operation of the sensors. If exposed, the robot vacuum cleaner will stop. Move it to another location to start a new cleaning cycle.
• Please note that the total height of the robot vacuum cleaner is 9.3 cm and the sensors are at the bottom, so it is advisable to prevent access to all areas below 9.3 cm to avoid damaging the laser.

Installing the robot vacuum cleaner and charging base

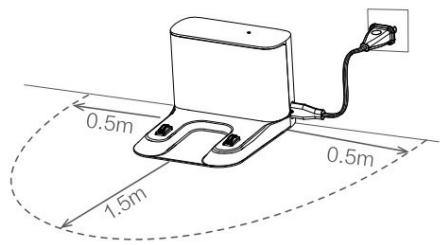

1. Place the charging base against a wall and leave a minimum free space of 1.5 metres to the front and 0.5 metre to each side. Fig. 7
2. Connect the charging base to a power socket. Wind and store the remaining cable to prevent accidents.

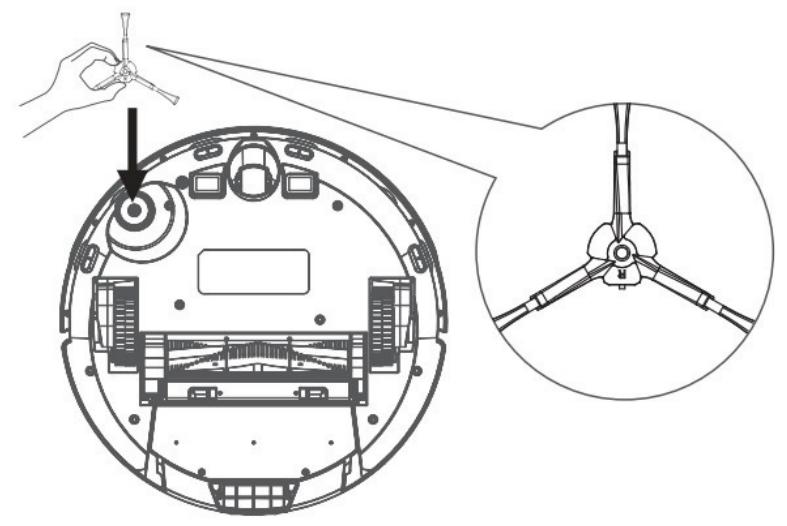

3. Install the side brush. Fig. 8
4. Hold down the Start/Pause button for a few seconds.

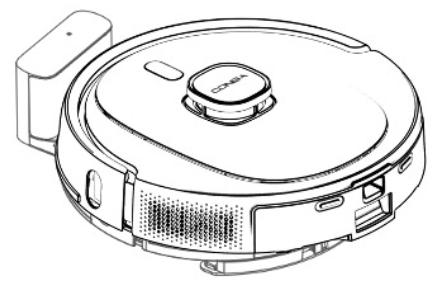

5. When the indicator light turns on, place the robot vacuum cleaner in the charging base and make sure the charging terminals on the robot match those of the charging base. If the light is flashing blue, it means the battery is not completely charged. To ensure the maximum cleaning time, wait until the light turns into steady blue, as this indicates that the battery is fully charged and that the robot vacuum cleaner is ready to clean. Fig. 9

Note

• Take the robot vacuum cleaner to the charging base if the battery is low. The robot vacuum cleaner may not turn on if battery is too low.
• The robot vacuum cleaner will automatically turn on when placed on the charging base.
• The robot vacuum cleaner cannot be turned off during recharge.

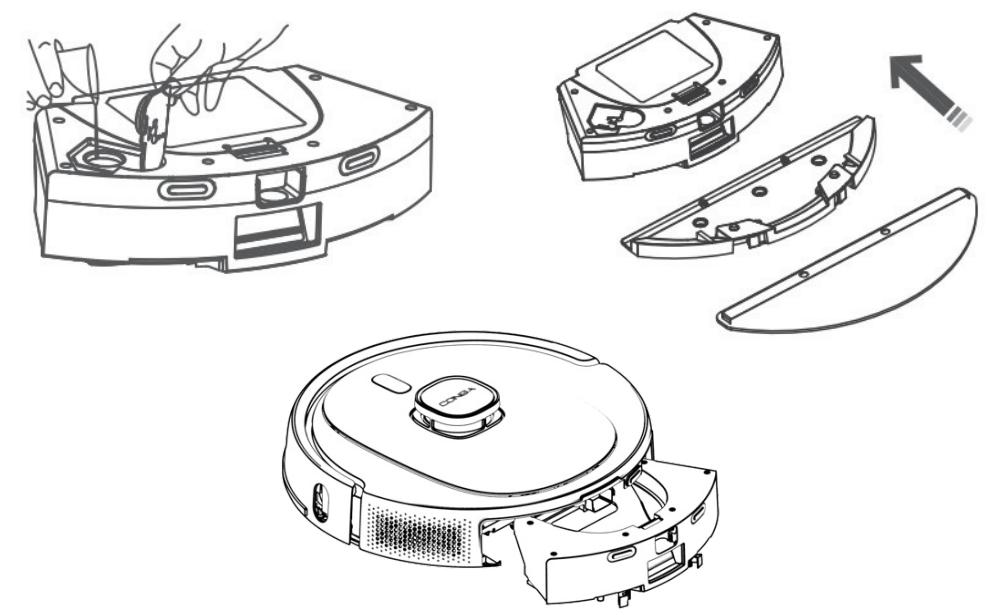

Installing the mixed tank. Fig. 10

• Open the water-tank silicone lid and carefully fill up the tank while avoiding spillages. Make sure the lid is properly closed. Never immerse the tank in water or other liquids.
• Install the mop on the mop bracket.
• To install the tank on the robot vacuum cleaner, follow the direction shown in figure 10 and manually press the tab and push it into the correct position. You will hear a click when it is properly fixed.
• Install the mop bracket following the direction shown in figure 10.

Recommendations

• It is not suggested to use the scrubbing function for first-time use.
• Do not use the mopping function if the robot vacuum cleaner is not being supervised.
• To remove the mop bracket, press the release button and pull from it outwards.
• Uninstall the mop bracket when the robot vacuum cleaner is charging or when not in use.
• Add a few drops of cleaning agent to the water if necessary, as long as it is non-corrosive.
• Using cleaning agents in excess might block water outlets.
• In order to achieve perfect scrubbing, it is suggested to moisten the mop before using it.

First use

• Once the robot vacuum cleaner and the charging base are installed, follow these steps before the first cleaning.
• First of all, fully charge the robot vacuum cleaner. It is suggested to allow the robot to charge overnight. Once fully charged, it may carry out the first cleaning cycle and save the first map. To do so, activate the Auto mode and select the Eco suction level. It is very important to follow these instructions so that the robot vacuum cleaner recognises every corner of your house and can carry out a complete mapping of it.
• If your house is very large and the robot vacuum cleaner runs out of battery, it will return to the charging base, save both complete and incomplete maps, and, once charged, it will resume cleaning where it left off until the entire surface has been mapped. The robot vacuum cleaner is constantly mapping, so it adapts in an individualised and personalised way to the particularities of each house while constantly improving its map.

3. OPERATION

Robot vacuum cleaner's buttons

Auto Mode

• Press the Start/Pause button on the robot vacuum cleaner or select it in the app to make it start cleaning automatically in Edge mode and then perform a cleaning cycle in an orderly zigzag pattern while it also recognises which areas have been cleaned and which have not. The robot vacuum cleaner will automatically plan the cleaning route during cleaning.
• If you control the robot vacuum cleaner manually during this mode, the robot will recalculate the route, so it may pass through already cleaned areas. To ensure efficient cleaning, do not operate the robot vacuum cleaner manually during automatic cleaning.
• Thanks to its Total Surface 2.0 technology, if the battery is low during the cleaning cycle, the robot vacuum cleaner will smartly return to the charging base automatically and, once fully charged, it will resume the cleaning process from the same point.
• During cleaning, the robot vacuum cleaner will stop briefly to evaluate the area and calculate the cleaning route (this stop will vary depending on the house conditions).

Back Home mode

• Press the Back Home button on the robot vacuum cleaner or from the app to send the robot vacuum cleaner to the charging base. The robot vacuum cleaner will stop vacuuming until it reaches the base.
• This mode can be activated during any cleaning cycle.
• The robot vacuum cleaner will take the shortest route back to the charging base thanks to its map-memorisation feature and the smart back-home function.
• Upon completing a cleaning cycle or when the battery is low, thanks to its TotalSurface 2.0 technology, the robot vacuum cleaner will automatically return to the charging base to avoid running out of battery. Once the robot has recharged, it will resume cleaning from the point it has stopped.

Note

If there is no good access to the charging base, the robot vacuum cleaner will not be able to return to it. If this happens, place it manually on the charging base.

Functions

Pause

- While the robot vacuum cleaner is running, press the Start/Pause button on the robot vacuum cleaner or select it in the app to pause the cleaning process. Press the Start/Pause button on the robot vacuum cleaner or on the app to resume the cleaning process.

Standby

• The robot vacuum cleaner will automatically enter standby mode after 10 minutes of inactivity.
• Press the Start/Pause button on the robot vacuum cleaner or in the app to activate it again.

Cleaning modes

• The robot vacuum cleaner includes different modes and functions that can be toggled from the app.
• In addition, in every one of the cleaning modes on the app, you will be able to select the Turbo mode on carpets, which activates the maximum suction power when the robot vacuum cleaner detects a carpet.

Edge mode

• When this mode is selected, the robot vacuum cleaner will clean along walls and around furniture (e.g., table or chair legs).
• Press the edge cleaning mode in the app.

Spiral mode

• When this mode is enabled, the robot vacuum cleaner will thoroughly clean a specific area. It will start cleaning at a specific spot and will move outwards in a spiral motion, and it will return to the starting spot in an inwards spiral motion again.
• When it finishes and returns to the starting spot, the robot vacuum cleaner will return to the charging base directly.
• Before using this mode, place it in the spot you wish to clean.
• Select the spiral cleaning mode on the app.

Square Spiral mode

• When this mode is enabled, the robot vacuum cleaner will thoroughly clean a specific area. It will start cleaning at a specific spot and will move outwards in a square-spiral motion, and it will return to the starting spot in an inwards square-spiral motion.
• When it finishes and returns to the starting spot, the robot vacuum cleaner will return to the charging base directly.
• Before using this mode, place it in the spot you wish to clean.
• Select the spiral cleaning mode on the app.

Scrubbing mode

1. Attach the mop to the bracket and the latter to the mixed tank. Fill the water tank.
2. Insert the mixed tank into the robot vacuum cleaner and select the cleaning mode and scrubbing level in the application: off, low, medium, or high.
3. Once you have selected the desired scrubbing level, the robot vacuum cleaner will start the All in One function to vacuum, scrub, and sweep simultaneously thanks to its mixed tank.

Note:

• If you wish to mop, do not fill the water tank.
• To ensure a perfect scrubbing from the start, it is suggested to dampen the mop evenly with water before fixing it to the mixed tank. It is also recommended to wash the mop after every use.
• It is recommended to be present when the robot vacuum cleaner is scrubbing.
• When the robot vacuum cleaner returns to the charging base, you must remove the mop. Do not leave the robot vacuum cleaner charging with the mop assembled.

Manual mode

The robot vacuum cleaner can be moved manually by selecting manual mode in the application and using the arrow keys.

Back Home mode

Press the Back Home button on the robot vacuum cleaner or select the option in the app to send the robot vacuum cleaner to the charging base in any cleaning mode. The robot vacuum cleaner will stop vacuuming until it reaches the base.

Smart Area mode

• Once the home's map has been saved, select this mode for the robot to clean a specific area in zigzag motion. The robot vacuum cleaner will clean the selected area and then return directly to the charging base. You can select up to 5 different areas on the map. The robot vacuum cleaner will only clean the area selected on the map. It will therefore go to the selected area and return to the base without vacuuming.
• You can select up to two cleaning repetitions for the selected areas. The second cleaning will be carried out in a vertical zigzag motion.
• To activate this mode, select the Smart Area option on the app.

Room Mode

• Once the map of the house has been saved, select this mode for the robot to clean specific rooms in zigzag motion. Once done cleaning the selected rooms, the robot vacuum cleaner will directly return to the charging base. The cleaning of the selected rooms will be carried out based on selection order. The robot vacuum cleaner will only clean the area selected on the map. It will therefore go to the selected area and return to the base without vacuuming.
• To activate this mode, select the Room cleaning option on the app.

Spot mode

• Select this mode if you want to thoroughly clean a specific point in the map, making the most of the robot vacuum cleaner's maximum power. The robot vacuum cleaner will clean an area of 1.6m x 1.6m in a zigzag pattern and return directly to the charging base once finished. The robot vacuum cleaner will only clean the area selected on the map; therefore, it will go to said area and return to the charging base without vacuuming.
• To activate this mode, select the spot cleaning option on the app.

Restricted Area mode

• Select this mode and mark out specific areas on the map that you do not want the robot vacuum cleaner to clean. You can select more than one restricted area on the map.
• To activate this mode, select the restricted area cleaning option on the app.

Complete Cleaning mode

• Select this mode to perform a deep cleaning of your house. The robot vacuum cleaner will clean in Edge mode and continue zigzagging horizontally and vertically. It will then return to the charging base.
• To activate this mode, select the Complete Cleaning option on the app.

Power level function

Select the power level on the app to control the robot vacuum cleaner's suction power during cleaning. There are four levels of suction power: Off, Eco, Normal, and Turbo.

Cleaning scheduling:

• To make cleaning easier, the robot vacuum cleaner has a function that allows it to be programmed daily from the app. According to the setting, the robot vacuum cleaner will automatically start cleaning in the selected days at the desired time.
• Before setting the time and the options on the robot vacuum cleaner, make sure it is on.

Other Functions

Sleep function

The robot vacuum cleaner can be assigned a do-not-disturb time slot, which can be modified or cancelled from the mobile APP. During the set time, the robot vacuum cleaner will disable the automatic, continuous cleaning and timer functions.

Map Editing function

This function allows you to edit generated maps: rename cleaning areas, split or combine areas, and edit cleaning mode, suction power, and scrubbing level in each selected area.

Robot vacuum cleaner's Location function

Allows to locate the robot vacuum cleaner on the map.

4. CLEANING AND MAINTENANCE

Cleaning the main brush

The main brush spins at top speed and helps pushing the dirt into the suction mouth. This brush is in contact with the floor, and therefore with dirt, so it can wear out overtime, affecting

negatively to the cleaning efficiency. For this reason, it is suggested to replace the main brush after a maximum of 320 hours or less.

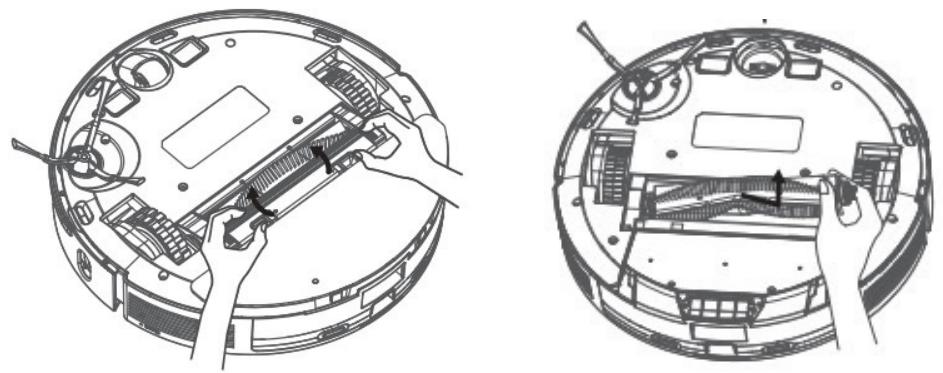

1. Slightly press the main brush frame's tabs to open the main brush compartment and remove it. Fig. 11
2. Remove hair, lint, and other dirt trapped in the brush and around the shafts with the help of the self-cleaning brush. Fig. 12
3. Clear and clean the robot vacuum cleaner's suction channel.
4. Reinstall the main brush and its frame.

Recommendation

It is recommended to clean the main brush once a week with the help of the self-cleaning brush.

Side brush. Fig. 13

The side brush is designed with many bristles that push dirt into the suction mouth and thoroughly clean edges and corners. This brush may wear out overtime, which will negatively affect cleaning efficiency.

Recommendation

• It is recommended to clean the side brush once a week with the help of the self-cleaning brush.
• Remove the side brush by pulling it outwards and clean it regularly.

Recommendation

To ensure perfect cleaning, it is recommended to change the side brush every 3 months (depending on frequency and type of use).

Mixed tank. Fig. 14:

• Remove the mixed tank.
• Open the mixed tank cover and empty it.
• Remove the filter and filter holder as shown in figure 14.
• Use the self-cleaning brush to clean the inside of the mixed tank.
• You can clean the dust compartment with water, without immersing the tank. Male sure the tank is completely dry before re-installation to prevent water to reach the motor and damage the robot vacuum cleaner.
• Reinstall the mixed tank on the robot vacuum cleaner.

High-efficiency filter. Fig. 15:

- The high-efficiency filter is designed with fibres that help trap dust particles, dust mites, pollen... It is very important to periodically clean the filter, to prevent these particles from building up in the filter, causing efficiency loss. It is convenient to carry out this maintenance once a week.

- Replace the high-efficiency filter every 3 months, depending on the frequency and type of use.

Recommendation

You can remove dirt from the high-efficiency filter with a small brush or gently shake the filter on a hard surface to remove the dust. The high-efficiency filter cannot be washed.

Primary mesh filter and sponge filter

The filtering system is featured with a primary mesh filter and a sponge filter, located next to the high-efficiency filter. It is suggested to replace them either after a maximum of 160 hours of use or when they are worn out due to operation.

Recommendation

Dirt can be removed with a small brush or by shaking carefully against a hard surface for dust to fall off. You can also use warm water without detergents to obtain better results. Always make sure they are completely dry before installing them again; otherwise, moisture can reach the robot vacuum cleaner's motor and damage it.

Cleaning the fall-detection sensors

Use a clean, dry, and soft cloth to wipe off any dust from the fall-detection sensors located on the robot vacuum cleaner's lower part.

Sensors. Fig 16:

• The robot vacuum cleaner has different types of sensors, for example, proximity sensors that allow the robot to move around while detecting obstacles or fall-detection sensors that help the robot detect slopes or possible gaps/unevenness such as staircases. These sensors are always in contact with dust particles, and therefore can deteriorate over time, causing possible navigation errors.
• It is recommended to clean all sensors of the robot vacuum cleaner every 35 hours of use or less, using a soft, dry cloth.

Charging base. Fig 17:

Likewise, the charging base includes charging terminals and the signal transmission zone. Use a clean, dry, soft cloth to wipe dust from these areas.

Charging and replacing the battery

To lengthen the battery shelf life, leave the robot vacuum cleaner to charge in the charging base when not in use.

Remove the battery and store it in a safe, dry place if the robot vacuum cleaner will not be used for a long period of time.

To replace the battery, follow the instructions below:

1. Unscrew the screws on the lower housing, remove the latter, and take out the battery.
2. Insert the new battery.

3. Put the battery and the lower housing back in place and re-tighten the screws.

4. TROUBLESHOOTING

Problem	Possible cause and solution
The robot vacuum cleaner does not switch on or does not clean.	The robot vacuum cleaner does not work when battery is low. Allow it to charge before operation.
	The room temperature is below 0 °C or above 40 °C.
The robot vacuum cleaner cannot charge or return to the charging base.	There are too many obstacles near the charging base. Relocate the charging base to an area free of obstacles.
	Clean the charging terminals of both the charging base and the robot vacuum cleaner.
	Make sure the robot vacuum cleaner is switched on.
	The robot vacuum cleaner is too far away from the charging base. Place it closer and try again.
The robot vacuum cleaner does not work properly.	Turn off the robot vacuum cleaner and turn it on again.
	Reset the robot vacuum cleaner by pressing the side Reset button.
The robot vacuum cleaner makes a strange noise during operation.	The main brush, side brush, or omnidirectional wheel are blocked or tangled. Stop the robot vacuum cleaner and clean them.
The robot vacuum cleaner does not clean efficiently or doesn’t pick up all the dirt.	The tank is full. Empty it and clear the high-efficiency filter if it is blocked.
	The high-efficiency filter is blocked. Clean it.
	The main brush is blocked or tangled. Clean it.
The robot vacuum cleaner could not connect to the Wi-Fi network.	Bad Wi-Fi signal. Check that the robot vacuum cleaner is located in an area with good Wi-Fi signal.
	The Wi-Fi connection is unstable. Reset the router, check if there are any App updates, and try again. This robot vacuum cleaner only supports the 2.4 GHz, BLE 5.0 band.
	Make sure that your device mobile data are disabled to improve the linking process.
The robot vacuum cleaner did not carry out the scheduled cleaning task.	Check if the robot vacuum cleaner is in Sleep mode and change mode. This option can be found on the general settings of the robot vacuum cleaner and allows you to define time slots in which the robot will not perform the scheduled cleaning tasks when in Sleep mode.
	Ensure proper connection of the robot vacuum cleaner to the Wi-Fi: you will not be able to carry out scheduled cleaning without connection and with a low battery.
The robot vacuum cleaner does not return to the charging base after spot cleaning or after changing the starting position.	The robot vacuum cleaner will map and calculate a new route after running in Spot cleaning mode or after changing its starting position.
	If the charging base is very far away from the robot vacuum cleaner, it will not be able to charge back automatically. Manually move the robot vacuum cleaner to the charging base.
The robot vacuum cleaner does not resume cleaning.	Make sure the robot vacuum cleaner is not in Sleep mode, as it will not resume cleaning in this mode.
	It will not resume cleaning when it is manually placed on the charging base.
The robot vacuum cleaner is always offline.	Make sure the robot vacuum cleaner is successfully connected to a 2.4 GHz, BLE 5.0 network and always in areas with good Wi-Fi signal.
The connection between the smartphone and the robot vacuum cleaner failed.	Make sure the robot vacuum cleaner and the charging base are in an area with good Wi-Fi signal, reset the router, and retry connection.

6. TECHNICAL SPECIFICATIONS

Model: Conga 8290 Immortal Ultra Power Genesis

Product reference: 04927

Voltage: 100-240 V \~ 50/60 Hz

Rechargeable Li-ion battery

Rated capacity: 14.4 V = 2600 mAh

Wi-Fi connection: Wi-Fi IEEE 802.11 b/g/n 2.4 GHz, BLE 5.0

Maximum power transmission: 20 dBm

Technical specifications may change without prior notification to improve product quality

Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on the most appropriate way to dispose of electrical and electronic equipment and/or batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES,

S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

10. DECLARATION OF CONFORMITY

Cecotec Innovaciones hereby declares that this robot vacuum cleaner, model 04927_Conga 8290 Immortal Ultra Power Genesis is in conformity with the Radio Equipment Directive 2014/53/EU.

The full text of the EU Declaration of Conformity can be found on the following website: www.cecotec.es

1. PIÈCES ET COMPOSANTS

Img. 1.1

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./Rys. 8

Fig./Img./Abb./Afb./Rys. 10

Fig./Img./Abb./Afb./ Rys. 9

Fig./Img./Abb./Afb./ Rys. 11

Fig./Img./Abb./Afb./Rys. 12

Fig./Img./Abb./Afb./Rys. 13

Fig./Img./Abb./Afb./Rys. 14

Fig./Img./Abb./Afb./Rys. 15

Fig./Img./Abb./Afb./Rys. 16

Fig./Img./Abb./Afb./Rys. 17

www.cecotec.es
