| Product Type | Warming Drawer |
| Brand | GE |
| Model | Profile PKD915SMSS |
| Installation Type | Built-in undercounter or cabinetry |
| Width | 30 inches (76.2 cm) |
| Capacity | Holds up to 2 full-size dishes |
| Electrical Requirements | 120 V, 60 Hz, 15 A dedicated circuit |
| Power Rating | 1500 W |
| Temperature Range | Approximately 100°F to 200°F (38°C to 93°C) |
| Temperature Settings | Adjustable with electronic control |
| Functions | Warming, proofing, slow cooking |
| Control Panel | Touchpad with digital display |
| Material | Stainless steel interior and exterior |
| Drawer Glides | Full-extension ball-bearing for smooth operation |
| Safety Features | Auto shut-off after 12 hours, child lock |
| Weight | Approximately 70 lbs (31.8 kg) |
| Cleaning and Maintenance | Wipe with mild soap and a damp cloth; avoid abrasive cleaners |
| Compatible Cookware | Oven-safe dishes, heat-proof containers |
| Warranty | 1 year limited warranty, parts and labor |
| Spare Parts Availability | Available through GE service centers and online retailers |
Frequently Asked Questions - Profile PKD915SMSS GE
User questions about Profile PKD915SMSS GE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Warming Drawer in PDF format for free! Find your manual Profile PKD915SMSS - GE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Profile PKD915SMSS by GE.
USER MANUAL Profile PKD915SMSS GE
Safety Instructions ..... 2, 3
Operating Instructions
Control Knob 5
Crisping Stale Items 7
Drawer....6
Features 4
Moisture Selector 5
ON Signal Light 5
Proofing Yeast Bread
and Dough 7
Rack 6
Temperature Selection Charts ..... 7, 8
Warming Serving Bowl
and Plates....6
Care and Cleaning....9
Installation Instructions.. 10-15
Troubleshooting Tips....16
Consumer Support
Consumer Support......Back Cover
Product Registration 19,20
Warranty for Customers
in Canada 23
Warranty for Customers
in the U.S.A. 22
Write the model and serial numbers here:
Model # ____
Serial #
You can find them on a label located on the backside of the lower drawer front.
In Canada, contact us at:
www.GEAppliances.ca
Owner's Manual and Installation Instructions
PKD915
PTD915
CW9000
PJ7000
PW9000
WARNING
Read all safety instructions before using the product. Failure to follow these instructions may result in fire, electrical shock, serious injury or death.
WARNING | IMPORTANT SAFETY NOTICE
All warming drawers can tip and injury could result if not properly installed.
To prevent accidental tipping of the warming drawer, attach it to the wall with an anti-tip brace as described in the Installation Instructions.
▲ WARNING | GENERAL SAFETY INSTRUCTIONS
Use this appliance only for its intended purpose as described in this Owner's Manual.
- Be sure your appliance is properly installed and grounded by a qualified installer in accordance with the provided installation instructions.
Do not attempt to repair, replace or clean any part of your warming drawer unless it is specifically recommended in this manual. All other servicing should be transferred to a qualified technician.
Before performing any service, disconnect the power supply at the household distribution panel by removing the fuse or switching off the circuit breaker.
Do not leave children alone—children should not be left alone or unattended in an area where an appliance is in use. They should never be allowed to climb, sit or stand on any part of the appliance.
⚠️CAUTION: Do not store items of interest to children in cabinets above a warming drawer - children climbing on the warming drawer to reach items could be seriously injured.
Use only dry pot holders—moist or damp pot holders on hot surfaces may result in burns from steam. Do not let pot holders touch hot heating elements. Do not use a towel or other bulky cloth in place of pot holders.
- Never use your appliance for warming or heating the room.
Do not touch the heating elements or the interior surface of the warming drawer. These surfaces may be hot enough to burn even though they are dark in color. During and after use, do not touch, or let clothing or other flammable materials contact any interior area of the warming drawer; allow sufficient time for cooling first. Other surfaces of the appliance may become hot enough to cause burns. Potentially hot surfaces include the warming drawer vent opening, surfaces near the opening and crevices around the warming drawer door.
Do not heat unopened food containers. Pressure could build up and the container could burst, causing an injury.
Do not use aluminum foil to line the warming drawer bottom. Foil can trap heat or melt, resulting in damage to the product and a shock or fire hazard.
- Avoid scratching or impacting glass doors or control panels. Doing so may lead to glass breakage. Do not cook on a product with broken glass. Shock, fire or cuts may occur.
Cook meat and poultry thoroughly—meat to at least an internal temperature of 160° F and poultry to at least an internal temperature of 180° F. Cooking to these temperatures usually protects against foodborne illness.
WARNING
KEEP FLAMMABLE MATERIALS AWAY FROM THE WARMING DRAWER
Failure to do so may result in fire or personal injury.
Do not store or use flammable materials in or near a warming drawer, including paper, plastic, pot holders, linens, wall coverings, curtains, drapes and gasoline or other flammable vapors and liquids.
- Never wear loose-fitting or hanging garments while using the appliance. These garments may ignite if they contact hot surfaces, causing severe burns.
Do not let cooking grease or other flammable materials accumulate in or near the warming drawer. Grease in the warming drawer or near the warming drawer may ignite.
WARNING
IN THE EVENT OF A FIRE, TAKE THE FOLLOWING STEPS TO PREVENT INJURY AND FIRE SPREADING:
- Do not use water on grease fires. Never pick up a flaming pan.
If there is a fire in the warming drawer, smother the fire by closing the warming drawer door and turning the warming drawer off or by using a multi-purpose dry chemical or foam-type fire extinguisher.
WARNING
WARMING DRAWER SAFETY INSTRUCTIONS
Stand away from the warming drawer when opening the warming drawer door. Hot air or steam which escapes can cause burns to hands, face and/or eyes.
- Keep the warming drawer vent unobstructed.
- Keep the warming drawer free from grease buildup. Grease in the warming drawer may ignite.
Place warming drawer racks in desired location while warming drawer is cool. If rack must be moved while warming drawer is hot, do not let pot holder contact hot heating element in warming drawer.
Do not leave items such as paper, cooking utensils or food in the warming drawer when not in use. Items stored in a warming drawer can ignite.
Not all features are on all models. Appearance may vary.
Feature Index Page
1 Warming Drawer 10
2 Moisture Selector (on back of panel)
Use this to keep foods moist or crisp. 6, 8, 9
3 Control Knob
The control knob has settings for 6, 8, 9 PROOF, LOW, MED and HIGH.
4 ON/OFF Switch Use this switch to turn the warming drawer on. 6
5 ON Signal Light Glows when the ON/OFF switch is in the ON position. 6
6 ON Signal Light Viewer Lens
The ON signal light is visible through the 6 light viewer lens when the drawer is closed.
The warming drawer will keep hot, cooked foods at serving temperature. Always start with hot food. Do not use to heat cold food other than proofing yeast dough, crisping crackers, chips or dry cereal.
Control Knob
The warming drawer controls are hidden with the drawer shut. Open the drawer. The controls are on the right side of the front frame.
To use the warming drawer, press the ON/OFF switch to the ON position.
Slide the moisture selector control to the open or closed setting. (See the Moisture Selector section.)
Turn the control knob to the desired setting.
| PROOF | 75-95°F |
| LOW | 140-160°F |
| MED | 160-195°F |
| HIGH | 195-230°F |
ON Signal Light
The ON signal light is located below the ON/OFF switch and glows when the ON/OFF switch is in the ON position. It stays on until the ON/OFF switch is moved to the OFF position.
The ON signal light is visible through the light viewer in the drawer front panel when the drawer is closed. This is a reminder that the heat is on.

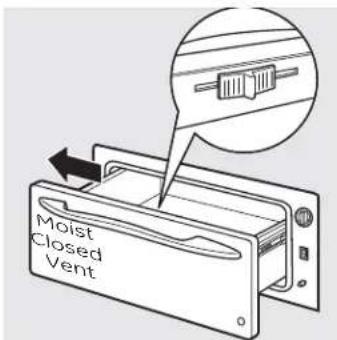

Moisture Selector
The moisture selector is located on the inside front of the drawer.
To keep foods moist, slide the moisture selector control away from the control knob. This closes the vent and seals the moisture inside the drawer. With the vent closed hot foods stay moist and soft.
In this setting condensation may occur around the inside edge of the drawer.
To keep foods crisp, slide the moisture selector control to the right towards the control knob. This opens the vents and allows the moisture to escape.
With the vents open, it is normal for moisture to collect on surfaces above the warming drawer.
Using the warming drawer.
Rack
- Rack will fit from front to back.
■ Preheat with the rack in place.
■ Using the rack allows for double stacking of items.
Double stacking items with the rack in position.
When using the warming drawer...
Do not line the warming drawer with aluminum foil.
- Allow time for the drawer to be preheated:
LOW 8 minutes
MED 15 minutes
HIGH 20 minutes
NOTE: It is not necessary to preheat the drawer for proofing.
Food in heat-safe glass and glass ceramic pans may need higher thermostat setting as compared to food in metal pans.
■ Repeated opening of the drawer allows the hot air to escape and the food to cool. Allow extra time for temperature inside the drawer to stabilize after adding items.
- With large loads it may be necessary to use a higher thermostat setting and cover some of the cooked food items.
- Food should be kept hot in its cooking container or transferred to a heat-safe serving dish.
- Aluminum foil may be used to cover food to prevent it from drying out.
CAUTION: Plastic containers or plastic wrap will melt if in direct contact with the drawer. Melted plastic may not be removable and is not covered under your warranty.
■ Remove serving spoons, etc., before placing containers in warming drawer.
To Warm Serving Bowl and Plates
To warm serving bowls and plates set the control on LOW.
■ Use only heat-safe dishes.
Place the empty dishes on the rack to raise them off the bottom of the drawer. If you want hotter dishes or want to heat fine china, please check with the manufacturer of the dishes for their maximum heat tolerance.
■ Preheat empty serving dish while preheating the drawer.
When holding hot, cooked foods and warming empty serving dishes at the same time, place the serving dishes on the high rack position and the food on the bottom of the drawer.
CAUTION: Dishes may be hot.
Use pot holders or mitts when removing hot dishes.
To Proof Yeast Bread Dough
Yeast dough can be proofed in the warming drawer.
Place your dish on the warming drawer bottom.
- You must always turn the control knob to LOW then immediately back to PROOF.
- Close the vent.
Lightly oil the top of the dough in a bowl large enough to double the dough size. Cover with a cloth.
■ Preheating not required for proofing.
Check the dough height in 40 minutes. Add time as needed. The dough should remain in the drawer until it has doubled in size and a slight depression remains when the surface is touched gently with a finger.
To Crisp Stale Items
- Place food in low sided dishes or pans.
■ Preheat on LOW setting and open the vent.
- Check crispness after 45 minutes. Add time as needed.
Temperature Selection Chart for Crisp Foods
To keep several different foods hot, set the temperature to the food needing the highest setting. Place the items needing the highest setting on the bottom of the drawer and items needing less heat on the rack.
Food Type Control Setting Moisture Selector Setting
| Bacon HIGH OPEN | ||
| Bread, hard rolls MED OPEN | ||
| Fried foods HIGH OPEN | ||
| Pies, two crusts MED OPEN | ||
| Pizza HIGH OPEN | ||
| Potatoes, baked HIGH OPEN | ||
| Tortilla Chips | LOW | OPEN |
Tips:
Leave food uncovered.
- Do not use plastic containers or plastic wrap.
■ Preheat prior to use according to recommended times.
Temperature Selection Chart for Moist Foods
To keep several different foods hot, set the temperature to the food needing the highest setting. Place the items needing the highest setting on the bottom of the drawer and items needing less heat on the rack.
Food Type Control Setting Moisture Selector Setting
| Beef, medium and well done* MED CLOSED | ||
| Bread, soft rolls MED CLOSED | ||
| Casseroles MED CLOSED | ||
| Cooked cereal MED CLOSED | ||
| Eggs MED CLOSED | ||
| Fish, seafood MED CLOSED | ||
| Fruit MED CLOSED | ||
| Gravy, cream sauces MED CLOSED | ||
| Ham MED CLOSED | ||
| Lamb MED CLOSED | ||
| Pancakes, waffles | HIGH | CLOSED |
| Pies, one crust MED CLOSED | ||
| Pork | MED CLOSED | |
| Potatoes, mashed | MED CLOSED | |
| Poultry | HIGH | CLOSED |
| Vegetables | MED CLOSED | |
* USDA/FSIS recommends an internal temperature of 145°F, as the minimum doneness for beef. Use a portable meat thermometer to check internal temperatures.
Tips:
■ Cover food with lid or aluminum foil.
■ Do not put water in the warming drawer.
- Do not use plastic containers or plastic wrap.
■ Preheat prior to use according to recommended times.
Care and cleaning of the warming drawer. GEAppliances.com
Be sure the controls are in the OFF position and all surfaces are cool before cleaning any part of the warming drawer.
Warming Drawer
Use soap and warm water to thoroughly clean.
Rack
Clean the rack with detergent and water. After cleaning, rinse the rack with clean water and dry with a clean cloth.
Stainless Steel
Do not use a steel wool pad; it will scratch the surface.
To clean the stainless steel surface, use warm sudsy water or a stainless steel cleaner or polish. Always wipe the surface in the direction of the grain. Follow cleaner instructions for cleaning the stainless steel surface.
To inquire about purchasing stainless steel appliance cleaner or polish, or to find the location of a dealer nearest you, please call our toll-free number:
National Parts Center 1.877.959.8688
GEAppliances.com
Control Knob
The control knob may be removed for easier cleaning.
Make sure the knob is in the PROOF position and pull it straight off the stem for cleaning.
The knob can be cleaned in a dishwasher or it may also be washed with soap and water. Make sure the inside of the knob is dry before replacing.
Replace the knob in the PROOF position to ensure proper placement.
Installation of the warming drawer.
Read these instructions completely and carefully.
Before You Begin
IMPORTANT: Save these instructions for the local electrical inspector's use.
IMPORTANT: OBSERVE ALL GOVERNING CODES AND ORDINANCES.
NOTE TO INSTALLER: Leave these instructions with the appliance after installation is completed.
NOTE TO CONSUMER: Keep this Owner's Manual and Installation Instructions for future use.
NOTE: This appliance must be properly grounded.
NOTE: Insure that the power cord does not contact the hot surfaces on the bottom of ovens, cooktops, or any other appliance.

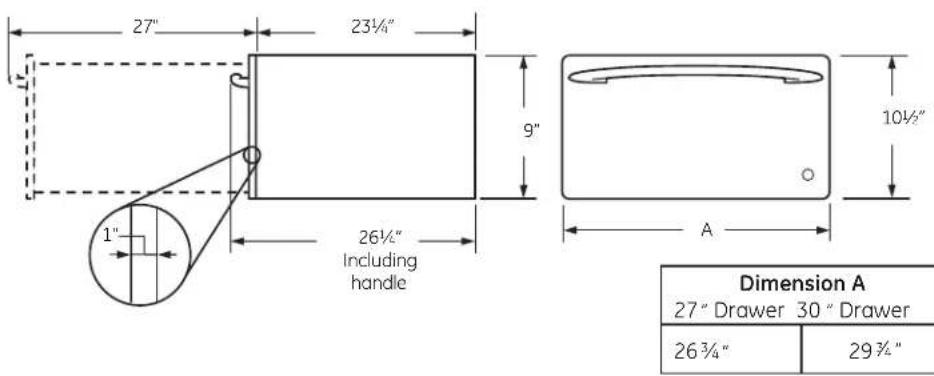

Product Dimensions
Custom Panel Kits
ZXD27B—This kit provides for the installation of a custom front panel on 27" wide models.
ZXD30B—This kit provides for the installation of a custom front panel on 30" wide models.
Tools Needed
2 x 4 or 2 x 2 lumber for runners and brace
■ Wood screws and adhesive or other hardware for installing runners or shelf to support warmer drawer.
Runners must be level, rigidly mounted and capable of supporting 150 pounds.
Saw
Level
Drill and 1/16" bit
Phillipsscrewdriver
Read these instructions completely and carefully.

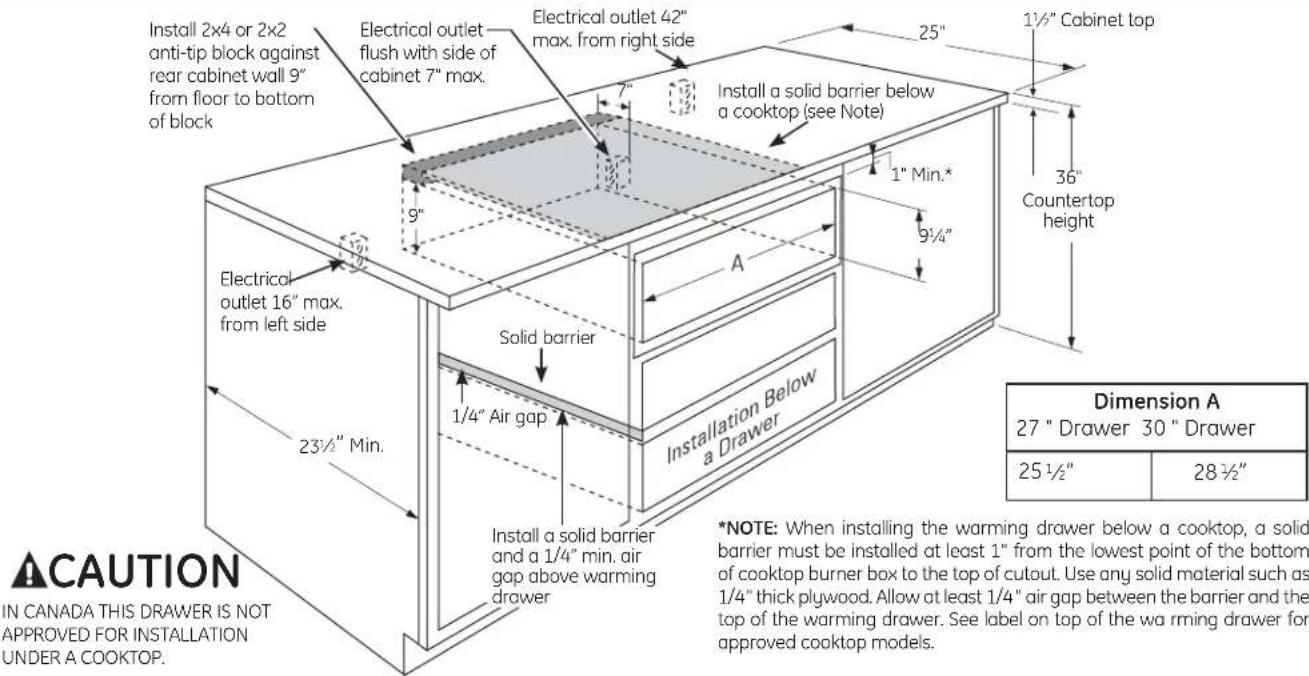

Advance Planning
The warming drawer may be installed directly into a wall or wall oven cabinetry.
The warming drawer may be installed below a countertop, a single or double oven and side by side using 2 drawers.
- When installing warming drawer with a cooktop allow a 2" minimum from bottom of a cooktop burner box to top of cutout.
Electrical power cord is located on the right side of the warming drawer. Locate the outlet within reach of the 56" long power cord in adjacent cabinet, within 42" of the right side or 16" from the left side of the cutout. A recessed receptacle can be installed on the right side of the cutout, 7" maximum from the back of the cabinet.
Grounding the Appliance
IMPORTANT—(Please read carefully)
FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED.
Do not use an extension cord or adapter plug with this appliance. Follow National Electrical codes and ordinances.
This warming drawer must be supplied with 120V, 60Hz, and connected to an individual, properly grounded branch circuit, and protected by a 15 or 20 amp circuit breaker or time delay fuse.
A properly grounded 3-prong receptacle should be located within reach of the drawer's 56" long power cord.
- Locate the receptacle in an adjacent cabinet.
—within 42" of the right side or,
—within 16" of the left side or
— A recessed receptacle may be located on the right side of the cutout, 7" maximum from the back of the cabinet. In this location, the excess power cord should be coiled and taped to the right side of the unit.
IMPORTANT—(Please read carefully)
The power cord of this appliance is equipped with a 3-prong (grounding) plug that mates with a standard 3-prong grounding wall receptacle to minimize the possibility of electric shock. The customer should have the wall receptacle and circuit checked by a qualified electrician to make sure the receptacle is properly grounded and has the correct polarity.
Where a standard 2-prong wall receptacle is encountered, it is the personal responsibility and obligation of the customer to have it replaced with a properly grounded 3-prong wall receptacle.
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
DO NOT USE AN EXTENSION CORD.
Installation of the warming drawer.
Read these instructions completely and carefully.
Remove Packaging and Parts
Parts provided: 4 Wood screws
1 Place carton on a flat surface.
2 Open one end of the carton and lift off the top piece.
3 Lift the warming drawer up and out of the carton.
4 Place the drawer on top of the shipping carton to protect the drawer front and the finished flooring.
5 Remove all packing materials and tape.
6 Locate package containing 4 wood screws and set aside.
Installation Below a Countertop
- When installed, the front face of the warming drawer will be nearly flush with cabinetry doors or drawer fronts.
- Drawer overlaps will conceal cut edges on all sides of the opening.
The rough opening for the drawer must be:
- Depth: 2½" minimum from inside back to front of cabinet frame.
-Width: 25½" for 27" wide models 28½" for 30" wide models.
-Height: 9¼"
5" minimum above floor or 1" above toekick. 23/4" from floor to bottom of cutout is recommended for under countertop installation.
Installation below a cabinet drawer:
The warming drawer may be installed beneath a cabinet drawer. In this installation, a solid barrier should be installed above the warming drawer to block access. Use any solid material such as 1/4" thick plywood. Allow at least 1/4" air gap between the barrier and the top of the warming drawer. Observe the 5" min. above the floor or 1" above the toekick min. installation height.
NOTE: If you are installing in frameless cabinets, it may be necessary to install 1/2" wide cleats to accept drawer mounting screws. See drawer to find exact locations of mounting screws.
When installed under a cooktop:
Warming drawers are suitable for installation below only certain specified cooktop models. See the label attached to the top of the warming drawer for suitable models. A solid barrier and air gap between cooktop and warming drawer is required. See Note above.
Read these instructions completely and carefully.
Installation Below Wall Ovens
Installation below a single oven
NOTE: Additional clearance between cutouts may be required. Check to be sure that oven supports above the warming drawer location do not obstruct the required interior 23½" depth and 9½" height.
Installation below a double oven
| Dimension A Dimension B | ||
| 27 " Drawer | 251/2" 26 | 3/4" |
| 30 " Drawer | 28" 29 | 3/4" |
NOTE: Additional clearance between cutouts may be required. Check to be sure that oven supports above the warming drawer location do not obstruct the required interior 23½" depth and 9¼" height.
CAUTION
IN CANADA, THIS DRAWER IS NOT APPROVED FOR INSTALLATION UNDER A DOUBLE OVEN.
- When installed, the front face of the warming drawer will be nearly flush with cabinetry doors or drawer fronts.
- Drawer overlaps will conceal cut edges on all sides of the opening.
The rough opening for the drawer must be:
— Depth: 2 3/2 " minimum from inside back to front of cabinet frame.
-Width: 25½" for 27" wide models
28½" for 30" wide models.
-Height: 9/4"
— Allow 2" minimum between oven and drawer cutouts for clearance of overlaps.
NOTE: If you are installing in frameless cabinets, it may be necessary to install 1/2" wide cleats to accept drawer mounting screws. See drawer to find exact locations of mounting screws.
When installed under a wall oven:
Warming drawers are suitable for installation below only certain specified wall oven models. See the label attached to the top of the warming drawer for suitable models.
NOTE: Electrical receptacle can be installed as shown for countertop installations. Do not install receptacle above the top of the warming drawer cutout.
Read these instructions completely and carefully.
Provide Cabinet Support
IMPORTANT: When installed below a single or double oven, check to be sure that any oven supports above the cutout do not obstruct the 23½" required depth of the warming drawer cutout.
A 2" minimum clearance between oven and warming drawer cutouts are required. Additional clearance may be required if 2 x 4 blocks are used to support runners or solid floor of the oven above.
The warming drawer may be supported by either a solid bottom, 2 × 4 or 2 × 2 runners.
The support must be level and rigidly mounted, flush with the bottom edge of the cutout.
There is no way to level the drawer once it has been installed. Be sure supports are level.
The entire weight of the drawer is supported by the runners or solid floor and must be capable of supporting 150 lbs.
Step 1—Install Anti-Tip Brace
WARNING: ANTI-TIP PRECAUTIONS:
The anti-tip brace must be installed to prevent the drawer from tipping forward when opened and loaded.
Failure to do so could result in personal injury.
Read these instructions completely and carefully.
Step 2—Install Warming Drawer
7 Slide the left corner into opening and push power cord into the hole leading to the outlet location. Thread the cord through as drawer is being pushed back into the opening.
If the outlet is installed inside the opening, plug the cord into the outlet. In this location, the excess power cord should be coiled and taped to the right side of the unit. Make sure the cord does not get trapped by the drawer.
NOTE: Insure that the power cord does not contact the hot surfaces on the bottom of ovens, cooktops, or any other appliance.
2 Push the drawer back until the front flange is flush to the cabinet front.
3 Open the drawer fully.
4 Drill pilot holes through the holes in the overlapping frame, one on each corner.
5 Drive wood screws provided into each corner.
Before you call for service...
Troubleshooting Tips
Save time and money! Review the chart on this page first and you may not need to call for service.
| Problem Possible Causes What To Do | ||
| Warming drawer will not work be blown or the circuit breaker tripped. | A fuse in your home may | Replace the fuse or reset the circuit breaker. |
| Warming drawer not plugged in. | Plug | in. |
| Controls improperly set. | See the Using the warming drawer section. | |
| Drawer does not slide smoothly or drags | Ball bearings out of alignment. | Fully extend the drawer and push it all the way in.See the Care and cleaning section. |
| Drawer over-loaded or load unbalanced. | Reduce weight to less than 50 pounds. Redistribute drawer contents. | |
| Excessive condensation too high. | Liquid in warming drawer. | Remove liquid. |
| Uncovered foods. | Cover food with lid or aluminum foil. | |
| Temperature setting | Reduce temperature setting. | |
| Incorrect Moisture Selector setting. | Set the Moisture Selector to the open vent setting to allow venting. | |
| No heat in the PROOF setting thermostat from tripping on. | Room temperature may prevent the | Turn the knob to LOW then back to PROOF. |
| Food dries out | Moisture escaping. | Cover food with lid or aluminum foil. |
GE Electric Warming Drawer Warranty. (For customers in the United States)
All warranty service provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service, on-line, 24 hours a day, visit us at GEAppliances.com, or call 800.GE.CARES (800.432.2737). Please have serial number and model number available when calling for service.
Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.
For The Period Of: GE Will Replace:
One Year
From the date of the
Any part of the warming drawer which fails due to a defect in materials or workmanship.
During this limited one-year warranty, GE will also provide, free of charge, all labor and
original purchase in-home service to replace the defective part.
What GE Will Not Cover:
■ Service trips to your home to teach you how to use the product.
■ Product damage due to improper installation, delivery or maintenance.
■ Failure of the product if it is abused, misused, modified, or used for other than the intended purpose or used commercially.
■ Replacement of house fuses or resetting of circuit breakers.
■ Damage to the product caused by accident, fire, floods or acts of God.
■ Incidental or consequential damage caused by possible defects with this appliance.
■ Damage caused after delivery.
■ Product not accessible to provide required service.
EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service Location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.
GE Electric Warming Drawer Warranty. (For customers in Canada)
All warranty service provided by our Factory Service Centres or an authorized Customer Care® technician. For service, call 1.800.361.3400. Please have serial number and model number available when calling for service.
Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.
For The Period Of: Mabe Will Replace:
One Year
From the date of the
Any part of the warming drawer which fails due to a defect in materials or workmanship.
During this limited one-year warranty, Mabe will also provide, free of charge, all labor and
original purchase in-home service to replace the defective part.
What Mabe Will Not Cover:
■ Service trips to your home to teach you how to use the product.
■ Product damage to improper installation, delivery or maintenance.
Failure of the product if it is abused, misused, modified, or used for other than the intended purpose or used commercially.
■ Replacement of house fuses or resetting of circuit breakers.
■ Damage to the product caused by accident, fire, floods or acts of God.
■ Incidental or consequential damage caused by possible defects with this appliance.
■ Damage caused after delivery.
■ Product not accessible to provide required service.
EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.
WARRANTOR IS NOT RESPONSIBLE FOR CONSE QUEN TIAL DAMAGES.
Warrantor: MABE CANADA INC.
GE Appliances Website
In the U.S.: GEAppliances.com
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts or even schedule service on-line. In Canada: www.geappliances.ca.
Schedule Service In the U.S.: GEAppliances.com
Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours. In Canada, call 1.800.361.3400.
Real Life Design Studio
In the U.S.: GEAppliances.com
GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).
In Canada, contact: Manager, Consumer Relations, Mabe Canada Inc.
Suite 310, 1 Factory Lane
Moncton, N.B. E1C 9M3
Extended Warranties In the U.S.: GEAppliances.com
Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires. In Canada, call 1.888.261.2133.
Parts and Accessories
In the U.S.: GEApplianceparts.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.
Customers in Canada should consult the yellow pages for the nearest Mabe service centre, or call 1.888.261.3055.
Contact Us In the U.S.: GEAppliances.com
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations
GE Appliances, Appliance Park
Louisville, KY 40225
In Canada: www.geappliances.ca, or write to: Director, Consumer Relations, Mabe Canada Inc.
Suite 310, 1 Factory Lane
Moncton, N.B. E1C 9M3
Register Your Appliance
In the U.S.: GEAppliances.com
Register your new appliance on-line-at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. In Canada: www.geappliances.ca.
- OPERATING INSTRUCTIONS
- CONSUMER SUPPORT
- OWNER'S MANUAL AND INSTALLATION INSTRUCTIONS
- WARNING
- WARNING | IMPORTANT SAFETY NOTICE
- ▲ WARNING | GENERAL SAFETY INSTRUCTIONS
- KEEP FLAMMABLE MATERIALS AWAY FROM THE WARMING DRAWER
- FAILURE TO DO SO MAY RESULT IN FIRE OR PERSONAL INJURY
- IN THE EVENT OF A FIRE, TAKE THE FOLLOWING STEPS TO PREVENT INJURY AND FIRE SPREADING
- WARMING DRAWER SAFETY INSTRUCTIONS
- FEATURE INDEX PAGE
- CONTROL KNOB
- ON SIGNAL LIGHT
- MOISTURE SELECTOR
- USING THE WARMING DRAWER
- RACK
- WHEN USING THE WARMING DRAWER
- TO WARM SERVING BOWL AND PLATES
- TO PROOF YEAST BREAD DOUGH
- TO CRISP STALE ITEMS
- TEMPERATURE SELECTION CHART FOR CRISP FOODS
- TIPS
- TEMPERATURE SELECTION CHART FOR MOIST FOODS
- CARE AND CLEANING OF THE WARMING DRAWER. GEAPPLIANCES.COM
- WARMING DRAWER
- STAINLESS STEEL
- INSTALLATION OF THE WARMING DRAWER
- BEFORE YOU BEGIN
- CUSTOM PANEL KITS
- TOOLS NEEDED
- ADVANCE PLANNING
- GROUNDING THE APPLIANCE
- IMPORTANT—(PLEASE READ CAREFULLY)
- FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED
- REMOVE PACKAGING AND PARTS
- INSTALLATION BELOW A COUNTERTOP
- THE ROUGH OPENING FOR THE DRAWER MUST BE
- INSTALLATION BELOW A CABINET DRAWER
- WHEN INSTALLED UNDER A COOKTOP
- INSTALLATION BELOW WALL OVENS
- CAUTION
- WHEN INSTALLED UNDER A WALL OVEN
- PROVIDE CABINET SUPPORT
- STEP 1—INSTALL ANTI-TIP BRACE
- WARNING: ANTI-TIP PRECAUTIONS
- STEP 2—INSTALL WARMING DRAWER
- BEFORE YOU CALL FOR SERVICE
- GE ELECTRIC WARMING DRAWER WARRANTY. (FOR CUSTOMERS IN THE UNITED STATES)
- FOR THE PERIOD OF: GE WILL REPLACE
- ONE YEAR
- WHAT GE WILL NOT COVER
- GE ELECTRIC WARMING DRAWER WARRANTY. (FOR CUSTOMERS IN CANADA)
- FOR THE PERIOD OF: MABE WILL REPLACE
- WHAT MABE WILL NOT COVER
- GE APPLIANCES WEBSITE
- SCHEDULE SERVICE IN THE U.S.: GEAPPLIANCES.COM
- REAL LIFE DESIGN STUDIO
- EXTENDED WARRANTIES IN THE U.S.: GEAPPLIANCES.COM
- PARTS AND ACCESSORIES
- CONTACT US IN THE U.S.: GEAPPLIANCES.COM
- REGISTER YOUR APPLIANCE
Brand : GE
Model : Profile PKD915SMSS
Category : Warming Drawer
