USER MANUAL HIH-T90HM-V HAIER

INSTALLATION GUIDE/USER GUIDE

CONTENTS

Safety Precaution....1

Important Information....4

Product Overview....5

Packing List....5

Installation....6

Use Instruction....9

Maintenance and Services....10

Prats Removal....11

Circuit Diagram....13

General Troubleshooting....13

Dear users:

Thank for your buying our range hood. Please accept our best regards. Please read this user manual carefully before installation and operation.

*The pictures in this manual only for your reference. If the picture isn't accord with object, subject to object. We keep to right to update appearance, structure or products without notice.

Safety Precaution

In order to avoid harm or property damage to the users or other person, the following distinction and marks are stipulated. They are important safety precaution, please comply strictly based on the full understanding.

Subject to harmful or destruct degree

Danger	If ignore this sign and operate product improperly, it's highly possible to cause danger, serious injury or fire.
Warning	If ignore this sign and operate product improperly, it's possible to cause danger, serious injury or fire.
Notice	If ignore this sign and operate product improperly, it's possible to cause injury or loss.

Notice and Prohibit Mark

Prohibit

ProhibitFlame

ProhibitTouch

Prohibit Touchby Wet Hand

ProhibitDisassembly

StrictExecution

NecessaryEarthed

CautionElectric Shock

Caution Scald

Warning

Please use this product according to manual strictly, or ROBAM shall not take any responsible caused by improper operation.

Danger

Prohibit

Prohibit

Prohibit

Prohibit

Strict Execution

Don t allow children or weakling to use range hood separately, or it may cause electric shock or other accident.

Prohibit water on motor, switches or other electric parts; Prohibit wash range hood by water spray. Don't use range hood if wet or it may cause electric leakage or shock.

Don't change, stretch, bind or press electric wire, or it's possible to cause electric shock or fire because of broken wire.

Prohibit any change of interior circuit, or it may cause injury or other danger, for example, electric shock or fire.

Don't touch plug, electric parts or button by wet hands, or it may cause electric shock.

Unplug before cleaning, installing or maintaining, avoiding from electric shock.

Danger
Strict Execution	Please turn off range hood immediately if pan got fire range hood ( shall aggravate fire if it's working) and extinguish fire by effective action. For example, cover flame by metal cover, turn off gas valve immediately and remove inflammable things.
Strict Execution	Any abnormal, please turn off power, take off plug or cut off electric source, and contact service. It's possible to cause electric shock or fire if using range hood under abnormal situation.

Warning

		Warning
ProhibitDisassembly	Range hood must be installed, disassembled or maintained by professional person.
Prohibit	Stove fire shall be extinguished timely when it is not used do not;flambe under the range hood and it's prohibited to bake food under range hood directly to prevent range hood from damaging and causing accidents.
ProhibitTouch	Don't touch bulb if it's on or just close in short time, or it may cause scald.
Strict Execution	In order to ensure safety, range hood must be installed by specific accessory (especially expansion pipe and wooden screws, or it may cause accidental drop of range hood). The pipe bore and hole must fit tightly during the installation of metal expansion pipe. It is prohibited to make excessively large hole to prevent accidental drop of loosening expansion pipe.
Strict Execution	The range hood must be used by specific plug and properly ground it. It's possible to cause electric shock, hot plug or fire because of improper electric wire. Installation must be executed by professional person based on local electrical regulations. Before connect electricity, power must be turned off.
Strict Execution	If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Strict Execution	All operation must comply with our safety guidelines as well as local safety regulations.

Warning

Strict Execution	There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.
Strict Execution	This appliance just for household use only.And it's not allowed to exhaust dangerous or explosive matter or air. It should be put under dry and ventilation environment without dangerous air.
Strict Execution	The range hood and electric circuit must be installed by skilled and trained personnel with required qualification. When installation, the related regulation, standard or instruction on fire must be complied. It may cause danger because of improper installation, for example, electric shock, drop or fire accident.
Strict Execution	The outlet must be connect with outside. In order to ensure safety and fresh air, waste gas should be exhaust to outside. Don't exhaust waste gas to the wall, loft or garage.
Strict Execution	There is a fire risk if cleaning is not carried out in accordance with the instructions.
Strict Execution	Keep a good habit to turn off gas hob and gas valve if go outside, sleep or finish operation. Replace or check gas pipe regularly, since gas alarm device can't completely avoid accident caused by gas leakage.
Strict Execution	This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.Children should be supervised to ensure that they do not play with the appliance.

Notice

⚠ Notice
Prohibit	The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels, the discharge of air must fulfill the requirements of local regulations.
Strict Execution	Before removing range hood for installation clean or maintenance power must be cut off avoiding from electric shock. When installation, clean or maintenance, protective groove must be wear avoiding from
Strict Execution	The temperature for range hood working can’t exceed 40°C.
Strict Execution	Because the installation is difficult and hood is heavy, the installation shall be executed by professional person based on manul.
Strict Execution	Don t break electric wire or other invisible equipment when cutting'something or drilling holes on ceiling.
Strict Execution	When range hood is using in well sealed building, it should have air inlet or open door to ensure good ventilation.
Strict Execution	When the oil exceeds 2/3 or near tick mark in the oil cup clean it in, time Don t eat waste oil from oil cup.
Strict Execution	The wall of installing range hood needs enough strength. For hollow walls, the thickness of solid layer of hollow wall must be more than 30mm, but for concrete walls, it can be drill holes directly. The range hood must be fixed on the wall firmly.
Strict Execution	Accessible parts may become hot when used with cooking appliances.
(ZWDH)	DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. This product must not be disposed together with the domestic waste. This product has to be disposed at an authorized place for recycling of electrical and electronic appliances. By collecting and recycling waste, you help save natural resources, and make sure the product is disposed in an environmental friendly and healthy way.

Important Information

Package of Range Hood

Please settle those packages carefully in order to protect environment.

Don't allow children to play plastic film and package, it may cause asphyxia. Please avoid children near package material.

Before use Range hood

This range hood exhaust fume outside.

Please read this manual and all information carefully before installation and operation. Please comply with our suggestion. If it's necessary, please read manual for gas hob. And please keep these manual carefully for future reference.

If range hood has obvious damage, please don't electrify and contact operator.

Product Overview

Product Parameter

Model	HIH-T60HM-VHIH-T90HM-V	Noise	≤59dB
Power Supply	220-240V~ 50Hz	Rated Power Input	282W
Total Pressure Efficiency	≥23%	Rated Main Motor Power Input	280W
Nominal Wind Pressure	350Pa	Lamp Power(max)	≤2W
Turbo Airflow	1200m3/h	Heating Power	50W
Max static pressure	400Pa	Grease Absorption Factor	≥91%
Normal Odour Reduction Factor	≥98%

size&Dimension

Labeled dimensions are only for reference, Size in the bracket is the height of Drawing panel.(Unit: mm)

Packing List

Please check lists if open the package.

Packing List	No.	Name	Quantity	No.	Name	Quantity
	1	Range Hood	1 piece	2	Operation Manual	1 piece
	3	Hook	1 piece	4	Oil Cup	1 piece
	5	luminum oil ir uctA	F 2 pieces

Note: When using the hood install the cup on the filter mesh,

Installation

Warning

1. The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels, the discharge of air must fulfill the requirements of local regulations.
2. ote that when installing the metal expansion pipe, the pipe shall match with the hole in size Overlarge hole isN . prohibited, as it will result in loose pipe and accidental drops.
   3.There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.
3. If the flue aperture is less than air duct aperture, it will influence the fume suction effect and the too long air duct will influence the fume suction effect, too.
4. This appliance just for household use only. And it's not allowed to exhaust dangerous or explosive matter or air. It should be put under dry and ventilation environment without dangerous air.

Preparation Before Installation

●Surrounding environment

Range hood shall be avoided to be installed at the place where there are many doors and windows since it will cause too large cross ventilation so as to influence the oil fume exhaust effect

●Tool preparation

The following tools shall be prepared when range hood installation: 1. Electric impact drill (with drill); 2.Wrench; 3.Screw driver; 4.Ruler

Installation Notice

● Installation and circuit setting must be operated by professionals with experiences and non-professionals shall not assemble, disassemble and repair range hood.
- Don't connect power before installation, it may cause electric shock.
- If your kitchen is in decoration state, please do not expose the range hood outside since construction material, dust, paint, coating and the gases they volatile will corrode the surface of range hood and the surface will be tarnished.
Therefore, it's suggested to assemble the range hood after decoration.

- If gas hob needs to be removed before installing range hood, please turn off gas valve firstly.

- Don't install range hood on the wooden or other flammable wall. The wall of installation range hood shall be on the nonflammable, enough stable, smooth and level surface.

- Range hood may have very sharp edge, please wear protective gloves while moving the range hood for installation, cleaning or maintenance.

- When drilling holes on the wall, the electric wire buried in the wall shall be avoided to prevent from fire.

- Range hood shall not be installed too high, nor shall it be disturbed by external air flow so that the fume suction effect will not be influenced.

●Please retain installation space for hood while fabricating cupboard so as for the care and maintenance.

●Please keep the hood body level while installing the machine.

- Please use single phase socket with earthing, which shall be well earthed.(Water pipe grounding is not reliable.The grounding of gas piping may cause the danger of fire and explosion.)

● Use appointed accessories for installation or range hood may fall down and cause danger.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Don't stretch, change ,tie, or press supply cord, or it may cause fire or electric shock.

- If finish installation, clean range hood firstly, then connect power and test run.

Installation

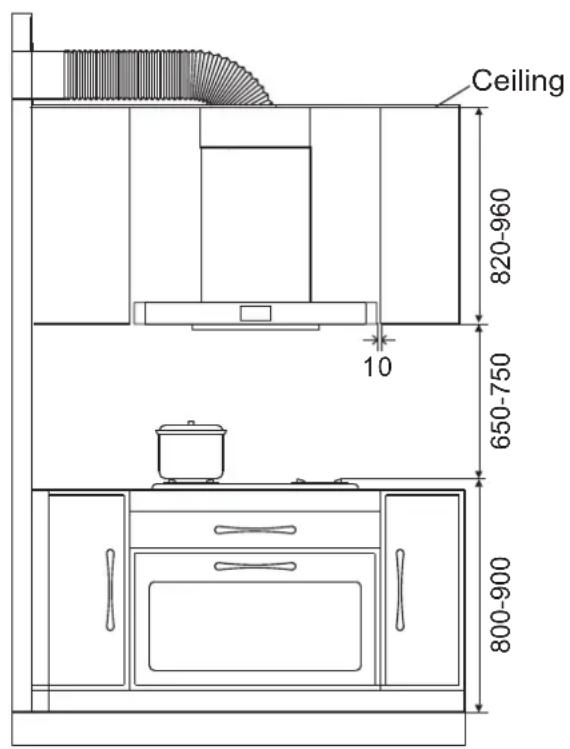

The hood shall be installed right above the hob. The minimum distance between the bearing surface of cooking appliance and the lowest part of hood is 650mm (larger space specified in the installation instruction of gas hob shall be considered, if any; the distance for electric cooker may be reduced appropriately, depending on the actual situations).

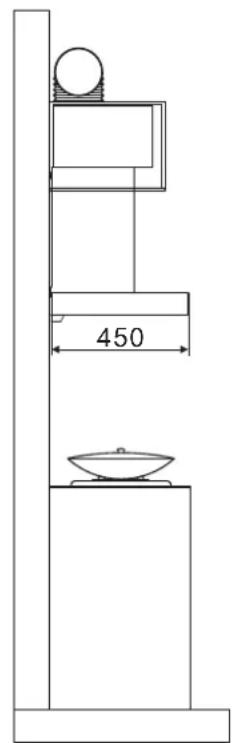

Figure 1

Figure 2

Ceiling hole sizes( Projection size of the hood top)

Use Instruction

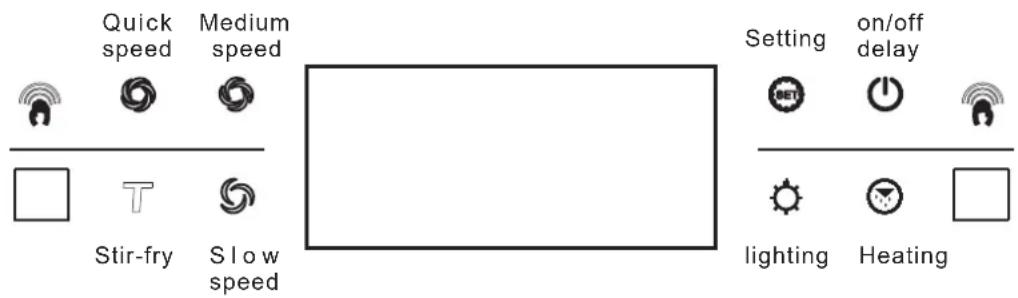

Switch Control Panel

Note:

1. tir-fry:S Under the standby mode, then press this button to start the Stir-fry function, and it will turn to the quick speed automatically after 1 minute.

2. Quick speed: Under the standby mode, then press this button to start the quick speed function.

3. :Medium speed Under the standby mode, then press this button to start the medium speed function.

4. Slow speed: Under the standby mode, then press this button to start the slow speed function.

5. Setting: long press the setting key when the power is off, the middle speed key and slow speed key will flash to enter the clock adjustment state. The function now is setting hour/minute.

6. Lighting: Press this button to turn on / off the light.

7. Heating: When range hood off, press this button to start the Auto clean-electric dry heat mode. It will be lasted for 10 minutes, first 9 minutes, it is heating, the last 1 minutes, remove the greasy quickly.

8. On key (power): Press this button, the range hood will be under power on/off; When the motor just starts to work, then press this button, then it will be a 60 seconds' delay; When the range hood off, long press this button can start / close the Intelligent Somatosensory touch control.

9. Somatosensory control:

A. Under power off state:

1. Fast speed: from left to right, one time.
2. Medium speed: from left to right, twice.
3. Low speed: from left to right, three times.
   B. Under working state: from right to left, turn off.

Maintenance and Services

Warning

1 There is a fire risk if cleaning is not carried out in accordance with the instructions..
2. Cleaning and maintenance shall be conducted under outage. Electrical components such as motor, switch, and connector shall not be spoiled by water so as to prevent from accidents.
3. It's prohibited to wash with water so as to prevent accidents.'
4. Stove fire shall be extinguished timely when it is not used; do not flambe under the range hood and it's prohibited to bake food under range hood directly to prevent range hood from damaging and causing accidents.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Accessible parts may become hot when used with cooking appliances.

Notice

●The hood shall be cleaned and maintained regularly depending on the surroundings, so as to keep its cleanness & efficiency and extend its service life.

We recommend: Clean the surface of hood each time after cooking.

To ensure smooth discharge of fumes, the mesh cover shall be cleaned regularly with warm water and detergent according to actual situations Be careful to avoid damage.

- Don't use the powerful detergent, we recommend to wipe with wet cloth soaked in neutral detergent and dry it by soft cloth. And avoid detergent to touch switches.

- Don't keep dirt on the surface of range hood for long time;

- Don't use cleaning ball, brush or other harsh tool to clean range hood. It may cause scoring.

● Wear gloves to clean or maintain range hood avoiding from hurt.

- Check oil cup regularly. Hold oil cup by hands as picture, then remove oil cup and pull out waste oil.

- Don't touch lamp if turn on or turn off in short time. It may cause scald.

- If range hood don't use for long time, pull out the plug. Don't haul plug crudely.

Parts Removal

Warning

1. The machine body needs not to be disassembled in ordinary conditions. Disassembly shall be operated by professional serviceman.
2. Before cleaning, installation or maintenance for the range hood, cut off the power supply to avoid electric shock.

Note The assembly steps are opposite with the disassembly steps: Please wear protective glove during operation avoiding from hurting hands.

Light Removal

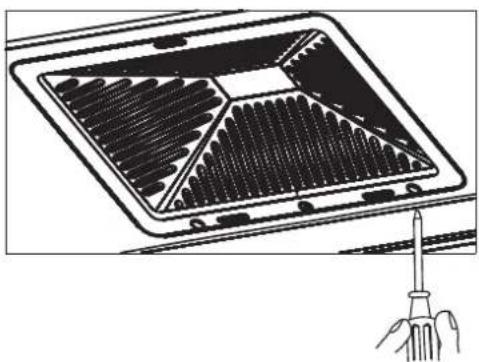

Insert a small flathead screwdriver or something sharp in the gap between the light cover and hood.

Raise it outward forcibly to remove the spotlight from the hood. Pull out the connector to replace the spotlight.

Lamp information
Lamp Type	DC LED
Max Power	2W
Voltage	12VDC
Dimension	See the lamp image

Filter Mesh Removal

Firstly, take down the oil cup, then one hand hold the oil collector, the other hand Loose two fixing screws, and then take down the oil collector. Please be careful when taken down to avoid the oil in oil collector spill. Please wear protective gloves so as not to hurt your hand.

Switch Removal

This is under power disconnected situation to handle:

1. push the glass from right to left, then take out the glass panel, replace the control board. Then assemble the glass with the opposite way, comparing with disassemble the glass. And make sure the re-assembled glass is on the same level with the range hood body.

2. Pull out the glass (as a whole set) forward, then take out the glass panel, replace the control board. Then assemble the glass with the opposite way, comparing with disassemble the glass. And make sure the re-assembled glass is on the same level with the range hood body.

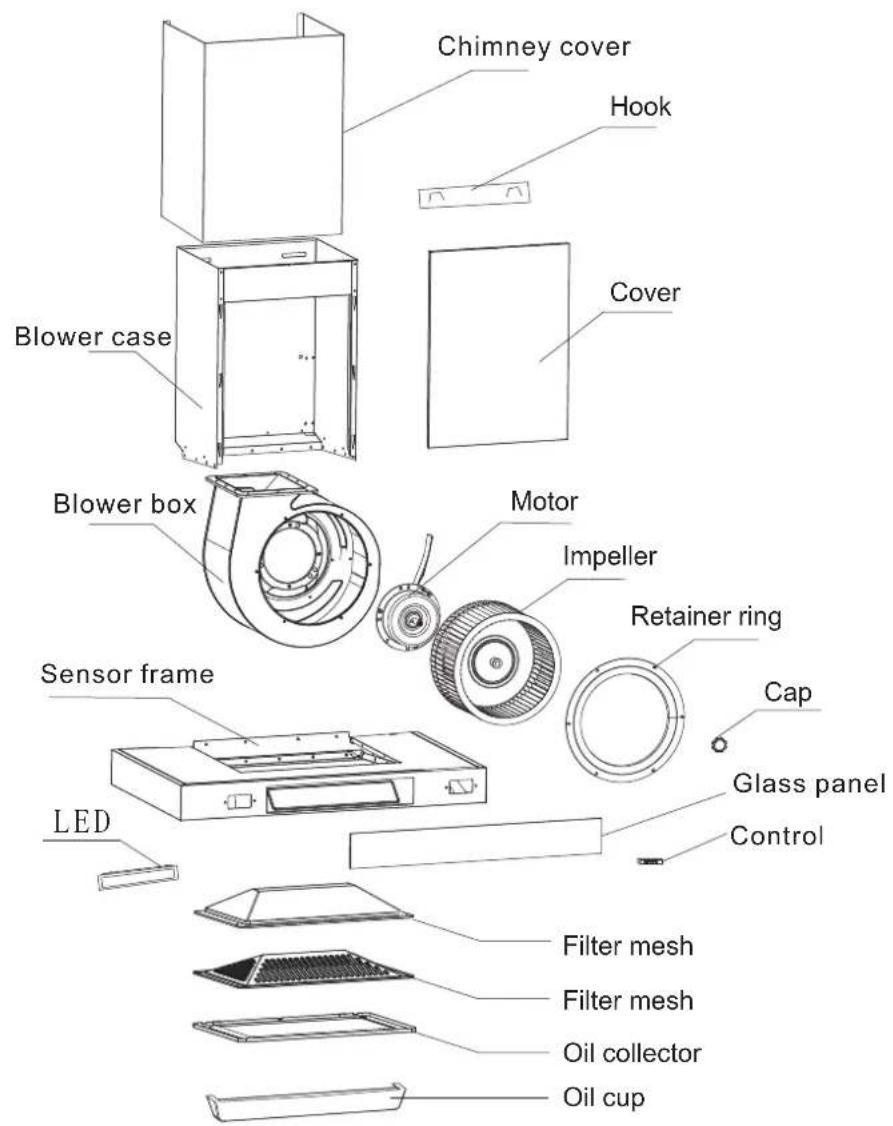

explosive view

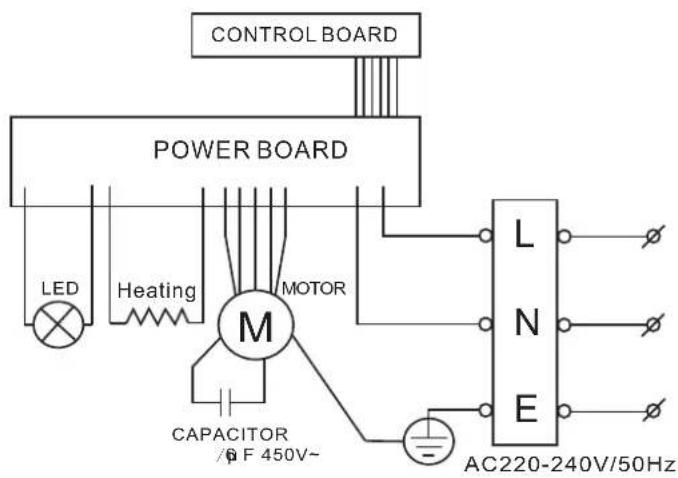

Circuit Diagram

General Troubleshooting

No.	Fault Phenomenon	Fault Cause	Elimination Methods
1	No response by pressing any switch e g impeller does not rotate( . . . , )lighting lamp	Power plug is not well connected or power outage is not on	Well connect the power plug
2	Press the lighting switch but the lighting is off	Lighting lamp is broken or power plug is not well connected	Replace lighting lamp or well connect the power plug
3	There is induced electricity on the surface of machine body hand numbness,	Power socket is not well grounded	Use single phase tripolar socket for well ground
4	abnormal sound when impeller is rotating	Impeller is loosened set screw, of impeller is not tightened	Tighten the set screw of impeller
5	Oil dripping at rear back of hood	Oil cup is not assembled in place after disassembly for cleaning	Assemble the oil cup in place

Customer Name :- Address :-

Serial Number :- Date of Purchase :- Model No. :-

Dealer Seal :-

HAIER WARRANTY

HAIER APPLIANCES (INDIA) PVT. LTD. (here-in-after referred to as "the Company") hereby offers the following warranty to the original domestic purchaser commencing from the Date of the Purchase (DOP). The Company at its sole discretion, will free of charge repair or replace any defective part or parts which prove to be defective in workmanship and/or materials and not due to abnormal or improper usage

CONDITIONS OF WARRANTY

1) This warranty will be automatically terminated on the expiry of the warranty period from the Date of Purchase (DOP).
2) The Company is not liable for any delay in servicing due to reasons beyond the control of the Company or any of its authorized service center.
3) Parts replaced or repaired under this warranty are warranted throughout the remaining of the original warranty period.
4) It is entirely left to the Company's discretion to repair/replace parts at the site of installation or at the authorized service center.
5) This warranty shall be strictly limited to the repairs or replacement of the defective part specified in warranty. This warranty shall not cover any consequential or resulting liability.
6) This warranty shall not, in any case, extend towards payment of any monetary consideration whatsoever or replacement or return of the product.
7) The Company may repair/supply parts free of cost during the warranty period. This warranty does not cover any Excise duty, Central or Sales tax, Octrol and other local taxes or levies on the components/parts.
8) The parts shall be replaced by functionally operating equivalent material only and not with brand new ones and are likely to be different from the one originally fitted. The parts thus removed shall be taken back by the Company.
9) The Company reserves the right to retain any part or component replaced at its sole discretion during the warranty period.
10) In no event the Company or its authorized service center, be liable for any consequential damages or resulting liability, damage or loss arising directly or indirectly out of any defect in the product.
11) This warranty is not valid in case of the following events.
a) If the Product has been Installed/Serviced/Repaired/Opened or Tampered by any unauthorized personnel.
b) If defects arise/caused by accidents, alteration, misuse, neglect, substitution of original components with spurious/non-genuine components, attacked by household pest / rodents, fire, flood, earthquake, lightning and/or any other act of God/natural calamities.
c) The product is shitted outside India.
12) (a) For any service under this warranty beyond city/town/municipal limits from the Company/authorized service center, a fixed charge of Rs. 100 will be collected from the customer in addition to the actual to and for charges by the shortest route.
(b) Service charges applicable after expiry of comprehensive warranty.
13) Any change of location or change in the ownership during the warranty period must be intimated in writing to the Company.
14) The Company's employees or its authorized representatives have no authority to vary the terms of this warranty
15) Brass burners valve carry warranty against any manufacturing defect for 60 months. Warranty is not applicable for De-coloration of the burners.
16) The warranty does not cover rust, oxidation, discoloration, scratches, and wear & tear, plastic, rubber, aesthetic, filters, Consumable parts.
17) HOB Tempered glass top have 24 Month warranty for any manufacturing defect. The warrant of glass become null & void in following conditions.
a) Glass breakage due to improper use or accidental damage.
b) Use of gas tandoor / Gas Oven / Dosa Tawa.
c) Sprinkling of water on hot Glass surface.
d) Other safety norms / precaution not followed.
18) This warranty is affected in New Delhi and claims, if any, shall be made only before the courts having jurisdiction in New Delhi and no claim shall be made against the Company outside New Delhi not withstanding that the Appliance may have been sold or delivered elsewhere.

Segment	Warranty
	Period	Parts not Covered
BUILT - IN - HOB	1 Year Comprehensive(1 + 1 Yr. on Glass) &(1 + 4 Yrs. On Burner & Valve )	Pan Support, Leg, Drip Tray & Knob,Mixing tube, Plastic Parts, accidents ordamage, etc.
HYBTID - HOB
TABLET - HOB
HOOD	1 Year Comprehensive	Glass, Duct Cover, Body, Filters, OilCollector & Cleaning, Bulbs, Switches,Knobs, Plastic Parts, accidents or damage,etc.
BUILT - MWO	1 Year Comprehensive	Outer Body, Cavity, Door, Glass, Handle,Knob/ Touch Panel, bulbs, Plastic Parts,accidents or damage, etc.
BUILT - IN - OVEN	1 Year Comprehensive
BUILT - STERILIZER	1 Year Comprehensive

Haier Appliances (India) Pvt. Ltd.

Building -1, Okhla Industrial Estate Phase III, New Delhi -110020

Tel- +91-1139496000,30674000,

Fax: [phone]

1800-102-9999, 1800-419-9999

(Toll Free - 24x7)

Email: [e-mail]

Whatsapp:[phone]

For Quick Connect to Haier India Scan QR Code

Haier

Inspired Living

Customer Name :- Address :-

Serial Number :- Date of Purchase :- Model No. :-

Dealer Seal :-
