Product Type	Built-in Dishwasher
Brand	Gorenje
Model	GS63160SAU
Width	60 cm
Height	81.5 cm (adjustable)
Depth	55 cm
Weight	Approx. 38 kg
Energy Efficiency Class	A++
Annual Energy Consumption	270 kWh
Water Consumption per Cycle	9.5 L
Noise Level	46 dB(A)
Number of Place Settings	13
Number of Programs	5
Programs	Eco 50°C, Intensive 70°C, Normal 65°C, Quick 30 min, Rinse
Drying System	Heat exchanger + condensation
Water Connection	Cold water only
Power Supply	220-240 V, 50 Hz, 10 A
Maximum Power	2100 W
Control Type	Electronic push buttons
Display	LED indicator
Adjustable Rack	Upper basket height adjustable
Cutlery Basket	Removable cutlery tray
Self-Cleaning Filter	Automatic cleaning system
Salt and Rinse Aid Indicator	Yes
Child Lock	Yes
Spare Parts Availability	At least 10 years from manufacturer

Frequently Asked Questions - GS63160SAU GORENJE

How do I install the Gorenje GS63160SAU dishwasher?

The GS63160SAU is a built-in dishwasher. Ensure the niche dimensions are at least 60 cm wide, 82 cm high, and 55 cm deep. Connect the water inlet hose to a cold water supply (3/4 inch thread) and the drain hose to a waste pipe. Insert the power plug into a grounded outlet. Level the dishwasher by adjusting the feet.

What programs does this dishwasher have?

It offers 5 programs: Eco 50°C for energy-saving, Intensive 70°C for heavily soiled pots, Normal 65°C for everyday loads, Quick 30 min for lightly soiled dishes, and Rinse for pre-rinsing.

How to clean the filters?

Turn off the dishwasher and remove the lower basket. Unscrew the cylindrical filter (rotate counterclockwise) and lift out the flat filter. Rinse both under running water to remove debris. Reassemble in reverse order. Clean filters every 1-2 months.

Why does my dishwasher leave water spots?

Water spots are usually caused by hard water or insufficient rinse aid. Check the rinse aid dispenser and refill if needed. Also adjust the water softener setting according to your water hardness level (see manual). Use a high-quality detergent.

How do I activate the child lock?

Press and hold the Start/Reset button for 3 seconds until a beep sounds and the lock icon appears on the display. To deactivate, repeat the same step. This prevents accidental button presses during operation.

Can I put wooden or plastic items in the dishwasher?

Wooden items (cutting boards, bowls) may crack or warp; avoid them. Most plastic items labeled dishwasher safe can be placed on the top rack, away from the heating element. Check the manufacturer's instructions.

What does the E1 error code mean?

E1 indicates a water inlet issue. Check that the water tap is open, the inlet hose is not kinked, and the water pressure is sufficient. Also clean the inlet filter (located at the hose connection to the dishwasher). If persists, contact service.

How to load the dishwasher for best results?

Scrape off food residues, do not pre-rinse. Place plates and bowls facing downward, glasses and cups on top rack, cutlery in the tray with handles down. Ensure water spray arms can rotate freely. Avoid blocking the detergent dispenser.

Is it safe to use salt and rinse aid?

Yes, both are essential for optimal performance. Dishwasher salt regenerates the water softener, preventing limescale. Rinse aid improves drying and prevents spots. Use only products designed for dishwashers.

Where can I find spare parts for this model?

Gorenje guarantees spare parts availability for at least 10 years after purchase. Contact an authorized service center or visit the official Gorenje website. Common parts like racks, filters, and spray arms can be ordered online.

USER MANUAL GS63160SAU GORENJE

Operating Instructions

Dishwasher

GS63160AU

gorenje

1 Main power switch
2 Program selector
3 Heavy wash
4 Intensive wash
5 Eco wash
6 Quick wash
7 Rinse

8 SpeedWash
9 Extra dry
10 Half load
11 Delayed start
12 Display
13 Rinse aid indicator

2Safety instructions
3Before washing for the first time ....
3Loading the dishwasher
4Using the dishwasher ....
8Settings
9Care and cleaning

11Troubleshooting
14Installation
17Service
17Information for test institute ....
20Technical information

General

• Read the operating instructions and keep t in a safe place!
• Never use the dishwasher for any purpose than that specified in these operating instru
• Do not load the dishwasher door or dishw baskets with anything other than dishes.
• Never leave the dishwasher door open as someone may trip on it.

• Use only dishwasher detergent!

- This appliance is not intended for use by Winters storage/transport (including children) with reduced physical, sensoStore the dishwasher where the temperature remain ry or mental capabilities, or lack of experience above freezing. and knowledge, unless they have been given Avoid long transport distances in very cold weather supervision or instruction concerning use of the Transport the dishwasher upright or laying on its appliance by a person responsible for their safety.

- If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. The overflow protection starts pumping out the machine and turns off the water supply if the water level in washer exceeds the normal level. If the overflow process is triggered, turn off the water supply and call the

- Damaged mains cables must only be repladed department. by a qualified electrician.

- Only use the dishwasher in domestic household food packaging materials environments for dishwashing household dishes. Sort waste materials in accordance with local guideline. All other use is prohibited. Disposal

- Never place dishes with solvent residues in the dishwasher due to the risk of explosion. Nor may dishes that contain ash, wax or lubricants be washed in the dishwasher. When the dishwasher has reached the end of its life and is to be disposed of, it should immediately made unusable. Pull out the power cable and cut short as possible.

WARNING!

Knives and other pointed items must be with the points down in the cutlery bas zontally in other baskets.

WARNING!

Dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact skin and eyes and keep children away from the disher when the door is open. Seek medical attention washed.

Check that the detergent compartment is empty after completion of the wash cycle.

Winters storage/transport

Installation

See the chapter Installation.

Child safety

• Always start the dishwasher immediately after adding detergent.
- Keep children away from the dishwasher when the door is open. Some detergent may remain inside!
- Do not allow children to use or play with the dishwasher. Be especially vigilant when the door is open.

Checking water hardness

Contact the local water utility to check the water in your area. This is important with regard to how tergent and rinse aid to use.

Top up with rinse aid

By using rinse aid you will improve your drying will also achieve a better dishwashing result with and dishes.

1 Open the rinse aid compartment lid.
2 Carefully top up with rinse aid. Only add rinse level marked max.
3 Wipe up any splashes of rinse aid around the ment.
4 Close the lid firmly.

Refill rinse aid indicator

When the rinse aid needs topping up, the above lights on the display.

After topping up, it may take a while before the out.

Setting the rinse aid dosage

The chapter Settings describes how to set the rinse dosage. Rinse aid dispensing can be set from 0 (High dose). (Factory settings: 5)

Decrease the rinse aid dosage:

• If the dishes have a sticky white/blue film.
  • If the dishes are streaked.
  • Build-up of foam. If you have very soft water, aid can be diluted 50:50 with water.

For water with a hardness greater than 10–12 °dH ought to use rinse aid with citric acid (known as aid).

Economic dishwashing

hardDess not start the dishwasher until it is fully loaded, much save energy.

• Do not rinse dishes first under running water. Sir scrape off large food particles before loading them the dishwasher.
  Result You Choose an environment-friendly detergent. Read the Environmental declaration on the packaging!
• If the dishes are only slightly dirty, you can select program with a low temperature.
• You'll achieve better drying results if you open the a little once the program has ended. (If the dist is built-in, the surrounding furnishings must be res compart- to condensation.)

Fragile dishes

Some cookware is not dishwasher safe. This can be several reasons. Some materials cannot withstand stor heat, others can be damaged by dishwashing deterge

Please check your cookware is marked dishwasher sa

The dishwasher's baskets

The dishwasher is equipped with an upper basket and lower basket with a cutlery basket.

Upper basket

Place glasses, cups, bowls, side plates and saucers upper basket. All dirty surfaces should face inwards downwards! Place wine glasses on the wine glass sh knives in the knife stand on the right (if fitted).

acid rinse

Raising and lowering the upper basket

1 Pull out the upper basket. (The basket must be

2 Turn the basket catch outwards at the end of ners.
3 Grip the upper basket with both hands, pull it move the upper basket to its other position.
4 Turn the basket catch on either side in to lock in place.

Lower basket

Place plates, side plates, serving dishes, pots and (in the cutlery basket) in the lower basket.

Cutlery basket

Place cutlery with the handles facing down, except knives, and spread them out as much as possible. that spoons do not stack inside each other.

Place the cutlery basket in the lower basket.

NOTE!

Place the dishes in the machine so that the will run off them; this is especially important

Check that the spray arms can rotate freely.

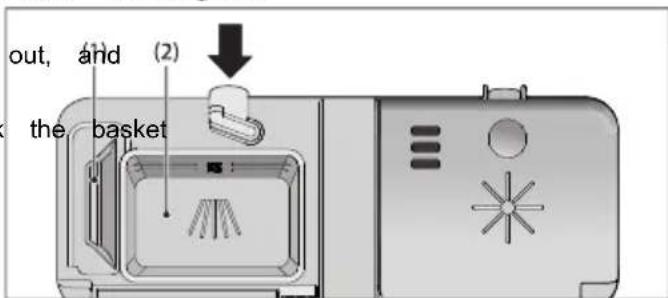

Add rudetergent

1 Prewash detergent compartment
2 Main wash detergent compartment

Detergent is added according to water hardness.

Follow the instructions on the detergent packaging.

Too much detergent can result in less effective dishv and also entails greater environmental impact.

Add the detergent to the detergent compartment. Then a compartment for the prewash and one for the ma If powder and liquid dishwasher detergents are used, a small amount of the detergent to the prewash com ment. Contact the detergent manufacturer if you have questions about the detergent.

NOTE!

Use only dishwasher detergent! Washing up liquid m not be used as the foam that forms prevents the c er from operating effectively.

Dishwasher tablets

Halve the tablet if it is difficult to close the dispen: There is a risk that the detergent will not be relea erly if the lid is tight and will not open correctly.

NOTE!

Dishwasher tablets are not recommended for short p ensure (less than 75 minutes). Use powder or liquid washer detergent instead.

3-in-1/All-in-one detergent

Read through the directions for these products careful anything is unclear, contact the detergent manufacturer rinse water

for plastic detergent tablets you use contain rinse aid, the washer's rinse aid dosing can be deactivated. See th chapter Settings.

The main power switch

Press and hold the main power switch until the disp up.

:≡ PROGRAMS - Choose program

Press the Program selector one or more times sired program symbol is lit up.

60° Heavy wash

An effective program for slightly dried leftovers. (This 2 pose the door and the dishwasher counts down gram is not intended for burnt food, such as on oven dishes) and starts after the selected delay.

70° Intensive wash

Program for very dirty dishes, such as pans, casserole

dishes and oven dishes. If these dishes do not fill the dishwasher, you can add plates and the

eco

55° Eco wash

Use when you want to save water and energy. soiled load, such as plates, serving dishes, cups, and so on.

35° Quick wash

This program is used for glasses and porcelain that slightly dirty, such as coffee cups. Not for normally dishes.

In combination with SpeedWash, a shorter program achieved (15 minutes).

*° Rinse

Used to rinse dishes while you wait for the dishw become fully loaded.

EXTRA - Selecting Options

To select an option, press one of the option buttons until

the option is showing as activated. The available options

vary between programs and some options cannot be bined (available options glow dimly).

SpeedWash

This option shortens the program time, but uses mg y and water.

Extra dry

A higher temperature in the final rinse improves the results if you activate this option. Energy consumption

slightly increased.

1|2 Half load

This option adapts the dishwashing program to a dishwasher, and uses less energy and water.

Delayed start

until when you select Delayed start the dishwasher will be 24 hours after you close the door.

1 Press the button once to activate Delayed start. the button several times - or hold it in - to s sired number of hours.

If you want to cancel the Delayed start option, open and press and hold the main power switch until the turns off.

Startely the dishwasher

kClose the door to start the dishwasher. If the main switch is on, the dishwasher will start automatically v the door is closed.

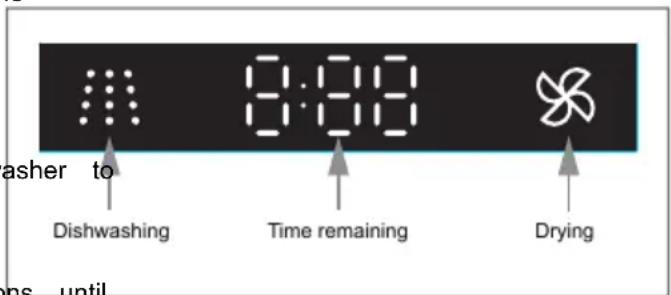

TIME - Time remaining

For nonnormally have chosen a program and options, the program took when last used is displayed.

Once you have started the dishwasher, the display is the remaining program time. The remaining time is up after the water for the final rinse has been heated.

This may differ somewhat from time to time depending on the temperature of the water supply, the amount of soiled the ambient temperature and other factors.

Front display

Stopping or changing a program

If you want to change program after starting the dis open the door, then press and hold the main power until the display turns off. Add more detergent if the the detergent dispenser has opened. Then press the more energy switch, choose a new program, and close the

Do you want to add more dishes?

Open the door. The dishwasher stops automatically. A the dishes and close the door. After a while, the c

How to get the best drying results

• Fully load the dishwasher.

- Place the dishes in the machine so that the rins half-full will run off them; this is especially important for

- Top up with rinse aid or increase the rinse aid level.

• Activate the Extra dry option.
• Open the door a little once the program has finished.
• Allow the dishes to cool before unloading the dishwasher.

Once the program has finished

Once the program has finished, "End" appears on the display.

The dishwasher switches off automatically after the program ends. Turn off the water tap after each use.

Drying

For additional drying the door should be opened 35 mm upon completion of the drying cycle. For more information, see page 20 in the chapter Technical information.

If the dishwasher is switched off using the main power switch or during a power outage

If the dishwashing program was not finished, the interrupted program continues when power is restored.

NOTE!

During drying, the program is interrupted if the power is cut or the door is open for more than 2 minutes.

Program chart

PROGRAMS- Program	Detergent, compartment 1 / (ml)	Options		Main wash	PrewashesEXTRinses	Anal rinse	Number of consumption values1)
							Dishwashing time (approx. hrs:min)	Energy (approx. kWh)	Water cons. (L)
									161.21:4565
									171.73:3570
Eco wash2)									13.90.742:2062
									100.20:2025
				Rinse		--- / ---			40.010:07---

1) Consumption values vary depending on the temperature of the incoming water, room temperature, load size, selected additional functions and more.
2) The energy label performance figures are based on this program which is recommended for normally soiled load (no options).

Open the Settings menu:

1. First, open the door. Turn off the machine. Press and hold the main power switch until up.

2. Within 10 seconds:

3. press the Program selector and the option button for SpeedWash. The display shows the Settings menu (current setting and its currently set value).3. (Exit the menu by browsing through the menu or pressing the main power switch.)

Navigate the Settings menu:

You can now adjust the following settings:

		OptionsSettings
			Rinse aid dosage setting.1:00 - 1:05Rinse aid1.Increase the rinse aid dosage:If the dishes have water marks.Decrease the rinse aid dosage:If the dishes have a sticky white/blue film.If the dishes are streaked.Build-up of foam. If you have very soft water, rinse aid can be diluted 50:50 with water.

Coarse filter

The coarse filter traps larger food particles, which can get past the drainage pump. Empty the coarse filter necessary.

3 In order to inspect the drainage pump, remove th

canned stop on the right in the bottom drain. By inserting your finger into the hole you can to pump blade to release anything blocking it.

5 Replace the drainage pump stop along with the 1 coarse filters.

6 Plug the machine in again.

If the dishwasher still does not start and a whirri is heard, the overflow protection has been activate

• Shut off the water.
• Remove the plug from the wall socket.
• Call the service department.

1 Lift the coarse filter by the handle.
2 Empty the coarse filter. Remember to replace it!

Fine filter

Debris that collects on the fine filter is automatically away during each wash. However, the fine filter and section should be cleaned a couple of times a yea

NOTE!

Do not forget to replace the drainage pump stop.

1 Turn the handle anticlockwise.
2 Lift the filter straight up using the handle. Free the coarse filter to clean the fine filter.
3 Replace in reverse order. Check that the edges seal properly when replacing the fine filter.
4 Lock the filter in place by turning the handle clockwise to the stop position. The handle should point straight out from the dishwasher.

NOTE!

The dishwasher must not be used without the filter in place!

Diswashing efficiency can be affected if the course filter is incorrectly fitted. After cleaning ensure that filter handle is fully locked with the handle pointing out of the dishwasher.

Drainage pump

The pump can be accessed from inside the dishwasher.

1 Switch the power off from the mains and remove the plug from the electrical point.
2 Remove the coarse filter and the fine filter.

Spray arms

Holes and bearings can sometimes become blocked. move any debris using a pin or something similar. arms also have holes on their undersides.

To facilitate cleaning, you can remove the spray member to fit them firmly back into place after

Lower spray arm

• Pull the lower spray arm straight up to release

Upper spray arm

1 Pull out the upper basket.

2 Unscrew the spray arm bearings counterclockwise t

Re remove the spray arm from the upper basket.

The spray

Door

When cleaning the edge around the door, use only slightly damp cloth (with a little cleaner if necessary) cleaning.

Limescale deposits

The dishwasher tub is made of stainless steel and clean through normal use. If the water is hard in ytion, limescale deposits may build up in the dishwash this happens, run the Intensive wash program with tblespoons of citric acid in the detergent compartment no dishes in the machine).

Front panel

Keep the buttons clean and free from grease. Wipe clean with a dry or slightly damp cloth. Never use – they can scratch the surface. Use the main power to turn off the dishwasher before cleaning the button avoid activating any buttons unintentionally.

		ActionType of fault on the display
	OverfillingF10	Clear the drainage pump. See the chapter Care and cleaning. If persists, call the service department.
	Water outlet faultF11	See “Water remains in the dishwasher” in the table “Problem” bel persists, call the service department.
	Water inlet faultF12	Check whether dishwasher inlet hose is connected to a pressure (some pressure limiting valves may restrict the supply of water to Check that the water tap is on. Check that the outer filter on blocked. If the problem persists, call the service department.
		Turn off the water tap and call the service department.Inlet valve
	Water level faultF52	Check that the outer filter on the inlet hose is not blocked. Als drainage hose is fitted in accordance with the installation instructio problem persists, call the service department.
		Turn off the water tap and call the service department.OverfillingF
		Call the service department.Circulation pump faultF56

Press any button to clear the error message.

		ActionPossible causesProblem
The buttons do not react when	pressed.after opening the door.	Wait a moment then try again.You ha
	The buttons are dirty.	Clean with a dry or slightly damp cl
	The door is closed.	Open the door. The buttons only reac to use when the door is open.
Cannot close door.	The baskets are not correctly post	Check that the baskets are correctly 1 sitioned horizontally.
		Check that the dishes are not blockin the baskets from sliding properly into place.
	The dishwasher does	Check Start door is not properly closed.
	You have opened the dishwasher more dishes while a program is progress.	Closead the door and wait. After a wh line dishwasher continues the program.
		Check.A fuse/circuit breaker has been
	socket.	Check.The plug is not plugged into th
		Check.The water tap is turned off.
		Check.Overflow/leaks
	A whirring sound (the drainage port) is heard from the dishwasher and does all the service department. not stop when the main power switch is not been selected.	Tomp) off the water tap. Pull out the press and hold the main power switch until the display turns off if you want cancel the Delayed start option. Restar the dishwasher.Remove the arms and clean them.The blockin the spray arms.
		Check that the dishes are not available in the spray arms.
	product.	Avoid large packages.Old detergent.De
	Incorrect detergent dosage.	Dose according to water hardness.Fa too much or far too little detergent re in poorer dishwashing results.
		Select a more powerful program.Dishwa
	Dishes loaded incorrectly.	Do not cover porcelain with large bov or the like.Avoid placing very tall gl es in the corners of the baskets.
	during the program.	Place dishes to sit steady.Glasses and
	The filter is not correctly fitted.	Screw the filter firmly into place.See chapter Care and cleaning.
Spots on stainless steel or silver	Some foodstuffs, such as mustard mayonnaise, lemon, vinegar, salt dressings, can mark stainless steel for too long.	Rinse off these types of foodstuffs if starting the dishwasher immediately. Use the Rinse program.
	All stainless steel can cause spot silver if they come into contact dishwashing.Aluminium can also spots on dishes.	Silver and stainless steel items should datingome into contact during dishwash- agseas they may tarnish.
		See the chapter Settings.Incorrect rinse
	Too high temperature and/or too detergent can cause etching on Unfortunately,this cannot be repa only prevented.	Wash crystal at a low temperature ar nystala conservative amount of detergen contact the detergent manufacturer.
	Rinse aid dosage setting too high	Recedishes a prevent.a Stickythewhedlors Before washing for the first time and Settings.If you have very soft water, may want to dilute the rinse aid 50:5 with water.
Spots left after washing.	Lipstick and tea can be off.	Useificant detergery with a bleaching age
Rattling sound when dishwashing.	The dishes are not correctly placed the spray arms are not rotating.	Scheor that the dishes are placed secu ly.Spin the spray arms to make sur they can rotate.
1 minute appears in the display.	The program is taking longer than mated.Blocked drainage hose.Water remain	Noresti-next time the program is corrected time will be displayed.hoosien the dishwager.hose where it conects to the sink unit's water trap. C that no debris has fastened. Is the c shaped part of the pipe cut to an i diameter of at least 14 mm?
	Kink in drainage hose.	Check that the hose is free from kin and sharp bends.
		Clean the coarse and fine filters.The
	The filter is not locked in complete	Esture filter is completely locked with handle pointing towards the door.
	Debris in the drainage pump.	Clean the drainage pump. See the chapter Care and cleaning.
	Dirt around the seals and in co	ClearBwithout washing-up dishwasher.and low foaming cleaner.
	Low temperature programs have selected for a prolonged period.	been a program with a higher tempera ture about once a month.
		Activate the Extra dry option.Drying res
		Fully load the dishwasher.The dishwash
	Rinse aid needs topping up or is set too low.	Toupagep with rinse aid or increase the rinse aid dosage. See the sections B fore washing for the first time and S tings.
		Open the door a little once the prog has finished.

[mm]

Safety instructions

• Connections to electricity, water and drainage performed by a qualified professional.
• Always follow applicable regulations for water, and electricity.
  • Take care during installation! Wear protective gloves! There must always be two people!
• Before screwing the dishwasher into place, test the dishwasher by running the Rinse program. Check that the dishwasher fills with water and drains. Check also that none of the connections leak.

WARNING!

Turn off the water supply when installing the

Transport protection for the door

must do not forget to remove the transport protection for when unpacking the dishwasher.

dishwasher!

WARNING!

The plug must be disconnected or power to turned off while the work is carried out!

the socket

Placing the dishwasher

The dishwasher is intended for freestanding installation, can also be installed under a worktop.

Adjust the height and slide the dishwasher into place

6 Make any final adjustments to the front feet (the washer may not lean more than 5 mm).
7 Once the feet are properly adjusted, adjust the a feet to sit firmly against the floor.

The dishwasher can also be installed in a recess w its worktop. See Remove dishwasher worktop.

Freestanding

1 Make sure the surface on which the dishwasher installed is firm. Adjust the dishwasher's height up four feet so that the dishwasher is level. The d may not lean more than 5 mm.
2 Once the feet are properly adjusted, adjust the feet to sit firmly against the floor.

is to be drainage connection using its dishwasher

Built-in

1 Start by measuring the height from the floor to tom edge of the worktop.
2 Measure the height from the floor to the top edge of the dishwasher.
3 Adjust the dishwasher's feet by turning them clockwise to raise or anticlockwise to lower the machine.
4 Check that there is an air gap of at least 3 the underside of the worktop and the top edge dishwasher.

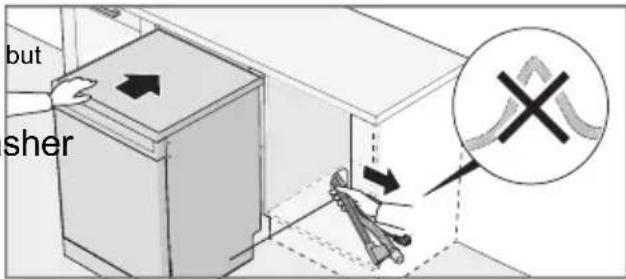

5 Slide the dishwasher into place.

• Pull through the drainage and supply hoses the machine is slid into place.
• Check that the hoses have no kinks or sharp bends,

and check that there is nothing that can o hoses.

The drainage hose may be extended by a maximum (the total length of the drainage hose must not exceed m). Any joins and connecting pipes must have an i diameter of at least 14 mm. However, the drainage should ideally be replaced with a new hose without

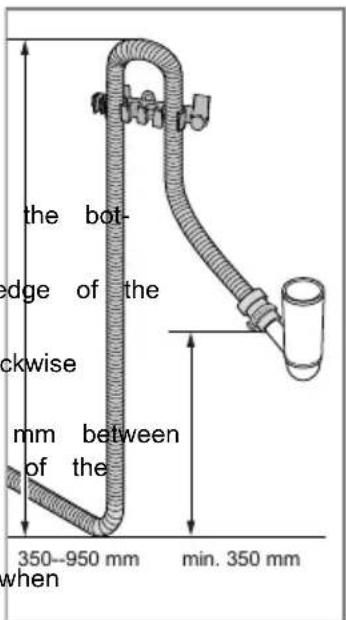

No part of the drainage hose may be more than 9 above the bottom of the dishwasher. The hose must routed directly to a floor drain or the like. In such hose can act as a siphon and empty the dishwash

The hose must always discharge at least 350 mm Tabovelectric wall socket must be placed outside of the bottom of the machine. lation area to be easily accessible after installing the

Ensure that the drainage hose has no kinks.

NOTE!

When the drainage hose is routed to a conn on the sink unit's water trap (see Illustration note that the hose must be attached at the as the underside of the sink unit. Otherwise from the sink may flow back into the dishwa other connection alternatives, see Illustrations 2

NOTE!

Repairs and maintenance must be carried out by a field professional.

ection 1),

e height

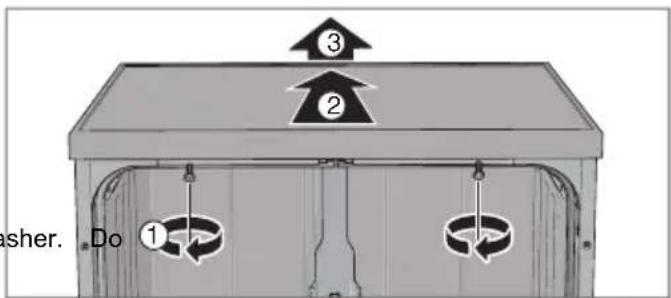

Water Remove dishwasher worktop

The dishwasher can be installed in a recess without worktop. If the dishwasher's worktop is removed, the washer must be installed so that it is enclosed on and is under a separate worktop. If the dishwasher stalled so that one of its sides is visible, a brace fitted to the rear edge of the dishwasher. Accessorie be purchased where you purchased your dishwasher.

Connection to water supply

Use only the supply hose provided with the dishwasher. not re-use old hoses or other spare supply hoses.

The supply pipe must be fitted with a stopcock. The stopcock

must be easily accessible, so that the water can if the dishwasher has to be moved.

Once the installation is complete, the stopcock shou opened to allow the pressure to settle for a while check that all connections are tight.

Connect to cold water...

If you use oil or electricity to heat your home.

Connect to hot water (max. 70 °C)...

If you use district heating, solar power or geothermal for process installation, see the section Placing the dis to heat your home. Choosing a hot water connection cuts program times and reduces the dishwasher's electricity consumption.

NOTE!

Connecting a dishwasher to the water supply types of pressure limiting valves may restrict supply!

via certain the water

This may cause F12 error code/ Water inlet displayed.

fault to be

Electrical connection

Information about the electrical connection can be found on the compliance plate. This specification must match the electricity supply.

The dishwasher must be connected to an earthed wall socket.

Read the chapter Troubleshooting before contacting service department. Provide the details on the co plate in all contact. Include the item number (1)rial number (2).

Request test institute information via e-mail the [e-mail].

and the request should include the details on the productial number plate. Include the article number (1) and serial number (2).

Information on energy labelling

Energy labelling

AS/NZS 2007 Australian standard:

14Number of place settings:

Eco wash ¹⁾ , no optionsDishwashing programs:

2:20 hours:minutesProgram time:

Cold water 20 °CConnection:

IEC 60704-2-3Test method for noise measurement:

1) This dishwashing program is the standard cleaning cycle used to compile the energy labelling information. It is intended for washing normally dirty dishes and is the most effective program in terms of combined energy and water consumption.

Technical data

848-898 mmHeight:

600 mmWidth:

596 mmDepth:

Capacity: 14 Place settings

0.03–1.0 MPaWater pressure:

Electrical connection: compliance plate

Rated power: See compliance plate

1) In accordance with standard, AS/NZS 2007.
