USER MANUAL SR 10-23 INTEC METABO

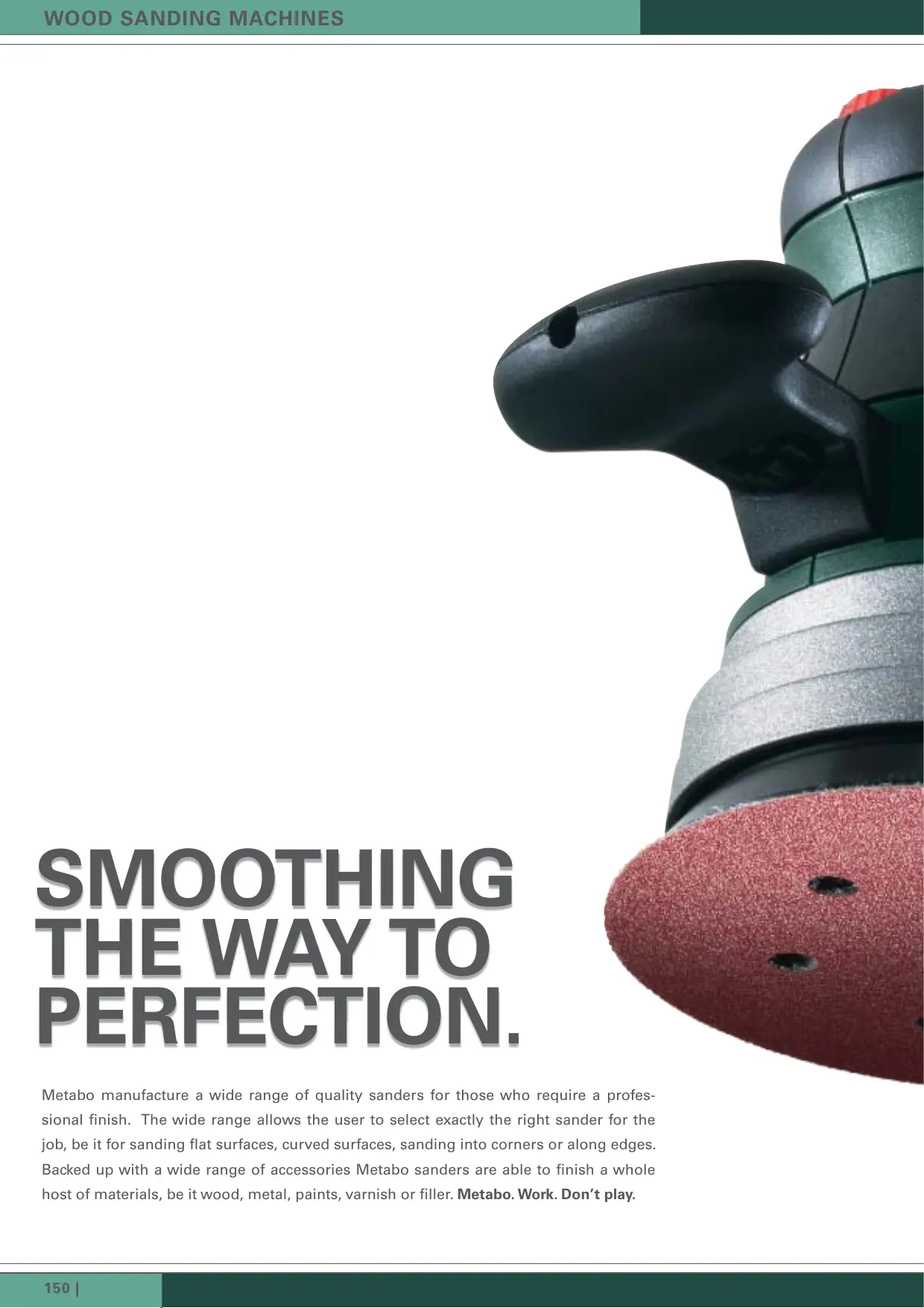

SMOOTHING THE WAY TO PERFECIATION.

Metabo manufacture a wide range of quality sanders for those who require a professional finish. The wide range allows the user to select exactly the right sander for the job, be it for sanding flat surfaces, curved surfaces, sanding into corners or along edges. Backed up with a wide range of accessories Metabo sanders are able to finish a whole host of materials, be it wood, metal, paints, varnish or filler. Metabo. Work. Don't play.

The Metabo range of sanders are considered amongst the best in the industry. Copied by many and perfected by none the Metabo sanding range gives you a choice of machines built to the demands of the profes

sional. Be it for fine finishing, detail finishing, high stock removal or surface preparation Metabo has the sander and accessory to perfect the job in hand time and time again.

Metabo power control system

A built-in backing pad brake limits scratches when placing the tool on the material. This means that no manual post-processing is needed. This makes the disc sander particularly suitable for sanding very thin materials and sensitive surfaces.

Unique Duo oscillating circuit setting

Two adjustment options provide 100% finer surfaces with the small oscillating circuit diameter and 70% more material removal with the large one.

DSE 300 Intec - the first triangular base-plate

sander with integrated dust extraction unit No obstructive suction hose; the dust is collected in the integrated dust container.

Which sanding machine for which application?

Application	Type and output	Page
Delta sander with comfortable one-hand operation and dust extraction unit.	FMS 200 Intec	154
Low weight with good material removal.	200 W
Suitable for sanding at places difficult to reach such as corners, edges, intermediate spaces.
Disc sander with comfortable one-hand operation and dust extraction unit.	DSE 300 Intec	154
Grinding at places difficult to reach such as corners, profiles, edges, intermediate spaces.	300 W
Suitable for grinding heat-sensitive materials and surfaces.
Removal of carpet or tile adhesive (with scraper, accessory).
Particularly suitable for sanding inner and outer curves.	SX E 400	156
Small backing pad diameter and low housing shape	220 W
Suitable for sanding heat-sensitive materials and surfaces.
Disc sander with comfortable one-hand operation and dust extraction unit.	FSX 200 Intec	156
Low weight with good material removal.	200 W
Suitable for sanding wood, plastic and metal on even and slightly curved surfaces.
Large material removal and finest sanding on even and curved surfaces.	SXE 325 Intec	157
Suitable for sanding wood, plastic and metal on even and slightly curved surfaces.	250 W
Intec dust extraction unit.
Substantial material removal and finest grinding finish on even and domed surfaces.	SXE 425 TurboTec	157
Suitable for sanding heat-sensitive materials and surfaces.	320 W
Grinding of very thin materials (e.g. veneers).

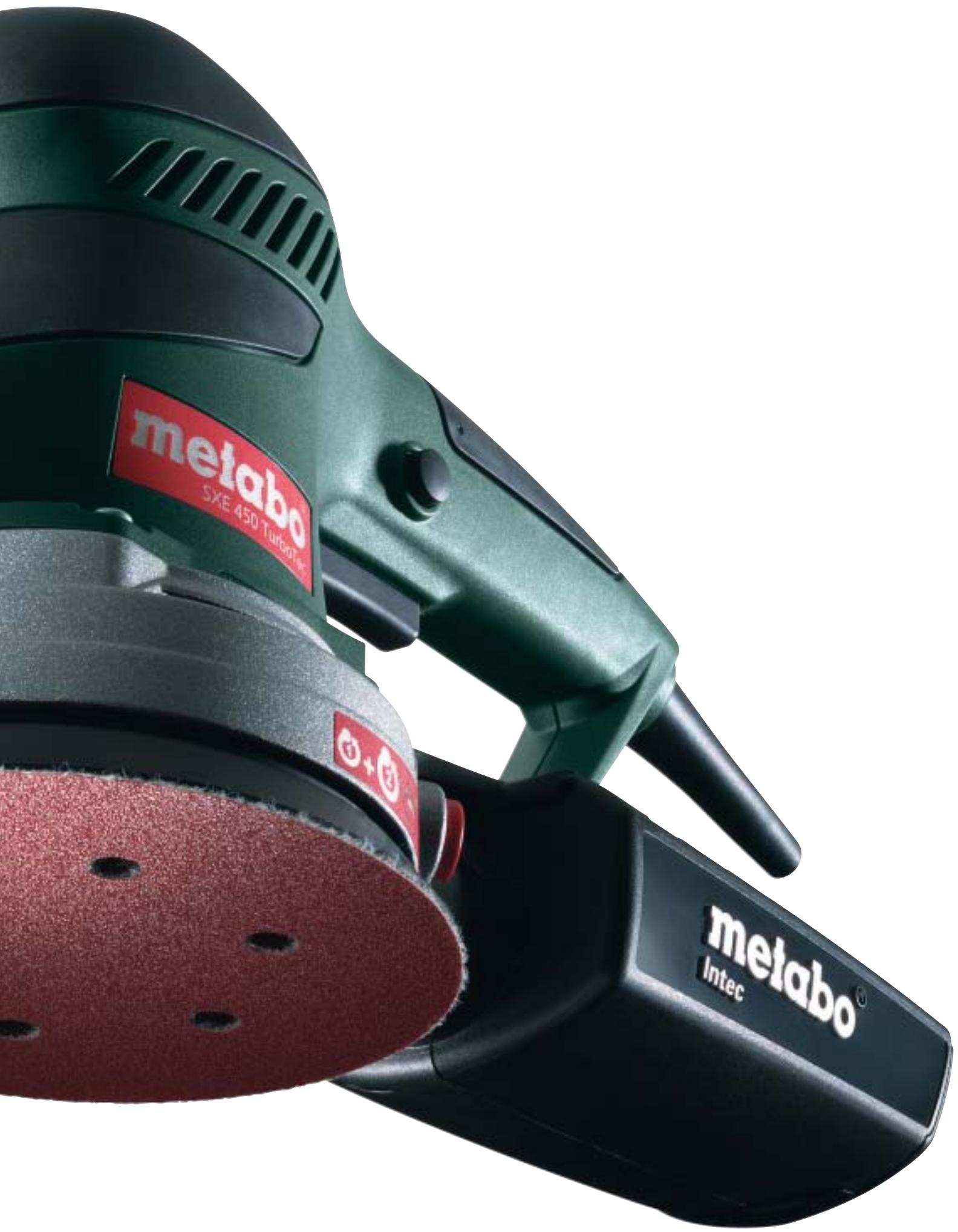

Universal applications due to Duo-oscillating circuit setting.	SXE 450 TurboTec	159
Large material removal and finest grinding on even and curved surfaces.	350 W
Suitable for sanding heat-sensitive materials and surfaces.
Grinding of very thin materials (e.g. veneers).
Sander with comfortable one-hand operation and dust extraction unit.	FSR 200 Intec	160
Low weight with good material removal.	200 W
Suitable for sanding wood, plastic and metal on even and slightly curved surfaces.

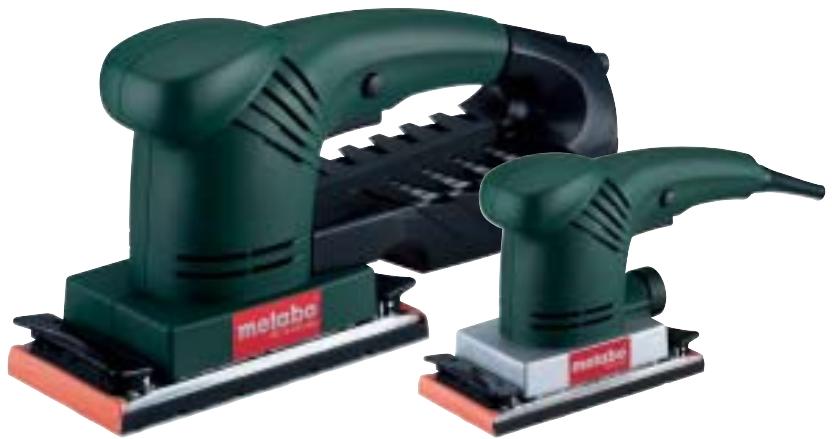

Robust sander, designed for commercial use.	SR 10-23 Intec	160
Sanding of wood, plastic, metal, stone on even or slightly curved surfaces.	200 W
With integrated dust extraction unit for dust-free work without suction hose.
Sanding of wood, plastic, metal, stone on even or slightly curved surfaces.	SR 20-23	160
Excellent weight-output ratio for hard and long hours of working, as well as working overhead.	210 W

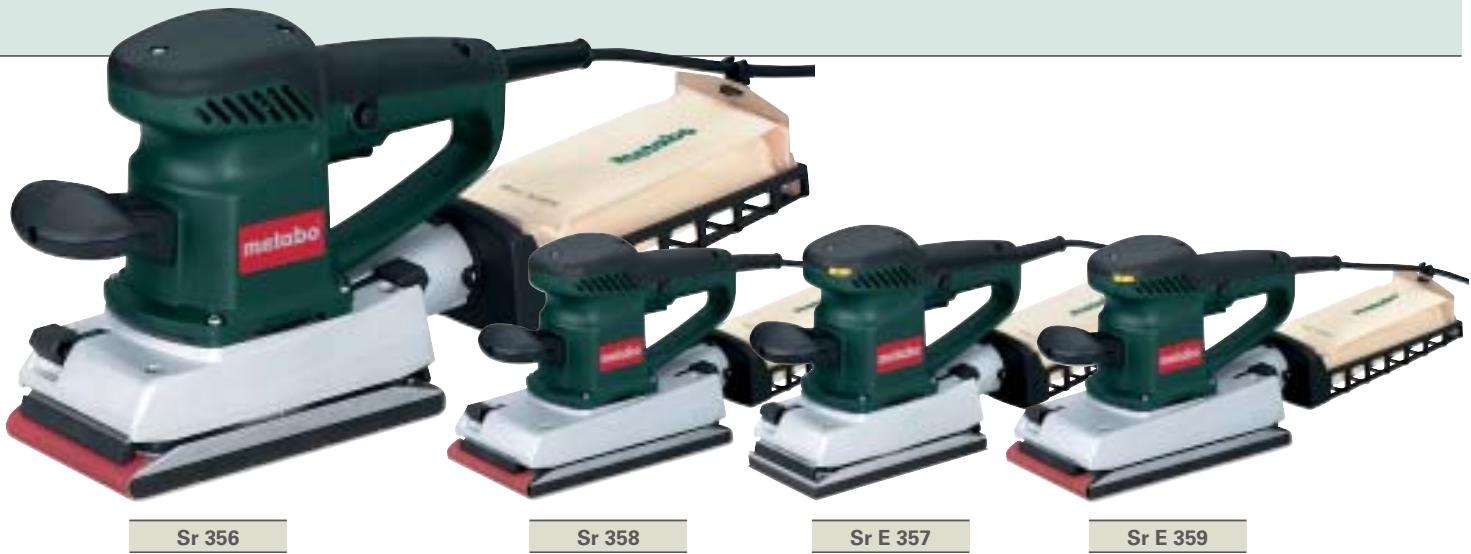

Fine sanding results when sanding wood, plastic, metal and stone.	Sr 356	161
Sanding on even or slightly curved surfaces.	350 W
Clean work with integrated sanding dust extraction.
Like SR 356, however with large sanding disc for quicker material removal.	Sr 358	161
	350 W
Fine sanding results when sanding wood, plastic, metal and stone.	Sr E 357	161
Sanding on even or slightly curved surfaces.	350 W
Suitable for sanding heat-sensitive materials and surfaces.
Clean work with integrated sanding dust extraction.
Like SR E 357, however with large sanding disc for quicker material removal.	Sr E 359	161
	350 W

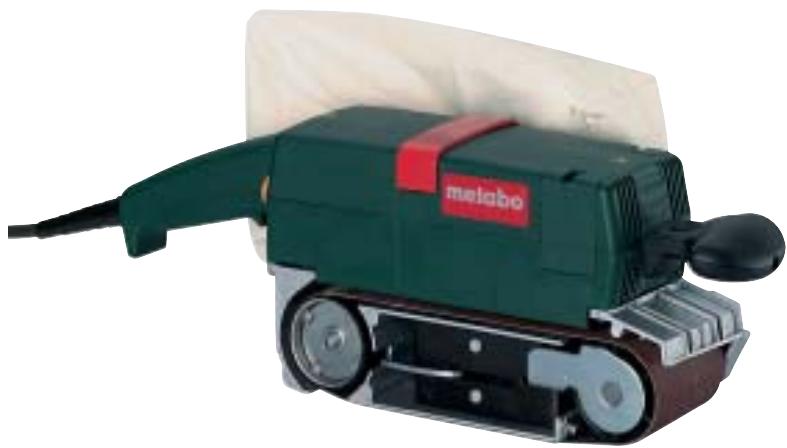

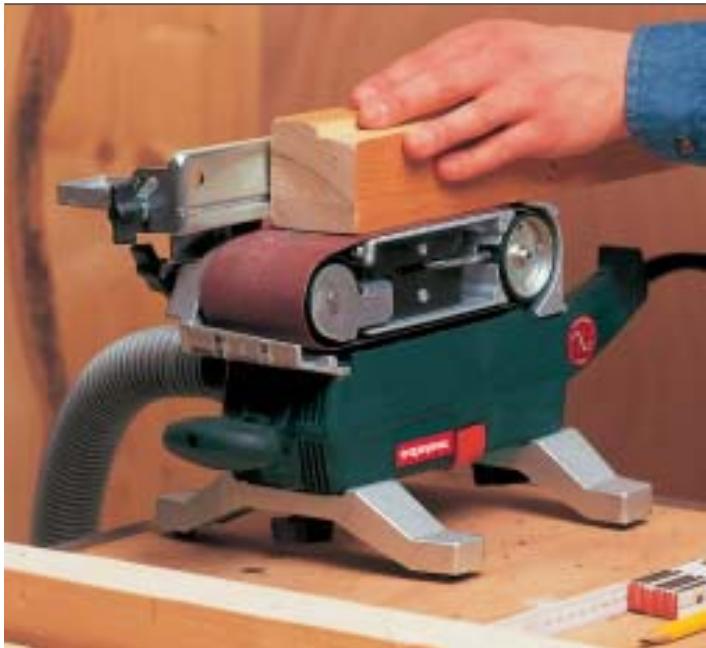

For sanding large, even areas.	Ba E 1075	163
For sanding notches and for working close to edges.	1.000 W
Suitable for sanding heat-sensitive materials and surfaces.
Can also be used as fixed tool.

EQUIPMENT FEATURES

Triangular base plate for sanding edges, corners and surfaces
Light and handy machine for convenient one-hand operation
Very good weight-performance ratio
Vibration-damping, non-slip rubber coated handle
Dust-proof ball bearing
- Velcro-faced base plate
- Dust extraction unit with Intec filter system, with washable filter cartridge

EQUIPMENT FEATURES

Universal use for sanding wood, plastics, metals and stone
- Also suitable for louvre sanding and for sanding varnished surfaces
- Robust gear design for severe applications
Spindle with dustproof triple ball bearing design
- Base plate holder and base body in sturdy aluminum
High stock removal
- Variospeed (V) electronics
- Thumbwheel for preselection of orbital frequency
PU-foamed base plate enables flexible adjustment to the workpiece surface
- Velcro-faced base-plate
High extraction output
Dust extraction unit
Ideal handling by slim handle and handy recessed grips
Low housing
Rotatable base plate without tools (360^)
External dust extraction outlet

FMS 200 Intec

DSE 300 Intec

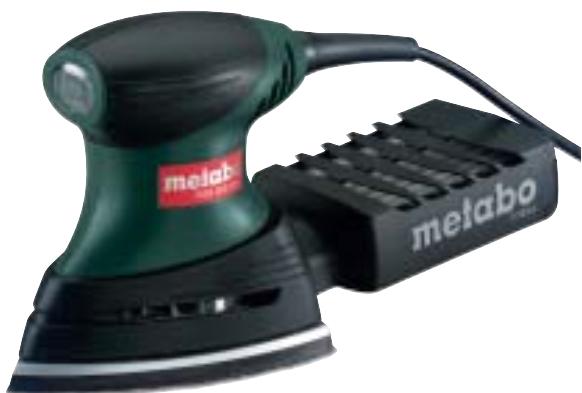

	200 Watt Multisander FMS 200 Intec
Comparative device characteristics
Base plate	100 x 147 mm
Orbital frequency at no-load	26.000 /min
Rated input power	200 W
Output power	80 W
Orbital frequency at rated load	22.000 /min
Oscillating circuit	1,4 mm
Weight (without mains cable)	1,25 kg
Standard equipment	3 cling-fit sanding sheets (perforated), dust collector cartridge, 1 pleated filter, carry case
	FMS 200 Intec 6.00065
Type Order no.

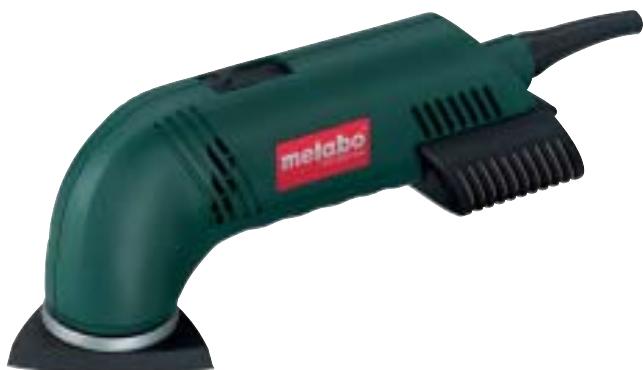

	300 Watt Electronic Triangular Base-Plate Sander DSE 300 Intec
Comparative device characteristics
Base plate size (corner to corner)	93 mm
Orbital frequency at no-load	14.000 - 22.000 /min
Orbital frequency at rated load	18.000 /min
Rated input power	300 W
Oscillating circuit	1,8 mm
Weight (without mains cable)	1,3 kg

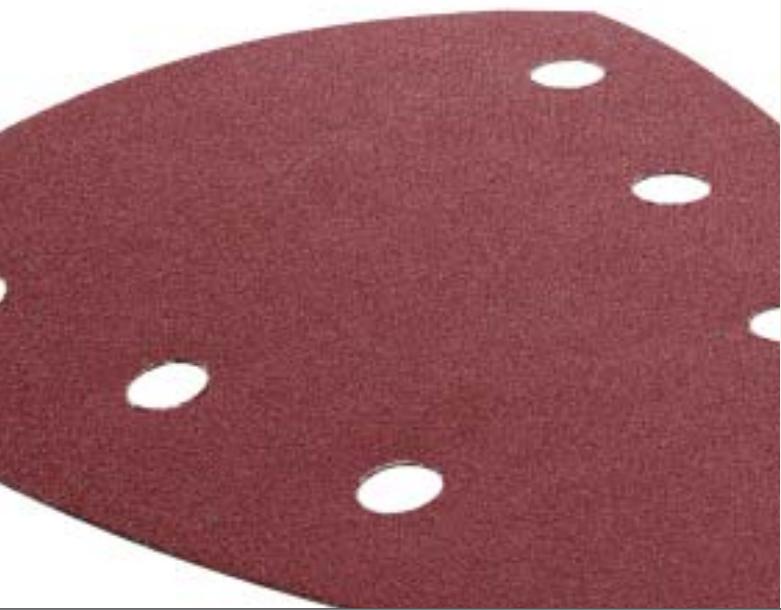

Standard equipment	3 perforated sanding sheets (P 60, P 100, P 240), carry case
Type	DSE 300 Intec
Order no.	6.00311

FOR THE FMS 200 INTEC

Velcro-faced base-plates
	Order no.
Sanding plate, perforated Sanding plate for FSR 200 Intec (as spare) Dimensions: 147 x 100 mm	6.25600

Dust collection box
	Order no.
Dust collector cartridge	6.25601
Dust collector cartridge including dust filter 6.25602
Pleated filter	6.25602
Pleated filter, polyester, for dust collector cartridge (6.25601)
Connector	6.26996
Connector Ø 35 mm for connecting to a normal vacuum cleaner

FOR FOR DSE 300 INTEC

Velcro-faced base-plates
	Order no.

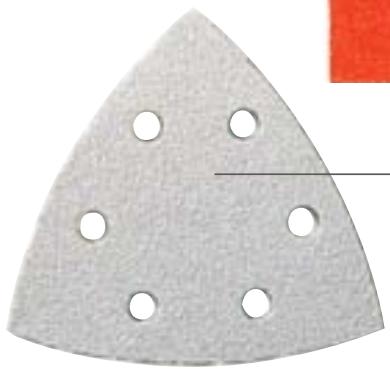

	Perforated velcro-faced base-plate For the triangular base-plate sanders DSE 300 and DSE 300 Intec (as spare) Dimension from corner to corner: 90 mm
	special louvre base-plate Velcro-faced at the bottom side. The self-adhesive velcro-faced liner supplied can be fitted to the top of this base-plate so that cling-fit sanding sheets can be fitted for top and bottom sanding of louvres.
	Self-adhesive liner Self-adhesive velcro-faced liner (as spare for special louvre base-plate 6.24971)
	Cling-fit abrasive nylon web, corundum abrasive
	Grit: P 100 Grit: P 280
	Cling-fit cleaning nylon web
	Cling-fit polishing felt Hard

Scraper blade ■ For easy removal of old paint, glue, and other residues
	Blade width mm	Order no.
	30	6.31662
	50	6.31663
	70	6.31664
	50 Carbide-tipped	6.31661
		Order no.
	Spatula Made of spring sheet-steel Blade width: 60 mm	6.31659

Dust extraction accessories
	Order no.
Dust collector cartridge ■ For dust extraction unit with DSE 300 Intec	6.24993
10 dust filters For the dust collector cartridge 6.24993 of the DSE 300 Intec	6.24995
Extraction nozzle ■ For external extraction for DSE 300/ DSE 300 Intec	6.24994
Suction hose ■ Connector with internal Ø 30 mm and connector with outer Ø 35 mm Hose length: 5 m Suction hose Ø: 19 mm	6.31592
Adapter ■ For connecting the suction hose with connector Ø 35 mm to an extraction nozzle Ø 30 mm	6.24996
Connector ■ For connecting suction hose 6.31592 (Ø 30/35 mm connection) to a household vacuum cleaner	6.31593

Other accessories
	Order no.
Carry case	6.25447

EQUIPMENT FEATURES

Very suitable for sanding inner and outer curves
Light and handy machine for convenient one-hand operation
Rotating and additional oscillating movement of backing pad for optimum finish
Variospeed (V) electronics
- Thumbwheel for preselection of speed
- Limit scratches while placing the running machine on the material (Power Control System)
Clean sanding result in narrow rails
Excellent result even for polishing smaller surfaces
Low housing
Especially quiet through electro dynamic fine balancing
Optimum power transmission through reduced crown wheel gear
- Long service life through spindle with dustproof triple ball bearing design
Velcro-faced backing pad
External dust extraction outlet

EQUIPMENT FEATURES

Multi-purpose machine for sanding even and cambered surfaces, wood, plastics, non-ferrous metals, sheet steel
Light and handy machine for convenient one-hand operation
Very good weight-performance ratio
Dust-proof ball bearing
- Velcro-faced backing pad
Vibration-damping, non-slip rubber coated handle
- Dust extraction unit with Intec filter system, with washable filter cartridge

SX E 400

FSX 200 Intec

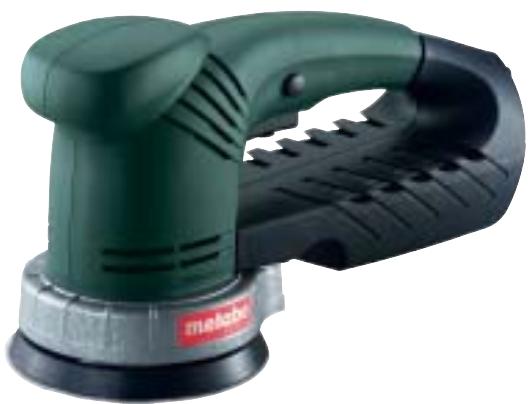

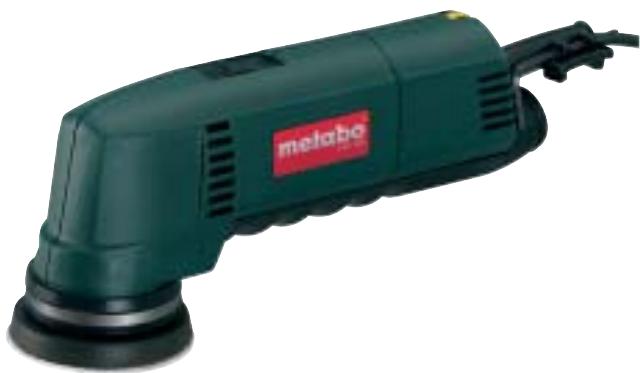

	220 Watt Electronic Disc Sander SX E 400
Comparative device characteristics
Diameter of backing pad	80 mm
No load speed	5.000 - 10.000 /min
Rated input power	220 W
Output power	100 W
Rated load speed	6.000 /min
Oscillating circuit	3 mm
Weight (without mains cable)	1,2 kg
Standard equipment	5 perforated cling-fit sanding sheets, cling-fit intermediate disc, allen key
	SX E 400 6.00405
Type Order no.

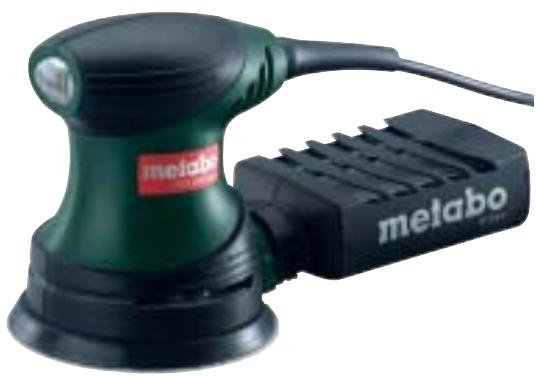

	240 Watt Palm Grip Random Orbital Sander FSX 200 Intec
Comparative device characteristics
Diameter of backing pad	125 mm
No load speed	11.000 /min
Rated input power	240 W
Output power	90 W
Rated load speed	9.500 /min
Oscillating circuit	2,7 mm
Weight (without mains cable)	1,3 kg
Standard equipment	3 perforated cling-fit sanding sheets, dust collector cartridge, 1 pleated filter, carry case
Type	FSX 200 Intec
Order no.	6.09225

EQUIPMENT FEATURES

Multi-purpose machine for sanding even and cambered surfaces, wood, plastics, non-ferrous metals, sheet steel
- Variospeed (V) electronics
- Thumbwheel for preselection of speed
- Limit scratches while placing the running machine on the material (Power Control System)
Dust-proof ball bearing
- Velcro-faced backing pad
Dust extraction unit with Intec filter system, with washable filter cartridge

EQUIPMENT FEATURES

TurboBoost switch: allows additional power reserves to be employed for achieving maximum removal
- Multi-purpose machine for sanding eve and cambered surfaces, wood, plastics, non-ferrous metals, sheet steel
Rotating and additional oscillating movement of backing pad for optimum finish
- Variospeed (V) electronics
- Thumbwheel for preselection of speed
- Limit scratches while placing the running machine on the material (Power Control System)
Removable front handle
Dust-proof ball bearing
Sturdy aluminum die cast bearing housing
- Velcro-faced backing pad
Vibration damping, non-slip rubber support on the machine housing and the handle
Dust extraction unit with Intec filter system, with washable filter cartridge
External dust extraction outlet

SXE 325 Intec

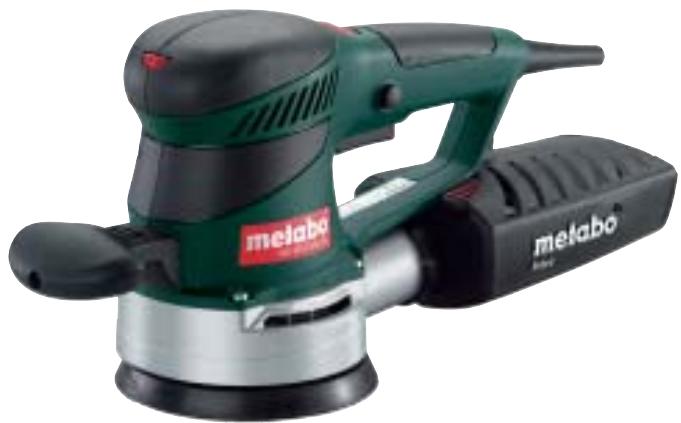

SXE 425 TurboTec

NEW

	250-Watt Electronic Disc Sander SXE 325 Intec
Comparative device characteristics
Diameter of backing pad	125 mm
No load speed	5.000 - 11.000 /min
Rated input power	250 W
Output power	100 W
Rated load speed	7.500 /min
Oscillating circuit	5 mm
Weight (without mains cable)	1,7 kg
Standard equipment	3 perforated cling-fit sanding sheets, allen key, dust collector cartridge, 1 pleated filter, carry case
	SXE 325 Intec 6.00325
Type
Order no.

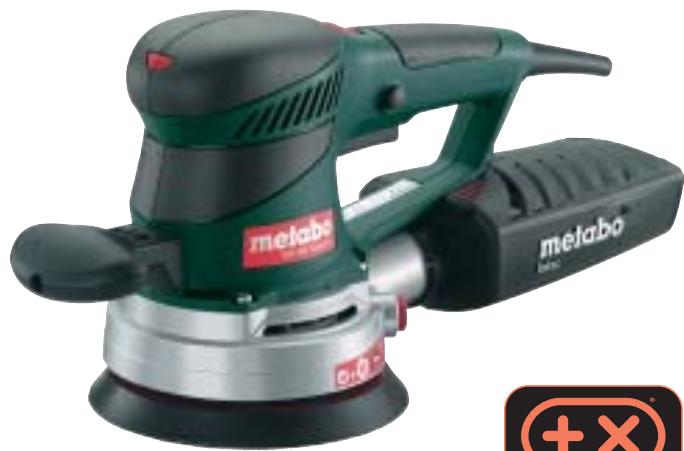

	320 Watt Electronic Disc Sander SXE 425 TurboTec
Comparative device characteristics
Diameter of backing pad	125 mm
No load speed	12600 /min
Rated input power	320 W
Output power	160 W
Rated load speed	9.000 /min
Oscillating circuit	5 mm
Weight (without mains cable)	2 kg
Standard equipment	Velcro-faced backing pad, 3 perforated cling-fit sanding sheets, allen key, removable side handle, dust collector cartridge, 1 pleated filter
Type Order no.	SXE 425 TurboTec 6.00131■

FOR SX E 400
FOR FSX 200 INTEC, SXE 325 INTEC AND

		Order no.
	Velcro-faced backing pad	6.24064
	Diameter: 80 mm
	Hardness: Medium-hard
	Version: Perforated
	Backing pad, for self-adhesive sanding discs	6.24062
	Diameter: 80 mm
	Hardness: Medium
	Version: Perforated
	Velcro-faced intermediate disc	6.24061
	For sanding curved surfaces
	Diameter: 80 mm
	Hardness: Soft
	Version: Perforated
	Cling-fit polishing sponge	6.24092
	Diameter: 80 mm
	Thickness: 20 mm
	Packing unit: 1
	Cling-fit lambswool polishing disc	6.24063
	Diameter: 85 mm
	Packing unit: 1
	Cling-fit abrasive nylon web	6.24067
	Diameter: 80 mm
	Grit: P 100
	Packing unit: 2
	Cling-fit abrasive nylon web	6.24068
	Diameter: 80 mm
	Grit: P 280
	Packing unit: 2

SXE 425 TURBOTEC

Velcro-faced backing pad
Dia-meter mm	Hardness	Version	Suitable for machine	Order no.
122	Medium	Perforated	FSX 200 Intec	6.25658
125	Soft	Perforated	Backing pad, diameter 125 mm	6.31220
125	Medium-hard	Perforated	Backing pad, diameter 125 mm	6.31219
				Order no.
		Velcro-faced intermediate disc Diameter: 125 mm Hardness: Soft Version: Not perforated		6.31216
		Cling-fit polishing sponge Diameter: Ø 130 mm		6.31222
		Cling-fit lambswool polishing disc Diameter: 130 mm		6.31223
		Cling-fit polishing felt, hard Diameter: 130 mm Thickness: 5 mm		6.31242

		Order no.
	Cling-fit abrasive nylon web Diameter: 125 mm Grit: P 100	6.31238
	Cling-fit abrasive nylon web Diameter: 125 mm Grit: P 280	6.31239
	3 cling-fit abrasive meshes ■ For sanding/grinding gypsum boards Diameter: 125 mm Grit: P 100 Packing unit: 3	6.31215

FOR FSX 200 INTEC
FOR SXE 325, SXE 425 TURBOTEC AND

Dust extraction
	Order no.
Dust collector cartridge	6.25601
Dust collector cartridge including dust filter 6.25602
Pleated filter	6.25602
Pleated filter, polyester, for dust collector cartridge (6.25601)
Connector	6.26996
Connector Ø 35 mm for connecting to a normal vacuum cleaner

SXE 450 TURBOTEC

		Order no.
Dust collector cartridge Can be cleaned several times with pleated filter 6.31980 For SXE 325 (as spare)		6.31981
Dust collector cartridge Can be cleaned several times with pleated filter 6.31980 For SXE 425 TurboTec and SXE 450 TurboTec (as spare)		6.25599
Pleated filter Polyester (as spare), for the dust collection box (6.31981 and 6.25599)		6.31980
Dust bag holder, complete As spare, with 1 dust bag		6.31289
Dust bag Without dust bag holder 6.31289, as space, pack of 5		6.31288
Dust bag Can be used in the dust bag holder (6.31289) instead of the paper dust bag provided (6.31288)		6.31758
Carry case For SXE 425, SXE 425 XL, SXE 450 Duo		6.23894

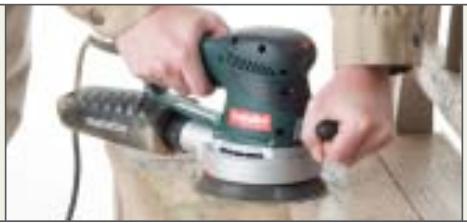

EQUIPMENT FEATURES

TurboBoost switch: allows additional power reserves to be employed for achieving maximum removal
- Multi-purpose machine for sanding even and cambered surfaces, wood, plastics, non-ferrous metals, sheet steel
Rotating and additional oscillating movement of backing pad for optimum finish
- Variospeed (V) electronics
- Thumbwheel for preselection of speed
- Limit scratches while placing the running machine on the material (Power Control System)
"Duo" Oscillating circuit setting for finishing or more cut
Removable front handle
Dust-proof ball bearing
Sturdy aluminum die cast bearing housing
- Velcro-faced backing pad
Vibration damping, non-slip rubber support on the machine housing and the handle
- Dust extraction unit with Intec filter system, with washable filter cartridge
External dust extraction outlet

SXE 450

TurboTec

NEW

achieved for:

Design

Ease of Use

	350 Watt Electronic Disc Sander SXE 450 TurboTec
Comparative device characteristics
Diameter of backing pad	150 mm
No load speed	13100 /min
Rated input power	350 W
Output power	180 W
Rated load speed	8.500 /min
Oscillating circuit	2,8/6,2 mm
Weight (without mains cable)	2,2 kg
Standard equipment	Velcro-faced backing pad, 3 perforated cling-fit sanding sheets, allen key, removable side handle, dust collector cartridge, 1 pleated filter
Type	SXE 450 TurboTec
Order no.	6.00129

ACCESSORIES FOR SXE 450 TURBOTEC

Velcro-faced backing pad

Diameter mm	Hardness	Version	Order no.
150	Medium-hard	Perforated (6 holes)	6.31158
150	Soft	Perforated (6 holes)	6.31156
150	Medium-hard	Perforated (6 or 8 holes)	6.31150

Backing pad, for self-adhesive sanding discs

Diameter mm	Hardness	Version	Order no.
150	Medium	Perforated (6 holes)	6.31169

Velcro-faced intermediate disc

		Order no.
	Velcro-faced intermediate disc	6.24037
	For sanding curved surfaces
	Velcro-faced intermediate disc,
	for machining curved areas
	Diameter: 150 mm
	Hardness: Soft
	Version: Not perforated

Additional accessories for SXE 450 TurboTec

		Order no.
	Cling-fit polishing sponge Diameter: 160 mm Packing unit: 1 Suitable for machine: Backing pad, diameter 150 mm	6.31233
	Cling-fit lambswool polishing disc For high-gloss polishing Suitable for: System 150 mm Diameter: 160 mm Packing unit: 1	6.31217
	Cling-fit polishing felt Diameter: 150 mm Thickness: 5 mm	6.31168
	Cling-fit abrasive nylon web
	Diameter: 150 mm Grit: P 100	6.24038
	Diameter: 150 mm Grit: P 280	6.24039

		Order no.
Carry case For SXE 425, SXE 425 XL, SXE 450 Duo		6.23894
Metabox III For SX E 425 Turbo Tec, SX E 450 Turbo Tec For SX E 450 Duo, SX E 425 XL		6.24619

Accessories for the dust intake action are to be found on page 158.

EQUIPMENT FEATURES

Universal use for sanding wood, plastics, metals, stone and varnished surfaces
Light and handy machine for convenient one-hand operation
Very good weight-performance ratio
Vibration-damping, non-slip rubber coated handle
Dust-proof ball bearing
- Velcro-faced base plate and clamp fixture
- Dust extraction unit with Intec filter system, with washable filter cartridge

COMMON FEATURES

Universal use for sanding wood, plastics, metals, stone and varnished surfaces
- Robust sander with long service life even under tough conditions
Very good weight-performance ratio
High material removal
Even sanding pattern with high class base plate made of microcellular polyurethane elastomere
Especially vibration-free by electrodynamic fine balancing
4 high quality oscillating buffers and dust-proof quality ball bearing for long service life with continuous use
Sturdy aluminum die cast oscillating plate
- Unique clamping system enables quick and comfortable change of sanding sheet
- Sanding possible up to the outermost corner
External dust extraction outlet
- Auto-stop carbon brushes

FSR 200 Intec

SR 10-23 Intec
SR 20-23

	200 Watt Palm Grip Sander FSR 200 Intec
Comparative device characteristics
Base plate	114 x 102 mm
Orbital frequency at no-load	26.000 /min
Rated input power	200 W
Output power	80 W
Orbital frequency at rated load	22.000 /min
Oscillating circuit	1,4 mm
Weight (without mains cable)	1,25 kg
Standard equipment	3 cling-fit sanding sheets (perforated), dust collector cartridge, 1 pleated filter, carry case
	FSR 200 Intec 6.00066
Type Order no.

	200 Watt Sander SR 10-23 Intec	210 Watt Sander SR 20-23
Special advantages
■ Designed for continuous commercial use		●
■ Solid aluminium die cast bearing flange		●
■ Dust extraction unit with Intec filter system, multiple cleaning	●
■ Dust extraction unit with Intec filter system, can be retrofitted as accessory		●
Comparative device characteristics
Base plate	92 x 183 mm	92 x 183 mm
Orbital frequency at no-load	21.700 /min	21.700 /min
Rated input power	200 W	210 W
Output power	90 W	95 W
Orbital frequency at rated load	18.000 /min	16.000 /min
Oscillating circuit	2,5 mm	2,5 mm
Weight (without mains cable)	1,75 kg	1,8 kg
Standard equipment	2 sanding sheets (perforated), dust collector cartridge, 1 pleated filter	2 sanding sheets (perforated)
Type	SR 10-23 Intec	SR 20-23
Order no.	6.01024	6.02026

COMMON FEATURES

Universal use for sanding wood, plastics, metals, stone and varnished surfaces
Powerful motor with high capacity reserve
Even sanding pattern with high class base plate made of microcellular polyurethane elastomere
Especially vibration-free by electrodynamic fine balancing
4 high quality oscillating buffers and dust-proof quality ball bearing for long service life with continuous use
Solid aluminium die cast bearing housing
Sturdy aluminum die cast oscillating plate

Quick-grip clamping with rubber-coated pressure pad
- Sanding possible up to the outermost corner
Dust extraction unit
Dust bag holder with dust retaining flap
External dust extraction outlet
Auto-stop carbon brushes

	350 Watt Sander Sr 356	350 Watt Sander Sr 358	350 Watt Electronic Sander Sr E 357	350 Watt Electronic Sander Sr E 359
Special advantages
■ Variospeed (V) electronics			●	●
■ Thumbwheel for preselection of orbital frequency			●	●
Comparative device characteristics
Base plate	92 x 190 mm	112 x 230 mm	92 x 190 mm	112 x 236 mm
Orbital frequency at no-load	22.000 /min	22.000 /min	12.000 - 22.000 /min	12.000 - 22.000 /min
Rated input power	350 W	350 W	350 W	350 W
Output power	190 W	190 W	190 W	190 W
Orbital frequency at rated load	15.000 /min	15.000 /min	15.000 /min	15.000 /min
Oscillating circuit	2,5 mm	2,5 mm	2,5 mm	2,5 mm
Weight (without mains cable)	2,5 kg	2,7 kg	2,6 kg	2,8 kg
Standard equipment	3 sanding sheets (perforated), removable side handle, dust bags (paper), dust bag holder	3 sanding sheets (perforated), removable side handle, dust bags (paper), dust bag holder	3 sanding sheets (perforated), removable side handle, dust bags (paper), dust bag holder	3 sanding sheets (perforated), removable side handle, dust bags (paper), dust bag holder

PERFORATED VELCRO-FACED BASE-PLATES

For the palm grip sander FSR 200 Intec
	Order no.
■ Perforated, velcro-faced sanding plate FSR 200 Intec (as spare) Length: 114 mm Width: 112 mm	6.25657

For the Sr 356 and Sr E 357 sanders
	Order no.
■ The base-plate of sanders Sr 356/Sr E 357 can be replaced by the velcro-faced base-plate Length: 185 mm Width: 92 mm	6.24736

For the Sr 358 and Sr E 359 sanders
	Order no.
■ The base-plate of sanders Sr 358/Sr E 359 can be replaced by the velcro-faced base-plate Length: 230 mm Width: 112 mm	6.24749

Self-adhesive velcro-faced liner for the Sr 356 and Sr E 357 sanders
	Order no.
■ The perforated liner is stuck onto the sanding plate of sanders. The sanding plate should be free of dust and grease before applying the adhesive liner. Length: 191 mm Width: 93 mm	6.24709

DUST EXTRACTION ACCESSORIES

For the palm grip sander FSR 200 Intec
	Order no.
Dust collector cartridge	6.25601
Dust collector cartridge including dust filter 6.25602
Pleated filter	6.25602
Pleated filter, polyester, for dust collector cartridge (6.25601)
Connector	6.26996
Connector Ø 35 mm for connecting to a normal vacuum cleaner

For the sanders SR 10-23, SR 10-23 Intec and SR 20-23

		Order no.
	Dust collector cartridge	6.31981
	Can be cleaned several times with pleated filter 6.31980
	Included in delivery with SR 10-23 Intec
	Pleated filter	6.31980
	Polyester (as spare), for the dust collection box (6.31981)

For the sanders Sr 356, Sr E 357, Sr 358 and Sr E 359

		Order no.
Dust bag holder, complete As spare, with 1 dust bag		6.31289
Dust bag Without dust bag holder 6.31289, as space, pack of 5		6.31288
Dust bag Can be used in the dust bag holder (6.31289) instead of the paper dust bag provided (6.31288)		6.31758
Paper dust bag, complete Sawdust bag (paper) with connector (as spare)		6.31385
Dust bag Without dust bag holder 6.31385, as space, pack of 5		6.31286

Hoses

	Order no.
Suction hose With connector Ø 58 mm for bayonet fitting and rubber connector (internal Ø 30 mm, outside Ø 35 mm) Hose length: 3,5 m	6.31938

Carry cases

	Order no.
melabo	Sheet steel carry case For Sr 226, Sr E 227, Sr 356, Sr E 357, Sr 358, Sr E 359
melabo	Carry case For SR 10-23, SR 10-23 Intec, SR 20-23

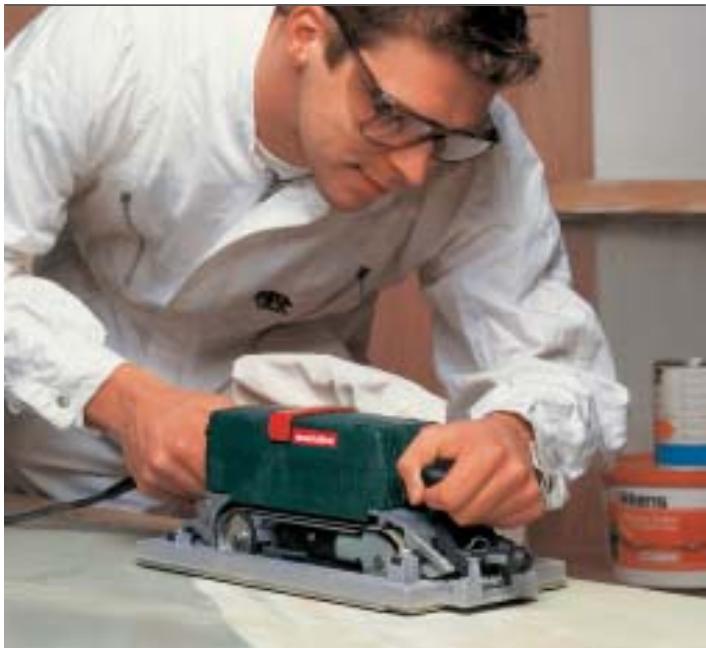

EQUIPMENT FEATURES

Powerful and loadable motor with high reserve capacity
Fast and easy sanding belt change
Very good polished section by extremely precise belt path
Excellent sanding results and comfortable operation by favourable centre of gravity position of the motor
Metabo S-automatic torque limiting clutch
- Variospeed (V) electronics
- Thumbwheel for preselection of belt speed
Auto-stop carbon brushes
Side handle for ideal machine guidance
Dust extraction unit
External dust extraction outlet
Suitable for stationary use

Accessories

		Order no.
	Sanding frame ■ For accurate sanding of flat surfaces with the belt sander Ba E 1075	6.31033
	Length guide ■ For stationary use of the sander, can be tilted up to 45° for sanding bevels	6.31032
	Bases for sanding belt Made from graphite-coated fabric Packing unit: 2	6.31034
	Base for sanding belt Comprising: spring sheet-steel with cork lining for rough grinding work with rapid material removal Packing unit: 1	6.31037

Ba E 1075

	1000 Watt Electronic Belt Sander Ba E 1075
Comparative device characteristics
Torque	7 Nm
Sanding/grinding width	75 mm
Sanding belt supporting surface	75 x 125 mm
No-load belt speed	200 - 380 m/min
Rated input power	1.000 W
Rated load belt speed	320 m/min
Weight (without mains cable)	3,8 kg
Standard equipment	Dust bag, 1 sanding belt P 100, side handle, suction adapter, base for fixed use
	Ba E 1075 6.01075
Type
Order no.

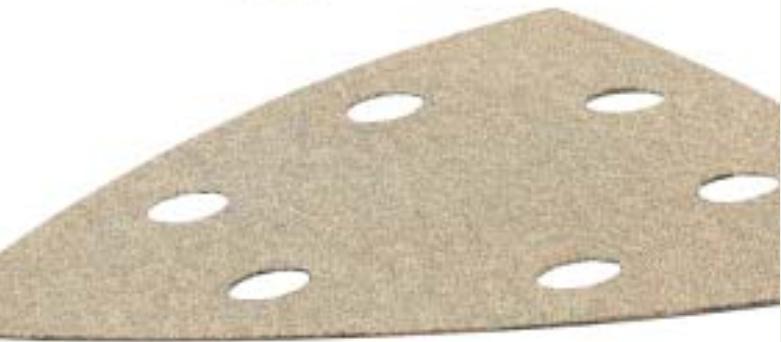

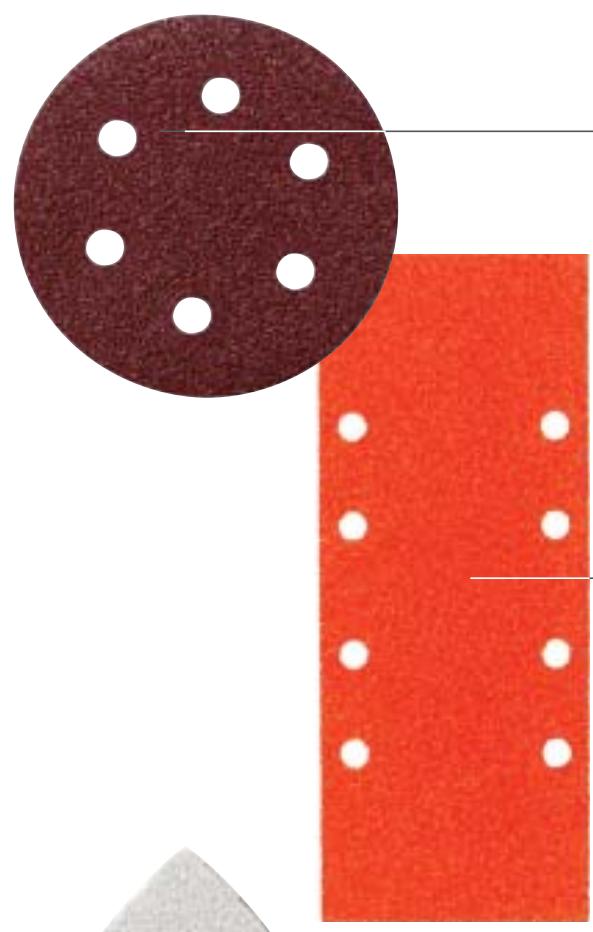

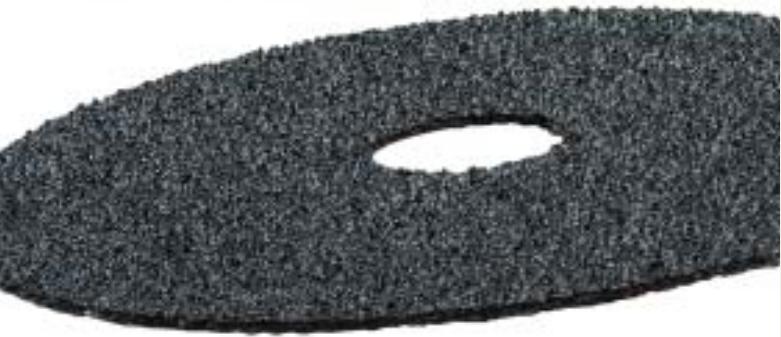

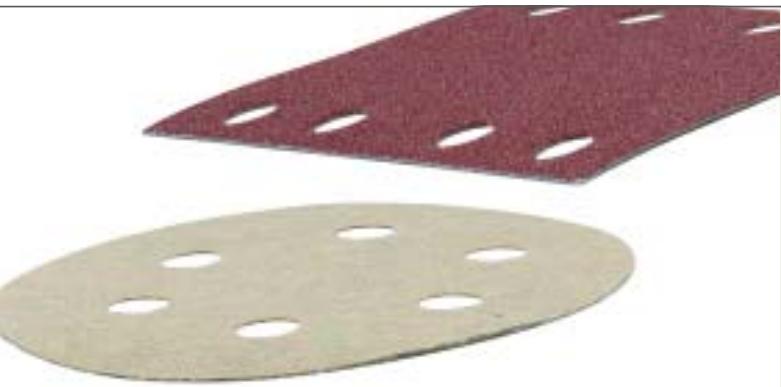

SOUND ARGUMENTS.

A quality machine also needs a quality accessory. For sanders a wide range of accessories are required to give the best finish for a wide range of materials. Be it for wood, metal, stone, paint, varnish or filler Metabo has the

right accessory for the machine and the material. At Metabo we do not just make accessories for our own machines but for other manufactures as well.

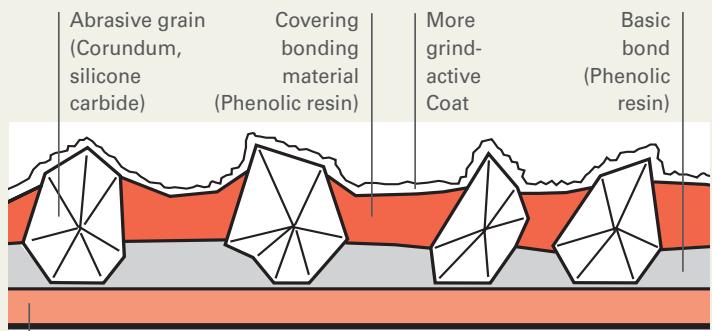

Structure and purpose of Metabo abrasive mediums

The sanding compound

carries the grains and transfers the chip removal forces. Besides high strength and small expansion, the sanding compound has to render a sanding process matching flexibility.

Carriers are

Highly compressed papers of various thicknesses.
Fabric based on polyester and cotton wool of various strengths.
Vulcanized fibre as a strong and tear-proof base is the base material for the (Vulcan) fibre disc.

The abrasive grain

is the actual sanding tool. It penetrates the material to be worked on and removes the surface. The abrasive grain is anchored on the grain-holding medium. High hardness, toughness and a sharp edged geometry are the most important attributes of the abrasive grain. For top quality sanding medium only synthetic abrasive grain materials are used.

Abrasive grain types are

Corundum (Aluminiumoxide) as a hard, slightly brittle grain for the processing of metal, wood, lacquers.... of rough- and fine ground finishes.
Silicon carbide as a hard, sharp-edged abrasive grain for processing of lacquer, wood, ceramic, glass, rubber... for rough and fine ground finish.
Aluminous zircon as a tough and fine crystalline combination of Aluminiumoxide and aluminous zircon for the processing of metal and non-rusting materials.

The bonding agent

anchors the abrasive grain in the sanding compound carrier and supports it against the forces generated by the removal of the surface material.

Bonding agents are

• Phenolic resins and partially synthetic resins for sufficient support with a certain elasticity.

Sanding compound carrier: Paper, fabric, fibre or a P-G-combination

The quality of Metabo sanding mediums

for example for orbital sander:

Wood + metal / wood + metal "professional"

E-paper, pink aluminium oxide, resin bonded

High quality grinding paper with dense dispersion and high material removal rate
- For the best results when sanding wood and metal in professional application

Application:

• For veneers, solid wood, steel- and special steel sheeting, NE-special steels, light metals. e.g. for sanding veneered and foil covered furniture parts with hot-melt glue edging, decor sanding on special steel sheeting, refurbishment sanding and deburring of sheet edges

for example for disc sander:

Wood / wood „classic“

A-/B-Paper, normal corundum, resin-/glue bond

High quality sanding paper with half-open grain distribution
- Best suited for sanding of wood with an outstanding price-performance ratio.

Application:

• For wood generally, solid wood, veneers, plastic, acrylic glass, lacquer, spatula, fillers, e.g. for deburring, cleaning of plywood, veneer-, solid wood, lacquered surfaces, deburring of veneered furniture edges

for triangular base-plate sanders:

Paint / paint „professional"

B-/C-Paper, pink grade corundum, stearate-coated, resin bonded

High quality sanding paper with medium-dense grain dispersion and a high material removal rate
- The special stearate coating ensures a long service life by not clogging the sanding medium
- For best results when sanding off paint, lacquer, body-filler on wood or metal on professional application

Application:

• To deburr and clean veneer, solid wood, ply-wood and lacquered surfaces, deburring of veneered furniture edges

Special / special „expert“

C-paper/ latex, silicone carbide, synthetic resin bonded, waterproof

High quality sanding paper with dense grain distribution
- For best results in a professional as well as in a domestic environment. Ideal for wet-sanding of primed surfaces in body-workshops and on motorcar repairs

Application:

• Especially for extremely hard surfaces, filler coat, filler, lacquers of all types e.g. when wet-sanding of primed surfaces and roughing up of all lacquered surfaces

Which sanding medium for which machine and for which manufacturer?

SANDING SHEETS FOR TRIANGULAR BASE-PLATE SANDERS
93 mm, 6 holes, velcro
	Metabo DSE 130
	DSE 170
	DSE 300 / Intec
	Bosch GDA 280 E
	PDA 100
	PDA 120E
	PDE 180 / E
	PDA 240E
	PSM 160
	Casals BLD 180
	VLD 230
	Makita BO 4561
95 mm, 6 holes, velcro
	Festo DX 93E/E Plus
100 x 150 mm, 7 holes, velcro
	Festo DS 400/E/EO
100 x 150 mm, 11 holes, velcro
	Metabo FMS 200 Intec
	Bosch PSM 160 A
	PSM 80 A
	PRIO
105 mm, 6 holes, velcro
	AEG DSE 220
	DSE 260
120 mm, 6 holes, velcro
	Kress CDS 280 DSXL
	CDS 6425 EXL
SANDING SHEETS FOR DISC SANDERS
115 mm, 8 holes, velcro
	Bosch PEX11A/AE
	PEX 115
	Einhell EX 115
	Kress CPS 6115-1/E
	Peugeot PAE 115
	Skil 7415
	Stayer LRT 115
	Metabo FSX 200 Intec
	SXE 125
	SXE 425
	AEG EX 400
	EX 450
	EXE 400
	Atlas Copco TXE 150

125 mm, 8 holes, velocro
	Bosch GEX 125A / AC
	PEX 12A / AE
	PEX 125A - 1
	PEX 125 AE
	PEX 400AE
	De Walt DW 423
	Elu ES 55E
	Fein MSF 636-1
	Festo ES 125 / E
	Hitachi TSV 13Y
	Kress CPS 6125-1 / E
	HEX 6385E
	HEX 1385E
	Skil 7400
	7425
	7430
	7435
	Wegoma LRE 84H
150 mm, 6 holes, velocro
	Metabo SXE 425 XL
	SXE 450 DUO
	Bosch GEX 150AC/ACE
	PEX 15AE
	PEX 420 AE
	DeWalt DW 443
	Elu ES 56E/EK
	Felisatti TP 521AS/EAS
	TP 522 AS
	Hilti WFE 380
	WFE 450E
	Hitachi SAY 150A
	Kress 900 HEX
	Milwaukee ROS 150 E
	Peugeot PRX 150E
	Stayer LRT 150
	RO 150
	Wegoma RX 91 C
150 mm, 8 holes, velocro
	AEG EXE 450
	Casals VEX 150 E
	Fein MSF 636-1
	MSF 649-2A/-2B
	Makita BO 6030
	BO 6040
150 mm, 9 holes, velocro
	Festo ET 2E
	RO 150E
	ES 150/3 EQ/C
	ES 150/5 EQ/C
	ProTool ESP 150 E
150 mm, 16 holes, velocro
	AEG EX 450
	EXE 450
	Atlas Copco TXE 150
	Fein MSF 649-2A/-2B
	Holz Her 2445

SANDING SHEETS FOR SANDERS
80 x 133 mm, 8 holes, velcro
	Atlas Copco VS 11
	Black&Decker P 63-01
	Bosch GSS 16 A
	Felisatti TP 31 E
	Festo RS 4 / E / STF
	Hitachi SV 8 SA
80 x 166 mm, 8 holes, tightened
	Atlas Copco VS 11
	Black&Decker P 63-01
	Bosch GSS 16A
	Hitachi SV 8 SA
	Wegoma LRE 84H
93 x 178 mm, 8 holes, velcro
	Festo LRS 93G
	LRS 93M
	RS 3/E
	RS 4/E/STF
93 x 185 mm, 8 holes, velcro
	Metabo SR 356
	SR 357
	SR4350
	Atlas Copco VS 230/E
	VSS 22/E
	VSS 260/E
	Bosch GSS 23 AE
	GSS 230 A/AE
	PSS / A/AE
	PSS 180A
	PSS 240A/AE
	Casals KLR 210
	Einhell EST 170
	Festo RS 3 SFE/E
	Hitachi FS 10 SB
	Makita 9036
	Peugeot PV 240 A
	TV 4102
	Skil 7300/S
	7390
	7395
	Black&Decker KA 175
	KA 186/E
93 x 230 mm, 8 holes, tightened
	Metabo SR 10-23
	SR 10-23 Intec
	SR 20-23
	SR 226
	SR 356
	SR 4350
	SRE 227
	SRE 357
	Atlas Copco VS 230
	VSE 230
	VSS 260
	VSSE 260
	Black&Decker BD 175
	BD 180 E
	CD 400
	DN 41 AE
	DN 180E
	KA 196
	Bosch GSS 23/AE
	GSS 230A/AE
	PSS 23/A/AE
	PSS 230
	PSS 240A/AE
	Festo RS 3 SFE
	RS 3E SFE
	Makita 9036
	3700
	Peugeot PV 240 A
	TV 4102
	Ryobi NS 401
	NS 801
	S 35
	Skil 7300
	7330 S
	7385
	7390
	7395

93 x 230 mm, 8 holes, tightened
	AEG VS 230
	VSS 260/E
	Black&Decker KA 185
	KA 185E

93 x 280 mm, 8 holes, tightened Velcro for extended grinding disc
	Bosch GSS 23AE
	GSS 230 A/AE

115 x 103 mm, 6 holes, velocro
	Metabo	FSR 200 Intec
	Makita	BO 4553 / 4554
	Hitachi	SV 12 SF
115 x 107 mm, 6 holes, velocro
	Bosch	GSS 140 A

115 x 115 mm, 8 holes, velcro
	Metabo SRA 60
	SRE 217
	Hitachi SV 12 SF
	Makita 4554
115 x 140 mm, 6 holes, tightened
	Metabo FSR 200 Intec
	Makita BO 4553/4554
	Hitachi SV 12 SF
115 x 140 mm, 8 holes, tightened
	Black&Decker SR 400
	Bosch GSS 9,6V
	GSS 140 A
	DeWalt DW 411
	Makita BO 4553
	BO 4554
	BO 4556
	Ryobi S 605 D
	Skil 7576U
115 x 230 mm, 14 holes, velcro
	Metabo SR 358
	SR 4351
	SRE 359
	Atlas Copco VS 280/E
	VS 280/SE
	VSE 230
	VSS 20 E
	Black&Decker KA 273
	Bosch GSS 28/A/AE
	GSS 280A/AE
	PSS 28 AE
	PSS 280AE
	Casals BLR 250
	VLR 300
	Einhell ERU 270
	Elu VS 41
	VS 71
	Festo RS 1 STF
	RS 2 STF/E
	Hitachi SV 12SD/V
	Kress CRS 6165A
	CRS 6175EA
	Makita 9045B/N
	9046
	Peugeot TV 4003
	TV 4103
	Ryobi NS 6200
	NS 6300 A
	Skil 666

115 x 280 mm, 14 holes, tightened
	Metabo SR 328
	SR 4321
	SRE 329
	Atlas Copco VS 280/E
	VS 280/SE
	VSE 230
	VSS 20/E
	Black&Decker BD 273
	DN 41 AE
	KA 273
	P 63-03/-04/-05
	SR 410E
	Bosch GSS 28 A
	GSS 280A/AE
	PSS 28AE
	PSS 280AE
115 x 280 mm, 14 holes, tightened
	Casals BLR 250
	LN 216
	LR 228
	Elu VS 41 / 71
	Hitachi SV 12 SD/V
	Kress CRS 6165A
	CRS 6175ES
	Makita BO 4900 V
	9046

CLING-FIT SANDING SHEETS FOR MULTISANDERS

Cling-fit sanding sheets for wood and metal, "professional" series

	Dimensions mm	Grit	Packing unit	Order no.
	Cling-fit sanding sheets 100 x 150 mm, 7 holes
	100 x 150	P 40	25	6.25671
	100 x 150	P 60	25	6.25672
	100 x 150	P 80	25	6.25673
	100 x 150	P 100	25	6.25674
	100 x 150	P 120	25	6.25675
	100 x 150	P 180	25	6.25676
	100 x 150	P 240	25	6.25677
	100 x 150	P 320	25	6.25678

Cling-fit sanding sheets for wood, "classic" series

	Dimensions mm	Grit	Packing unit	Order no.
	Cling-fit sanding sheets 100 x 150 mm, 11 holes, 2-piece
	100 x 150	P 40	10	6.25603
	100 x 150	P 60	10	6.25604
	100 x 150	P 80	10	6.25605
	100 x 150	P 100	10	6.25606
	100 x 150	P 120	10	6.25607
	100 x 150	P 180	10	6.25608
	100 x 150	P 240	10	6.25609

	Order no.
10 cling-fit sanding sheets	6.25610
Assortment (2 each of P 60, P 80, P 120, P 180, P 240)
Dimensions: 100 x 150 mm
Version: Perforated (11 holes, 2-piece)

Cling-fit sanding sheets for paints and lacquers, "professional" series

	Dimensions mm	Grit	Packing unit	Order no.
Cling-fit sanding sheets 100 x 150 mm, 7 holes
100 x 150	P 40	25		6.25701
100 x 150	P 60	25		6.25702
100 x 150	P 80	25		6.25703
100 x 150	P 100	25		6.25704
100 x 150	P 120	25		6.25705
100 x 150	P 180	25		6.25706
100 x 150	P 240	25		6.25707
100 x 150	P 320	25		6.25708
Cling-fit sanding sheets 100 x 150 mm, 11 holes, 2-piece
100 x 150	P 40	10		6.25611
100 x 150	P 60	10		6.25612
100 x 150	P 80	10		6.25613
100 x 150	P 100	10		6.25614
100 x 150	P 120	10		6.25615
100 x 150	P 180	10		6.25616
100 x 150	P 240	10		6.25617

	Order no.
10 cling-fit sanding sheets	6.25618
Dimensions: 100 x 150 mm
Version: Perforated (11 holes, 2-piece)

CLING-FIT SANDING SHEETS FOR TRIANGULAR BASE-PLATE SANDERS

Cling-fit sanding sheets for wood and metal, "professional" series
	Dimensions mm	Grit	Packing unit
	Cling-fit sanding sheets 93 x 93 mm, 6 holes
	93 x 93	P 40	5
	93 x 93	P 60	5
	93 x 93	P 80	5
	93 x 93	P 100	5
	93 x 93	P 120	5
	93 x 93	P 180	5
	93 x 93	P 240	5
	93 x 93	P 320	5
	93 x 93	P 40	25
	93 x 93	P 60	25
	93 x 93	P 80	25
	93 x 93	P 100	25
	93 x 93	P 120	25
	93 x 93	P 180	25
	93 x 93	P 240	25
	93 x 93	P 320	25
	Cling-fit sanding sheets 95 x 95 mm, 6 holes
	95 x 95	P 40	25
	95 x 95	P 60	25
	95 x 95	P 80	25
	95 x 95	P 80	25
	95 x 95	P 120	25
	95 x 95	P 180	25
	95 x 95	P 240	25
	95 x 95	P 320	25

Cling-fit sanding sheets for paints and lacquers, "professional" series
	Dimensions mm	Grit	Packing unit	Order no.
	Cling-fit sanding sheets 93 x 93 mm, 6 holes
	93 x 93	P 40	25	6.25681
	93 x 93	P 60	25	6.25682
	93 x 93	P 80	25	6.25683
	93 x 93	P 100	25	6.25684
	93 x 93	P 120	25	6.25685
	93 x 93	P 180	25	6.25686
	93 x 93	P 240	25	6.25687
	93 x 93	P 320	25	6.25688
	Cling-fit sanding sheets 95 x 95 mm, 6 holes
	95 x 95	P 40	25	6.25691
	95 x 95	P 60	25	6.25692
	95 x 95	P 80	25	6.25693
	95 x 95	P 100	25	6.25694
	95 x 95	P 120	25	6.25695
	95 x 95	P 180	25	6.25696
	95 x 95	P 240	25	6.25697
	95 x 95	P 320	25	6.25698

CLING-FIT SANDING SHEETS FOR DISC SANDERS

Cling-fit sanding sheets for wood and metal, "professional" series
	Diameter mm	Grit	Packing unit
Cling-fit sanding sheets Ø 80 mm, 6 holes
80	P 40	10	6.24041
80	P 60	10	6.24042
80	P 80	10	6.24043
80	P 100	10	6.24044
80	P 120	10	6.24045
80	P 180	10	6.24046
80	P 240	10	6.24047
80	P 320	10	6.24048
80	P 400	10	6.24049
80	P 40	25	6.24051
80	P 60	25	6.24052
80	P 80	25	6.24053
80	P 100	25	6.24054
80	P 120	25	6.24055
80	P 180	25	6.24056
80	P 240	25	6.24057
80	P 320	25	6.24058
80	P 400	25	6.24059
Cling-fit sanding sheets Ø 115 mm, 8 holes
115	P 40	5	6.26097
115	P 60	5	6.26098
115	P 80	5	6.26099
115	P 100	5	6.26100
115	P 120	5	6.26101
115	P 180	5	6.26102
115	P 240	5	6.26103
115	P 320	5	6.26104
115	P 400	5	6.26105
Cling-fit sanding sheets Ø 125 mm, 8 holes
125	P 40	5	6.31226
125	P 60	5	6.31227
125	P 80	5	6.31228
125	P 120	5	6.31229
125	P 180	5	6.31230
125	P 240	5	6.31231
125	P 320	5	6.31236
125	P 400	5	6.31237
125	P 40	25	6.31584
125	P 60	25	6.31585
125	P 80	25	6.31586
125	P 120	25	6.31587
125	P 180	25	6.31588
125	P 240	25	6.31589
125	P 320	25	6.31596
125	P 400	25	6.31597

	Diameter mm	Grit	Packing unit	Order no.
Cling-fit sanding sheets Ø 150 mm, 6 holes
150	P 40	5		6.24001
150	P 60	5		6.24002
150	P 80	5		6.24003
150	P 100	5		6.24004
150	P 120	5		6.24005
150	P 180	5		6.24006
150	P 240	5		6.24007
150	P 320	5		6.24008
150	P 400	5		6.24009
150	P 40	25		6.24019
150	P 60	25		6.24020
150	P 80	25		6.24021
150	P 100	25		6.24022
150	P 120	25		6.24023
150	P 180	25		6.24024
150	P 240	25		6.24025
150	P 320	25		6.24026
150	P 400	25		6.24027
Cling-fit sanding sheets Ø 150 mm, 9 holes
150	P 40	25		6.25715
150	P 60	25		6.25716
150	P 80	25		6.25717
150	P 100	25		6.25718
150	P 120	25		6.25719
150	P 180	25		6.25720
150	P 240	25		6.25721
150	P 320	25		6.25722
150	P 400	25		6.25723

	Order no.
25 cling-fit sanding sheets	6.24060
Assortment (10 x P 60, 10 x P 80, 5 x P 120)
Diameter: 80 mm
Version: Perforated (6 holes)
6 cling-fit sanding sheets	6.26106
Assortment (2 x P 60, 2 x P 120, 2 x P 240)
Diameter: 115 mm
Version: Perforated (8 holes)
6 cling-fit sanding sheets	6.31232
Assortment (2 x P 60, 2 x P 120, 2 x P 240)
Diameter: 125 mm
Version: Perforated (8 holes)
25 cling-fit sanding sheets	6.31583
Assortment (10 x P 60, 10 x P 80, 5 x P 120)
Diameter: 125 mm
Version: Perforated (8 holes)
25 cling-fit sanding sheets	6.24066
Assortment (10 x P 60, 10 x P 80, 5 x P 120)
Diameter: 150 mm
Version: Perforated (6 holes)

Cling-fit sanding sheets for paints and lacquers, "professional" series
	Diameter mm	Grit	Packing unit
	Cling-fit sanding sheets Ø 80 mm, 6 holes
	80	P 40	25
	80	P 60	25
	80	P 80	25
	80	P 100	25
	80	P 120	25
	80	P 180	25
	80	P 240	25
	80	P 320	25
	80	P 400	25

	Diameter mm	Grit	Packing unit	Order no.
	Cling-fit sanding sheets Ø 115 mm, 8 holes
	115	P 40	5	6.26107
	115	P 60	5	6.26108
	115	P 80	5	6.26109
	115	P 100	5	6.26110
	115	P 120	5	6.26111
	115	P 180	5	6.26112
	115	P 240	5	6.26113
	115	P 320	5	6.26114
	115	P 400	5	6.26115
	Cling-fit sanding sheets Ø 125 mm, 8 holes
	125	P 40	25	6.25726
	125	P 60	25	6.25727
	125	P 80	25	6.25728
	125	P 100	25	6.25729
	125	P 120	25	6.25730
	125	P 180	25	6.25731
	125	P 240	25	6.25732
	125	P 320	25	6.25733
	125	P 400	25	6.25734
	Cling-fit sanding sheets Ø 150 mm, 6 holes
	150	P 40	25	6.24028
	150	P 60	25	6.24029
	150	P 80	25	6.24030
	150	P 100	25	6.24031
	150	P 120	25	6.24032
	150	P 180	25	6.24033
	150	P 240	25	6.24034
	150	P 320	25	6.24035
	150	P 400	25	6.24036
	Cling-fit sanding sheets Ø 150 mm, 9 holes
	150	P 40	25	6.25738
	150	P 60	25	6.25739
	150	P 80	25	6.25740
	150	P 100	25	6.25741
	150	P 120	25	6.25742
	150	P 180	25	6.25743
	150	P 240	25	6.25744
	150	P 320	25	6.25745
	150	P 400	25	6.25746
				Order no.
25 cling-fit sanding sheets Assortment (10 x P 60, 10 x P 80, 5 x P 120) Diameter: 80 mm Version: Perforated (6 holes)				6.24090
25 cling-fit sanding sheets Assortment (10 x P 60, 10 x P 80, 5 x P 120) Diameter: 115 mm Version: Perforated (8 holes)				6.26116
25 cling-fit sanding sheets Assortment (10 x P 60, 10 x P 80, 5 x P 120) Diameter: 125 mm Version: Perforated (8 holes)				6.25735
25 cling-fit sanding sheets Assortment (10 x P 60, 10 x P 80, 5 x P 120) Diameter: 150 mm Version: Perforated (6 holes)				6.24069

SANDING SHEETS FOR SANDERS / ORBITAL SANDERS

Sanding sheets wood and metal, "professional" series
	Dimensions mm	Grit	Packing unit	Order no.
	Cling-fit sanding sheets 80 x 133 mm, 8 holes, with velcro
	80 x 133	P 40	10	6.25749
	80 x 133	P 60	10	6.25750
	80 x 133	P 80	10	6.25751
	80 x 133	P 100	10	6.25752
	80 x 133	P 120	10	6.25753
	80 x 133	P 180	10	6.25754
	80 x 133	P 240	10	6.25755
	80 x 133	P 320	10	6.25756
	80 x 133	P 400	10	6.25757
	80 x 133	P 40	25	6.26052
	80 x 133	P 60	25	6.26053
	80 x 133	P 80	25	6.26054
	80 x 133	P 100	25	6.26055
	80 x 133	P 120	25	6.26056
	80 x 133	P 180	25	6.26057
	80 x 133	P 240	25	6.26058
	80 x 133	P 320	25	6.26059
	80 x 133	P 400	25	6.26060
	Cling-fit sanding sheets 93 x 185 mm, 8 holes, with velcro
	93 x 185	P 40	10	6.25765
	93 x 185	P 60	10	6.25766
	93 x 185	P 80	10	6.25767
	93 x 185	P 100	10	6.25768
	93 x 185	P 120	10	6.25769
	93 x 185	P 180	10	6.25770
	93 x 185	P 240	10	6.25771
	93 x 185	P 320	10	6.25772
	93 x 185	P 400	10	6.25773
	93 x 185	P 40	25	6.25775
	93 x 185	P 60	25	6.25776
	93 x 185	P 80	25	6.25777
	93 x 185	P 100	25	6.25778
	93 x 185	P 120	25	6.25779
	93 x 185	P 180	25	6.25780
	93 x 185	P 240	25	6.25781
	93 x 185	P 320	25	6.25782
	93 x 185	P 400	25	6.25783
	Sanding sheets 93 x 230 mm, 8 holes, for clamping
	93 x 230	P 40	10	6.24480
	93 x 230	P 60	10	6.24481
	93 x 230	P 80	10	6.24482
	93 x 230	P 100	10	6.24483
	93 x 230	P 120	10	6.24484
	93 x 230	P 180	10	6.24485
	93 x 230	P 240	10	6.24486
	93 x 230	P 320	10	6.25761
	93 x 230	P 400	10	6.25762
	Cling-fit sanding sheets 103 x 115 mm, 6 holes, with velcro
	103 x 115	P 40	10	6.25619
	103 x 115	P 60	10	6.25620
	103 x 115	P 80	10	6.25621
	103 x 115	P 100	10	6.25622
	103 x 115	P 120	10	6.25623
	103 x 115	P 180	10	6.25624
	103 x 115	P 240	10	6.25625
	103 x 115	P 320	10	6.25626
	103 x 115	P 400	10	6.25627
	Dimensions mm	Grit	Packing unit	Order no.
	Sanding sheets 115 x 140 mm,6 holes,for clamping
	115 x 140	P 40	10	6.25629
	115 x 140	P 60	10	6.25630
	115 x 140	P 80	10	6.25631
	115 x 140	P 100	10	6.25632
	115 x 140	P 120	10	6.25633
	115 x 140	P 180	10	6.25634
	115 x 140	P 240	10	6.25635
	115 x 140	P 320	10	6.25636
	115 x 140	P 400	10	6.25637
	Cling-fit sanding sheets 115 x 230 mm,14 holes,with velcro
	115 x 230	P 40	10	6.25786
	115 x 230	P 60	10	6.25787
	115 x 230	P 80	10	6.25788
	115 x 230	P 100	10	6.25789
	115 x 230	P 120	10	6.25790
	115 x 230	P 180	10	6.25791
	115 x 230	P 240	10	6.25792
	115 x 230	P 320	10	6.25793
	115 x 230	P 400	10	6.25794
	115 x 230	P 40	25	6.25796
	115 x 230	P 60	25	6.25797
	115 x 230	P 80	25	6.25798
	115 x 230	P 100	25	6.25799
	115 x 230	P 120	25	6.25800
	115 x 230	P 180	25	6.25801
	115 x 230	P 240	25	6.25802
	115 x 230	P 320	25	6.25803
	115 x 230	P 400	25	6.25804
	Sanding sheets 115 x 280 mm,14 holes,for clamping
	115 x 280	P 40	10	6.24491
	115 x 280	P 60	10	6.24492
	115 x 280	P 80	10	6.24493
	115 x 280	P 100	10	6.24494
	115 x 280	P 120	10	6.24495
	115 x 280	P 180	10	6.24496
	115 x 280	P 240	10	6.24497
				Order no.
10 cling-fit sanding sheets Assortment (2 each of P 40, P 80, P 120, P 180 and P 240) Dimensions: 80 x 133 mm Version: Perforated (8 holes)				6.25758
10 cling-fit sanding sheets Assortment (2 each of P 40, P 80, P 120, P 180 and P 240) Dimensions: 93 x 185 mm Version: Perforated (8 holes)				6.25774
10 sanding sheets Assortment (2 each of P 40, P 80, P 120, P 180 and P 240) Dimensions: 103 x 115 mm Version: Perforated (6 holes)				6.24490
10 sanding sheets Assortment (2 each of P 40, P 80, P 120, P 180 and P 240) Dimensions: 115 x 140 mm Version: Perforated (6 holes)				6.25638
10 cling-fit sanding sheets Assortment (2 each of P 40, P 80, P 120, P 180 and P 240) Dimensions: 93 x 230 mm Version: Perforated (14 holes)				6.25765
10 sanding sheets Assortment (2 each of P 40, P 80, P 120, P 180 and P 240) Dimensions: 115 x 280 mm Version: Perforated (14 holes)				6.24499

Sanding sheets for wood, "classic" series
	Dimensions mm	Grit	Packing unit	Order no.
	Cling-fit sanding sheets 93 x 185 mm, 8 holes, with velcro
	93 x 185	P 40	10	6.25813
	93 x 185	P 40	10	6.25814
	93 x 185	P 80	10	6.25815
	93 x 185	P 100	10	6.25816
	93 x 185	P 120	10	6.25817
	93 x 185	P 180	10	6.25818
	93 x 185	P 240	10	6.25819
	93 x 185	P 320	10	6.25820
	93 x 185	P 40	25	6.25822
	93 x 185	P 60	25	6.25823
	93 x 185	P 80	25	6.25824
	93 x 185	P 100	25	6.25825
	93 x 185	P 120	25	6.25826
	93 x 185	P 180	25	6.25827
	93 x 185	P 240	25	6.25828
	93 x 185	P 30	25	6.25829
	Sanding sheets 93 x 230 mm, non-perforated, for clamping
	93 x 230	P 40	10	6.24808
	93 x 230	P 60	10	6.24809
	93 x 230	P 80	10	6.24810
	93 x 230	P 100	10	6.24811
	93 x 230	P 120	10	6.24812
	93 x 230	P 180	10	6.24813
	93 x 230	P 240	10	6.24814
	93 x 230	P 320	10	6.25808
	Sanding sheets 93 x 230 mm, 8 holes, for clamping
	93 x 230	P 40	10	6.24826
	93 x 230	P 60	10	6.24827
	93 x 230	P 80	10	6.24828
	93 x 230	P 100	10	6.24829
	93 x 230	P 120	10	6.24830
	93 x 230	P 180	10	6.24831
	93 x 230	P 240	10	6.24832
	93 x 230	P 320	10	6.25807
	Cling-fit sanding sheets 115 x 115 mm, 8 holes, with velcro
	115 x 115	P 40	5	6.24710
	115 x 115	P 60	5	6.24711
	115 x 115	P 80	5	6.24712
	115 x 115	P 100	5	6.24713
	115 x 115	P 120	5	6.24714
	115 x 115	P 240	5	6.24715
	Sanding sheets 115 x 140 mm, 8 holes, for clamping
	115 x 140	P 40	10	6.24700
	115 x 140	P 60	10	6.24701
	115 x 140	P 80	10	6.24702
	115 x 140	P 100	10	6.24703
	115 x 140	P 120	10	6.24704
	115 x 140	P 240	10	6.24705
	Dimensions mm	Grit	Packing unit	Order no.
Cling-fit sanding sheets 115 x 230 mm, 14 holes, with velcro
115 x 230	P 40	10	6.25832
115 x 230	P 60	10	6.25833
115 x 230	P 80	10	6.25834
115 x 230	P 100	10	6.25835
115 x 230	P 120	10	6.25836
115 x 230	P 180	10	6.25837
115 x 230	P 240	10	6.25838
115 x 230	P 320	10	6.25839
115 x 230	P 40	25	6.25841
115 x 230	P 60	25	6.25842
115 x 230	P 80	25	6.25843
115 x 230	P 100	25	6.25844
115 x 230	P 120	25	6.25845
115 x 230	P 180	25	6.25846
115 x 230	P 240	25	6.25847
115 x 230	P 320	25	6.25848
Sanding sheets 115 x 280 mm, non-perforated, for clamping
115 x 280	P 40	10	6.24816
115 x 280	P 60	10	6.24817
115 x 280	P 80	10	6.24818
115 x 280	P 100	10	6.24819
115 x 280	P 120	10	6.24820
115 x 280	P 180	10	6.24821
115 x 280	P 240	10	6.24822
115 x 280	P 320	10	6.25810
Sanding sheets 115 x 280 mm, 14 holes, for clamping
115 x 280	P 40	10	6.24800
115 x 280	P 60	10	6.24801
115 x 280	P 80	10	6.24802
115 x 280	P 100	10	6.24803
115 x 280	P 120	10	6.24804
115 x 280	P 180	10	6.24805
115 x 280	P 240	10	6.24806
115 x 280	P 320	10	6.25809

	Order no.
10 cling-fit sanding sheets	6.25821
Assortment (2 each of P 40, P 80, P 120, P 180 and P 240)
Dimensions: 93 x 185 mm
Version: Perforated (8 holes)
10 sanding sheets	6.24833
Assortment (2 each of P 40, P 80, P 120, P 180 and P 240)
Dimensions: 93 x 230 mm
Version: Perforated (8 holes)
Sanding sheet assortment	6.24815
Comprising 2 sanding sheets in each of the following grits:
P 40, P 80, P 120, P 180, and P 240
Dimensions: 93 x 230 mm
Version: Not perforated
10 cling-fit sanding sheets	6.25840
Comprising 2 sanding sheets in each of the following grits:
P 40, P 80, P 120, P 180, and P 240
Dimensions: 115 x 230 mm
Version: Perforated (14 holes)
10 sanding sheets	6.24807
Assortment (2 each of P 40, P 80, P 120, P 180 and P 240)
Dimensions: 115 x 280 mm
Version: Perforated (14 holes)
10 sanding sheets	6.24823
Assortment (2 each of P 40, P 80, P 120, P 180 and P 240)
Dimensions: 115 x 280 mm
Version: Not perforated

Sanding sheets for paints and lacquers, "professional" series

	Dimensions mm	Grit	Packing unit	Order no.
	Cling-fit sanding sheets 80 x 133 mm, 8 holes, with velcro
	80 x 133	P 40	25	6.25851
	80 x 133	P 60	25	6.25852
	80 x 133	P 80	25	6.25853
	80 x 133	P 100	25	6.25854
	80 x 133	P 120	25	6.25855
	80 x 133	P 180	25	6.25856
	80 x 133	P 240	25	6.25857
	80 x 133	P 320	25	6.25858
	Cling-fit sanding sheets 93 x 185 mm, 8 holes, with velcro
	93 x 185	P 40	25	6.25881
	93 x 185	P 60	25	6.25882
	93 x 185	P 80	25	6.25883
	93 x 185	P 100	25	6.25884
	93 x 185	P 120	25	6.25885
	93 x 185	P 180	25	6.25886
	93 x 185	P 240	25	6.25887
	93 x 185	P 320	25	6.25888
	Sanding sheets 93 x 230 mm, 8 holes, for clamping
	93 x 230	P 40	25	6.25861
	93 x 230	P 60	25	6.25862
	93 x 230	P 80	25	6.25863
	93 x 230	P 100	25	6.25864
	93 x 230	P 120	25	6.25865
	93 x 230	P 180	25	6.25866
	93 x 230	P 240	25	6.25867
	93 x 230	P 320	25	6.25868
	Cling-fit sanding sheets 103 x 115 mm, 6 holes, with velcro
	103 x 115	P 40	10	6.25639
	103 x 115	P 60	10	6.25640
	103 x 115	P 80	10	6.25641
	103 x 115	P 100	10	6.25642
	103 x 115	P 120	10	6.25643
	103 x 115	P 180	10	6.25644
	103 x 115	P 240	10	6.25645
	103 x 115	P 320	10	6.25646
	Sanding sheets 115 x 140 mm, 6 holes, for clamping
	115 x 140	P 40	10	6.25648
	115 x 140	P 60	10	6.25649
	115 x 140	P 80	10	6.25650
	115 x 140	P 100	10	6.25651
	115 x 140	P 120	10	6.25652
	115 x 140	P 180	10	6.25653
	115 x 140	P 240	10	6.25654
	115 x 140	P 320	10	6.25655
	Cling-fit sanding sheets 115 x 230 mm, 14 holes, with velcro
	115 x 230	P 40	25	6.25891
	115 x 230	P 60	25	6.25892
	115 x 230	P 80	25	6.25893
	115 x 230	P 100	25	6.25894
	115 x 230	P 120	25	6.25895
	115 x 230	P 180	25	6.25896
	115 x 230	P 240	25	6.25897
	115 x 230	P 320	25	6.25898
	Sanding sheets 115 x 280 mm, 14 holes, for clamping
	115 x 280	P 40	25	6.25871
	115 x 280	P 60	25	6.25872
	115 x 280	P 80	25	6.25873
	115 x 280	P 100	25	6.25874
	115 x 280	P 120	25	6.25875
	115 x 280	P 180	25	6.25876
	115 x 280	P 240	25	6.25877
	115 x 280	P 320	25	6.25878

	Order no.
10 cling-fit sanding sheets	6.25647
Assortment (2 each of P40, P80, P120, P180, P240)
Dimensions: 103 x 115 mm
Version: Perforated (6 holes)
10 sanding sheets	6.25656
Assortment (2 each of P40, P80, P120, P180, P240)
Dimensions: 115 x 140 mm
Version: Perforated (6 holes)

Rolls for wood, "classic" series
	Dimensions mm	Grit	Packing unit	Order no.
	Rolls 93 mm x 5 m
	93 x 5	P 40	1	6.26003
	93 x 5	P 60	1	6.26004
	93 x 5	P 80	1	6.26005
	93 x 5	P 100	1	6.26006
	93 x 5	P 120	1	6.26007
	93 x 5	P 180	1	6.26008
	93 x 5	P 240	1	6.26009
	93 x 5	P 320	1	6.26010
	Rolls 115 mm x 5 m
	115 x 5	P 40	1	6.26013
	115 x 5	P 60	1	6.26014
	115 x 5	P 80	1	6.26015
	115 x 5	P 100	1	6.26016
	115 x 5	P 120	1	6.26017
	115 x 5	P 180	1	6.26018
	115 x 5	P 240	1	6.26019
	115 x 5	P 320	1	6.26020

Single sheets
	Dimensions mm	Grit	Packing unit	Order no.
	Single sheet (230 x 280 mm) for wood, "classic" series
	230 x 280	P 40	50	6.26023
	230 x 280	P 60	50	6.26024
	230 x 280	P 80	50	6.26025
	230 x 280	P 100	50	6.26026
	230 x 280	P 120	50	6.26027
	230 x 280	P 180	50	6.26028
	230 x 280	P 240	50	6.26029
	230 x 280	P 320	50	6.26030
	Single sheets (230x280mm) for paints and lacquers, "professional" series
	230 x 280	P 40	50	6.26033
	230 x 280	P 60	50	6.26034
	230 x 280	P 80	50	6.26035
	230 x 280	P 100	50	6.26036
	230 x 280	P 120	50	6.26037
	230 x 280	P 180	50	6.26038
	230 x 280	P 240	50	6.26039
	230 x 280	P 320	50	6.26040
	Single sheets (230 x 280 mm) for extremely hard materials, "expert" series
	230 x 280	P 80	50	6.26043
	230 x 280	P 100	50	6.26044
	230 x 280	P 120	50	6.26045
	230 x 280	P 180	50	6.26046
	230 x 280	P 240	50	6.26047
	230 x 280	P 320	50	6.26048
	230 x 280	P 400	50	6.26049
	230 x 280	P 600	50	6.26050
	230 x 280	P 1200	50	6.26051

Which sanding medium for which machine and for which manufacturer?

SANDING BELTS FOR BELT-SANDERS
60 x 400 mm
	Bosch PBS 60
	PBS 60E
63 x 406 mm
	Skil 5903
	593U
65 x 410 mm
	Metabo BA 0665
	BAE 0666
	AEG HBS 65
	HBSE 65
	Black&Decker BD 83/E
	BS 650
	DN 83/E
	KA 83/E
	Holz Her 2405
	2406
	Kress CBS 6800 /E
75 x 457 mm
	Bosch PBS 7
	Makita 9910
	9911
	Peugeot PB 600
	TPB 7500
	Skil 1100
	1200 / H
	1205 / H
	7600 A
	7675 S
	Stayer 2 N 75
75 x 480 mm
	Elu MHB 157 / E
	MHB 158 / E
75 x 508 mm
	Black&Decker BD 85
	DN 85/E
	KA 83
	SR 500 E

75 x 533 mm
	Metabo BAE 0775
	BAE 0875
	BAE 1075/0876
	AEG HBSE 600
	RBSE 75 AE
	Atlas Copco HBSE 75
	MBSE 705
	Black&Decker KA 75/E
	Bosch GBS 75A/AE
	PBS 75A/AE
	Casals LC 75
	DeWalt DW 430
	DW 431
	Felisatti TP 411
	Festo BS 75
	BS 75 E
	BS 75 E-Set
	Hitachi SB 75
	Holz Her 2410
	2411
	2420
	Makita 9900B
	9901
	9902
	9903
	Peugeot PAB 75
	Ryobi B 850F / K7
	BE 321SF
	Skil 594 U
	595 U
	Stayer LEN 75

75 x 575 mm
	Metabo BAE 4350
75 x 610 mm
	Hitachi 9924DB
	Makita 9920
	9924
	Ryobi B 7100
100 x 533 mm
	Makita M 99
100 x 560 mm

AEG	BBS 1100
	BBSE 1100
	HBS 100 / E
Atlas Copco	BBS 100/E
De Walt	DW 650
	DW 650 E
Elu	MHB 90/E/K
Festo	BU 25
Ryobi	B 422
	BE 422 K 5
	HB 422/E

100 x 610 mm
	Bosch GBS 100A/AE
	Hitachi SB10T/V
	Makita 9402
	9403
	9404
	9924 DB
	Ryobi B 7200 A
	BE 424
	Wegoma LB 31 EA
100 x 620 mm
	Metabo BA 6100
	AEG HBS 10 /E
	Atlas Copco BBS 100/E
	Bosch GBS 100A/AE
	Hitachi SB 110
	Makita 9402
	9924DB
102 x 552 mm
	Peugeot RP 102
	Skil 1400 / H
	1405 / H
105 x 620 mm
	Metabo BA 6100
	Festo BS 105
	BS 105 E
	BS105 E-Set
	Hitachi SB 110
	Holz Her 2422
	2423
	2424

110 x 620 mm
	Casals LC 110 Hitachi SB 110
40 x 303 mm
	Bosch GVS 350 AE PVS 300 AE
6/13 x 451 mm
	Black&Decker Powerfile KA 290 Powerfile KA 292 E

SANDING BELTS
FOR BELT SANDERS

Sanding belts for wood and metal, "professional" series
	Dimensions mm	Grit	Packing unit	Order no.
Sanding belts 65 x 410 mm
65 x 410	P 40	3	6.31410
65 x 410	P 60	3	6.31411
65 x 410	P 80	3	6.31412
65 x 410	P 100	3	6.31413
65 x 410	P 120	3	6.25901
65 x 410	P 150	3	6.31414
65 x 410	P 180	3	6.25902
65 x 410	P 240	3	6.31415
Sanding belts 75 x 457 mm
75 x 457	P 40	3	6.25905
75 x 457	P 60	3	6.25906
75 x 457	P 80	3	6.25907
75 x 457	P 100	3	6.25908
75 x 457	P 120	3	6.25909
75 x 457	P 150	3	6.25910
75 x 457	P 180	3	6.25911
75 x 457	P 240	3	6.25912
Sanding belts 75 x 480 mm
75 x 480	P 80	3	6.25916
75 x 480	P 60	3	6.25917
75 x 480	P 80	3	6.25918
75 x 480	P 100	3	6.25919
75 x 480	P 120	3	6.25920
75 x 480	P 150	3	6.25921
75 x 480	P 180	3	6.25922
75 x 480	P 240	3	6.25923
Sanding belts 75 x 533 mm
75 x 533	P 40	3	6.31001
75 x 533	P 60	3	6.31002
75 x 533	P 80	3	6.31003
75 x 533	P 100	3	6.31004
75 x 533	P 120	3	6.31005
75 x 533	P 150	3	6.25927
75 x 533	P 180	3	6.31006
75 x 533	P 240	3	6.31007
75 x 533	P 320	3	6.31008
75 x 533	P 40	10	6.25929
75 x 533	P 60	10	6.25930
75 x 533	P 80	10	6.25931
75 x 533	P 100	10	6.25932
75 x 533	P 120	10	6.25933
75 x 533	P 150	10	6.25934
75 x 533	P 180	10	6.25935
75 x 533	P 240	10	6.25936
75 x 533	P 320	10	6.25937
Sanding belts 75 x 575 mm
75 x 575	P 40	3	6.25940
75 x 575	P 60	3	6.25941
75 x 575	P 80	3	6.25942
75 x 575	P 100	3	6.25943
75 x 575	P 120	3	6.25944
75 x 575	P 150	3	6.25945
75 x 575	P 180	3	6.25946
75 x 575	P 240	3	6.25947
Sanding belts 75 x 610 mm
75 x 610	P 40	3	6.25951
75 x 610	P 60	3	6.25952
75 x 610	P 80	3	6.25953
75 x 610	P 100	3	6.25954
75 x 610	P 120	3	6.25955
75 x 610	P 150	3	6.25956
75 x 610	P 180	3	6.25957
75 x 610	P 240	3	6.25958

	Dimensions mm	Grit	Packing unit	Order no.
Sanding belts 100 x 560 mm
100 x 560	P 40	3	6.25962
100 x 560	P 60	3	6.25963
100 x 560	P 80	3	6.25964
100 x 560	P 100	3	6.25965
100 x 560	P 120	3	6.25966
100 x 560	P 150	3	6.25967
100 x 560	P 180	3	6.25968
100 x 560	P 240	3	6.25969
Sanding belts 100 x 610 mm
100 x 610	P 40	3	6.25973
100 x 610	P 60	3	6.25974
100 x 610	P 80	3	6.25975
100 x 610	P 100	3	6.25976
100 x 610	P 120	3	6.25977
100 x 610	P 150	3	6.25978
100 x 610	P 180	3	6.25979
100 x 610	P 240	3	6.25980
Sanding belts 100 x 620 mm
100 x 620	P 40	3	6.25984
100 x 620	P 60	3	6.25985
100 x 620	P 80	3	6.25986
100 x 620	P 100	3	6.25987
100 x 620	P 120	3	6.25988
100 x 620	P 150	3	6.25989
100 x 620	P 180	3	6.25990
100 x 620	P 240	3	6.25991
100 x 620	P 40	10	6.25993
100 x 620	P 60	10	6.25994
100 x 620	P 80	10	6.25995
100 x 620	P 100	10	6.25996
100 x 620	P 120	10	6.25997
100 x 620	P 150	10	6.25998
100 x 620	P 180	10	6.25999
100 x 620	P 240	10	6.26000

	Order no.
3 sanding belts Assortment ( 1 each of P60, P80, P100) Dimensions: 65 x 410 mm	6.25903
3 sanding belts Assortment ( 1 each of P60, P80, P100) Dimensions: 75 x 457 mm	6.25913
3 sanding belts Assortment ( 1 each of P60, P80, P100) Dimensions: 75 x 480 mm	6.25924
3 sanding belts Assortment ( 1 each of P60, P80, P100) Dimensions: 75 x 533 mm	6.25928
3 sanding belts Assortment ( 1 each of P60, P80, P100) Dimensions: 75 x 575 mm	6.25948
3 sanding belts Assortment ( 1 each of P60, P80, P100) Dimensions: 75 x 610 mm	6.25959
3 sanding belts Assortment ( 1 each of P60, P80, P100) Dimensions: 100 x 560 mm	6.25970
3 sanding belts Assortment ( 1 each of P60, P80, P100) Dimensions: 100 x 610 mm	6.25981
3 sanding belts Assortment ( 1 each of P60, P80, P100) Dimensions: 100 x 620 mm	6.25992
