USER MANUAL A-9030 ONKYO

Thank you for purchasing an Onkyo Integrated Amplifier. Please read this manual thoroughly before making connections and plugging in the unit. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new Integrated Amplifier. Please retain this manual for future reference.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

RSKOF ELECTRIC SHOCK 0 NOT OP ME mA The Lighting flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the Â\ presence of uninsulated “dangerous voltage” within

the products enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in

the literature accompanying the appliance.

Important Safety Instructions

Read these instructions.

Keep these instructions.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug. À polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Only use attachments/accessories specified by the manufacturer.

Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Unplug this apparatus during lightning storms or when unused for long periods of time.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

PORTABLE CART WARNING:

15. Damage Requiring Service Unplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A. When the power-supply cord or plug is damaged,

B. If liquid has been spilled, or objects have fallen into the apparatus,

C. If the apparatus has been exposed to rain or water,

D. If the apparatus does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation,

E. Ifthe apparatus has been dropped or damaged in any way, and

F. When the apparatus exhibits a distinct change in performance this indicates a need for service.

16. Object and Liquid Entry Never push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.

The apparatus shall not be exposed to dripping or splashing and no objects filed with liquids, such as vases shall be placed on the apparatus.

Don't put candles or other burning objects on top of this unit.

17. Batteries Always consider the environmental issues and follow local regulations when disposing of batteries.

18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation.

(Leave 20 em (8") of free space at the top and sides and 10 cm (4") at the rear. When a shelf is located above the unit, the rear edge of the shelf shall be set 10 cm (4") away from the backboard to improve ventilation.)

1. Recording Copyright—Unless it's for personal use only, recording copyrighted material is illegal without the permission of the copyright holder.

2. AC Fuse—The AC fuse inside the unit is not user- serviceable. If you cannot turn on the unit, contact your Onkyo dealer.

3. Care—Occasionally you should dust the unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don't use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel lettering.

4. Power WARNING BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY.

AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the unit’s rear panel (e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz).

The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times.

For models with [POWER] button, or with both [POWER] and [ON/STANDBY] buttons: Pressing the [POWER] button to select OFF mode does not fully disconnect from the mains. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.

For models with [ON/STANDBY] button only: Pressing the [ON/STANDBY!] button to select Standby mode does not fully disconnect from the mains. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.

5. Preventing Hearing Loss Caution Excessive sound pressure from earphones and headphones can cause hearing loss.

6. Batteries and Heat Exposure Warning Batteries (battery pack or batteries installed) shall not be exposed to excessive heat as sunshine, fire or the like.

7. Never Touch this Unit with Wet Hands—Never handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by your Onkyo dealer.

8. Handling Notes +_If you need to transport this unit, use the original

packaging to pack it how it was when you originally

Do not leave rubber or plastic items on this unit for

a long time, because they may leave marks on the

+ This units top and rear panels may get warm after prolonged use. This is normal.

+_If you do not use this unit for a long time, it may not work properly the next time you turn it on, so be sure to use it occasionally.

FCC Information for User

The user changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation.

This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is

no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or

more of the following measures:

+ Reorient or relocate the receiving antenna.

+ Increase the separation between the equipment and receiver.

+ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

+ Consult the dealer or an experienced radio/TV technician for help.

NOTE: THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.

For models having a power cord with a polarized plug: CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel.

IMPORTANT The wires in the mains lead are coloured in accordance with the following code: Blue: Neutral

Brown: Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IMPORTANT The plug is fitted with an appropriate fuse. If the fuse needs to be replaced, the replacement fuse must approved by ASTA or BSI to BS1362 and have the same ampere rating as that indicated on the plug. Check for the ASTA mark or the BSI mark on the body of the fuse.

Ifthe power cord’s plug is not suitable for your socket outlets, cut it off and fit a suitable plug. Fit a suitable fuse in the plug.

Declaration of Conformity

We, ONKYO EUROPE ELECTRONICS GmbH LIEGNITZERSTRASSE 6, 82194 GROEBENZELL. GERMANY declare in own responsibility, the ONKYO product described in this instruction manual is in compliance with the

corresponding technical standards such as EN60065, EN5$013, ENS5020 and EN61000-3-2, -3-3.

GROEBENZELL, GERMANY K. MIYAGI ONKYO EUROPE ELECTRONICS GmbH Supplied Accessories

Make sure you have the following accessories:

Remote controller and two batteries

Remote controller (RC-830$) . ro) Batteries (ROB/AAA). eee... @) (Note for China: The battery for the remote controller is not supplied for this unit.)

Power cord (A-9050 only)

Power cord (5.9 f/1.8 M) @) (Plug type varies from country to country.)

* In catalogs and on packaging, the letter at the end of the product name indicates the color. Specifications and operations are the same regardless of color.

+75 Wich (1 kHz, 8 ohms, 0.08 % THD, 2ch Driven FTC)

+ WRAT (Wide Range Amplifier Technology)

+ DIDRC (Dynamic Intermodulation Distortion Reduction Circuiry)

+ High Current Low Impedance Drive

+ 10,000 F Capacitor x 2

+ Optimum Gain Volume

+ Aluminum Front Panels and Volume Knob

A-9030 Integrated Digital Amplifier + Three-stage Inverted Darlington Circuitry + Phase Matching Bass Technology

+ High Current Low Impedance Drive

Important Safety Instructions Precautions … Supplied Accessories Features Before Using the Integrated Amplifie: Installing the Batteries. Using the Remote Controller. Installing the Integrated Amplifier… Getting to Know the Integrated Ampli Front Panel Rear Panel. Remote Controller.

Connection Connecting Your Speakers Cable and Jacks . Connecting the Power Cord. Connecting a CD Player Connecting a Tuner Connecting an Onkyo Dock . Connecting Onkyo R1 Components. Connecting a Turntable... Connecting a Cassette Tape Deck Connecting a Recording Component Connecting a Subwoofer With

Built-In Power Amplifier Using the Integrated Amplifier as à Preamplifier

Turning On & Basic Operations

Basic Operations Tuning On/Off the Integrated Amplifier Selecting Speakers À and Speakers B. Adjusting the Volume. Selecting the Input Source Using the Direct Functioi Using the PHASE MACHING BASS Function Adjusting the Bass, Treble and Balance Muting the Sound. Using Headphones .

Troubleshooting . Specifications

Before Using the Integrated Amplifier

Installing the Batteries Using the Remote Controller

1 To open the battery compartment, press the small hollow and slide the cover.

2 Insert the two supplied batteries (ROS/AAA) in accordance with the polarity diagram inside the battery compartment.

+ If the remote controller doesn’t work reliably, try replacing the batteries.

+ Don’t mix new and old batteries or different types of batteries.

+ If you intend not to use the remote controller for a long time, remove the batteries to prevent damage from leakage or corrosion.

+ Remove expired batteries as soon as possible to prevent damage from leakage or corrosion.

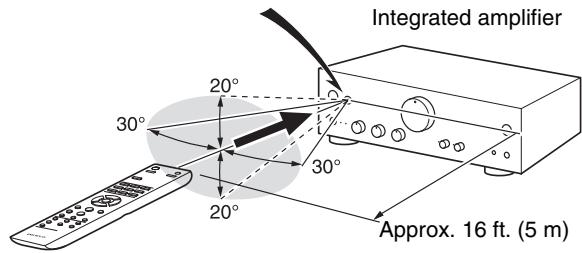

To use the remote controller, point it at the integrated amplifier's remote control sensor, as shown below.

Remote control sensor Integrated amplifier

+ The remote controller may not work reliably if the integrated amplifier is subjected to bright light, such as direct sunlight or inverter-type fluorescent lights. Keep this in mind when installing.

+ If another remote controller of the same type is used in the same room, or the integrated amplifier is installed close to equipment that uses infrared rays, the remote controller may not work reliably.

+ Don’t put anything, such as a book, on the remote controller, because the buttons may be pressed inadvertently, thereby draining the batteries.

+ The remote controller may not work reliably if the integrated amplifier is installed in a rack behind colored glass doors. Keep this in mind when installing.

+ The remote controller will not work if there”s an obstacle benween it and the integrated amplifier’ s remote control sensor.

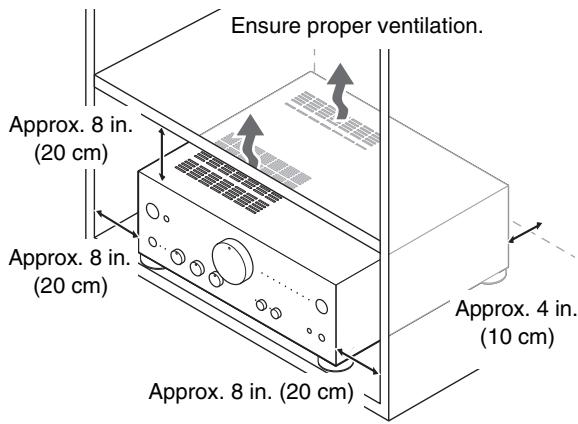

Installing the Integrated Amplifier

Ensure proper ventilation.

Approx. 8 in (20 cm) L Approx. 8 in. J (20 cm) Approx. 4 in. (10 cm)

Approx. 8 in. (20 cm)

Install the integrated amplifier on a sturdy rack or shelf. Position it so that its weight is evenly dispersed on its four legs. Do not install the integrated amplifier in a place with vibration or an unstable location.

The integrated amplifier is designed to have high conversion efficiency, however, its temperature will become much higher than other audio equipment. Therefore, make sure not to hamper heat ipation by ensuring proper ventilation.

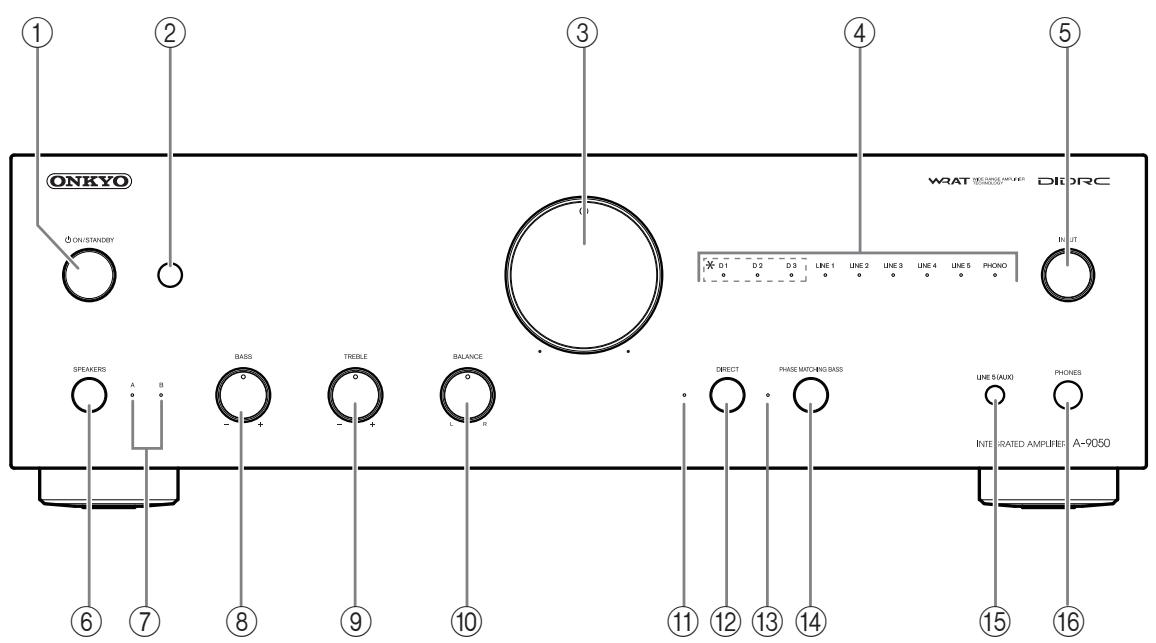

Getting to Know the Integrated Amplifier

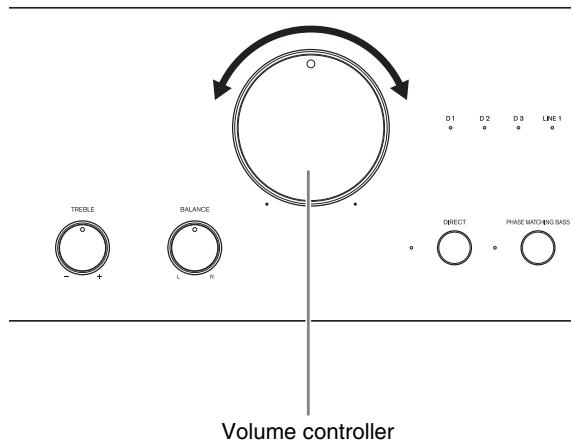

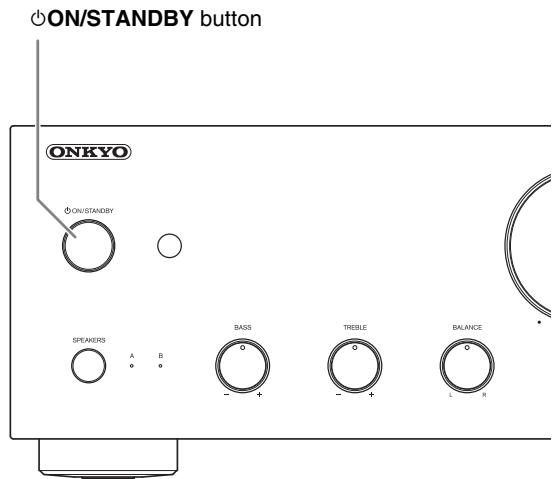

@ GON/STANDBY button (> page 21) Sets the integrated amplifier to On or Standby. © Remote control sensor (> page 7) Receives control signals from the remote controller. @ Volume controller (> page 22) Adjusts the volume. @ Input source LEDs (> page 23)

Lights according to the selected input source. (*A-9050 only)

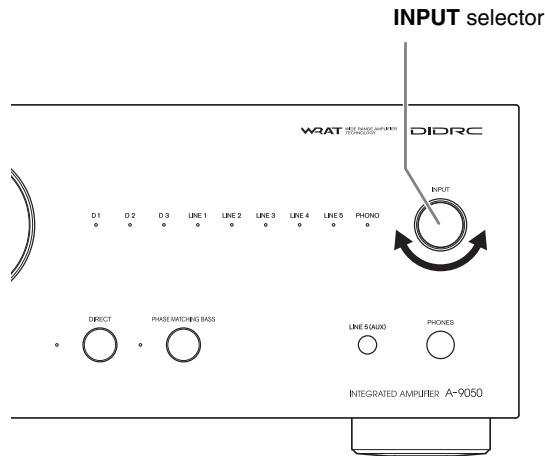

@ INPUT selector (= page 23) Selects the input sources in sequence. © SPEAKERS button (> page 22) Selects Speakers A, Speakers B, or both. @ AIB LEDs (> page 22) Lights according to the selected speaker output. BASS —/+ controller (> page 24) Adjusts the level of bass sounds.

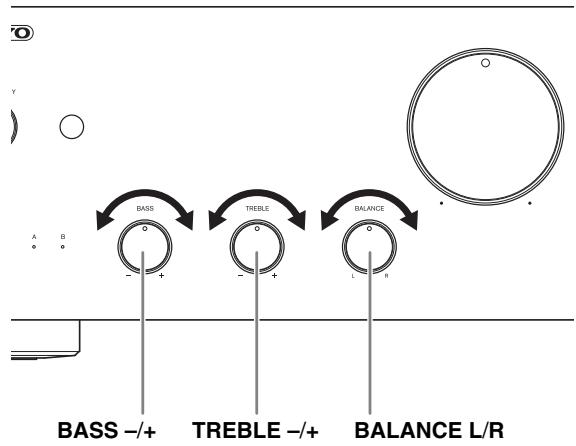

@ TREBLE -/+ controller (> page 24) Adjusts the level of treble sounds.

BALANCE L/R controller (> page 24) Adjusts the balance of left and right channels.

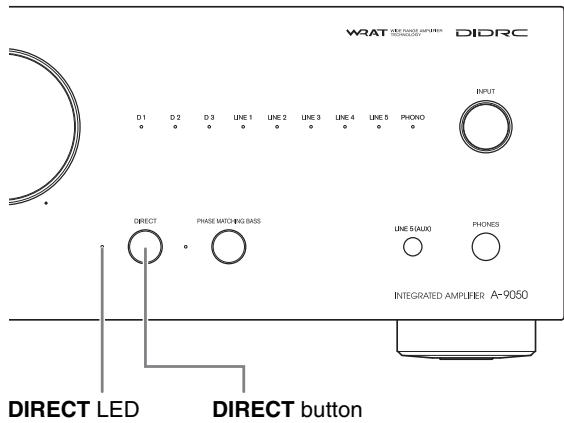

@ DIRECT LED (> page 23)

Lights when the integrated amplifier is in Direct mode.

@ DIRECT button (> page 23)

Enables or disables the Direct function.

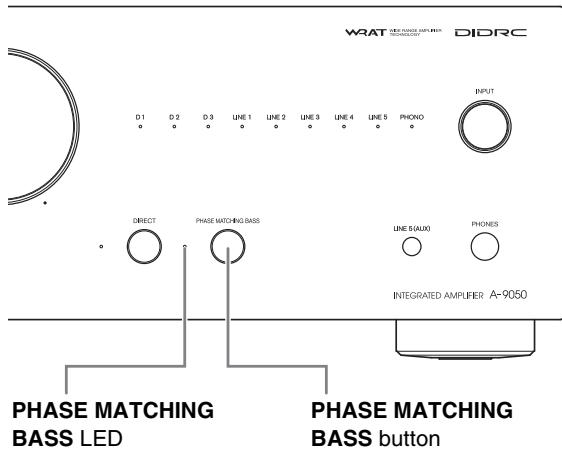

@ PHASE MATCHING BASS LED (> page 23) Lights when the integrated amplifier is in Phase matching bass mode.

@ PHASE MATCHING BASS button (> page 23) Enables or disables the Phase matching bass function.

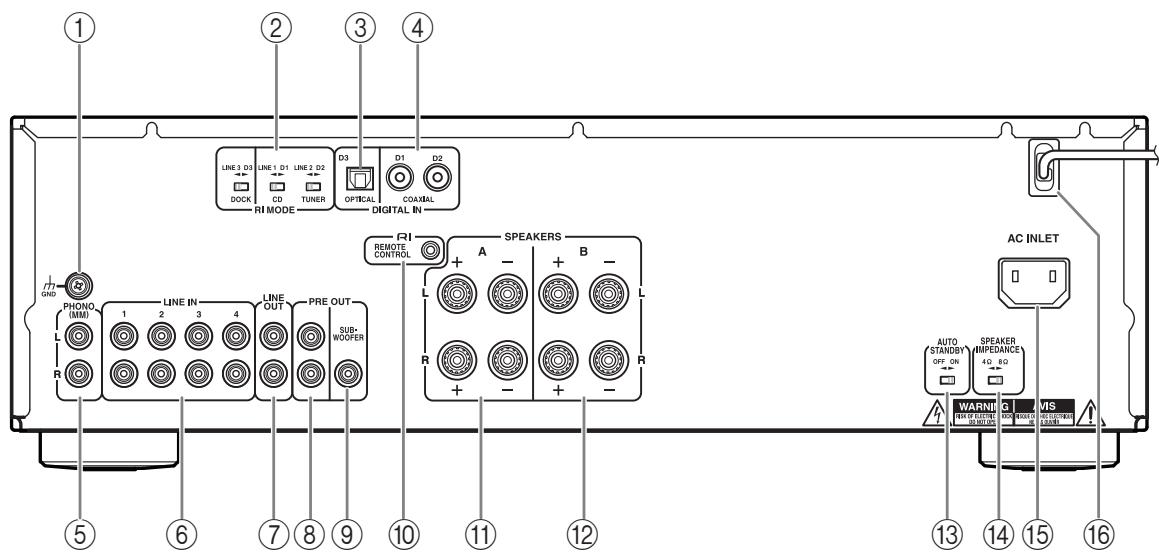

@ LINE5 (AUX) jack Connect playback devices with analog audio output.

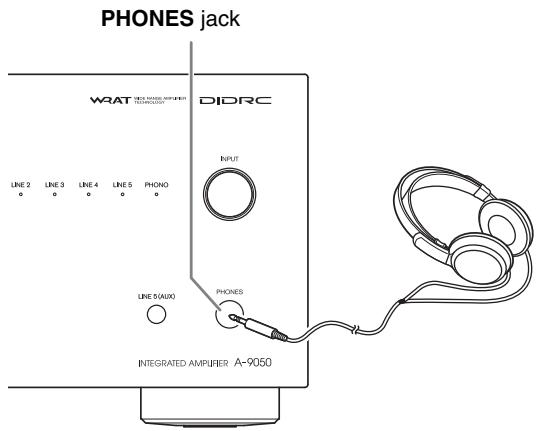

PHONES jack (> page 24)

Connects headphones with a standard plug.

sccocee: || 20 29000 {

O] © DO © ® GND screw

Connects the turntable’s ground wire. @ RI MODE selector (A-9050 only)

@ DIGITAL IN OPTICAL D3 jack (A-9050 only) Connects components such as CD players with optical digital audio output.

@ DIGITAL IN COAXIAL D1/D2 jacks (A-9050 only) Connect components such as CD players with coaxial digital audio output.

© PHONO (MM) L/R jacks Connect a turntable with analog audio output.

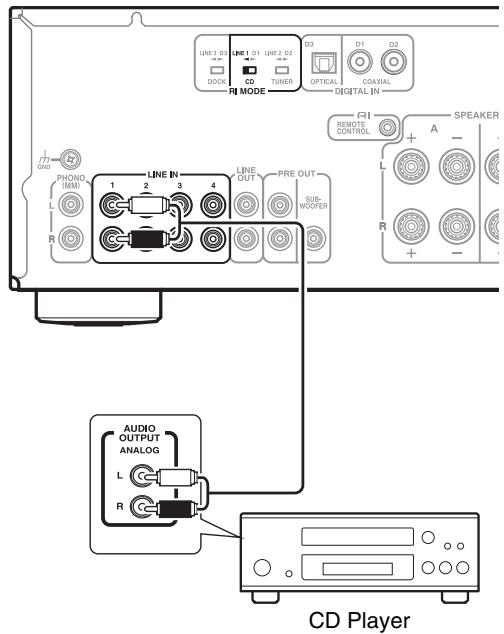

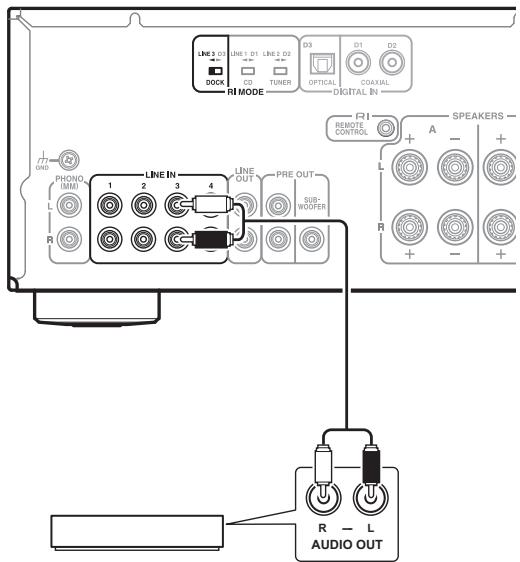

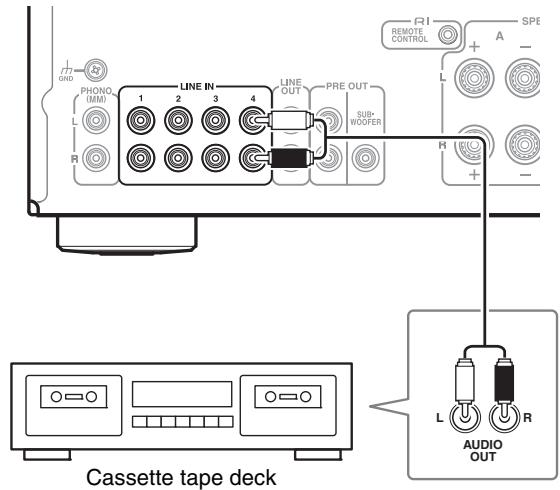

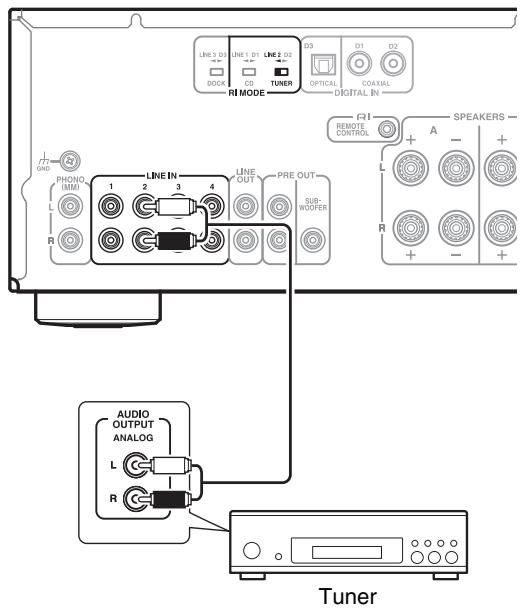

© LINE IN 1/2/3/4 L/R jacks Connect playback devices with analog audio output.

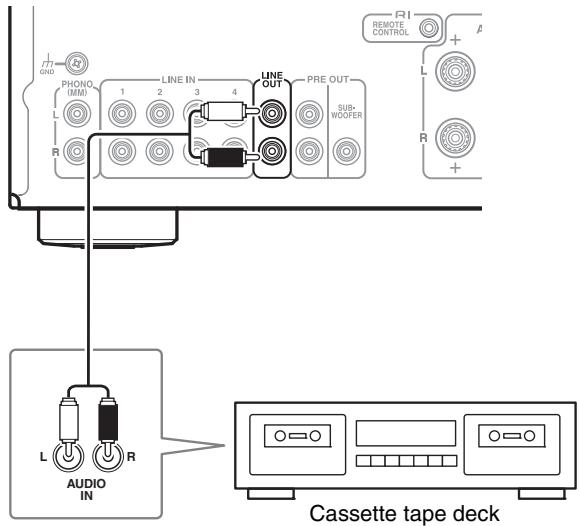

@ LINE OUT L/R jacks Connect components such as analog line-level sources. The input signals are output with no level adjustment.

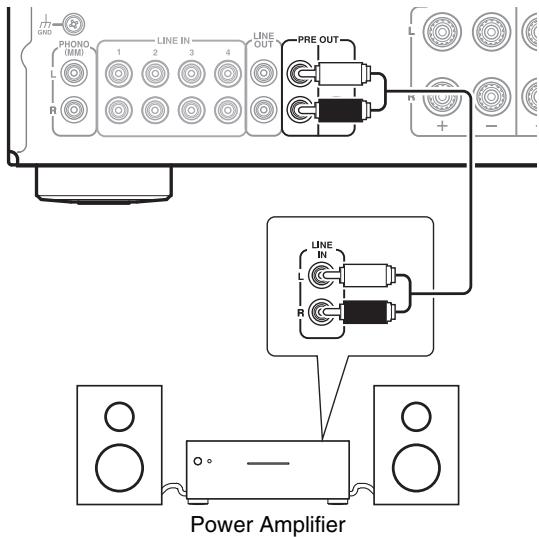

PRE OUT L/R jacks (A-9050 only)

Connect a power amplifier when the integrated amplifier is used as a preamplifier (Pre mode).

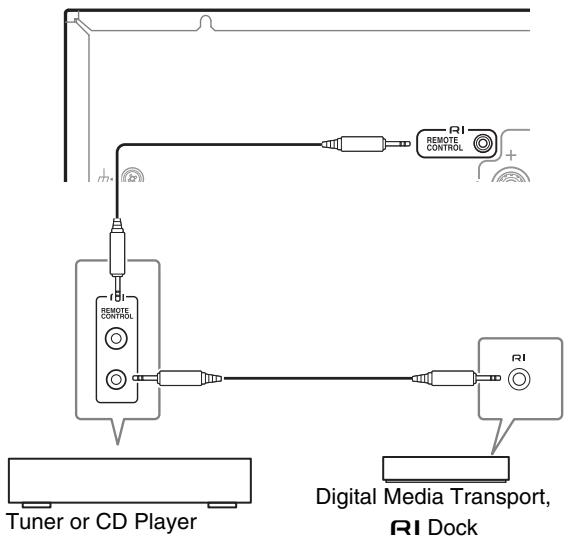

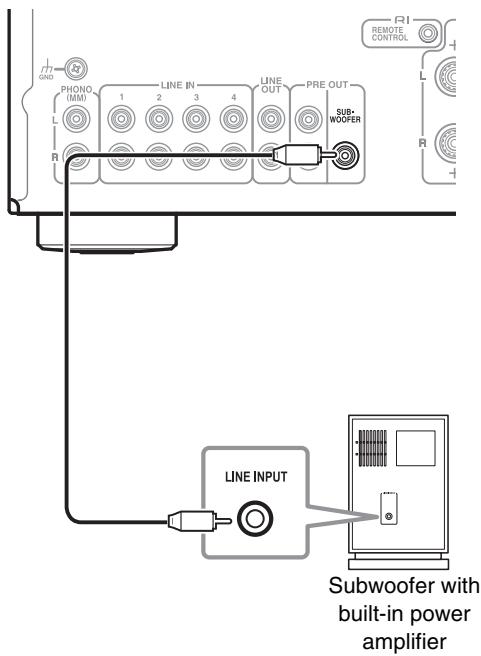

@ PREOUT SUBWOOFER jack @ RI REMOTE CONTROL jack Connect Onkyo components such as Onkyo Docks, CD Players, or Tuner with RI (Remote Interactive) jacks. @ SPEAKERS A terminals Connect Speakers A. @ SPEAKERS B terminals Connect Speakers B. @ AUTO STANDBY selector Enables or disables the Auto standby function. SPEAKER IMPEDANCE selector (A-9050 only) Switches the speaker impedance to 4 Q or 8 Q. @ AC INLET (A-9050 only) Connects the supplied power cord. The other end of

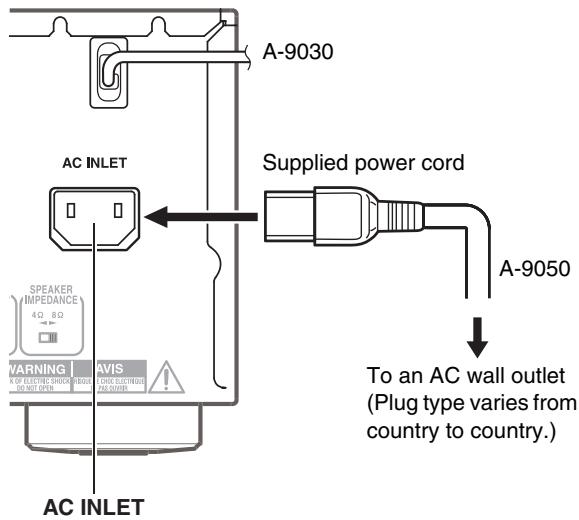

the power cord should be connected to a suitable wall outlet.

@ POWER CORD (A-9030 only)

See “Connections” for connection information

* Not used with the integrated amplifier

Returns to the previous display when changing settings.

You can also use the remote controller to control your Onkyo CD Player, Onkyo RI Dock, or Onkyo Tuner.

+ With some components, the remote controller may not work, or only partially.

+ To control the Onkyo Dock and Onkyo Tuner, an I connection is required (> page 18).

+ Refer to the manuals supplied with your Onkyo CD Players, Tuner or RI Docks.

E Controlling the Onkyo CD player © © CD button © Playback mode buttons

+ Make sure the remote controller is pointed at the CD player when using it

E Controlling the Onkyo Dock © © button

© A/V and ENTER buttons © Dock control buttons

E Controlling the Onkyo Tuner / Network Tuner © © button

© A/V/</> and ENTER buttons

© Network Tuner control buttons

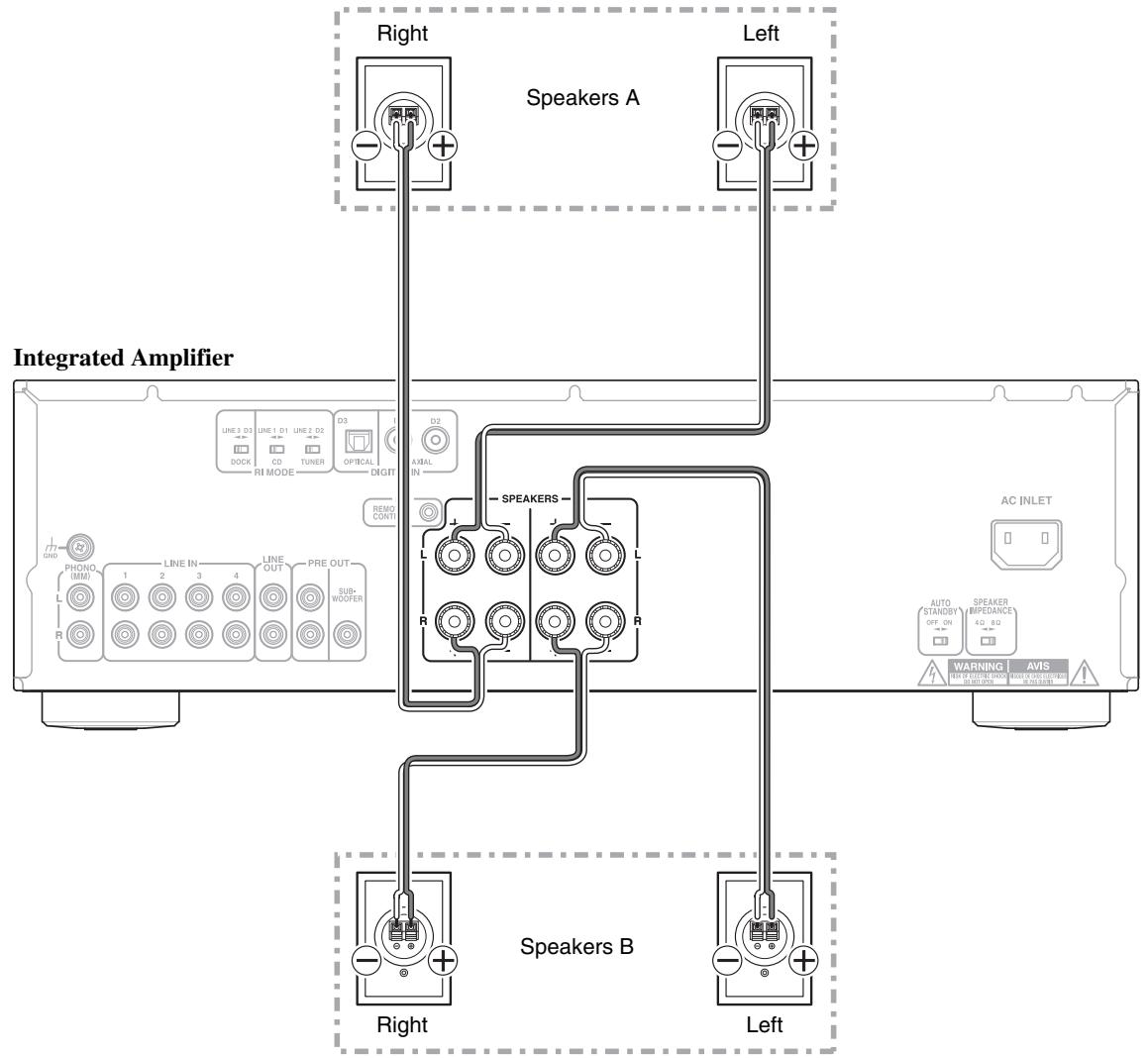

Connecting Your Speakers

Integrated Amplifier

E Screw-type speaker terminals

? ee . 1/2" to 5/8" (12 to 15 mm) Strip 1/2" to 5/8" (12 to 15 mm) of insulation from the 4

ends of the speaker cables, and twist the bare wires = JD 4

tightly, as shown. Ki _ 2 ES 74 ES KE B Banana Plugs (North American models) + If you are using banana plugs, tighten the speaker terminal before inserting the banana plug. + Do not insert the speaker code directly into the center hole of the speaker terminal.

+ Make sure that the wires do not touch metal parts on the back panel or elsewhere.

+ Y plugs cannot be connected.

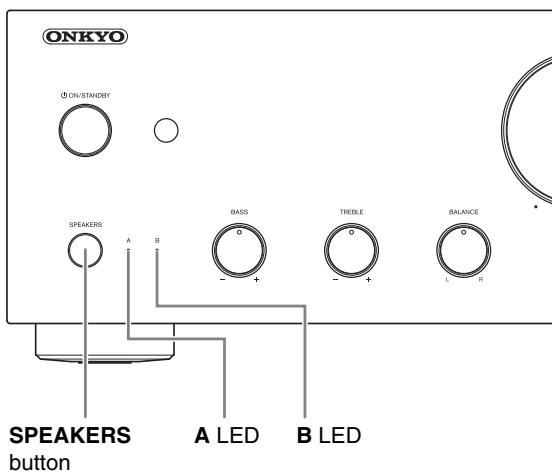

+ Two sets of speakers (Speakers À and Speakers B) can be connected to the integrated amplifier. You can select which speakers to output audio to when listening to music.

You can also output audio from both sets of speakers.

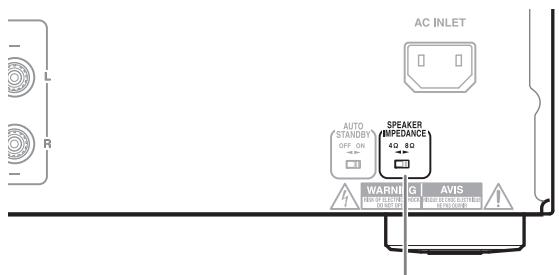

+ If you use Speakers A or Speakers B, make sure to use speakers with an impedance of 4 to 16 ohms. If you use Speakers À and Speakers B, make sure to use speakers with an impedance of 8 to 16 ohms. Connecting speakers with an impedance less than 8 ohms may cause the protection circuit to activate.

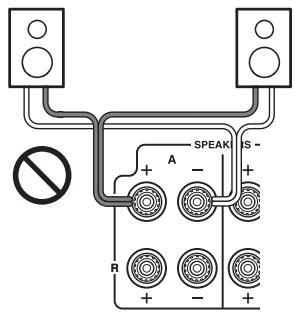

+ When using only one speaker, or when playing back monaural

audio, don't connect a single speaker to both the left and right

Pay close attention to speaker wiring polarity. In other words,

connect positive (+) terminals only to positive (+) terminals, and

negative (-) terminals only to negative (-) terminals. If you get them the wrong way around, the sound will be out of phase and will feel unnatural.

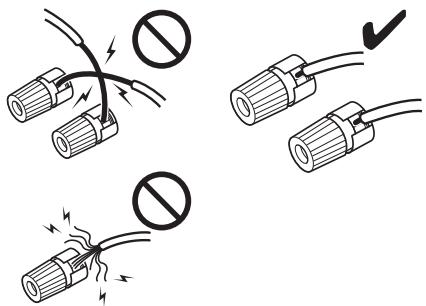

Be careful not to short the positive and negative wires. Doing so

may damage the integrated amplifier.

+ Make sure the metal core of the wire does not have contact with the integrated amplifier’ s rear panel. Doing so may damage the integrated amplifier.

+ Don't connect more than one speaker wire to a single speaker terminal. Doing so could damage the integrated amplifier or cause it to malfunction.

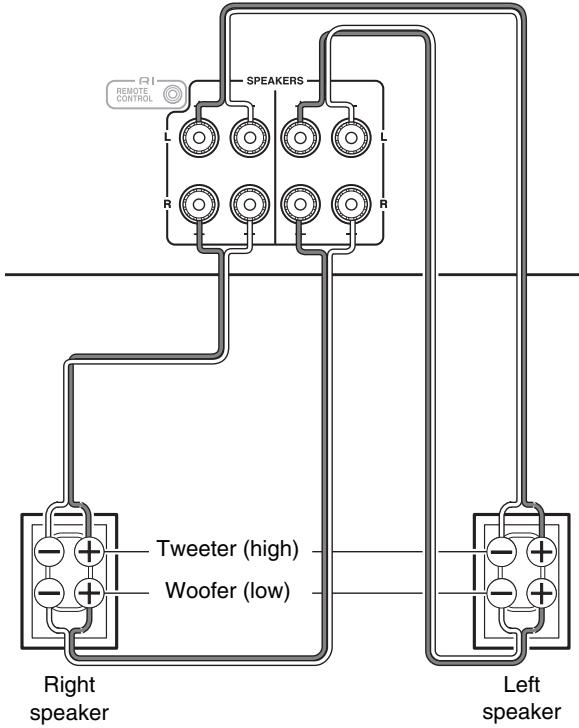

O O O Bi-wiring Connection

Bi-wiring provides improved bass and treble performance. Using terminals of both SPEAKERS A and SPEAKERS B, it separates high frequency from low frequency signals.

+ Bi-wiring can be used only with speakers that support bi- wiring and that have an impedance of 8-16 ohms.

+ When making the bi-wiring connections, be sure to remove the jumper bars that link the speakers’ tweeter (high) and woofer (low) terminal.

+ When making the bi-wiring connections, set SPEAKERS to A+B (> page 22).

Integrated Amplifier

+ As shown on the illustration, the wiring terminals of SPEAKERS A are connected to the woofer and SPEAKERS B are connected to the tweeter. However, wiring them the other way around is also possible.

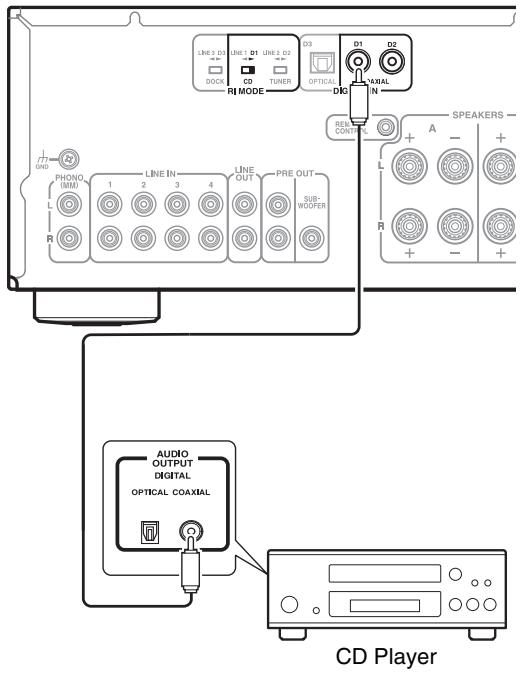

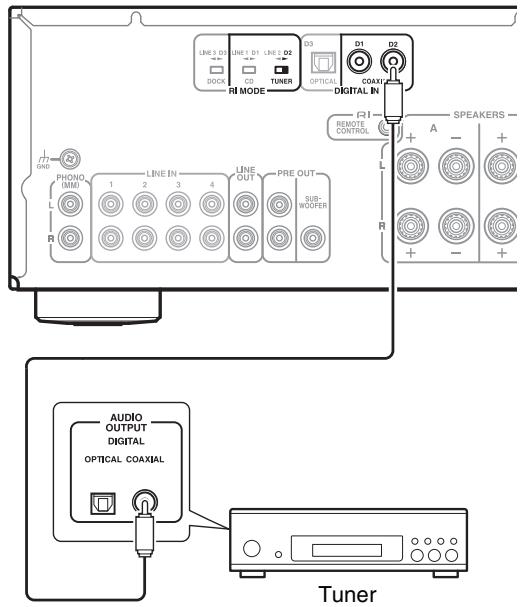

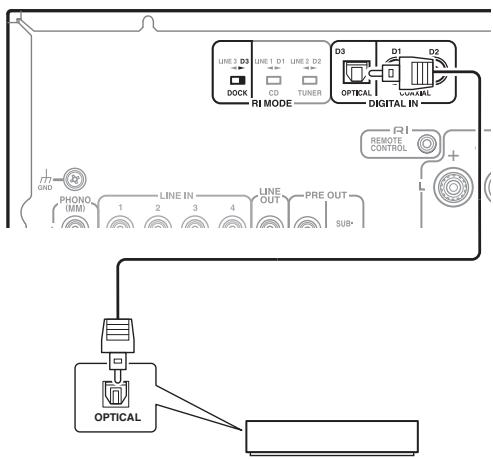

Optical digital audio Optical digital connections allow you to enjoy digital sound such as

(A-9050 only) Énuæ, PCM. The maximum sampling rate for PCM input is 96 KHz/24 bit, oPneas. 2ch,

Coaxial digital audio® , Coaxial digital connections allow you to enjoy digital sound such as

(A-9050 only) DE — Orange PCM. The maximum sampling rate for PCM input is 96 KH2/24 bit,

2ch. The integrated amplifier provides 75-ohm impedance matching.

Analog audio (RCA) Analog audio connections (RCA) carry analog audio.

ei To use RI (Remote Interactive), you need to connect your Onkyo Es © CD Player, Tuner, or RI Dock to the integrated amplifier with an RI cable

+ Push plugs in all the way to make good connections (loose connections can cause noise or malfunctions).

+ To prevent interference, keep audio cables away from power cords and speaker cables.

+ The integrated amplifier’s optical digital jack have shutter-type covers that open when an optical plug is inserted and close when it's removed. Push plugs in all the way.

+ To prevent shutter damage, hold the optical plug straight when inserting and removing.

+ Do not use digital audio signals other than PCM.

* An analog audio cable can be used instead of a coaxial cable. However, we recommend that you use a coaxial or a composite video cable

Connecting the Power Cord

F Tip A-9030 + To reduce noise, do not tie signal cables together with the power cable. Wire them so that they are away from each other. + Depending on the country, the integrated amplifier may be polarity-sensitive. In this case, plug the power cord in a way that

Supplied power cord provides the best sound quality.

+ Never disconnect the power cord from the integrated

A-9050 amplifier while the other end is still plugged into a wall outlet. Doing so may cause an electric shock. Always disconnect the power cord from the wall outlet first, and then the integrated

amplifier. To an AC wall outlet + Tuning on the integrated amplifier may cause a momentary (Plug type varies from power surge that might interfere with other electrical equipment

country to country.) on the same circuit. If this is a problem, plug the integrated amplifier into a different branch circuit.

+ Do not use a power cord other than the one supplied with the

AC INLET integrated amplifier. The supplied power cord is designed lusively for use with the integrated amplifier and should not 1 Connect all of your speakers and components. be used with any other equipment.

2 Connect the supplied power cord to the integrated amplifier’s AC INLET. (A-9050 only)

3 Plug the power cord into an AC wall outlet.

Connecting a CD Player Analog Connection

an example of connection using the CD Player.

Digital Connection (A-9050 only)

Integrated Amplifier K T 3j

Q Lo, 0.(== 000 =) =)

1 Connect the coaxial digital cable to the COAXIAL D jack.

2 Set the RI MODE switch to CD D1.

Tip + The CD player can be connected to the COAXIAL D or D2 jack or the OPTICAL D3 jack. However, when using the I

interlock function, be sure to connect the CD player to the COAXIAL D1 jack.

Integrated Amplifier

C0, o.(== J000 =) ==)

1 Connect an audio pin cable to the LINE IN 1 jack.

2 Set the RI MODE switch to CD LINE 1. (A-9050 only)

Tip + The CD player can be connected to the LINE IN 1/2/8/4 jack.

However, when using the fRI interlock function, be sure to connect the CD player to the LINE IN 1 jack.

Connecting a Analog Connection

s an example of connection using the Tuner. Integrated Amplifier

Digital Connection (A-9050 only)

Integrated Amplifier

Tuner Q o o000 À Connect an audio pin cable to the LINE IN 2 jack. 0 (= ès Tuner 2 Set the RI MODE switch to TUNER LINE 2. (A-9050 only) 1 Connect coaxial digital cable to the COAXIAL D2 jack. Tip

2 Set the RI MODE switch to TUNER D2. + A Tuner can be connected to the LINE IN 1/2/3/4 jack.

However, when using the I interlock function, be sure to connect the Tuner to the LINE IN 2 jack.

Tip + The Tuner can be connected to the COAXIAL D1 or D2 jack or

the OPTICAL D3 jack. However, when using the FI interlock function, be sure 10 connect the Tuner to the COAXIAL D2 jack.

Connecting an Onkyo Dock Analog Connection

This is an example of connection using the Onkyo RI Integrated Amplifier Dock. TR j Digital Connection (A-9050 only) az] Integrated Amplifier F

Digital Media Transport, R1 Dock

1 Connect the audio pin cable to the LINE IN 3 jack.

1 Connect the optical digital cable to the OPTICAL D3 jack.

2 Set the RI MODE switch to DOCK D3.

2 Set the RI MODE switch to DOCK LINE 3. (A-9050 only)

Tip - + An Onkyo Dock can be connected to the LINE IN 1/2/3/4 jack ip

However, when using the fRI interlock function, be sure to

+ An Onkyo Dock can be connected to the COAXIAL DA or D2 connect the Onkyo Dock to the LINE IN 3 jack.

jack or the OPTICAL D3 jack. However, when using the I

interlock function, be sure to connect the Onkyo Dock to the OPTICAL D3 jack.

Connecting Onkyo RI Components

Integrated Amplifier SE SU 4l& Te

Digital Media Transport,

Tuner or CD Player RI1 Dock

1 Make sure that each Onkyo CD Player, Tuner or RlDock is connected and that the RI MODE switch is set correctly (> pages 15 to 17).

+ Settings will not be enabled even when the selector is changed in the Standby mode.

+ To change a setting, be sure to turn on the unit prior to making any changes.

2 Make the RI connections (see the illustration).

With RI (Remote Interactive), you can use the following special functions:

B Auto Power On When you start playback on a component connected via RI while the integrated amplifier is on Standby, the integrated amplifier will automatically turn on and select that component as the input source.

Direct Change When playback is started on a component connected via RL. the integrated amplifier automatically selects that component as the input source.

BE System Off When you turn off the integrated amplifier, the components turn off automatically.

B Remote Control You can use the integrated amplifier’ s remote controller 10 control your other RI-capable Onkyo Components, pointing the remote controller at the integrated amplifier’ s remote control sensor instead of the component. To operate the CD player, point the remote controller at the CD player.

Tip + For details on operating the connected components, see “Remote Controller” (> page 11).

+ Use only RI cables for RI connections. I cables are supplied with your Onkyo CD Player, Tuner or RI Dock.

+ Iftwo RI jacks are present, you can use either one indifferently as they work the same way.

+ Connect only an Onkyo CD Player, Tuner or I Dock to the RI jack. Connecting other manufacturer’s components may cause a malfunction.

+ Only Onkyo CD Players, Tuners, and FI Docks are supported by the integrated amplifier s RI. With other components such as MD recorders, the RI won't work properly.

+ Some components may not support all I functions. Refer to the manuals supplied with your Onkyo CD Players, Tuner or RI Docks.

+ The CD Players only support the Auto Power On and Direct Change functions.

Connecting a Turntable

Integrated Amplifier

The PHONO input jacks are for use with moving-magnet

(MM) type cartridges.

Use an analog audio cable to connect the PHONO L/R

jacks to the audio output jacks on the turntable, as shown.

If your amplifier has shorting pin plugs, remove the

shorting pin plugs before connecting your turntable. Tip

+ Ifthe turntable has a ground wire, connect it to GND terminal. With some turntables, connecting the ground wire may cause hum, in which case it should be disconnected.

+ If the turntable has a moving-coil (MC) type cartridge, you”1l need a commercially available MC phono preamp. In this case,

connect the turntable to the phono preamp’s input, and connect the phono preamp's output to the PHONO L/R jacks.

Connecting a Cassette Tape Deck

Integrated Amplifier

Tip + Connect your cassette tape deck to either of the following jacks: LINE IN 1/2/3/4

Connecting a Recording Component

+ Unless you have the full consent of the copyright holder, copyright laws prohibit using your recordings for anything. other than personal enjoyment!

+ Do not change the integrated amplifier’s input while recording. Doing so will cause the audio from the selected component to be recorded.

+ Volume adjustments and use of the muting function are not reflected in the signal output from LINE OUT.

+ Manual tone adjustments using the BASS —/+ controller, TREBLE —/+ controller, BALANCE L/R controller, direct function, and phase matching bass function are not reflected in the signal output from LINE OUT.

+ See the manual of the recording component for instructions on correct use.

Integrated Amplifier

Connecting a Subwoofer With Built-In Using the Integrated Amplifier as a Power Amplifier Preamplifier

A subwoofer with a built-in power amplifier can be The integrated amplifier can be used as a preamplifier (Pre connected to be used. mode). This is an example of connection using the power Connect LINE INPUT on the subwoofer with a built-in amplifier. (A-9050 only)

power amplifier to PRE OUT: SUBWOOFER terminal on the integrated amplifier.

If your subwoofer does not have a built-in amplifier, connect the input jack of your amplifier to the pre out jack of the subwoofer. | |

Integrated Amplifier

For details, refer to the manual supplied with your subwoofer.

Integrated Amplifier Lu

Subwoofer with built-in power amplifier

Turning On/Off the Integrated Amplifier

Turning On the Integrated Ampli

Turning Off the Integrated Amplifier

B Operating with the remote controller

The SPEAKERS (A/B) and Input source LEDs blink,

then light up after a short time. B Operating on the integrated amplifier

1 Press OON/STANDBY.

The SPEAKERS (A/B) and Input source LEDs blink,

then light up after a short time.

+ After a certain time of warming up, the internal temperature of the integrated amplifier stabilizes, and the sound is softened.

+ The integrated amplifier remembers the state when power was last turned off, and returns 10 that state.

M Operating with the remote controller 1 press ©. The integrated amplifier enters Standby mode and the

M Operating on the integrated ampl

1 Press SON/STANDBY.

The integrated amplifier enters Standby mode and the LED goes off.

Selecting Speakers À and Speakers B Adjusting the Volume

You can select to output sound from Speakers A, BE Operating with the remote controller

Speakers B, or both À + B.

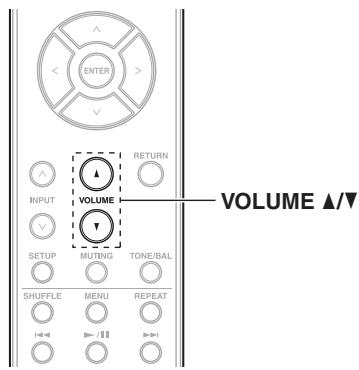

GNEYO Le à VOLUME 4/Y

ù 1 Press VOLUME A/ repeatedly.

B Operating on the integrated amplifier

SPEAKERS ALED BLED button

1 Press SPEAKERS repeatedly on the integrated TN amplifier. LL The LED of the selected speakers lights.

+ While headphones are connected, this setting is disabled. O + When this setting is set 10 À + B, the impedance of speakers is restricted. For further details, see “Connecting Your Speakers”

Tip + The default level is O.

Selecting the Input Source Using the Direct Function

You can switch inputs to select the desired source

component. Choose an input from the following:

LINE, LINE2, LINE3, LINE4, LINES, PHONO

(D1, D2, D3 (A-9050 only))

The LED corresponding to the selected input will light up. Tip

+ The LED will blink when D1, D2 or D3 is selected and a signal is not input. (A-9050 only)

B Operating with the remote controller

1 Press INPUT A/V repeatedly.

B Operating on the integrated amplifier

By bypassing the tone control circuit, the Direct function uses the shortest path for enhanced sound quality. Also, since the left/right balance setting uses a system that doesn't affect the sound quality, the balance can be adjusted even if the Direct function is enabled.

DIRECT LED DIRECT button 1 Press the DIRECT button. The DIRECT LED lights.

Using the PHASE MATCHING BASS Function

From the warm low notes produced by a cello to the deep frequencies of electronic music, a good compact audio system should be able to deliver plenty of bass resonance. While traditional enhancement systems effectively boost low-frequency sound, they are often prone to the effects of phase shifting, which can overwhelm mid-range frequencies and muddy the sound.

Our Phase-Matching Bass Boost technology effectively preserves mid-range clarity-allowing vocals and strings to shine-while maintaining a smooth, powerful bass response at all volume levels.

LL PHASE MATCHING BASS button

PHASE MATCHING BASS LED

1 Press the PHASE MATCHING BASS button. The PHASE MATCHING BASS LED lights up.

+ When the DIRECT function is on, turn the function off to use the PHASE MATCHING BASS effect.

Adjusting the Bass, Treble and Balance Muting the Sound

You can adjust the bass, treble and left/right output You can temporarily mute the output of the integrated balance respectively. amplifier.

B Operating on the integrated amplifier

F9 … 1 Press MUTING.

The SPEAKERS (A/B) and SELECTOR LEDs blink. To unmute the integrated amplifier, press MUTING again.

BASS -/+ TREBLE-/+ BALANCE L/R

1 Turn the BASS -/+, TREBLE -/+ and BALANCE L/R knobs. + While the integrated amplifier is muted: — Adjusting the volume or setting the integrated amplifier to

Standby will unmute the integrated amplifier. Tip

+ By default, bass, treble and balance is set to the center position. ps ua P Using Headphones

+ While the Direct function is enabled, bass and treble are disabled.

1 Connect a pair of stereo headphones with a standard plug (1/4 inch or 6.3 mm) to the PHONES jack.

When connecting the headphones, the SPEAKERS (A/B) LEDs go off.

You can adjust the volume and mute the sound, by using VOLUME 4/Y.

While headphones are connected, no sound is output from the speakers and PRE OUT jacks.

+ Always turn down the volume before connecting your headphones.

+ When headphones are connected, the SPEAKERS button cannot be used.

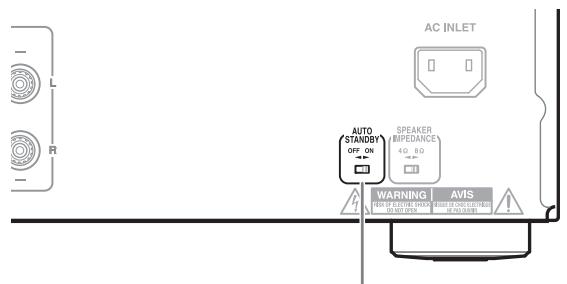

Setting the Auto Standby Function Setting the speaker impedance

When the Auto Standby (ASb) function is activated, the integrated amplifier will automatically enter Standby mode if there is no operation for 30 minutes with no audio signal input.

AUTO STANDBY selector

1 Switch the AUTO STANDBY selector on the unit’s rear panel. » [ON] Enables auto standby. » [OFF] Disables auto standby.

You can set the impedance of the speakers that you connect to the unit. (A-9050 only)

SPEAKER IMPEDANCE selector

1 Switch the SPEAKER IMPEDANCE selector on the unit’s rear panel. } [4 Q or more and less than 8 Q] Sets the impedance to 4 Q. } [8 Q or more and 16 @ or less] Sets the impedance to 8 Q.

+ Settings will not be enabled even when the selector is changed in the Standby mode. To change a setting, be sure to turn on the unit prior to making any changes

First check the followings.

Since the issue may be caused by other components that are connected, be sure to also check them while referring to their manuals.

Further product operating procedures and FAQs (frequently asked questions) are available from the Onkyo web site.

http://www.jp.onkyo.com/support/

Tip Before requesting repairs

If the integrated amplifier is no longer working or functioning, any issues may be resolved by resetting the microcomputer contained in the integrated amplifier to revert all settings to their defaults.

Before requesting repairs, follow the procedure below 10 reset the microcomputer.

‘With the integrated amplifier turned on, hold down DIRECT and press OLON/STANDBY.

Can't turn on the Integrated Ampli

+ Make sure that the power cord is properly plugged into the wall outlet (> page 14).

+ Unplug the power cord from the wall outlet, wait 5 seconds or more, then plug it in again.

The Integrated Amplifier turns off unexpectedly.

+ When the protection circuit is activated (because of speaker short-circuit, overload, or over-current), the integrated amplifier enters Standby mode. Remove the source of the problem and turn the integrated amplifier back on.

+ Check that the switch on the back of the integrated amplifier is set to the correct setting (> page 25).

+ The settings are not enabled when the switch is changed during the Standby mode.

To change a setting, be sure to turn on the unit prior to making any changes.

+ Make sure the integrated amplifier’s volume control is not set to minimum (> page 22).

+ Make sure the correct input source is selected (> page 23).

+ Make sure the integrated amplifier is not muted (> page 24).

+ Make sure the speakers are connected correctly (= page 12).

+ Check all connections and correct as necessary (+ page 12).

+ While headphones are connected, the speakers output no sound (> page 24).

+ The integrated amplifier does not support digital formats other than PCM. Inputting a digital format other than PCM will cause loud noise.

The sound quality is not good.

+ Make sure the speaker cables are connected with the correct polarity (> page 12).

+ Make sure all audio connecting plugs are pushed in all the way (> page 14).

+ The sound quality can be affected by strong magnetic fields, such as those from a TV. Try moving any such devices away from the integrated amplifier.

+ If you have any devices that emit high-intensity radio waves near the integrated amplifier, such as a cellular phone that's being used to make a call, the integrated amplifier may output noise.

Headphone output is intermittent or there’s no sound.

+ This may be due to dirty contacts. Clean the headphones plug. See your headphones’ instruction manual for cleaning information. Also, make sure that the headphones cable is not broken or damaged.

+ Audio performance will be at its best about 10 to 30 minutes after the integrated amplifier has been turned on and had time to warm up.

+ Using cable ties to bundle audio cables with speaker or power cables may degrade the sound quality, so refrain from doing it.

+ Depending on the country, the integrated amplifier may be polarity-sensitive. In this case, plug the power cord in a way that provides the best sound quality.

+ Install the integrated amplifier on a sturdy rack or shelf. Position it so that its weight is evenly dispersed on its four legs. Do not install the integrated amplifier in a place with vibration or an unstable location.

+ Plug the power cord into an AC wall outlet.

+ Make sure that the Onkyo Dock is connected to the integrated amplifier properly.

+ Make sure that no video content is being played.

+ When the Auto Standby (ASb) function is activated, the power of the Onkyo Dock connected via FI is automatically turned off (> page 25).

Can’t control properly by using the remote controller.

+ Make sure that the I cable is connected to the integrated amplifier correctly. Check that each device is connected correctly and that the RI MODE switch is set correctly (> page 17).

No sound is heard from a connected component.

+ Make sure the correct input source is selected (> page 23).

+ Make sure the analog audio cable is connected correctly (> page 14).

When the RI interlock does not function properly + Check that each device is connected correctly and that the RI MODE switch is set correctly ( pages 15 10 17).

+ Check that the switch on the back of the integrated amplifier is set to the correct setting.

+ The settings are not enabled when the switch is changed during the Standby mode.

To change a setting, be sure to turn on the unit prior to making any changes.

+ The connecting method may vary depending on the device that will be connected. Please refer to the RI connection section in the owner’s manual of the connected device.

The sound from turntable is distorted.

+ If your turntable has a built-in phono preamp, connect to other analog inputs such as LINE IN.

+ If your turntable does not have a built-in phono preamp, connect a turntable to PHONO (+ page 19).

+ Make sure that the ground wire is connected. Otherwise, it may produce an audible hum and noise.

The remote controller doesn't work properly.

+ Make sure the batteries have been installed with the correct polarity (+/-) (> page 7).

+ Replace both batteries with new ones. (Do not mix different types of batteries or new and old batteries.)

+ The remote controller is 100 far away from the integrated amplifier, or there's an obstacle between them ( page 7).

+ The integrated amplifier’ s remote control sensor is being subjected to bright light (inverter-type fluorescent light or sunlight).

+ The integrated amplifier is located behind the glass doors of an audio rack or cabinet.

Onkyo is not responsible for damages (such as CD rental fees) due to unsuccessful recordings caused by the unit’s malfunction. Before you record important data, make sure that the material will be recorded correctly.

The integrated amplifier contains a microcomputer for signal processing and control functions. In very rare situations, severe interference, noise from an external source, or static electricity may cause it to lockup. In the unlikely event that this should happen, unplug the power cord, wait at least 5 seconds, and then plug it again.

Before disconnecting the power cord from the wall outlet, set the integrated amplifier to Standby.

If during idling the cover is too hot to touch, then ventilation needs to be improved.

Rated Output Power (North American) (IEC) 2 ch x 65 W at 8 ohms, 1 kHz, 2 ch Driven of TC) 75 watts minimum continuous power per 0.08 % channel, 8 ohm leads, 2 channels driven at 1 kHz, with a maximum total harmonic distortion of 0.08 % ŒTC) 65 watts minimum continu channel, 4 ohm load, 2 channels with a maximum total harmonie distortion of 0.08 %

Œuropean) (EC) 2 ch x 75 W at 8 ohms, 1 kHz, 2 ch Driven of 0.08 % Maximum Effective (Asian) Output Power GEITA) 2 ch x 80 W at 4 ohms, 1 KHz, 2 ch driven THD+N (Total Harmonic Distortion+N) 0.08 % (Rated Output Power) 0.08 % (Rated Output Power) Damping Factor 60 (Front, 1 kHz, 8 Q) 60 (Front, 1 kHz, 8 Q) Input Sensitivity and Impedance (Unbalance) 275 mV/33 KQ (LINE) 275 mV/33 kQ (LINE) 4.8 mV/47 kQ (PHONO MM) 4.8 mV/47 kKQ (PHONO MM) Rated RCA Output Level and Impedance 0.275 V/2.2 kQ (REC OUT) 0.275 V/2.2 kQ (REC OUT) Phono Overload 100 mV (MM 1 kHz 0.5 %) 100 mV (MM 1 kHz 0.5 %) Frequency Response 10 Hz- 100 KHz/+1 dB, -3 dB (LINEI) 10 Hz - 100 kHz/+1 dB, -3 dB (LINE1) Tone Control Characteristies +14 dB, 14 dB, 100 Hz (BASS) +14 dB, 14 dB, 100 Hz (BASS) +14 dB, 14 dB, 10 kHz (TREBLE) +14 dB, -14 dB, 10 kHz (TREBLE) +0 dB, 14 dB (BALANCE) +0 dB, 14 dB (BALANCE) +8 dB, 80 Hz (PM.BASS) +8 dB, 80 Hz (PM.BASS) Signal to Noise Ratio 110 dB (LINE, IHF-A) 105 dB (LINE, IHF-A) 80 dB (PHONO MM. IHF-A) 80 dB (PHONO MM, IHF-A) Speaker Impedance 4Q-16Q 4a-16Q Power Supply (North American) AC 120 V, 60 Hz Œuropean) AC 230 V, 50 Hz Œuropean) AC 230 V, 50 Hz (Asian) AC 220 V, 50 Hz Power Consumption 160 W Œuropean) 135 W

(Asian) 125 W No-sound Power Consumption

(North American) 45 W 35W

Œuropean) 50 W Stand-by Power Consumption

(North American) 0.2 W 03W

Œuropean) 0.3 W Dimensions (W x H x D)

435 mm x 139 mm x 330.3 mm 435 mm x 139 mm x 330.3 mm 17-1/8" x 5-1/2° x 13" 17-18" x 5-1/2" x 13" Weight 82 kg (18.1 lbs) 7.4 kg (16.3 Ibs) B Audio Inputs Digital Inputs 1 (Rear Optical) 2 (Rear Coaxial) Analog Stereo Inputs LINEI, LINEZ, LINE3, LINE4, LINES, PHONO LINEI, LINE2, LINE3, LINE4, LINES, PHONO B Audio Outputs Analog Stereo Outputs LINE OUT, PRE OUT LINE OUT Subwoofer Pre Outputs 1 1 Speaker Outputs SP-A,B SP-A,B Phones 16.36) 16.36) M Others RI 1 1

Specifications and features are subject to change without notice.

The Coach House 81A High Street, Marlow, Buckinghamshire, SL7 1AB, UK Tel: +44-(0)1628-473-350 Fax: +44-(0)1628-401-700

Unit 1033, 10/F, Star House, No 3, Salisbury Road, Tsim Sha Tsui Kowloon, Hong Kong.

SN 29401270 {C) Copyright 2012 Onkyo Corporation Japan. All rights reserved.
