Product type	Front-loading washing machine
Brand	Cecotec
Model	Bolero Dresscode 8160 Inverter Steel
Washing capacity	8 kg
Maximum spin speed	1600 rpm
Energy class	A+++
Motor type	Inverter motor
Dimensions (H x W x D)	85 cm x 60 cm x 65 cm
Net weight	70 kg
Power supply	220-240 V, 50 Hz, 10 A
Number of programs	15 programs
Main functions	Delayed start, steam option, quick wash, prewash

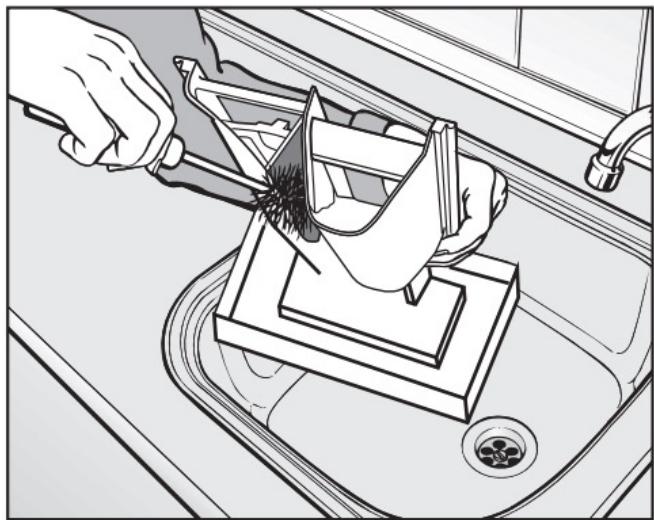

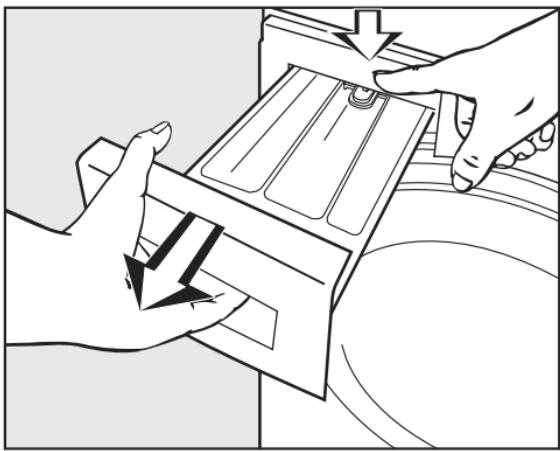

Maintenance and cleaning	Regular cleaning of filter and detergent drawer recommended
Safety	Child lock, anti-overflow system
Spare parts and repairability	Spare parts available on manufacturer's website
General information	User manual available in French

Frequently Asked Questions - Bolero Dresscode 8160 Inverter Steel CECOTEC

How to install the Cecotec Bolero Dresscode 8160 washing machine?

Place the appliance on a flat, hard surface, unpack it, remove the transit bolts, connect the water inlet and drain hose, then plug in the power cord. Consult the full manual for more details.

What is the maximum washing capacity?

The maximum washing capacity is 8 kg for cotton. Do not exceed this load to avoid premature wear and inefficient washing.

How to use the delayed start?

Select the desired program, then press the 'Delayed start' button to choose the number of delay hours (from 1 to 24h). Confirm by pressing 'Start'.

What to do in case of an error code displayed?

Check the error code section in the manual. Common codes include 'E01' for a drainage problem or 'E02' for a door fault. Restart the appliance after resolving the issue.

How to clean the drain pump filter?

Unplug the appliance, open the lower panel, unscrew the filter counterclockwise, clean it with clean water, then screw it back. Empty any residual water beforehand.

Can I wash woolen clothes with this washing machine?

Yes, the 'Wool' program is suitable. Use a special wool detergent and do not exceed a load of 2 kg.

How to activate the child lock?

Press and hold the 'Child lock' button (often symbolized by a padlock) for 3 seconds until the icon appears. To deactivate, repeat the operation.

What detergent to use?

Use a detergent suitable for the machine (powder or liquid) for textiles. Follow the dosages indicated on the packaging. For low-temperature programs, prefer liquid detergent.

Why is the machine not draining?

Check that the drain hose is not kinked or blocked. Also clean the pump filter. If the problem persists, contact customer service.

Where to find spare parts?

Spare parts are available on the official Cecotec website or from authorized dealers. Use the exact model reference: Bolero Dresscode 8160 Inverter Steel.

USER MANUAL Bolero Dresscode 8160 Inverter Steel CECOTEC

Lavadora color steel / Steel-coloured washing machine

Instrucciones de seguridad 5
Safety instructions 9
Instructions de sécurité 13
Sicherheitshinweise 17
Istruzioni di sicurezza 21
Instruções de segurança 26
Instrukcja bezpieczeństwa 30
Instruccions de seguretat 34
Biztonsági utasítások 39

ÍNDICE

1. Parts and components 63
2. Before use 63
3. Installation 64
4. Operation 66
5. Cleaning and maintenance 71
6. Troubleshooting 73
7. Technical specifications 75
8. Technical data 76
9. Recycling of electrical and electronic equipment 79
10. Technical support and warranty 79
11. Copyright 80
12. Simplified Declaration of Conformity 80

SOMMAIRE

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Please read these instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

• The air openings must not be obstructed by a carpet.
• Children under 3 years old must stay away from the washing machine, unless they are constantly supervised.
• This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Do not allow children to play with the device. Cleaning and maintenance should not be carried out by children without supervision.
• Children should be supervised to make sure that they do not play with the device.
• Use the hose set supplied with the appliance. Do not reuse

old hoses.

• The washing machine must be installed so that there is a distance of at least 200 mm between the outer casing of the appliance and external heat sources, such as appliances with heating elements.
• Ensure the mains voltage matches the voltage specified on the appliance's rating label and that the socket is properly earthed.
• If the power cord is damaged, it must be replaced by Cecotec's Official Technical Support Service, or similarly qualified persons, to avoid any hazard.
• This appliance is for indoor use only.
• Make sure the device is installed in places where the temperature is above 0 °C.
• The appliance is not designed for built-in installation.
• Before carrying out any maintenance in the appliance, unplug the appliance from the mains.
• As a safety measure, we advise you to unplug the appliance and cut the water supply after every use.
• Never unplug the appliance with wet hands.
• Unplug the power cable before cleaning or repairing the appliance.
• For safety reasons, the appliance must be properly earthed.
• Water channelling and electrical devices must be connected by a qualified technician in accordance with the local and national safety regulations specified by the manufacturer.
• The door may reach high temperatures during operation. Keep children and pets away from the glass door.
• Do not use the device in rooms where moisture, explosives, or caustic gases are present.
• If the room where the washing machine is located has any type of device that generates fumes from the burning

of fuels, make sure that there is proper ventilation, as the accumulation of these fumes may cause a fire hazard.

• Do not wash items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes, and wax removers.
• We do not recommend washing foam rubber products, shower caps, waterproof garments, items or garments lined with rubber, or pillows with foam rubber padding.
• Detergents, fabric softeners, and other additives should be used as specified by the product manufacturer.
• Do not wash articles that have been cleaned in, washed in, soaked in, or stained with flammable or explosive substances, like wax, oil, paint, petrol, degreasers, dry-cleaning solvents, kerosene, etc., which may result in fire or explosion.
• When washing fabrics that contain vegetable or cooking oil or have been contaminated by haircare products, they should first be washed in hot water with extra detergent. This will reduce, but not eliminate, the hazard.
• The plug must be accessible after installation.
• The appliance must not be installed behind a lockable door, a sliding door, or a door with a hinge on the opposite side to that of the device.
• The appliance shall not be installed in a humid place.
• The product is designed for machine-washable laundry only.
• Do not stand or sit on the appliance.
• Do not lean against appliance door.
• Flammable and explosive or toxic solvents are forbidden. Do not use detergents containing petrol, alcohol, etc. Only use detergents suitable for machine washing, especially those which are dosed directly in the drum.
• Do not stop the device before ending the washing cycle. In any case, if this should happen, remove the garments with

caution, as they may reach high temperatures.

• Once the washing cycle has finished, we recommend removing the laundry as soon as possible to prevent creases.
• Cecotec disclaims all liability for any damage or injury caused as a result of failure to follow the installation and/or operating instructions contained in this instruction manual.
• Cecotec shall not be held liable for any damage, accident, or incident resulting from the misuse of this appliance. It is the responsibility of the user to operate and maintain the appliance according to the instructions and recommendations detailed in this manual. Failure to follow instructions may result in personal injury, property damage, or loss of product warranty.
• We are constantly working on the development and improvement of our appliance models and ranges. Therefore, we reserve the right to make changes to the design, equipment and accessories of all models and ranges without prior notice.

Cautions during the handling of the appliance

• If you wish to change the location of the washing machine, make sure you re-install the transport bolts, as they will prevent damage to the appliance during transport.
• Water accumulated inside the appliance must be drained out.
• Handle the machine carefully. Do not lift the appliance by its protruding parts. Do not use the door of the device as a handle during transport.
• The device is heavy. Transport it with care.
• Secure the drain and water-supply hose correctly.
• Do not close the door with excessive force. If it is found difficult to close the door, please check if the clothes are put

in or distributed well.

• Do not use to wash carpets.
• Never pour water manually during washing.

INSTRUCTIONS DE SÉCURITÉ

1. Detergent and fabric softener drawer
2. Door glass
3. Door
4. Drain pump cover
5. Drain pump filter
6. Upper cover
7. Control panel
8. Body
9. Door seal
10. Drain hose
11. Adjustable feet

Note: Remove the filter from the drain pump to drain the water if the washing machine will not be used for a long time.

Fig. 2

1. Transport bolts
2. Rear cover
3. Water supply valve
4. Charging cable

NOTE:

• The graphics in this manual are schematic representations and may not exactly match the product.
• To improve quality, our products are constantly updated and their appearance and specifications may change.
• Accessories may vary depending on the washing machine model.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact the Cecotec's Official Technical Support Service immediately.

ENGLISH

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

Box content

• Washing machine

• Instruction manual

• Remove all packaging (including the foam base). Failure to do so may cause the washing machine to vibrate or produce loud noises.

• Dispose of all packaging safely and keep out of reach of children. Failure to do so poses a risk of suffocation.
• It is normal that there are some drops of water on the packaging and on the door glass, as the washing machine has been tested before leaving the factory.

3. INSTALLATION

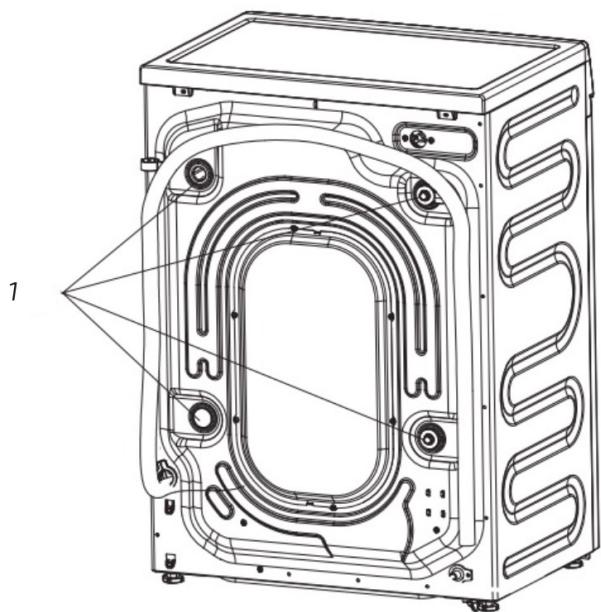

Removing the transport bolts. Fig. 2

1. IMPORTANT: Remove all the transport bolts at the back of the washing machine. Use the necessary tools.
2. Then, cover the holes with the caps provided.

Note: If the transport bolts are not removed when the appliance is in operation, vibrations, loud noises or even malfunctions may occur.

Fig. 2 key

1. Transport bolts

Note: Keep the bolts in case you need to transport the washer in the future.

Installation requirements

• Concrete floor is the most suitable installation surface for the washing machine, as it is much less prone to vibrations during spinning than wooden floorboards or carpeted surfaces.
• Make sure the appliance is correctly levelled and positioned. The distance between the washing machine and the wall must be more than 10 cm. Fig. 3
• To avoid vibrations during spinning, do not place the machine on a floor that is not strong enough.

Setting level

The washing machine must be perfectly level on its four feet to ensure safe and proper operation. If the washing machine is not positioned correctly, it may shift. In addition, vibrations and loud noises may also occur.

To level the washing machine:

• Turn the locknuts clockwise using a spanner. Fig. 4
• Position the feet at the desired height. Tighten the locknuts again to secure them.

Note: Loosen and tighten the locknuts with a 17 mm and 5 mm spanner.

Fig. 4 key

1. Locknuts
2. Loosen
3. Tighten
4. Increasing the height
5. Decreasing the height

Connecting the drain hose

1. Straight into the sink

Note: If the water tap has not been used before, check it for any plugs; if there are any, remove them.

1. Insert the drain hose into the tap and secure it with a hose clamp if necessary.
2. Make sure that a bend is formed in the drain hose to prevent debris from the sink from entering the washing machine. Fig. 5.
3. If required, the drain hose can be extended to a length of up to 4 m.

2. To a vertical pipe

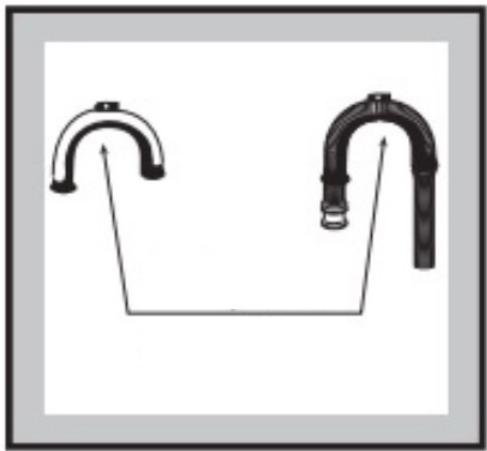

• First, bend the end of the drain hose using the U-shaped piece provided. Fig. 6.
• Next, attach the drain hose to the standpipe (which should have an internal diameter of approximately 30 mm) making sure that there is some space between the hose and both internal walls of the pipe. Fig. 7
• If you choose this connection method, make sure that the top of the pipe is no higher than 90 cm above the floor and no lower than 60 cm. Fig. 8

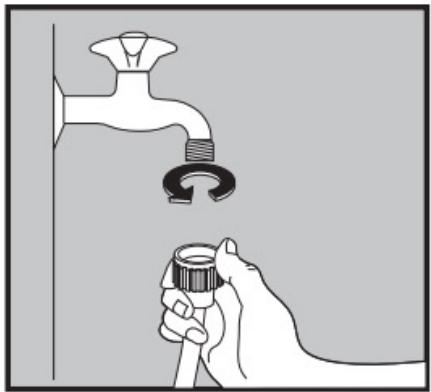

3. Connecting the water supply hose

• Select the right tap and make sure that the outlet is flat.
• Connect the water supply hose provided to a 3/4 threaded tap. Fig. 9
• Only use a hose that is completely new.
• If there is a valve on the back of the washing machine, it must be connected to a cold water supply. Fig. 10

Fig. 10 key

1. Cold water supply valve
2. Cold water supply hose

ENGLISH

4. OPERATION

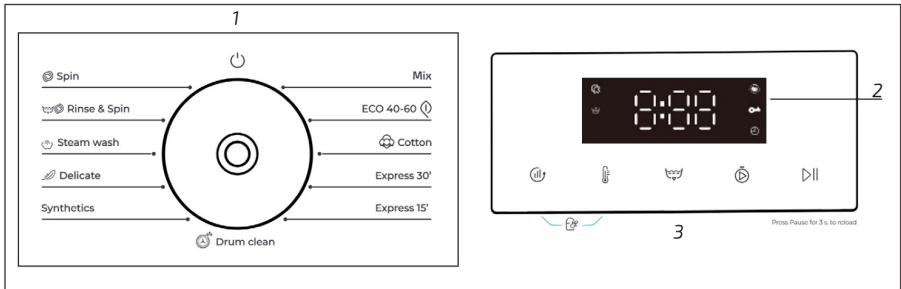

Control panel

Figure 11

1. Programmes
2. Display
3. Icons

Display

The display shows the current configuration, available options and relevant information.

	The display shows the following:- Programme length- Speed- Temperature- Number of rinses- Time of the delay start function- Error codes
	This indicator light will light up when the Delay start function is activated.
	This indicator light will light up when the door is locked.
	This indicator light will light up when the Child lock function is activated.
	This indicator light will light up when the Steam Wash programme is selected.
	This indicator light will light up when you press the Rinse+ icon.

Icons

1. Speed

Press this icon repeatedly to change the spin speed.

2. Temp.

Press this icon repeatedly to change the washing temperature.

3. Rinse+

Press this icon repeatedly to change the number of rinses.

4. Delay Start

Press this icon repeatedly to select the delay start time.

5. Start/Pause

Press this icon to start or pause the washing cycle. If you need to add any items during the washing cycle, press and hold this icon for 3 seconds. If the water level at that moment is too high, a draining process will be executed. If the water temperature is too high, you will not be able to add any additional garments.

6. Child Lock function (Speed + Temp.)

When the appliance is on, press the Speed and Temp. icons at the same time for 3 seconds. At this point, the Child lock function will be activated and the corresponding indicator light will light up. Press this icon for another 3 seconds to deactivate the function. When the Child lock function is activated, you can only switch off the washing machine. All other icons shall be disabled.

Note: For your safety, do not switch off the washing machine or take out the laundry while it is in operation, as the water temperature may be high. The door lock will be automatically deactivated when the washing cycle has finished and the drum has cooled down.

Programmes

EU01\_122328 Bolero DressCode 7160 Inverter Steel

Programme	Max. load (kg)	Maximum spin speed (rpm)	Length (H:min)	Temp. Max (°C)	Washing symbol
Mix	5	800	0:59	60 °C	Cold /20°C/40°C/40°C/60°C
Eco 40-60	7	1200	3:28	60 °C	40°C/60°C
Cotton 20 °C	7	800	0:58	20 °C	20 °C
Express 30'	3	800	0:30	-	-
Express 15'	2	800	0:15	-	-
Drum Clean	0	600	1:12	90°C	60°C/90°C
Synthetics	3.5	800	1:12	60 °C	Cold /20°C/40°C/40°C/60°C
Delicate	2	600	0:59	40 °C	Cold/20°C/40°C
Steam Wash	3	800	2:11	90°C	90°C
Rinse + Spin	-	1000	0:13	-	-
Spin	-	1200	0:08	-	-

EU01_123194 Bolero DressCode 8160 Inverter Steel

Programme	Max. load (kg)	Maximum spin speed (rpm)	Length (H:min)	Temp. Max (°C)	Washing symbol
Mix	6.5	1200	0:59	60 °C	Cold /20°C/40°C/40°C/60°C
Eco 40-60	8	1200	3:28	60 °C	40°C/60°C
Cotton 20 °C	8	1200	0:58	20 °C	20 °C
Express 30'	4	1000	0:30	-	-
Express 15'	2	1000	0:15	-	-
Drum Clean	0	600	1:12	90°C	60°C/90°C
Synthetics	5	800	1:12	60 °C	Cold /20°C/40°C/40°C/60°C
Delicate	2	600	0:59	40 °C	Cold/20°C/40°C
Steam Wash	4	800	2:11	90°C	90°C
Rinse + Spin:	-	1200	0:13	-	-
Spin	-	1200	0:08	-	-

The Eco 40-60 programme can wash cotton laundry with normal soiling declared washable at 40^ or 60^ , together in the same cycle, and this programme is used to assess compliance with EU eco-design legislation;

• The most energy-efficient programmes are generally those that operate at lower temperatures and for longer durations;
• Noise and remaining moisture content are influenced by the spin speed: the higher the spin speed in the spin phase, the higher the noise and the lower the remaining moisture content;
• The values given for programmes other than the Eco 40-60 programme and the washing and drying cycle are only indicative.

Note: The noise of the washing machine and the humidity level of the laundry depend on the spin speed: the higher the spin speed, the higher the noise and the lower the humidity level.

IMPORTANT: To improve product quality, the technical specifications in the above table are subject to change without prior notice.

IMPORTANT: The values stated have been obtained in a laboratory environment in accordance with the relevant regulations. These values may vary depending on the environmental conditions and use of the washing machine.

Programme	Type of washing and recommendations
Mix	For lightly soiled or normally soiled clothes made of cotton, linen, man-made fibres or a mixture of these fabrics.Do not mix clothes of different colours.
Eco 40-60	For cotton clothes with normal soiling level. This is the most convenient programme in terms of combined water and energy consumption.
Cotton 20 °C	For garments made of cotton, linen or other cotton blend fabrics.
Express 30'	For freshening a small number of items that do not require a thorough wash and are suitable for the Cotton 20 °C programme.
Express 15'	For freshening a small number of items that do not require a thorough wash and are suitable for the Cotton 20 °C programme.
Drum Clean	This programme is used to clean the drum. Do not put clothes in the washing machine while this programme is in operation.
Synthetics	For synthetic or blended fabrics, underwear, coloured garments, non-shrink T-shirts.
Delicate	For clothing made of delicate fabrics (e.g. silk).
Steam Wash	For cotton garments, underwear, sheets, pillows and children's clothing.
Rinse + Spin:	This is a programme suitable for rinsing garments. Do not add detergent.
Spin	Spin programme especially suitable for cotton and linen.

Using the washing machine

Before the first use, you should perform a complete washing cycle without laundry. Do the following:

1. Connect the washing machine to the mains and turn on the tap.
2. Then, choose the Cotton 20 °C programme.
3. Then, press Start/Pause.

This process removes any remaining water from the factory check.

Steps prior to washing

1. Connect the water supply hose and open the tap.
2. After making sure that the socket is properly grounded, insert the plug.
3. Position the drain hose securely.

ENGLISH

Preparing the clothes

1. Separate the laundry according to the colour and the information on the care label. Most garments have a textile care label on the collar or on a side seam.
2. Make sure that all pockets are empty. Foreign objects (coins, paper clips, etc.) can damage the laundry and the washing machine components.
3. Close the zips and fasten the hooks before running a washing programme.
4. Dark fabrics often contain excess dye and should be washed separately several times before mixing with other garments. Always wash whites and colours separately.
5. Heavily soiled areas, stains, etc. should be pre-treated with liquid detergent, stain remover, etc.
6. Turn clothes that clump easily or contain wool inside out before putting them in the washing machine.

Putting the clothes in the washing machine

• Load the laundry into the drum without squeezing it.
• Mixing large and small items provides better washing results and also helps to distribute the load evenly during spinning.
• To make the most efficient use of energy and water, fill the washing machine completely before starting it. However, do not overload it, as this will cause creases in the garments and reduce cleaning efficiency.

Note: Make sure that no clothes are trapped between the door and the gasket.

Using the detergent and fabric softener drawer

1. Open the drawer and add detergent into the washing compartment marked with the symbol ⏚ or II.
2. Add fabric softener in the compartment marked with the symbol 🎨 or 🌐. Do not exceed the maximum filling level.
3. Close the drawer.

Fig. 12

1. Washing compartment
2. Fabric softener compartment
3. Prewash compartment

The amount of detergent to be added depends on the following:

- The amount of clothing.

- Soiling level.

Light soiling level: There are no visible stains. The garments may give off a slight odour.
o Normal soiling level: There are some visible stains.
o High soiling level: There are many visible stains and some of them are dry.

- Water hardness level.

Note: It is recommended to use a detergent that does not produce too much foam.

Steps for washing

1. Connect the washing machine to the mains and turn on the tap.
2. Open the door and insert the laundry into the drum one by one.
3. Close the door and put the right amount of detergent and fabric softener in the drawer. Then, close the detergent drawer.
4. Next, select the desired programme.
5. Press start/pause to start the washing machine.
6. The appliance will beep at the end of the washing cycle.

Note:

• After the washing cycle is finished, the machine will enter standby mode. If you switch on the appliance and 10 minutes pass without selecting any programme, it will switch off.
• This washing machine is equipped with a balance control system, which ensures its stability during spinning. To protect the appliance, the spinning process will be interrupted if the laundry is not evenly distributed in the drum. The wash is redistributed by the reverse rotation of the drum. This may occur several times before the load is balanced and normal rotation can resume. If the laundry is still not evenly distributed in the drum after about 20 minutes, the machine will not spin. In this case, redistribute the load manually and reselect the spin programme.

Door lock system

• When the washing machine is started, the door will be locked.
• When the temperature inside the drum is higher than 60 °C, the door will be locked.
• When the water exceeds a certain level, the door will be locked too.
• At the end of the washing cycle, the door will unlock.

Caution: Do not attempt to open the door if the washing cycle has not finished yet or if the power supply has been cut off in the middle of the process; doing so may result in burns.

5. CLEANING AND MAINTENANCE

• Disconnect the washing machine from the mains before cleaning.
• Do not clean the washing machine with a hose.

Cleaning the exterior

Clean the outside of the washing machine with a mild (non-abrasive) cleaning product or simply with soap and water. Afterwards, be sure to dry it well with a cloth.

ENGLISH

Note: Do not use solvents, abrasive cleaning agents, glass cleaners or multi-purpose cleaning products. These could damage plastic surfaces and other components due to the chemicals they contain.

Drum cleaning

Clean the drum every 3 months using the Drum Clean programme.

Cleaning the detergent drawer

Remove detergent residues regularly. Clean the detergent drawer by following these steps:

• Pull out the detergent drawer until you feel resistance. Then, press down on the unlocking latch and, at the same time, pull out the detergent drawer. Fig. 13
• Remove the siphon from the compartment and clean it.
• Clean the rest of the detergent drawer with a brush and warm water. Fig. 14

Cleaning the housing of the detergent drawer

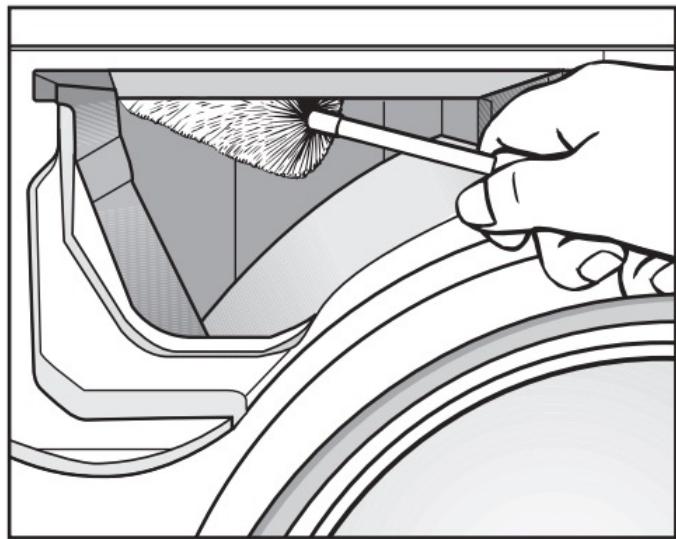

Use an elongated brush to remove detergent residues from the inside of the housing. Fig. 15

Cleaning the water supply hose mesh filter

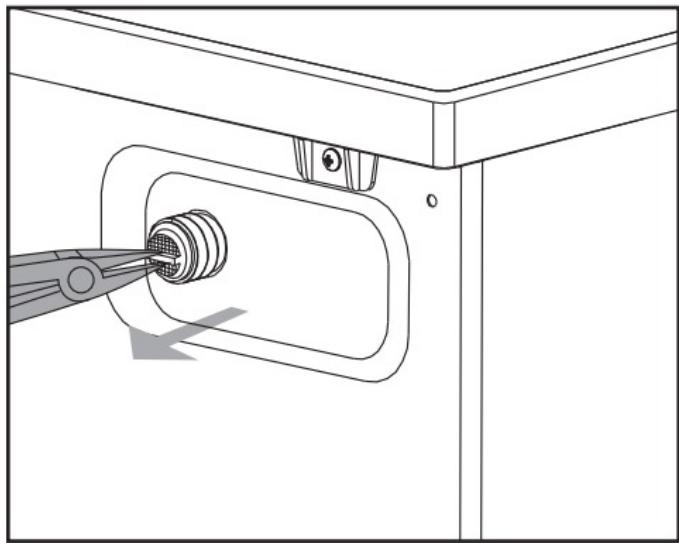

Use needle-nose pliers to remove the plastic filter. Fig. 16

Clean the filter and replace it.

Note: Such filters should be checked approximately every 6 months, or more often if there are frequent interruptions to the water supply.

Note: The filter must be put back in place after cleaning.

Cleaning the drain pump filter

1. Disconnect the washing machine from the mains and open the bottom cover with a screwdriver. Fig. 17
2. Place a container or bowl under the pump. Unscrew and remove the filter. Fig. 18

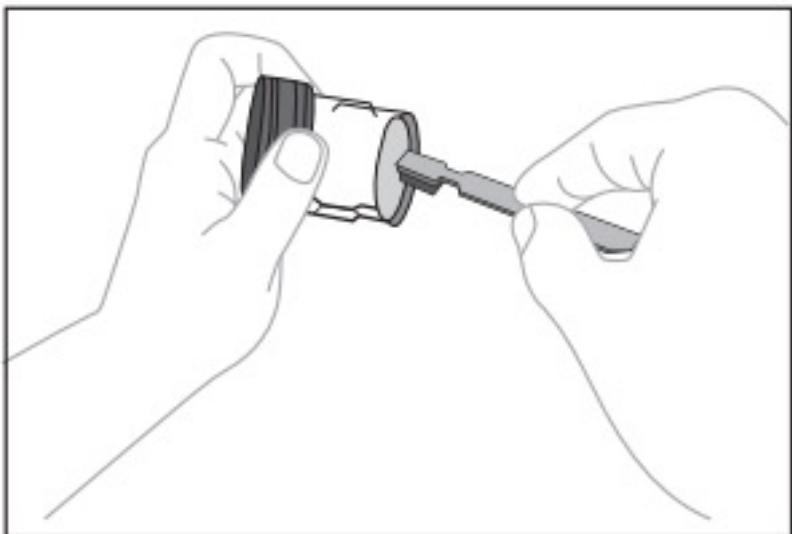

3. Clean the filter carefully. Fig. 19

Caution: If the washing machine is exposed to temperatures below 0 °C , certain precautions must be taken.

Note:

• The filter must be washed every 2 months or when the error code «E03» appears.
• Remove the filter from the drain pump to drain the water if the washing machine will not be used for a long time.

6. TROUBLESHOOTING

For the following minor malfunctions, please try to solve the problem yourself before contacting the official Cecotec Technical Support Service.

Problem	Error code	Possible causes	Solution
The washing machine does not fill with water		1. The tap is not open.2. The water supply hose is not positioned correctly.3. The water supply valve is damaged.	1. Open the tap.2. Position the water supply hose correctly.3. Replace the water supply valve.
The appliance beeps		1. The door is not properly closed.2. Clothes have been caught between the gasket and the door.3. Door lock is damaged.	1. Close the door correctly.2. Insert the laundry that has been trapped in the drum into the washing machine.3. Replace the door lock.
The washing machine does not drain properly		1. Drain hose is kinked or crushed.2. The drain pump filter is blocked.3. Drain system hoses are clogged.	1. Check the drain hose.2. Clean the filter.3. Check the drain system and clean it.
The water level in the washing machine is too high. The water sensor is not working properly.		1. The water supply valve is damaged.2. The water sensor is not properly connected.3. The water sensor is damaged.	1. Replace the water supply valve.2. Check that the water sensor is correctly connected.3. Replace the water sensor.
The motor does not operate		1. Motor connections are not correct.2. The overheating protection has been activated.3. The motor is damaged.	1. Check that the motor connections are correct.2. Check whether an overload has occurred. Switch off the washing machine and switch it on again when the motor has cooled down.3. Replace the motor.
There is a fault in the heater.		1. Heater connections are not correct.2. The heater is damaged.	1. Check that the heater connections are correct.2. Replace the heater.
Fault in the temperature sensor.		1. The temperature sensor is not properly connected.2. The temperature sensor is damaged.	3. Check that the temperature sensor connections are correct.4. Replace the temperature sensor.
The tension is not adequate.		1. The mains voltage is too high or too low.	1. When the voltage is correct, restart the washing machine.
A communication error has occurred		1. The communication signal is faulty.2. The display board is damaged.	1. Check the communication signal and wiring terminals for damage.2. Replace the display board.
Frequency converter failure.		1. The frequency converter circuit is damaged.2. The frequency converter is damaged.	1. Check the wiring terminals of the frequency converter for damage.2. Replace the frequency converter.
The water level is too high.	“H:L” appears on the display.	1. The water level is too high.	1. The error code will disappear when the water level returns to normal.
The temperature is too high.	“H:T” appears on the display.	1. The temperature is too high.	1. The error code will disappear when the temperature returns to normal.

Note:

If none of these situations match your problem, do not attempt to disassemble or repair the washing machine yourself. Repairs carried out by unqualified people may result in injury or serious malfunctions. Please contact the place where you bought the appliance or the official Cecotec Technical Support Service. Repairs must be carried out by an authorised technician using only original spare parts.

Some of these instructions are intended for qualified technicians; do not attempt to carry

them out if you do not have the necessary training and knowledge, as any damage caused by incorrect repair voids the warranty.

Unauthorised self-maintenance or maintenance will affect the safe use of the product and the application of the warranty policy.

7. TECHNICAL SPECIFICATIONS

You can find more information on this model and access its database by scanning the QR code (also found on the energy label).

Reference	EU01_122328	EU01_123194
Model	Bolero DressCode 7160 Inverter Steel	Bolero DressCode 8160 Inverter Steel
QR code
Washing capacity	7 kg	8 kg
Rated voltage	220-240 V~	220-240 V~
Rated frequency	50 Hz	50 Hz
Rated power	1600 W	1600 W
Standard water pressure	0.02 – 0.8 MPa	0.02 – 0.8 MPa
Protection rating	IP X4	IP X4
Energy Efficiency Class*	A	A

(*) Energy Efficiency Class ranging from "A" (most efficient) to "G" (least efficient)

Information related to energy efficiency can be found in the European Commission's public database EPREL:

ENGLISH

1. Open the EPREL database homepage
   https://eprel.ec.europa.eu/screen/product/washingmachines2019
2. Search by model reference.

You can find more information on this model and access its database by scanning the QR code (also found on the energy label).

IMPORTANT: Technical specifications may change without prior notice to improve product quality.

IMPORTANT: The values stated have been obtained in a laboratory environment in accordance with the relevant regulations. These values may vary depending on the environmental conditions and use of the washing machine.

ATTENTION: These data is subject to regulatory changes.

Made in China | Designed in Spain

8. TECHNICAL DATA

EU01_122328 Bolero DressCode 7160 Inverter Steel
SETTING	UNIT	VALUE
Rated capacity for washing cycle, in 0.5 kg(c) intervals	kg	7
Power consumption for ECO 40-60 programme at rated capacity ( E_W,full )	kWh/cycle	0.78
Power consumption for ECO 40-60 programme at half capacity ( E_W,1/2 )	kWh/cycle	0.28
Power consumption for ECO programme 40-60 at one-quarter of rated capacity ( E_W,1/4 )	kWh/cycle	0.14
Weighted energy consumption of ECO 40-60 programme ( E_W )	kWh/cycle	0.447
Standard energy consumption of the ECO 40-60 programme ( SCE_W )	kWh/cycle	0.862
Energy efficiency index of the washing cycle ( EEI_W )	—	51.9
Water consumption of ECO programme 40-60 at rated capacity ( W_W,full )	L/cycle	45.0
Water consumption of ECO 40-60 programme at half of rated capacity ( W_W,1/2 )	L/cycle	36.0
Water consumption of ECO 40-60 programme at one quarter of the rated capacity ( W_W,1/4 )	L/cycle	31.0
Washing cycle weighted water consumption ( W_W )	L/cycle	38
Washing efficiency rating of ECO 40-60 programme at rated capacity ( I_W )	—	1.031
Washing efficiency rating of ECO 40-60 programme at half rated capacity ( I_W )	—	1.031
Washing efficiency rating of ECO programme 40-60 at one quarter of the rated capacity ( I_W )	—	1.031
Rinsing efficiency of ECO 40-60 programme at rated capacity ( I_R )	g/kg	5.0
Rinsing efficiency of ECO 40-60 programme at half the rated capacity ( I_R )	g/kg	5.0
Rinsing efficiency of ECO 40-60 programme at one quarter of the rated capacity ( I_R )	g/kg	5.0
ECO 40-60 programme duration at rated capacity ( t_W )	(h:min)	3:28
ECO 40-60 programme duration at half rated capacity ( t_W )	(h:min)	2:42
ECO 40-60 programme duration at one quarter of nominal capacity ( t_W )	(h:min)	2:42
Temperature reached for at least 5 min within the load during ECO 40-60 programme at rated capacity (T)	°C	40
Temperature reached for at least 5 min inside the load during ECO 40-60 programme at half rated capacity (T)	°C	27
Temperature reached for at least 5 min within the load during ECO 40-60 programme at one quarter of the rated capacity (T)	°C	24
Spin speed in the spin phase of the ECO 40-60 programme at rated capacity (S)	RPM	1200
Spin speed in the spin phase of the ECO 40-60 programme at half rated capacity (S)	RPM	1200
Spin speed in the spin phase of the ECO 40-60 programme at one quarter of the nominal capacity (S)	RPM	1200
Weighted residual moisture content after washing (D)	%	53.9
Airborne acoustic noise emissions during ECO 40-60 programme (spin phase)	dB(A) re 1 Pw	72
Power consumption in off mode ( P_o ) (if applicable)	W	0.50
Standby mode power consumption ( P_sm ) (if applicable)	W	0.50
Is information displayed in standby mode?	—	No
Standby mode power consumption ( P_sm ) in mains standby conditions (if applicable)	W	N/A
Power consumption in Delay start ( P_ds ) (if applicable)	W	4.0
EU01_123194 Bolero DressCode 8160 Inverter Steel
SETTING	UNIT	VALUE
Rated capacity for washing cycle, in 0.5 kg(c) intervals	kg	8
Power consumption for ECO 40-60 programme at rated capacity ( E_W,full )	kWh/cycle	0.58
Power consumption for ECO 40-60 programme at half capacity ( E_W,1/2 )	kWh/cycle	0.35
Power consumption for ECO programme 40-60 at one-quarter of rated capacity ( E_W,1/4 )	kWh/cycle	0.18
Weighted energy consumption of ECO 40-60 programme ( E_W )	kWh/cycle	0.378
Standard energy consumption of the ECO 40-60 programme ( SCE_W )	kWh/cycle	0.909
Energy efficiency index of the washing cycle ( EEI_W )	—	41.6
Water consumption of ECO programme 40-60 at rated capacity ( W_W,full )	L/cycle	45.0
Water consumption of ECO 40-60 programme at half of rated capacity ( W_W,1/2 )	L/cycle	40,0
Water consumption of ECO 40-60 programme at one quarter of the rated capacity ( W_W,1/4 )	L/cycle	34.0
Washing cycle weighted water consumption ( W_W )	L/cycle	40
Washing efficiency rating of ECO 40-60 programme at rated capacity ( I_W )	—	1.031
Washing efficiency rating of ECO 40-60 programme at half rated capacity ( I_W )	—	1.031
Washing efficiency rating of ECO programme 40-60 at one quarter of the rated capacity ( I_W )	—	1.031
Rinsing efficiency of ECO 40-60 programme at rated capacity ( I_R )	g/kg	5.0
Rinsing efficiency of ECO 40-60 programme at half the rated capacity ( I_R )	g/kg	5.0
Rinsing efficiency of ECO 40-60 programme at one quarter of the rated capacity ( I_R )	g/kg	5.0
ECO 40-60 programme duration at rated capacity ( t_W )	(h:min)	3:38
ECO 40-60 programme duration at half rated capacity ( t_W )	(h:min)	2:48
ECO 40-60 programme duration at one quarter of nominal capacity ( t_W )	(h:min)	2:48
Temperature reached for at least 5 min within the load during ECO 40-60 programme at rated capacity (T)	°C	30
Temperature reached for at least 5 min inside the load during ECO 40-60 programme at half rated capacity (T)	°C	25
Temperature reached for at least 5 min within the load during ECO 40-60 programme at one quarter of the rated capacity (T)	°C	22
Spin speed in the spin phase of the ECO 40-60 programme at rated capacity (S)	RPM	1200
Spin speed in the spin phase of the ECO 40-60 programme at half rated capacity (S)	RPM	1200
Spin speed in the spin phase of the ECO 40-60 programme at one quarter of the nominal capacity (S)	RPM	1200
Weighted residual moisture content after washing (D)	%	53.9
Airborne acoustic noise emissions during ECO 40-60 programme (spin phase)	dB(A) re 1 Pw	72
Power consumption in off mode ( P_o ) (if applicable)	W	0.50
Standby mode power consumption ( P_sm ) (if applicable)	W	0.50
Is information displayed in standby mode?	—	No
Standby mode power consumption ( P_sm ) in mains standby conditions (if applicable)	W	N/A
Power consumption in Delay start ( P_ds ) (if applicable)	W	4.00

9. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its useful life, you should remove the batteries/accumulators and take them to a collection point designated by local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help to protect the environment.

10. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of product delivery under the terms, conditions and deadlines established by applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

ENGLISH

11. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

12. SIMPLIFIED DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

Image 1

https://eprel.ec.europa.eu/screen/product/washingmachines2019

https://eprel.ec.europa.eu/screen/product/washingmachines2019

https://eprel.ec.europa.eu/screen/product/washingmachines2019

Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./Rys. 8

Fig./Img./Abb./Afb./Rys. 9

Fig./Img./Abb./Afb./Rys. 10

Fig./Img./Abb./Afb./Rys. 11

Fig./Img./Abb./Afb./Rys. 12

Fig./Img./Abb./Afb./Rys. 13

Fig./Img./Abb./Afb./Rys. 14

Fig./Img./Abb./Afb./ Rys. 15

Fig./Img./Abb./Afb./Rys. 16

Fig./Img./Abb./Afb./Rys. 17

Fig./Img./Abb./Afb./Rys. 18

Fig./Img./Abb./Afb./Rys. 19

www.cecotec.es
