Product Type	Camcorder
Brand	JVC
Model	GR-SXM347
Recording Format	VHS-C
Image Sensor	1/4-inch CCD
Lens	F1.6, 2.8-35 mm, 12x optical zoom
Viewfinder	0.55-inch black & white electronic viewfinder
Display	2.5-inch color LCD monitor
Dimensions (W x H x D)	95 x 120 x 215 mm (3.7 x 4.7 x 8.5 inches)
Weight	Approximately 650 g (1.43 lbs) without battery and tape
Power Supply	DC 7.2V (rechargeable battery or AC adapter)
Battery Type	JVC BN-V11U or compatible Ni-Cd battery
Recording Time	Up to 60 minutes with a fully charged battery
Video Output	Composite video (RCA), S-Video
Audio Output	Monaural audio (RCA)
Inputs	Remote control terminal, microphone jack (3.5 mm)
Special Features	Auto focus, auto exposure, digital effects, date/time stamp
Maintenance	Clean lens with soft cloth; avoid moisture; use only recommended tapes
Safety	Keep away from water; do not disassemble; use specified charger
Spare Parts & Repairability	Replacement batteries and AC adapter available; service by qualified technician

Frequently Asked Questions - GR-SXM347 JVC

How do I insert a VHS-C cassette into the GR-SXM347?

Open the cassette compartment lid, slide the tape in the direction of the arrow until it clicks into place. Close the lid securely. The camcorder will auto-load the tape.

Can I use standard VHS tapes instead of VHS-C?

No, this camcorder only accepts VHS-C compact cassettes. For playback on a standard VHS VCR, use a VHS-C adapter.

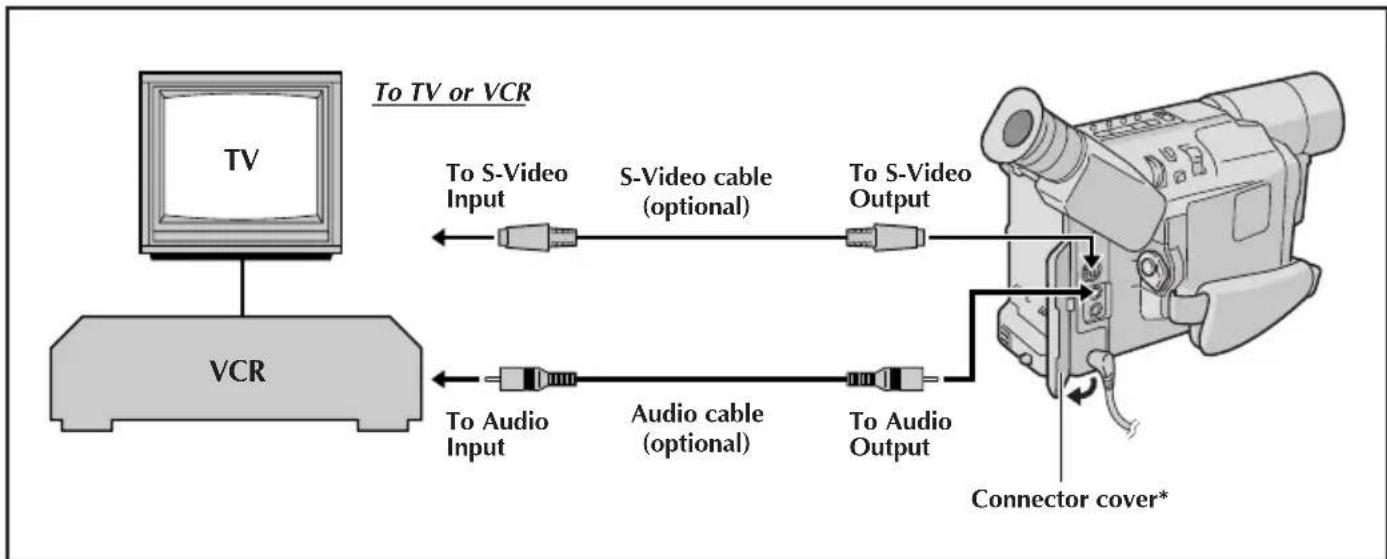

How do I connect the camcorder to a TV for playback?

Use the included AV cable: connect the yellow plug to the TV's video input, white plug to the audio input. Set the camcorder to VCR mode. Alternatively, use the S-Video output for better quality.

What type of battery does the GR-SXM347 use?

It uses a JVC BN-V11U Ni-Cd battery (7.2V). Compatible third-party batteries may also work but check polarity.

How long does the battery last on a full charge?

With a fully charged BN-V11U battery, you can expect approximately 60 minutes of continuous recording. Playback time is longer. Battery life degrades over time.

The camcorder won't power on. What should I check?

First, ensure the battery is fully charged and properly inserted. If using the AC adapter, check that it is plugged in securely. Try a different outlet. If still no power, the battery may need replacement.

How do I clean the video heads?

Use a dry cleaning cassette specifically for VHS-C. Insert it and play for 10-15 seconds. Do not use liquid cleaners. If picture quality remains poor, consult a technician.

Can I record in low light?

The camcorder has an auto exposure system but performance in low light is limited. Use the built-in video light if available, or record in well-lit environments for best results. Gain may increase noise.

How do I set the date and time?

Press the Menu button, navigate to 'Date/Time' using the control dial, set the correct date and time, and confirm. Refer to the manual for more details on menu navigation.

What should I do if the tape is stuck inside the camcorder?

Do not force it. Remove the battery pack to power off the camcorder. Wait a few seconds, then reinsert the battery and power on. The tape should unload automatically. If not, consult a professional.

USER MANUAL GR-SXM347 JVC

SVHSC Super VHS Super VHS ET

S-VHS is compatible with GR-SXM747UM/SXM347UM/SXM247UM/SX877UM only.

INSTRUCTIONS

ENGLISH

CONTENTS
SAFETY PRECAUTIONS	2 - 3
AUTOMATIC DEMONSTRATION	4
PROVIDED ACCESSORIES	4
GETTING STARTED	6 - 13
RECORDING	14 - 29
Basic Recording	14
Basic Features	16

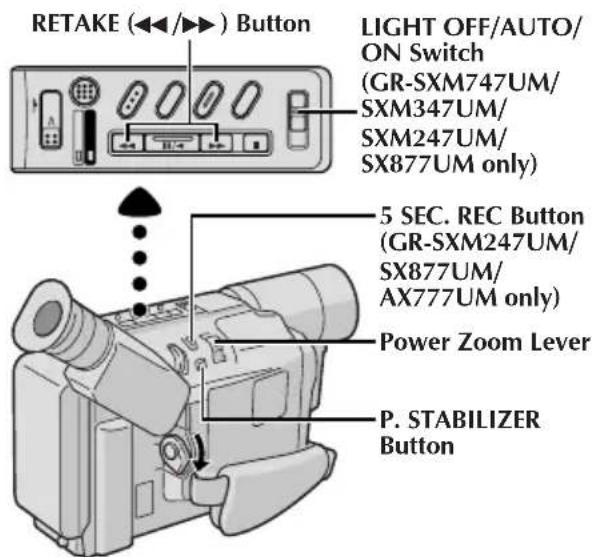

Zooming, Picture Stabilizer, 5-Sec. Recording, Quick Review, Retake, Video Light Advanced Features	18
Snapshot, Night-Alive, Fade/Wipe Effects, Program AE With Special Effects, Digital Effects, Using Menus For Detailed Adjustment, Date/Time Insert, Instant Titles, Animation, Time-Lapse, Exposure Control, Focusing, White Balance Adjustment, Manual White Balance Operation
PLAYBACK	30 - 34
Basic Playback	30
Features	31
Connections And Tape Dubbing	32
Using The Cassette Adapter	34
USING THE REMOTE CONTROL UNIT (GR-SXM747UM/SXM347UM/SX877UM only)	35 - 39
Playback Zoom	37
Animation And Time-Lapse	37
Insert Editing	38
Audio Dubbing	39
TROUBLESHOOTING	40 - 41
DETAILS	42
INDEX	43 - 47
Terms	43
Controls, Connectors And Indicators	44
Indications	46
CAUTIONS	48 - 50
SPECIFICATIONS	51

2 EN

Dear Customer,

Thank you for purchasing the JVC Compact VHS camcorder. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of this product.

Using This Instruction Manual

• All major sections and subsections are listed in the Table Of Contents on the cover.
• Notes appear after most subsections. Be sure to read these as well.
• Basic and advanced features/operation are separated for easier reference.

It is recommended that you . . .

.... refer to the Index ( pgs. 43 – 47) and familiarize yourself with button locations, etc. before use. .... read thoroughly the Safety Precautions and Safety Instructions that follow. They contain extremely important information regarding the safe use of this product.

You are recommended to carefully read the cautions on pages 48 - 50 before use.

SAFETY PRECAUTIONS

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

NOTES:

• The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit.
  ● The rating information and safety caution of the AC Adapter are on its upper and lower sides.

CAUTIONS:

• This camcorder is designed to be used with NTSC-type color television signals. It cannot be used for playback with a television of a different standard. However, live recording and LCD monitor*/viewfinder playback are possible anywhere.
• Use the JVC BN-V11U/V12U/V20U/V400U battery packs and, to recharge them or to supply power to the camcorder from an AC outlet, use the provided multi-voltage AC Adapter. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.)
  *Models equipped with LCD monitor only.

CAUTIONS:

• To prevent shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified personnel.
• When you are not using the AC Adapter for a long period of time, it is recommended that you disconnect the AC Adapter from AC outlet.

ATTENTION:

The product that you have purchased is powered by a rechargeable battery. The battery is recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm (3-15/16") or more on both sides, on top and at the rear).

Do not block the ventilation holes.

(If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.)

No naked flame sources, such as lighted candles, should be placed on the apparatus.

When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly.

The apparatus shall not be exposed to dripping or splashing.

Do not use this equipment in a bathroom or places with water.

Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups etc.) on top of this unit.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

IMPORTANT SAFETY INSTRUCTIONS

(1) Read these instructions.
(2) Keep these instructions.
(3) Heed all warnings.
(4) Follow all instructions.
(5) Do not use this apparatus near water.
(6) Clean only with dry cloth.
(7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
(8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
(9) Only use attachments/accessories specified by the manufacturer.

(10) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to a tip-over.

(11) Unplug this apparatus during lightning storms or when unused for long periods of time.

(12) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

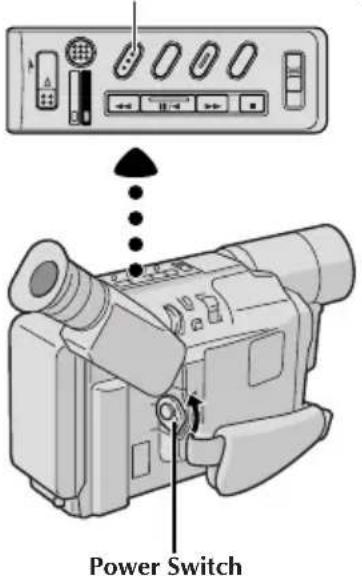

Automatic Demonstration takes place when "DEMO MODE" is set to "ON" (factory-preset).

■ Available when the Power Switch is set to "A or " "M
■ Operating the Power Zoom Lever during the demonstration stops the demonstration temporarily. If the Power Zoom Lever is not moved for more than 1 minute after that, the demonstration will resume.
■ "DEMO MODE" remains "ON" even if the camcorder power is turned off.
■ To cancel Automatic Demonstration, set the Power Switch to Ⓜ and press the MENU Wheel in while the demo is in progress. This takes you directly to the demo mode's Setting Menu (so you will not have to go through the main Menu Screen). Rotate the MENU Wheel to select "OFF" and press it.

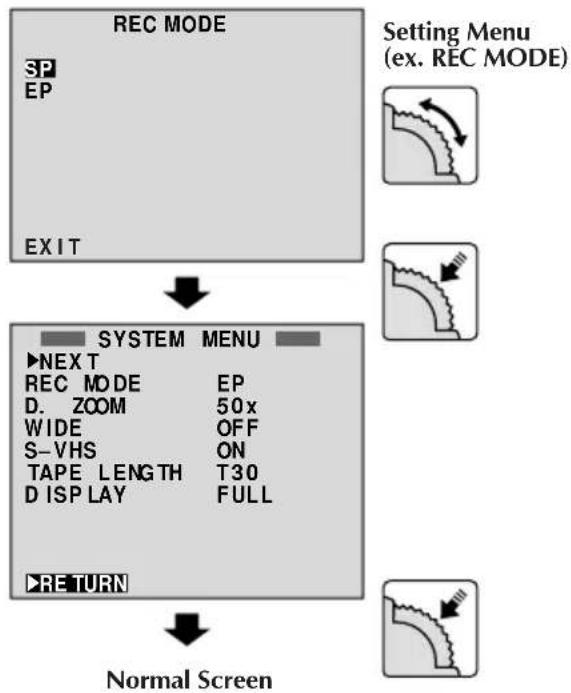

Setting Menu

NOTES:

• When a tape whose Erase Protection tab is in the position that allows recording is loaded in the camcorder, demonstration is not available.
• If you do not detach the Lens Cap, you cannot see the actual changes of the Automatic Demonstration activated on the LCD monitor or viewfinder.

PROVIDED ACCESSORIES

• AC Adapter AP-V10U

• Cassette Adapter (VHS Playpak) C-P7U

• Battery Pack BN-V11U

- Remote Control Unit RM-V715U (GR-SXM747UM/ SXM347UM/SX877UM only)

- Shoulder Strap

- AAA (R03) Battery x 2 (for Remote Control Unit, GR-SXM747UM/SXM347UM/SX877UM only)

- Lens Cap

• AA (R6) Battery (for Cassette Adapter)

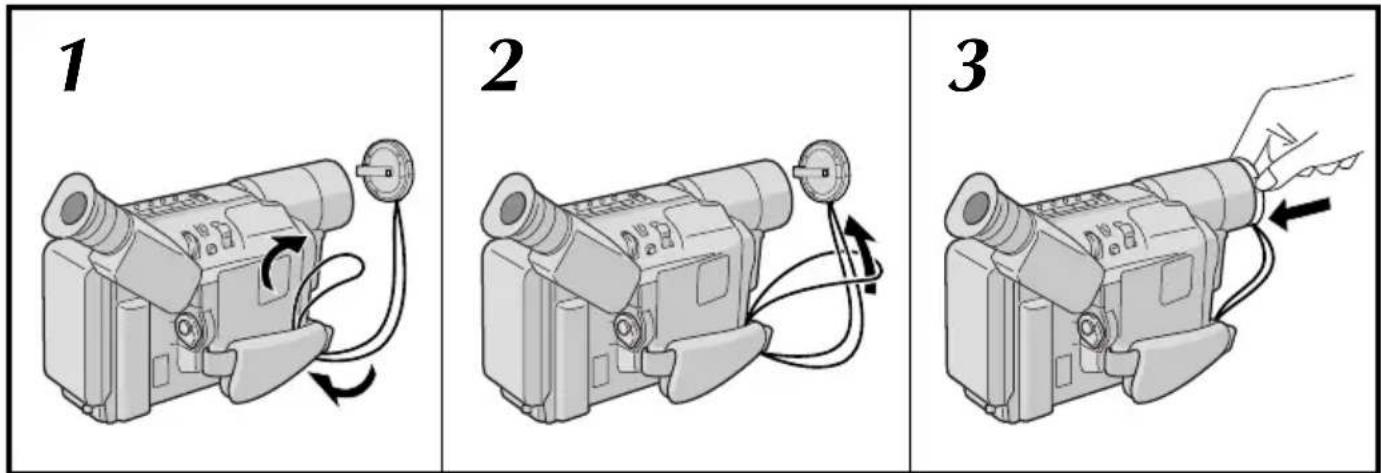

How To Attach The Lens Cap

To protect the lens, attach the provided lens cap to the camcorder as shown in the illustration.

Battery pack	Charging time
BN-V11U	approx. 1 hr. 30 min.
BN-V12U (optional)	approx. 1 hr. 30 min.
BN-V20U (optional)	approx. 2 hrs. 20 min.
BN-V400U (optional)	approx. 4 hrs. 30 min.

Power

This camcorder's 2-way power supply system lets you choose the most appropriate source of power. Do not use provided power supply units with other equipment.

CHARGING THE BATTERY PACK

1 Make sure the battery pack is attached to the camcorder. Hook its end to the camcorder① and push the battery in until it locks in place ②.
- If the battery pack is attached in the wrong position, a malfunction may occur.
2 Set the Power Switch to "OFF". Connect the AC Adapter to the camcorder ③.
3 Plug the AC Adapter into an AC outlet ④. The CHARGE lamp on the camcorder blinks to indicate charging has started.
4 When the CHARGE lamp stops blinking but stays lit, charging is finished. Unplug the AC Adapter from the AC outlet. Disconnect the AC Adapter from the camcorder.

To Detach The Battery Pack . . .

.... slide BATTERY RELEASE and pull out the battery pack.

NOTES:

● During charging or discharging, the camcorder cannot be operated.
- Charging and discharging is not possible if the wrong type of battery is used.
- When charging the battery pack for the first time or after a long storage period, the CHARGE lamp may not light. In this case, remove the battery pack from the camcorder, then try charging again.
- If the battery operation time remains extremely short even after having been fully charged, the battery is worn out and needs to be replaced. Please purchase a new one.
- Using the optional AA-V15 AC Power Adapter/Charger, you can charge the BN-V11U/V12U/V20U/V400U battery pack without the camcorder. However, it cannot be used as an AC adapter.

REFRESH:

Charging a battery with some charge remaining reduces that battery's capacity. Perform the procedure below to fully discharge the battery pack before recharging.

1. Perform steps 1 through 3 of "CHARGING THE BATTERY PACK".
2. Press REFRESH on the camcorder for over 2 seconds. The REFRESH lamp on the camcorder blinks to indicate discharging has started.
3. When discharging is finished, charging automatically starts and the CHARGE lamp blinks.
   When you are not using a battery pack for a long period of time, be sure to fully discharge it before storing because leaving a battery with some charge left over also reduces performance.

ATTENTION:

Before detaching the power source, make sure that the camcorder's power is turned off. Failure to do so can result in a camcorder malfunction.

Charge marker

A charge marker is provided on the battery pack to help you remember whether it has been charged or not. Two colors are provided (red and black)—you choose which one means charged and which means discharged.

USING THE BATTERY PACK

Perform step 1 of "CHARGING THE BATTERY PACK" (pg. 6).

Approximate recording time (unit: min.)

Battery pack	Viewfinder on		LCD monitor on
	1	2	1
BN-V11U	95 100(50)		80(45)
BN-V12U(optional)	95 100(50)		80(45)
BN-V20U(optional)	150 165(85)		135(75)
BN-V400U(optional)	360 385(205)		315(190)

①When using models equipped with LCD monitor

②When using GR-SX877UM/AX777UM

( ) : when the video light is on (GR-SXM747UM/SXM347UM/SXM247UM/SX877UM only)

NOTES:

● Recording time is reduced significantly under the following conditions:

- Zoom or Record-Standby mode is engaged repeatedly.

- The LCD monitor is used repeatedly (models equipped with LCD monitor only).

- Before extended use, it is recommended that you prepare enough battery packs to cover 3 times the planned shooting time.

To AC outlet

USING AC POWER

Use the AC Adapter (connect as shown in the illustration).

NOTES:

● The provided AC Adapter features automatic voltage selection in the AC range from 110 V to 240 V.
- For other notes, ☐ pg. 42.

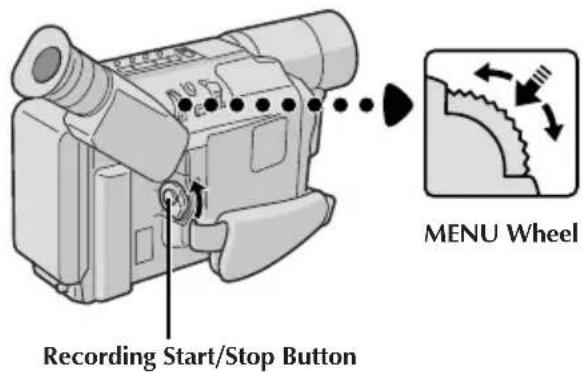

Grip Adjustment

1 Separate the Velcro strip.
2 Pass your right hand through the loop and grasp the grip.
3 Adjust so that your thumb and fingers can easily operate the Recording Start/Stop Button and Power Zoom Lever. Refasten the Velcro strip.

Viewfinder Adjustment

1 Set the Power Switch to "A or "".
2 Adjust the viewfinder manually for best viewability.
3 Turn the Diopter Adjustment Control until the indications in the viewfinder are clearly focused.

Shoulder Strap Attachment

1 Following the illustration, thread the strap through the eyelet ①, then fold it back and thread it through the buckle ②. Repeat the procedure to attach the other end of the strap to the other eyelet ③, making sure the strap is not twisted.

2 Adjust as shown in the illustration ④.

Tripod Mounting

1 Align the screw and camera direction stud on the tripod with the camera's mounting socket and stud hole. Then tighten the screw.

CAUTION:

When using a tripod, be sure to open and extend its legs fully to Stabilize the camcorder. To prevent damage to the unit caused by falling over, do not use a small-sized tripod.

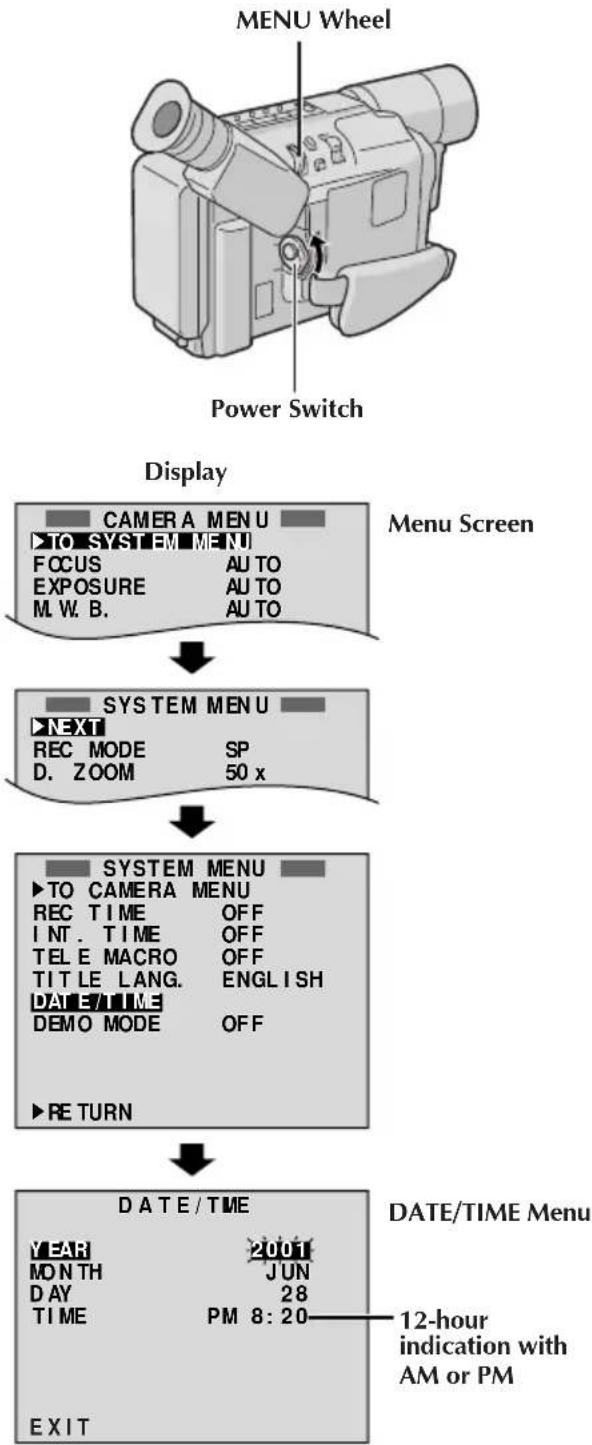

Date/Time Settings

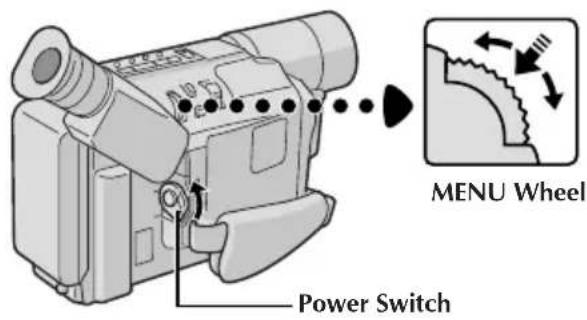

1 Set the Power Switch to "M" The power lamp comes on.
2 Press the MENU Wheel in. The Menu Screen appears.
3 Rotate the MENU Wheel to select "▶TO SYSTEM MENU" and press it to display SYSTEM MENU. Rotate the MENU Wheel to select "▶NEXT" and press it to display the next page.
4 Rotate the MENU Wheel to select "DATE/TIME" and press it. The DATE/TIME Menu appears.
5 To set "YEAR", "MONTH", "DAY" or "TIME" (hour/minute), rotate the MENU Wheel to select the desired item, and press it. When the setting begins blinking, rotate the MENU Wheel until the correct setting appears and then press it. The setting stops blinking.
6 When none of these settings ("YEAR", "MONTH", "DAY", "TIME") blinks, rotate the MENU Wheel to select "EXIT", and press it. The Menu Screen reappears with the highlight bar on "RETURN".
7 Press the MENU Wheel in to close the Menu Screen.

NOTE:

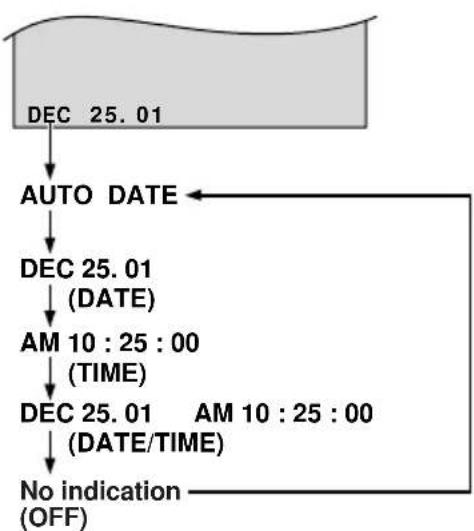

To display the date and time in the camcorder's display and on a connected TV, see "Date/Time Insert" (3) pg. 25).

Display: when a VHS cassette is loaded.

Recording Format Setting

(GR-SXM747UM/SXM347UM/SXM247UM/SX877UM only)

Set the recording format according to the format of the tape used or type of recording you wish to perform.

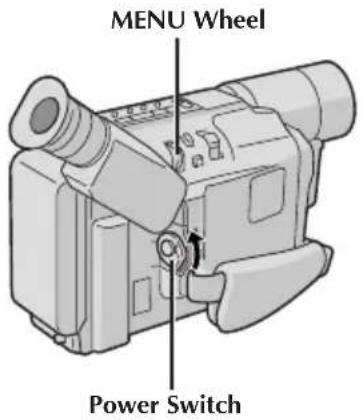

1 Set the Power Switch to "M The power lamp comes on.
2 Press the MENU Wheel in. The Menu Screen appears.
3 Rotate the MENU Wheel to select "FO SYSTEM MENU" and press it to display SYSTEM MENU.
If a VHS cassette is loaded...
.... rotate the MENU Wheel to select "S-VHS ET", then press it. The S-VHS ET Setting Menu appears.
If an S-VHS cassette is loaded...
..... rotate the MENU Wheel to "S-VHS", then press it. The S-VHS Setting Menu appears.
4 Rotate the MENU Wheel to set to either of the parameters, then press it. The Menu Screen reappears with the highlight bar on "RETURN".
In the S-VHS ET Setting Menu,
ON : Records with S-VHS picture quality on a VHS cassette (factory-preset). This is called Super VHS ET (Expansion Technology).
OFF: Records in VHS.
In the S-VHS Setting Menu,
ON : Records in S-VHS on an S-VHS cassette (factory-preset).
OFF: Records in VHS on an S-VHS cassette.
Press the MENU Wheel in to close the Menu Screen.

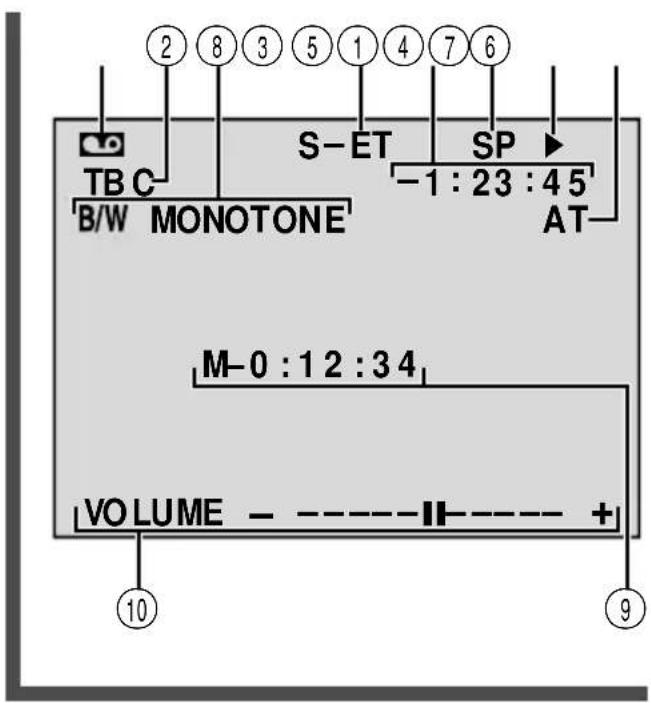

- When the S-VHS ET mode is engaged, "S-ET" is displayed.
- During S-VHS record mode, "S" is displayed.
- When S-VHS ET or S-VHS recording starts, "S-VHS REC" is displayed for approx. 3 seconds.

NOTE:

If a cassette is not loaded, "S-VHS" will be displayed in the Menu Screen.

NOTES about S-VHS and S-VHS ET

■ JVC EHG (Extra High Grade) tapes are recommended for superior results.
Use S-VHS tape for storing recordings for an extended period or for recording important scenes, as it enables higher-quality recording and playback.
■ With some tapes, better picture quality may not be obtained even with S-VHS ET recording. It is recommended that you do test record beforehand to make sure whether better results can be obtained.
■ If the S-VHS ET mode or recording format is switched during recording, the playback picture will be blurred at the switching point.
It is recommended that tapes recorded in the SP mode on this camcorder be played back on this camcorder.
■ Noise may appear on-screen when tapes recorded in the EP mode are played back.
■ Tapes recorded in S-VHS or S-VHS ET mode can be played back not only on this camcorder but also on a Super VHS VCR or a VCR equipped with the SQPB (S-VHS QUASI PLAYBACK) function.
— When tapes recorded in S-VHS or S-VHS ET mode are played back on a VCR equipped with the SQPB (S-VHS QUASI PLAYBACK) function, S-VHS picture quality is not available.
— Tapes recorded in S-VHS ET mode cannot be played back on some VCRs, including some JVC VCRs.
■ Tapes recorded in S-VHS or S-VHS ET mode cannot be played back correctly on a normal VHS VCR.
■ You can play back S-VHS ET recordings not only on this camcorder but also on another VHS VCR equipped with S-VHS ET.
— It is recommended to specifically label S-VHS ET recordings so you can easily distinguish them from regular VHS recordings.
■ S-VHS ET does not work with S-VHS tapes.
■ To avoid on-screen noise, do not perform Still Playback or Shuttle Search repeatedly.
■ If the picture contains a lot of jitter or noise, use a cleaning cassette.

Compatibility Between S-VHS And VHS

Recording Playbonds

Blank tape Camcorder Recorded tape

Cassette adapter

S-VHS VCR VHS VCR with SQPB function

• The recorded format (S-VHS or VHS) is automatically detected when playback begins.

Regular VHS VCR

- S-VHS recorded tapes cannot be viewed on regular VHS VCRs, other than those equipped with the SQPB (S-VHS QUASI PLAYBACK) function.

Recording Mode Setting

Set the tape recording mode depending on your preference.

1

Set the Power Switch to "M The power lamp comes on.

2

Press the MENU Wheel in. The Menu Screen appears.

3

Rotate the MENU Wheel to select "FTO SYSTEM MENU" and press it to display SYSTEM MENU.

4

Rotate the MENU Wheel to select "REC MODE" and press it. The REC MODE Menu appears. Select "SP" or "EP" by rotating the MENU Wheel and press it. The Menu Screen reappears with the highlight bar on "RETURN". Press the MENU Wheel in to close the Menu Screen. - "EP" (Extended Play) is more economical, providing three times the recording time.

NOTE:

If the recording mode is switched during recording, the playback picture will be blurred at the switching point.

Tape Length Setting

Set the tape length according to the length of the tape used.

1

Perform steps 1 through 3 above.

2

Rotate the MENU Wheel to select "TAPE LENGTH", then press it. The TAPE LENGTH Menu appears.

3

Rotate the MENU Wheel to select the correct tape length setting.

•T20=20 minutes
•T30=30 minutes
•T35=35 minutes
• T40=40 minutes (in SP)

4

Press the MENU Wheel in. The Menu Screen reappears with the highlight bar on "RETURN". Press the MENU Wheel in to close the Menu Screen.

NOTE:

The tape remaining time (137 pg. 14) is correct only if the correct tape length has been selected.

Loading/Unloading A Cassette

1 Open the LCD monitor fully (models equipped with LCD monitor only).
2 Slide EJECT until the cassette holder opens. Do not use force to open.
3 Insert or remove a cassette. When inserting, make sure the label is facing outward.
4 Press the Close button to close the cassette holder until it locks into place.
5 Close the LCD monitor (models equipped with LCD monitor only).

NOTES:

• Closing the LCD monitor while the cassette holder is still open may cause damage to the LCD monitor (models equipped with LCD monitor only).
• The cassette holder can't be opened unless a power supply is attached.
• Make sure that the tape is not slack when loading the cassette. If there is any slack, turn the gear on the cassette in the direction of the arrow to take up the slack.
• Make sure the Erase Protection tab is in the position that allows recording. If not, slide the tab. Some cassettes have removable tabs. If the tab has been removed, cover the hole with adhesive tape.
  ● The cassette holder cannot be opened while the camcorder is in the record mode.

To Adjust The Brightness Of The LCD Monitor

.... rotate the BRIGHT Wheel until the bright level indicator on the display moves and the appropriate brightness is reached.

NOTE:

You should already have performed the procedures listed below. If not, do so before continuing.

• Power (pg. 6)
• Load A Cassette (pg. 13)
  ● Recording Mode Setting (pg. 12)
• Tape Length Setting (12) pg. 12
  • Grip Adjustment (☐ pg. 8)
  • Viewfinder Adjustment (pg. 8)

Shooting While Watching The Viewfinder

1 Make sure the LCD monitor is closed and locked (models equipped with LCD monitor only). Press in the tabs on the lens cap to remove it. Set the Power Switch to “A” or “M” The power lamp lights and the camcorder enters the Record-Standby mode. “PAUSE” is displayed in the viewfinder.

2 Press the Recording Start/Stop Button. "REG" appears in the viewfinder while recording is in progress.

To Stop Recording . . .

..... press the Recording Start/Stop Button. The camcorder re-enters the Record-Standby mode.

Shooting While Watching The LCD Monitor (models equipped with LCD monitor only)

1 Make sure the LCD monitor is fully open. Press in the tabs on the lens cap to remove it. Set the Power Switch to "A" or "M". The power lamp lights and the camcorder enters the Record-Standby mode. "PAUSE" is displayed in the LCD monitor.

2 Tilt the LCD monitor upward/downward for best viewability and press the Recording Start/Stop Button. "REC" appears in the LCD monitor while recording is in progress.

NOTE:

When you use the LCD monitor outdoors in direct sunlight, the LCD monitor may be difficult to see. If this happens, use the viewfinder instead.

To Stop Recording ...

.... press the Recording Start/Stop Button. The camcorder re-enters the Record-Standby mode.

Power Switch Position

A : Suitable for standard recording using NO special effects or manual adjustments.
M : Allows you to set recording functions using the menus for more creative capabilities.

OFF: Switches off the camcorder.

PLAY : Allows you to play back your recordings.

NOTES:

• If the Record-Standby mode continues for 5 minutes without performing Zoom or any other operations, the camcorder's power shuts off automatically. Set the Power Switch to "OFF", and then back to "A" or "M" to turn the camcorder on again.
• If you are recording on a cassette from the middle (such as when a tape is removed and re-inserted during recording), use the Retake function (☐3 pg. 17) to find the end of the last recording so you do not erase any of it.
• To remove the indications from the camcorder's display during recording, ☐ pg. 22, 24.

Self-Recording

JOURNALISTIC SHOOTING (models equipped with LCD monitor only)

In some situations, different shooting angles may provide more dramatic results. Hold the camcorder in the desired position and tilt the LCD monitor in the most convenient direction. It can rotate 270° ( 90° downward, 180° upward).

SELF-RECORDING (models equipped with LCD monitor only)

You can shoot yourself while viewing your own image in the LCD monitor. Open the LCD monitor and tilt it upward 180° so that it faces forward, then point the lens toward yourself and start recording.

Zooming: To produce the zoom in/out effect, or an instantaneous change in image magnification. Digital circuitry extends the maximum magnification offered by optical zoom. This system is called Digital Zoom.

Zoom In Slide the Power Zoom Lever towards "T".

Zoom Out

Slide the Power Zoom Lever towards "W".

- The further you slide the Power Zoom Lever, the quicker the zoom action.

- Focusing may become unstable during Zooming. In this case, set the zoom while in Record-Standby, lock the focus by using the manual focus (pg. 28), then zoom in or out in Record mode.

- The zoom level indicator (■) moves during zoom. Once the zoom level indicator reaches the top of the zoom indicator bar, all magnification from that point is through digital processing.

- When using Digital Zoom, the quality of image may suffer. To deactivate Digital Zoom, set "D.ZOOM" to "OFF" in SYSTEM MENU (133) pg. 23).

- Digital zoom cannot be used when the "VIDEO ECHO" mode (L3, pg. 21) is activated (GR-SXM747UM/SXM347UM only).

Picture Stabilizer: To compensate for unstable images caused by camera-shake, particularly at high magnification.

1) Press P. STABILIZER. "C" appears.

2) To switch off the Picture Stabilizer, press P. STABILIZER. The indicator disappears.

- Accurate stabilization may not be possible if hand shake is excessive, or under the following conditions:

- When shooting subjects with vertical or horizontal stripes.

- When shooting dark or dim subjects.

- When shooting subjects with excessive backlighting.

- When shooting scenes with movement in various directions.

- When shooting scenes with low-contrast backgrounds.

- Switch off the Picture Stabilizer when recording with the camcorder on a tripod.

- The "Indicator" appears blinking if the Stabilizer cannot be used.

- This function cannot be activated during the "Night-Alive" (pg. 18), "CLASSIC FILM", "STROBE" and "VIDEO ECHO" mode (pg. 21) (GR-SXM747UM/SXM347UM only).

5Sec. Rec (5-Sec. Recording) (GR-SXM247UM/SX877UM/AX777UM only):

To record a scene for 5 seconds, providing quick scene transitions like those seen in TV programs.

1) Make sure the recording mode is set to "SP".
2) During Record-Standby, press 5SEC. REC. "■ 5S" appears and 5Sec. Rec is reserved.
3) Press the Recording Start/Stop Button. Recording starts, and after 5-second recording is finished, the camcorder reenters the Record-Standby mode automatically.
4) To cancel the 5Sec. Rec. function, press 5SEC. REC again so that “←5S” disappears.
- Fade/Wipe (☐ pg. 19) cannot be activated by pressing 5SEC. REC.

Quick Review: To check the end of the last recording.

1) Make sure the camcorder is in the Record-Standby mode.
2) Press ◀◀ and release quickly. Tape is rewound for approx. 2 seconds and played back automatically, then pauses in Record–Standby mode for the next shot.
- Distortion may occur at the start of playback. This is normal.

Retake: To re-record certain segments.

1) Make sure the camcorder is in the Record-Standby mode.
2) Press and hold either RETAKE to reach the start point for new recording. Pressing ▶ forwards the tape and pressing ◀ reverses it.
3) Press the Recording Start/Stop Button to start recording.
- Noise bars appear and pictures may become monochrome or darken during Retake. This is normal.

Video Light

(GR-SXM747UM/SXM347UM/

SXM247UM/SX877UM only): To brighten the scene when natural lighting is too dim.

1) Set LIGHT OFF/AUTO/ON as required:

OFF : Turns off the light.

AUTO : Automatically turns on the light when the camcorder senses insufficient lighting on the subject.

ON : Always keeps the light on as long as the camcorder is turned on.

• The video light can only be used with the camcorder's power on.

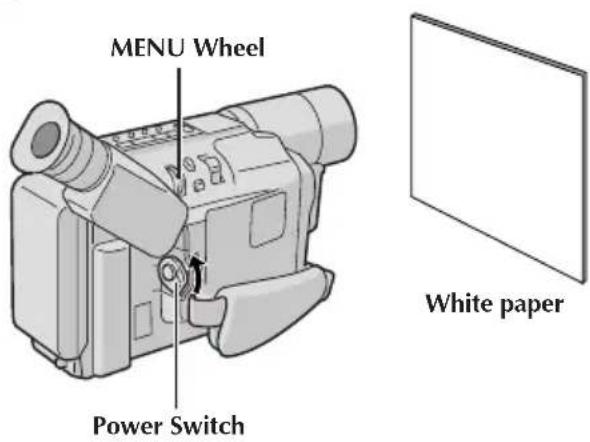

• It is recommended to set the white balance (pg. 29) to ✦ when you use the video light.
• When not using the video light, turn it off to save battery power.
• Even if the battery indicator (☐) does not blink if the battery pack's charge is low, the camcorder may turn off automatically when you turn on the video light, or when you start recording with the video light turned on.
• When LIGHT OFF/AUTO/ON is set to "AUTO":

- Depending on the lighting conditions, the video light may keep turning on and off. In this case, manually switch the light on or off using LIGHT OFF/AUTO/ON.

• While the "Sports" or "High Speed Shutter" mode (L3, pg. 20) is engaged, the light is likely to stay on.
• While the "Twilight" mode (133 pg. 20) is engaged, the light will not activate.

DANGER

■ The video light can become extremely hot. Do not touch it either while in operation or soon after turning it off, otherwise serious injury may result.
■ Do not place the camcorder into the carrying case immediately after using the video light, since it remains extremely hot for some time.
■ When operating, keep a distance of about 30 cm (11-13/16") between the video light and people or objects.
■ Do not use near flammable or explosive materials.
■ It is recommended that you consult your nearest JVC dealer for replacing the video light.

SNAPSHOT Button (GR-SXM747UM/SXM347UM only)

NOTES:

- After SNAPSHOT is pressed, there is a momentary camera shutter-type blackout together with the sound effect of a shutter closing, which is recorded together with the image.

- Snapshot is available during playback as well. However, the shutter sound is not heard.

NIGHT-ALIVE Button (GR-SXM747UM/SXM347UM only)

NOTES:

● During Night-Alive, the following functions or settings cannot be activated:

- "Picture Stabilizer" (137 pg. 16), "Program AE With Special Effects" (137 pg. 20) and "Digital Effects" (137 pg. 21).

• "S.LX" in CAMERA MENU (pg. 23).

- Night-Alive does not work when LIGHT OFF/AUTO/ON is set to "AUTO" or "ON" ( page 17).

● During Night-Alive, it may be difficult to bring the camcorder into focus. To prevent this, use of a tripod is recommended.

Snapshot (GR-SXM747UM/SXM347UM only)

Use your camcorder like a regular camera and take a snapshot, or several of them in succession.

1 Set the Power Switch to "Aor"".M

Press SNAPSHOT.

4 If you press during Record-Standby...

.... a still image will be recorded for approx. 6 seconds, then the camcorder re-enters the Record-Standby mode.

If you press during Recording ...

.... a still image will be recorded for approx. 6 seconds, then the normal recording resumes.

Night-Alive (GR-SXM747UM/SXM347UM only)

Makes dark subjects or areas even brighter than they would be under good natural lighting. Although the recorded image is not grainy, it may look as if it is strobing due to the slow shutter speed.

1 Set the Power Switch to "Aor"".M

2 Press NIGHT-ALIVE repeatedly until the desired mode's name and indication appear.

They are displayed for approx. 2 seconds, then the name disappears so that only the indication remains. The mode is activated.

3 To cancel the effect, press NIGHT-ALIVE repeatedly until "OFF" appears. "OFF" is displayed for approx. 2 seconds.

A NIGHT AUTO

The shutter speed is automatically adjusted (maximum 1/6 sec.).

1 NIGHT 10X*

The shutter speed is set to 1/6th of a second to provide 10 times the sensitivity.

2 NIGHT 60X*

The shutter speed is set to 1 second to provide 60 times the sensitivity.

*Appears when the Power Switch is set to "M".

Fade/Wipe Effects

These effects let you make pro-style scene transitions. Fade- or wipe-in works at recording start, and fade- or wipe-out works at recording end.

1 Set the Power Switch to "M"
2 Press FADE/WIPE repeatedly until the desired mode's name and indication appear.
They are displayed for approx. 2 seconds, then the name disappears so that only the indication remains. The effect is reserved.
3 Press the Recording Start/Stop Button to activate fade-in/out or wipe-in/out.
4 To cancel a fade or wipe, press FADE/WIPE repeatedly until "OFF" appears. "OFF" is displayed for approx. 2 seconds and the fade/wipe standby mode is canceled.

Bk FADER

Fades in/out to a black screen.

MOSAIC (Fader)

Gradually turns/returns the picture into/from a mosaic pattern.

SHUTTER (Wipe)

A black screen moves in from the top and bottom, closing over the image like a shutter, or a new image pushes open the black screen vertically from the center.

SLIDE (Wipe)

A black screen moves in from the left to gradually cover the image, or a new image moves in from right to left.

DOOR (Wipe)

Wipes in as the two halves of a black screen open to the left and right, revealing the scene, or wipes out and the black screen reappears from left and right to cover the scene.

CORNER (Wipe)

Wipes in on a black screen from the upper right to the lower left corner, revealing the scene, or wipes out from lower left to upper right, leaving a black screen.

□ WINDOW (Wipe)

Wipes in on a black screen from the center of the screen towards the corners, revealing the scene, or wipe out from the corners to the centre, leaving a black screen.

NOTE:

Pressing and holding the Recording Start/Stop Button allows you to vary the length for the image during fade in/out or wipe in/out.

Program AE With Special Effects

1 Set the Power Switch to "M"
2 Press P.AE repeatedly until the desired mode's name and indication appear.
They are displayed for approx. 2 seconds, then the name disappears so that only the indication remains. The mode is activated.
3 To cancel the effect, press P.AE repeatedly until "OFF" appears. "OFF" is displayed for approx. 2 seconds.

SPORTS

High shutter speed clearly captures fast-moving action.

ND : ND EFFECT

A black mist darkens the picture, as when an ND filter is used. Helps to counter the effects of glare on the subject.

FG : FOG

Makes the picture look misty white, as when an external fog filter is attached to the lens. Softens the image and gives it a "fantasy" look.

TWILIGHT

Dusk, twilight scenery, fireworks, etc., look more natural and dramatic. The following happens when Twilight mode is selected:

• Auto gain control is turned off.
- White Balance is set to “☀️:FINE” (day mode), but can also be manually changed to another mode (☐ pg. 29).
- Auto Focus becomes available only in the range of 10 m (32 ft.) to infinity. To focus when the subject-to-camera distance is less than 10 m (32 ft.), use manual focusing (LFP pg. 28).

F2 S1/2000 (1/2000 sec. High Speed Shutter)

Captures faster action than Sports mode.

NOTES:

• Only one mode can be engaged at a time.
• The screen becomes slightly dark in the High Speed Shutter mode. Use in well-lit situations.
• In the "High Speed Shutter" or "Sports" modes, picture color may be adversely affected if the subject is lit by alternating discharge-type light sources such as fluorescent or mercury-vapor lights.
• This function cannot be activated during Night-Alive (pg. 18) (GR-SXM747UM/SXM347UM only).
• The "FOG" mode cannot be used when the "VIDEO ECHO" mode (LFP pg. 21) is activated (GR-SXM747UM/SXM347UM only).

Digital Effects

1 Set the Power Switch to "M"
2 Press DIGIFECT repeatedly until the desired mode's name and indication appear. They are displayed for approx. 2 seconds, then the name disappears so that only the indication remains. The mode is activated.
3 To cancel the effect, press DIGIFECT repeatedly until "OFF" appears. "OFF" is displayed for approx. 2 seconds.

SEPIA

Recorded scenes have a brownish tint like old photos. Combine this with the WIDE mode (L3) pg. 22, 23) for a classic look.

B/W MONOTONE

Like black and white films, your footage is shot in B/W. Combine this with the WIDE mode (C-3) pg. 22, 23) for a classic look.

NEGA POSI

The colors of a picture are reversed.

MOSAIC

Turns recorded scenes into a mosaic pattern.

STRETCH

Doubles the width of the picture horizontally.

CLASSIC FILM*

Makes your footage look like a classic movie by shooting in black and white, with a strobing effect, and black bars added at the top and bottom.

STROBE*

Your recording looks like a series of consecutive snapshots.

VIDEO ECHO*

Adds a "ghost" to the subject, giving your recording a "fantasy" feeling. Zoom magnification of over 10X is not available.

*GR-SXM747UM/SXM347UM only.

NOTES:

● Digital Effects can be changed during recording or during Record-Standby.
- Digital zoom (☐ pg. 16) cannot be used when the "VIDEO ECHO" mode is activated (GR-SXM747UM/SXM347UM only).
- This function cannot be activated during the Night-Alive (pg. 18) (GR-SXM747UM/SXM347UM only).
● Picture Stabilizer (☐ pg. 16) cannot be activated during the "CLASSIC FILM", "STROBE" and "VIDEO ECHO" mode (GR-SXM747UM/SXM347UM only).

Display

Using Menus For Detailed Adjustment

This camcorder is equipped with an easy-to-use, on-screen menu system that simplifies many of the more detailed camcorder settings.

1 2 3

Set the Power Switch to "M"

Press the MENU Wheel in. The Menu Screen appears.

Rotate the MENU Wheel to select the desired function.

• To go from CAMERA MENU to SYSTEM MENU, rotate the MENU Wheel to select "▶FO SYSTEM MENU" and press it. SYSTEM MENU is composed of 2 pages. To go to the next page, rotate the MENU Wheel to select "▶NEXT" and press it.
• To return to CAMERA MENU from page 2 of SYSTEM MENU, rotate the MENU Wheel to select "▶ TO CAMERA MENU" and press it.

4 5 6

Press the MENU Wheel in to display the Setting Menu and rotate it to select the desired setting.

Press the MENU Wheel in. The Menu Screen reappears with the highlight bar on "RETURN".

Press the MENU Wheel in. The normal screen reappears.

MENU SCREEN EXPLANATIONS

CAMERA MENU

FOCUS	Refer to “Focusing” (pg. 28).
EXPOSURE	Refer to “Exposure Control” (pg. 27).
M.W.B.	Refer to “White Balance Adjustment” and “Manual White Balance Operation” (pg. 29).
S.LX	MAX To record a subject in a darkly lit environment, when it is more convenient to shoot the subject with a brighter image even if the picture becomes slightly coarse.
	NORMAL To record a subject in a dimly lit environment, when it is more convenient to shoot with a less coarse picture although the subject becomes slightly dark. This setting is suitable for measuring sensitivity conforming to EIA-639 (EIA* Standard for Low Light Sensitivity Measurement).*EIA: Electronic Industries Alliance
	OFF Allows you to shoot dark scenes with no picture brightness adjustment.
TITLE	Allows you to superimpose one of eight preset titles (pg. 25).
DATE/TIME DISP.	Makes the date/time settings appear in the camcorder or on a connected monitor (pg. 25).

SYSTEM MENU

This Menu Screen cannot be accessed while recording.

REC MODE	Allows you to set the recording mode (SP or EP) depending on your preference (U→ pg. 12).
D. ZOOM	50X Allows you to use the Digital Zoom. By digitally processing and magnifying images, zooming is possible from 16X (the optical zoom limit), to a maximum of 50X digital magnification.
	600X Allows you to use the Digital Zoom. By digitally processing and magnifying images, zooming is possible from 16X (the optical zoom limit), to a maximum of 600X digital magnification.
	OFF Digital Zoom is not available. Only optical zoom (maximum 16x magnification) can function. When set to “OFF” during Digital Zoom, zoom magnification changes to 16X.
WIDE	OFF Does not display black bars.
	ON Allows you to record black bars at the top and bottom of the screen to produce a cinema-like “wide-screen” effect. If a snapshot (GR-SXM747UM/SXM347UM only, U→ pg. 18) is taken while the camcorder is in the WIDE mode, the snapshot image is recorded without the black bars at the top and bottom of the screen.

: Factory-preset

SYSTEM MENU (cont.)

S-VHS*(S-VHS ET*)(GR-SXM747UM/SXM347UM/SXM247UM/SX877UM only)	ON	Records in S-VHS on a VHS or S-VHS cassette (137 pg. 10).
	OFF	Records in VHS on a VHS or S-VHS cassette (137 pg. 10).
TAPE LENGTH	Allows you to set the tape length depending on the tape used (137 pg. 12).
DISPLAY	FULL Make all of the indications appear on the LCD monitor**/viewfinder during playback or recording.
	SIMPLE Make the following indications disappear from the LCD monitor**/viewfinder during recording or playback: cassette warning, tape remaining time, battery pack remaining power indicator and tape length indicator (137 pg. 46, 47)
REC TIME	Refer to “Animation” and “Time-Lapse” (137 pg. 26).
INT. TIME	Refer to “Time-Lapse” (137 pg. 26).
TELE MACRO OFF		Usually the distance to a subject where the lens is in focus depends on the zoom magnification. Unless there is a distance of more than 1 m (3.25 ft) to the subject, the lens is out of focus at the maximum telephoto setting. When set to “ON”, you can shoot a subject as large as possible at a distance of approx. 60 cm (23-5/8").•Depending on the zoom position, the lens may go out of focus.
	ON
TITLE LANG.	Allows you to select the language (ENGLISH, FRENCH, SPANISH or PORTUGUESE) of Instant Titles (137 pg. 25).
DATE/TIME	Allows you to set the current date and time (137 pg. 9).
DEMO MODE	ON Demonstrates certain functions automatically. When “DEMO MODE” is set to “ON” and the Menu Screen is closed, the demonstration starts.Operating the Power Zoom Lever during the demonstration stops the demonstration temporarily. If the Power Zoom Lever is not moved for more than 1 minute after that, the demonstration will resume.NOTE:When a tape whose Erase Protection tab is in the position that allows recording is loaded in the camcorder, demonstration is not available.
	OFF Automatic demonstration will not take place.

* S-VHS ET is displayed when a VHS cassette is loaded, and S-VHS is displayed when an S-VHS cassette is loaded (☐ pg. 10). If a cassette is not loaded, "S-VHS" will be displayed in the Menu Screen. S-VHS ET is preset to "OFF".
** Models equipped with LCD monitor only.

Date/Time Insert

Allows you to display the date and time in the camcorder or on a connected color monitor, as well as to record them manually or automatically.

You should have already performed the Date/Time Setting procedure (☐ pg. 9).

Instant Titles

The camcorder has eight preset titles in memory. You can superimpose one of them over the video image.

Instant Titles can be displayed not only in English but also in French, Spanish and Portuguese. Change the setting in TITLE LANG. in SYSTEM MENU. (pg. 24).

1 Set the Power Switch to "M
2 Press the MENU Wheel in. The Menu Screen appears.
3 Rotate the MENU Wheel to select "DATE/TIME DISP." and press it. The DATE/TIME DISP. Menu appears.
4 Rotate the MENU Wheel to select the desired mode, then press it. The desired mode is activated.
5 The Menu Screen reappears with the highlight bar on "RETURN". Press the MENU Wheel in to close the Menu Screen.

NOTES:

DISPLAY

● The selected display can be recorded.
- If you do not want to record the display, select the OFF mode before shooting.

AUTO DATE

- Your camcorder automatically records the date for about 5 seconds after recording is initiated in the following situations:

• After changing the date.
• After loading a cassette.
• After Auto Date Record mode is selected by rotating the MENU Wheel.
- In this mode, the date is replaced after 5 seconds with "AUTO DATE" but this is not recorded.

1 Set the Power Switch to "M"
2 Press the MENU Wheel in. The Menu Screen appears.
3 Rotate the MENU Wheel to select "TITLE" and press it. The TITLE Menu appears.
4 Rotate the MENU Wheel to select the desired mode, then press it. The desired mode is activated.
5 The Menu Screen reappears with the highlight bar on "RETURN". Press the MENU Wheel in to close the Menu Screen.

NOTE:

The selected title will remain until OFF is selected in the TITLE Menu.

NOTE:

Before performing the following steps, make sure that:

• The Power Switch is set to "M"
  ● The camcorder is in the Record-Standby mode.
• The recording mode is set to "SP".

Animation

You can shoot a series of pictures, each slightly different, of the same object for a brief period of time.

1
Press the MENU Wheel in. The Menu Screen appears.
2
Rotate the MENU Wheel to select "▶TO SYSTEM MENU" and press it to display SYSTEM MENU. Rotate the MENU Wheel to select "▶NEXT" and press it to display the next page. Then, rotate the MENU Wheel to select "REC TIME" and press it. The REC TIME Menu appears. Rotate the MENU Wheel to select the desired recording time, then press it.
3
The Menu Screen reappears with the highlight bar on "RETURN". Press the MENU Wheel in again to close the Menu Screen.
4
Press the Recording Start/Stop Button after focusing on the subject. The recording stops automatically after the selected period of time. - Repeat step 4 for the desired number of pictures.
5
To release the Animation mode, set "REC TIME" in the Menu screen to "OFF".

Time-Lapse

You can record sequentially at preset time spans. Leaving the camcorder aimed at a specific subject, you can record subtle changes over an extended period of time.

1

Set "REC TIME" (step 1 and 2 of "Animation" above).

2

Rotate the MENU Wheel to select "INT. TIME" and press it. The INT. TIME Menu appears. Rotate the MENU Wheel to select the desired interval time, then press it. The Menu Screen reappears with the highlight bar on "▶ RETURN". Press the MENU Wheel in again to close the Menu Screen.

3

Press the Recording Start/Stop Button. Recording and intervals alternate automatically.

4

To release the Time-Lapse mode, when "REG" is not displayed, press the Recording Start/Stop Button to display "≡PAUSE≡", then set "REC TIME" and "INT. TIME" in the Menu Screen to "OFF".

NOTES (for Animation and Time-Lapse):

• For best results, make sure the camcorder is secured when shooting in Animation or Time-Lapse mode.
• Fade- or wipe-in/out cannot be performed during Animation or Time-Lapse shooting.
• Before performing other operations following Animation or Time-Lapse recording, make sure the Animation or Time-Lapse mode is deactivated.
  ● Animation and Time-Lapse are canceled when the power is shut off or when the cassette is ejected.

Exposure Control

This feature automatically adjusts the iris for the best available picture quality, but you can override it and make the adjustment manually. Manual exposure adjustment is recommended in the following situations:

• When shooting using reverse lighting or when the background is too bright.
• When shooting on a reflective natural background such as at the beach or when skiing.
• When the background is overly dark or the subject light.

1 Set the Power Switch to "M"
2 Press the MENU Wheel in. The Menu Screen appears.
3 Rotate the MENU Wheel to select "EXPOSURE" and press it. The EXPOSURE Menu appears.
4 Rotate the MENU Wheel to select "MANU", then press it. The Menu Screen disappears and "00" (exposure control level counter) appears.
5 To brighten the image, rotate the MENU Wheel downward. The exposure control level counter increases (maximum +06).
To darken the image, rotate the MENU Wheel upward. The exposure control level counter decreases (maximum -06).
6 Press the MENU Wheel in. The setting is complete. The Menu Screen reappears with the highlight bar on "RETURN".
7 Press the MENU Wheel in. The Menu Screen disappears and the exposure control level counter reappears to indicate the exposure is adjusted.

NOTES:

• To return to the factory setting, select "AUTO" in step 4.
  ● To re-adjust exposure, repeat the procedure from step 2.

NOTES:

• If the lens is smeared or blurred, accurate focusing is not possible. Keep the lens clean, wiping with a piece of soft cloth if it gets dirty. When condensation occurs, wipe with a soft cloth or wait for it to dry naturally.
• When shooting a subject close to the lens, zoom out first (☐ pg. 16). If zoomed in in the auto focus mode, the camcorder could automatically zoom out depending on the distance between the camcorder and the subject. This does not occur with "TELE MACRO" (☐ pg. 24).

Focusing

AUTO FOCUS

The camcorder's Full Range AF system offers continuous shooting ability from close-up to infinity. However, correct focus may not be obtainable in the situations listed below (in these cases use manual focusing):

• When two subjects overlap in the same scene.
• When illumination is low.*
• When the subject has no contrast (difference in brightness and darkness), such as a flat, one-color wall, or a clear, blue sky.*
• When a dark object is barely visible in the viewfinder.*
• When the scene contains minute patterns or identical patterns that are regularly repeated.
• When the scene is affected by sunbeams or light reflecting off the surface of a body of water.
• When shooting a scene with a high-contrast background.
  * The low-contrast warning "▲" appears.

MANUAL FOCUS

Make the necessary viewfinder adjustments to use the viewfinder (13 pg. 8).

1 Set the Power Switch to "M"
2 Press the MENU Wheel in. The Menu Screen appears.
3 Rotate the MENU Wheel to select "FOCUS" and press it. The FOCUS Menu appears.
4 Rotate the MENU Wheel to select "MANU", then press it. The Menu Screen disappears and "▲" and "▲" appear. The focus is locked at this point.
5 To focus on a farther subject, rotate the MENU Wheel upward. “◀” appears and blinks. To focus on a nearer subject, rotate the MENU Wheel downward. “▶” appears and blinks.
6 Press the MENU Wheel in. The setting is complete. The Menu Screen reappears with the highlight bar on "RETURN".
7 Press the MENU Wheel in. The Menu Screen disappears and "▲" reappears to indicate the focus is locked.

NOTES:

• To return to Auto Focus, select "AUTO" in step 4.
  ● To re-adjust Manual Focus, repeat the procedure from step 2.
• Be sure to focus the lens in the maximum telephoto position when you use the Manual Focus mode. If you focus in on a certain subject in the wide-angle position, sharply focused images cannot be obtained when zoomed in because the depth-of-field is reduced at longer focal lengths.
• When the focus level cannot be adjusted any farther or closer, "or" will blink.

White Balance Adjustment

A term that refers to the correctness of color reproduction under various lighting. If the white balance is correct, all other colors will be accurately reproduced.

The white balance is usually adjusted automatically. However, more advanced camcorder operators control this function manually to achieve a more professional color/tint reproduction.

1 Set the Power Switch to "M"
2 Press the MENU Wheel in. The Menu Screen appears.
3 Rotate the MENU Wheel to select "M.W.B.", then press it. The M.W.B. Menu appears.
4 Rotate the MENU Wheel to select the desired setting.
"AUTO"
White balance is adjusted automatically (factory preset).
" : FINE"
Outdoors on a sunny day.
" : CLOUD"
Outdoors on a cloudy day.
“：HALOGEN”
A video light or similar type of lighting is used.
"MWB"
White balance is set manually.
5 Press the MENU Wheel in. The Menu Screen reappears with the highlight bar on
"▶RETURN". Press the MENU Wheel in again to close the Menu Screen.

To Return To Automatic White Balance...

..... select "AUTO" in step 4. Or set the Power Switch to "A".

NOTE:

White balance cannot be used when the "SEPIA" or "MONOTONE" mode (☐ pg. 21) is activated.

Manual White Balance Operation

Perform Manual White Balance when shooting under various types of lighting.

1 Follow steps 1 through 4 of the white balance adjustment, and select "MWB".
2 Hold a sheet of plain white paper in front of the subject. Adjust zoom or position yourself so that the white paper fills the screen.
3 Press the MENU Wheel in until "MWB" begins blinking.
When the setting is completed, "MWB" stops blinking, and the Menu Screen reappears with the highlight bar on "▶ RETURN".
4 Press the MENU Wheel in again to close the Menu Screen.

To Change The Tint For Recording . . .

... in step 2, substitute colored paper for white. The white balance is adjusted based on the color, changing the tint. Red paper = deeper green; blue paper = orange; yellow paper = deeper purple.

NOTES:

• In step 2, it may be difficult to focus on the white paper. In such a case, adjust focus manually (133 pg. 28).
• A subject can be shot under various types of lighting conditions indoors (natural, flourescent, candlelight, etc.). Because the color temperature is different depending on the light source, the subject tint will differ depending on the white balance settings. Use this function for a more natural result.
• Once you adjust white balance manually, the setting is retained even if the power is turned off or the battery removed.

* Models equipped with LCD monitor only.

1

Load a tape (pg. 13).

2

Set the Power Switch to "PLAY"

To start playback, press▶/II.

• To stop playback, press ■.

- Press ◀◀ to rewind, or ▶▶ to fast-forward the tape during Stop mode.

NOTES:

• The camcorder shuts off automatically after about 5 minutes in Stop mode. To turn on again, set the Power Switch to "OFF", then to "PLAY".
• When the Power Switch is set to "PLAYd the LCD monitor is opened at an angle of 60 degrees or more, the LCD monitor switches on and the viewfinder switches off automatically to save power (models equipped with LCD monitor only).
• The playback picture can be viewed in the viewfinder (with the LCD monitor* shut), on the LCD monitor* or on a connected TV (L→ pg. 32, 33). *Models equipped with LCD monitor only.
• You can also view the playback picture on the LCD monitor with it flipped over and retracted (models equipped with LCD monitor only).
• If a blank portion on the tape is played back, the screen may become black. This is not a malfunction.

LCD Monitor Brightness Adjustment (models equipped with LCD monitor only):

Rotate the BRIGHT Wheel towards "+" to brighten, or towards "-" to darken.

- The Bright Level Indicator is displayed under the Date/Time Display when you play back images recorded in Wide Mode ( page 23).

Speaker Volume Control (models equipped with LCD monitor only): Slide the Power

Zoom Lever (VOL.) towards "+" to turn up the volume, or towards "-" to turn down the volume.

- The Speaker Volume Indicator is displayed under the Date/Time Display when you play back images recorded in Wide Mode ( page 23).

Still Playback: Pauses during playback.

1) Press▶/II during playback.
2) To resume normal playback, press▶/■ again.
- Noise bars will appear and the picture will become monochrome during Still Playback.
- If TBC (☐ pg. 31) is engaged, noise bars will not appear. This mode is called Fine Still (GR-SXM747UM/SXM347UM only).

Shuttle Search: Allows high-speed search in either direction.

1) Press▶▶ for forward or ◀◀ for reverse search during playback.
2) To resume normal playback, press▶/II.
- During playback, press and hold ◀◀ or ▶▶. The search continues as long as you hold the button. Once you release it, normal playback resumes.
- Noise bars appear and pictures may become monochrome or darken during Shuttle Search. This is normal.

Tracking: Eliminates noise bars that appear on-screen during playback. Factory-preset is Auto Tracking. To activate Manual Tracking:

1) Press the TRACKING Wheel for approx. 2 seconds. "MT" appears.
2) Rotate the TRACKING Wheel so that the noise bars disappear.

- To return to Auto Tracking, press the TRACKING Wheel for approx. 2 seconds or set the Power Switch to "OFF" and then "PLAY" again. "AT" blinks. When Auto Tracking finishes, the indication disappears.

- To return to Auto Tracking, press the TRACKING Wheel for approx. 2 seconds or set the Power Switch to "OFF" and then "PLAY" again. "AT" blinks. When Auto Tracking finishes, the indication disappears.

- When noise bars appear during playback, the camcorder enters the Auto Tracking mode and "AT" is displayed.

- Manual Tracking may not work with tapes recorded on other VCRs or camcorders.

TBC (Time Base Corrector): Removes jitter from fluctuating video signals to deliver a stable picture even with old tapes. Factory-preset: TBC is engaged.

To activate/release the TBC mode, press TBC during playback for more than 1 second. When the TBC mode is activated, "TBC" is displayed.

Counter Memory Function: Makes it easier to locate a specific tape segment.

1) Press COUNTER R/M and hold for more than 1 second. The counter resets to "0:00:00".
2) Press COUNTER R/M for less than 1 second. "M" appears.
3) After recording or playback, press ■, then ◀. The tape automatically stops at or close to 0:00:00.
4) Press ▶/II to start playback.

- The counter memory functions in the Fast-Forward and Rewind modes.

- To disable the Counter Memory Function, press COUNTER R/M for less than 1 second so that "M" disappears.

Playback Special Effects (CLASSIC FILM, MONOTONE, SEPIA, STROBE and VIDEO ECHO, pg. 21) (GR-SXM747UM/

SXM347UM only): Allows you to add creative effects to the playback image.

1) Activate the TBC mode and Auto Tracking.
2) Press DIGIFECT repeatedly until the desired mode's name and indication appear. They are displayed for approx. 2 seconds, then the name disappears so that only the indication remains. The mode is activated.
3) To cancel the effect, select "OFF" in step 2.
- Playback Special Effects do not work during shuttle search.
- The selected effect mode cannot be changed during still playback.

These are some basic types of connections. When making the connections, refer also to your VCR and TV instruction manuals.

A. Connection to a TV or VCR equipped with an S-VIDEO IN and A/V input connectors (GR-SXM747UM/SXM347UM/SXM247UM/SX877UM only)

Use optional S-Video and Audio cables.

*When connecting the cables, open this cover.

B. Connection to a TV or VCR equipped only with A/V input connectors

Use optional Video and Audio cables.

*When connecting the cables, open this cover.

Basic Connections

1 Make sure all units are turned off.
2 Connect the camcorder to a TV or VCR as shown in the illustration (LPG pg. 32). If using a VCR . . . go to step 3. If not . . . go to step 4.
3 Connect the VCR output to the TV input, referring to your VCR's instruction manual.
4 Turn on the camcorder, the VCR and the TV.
5 Set the VCR to its AUX input mode, and set the TV to its VIDEO mode.

NOTES:

- It is recommended to use the AC Adapter as the power supply instead of the battery pack (15 pg. 7).

- If your VCR has an S-Video input connector, connect the camcorder and the VCR using an optional S-Video cable. This can improve the dubbed picture quality (GR-SXM747UM/SXM347UM/SXM247UM/SX877UM only).

- To monitor the picture and sound from the camcorder without inserting a tape, set the camcorder's Power Switch to "A" or "M" then set your TV to the appropriate input mode.

- Make sure you adjust the TV sound volume to its minimum level to avoid a sudden burst of sound when the camcorder is turned on.

- If you have a TV or speakers that are not specially shielded, do not place the speakers adjacent to the TV as interference will occur in the camcorder playback picture.

Tape Dubbing

1 Following the illustration on pg. 32, connect the camcorder and the VCR.
2 Set the camcorder's Power Switch to "PLAY" turn on the VCR's power, and insert the appropriate cassettes in the camcorder and the VCR.
3 Engage the VCR's AUX and Record-Pause modes.
4 Engage the camcorder's Play mode to find a spot just before the edit-in point. Once it is reached, press ▶/■ on the camcorder.
5 Press ▶/II on the camcorder and engage the VCR's Record mode.
6 Engage the VCR's Record-Pause mode and press ▶/□ on the camcorder.
7 Repeat steps 4 through 6 for additional editing, then stop the VCR and camcorder when finished.

Cassette Adapter (VHS Playpak)

Use this to play back an S-VHS-C/VHS-C video cassette recorded with this camcorder on a VHS VCR. It is fully compatible with any S-VHS/VHS video cassette recorder. The cassette adapter is battery powered and automatically performs tape loading and unloading.

1 Slide the battery cover up to remove it, install one "AA (R6)" size battery as shown, then reattach the cover.
2 Slide the latch to open the adapter compartment door, then insert the cassette and close the compartment door.
3 Load the cassette adapter into the VCR and play the tape back as you would any other.
4 Slide the latch and the compartment door opens automatically. This may take around 10 seconds. Do not attempt to force the adapter open. Then, insert your finger in the hole on the underside of the adapter as shown in the illustration at left, and push up and remove the cassette.

NOTES:

● During tape loading and unloading, do not touch the reels for safety and tape protection.
● Tapes recorded in S-VHS or S-VHS ET mode cannot be played back on a regular VHS VCR. Playback is possible with a VCR equipped with the S-VHS or SQPB (S-VHS QUASI PLAYBACK) function (GR-SXM747UM/SXM347UM/SXM247UM/SX877UM only).
● During special-effect playback (slow motion, still frame, etc.), the picture may vibrate or noise bars may appear on the screen.
- To record on a VCR using a compact cassette and the adapter, cover the adapter's recording safety hole with adhesive tape.

The Full-Function Remote Control Unit can operate this camcorder from a distance as well as the basic operations (Playback, Stop, Pause, Fast-Forward and Rewind) of your VCR.

Buttons	Functions
	With the camcorder's Power Switch set to “A” or “M”	With the camcorder's Power Switch set to “PLAY”.
1 Infrared beam transmitting window	Transmits the beam signal.
2 ZOOM (T/W) Buttons	Zoom in/out (pg. 16)	Zoom in/out (pg. 37)
3 PLAY Button	—	Playback start (pg. 30)
4REW Button	Retake (rewind), Quick Review (pg. 17)	Rewind, Reverse Shuttle Search (pg. 30)
5 STOP Button	—	Stop (pg. 30)
6 INSERT Button	—	Insert Editing (pg. 38)
7 REC TIME Button ANIM. Button	Animation, Time-Lapse (pg. 37)	—
8 START/STOP Button	Functions the same as the Recording Start/Stop Button on the camcorder.
9 FF Button	Retake (forward) (pg. 17)	Fast-Forward, Forward Shuttle Search (pg. 30)
10 PAUSE Button	—	Pause (pg. 30)
11 A.DUB Button	—	Audio dubbing (pg. 39)
12 INT. TIME Button SELF TIMER Button*	Time-Lapse (pg. 37)	—

*This function is unavailable with this camcorder.

Installing The Batteries

The remote control uses two "AAA (R03)" size batteries. See "General Battery Precautions" (pg. 48).

1 Open the battery compartment cover as illustrated.
2 Insert two "AAA (R03)" size batteries in the correct direction.
2 Replace the battery compartment cover.

When using the remote control, be sure to point it at the remote sensor. The illustration shows the approximate transmitted beam effective area for indoor use.

The transmitted beam may not be effective or may cause incorrect operation outdoors or when the remote sensor is directly exposed to sunlight or powerful lighting.

Playback Zoom

To magnify the recorded image up to 10X at any time during playback.

NOTES:

• Use the remote control unit to perform this procedure.
  • Make sure that the TBC mode is activated (☐ pg. 31).

1) Press PLAY to find the scene of interest.
2) Press the ZOOM Buttons (T/W) on the remote control.

Make sure the remote control is pointed at the camcorder's remote sensor. Pressing T zooms in.

To End Zoom...

.... press and hold W until magnification returns to normal. Or, press STOP and then press PLAY.

NOTES:

• Zoom can also be used during still playback.
• Due to digital image processing, the quality of the image may suffer.
• After zooming in on a still video image, when normal playback is started, the zoomed-in effect is momentarily canceled but then resumes, returning magnification to the previously set level.

Animation And Time-Lapse

The remote control lets you set/release Interval Time and Recording Time without using the Menu Screen.

Animation

1) Set

Instead of performing steps 1 and 2 on pg. 26 ("Animation"), press REC TIME on the remote control. Each time REC TIME is pressed, the Recording Time indicator appears, changing in the following order: 1/4S, 1/2S, 1S, 5S and no indication (off).

2) Release

Instead of using the Menu in step 5 on pg. 26 ("Animation"), press REC TIME on the remote control until the Recording Time indicator disappears.

Time-Lapse

1) Set

Instead of performing steps 1 and 2 on pg. 26 ("Time-Lapse"), press REC TIME and INT. TIME on the remote control. Each time REC TIME is pressed, the Recording Time indicator appears, changing in the following order: 1/4S, 1/2S, 1S, 5S and no indication (off). Each time INT. TIME is pressed, the Interval Time indicator appears, changing in the following order: 15S, 30S, 1MIN, 5MIN and no indication (off).

2) Release

Instead of using the Menu in step 4 on pg. 26 ("Time-Lapse"), press REC TIME and INT. TIME on the remote control until the indicators disappear.

NOTE:

Also refer to pg. 26.

Insert Editing

You can record a new scene onto a previously recorded tape, replacing a section of the original recording with minimal picture distortion at the in- and out-points. The original audio remains unchanged.

NOTE:

Use the remote control unit to perform this procedure.

1 Set the Power Switch to "PLAY
2 Play back the tape, locate the Edit-Out point and press PAUSE.
3 Press and hold COUNTER R/M on the camcorder for more than 1 second to reset the tape counter, then press it again for less than 1 second so that "M" appears.
4 Press REW to go a little beyond the beginning of the scene you want to replace, press PLAY to view the recorded tape, and press PAUSE exactly at the Edit-In point where the new scene should start.
5 Press and hold INSERT, and without releasing INSERT, press and release PAUSE on the Remote Control. The Insert Editing indicator appears and the Insert Editing mode is engaged. When the scene the camcorder is aimed at appears on the screen, go to the next step.
6 To begin Insert Editing, press START/STOP. When the counter reaches "0:00:00", editing stops automatically and the camcorder enters the Insert-Pause mode.
7 To end Insert Editing, press STOP.

NOTES:

• During Insert Editing, the original audio will be heard from the speaker.
• After step 5, Retake (pg. 17) can be performed.
• The tape may stop slightly before or after the designated end point, and noise bars may appear. Neither indicates a defect in the unit.
• Only the video signal is recorded in the Insert Editing mode.

Audio Dubbing

You can record a new soundtrack on a prerecorded tape. The existing original sound is erased and replaced by the sound from the built-in microphone.

Perform steps 1, 2 and 3 of the Insert Editing procedure (☐ pg. 38) before continuing.

NOTE:

Use the remote control unit to perform the following procedures.

1 Press REW to go a little beyond the beginning of the scene onto which you want to dub the new audio, press PLAY to view the recorded tape, then press PAUSE at exactly the point where dubbing should start.
2 Press and hold A. DUB, and without releasing A. DUB, press and release PAUSE on the Remote Control. The Audio Dub-Standby mode is engaged.
3 To begin Audio Dubbing, press PLAY. When the counter reaches "0:00:00", Audio Dubbing stops automatically and the camcorder enters the Audio Dub-Standby mode.

4 To end Audio Dubbing, press STOP.

NOTES:

• Do not press FF or REW during Audio Dub-Standby, or the edit points will not be accurate.
• If the microphone is too close to the TV, or if the TV's volume is too high, whistling or howling may occur.

NOTES

(for Insert Editing and Audio Dubbing):

• Insert Editing and Audio Dubbing may not work correctly if the tape contains blank segments, or if the recording speed was changed during the original recording.
• To edit/dub onto a tape, make sure the Erase Protection tab is in the position that allows recording. If not, slide the tab. Some cassettes have removable tabs. If the tab has been removed, cover the hole with adhesive tape.
• Do not press STOP during Insert Editing or Audio Dubbing, or the edit points will not be accurate.
• During Insert Editing and Audio Dubbing, when Insert-Pause or Audio Dub-Standby is engaged, the counter may go slightly past "0:00:00". Recording, however, stops at exactly 0:00:00.

If, after following the steps in the chart below, the problem still exists, please consult your JVC dealer.

The camcorder is a microcomputer-controlled device. External noise and interference (from a TV, a radio, etc.) might prevent it from functioning properly. In such cases, first disconnect its power supply unit (battery pack, AC Adapter, etc.); and then re-connect it and proceed as usual from the beginning.

SYMPTOM POSSIBLE C	SE(S)
POWER
No power is supplied.	The battery pack has not been attached correctly (pg. 6).The battery pack is not charged (pg. 6).The power supply has not been correctly connected (pg. 6, 7).
The power suddenly goes off and does not come back on by itself.	The battery pack has completely discharged.Remove the cassette and disconnect the power source, then after a few minutes, try turning the power back on. If it still does not come on, consult your nearest JVC dealer.
RECORDING
Recording cannot be performed.	Make sure the Erase Protection tab is in the position that allows recording. If not, slide the tab. Some cassettes have removable tabs. If the tab has been removed, cover the hole with adhesive tape (pg. 13).
Recording does not start.	The camcorder Power Switch has not been set to “Aor” (pg. 14).
Animation or Time-Lapse is not available.	Before recording in the Animation mode at the very beginning of a tape, set the camcorder to the Recording mode for about 5 seconds, so that the tape runs smoothly. Using the Fade-in function at this point is a good way to begin an animated program (pg. 26, 37).
PLAYBACK
The tape is running, but there is no playback picture.	The TV has not been set to its VIDEO mode or channel.If A/V connection is used, the TV's VIDEO/TV Switch has not been set to VIDEO.
Playback picture is blurred or interrupted.	The video heads are dirty or worn out. Consult your nearest JVC dealer for head cleaning or replacement.
The counter indication is blurred during Still playback.	This is normal.
TAPE TRANSPORT
The tape stops during fast-forward or rewind.	The Counter Memory Function has been activated (pg. 31).
Rewinding or fast-forwarding cannot be performed.	The tape is already fully wound on one reel or the other.
SYMPTOM POSSIBLE CASE(S)
OTHER
During recording, the indications do not appear.	● Set “DISPLAY” to “FULL” in SYSTEM MENU (LFP pg. 24).
The tape will not eject.	● The battery pack is running low.● If the LCD monitor is not open over 60 degrees, the EJECT Switch does not function.
Some functions are not available.	● The Power Switch is set to “A● Certain combinations of modes or effects are not possible to use.
Vertical white lines appear when shooting a very bright object.	● This sometimes occurs when the contrast between the background and the object is great. It is not a defect of the camcorder.
Bright, crystal-shaped spots appear in the LCD monitor and the viewfinder.	● Sunlight is directly entering the lens. This is not a defect of the camcorder.
The rear of the LCD monitor is hot.	● The light used to illuminate the LCD monitor causes it to be hot. Close the LCD monitor to turn it off or set the Power Switch to “OFF”, and let the unit cool down.
Colored bright spots appear all over the LCD monitor or the viewfinder.	● The LCD monitor and the viewfinder are made with high-precision technology. However, black spots or bright spots of light (red, green or blue) may appear constantly on the LCD monitor or in the viewfinder. These spots are not recorded on the tape. This is not due to any defect of the unit. (Effective dots: more than 99.99 %.)
The indicators and the picture color on the LCD monitor are not clear.	● This may occur when the surface or the edge of the LCD monitor is pressed.
The LCD monitor, the viewfinder and the lens have become dirty (ex. fingerprints).	● Wipe them gently with a soft cloth. Gently wipe in a semicircular motion, as wiping strongly spreads the stain and it won’t come out easily.
An error number (i.e. E03) appears.	● Turn the camcorder’s power off, then disconnect the power source. After a few minutes, try turning the power on again. If the error number still appears in the viewfinder, consult your nearest JVC dealer.
The image is out of focus.	● The diopter needs to be adjusted (LFP pg. 8).● The scene being shot is adversely affecting the operation of Auto Focus (LFP pg. 28).
The picture is blurred in the Quick Review or Retake mode.	● This is normal while recording in the EP mode. Some noise may be present while recording in the SP mode (LFP pg. 12).
The date and time displays disappear.	● If you remove the power source from the camcorder while the power is on, all settings and selections are erased. Make sure to turn the camcorder’s power off before disconnecting the power source.
The wrong date and time are displayed/recorded.	● If you have not performed Date/Time Setting (LFP pg. 9), the date and time are not displayed/recorded correctly. Be sure that Date/Time setting is carried out.
Even though the lens cap is detached, the “LENS CAP” warning indicator (LFP pg. 47) blinks.	● The “LENS CAP” warning indicator may blink when the camcorder is used in dark areas, regardless of whether the lens cap is attached or detached.
ITEMS NOTES
Power(17 pg. 6)	Perform charging where the temperature is between 10°C and 35°C (50°F and 95°F). 20°C to 25°C (68°F to 77°F) is the ideal temperature range for charging. If the environment is too cold, charging may be incomplete.Charging times are for a fully discharged battery pack.Charging time varies according to the ambient temperature and the status of the battery pack.To avoid interference with reception, do not use the AC Adapter near a radio.Since the AC Adapter processes electricity internally, it becomes warm during use. Be sure to use it only in well-ventilated areas.The following operation stops charging or discharging:Set the Power Switch to “PLAY”, “Aor “”.MDisconnect the AC Adapter from the camcorder.Unplug the AC Adapter’s power cord from the AC outlet.Detach the battery from the camcorder.
Date/Time Settings(17 pg. 9)	The date/time cannot be stored in memory if the built-in clock battery runs out. Consult an authorized JVC dealer for replacement, or set the date/time as necessary before you start shooting.
Recording(17 pg. 14, 15)	When the Power Switch is set to “Aor “” and the LCD monitor is opened at an angle of 60 degrees or more, the LCD monitor switches on and the viewfinder switches off automatically to save power (models equipped with LCD monitor only).The cassette holder cannot be opened unless a power supply is attached.There may be a delay after you slideEJECTuntil the cassette holder opens. Do not use force.The time required to calculate the remaining tape length, and the accuracy of the calculation, may vary according to the type of tape used.The tape remaining time indicator is correct only if the correct tape length has been selected (17 pg. 12).“TAPE END” appears when the tape reaches its end, and the power goes off automatically if left in this condition for 5 minutes.“TAPE END” also appears when a cassette whose tape is already at its end is loaded.If the Recording Start/Stop button is pressed after the Record-Standby mode has continued for over 5 minutes, recording may not start immediately.While shooting, sound is not heard from the speaker (models equipped with LCD monitor only).
TBC(Time Base Corrector)(17 pg. 31)	The “TBC” indicator turns green (gray with a camcorder equipped with a black/white viewfinder) while TBC is working.TBC does not work during still playback and shuttle search.The “TBC” indicator turns white while TBC is not operative.It may take a few seconds before TBC actually starts working.The picture may be distorted if the TBC mode is activated or deactivated at the edit-in/-out points or when normal playback resumes after still playback or shuttle search.If the playback picture is distorted when TBC is set to on, turn off TBC.

A

AC Adapter ...... pg. 6, 7

Animation Recording ...... pg. 26, 37

Audio Dubbing ...... pg. 39

Auto Date Record ...... pg. 25

Auto Focus ...... pg. 28

Auto Shut Off ...... pg. 30, 42

B

Battery Pack ...... pg. 6, 7, 48

Brighten The Image ...... pg. 27

Brighten The LCD Monitor ...... pg. 14

C

Cassette Adapter ...... pg. 34

Charge Marker ...... pg. 7

Charging The Battery Pack ...... pg. 6

Classic Film Effect ...... pg. 21

Clean The Camcorder ...... pg. 50

Connection To A VCR/TV ...... pg. 32

Contents ......cover page

Counter Memory ...... pg. 31

D

Darken The Image ...... pg. 27

Darken The LCD Monitor ...... pg. 14

Date/Time Display ...... pg. 25

Date/Time Settings ...... pg. 9

Demonstration Mode ...... pg. 4, 24

Digital Effects ...... pg. 21

Digital Zoom ...... pg. 23

Diopter Adjustment ...... pg. 8

E

Electronic Fog Filter Mode ...... pg. 20

Erase Protection ...... pg. 13

Exposure Control ...... pg. 27

F

Fade-In/Out ...... pg. 19

Fast-Forward Tape ...... pg. 30

Fine Still ...... pg. 30

5-Second Recording Mode ...... pg. 17

G

Grip Adjustment ...... pg. 8

H

High Speed Shutter Mode ...... pg. 20

|

Insert Editing ...... pg. 38

Instant Titles ...... pg. 25

J

Journalistic Shooting ...... pg. 15

L

LCD monitor/Viewfinder, Indications ...... pg. 46, 47

Load A Tape ...... pg. 13

M

Manual Focus ...... pg. 28

Menu Screen ...... pg. 22 – 24

Monotone Effect ...... pg. 21

N

ND Effect Mode ...... pg. 20

Nega/Posi Mode ...... pg. 21

Night-Alive ...... pg. 18

P

Picture Stabilizer ...... pg. 16

Playback ...... pg. 30

Playback Special Effects ...... pg. 31

Playback Zoom ...... pg. 37

Power Switch Position ...... pg. 14

Program AE With Special Effects ...... pg. 20

Provided Accessories ...... pg. 4

Q

Quick Review ...... pg. 17

R

Recording, Advanced Features ...... pg. 18 – 29

Recording, Start/Stop ...... pg. 14, 15

Recording Format ...... pg. 10

Recording Mode ...... pg. 12

Record-Standby ...... pg. 14

Remote Control ...... pg. 35

Retake ...... pg. 17

Rewind The Tape ...... pg. 30

S

Self-Recording ...... pg. 15

Sepia Mode ...... pg. 21

Shoulder Strap Attachment ...... pg. 8

Shuttle Search ...... pg. 30

Snapshot ...... pg. 18

Snapshot During Playback ...... pg. 18

Specifications ...... pg. 51

Sports Mode ...... pg. 20

Still Playback ...... pg. 30

Strobe Effect ...... pg. 21

Super LoLux (S.LX) ...... pg. 23

Super VHS Expansion Technology ...... pg. 10

T

Tape Counter ...... pg. 31, 38

Tape Dubbing ...... pg. 32, 33

Tape Length Setting ...... pg. 12

Tele Macro ...... pg. 24

Time Base Corrector ...... pg. 31

Time-Lapse Shooting ...... pg. 26, 37

Tracking ...... pg. 31

Tripod Mounting ...... pg. 8

Twilight Mode ...... pg. 20

U

Unload A Tape ...... pg. 13

V

Video Echo Effect ...... pg. 21

Video Light ...... pg. 17

Viewfinder Adjustment ...... pg. 8

W

White Balance Adjustment ...... pg. 29

Wide Mode ...... pg. 23

Wipe-In/Out ...... pg. 19

Z

Zooming ...... pg. 16

Controls

①Video Light Switch [LIGHT OFF/AUTO/ON] (GR-SXM747UM/SXM347UM/ SXM247UM/SX877UM only) ...... 17 pg. 17

② Stop Button [STOP] ...... 📋 pg. 30

③ • Retake Rewind Button [RETAKE R] ..... pg. 17 • Quick Review Button [ G R] ..... pg. 17 • Rewind Button [R] ..... pg. 30

④ Play/Pause Button ...... 📋 pg. 30

⑤ • Retake Forward Button [RETAKE F] .... 📋 pg. 17 • Fast-Forward Button [F] ...... 📋 pg. 30

⑥ • Fade/Wipe Button [FADE/WIPE] ..... pg. 19 • Counter Reset/Memory Button [COUNTER R/M] ..... pg. 31

⑦ Program AE Button [P. AE] ...... pg. 20 ⑧ Digital Effect Button [DIGIFECT] ...... pg. 21

⑨ NIGHT-ALIVE Button (GR-SXM747UM/SXM347UM only) ..... pg. 18

⑩ REFRESH Button ...... 📄 pg. 6

⑪ EJECT Switch ...... 13 pg. 13

⑫ Close Button ...... 📄 pg. 13

⑬ • MENU Wheel [−, +] ...... 📄 pg. 22 • BRIGHT Wheel [−, +] (models equipped with LCD monitor only) ...... 📄 pg. 14, 30 • TRACKING Wheel [−, +] ...... 📄 pg. 31

⑭•Snapshot Button [SNAPSHOT] (GR-SXM747UM/SXM347UM only) ... ☐ pg. 18 •5-Second Recording Button [5 SEC. REC] (GR-SXM247UM/SX877UM/ AX777UM only) ....... ☐ pg. 17

⑮ • Power Zoom Lever [T/W] ...... 📄 pg. 16 • Speaker Volume Control [VOL.] (models equipped with LCD monitor only) ...... 📄 pg. 30

⑯ • Picture Stabilizer Button [P. STABILIZER] ...... pg. 16 • Time Base Corrector Button [TBC] ...... pg. 31

⑰ Power Switch [PLAY, OFF, A, M] ...... 📋 pg. 14, 30

⑱ Recording Start/Stop Button.... pg. 14

⑲ Battery Release Switch [BATTERY RELEASE] ...... pg. 6

⑳ Diopter Adjustment Control ...... 📄 pg. 8

Connectors

The connectors 21 to 24 are located beneath the cover.

21 S-Video Output Connector [S] (GR-SXM747UM/SXM347UM/ SXM247UM/SX877UM only) ...... 15 pg. 32

22 Audio Output Connector [A] ...... 📋 pg. 32

23 Video Output Connector [V] ...... 📄 pg. 32

24 DC IN Connector.... pg. 6, 7

Indicators

25 CHARGE Lamp ...... 📄 pg. 6

26 • Power Lamp .... pg. 14 • REFRESH Lamp .... pg. 6

Other Parts

27 LCD Monitor (models equipped with LCD monitor only) ...... 13 pg. 14, 15

28 Shoulder Strap Eyelets ...... 📄 pg. 8

29 Eyepiece

30 Battery Pack Mount ...... 📄 pg. 6

31 Viewfinder ...... 📄 pg. 8

32 Speaker (models equipped with LCD monitor only) ...... pg. 30

33 • Camera sensor Be careful not to cover this area; a sensor necessary for shooting is built-in here. • Remote Sensor (GR-SXM747UM/SXM347UM/ SX877UM only) ....

34 Grip Strap ...... 📋 pg. 8

35 Microphone.... pg. 39

36 Video Light (GR-SXM747UM/SXM347UM/ SXM247UM/SX877UM only) ...... 📋 pg. 17

37 Tripod Mounting Socket ...... 📄 pg. 8

Indications During Recording

① Tape Remaining Time .... pg. 42 Blinks when a tape is about to reach its end.

② Recording Mode Indicator (SP/EP) ...... pg. 12

③,⑧ Digital Effect Indicator ...... 17 pg. 21 Displayed at ③ for approx. 2 seconds when the Digital Effect is switched from one mode to another by pressing DIGIFECT, then only the indicator remains at ⑧.

③,⑨ • Program AE Indicator ...... pg. 20 Displayed at ③ for approx. 2 seconds when Program AE with special effects is switched from one mode to another by pressing P.AE, then only the indicator remains at ⑨.

- Night-Alive Indicator (GR-SXM747UM/ SXM347UM only) ...... 📋 pg. 18 Displayed at ③ for approx. 2 seconds when Night-Alive is switched from one mode to another by pressing NIGHT-ALIVE, then only the indicator remains at ⑨.

③,⑩ Fade/Wipe-Standby Indicator ...... pg. 19 Displayed at ③ for approx. 2 seconds when the Fade/Wipe is switched from one effect to another by pressing FADE/WIPE, then only the indicator remains at ⑩.

④ Recording Format Indicator (S/S-ET) (GR-SXM747UM/SXM347UM/ SXM247UM/SX877UM only) ...... pg. 10

⑤ Tape Length Indicator ...... 📋 pg. 12

⑥ Zoom Indicator Bar ...... 📄 pg. 16

a Zoom Level Indicator b Approximate Zoom Ratio

⑦ Recording Indicator ...... 📄 pg. 14

⑪ Picture Stabilizer Indicator ...... pg. 16

⑫•Interval Time/Recording Time Indicator .... pg. 26, 37 • 5 Sec. Rec Mode Indicator (GR-SXM247UM/SX877UM/ AX777UM only) .... pg. 17

⑬ Bright Level Indicator (models equipped with LCD monitor only) ..... 15 pg. 14

⑭ Instant Title Display ...... 📋 pg. 25

⑮ Date/Time Display ...... 📋 pg. 25

⑯ Focus Indicator ...... 📄 pg. 28

⑰ Exposure Control Level Counter ...... 📋 pg. 27

⑱ White Balance Mode Indicator ...... pg. 29

⑲S-VHS/S-VHS ET Recording Indicator (GR-SXM747UM/SXM347UM/ SXM247UM/SX877UM only) ...... 10 pg. 10

⑳ Record-Standby Mode Indicator ...... 📋 pg. 14

Indications During Playback

Warning Indications

①•:C5ssette Indicator
Displayed when a tape is loaded.
- ◇: Insert Editing Indicator ....... pg. 38 Displayed during Insert Editing.
② TBC Indicator ...... pg. 31
③Playback Special Effect Indicator (GR-SXM747UM/SXM347UM only) ..... 3 pg. 31
④Recording Format Indicator (S/S-ET)
(GR-SXM747UM/SXM347UM/
SXM247UM/SX877UM only) ...... pg. 10
⑤ Tape Counter ...... 📋 pg. 31, 38
⑥ Recording Mode Indicator (SP/EP) ...... 📋 pg. 12
⑦Tape Running Indicator
▶ : Playback
▶▶ : Fast-Forward/Shuttle Search
◀◀ : Rewind/Shuttle Search
II : Pause
▶ : Audio Dubbing
⑧ Tracking Indicator ...... 📄 pg. 31
⑨ Tape Counter ...... 📋 pg. 38
Displayed only during Insert Editing.
⑩ • BRIGHT: Bright Level Indicator (models equipped with LCD monitor only) ..... 3 pg. 30
•VOLUME: Speaker Volume Indicator (models equipped with LCD monitor only) ..... 15 pg. 30

Indications Function
	Displays the battery remaining power.Remaining power level: high. It does not necessarily mean that the battery pack is fully charged._______________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ As the battery power comes close to nil, the battery indicator □ blinks (battery power warning).When the battery power is exhausted, power turns off automatically.
	Blinks when no cassette is loaded, or when the Erase Protection tab is not in the position that allows recording. (13) pg. 13)
TAPE END	Appears when the tape ends during recording, playback or fast-forward. (13) pg. 42)
LENS CAP	Appears for 5 seconds after power is turned on if the lens cap is attached.
CONDENSATION OPERATION PAUSED PLEASE WAIT	These 2 warnings appear alternately every 3 seconds if condensation occurs. In this case, all functions except tape eject and power on/off are disabled. Remove the tape, turn the unit off (without removing the power supply), wait a few minutes for the warnings to clear, and turn it on again.
HEAD CLEANING REQUIRED USE CLEANING CASSETTE	These 2 warnings appear alternately every 3 seconds if dirt is detected on the heads during recording. In this case, use an optional cleaning cassette. If the warning remains after cleaning, consult your nearest JVC dealer.
E01—E06UNIT IN SAFEGUARD MODE REMOVE AND REATTACH BATTERY	The error indications (E01 — E06) show what type of malfunction has occurred. If an error indication and warning appear, turn the unit off, remove the power supply (battery, etc.) and wait a few minutes for them to clear. When it does, you can resume using the camcorder. If the indication remains, consult your nearest JVC dealer.

When using the AC Adapter in areas other than the USA

■ The provided AC Adapter features automatic voltage selection in the AC range from 110 V to 240 V.

USING HOUSEHOLD AC PLUG ADAPTER

In case of connecting the unit's AC Adapter to an AC wall outlet other than American National Standard C73 series type use an AC plug adapter, called a "Siemens Plug", as shown.

For this AC plug adapter, consult your nearest JVC dealer.

Video Light DANGER:

• The video light becomes extremely hot. Do not touch it either while in operation or soon after turning it off, otherwise serious injury may result.
• Do not place the camcorder into the carrying case immediately after using the video light, since it remains extremely hot for some time.
• When operating, keep a distance of about 30 cm (11-13/16" ft.) between the video light and people or object.
• Do not use near flammable or explosive materials.
• It is recommended that you consult your nearest JVC dealer for replacing the video light.

General Battery Precautions

If the remote control or cassette adapter is not functioning even if it is being operated correctly, the batteries are exhausted. Replace them with fresh ones.

Use only the following batteries:

Remote control .... AAA (R03) size x 2 (RM-V715U)

Cassette adapter .... AA (R6) size x 1 (C-P6U or C-P7U)

Please make note of the following rules for battery use. When misused, the batteries can leak or explode.

1. When replacing batteries, refer to page 36 for the remote control, or read the cassette adapter (C-P6U/C-P7U) instructions.

2. Do not use any different size of batteries from those specified.

3. Be sure to install batteries in the correct direction.

4. Do not use rechargeable batteries.
5. Do not expose the batteries to excessive heat as they can leak or explode.
6. Do not dispose of the batteries in a fire.
7. Remove the batteries from the unit if it is to be stored for an extended period to avoid battery leakage which can cause malfunctions.

Battery Packs

The battery packs are nickel-cadmium or nickel metal-hydride batteries.

Before using the supplied battery pack or an optional battery pack, be sure to read the following cautions:

1. To avoid hazard ...

... do not burn.
... do not short-circuit the terminals.
... do not modify or disassemble.
... use only specified chargers.

2. To prevent damage and prolong service life ...

... do not subject to unnecessary shock.
... avoid repeated charging without fully discharging.
... charge in an environment where temperatures are within the tolerances shown in the chart below. This is a chemical reaction type battery—cooler temperatures impede chemical reaction, while warmer temperatures can prevent complete charging.
... store in a cool, dry place. Extended exposure to high temperatures will increase natural discharge and shorten service life.
... avoid prolonged uncharged storage.
... remove from charger or powered unit when not in use, as some machines use current even when switched off.

NOTES:

- It is normal for the battery pack to be warm after charging, or after use.

Temperature Range Specifications Charging .... 10°C to 35°C (50°F to 95°F) Operation .... 0°C to 40°C (32°F to 104°F) Storage .... -10°C to 30°C (14°F to 86°F)

• Recharging time is based on room temperature of 20°C (68°F).
• The lower the temperature, the longer recharging takes.

Cassettes

To properly use and store your cassettes, be sure to read the following cautions:

1. During use ...

... make sure the cassette bears the S-VHS-C or VHS-C mark.
... be aware that recording onto prerecorded tapes automatically erases the previously recorded video and audio signals.
... make sure the cassette is positioned properly when inserting.
... do not load and unload the cassette repeatedly without allowing the tape to run at all. This slackens the tape and can result in damage.
... do not open the front tape cover. This exposes the tape to fingerprints and dust.

2. Store cassettes ...

... away from heaters or other heat sources.
... out of direct sunlight.
... where they won't be subject to unnecessary shock or vibration.
... where they won't be exposed to strong magnetic fields (such as those generated by motors, transformers or magnets).
... vertically, in their original cases.

Main Unit

1. For safety, DO NOT ...

... open the camcorder's chassis.
... disassemble or modify the unit.
... short-circuit the terminals of the battery pack. Keep it away from metallic objects when not in use.
... allow inflammables, water or metallic objects to enter the unit.
... remove the battery pack or disconnect the power supply while the power is on.
... leave the battery pack attached when the camcorder is not in use.

2. Avoid using the unit ...

... in places subject to excessive humidity or dust.
... in places subject to soot or steam such as near a cooking stove.
... in places subject to excessive shock or vibration.
... near a television set.
... near appliances generating strong magnetic or electric fields (speakers, broadcasting antennas, etc.).
... in places subject to extremely high (over 40° C or 104° F) or extremely low (under 0° C or 32° F) temperatures.

3. DO NOT leave the unit ...

... in places of over 50°C (122°F).
... in places where humidity is extremely low (below 35%) or extremely high (above 80%).
... in direct sunlight.
... in a closed car in summer.
... near a heater.
... in dusty places such as a beach.

4. To protect the unit, DO NOT ...

... allow it to become wet.
... drop the unit or strike it against hard objects.
... subject it to shock or excessive vibration during transportation.
... keep the lens directed at extremely bright objects for long periods.
... direct the eyepiece of the viewfinder at the sun.
... carry it by holding the viewfinder or the LCD monitor. Be sure to hold the main unit with both hands or use the grip.
... swing it excessively when using the shoulder strap.

LCD Monitor

1. To prevent damage to the LCD monitor, DO NOT ...

... push it strongly or apply any shocks.

... place the camcorder with the LCD monitor on the bottom.

1. To prolong service life . . .

... avoid rubbing it with coarse cloth.

1. Be aware of the following phenomena for LCD monitor use. These are not malfunctions:

- While using the camcorder, the surface around the LCD monitor and/or the back of the LCD monitor may heat up.

- If you leave power on for a long time, the surface around the LCD monitor becomes hot.

About moisture condensation . . .

• You may have observed that pouring a cold liquid into a glass will cause drops of water to form on the glass' outer surface. This same phenomenon occurs on the head drum of a camcorder when it is moved from a cool place to a warm place, after heating a cold room, under extremely humid conditions or in a place directly subjected to the cool air from an air conditioner.
• Moisture on the head drum can cause severe damage to the video tape, and can lead to internal damage to the camcorder itself.

Serious malfunctioning

If malfunctioning occurs, stop using the unit immediately and consult your local JVC dealer.

For Your Maintenance

1. After Use

① Set the Power Switch to "OFF" to turn off the camcorder.
② Open the LCD monitor to an angle of over 60 degrees. Slide EJECT to open the cassette holder, then remove the cassette.
③Close and lock the cassette holder by pressing the Close button.
④Close and lock the LCD monitor.
⑤ Slide BATTERY RELEASE to remove the battery pack.
⑥ Attach the provided lens cap to the camcorder's lens.

1. Cleaning The Camcorder

① CLEAN EXTERIOR

Wipe gently with a soft cloth.

Put cloth in diluted mild soap and wring it well to wipe off heavy dirt, then wipe again with a dry cloth.

②CLEAN LCD MONITOR

Open the LCD monitor and wipe it gently with a soft cloth. Be careful not to damage the monitor. Close the LCD monitor.

③CLEAN LENS

Blow it with a blower brush, then wipe it gently with lens cleaning paper.

④ REMOVE EYEPIECE

Turn the eyepiece counterclockwise and pull it out.

⑤ CLEAN VIEWFINDER

Remove dust using a blower brush.

⑥RE-ATTACH EYEPIECE

Re-attach the eyepiece and turn it clockwise.

NOTES:

• Avoid using strong cleaning agents such as benzine or alcohol.
• Cleaning should be done only after the battery pack has been removed or other power units have been disconnected.
• Mold may form if the lens is left dirty.
• When using a cleaner or chemically treated cloth, refer to the cautions that came with it.
• When removing the eyepiece, be sure to hold the viewfinder securely.

Camcorder
General

Format	: S-VHS (GR-SXM747UM/SXM347UM/SXM247UM/SX877UM only)/VHS NTSC standard
Power source	: DC 11 V ---(Using AC Adapter)DC 6 V ---(Using battery pack)
Power consumption Viewfinder on	: 4.0 W (GR-SXM747UM/SXM347UM/SXM247UM only)3.7 W (GR-SX877UM/AX777UM only)
LCD monitor* on	: 4.5 W (GR-SXM747UM/SXM347UM/SXM247UM only)
Video light**	: 3.0 W
* Models equipped with LCD monitor only.** GR-SXM747UM/SXM347UM/SXM247UM/SX877UM only.
Signal system	: NTSC-type
Video recording system
Luminance Color	: FM recording: Converted sub-carrier direct recordingConforms to VHS standard
Cassette	:SVHSC / VHSC cassette
Tape speed
SP	: 33.35 mm/sec. (1-5/16 ips)
EP	: 11.12 mm/sec. (7/16 ips)
Recording time (max.)
SP	: 40 minutes
EP	: 120 minutes (with TC-40)
Operating temperature	: 0°C to 40°C (32°F to 104°F)
Operating humidity	: 35% to 80%
Storage temperature	:-20°C to 50°C(-4°F to 122°F)
Weight : Approx. 910 g (2.0 lbs)(GR-SXM747UM only)Approx. 900 g (2.0 lbs)(GR-SXM347UM/SXM247UM only)Approx. 730 g (1.6 lbs)(GR-SX877UM only)Approx. 720 g (1.6 lbs)(GR-AX777UM only)
Dimensions(W x H x D)	: 206 mm x 112 mm x 118 mm(8-1/8" x 4-7/16" x 4-11/16")(GR-SXM747UM/SXM347UM/SXM247UM only)206 mm x 112 mm x 115 mm(8-1/8" x 4-7/16" x 4-9/16")(GR-SX877UM/AX777UM only)(with the LCD monitor* closed and with the viewfinder full tilted downward)

* Models equipped with LCD monitor only.

Pickup : 1/4" format CCD

Lens : F1.6, f = 3.9 mm to 62.4 mm, 16:1 power zoom lens with auto iris and macro control, filter diameter 40.5 mm

Viewfinder : Electronic viewfinder with 0.55" color LCD (GR-SX877UM only) Electronic viewfinder with 0.5" black/white CRT (GR-SXM747UM/SXM347UM/ SXM247UM/AX777UM only)

White balance adjustment : Auto/Manual adjustment

LCD monitor : 3" diagonally measured, LCD (models equipped with panel/TFT active matrix system (GR-SXM747UM only) LCD monitor only) 2.5" diagonally measured, LCD panel/TFT active matrix system (GR-SXM347UM/SXM247UM only)

Speaker : Monaural (models equipped with LCD monitor only)

Connectors

Video : 1 V (p-p)	), 75 Ω unbalanced, analog output(via Video output connector)
Audio : 300 mV (rms), 1 kΩ analog output(via Audio output connector)
S-Video : Y : 1 V (p-p)	), 75 Ω, analog output
(GR-SXM747UM/	C : 0.29 V(p-p), 75 Ω, analog output
SXM347UM/SXM247UM/
SX877UM only)

AC Adapter AP-V10U

Power requirement	: AC 110 V to 240 V~,50 Hz/60 Hz
Output : DC 11 V	——, 1 A
Dimensions(W x H x D)	: 59 mm x 31 mm x 69 mm(2-3/8" x 1-1/4" x 2-3/4")
Weight : Approx. 130 g (0.29 lbs)

Optional Accessories

• Battery Packs BN-V12U, BN-V20U, BN-V400U
  • A/V (Audio/Video) Cable
  • S-Video Cable QAM0004-004
• Compact S-VHS (SVHSC) Cassettes ST-C-40/30/20
• Compact VHS ( VHSC) Cassettes TC-40/30/20
  • Active Carrying Bag CB-V7U

Some accessories are not available in some areas. Please consult your nearest JVC dealer for details on accessories and their availability.

JVC

VICTOR COMPANY OF JAPAN, LIMITED
