USER MANUAL 6000T MAGELLAN

Instructions for Operating the Magellan RoadMate 6000T

The Magellan RoadMate 6000T is a vehicle-navigation aid designed to assist you in arriving at your selected destinations. When using the Magellan RoadMate 6000T, these safety rules must be followed to prevent accidents that can result in injury or death to yourself or others: National laws require or may require drivers to maintain clear visibility though the windscreen of the vehicle. Thales Navigation provides an adhesive disk in the box, allowing the product to be positioned in an area away from the windscreen. Under no circumstances shall Thales Navigation be responsible for any fines, penalties, or damages which could result from the unlawful positioning of the product within the vehicle. When driving, the need to view the display is minimal. Voice prompts will guide you to your destination. The driver should enter data or programme the Magellan RoadMate 60007 only when the vehicle is stationary. Only a vehicle passenger should enter data or programme the Magellan RoadMate 6000T while the vehicle is moving. It is your responsibility to comply with all traffic laws. Every attempt is made to ensure that the database is accurate. However, roadways, points of interest (POIs), and business and service locations may change over time. The database does not include, analyse, process, consider, or reflect any of the following: legal restrictions (such as vehicular type, weight, height, width, load and speed restrictions); road slope or grade; bridge height, width, weight, or other limits; population density; neighbourhood quality or safety; availability or proximity of police, emergency rescue, medical, or other assistance; construction work zones or hazards; road or lane closures; road, traffic, or traffic facilities’ safety or condition; weather conditions; pavement characteristics or conditions; special events; traffic congestion. It is Your responsibility to disregard any unsafe, hazardous, or illegal route suggestions. Keep the Magellan RoadMate 6000T safe from extreme temperature conditions. For example, do not leave it exposed to direct sunlight for an extended period of time. Take care when mounting the Magellan RoadMate 6000T in your vehicle, whether using the windscreen mount or other mount or accessories, that it does not obstruct the driver's view of the road, interfere with the operation of the vehicle's safety devices such as air bags, or present a hazard to occupants of the vehicle should the Magellan RoadMate 6000T be dislodged while driving. You assume the risks associated with damage to your vehicle or vehicle occupants as the result of your choices in mounting the Magellan RoadMate 6000T. National laws prohibit or may prohibit wearing stereo headphones while operating a motor vehicle. Using the audio function of this device with headphones for extended periods of time could cause hearing loss. Magellan earphones (ref.: 980840) are recommended. The battery in the Magellan RoadMate 6000T is rechargeable and should not be removed. In the event it should need to be replaced, please contact Magellan Technical Support. Extreme temperatures may cause the Magellan RoadMate 6000T to stop working. Do not leave it exposed to extreme heat or cold for long periods of time. About Charging the Magellan RoadMate 6000T Only use the AC adapter (Phihong: PSC11R-050) approved for your Magellan RoadMate 6000T. Use of another type of AC adapter will result in malfunctioning and/or danger. Use only the car charger approved for/supplied with your Magellan RoadMate 60007. Use of another type of car charger will result in malfunctioning and/or danger. The Magellan RoadMate 6000T is intended to be supplied with a LISTED Power Unit marked with "LPS", "Limited Power Source" and output rated + 5 V dc / 2.0 A". Use the USB cable approved for/supplied with your Magellan RoadMate 6000T. Use the battery provided with your Magellan RoadMate 6000T or its identical replacement approved for the Magellan RoadMate 6000T. For safety reasons, the battery in your Magellan RoadMate 6000T will stop charging when the ambient temperature is less than 32°F (0°C) or more than 113°F (45°C).

About the AC Adapter + Do not use the adapter in a high moisture environment. Never touch the adapter when your hands or feet are wet. + Allow adequate ventilation around the adapter when using it to operate the device or charging the battery. Do not cover the AC adapter with paper or other objects that will reduce cooling. Do not use the AC adapter while it is inside a carrying case. + Connect the adapter to a suitable power source. The voltage and grounding requirements are found on the product case and/or packaging. + Do not use the adapter if the cord becomes damaged. + Do not attempt to service the Magellan RoadMate 6000T. There are no serviceable parts inside. Replace the Magellan RoadMate 6000T if it is damaged or exposed to excess moisture. About the Battery + Do not attempt to replace the battery. Please contact Magellan Technical Support for issues related to the battery. + Use the charger approved for your Magellan RoadMate 6000T. IMPORTANT INSTRUCTIONS FOR SERVICE PERSONNEL ONLY: + Caution: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. + Replace only with the same or equivalent type recommended by Magellan. + The battery must be recycled or disposed of properly. + Use the battery only in the specified equipment.

Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for class B digital devices, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not properly installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by taking one of the following steps: Reorient or relocate the receiving aerial. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits established for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be placed next to or operated in conjunction with any other antenna or transmitter. In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user should note that any changes or modifications made to the equipment without the approval of manufacturer could render the user's authority to operate this equipment inapplicable. Trade Name Model Number Tested To Comply With FCC Standards

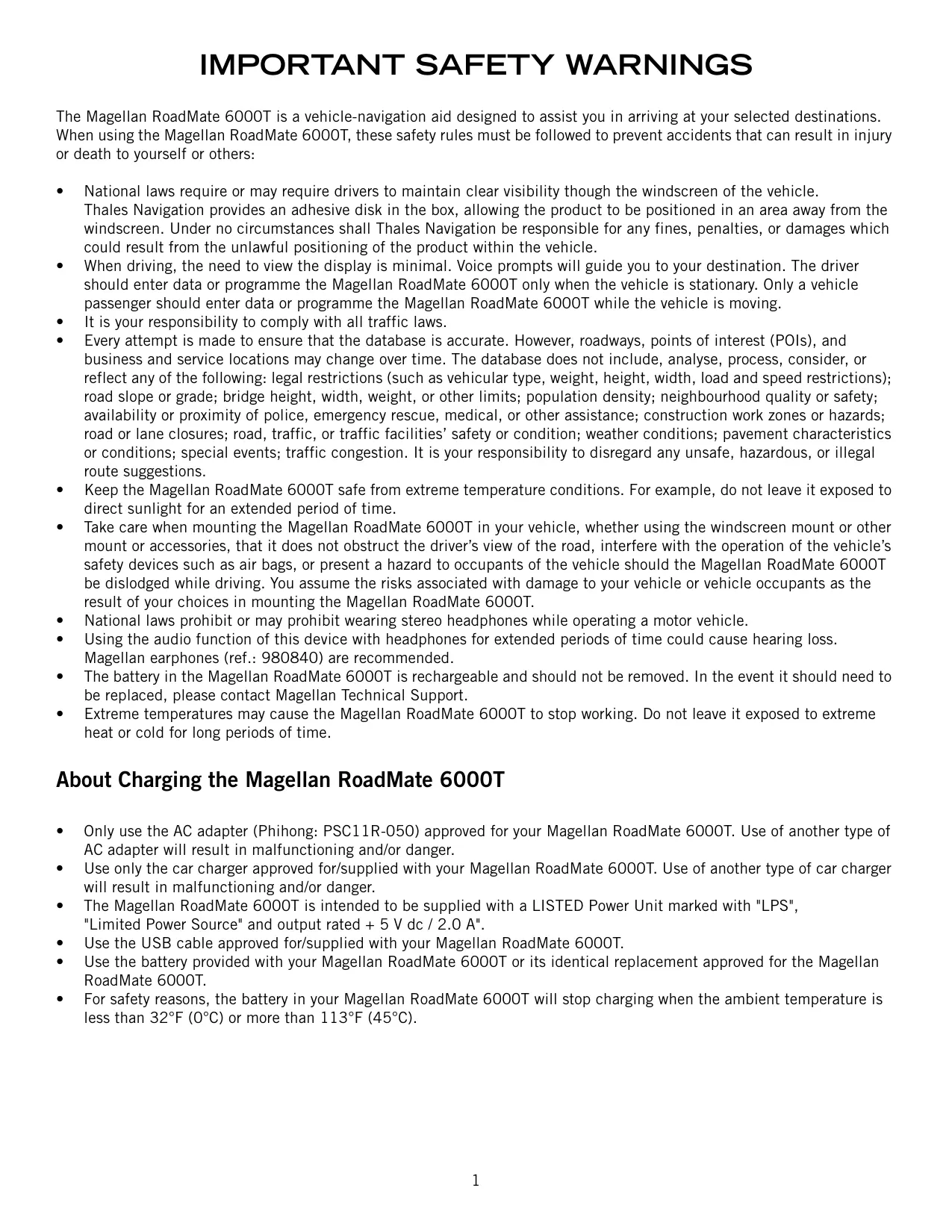

IMPORTANT SAFETY WARNINGS

IC statement Operation is subject to the following two conditions:

1. This device may not cause interference and

2. This device must accept any interference, including interference that may cause undesired operation of the

device. IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with IC radiation exposure limits established for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be placed next to or operated in conjunction with any other antenna or transmitter. © 2006 Thales Navigation, Inc. AI rights reserved. The Magellan Logo, Magellan, Magellan RoadMate 6000T, Turn it on and go, TrueView, QuickSpell, SmartDetour, and SmartVolume are trademarks of Thales. No part of this user manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose other than the purchaser's personal use, without the prior written permission of Thales Navigation. 631361-18 À

Technical Support Warranty Service . Customer Service Registration …

Chapter 2: GPS Information

About Satellite Navigation How Satellite Navigation Works Line of Sight … A Word on the Safe Usage of GPS Maps From Source to Destination …… Placement of Your GPS Receiver for Optimal Satellite Reception Signal Acquisition Time … GPS Maps and Your Safety …

Chapter 4: Vehicle Installation

Installing the Windscreen Mount .

Chapter 5: Navigation Basic Operation

Turning the Magellan RoadMate 6000T on Out of the Box Power Off versus “Sleep” Mode... Power Management … Resetting the Magellan RoadMate 6000T . Adjusting the Volume … Repeating the Last Command . Making Selections … Inputting Text Characters Additional Characters (“More” Button) Numerical Characters (*123” Button) . What Is QuickSpell? . Help with Address Entry Multi-Word Indexing .

Chapter 6: Travelling

Guidance Information Screens . Map Screen …. Changing from 2D to 3D Map View Changing the Map Zoom Levels Manoeuvre List Screen . TrueView Screen Choosing the Route Method . Changing the Route Method Cancelling a Planned Route . Detouring from the Planned Route …… Excluding a Manoeuvre in the Planned Route Displaying Information About Your Present Location

Saving Your Current Location to Your Address Book . Finding POIs Along Your Route . Finding a Detour Along Your Route

Chapter 7: Selecting Destinations .

Destination Screen … Country Selection (Globe Button) . Entering and Routing to Your Home Address Selecting a Destination Using Select Address Search By Town Search by Postcod: Search by County / Area Previous Town... Selecting a Destination Using the Address Book Previous Destinations Favourites … List Addresses . Create New Ent Trip Planner …. Selecting a Point of Interest as a Destination Spell Name …. Select Category. Custom POIS Selecting a Junction as a Destination Search by Town Search by Postcod: Search by County / Area Previous Town...

Chapter 8: Navigation Options

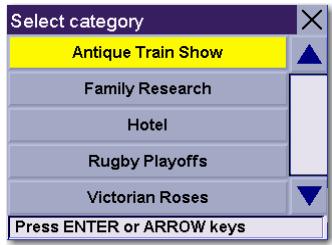

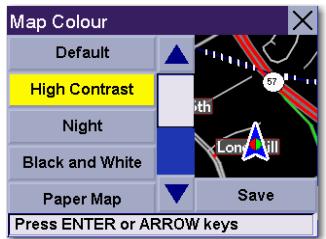

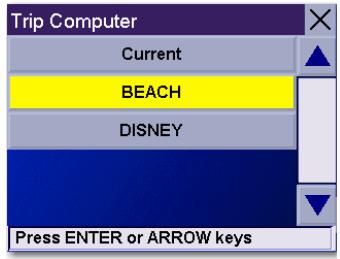

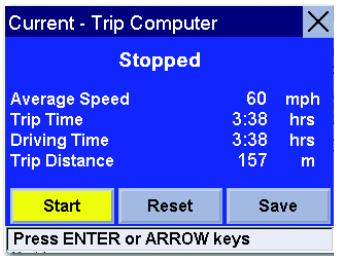

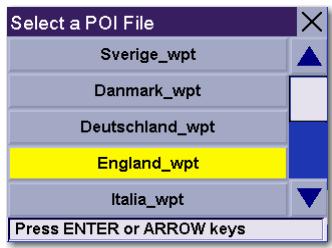

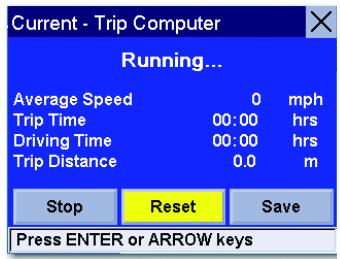

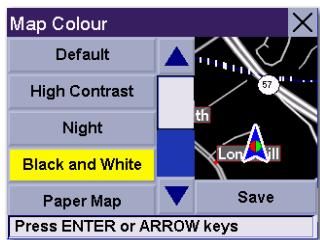

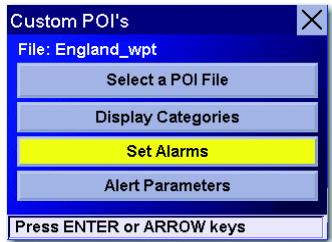

Trip Computer . Current Trip. POI Selection Custom POIs Map Options … TrueView Options Select Map Colour Route Preferences Detour Options Voice Options … Menu Colours Tone Options GPS Options GPS Status. Set GPS Position Simulator Mode Automatic Volume TMC Options … Navigation Instruction Backup and Restore . Backup Restore Clear Address Boo! Context Sensitive Help Options Map Information

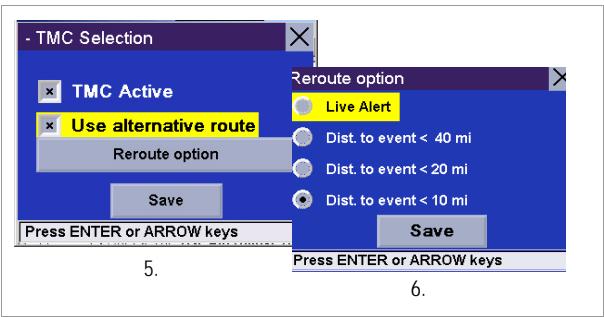

Chapter 9: Integrated Magellan Traffic

Before You Begin … Activating the Free Subscription Introduction … Glossary. Understanding How The TrafficKit Works . RDS-TMC Operating Modes …… Selecting Categories of TMC Events. Re-routing Mode … Travelling with the Re-routing Mode On Alert Only Mode Travelling with the Alert Mode On . Status Bar How to use the Dialer … Introduction . Main Interface . Pair Mode Establish Connection Place a call. Incoming call How to use Bluetooth Settings . How to Exit

Chapter 11: System Settings

Brightness Power Management . Password … Set Password Change Password. Delete Password Language …

Chapter 12: System Status .

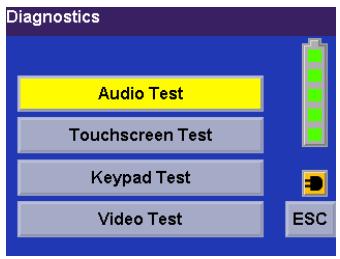

Product Information . User Storage Diagnostics . Audio Test. Touchscreen Tes Keypad Test . Video Test Contact Us

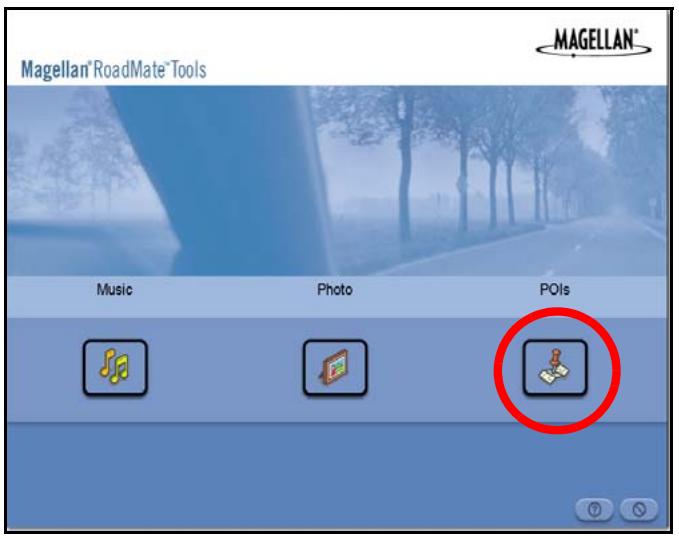

Chapter 13: Magellan RoadMate Tools Installation

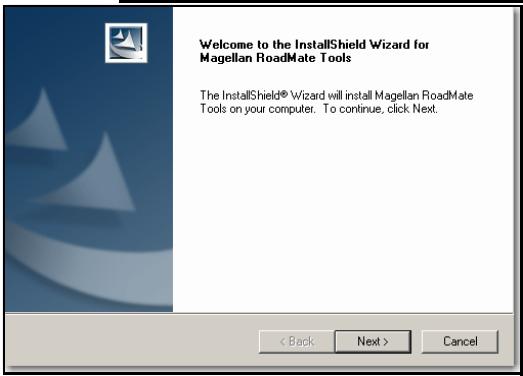

Installing the Software …

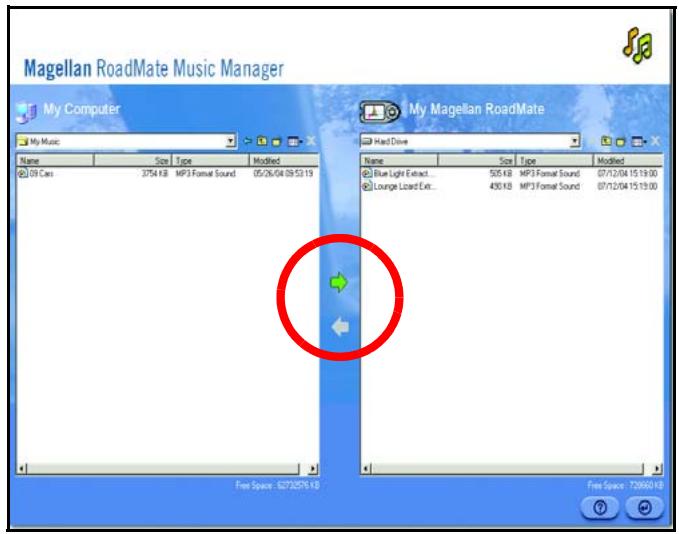

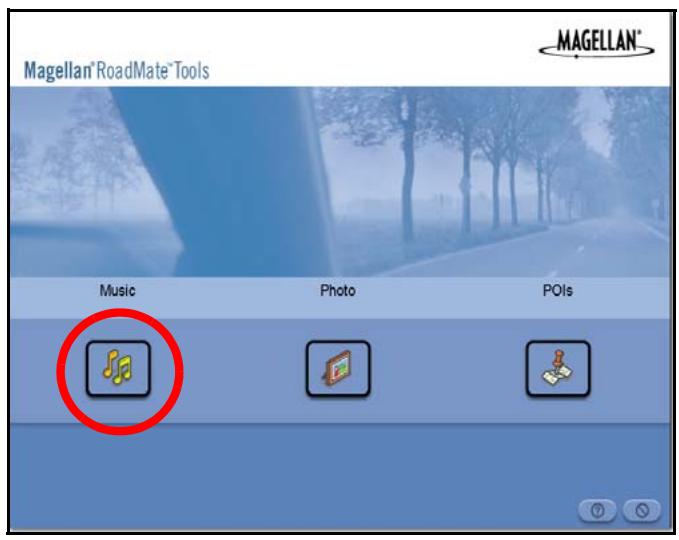

Chapter 14: Magellan RoadMate Music Manager

Chapter 15: Music Player .

Single Song Play Multiple Song Play Play Mode

List Songs Equaliser Help …

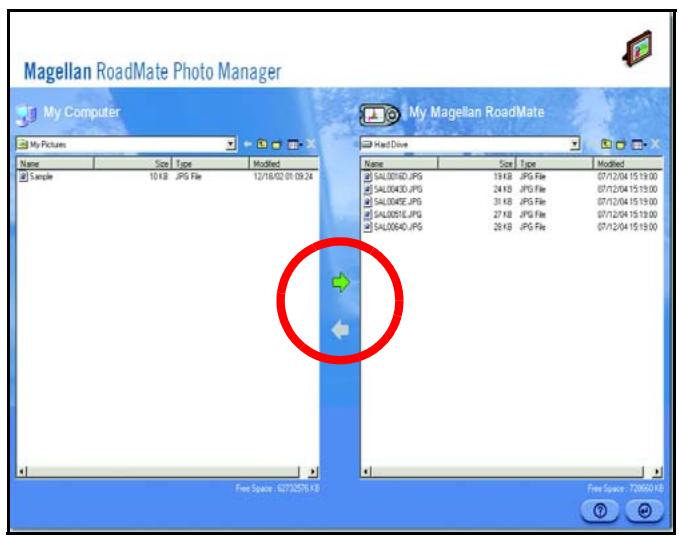

Chapter 16: Magellan RoadMate Photo Manager

Chapter 17: Photo Viewer

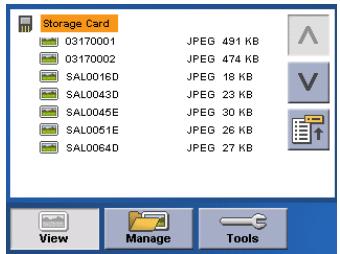

View Single Photo … Previous Image (left arrow) Zoom … Slideshow Manage Photos List View … Thumbnail Latitude … Longitude Altitude …… Opening a POI File Creating a New POI File Adding Individual POIs Importing a Data File Appendix POI Categories When selecting restaurants, you can further narrow the search by cuisine type, such as French, Italian, Greek, Mexican, etc. Specifications . PC Requirements GPS Status Screen Optional Mounting Instructions for Mounting the Adhesive Disk . Frequently Asked Questions ….

If you need support for your Magellan RoadMate 6000T and you wish to contact Thales, please use the following information to direct your questions/comments to the appropriate contact person.

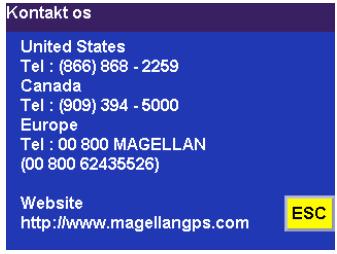

1.1 Technical Support

To contact Magellan Technical Support and Warranty service information in English, French, German, Spanish, Italian, Portuguese, Dutch, Norwegian, Finnish, Swedish and Danish please dial: FREE PHONE: 0OO800MAGELLAN* (00800 62435526) from 9 AM to 6 PM GMT & GMT+1 or send an e-mail in English, French, German, Spanish, Italian, Portuguese, Dutch, Norwegian, Finnish, Swedish or Danish to: magellansupportemea@thalesnavigation.com *free of charge phone access available from Eire, UK, Portugal, Spain, France, Italy, Belgium, The Netherlands, Germany, Austria, Switzerland, Norway, Sweden, Denmark and Finland. For Magellan product telephone support in English, French or German from other Europe, Middle East or African locations, please dial: +33 2 28 09 38 O0* or send an e-mail to: magellansupportemea@thalesnavigation.com

• international call charges vary according to operator. For Magellan product telephone support in other European, Middle East or African languages please contact your local distributor. Go to the dealer locator section of www.magellanGPS.com to find your nearest distributor or send an email to: magellansupportemea@thalesnavigation.com

1.2 Warranty Service

Before deciding to return your product to the store where you purchased it, please contact our Technical Support as explained in the previous paragraph.

1.3 Customer Service

To order accessories or obtain unlock codes, you can visit our web site at www.magellanGPS.com or contact our Technical Support.

Please ensure that you register your Magellan RoadMate at www.magellanGPS.com. By registering you will be informed of the latest product updates. Registration does not qualify as proof of purchase for the warranty service.

Global satellite navigation is an exciting technology, providing enhanced productivity and accuracy in a vast number of industries. It adds a new level of enjoyment and safety to a wide range of navigation, sports, and recreational activities. À Global Navigation Satellite System (GNSS) is a network of satellites that transmit high-frequency radio signals containing time and distance data that can be picked up by a receiver, allowing users to pinpoint their precise locations anywhere around the globe. There are two Global Navigation Satellite Systems in operation: the U.S. Global Positioning System (GPS) and the Russian GLObal NAvigation Satellite System (GLONASS). These systems are constantly being upgraded to meet higher standards of reliability. À third GNSS named GALILEO, after the early 17th century Italian astronomer, is being developed in Europe specifically to provide a higher standard of integrity and reliability, required to ensure the safety of lives during transport by air, land and sea, without the use of additional augmentation systems. While the GPS and GLONASS satellite networks are being developed to achieve maximum performance, Satellite-Based Augmentation Systems (SBAS) have been established to provide improved accuracy. SBAS provides differential signal corrections for GPS and GLONASS transmissions with the use of ground stations and geostationary satellites in specific regions. This is GNSS-1, the first phase in establishing the required integrity for high-precision satellite navigation. GNSS-2 requires the launching of new satellites into orbit and a complete upgrade of the existing satellite systems. This second phase is already well underway. GALILEO, scheduled to begin service in 2008, is being developed to meet the standards of GNSS-2 for rapid and reliable, certified precision positioning.

2.2 How Satellite Navigation Works

Global navigation satellites continuously transmit time and distance information as they orbit Earth in a precise formation. Navigation satellite receivers use this information to calculate an exact location through triangulation. Every point on Earth is identified by two sets of numbers called coordinates. These coordinates represent the exact point where a horizontal line, known as latitude, crosses a vertical line, known as longitude. The receiver locks on to at least three satellites and uses the information received to determine the coordinates of the receiving device. By comparing the time the signals were transmitted from the satellites and the time they were recorded, the receiver calculates how far away each satellite is. The distance of the receiver from three or more satellites reveals its position on the surface of the planet. With these distance measurements, the receiver might also calculate speed, bearing, trip time, distance to destination, altitude, and more. The satellite-navigation device may display its position as longitude/latitude, Universal Transverse Mercator (UTM), Military Grid (MG), or simply as a point on an electronic map. Many Thales Navigation receivers provide comprehensive mapping data, making satellite navigation an easy tool to enhance your recreational and industrial activities.

Satellite-navigation receivers operate by line of sight with global-positioning satellites. This means that at least three satellites must be in “view” of a receiver in order to calculate longitude and latitude. A fourth satellite must also be within line of sight to calculate altitude. On average, eight satellites are continuously within line of sight of every position on Earth; the more satellites in view, the more accurate the positioning. Although the radio signals of navigation satellites will pass through clouds, glass, plastic, and other lightweight materials, satellite-navigation receivers will not work underground or in other enclosed spaces.

Just like paper maps, maps on GPS devices vary greatly in terms of information included and visual presentation. Whether topographical maps, roadmaps or marine charts, each map and the data it presents is designed for a specific purpose. For example, marine charts will often present only a minimal representation of roadways and are not a substitute for street maps. Topographic maps usually provide minimal detail about bodies of water and do not contain marine navigational markers. Maps also vary widely in scale: the smaller the scale, the more detailed the map. Therefore, when using GPS maps (just as with paper maps) it is important to consider what type of map you are using in your explorations and to use common sense.

2.3.1 From Source to Destination

Thales Navigation, maker of Magellan GPS products, is not a cartography company. We do not create the maps that are used on our GPS devices. We seek to acquire map data from the best public and private sources available at the time of publication. Thales Navigation licenses* topographical maps, roadmaps, marine charts and points of interest (POI) data from commercial and governmental cartographic sources that provide raw map data. Thales Navigation processes and compresses the raw data into a format that makes it presentable and manageable to work on our GPS devices. And to ensure that our map data is as robust as possible, data from multiple sources are often combined to provide a better user experience for our customers. This processing does not alter the landforms, coordinates or other spatial data that comes in the raw data. The accuracy of the maps is fundamentally dependent on the source data used to create them. Map data changes frequently due to both natural and man-made causes. As a result, governmental and commercial cartography companies must continuously review, correct, and improve upon their map data. We release new versions of our maps on a regular basis to reflect these changes. After processing the data, we test the compatibility of the map with our GPS devices to ensure that the products we release work properly on our GPS devices. We also beta-test our products to get customer feedback prior to release.

2.4 Placement of Your GPS Receiver for Optimal Satellite Reception

Firstly, before considering signal reception, it is important to understand that your GPS receiver is a sensitive piece of equipment. You should never place it in an area of your vehicle where it may be struck by other items, or where vibration may cause it to strike other items or parts of the vehicle. The windscreen mount included in the box allows you to place the receiver in such a way that the aerial can receive the satellite signal through the windscreen without being obstructed by other parts of the vehicle. However, tinted windows or other reflective coatings may interfere with reception. In this case, it may be required to attach an external aerial (optional). An external aerial provides faster satellite fix times and greater signal strength. Because it is mounted outside of the vehicle, it is not affected by reflective coatings on windows and has an unobstructed line of sight to the satellites. Other mounting solutions are available but may require an external aerial. External conditions also affect GPS signal reception. Although weather conditions do not affect the signal, tall buildings and trees, driving through canyons, wooded areas or tunnels, and sitting in à garage or covered parking area will affect the GPS signal. The GPS receiver constantly monitors and updates the GPS signal status and will reacquire the signal once it is clear of any obstructions.

2.5 Signal Acquisition Time

The first time you use your Magellan RoadMate 6000T, or if you travel over 500 miles with it off, there may be a delay in receiving the initial satellite fix; depending on your position and the position of the satellites, this could take 15 minutes or more. Normal usage will receive the satellite fix much faster, but still may take several minutes. It is important to have your aerial rotated upwards and an unobstructed view of the sky to receive the best possible satellite signal.

Remember, your GPS device is an aid to navigation. It must be used with common sense, and it is important that users interpret GPS map data with a critical eye. Landscapes and roads change or may be impassable, trees and tall buildings can obscure GPS signals, and your GPS device may not always reflect the complete picture. When using GPS, you must combine the information provided by your GPS map with your relevant local knowledge, road signage, buoys, depth soundings and changing local conditions to generate a complete understanding of your situation. It is your responsibility to ensure compliance with all traffic laws, including observance of pedestrian crossings, and to use good judgment while operating the Magellan GPS receiver. Safety must be your primary concern. The Magellan GPS receiver must not be used while engaged in any activity requiring the user's full attention of the environment. For instance, the Magellan RoadMate 6000T GPS receiver should be operated only by vehicle passengers or by the driver when the vehicle has come to a complete stop. The driver must not attempt to view the display while driving. Disregard any unsafe, hazardous or illegal route suggestions. Magellan maps do not include, analyse, process, consider or reflect any of the following: legal restrictions (such as weight, height, width, load and speed restrictions); road slope or grade; bridge height, width, weight or other limits; population density; neighbourhood quality or safety; availability or proximity of police, emergency rescue, medical or other assistance; construction work zones or hazards; road, pavement, or waterway closures or conditions; weather conditions; pavement characteristics or conditions; special events; traffic congestion; time of day. *Thales Navigation licenses map data from governmental sources such as, but not limited to, U.S. Geological Survey (USGS), the National Oceanic and Atmospheric Administration (NOAA-NOS) and the Canadian Hydrographic Service (CHS). Thales Navigation also licenses map data from commercial cartography companies such as Navigation Technologies, Navionics, DMTI and C-Map.

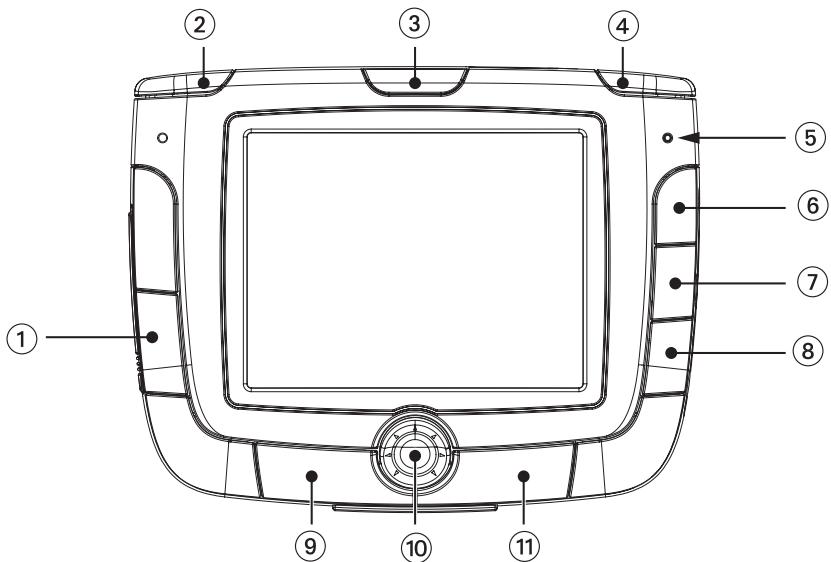

1 Mute Speaker Press to disable sound from the speaker and the headphone jack. 2 Bluetooth Press for quick access to Bluetooth options for hands-free mobile phone use. 3 Microphone Used for hands-free mobile phone operation. 4 Zoom Out Button While viewing the map, press to zoom the map display out. The Zoom Out Button can also be used with long lists to scroll one page at a time. Press and hold to turn the power on or off. Turning on: Hold for 2-3 seconds if in 5 Power/Sleep Button sleep mode. Hold for 10 seconds if first time use or not in sleep mode. Turning p off. Hold for 2-3 seconds to put unit into sleep mode; 10 seconds to turn unit off completely. While viewing the map, press to zoom in to the centre of the display. 6 Zoom In Button The Zoom In Button can also be used with long lists to scroll one page at a time. 7 Charging Indicator LED indicates the battery charging status of the Magellan RoadMate 60007. Orange - Charging; Green - Fully charged. 8 Locate Button Press to display current location details and save it to your address book. When you are not navigating, you can switch between the map display and the 9 Destination Menu/View Destination Menu. When you are navigating, you can switch between the map display, the manoeuvre list and the TrueView screen. 10 Main Menu Press to go to the Application Selection Menu. 11 Enter Press to confirm an entry. 12 Navigation Key Use to scroll through lists one item at a time, menus, or to pan the Map screen. 13 Escape Press to cancel an entry or goes back to the previous screen.

1 Speaker Used for audible manoeuvring instructions and music playback.

Increases (slide right) or decreases (slide left) the volume level. 1 Volume Adjustment Press to repeat the last voice prompt.

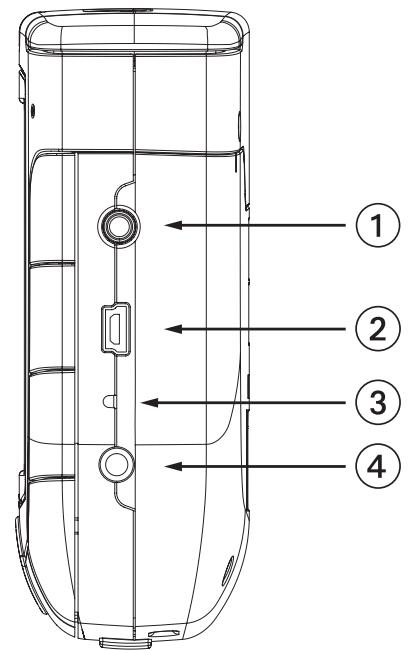

1 16-pin Connection For future expansion.

SE © 1 Stereo Headphone Connection Used to connect stereo headphones. 2 USB Connection Plug the Magellan RoadMate 6000T into your PC to upload music, photos, and custom POIs. 3 Reset Button In the event the Magellan RoadMate 6000T should fail to respond, press the reset button to reboot. 4 Power Connection Insert the vehicle power adapter or optional AC adapter to charge the battery.

Memory Card slot To listen to music or view files stored on a SD/MMC Card.

Cradle Release Press to release Magellan RoadMate 6000T from cradle. FM Antenna Connection Used to connect FM (traffic) antenna. External GPS Antenna connection Used to connect external GPS antenna. plowln|r Power Connect to Cigarette Lighter Power Adapter or external power source.

Chapter 3: Magellan RoadMate 6000T

3.8 Using Removable Memory Cards

The Magellan RoadMate 6000T is equipped with a memory card slot on the left side (see “Left Side View” on page 8) that accepts Secure Digital (SD) cards and Multimedia Cards (MMC). These cards are used to backup navigation data or to store music and photos. The memory card slot on your Magellan RoadMate 6000T employs what is called a “push-push” method of locking and releasing. In other words, when you insert the card you must push it to lock it in, and to release it you must push it also. Storage cards come in a variety of sizes and manufacturers.

3.8.1 To Insert the Storage Card:

Peel back the rubber seal to expose the memory card slot. Do not completely remove the rubber seal. The memory card can only be inserted in one direction. Do not force the card into the slot. Insert the memory card into the slot with the metal contacts going in first, the bevelled edge facing down and the label facing front. Push the memory card until you hear a click. Close the rubber seal.

3.8.2 To Remove the Storage card:

Peel back the rubber seal to expose the memory card slot. Do not completely remove the rubber seal. Push the memory card until you hear a click. Do not attempt to pull the card out of the slot Remove the memory card from the slot. Close the rubber seal.

Chapter 4: Vehicle Installation

Take care when mounting the Magellan RoadMate 6000T in your vehicle, whether using the windscreen mount or another mount, that it does not obstruct the driver's view of the road. Make sure that the placement of the Magellan RoadMate 6000T and cable does not interfere with the operation of vehicle safety devices, such as air bags. You assume the risks associated with damage to your vehicle or vehicle's occupants as a result of how you choose to mount the Magellan RoadMate 6000T.

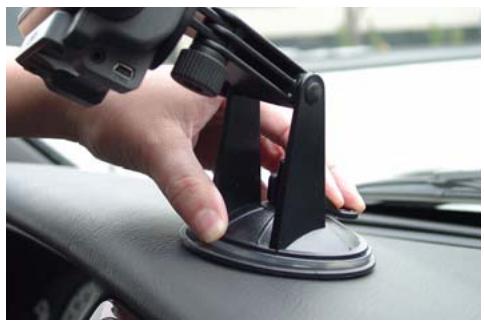

4.1 Installing the Windscreen Mount

Attach the cradle to the back of the Magellan RoadMate 6000T. Insert the bottom of the Magellan RoadMate 6000T first, then snap the cradle clip at the top into place. Slide the windscreen mount onto the back of the cradle. Press the windscreen mount to the glass and slide the locking lever towards the glass. Plug the power cable and FM antenna into the Magellan RoadMate 6000T as shown. Use the suction cups to position the FM antenna along the windscreen.

Chapter 4: Vehicle Installation

Plug the power adapter into your vehicle’s cigarette lighter or 12 volt receptacle. Installation is complete, and you are ready to turn the Magellan RoadMate 6000T on and go.

Chapter 5: Navigation Basic Operation

5.1 Turning the Magellan RoadMate 6000T on Out of the Box

Press the power button for approximately ten seconds (see “Front View” on page 5). If power is connected properly or if the battery is charged sufficiently, the Magellan screen will appear followed by the Warning screen. To comply with the warnings, press OK. Next, the Quick Tips screen will appear. It is recommended that you view the Quick Tips to better familiarise yourself with the functionality of the Magellan Address Book RoadMate 6000T. Otherwise, select ESC to skip viewing the Quick Tips at this time. = By default, the navigation application will launch and the Destination screen will 27 Points Of interest appear. Destination England Select Address Junction

5.1.1 Power Off versus “Sleep” Mode

The Magellan RoadMate 6000T can be put into “sleep” mode. This mode is a limited power mode that saves battery power. When “waking up” from sleep mode, the time to acquire a satellite fix is significantly shorter than when the Magellan RoadMate 6000T is powered up after being completely turned off. To enable sleep mode, press and hold the Power button for 2-3 seconds. The display will shut off and the power indicator light will be on dimly. To power off completely, press and hold the Power button for 10 seconds. The Magellan RoadMate will be fully shut off. To power up the Magellan RoadMate 6000T from sleep mode, press and hold the power button for 2-3 seconds. The Warning screen will appear. Select OK and you will be taken to the last screen you were viewing.

5.1.2 Power Management

The Magellan RoadMate 6000T can be configured to automatically go into “sleep” mode after 20 minutes of non-use of the keys or touchscreen. Press the MENU key on the Magellan RoadMate 6000T then, select System Settings and select Power Management. Select the Auto Power Off time and then, select OK. For more information on Power Management, see “Power Management” on page 84.

5.2 Resetting the Magellan RoadMate 6000T

In the event the Magellan RoadMate 6000T should stop responding, press the RESET button. If a route was active at the time the Magellan RoadMate 6000T was reset, when powering the Magellan RoadMate 6000T back on, you will be prompted to resume or cancel the active route.

5.3 Adjusting the Volume

The VOLUME CONTROL lever is located at the top of the Magellan RoadMate 6000T (see “Top View” on page 6). Use the lever to set the volume of the speaker to the desired level. The volume level indicator will appear on screen.

5.4 Repeating the Last Command

While routing to a destination, if you missed the last verbal command, you can repeat it by pressing the VOLUME CONTROL lever down.

Chapter 5: Navigation Basic Operation

5.5 Making Selections

The Magellan RoadMate 6000T comes equipped with a touch screen. To make a menu selection, or enter characters, simply touch the screen in the location of the item you wish to select. You can also use the NAVIGATION key (see “Front View” on page 5) to scroll around the screen and highlight the item to select. When the desired item is highlighted, press the ENTER key (see “Front View” on page 5) to select the item.

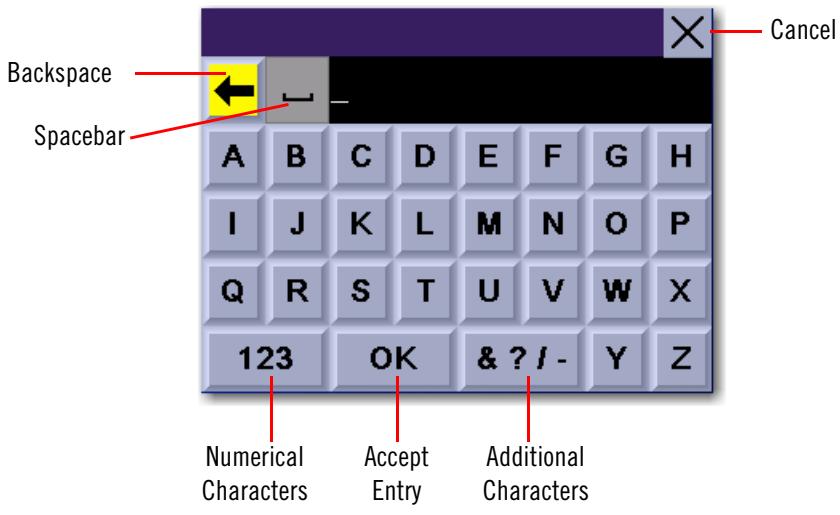

5.6 Inputting Text Characters

Whenever you need to input names, street addresses, etc., the Magellan RoadMate 6000T will display a keyboard. Touch the letter you want and, if you make a mistake, use the Backspace key to go back one character at a time. The Spacebar is used to insert spaces between characters or words. Backspace Spacebar Numerical Accept Additional Characters Entry Characters

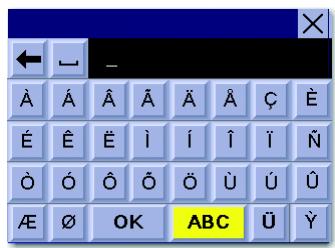

5.7 Additional Characters (“More” Button)

When you are entering characters, you may need to add punctuation or other special characters. When available, pressing the More button brings up a keypad with the characters shown here.

Chapter 5: Navigation Basic Operation

5.8 Numerical Characters (“123” Button)

When available, pressing the 123 button brings up a keypad with the numeric characters shown here.

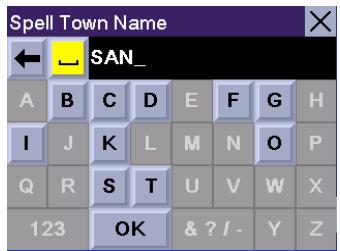

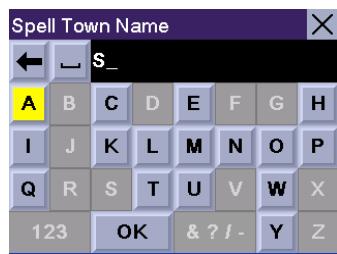

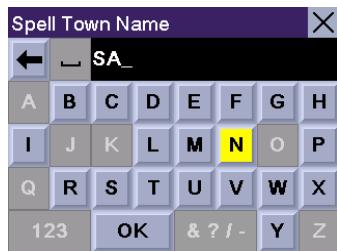

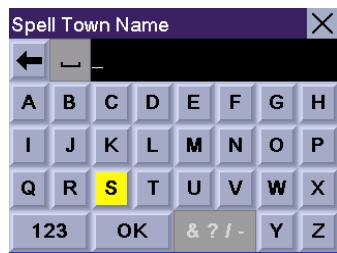

5.9 What Is QuickSpell?

The Magellan RoadMate 6000T uses QuickSpell technology to provide you with the fastest method possible to enter characters. QuickSpell eliminates the possibility of a misspelled word or looking for a town or street that is not in the loaded database. As you begin entering characters, the QuickSpell feature of the Magellan RoadMate 6OOOT dims out those characters that are not available, thereby speeding up the process of entering data. Example: Suppose that you need to input the name of a town - in this case, San Francisco. Select “S”. Spell Town Name Select “A”. Select “N”.

Chapter 5: Navigation Basic Operation

Select the spacebar. Spell Town Name When enough characters have been entered, the Magellan RoadMate 6000T will automatically display the list of towns; or, if you feel that enough characters have been entered, select OK. Use the Navigation key to scroll the list up or down and select “San Francisco, CA" from Select Town Name the list. The list of items found in the database is limited to 100 items. When over 100 items have been found, “Matches: > 100” will be displayed in the bottom right-hand corner of the display; you may need to press the CANCEL key (see “Front View” on page 5) and enter additional characters. TWéthin Town [Matches: 4

5.10 Help with Address Entry

When entering street names, please follow these simple guidelines to help you find your selection: + Do not enter prefixes such as “N” or “North”. + Do not enter the street type such as “Ave.” or “Avenue” except in some cases where the street type is included before the street name (e.g. “Via Calle”, “Avenue 378”, or “Rue Andre”). + When entering a numbered street (e.g. “Ath Street”), use the numeric keypad to enter “4” and go back to the alpha keypad to enter “th”. + For streets with multiple words such as “Overland Heights”, you must enter the first word. Entering the word “Heights” will not return the desired street.

Chapter 5: Navigation Basic Operation

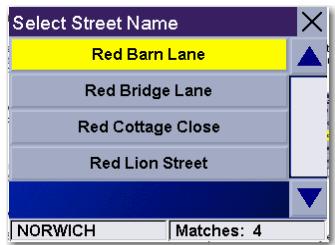

5.11 Multi-Word Indexing

The Magellan RoadMate employs a search feature known as “Multi-Word Indexing”. This feature enables you to search the database for possible matches based on the characteristics that have been entered. The returned matches will start with the characters that have been entered. For example: You are searching for a street called “Red Barn Lane”. Rather than spelling the entire name of [Select StreetName PA the street, you can simply enter “Red”. The Magellan RoadMate will return all database entries | RedBamlane | À containing the word 'Red'as part of the street name. The returned list is subject to the Red Bridge Lane additional parameters set by the search, such as the town or county that was entered. Red Cottage Close Red Lion Street The database only indexes the base names of streets. In the example above, only the words “Red” and “Barn” will be indexed. Pu….._ 1 When entering street names, do not enter prefixes such as “N” or “North” unless the whole word is part of the street name. By entering “N” the search will return all streets starting with the letter “N”. Also, do not enter suffixes such as “St” or “Ave” or “Rd” unless the whole word is part of the street name. By entering “St” the search will return all words starting with “St”. + Town names and Points of Interest are also Multi-Word Indexed in the same way as street names. By entering the letters “Port” or ‘Talbot’ a list of town names containing these words, one of which will be Port Talbot, will be returned. Entering part of a POI name will return all POIs within the selected category which contain the letters or text that you are searching for.

Chapter 6: Travelling

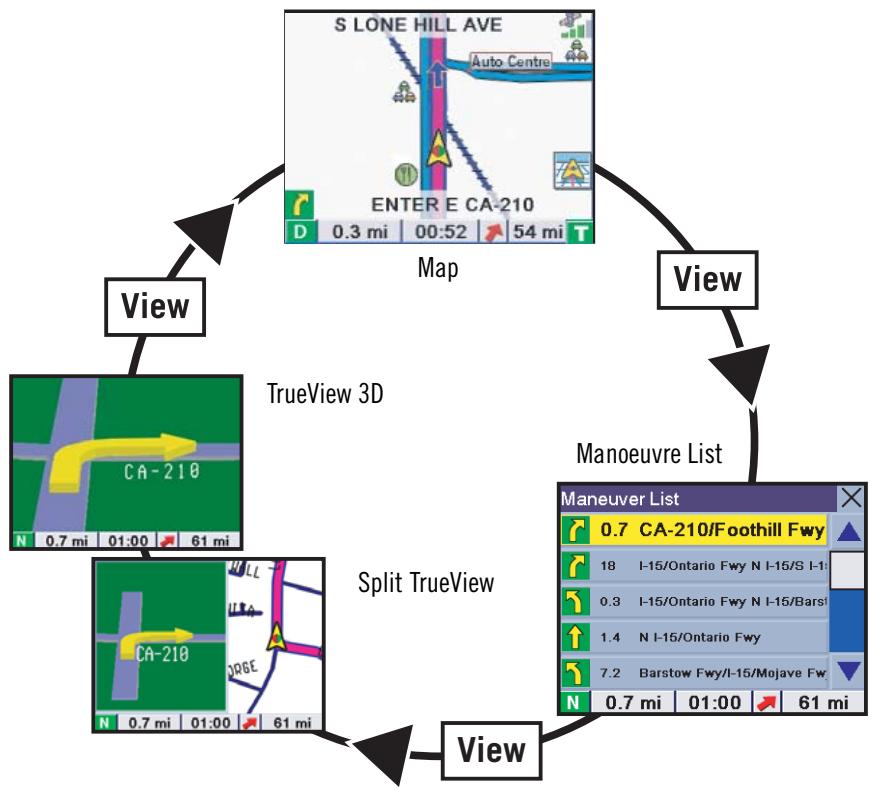

6.1 Guidance Information Screens

The Magellan RoadMate 6000T has three screens you can use to assist you in travelling to your destination: the Map screen, the Manoeuvre List screen, and the TrueView/Split TrueView screen. Map: When a new destination is selected and calculated, the Map screen is displayed. This screen displays a map of your surrounding area along with the planned route (if calculated) and information about the route. This screen can be accessed when no route has been calculated by selecting Map or by pressing the VIEW key (see “Front View” on page 5.) while at the Destination screen. Manoeuvre List: This screen is available only when a route has been calculated. This screen displays a list of manoeuvres to follow in order to arrive at the destination. It can also be used to exclude a manoeuvre and then recalculate the route. To access the Manoeuvre List screen, press the VIEW key (see “Front View” on page 5.) while viewing the Map screen. TrueView: This screen is available only when a route has been calculated. This screen displays the next manoeuvre as a 3D graphic. It will help you to anticipate which lane you need to be in and provides you with an easy-to-follow picture of the next manoeuvre. To access the TrueView screen, press the VIEW key (see “Front View” on page 5.) while viewing the Manoeuvre List. You can also show the TrueView in split mode (see “TrueView Options” on page 64). This view shows the TrueView screen on the left side and the Map on the right side.

Chapter 6: Travelling

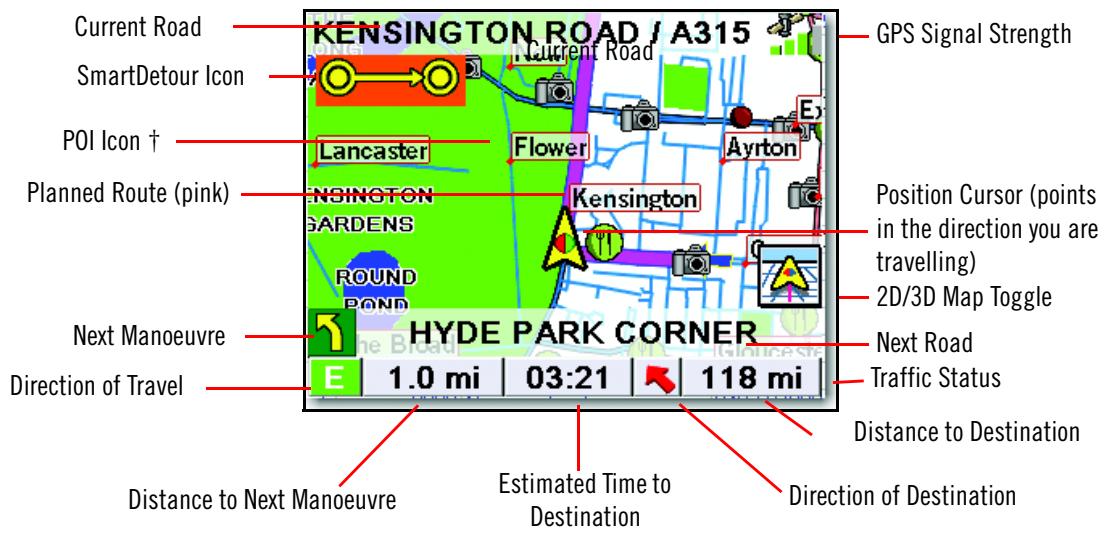

The Map screen is the most commonly used screen in the Magellan RoadMate 6000T and provides you with detailed information about where you are and where you are going. Current Road ——{KENSINGTON.R: D4 A315 er! QE GPS Signal Strength SmartDetour Icon À POI Icon + ncaster) Flower lAyrton| Planned Route (pink) ENSING Kensington Position Cursor (points FARDENS in the direction you are = travelling) Se” ES LE 2D/3D Map Toggle Next Manoeuvre HYDE PARK CORNER Next Road Direction of Travel TE | 1.0 mi | 03:21 |%] 118 mi || rraffic Status Distance to Destination Estimated Time to De Direction of Destination Destination Distance to Next Manoeuvre

• By touching the POI icon on the screen, you can get information and route to it. As you travel, the Map screen constantly updates your location and provides you with not only a map but a visual indication of where you are on the map.

6.3 Changing from 2D to 3D Map View

The Map screen can be changed between 2D (view overhead of the position cursor, and 3D (view overhead and slightly behind). The 3D view offers a more realistic view showing a perspective of the roads ahead. While in 3D Map mode, you can still touch icons on the screen to route to them while driving, and you can zoom in and out. You cannot however, scroll the map, and the map orientation is set at Heading Up. When in Split TrueView, the map portion of the screen will be in 2D mode.

Chapter 6: Travelling

6.4 Changing the Map Zoom Levels

While viewing the Map screen, you can zoom in (enlarge the map) by pressing the + (plus) key or zoom out (shrink the map) by pressing the - (minus) key (see “Front View” on page 5.). Note: The Zoom In and Zoom Out keys can also be used to scroll through long lists. While viewing a list, press the Zoom Out key to scroll the list down one page at a time and press the Zoom In key to scroll the list up one page at a time.

6.5 Manoeuvre List Screen

The Manoeuvre List screen can be viewed only after a route has been calculated. From the Map screen, press the VIEW key to bring up a list of all of the manoeuvres along the route. When you have finished viewing the Manoeuvre List screen, press the VIEW key twice to return to the Map screen, or wait a few moments and it will return automatically. List of Directions Next Manoeuvre Direction of Travel Traffic Status Distance to Destination Estimated Time to Destination Direction of Destination Distance to Next Manoeuvre

Chapter 6: Travelling

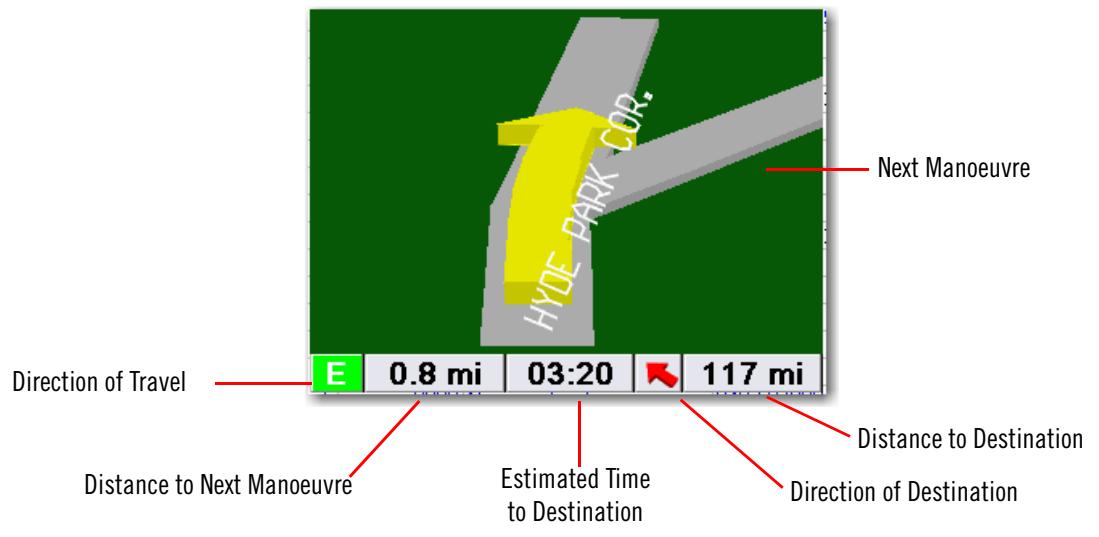

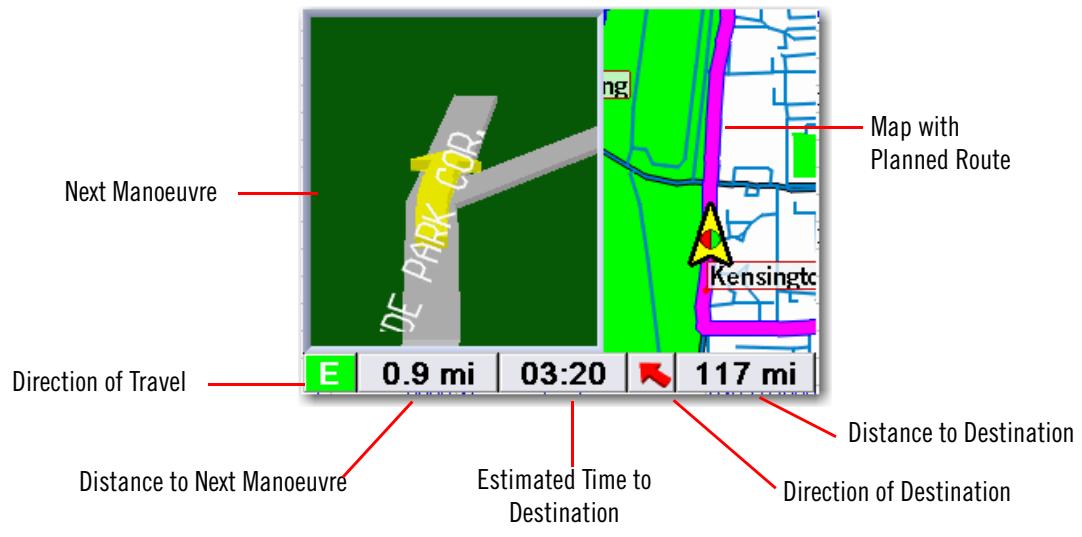

The Magellan RoadMate 6000T uses TrueView technology to display a three-dimensional picture of the next manoeuvre. The TrueView screen can be viewed only after a route has been calculated. From the Map screen, press the VIEW key twice to view the TrueView screen. Next Manoeuvre Direction of Travel Distance to Destination Distance to Next Manoeuvré Estimated Time Direction of Destination to Destination In split mode, the left half of the screen shows TrueView, while the right half of the screen shows the Map. Map with Planned Route Next Manoeuvre Direction of Travel Distance to Destination Estimated Time to Destination Direction of Destination

Chapter 6: Travelling

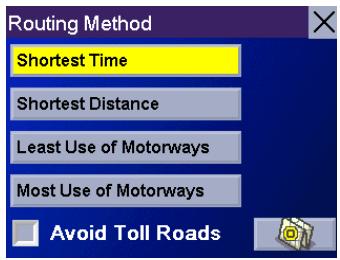

6.7 Choosing the Route Method

Every route is calculated based on the Route Method criteria selected. Every time a new destination is selected, the Magellan RoadMate 6000T prompts you for the method that will be used to calculate the route. Shortest Time: This selection calculates a route that should take the least amount of time IRouting Method using speed limits and other information in the database. Other factors, such as traffic conditions, cannot be used in the calculation of shortest time. Shortest Distance: This option calculates the route using the most direct route to the destination. This route may not be the fastest due to lower speed limits, left turns or other factors. I Avoid Toll Roads [IE Least Use of Motorways: This selection calculates the route avoiding motorways whenever possible. Most Use of Motorways: This selection calculates the route using motorways as much as possible. This option will use toll roads unless specified. See “Route Preferences” on page 65. View Destination on Map: Before you select your Route Method, you can see where you are going. Avoid Toll Roads: Check this option to calculate your route without using toll roads.

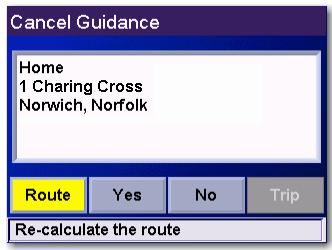

6.8 Changing the Route Method

While routing and viewing the Map screen, the Manoeuvre List screen, or the TrueView screen, press the ESCAPE key. Select Route, then select the new route method. The route will be re-calculated using the new Route Method chosen and the Map screen will be [charng cross Nonsich, Norfolk displayed. Press the VIEW key to see the Manoeuvre List with the new route.

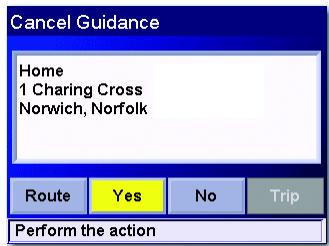

6.9 Cancelling a Planned Route

While viewing the Map screen, the Manoeuvre List screen, or the TrueView screen, press the ESCAPE key. Select Yes to cancel the route and display the Destination screen. EN ** (RS

Chapter 6: Travelling

6.10 Detouring from the Planned Route

If you exit the planned route, the Magellan RoadMate 60007 will get you back on course in one of three ways.

1. If, while driving, you detour from the planned route, the Magellan RoadMate 6000T will automatically recalculate

the route based on your new vehicle position.

2. If you exit the planned route before its completion and turn off your vehicle, the Magellan RoadMate 6000T will

switch to battery power, unless your cigarette lighter maintains constant power. In either situation, the Magellan RoadMate 6000T will automatically suspend power when enabled through customisation. While in “sleep” mode, navigation functions will be suspended and guidance will resume when the Magellan RoadMate 6000T wakes up.

3. If while routing, the Magellan RoadMate 6000T fails to respond, reset the Magellan RoadMate 6000T as described

on page 12. The Resume Guidance screen will appear. Select Resume to continue the route to the selected destination. Select Cancel to clear the route and display the Destination screen.

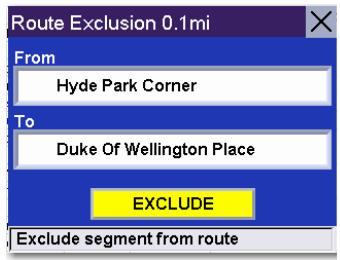

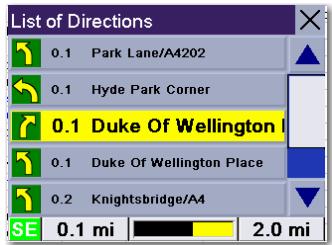

6.11 Excluding a Manoeuvre in the Planned Route

While travelling or setting up your destination you may find it necessary to exclude one of the manoeuvres in the Manoeuvre List. This could be due to an accident or road maintenance you wish to avoid. The Magellan RoadMate 6000T provides you with tools to select a specific manoeuvre, exclude it from the planned route and reroute the trip. Press the VIEW key to get to the Manoeuvre List. Select the manoeuvre you wish to exclude. [Listof Directions PA oi maine A 041 Hyde Park Gomor The details for the manoeuvre are displayed. Select Exclude. Route Exclusion 0.1mi From

Duke Of Wellington Place [Exclude segment from route The trip will be recalculated, excluding the selected manoeuvre. This calculation is done using the same Route Method that was chosen originally. After the route is recalculated, the Map screen is displayed. CEE v | 0.0 mi | | 37 mi

Chapter 6: Travelling

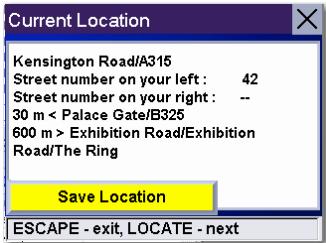

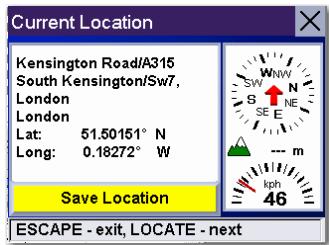

6.12 Displaying Information About Your Present Location

Anytime that you want to view information about your present location you can press the LOCATE key. The first screen displays your heading and the street you are on, the county and town you are currently travelling in, the latitude and longitude of your present location, a compass and your speed. Kensington RoadiA315 s1so1s1 N Long 048272° W The next screen displays the street you are currently travelling on, the distance to and the next street on the map, and the distance from and the last street you passed. = Kensington RoadiA315 Street number en yourleft: 42 Street number on your right: — 30 m < Palace Gate/E925 600 m > Exhibition Road'Exhibition Road/The Ring tn | |

6.13 Saving Your Current Location to Your Address Book

While you are in the Locate screen, you can save your current location to your Address Book. Select the Save Location button. The information about your location is displayed. Select Edit Name and/or Edit Information and use the keypad to assign a name to the location and other information about it. If the point you are saving is off-road, the nearest road information will be used. [sw] When you have finished, select Save. The location is saved to your Address Book and you are returned to the Locate screen.

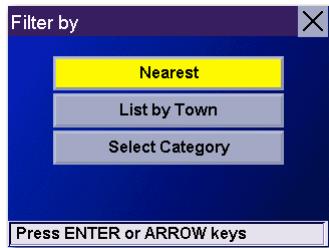

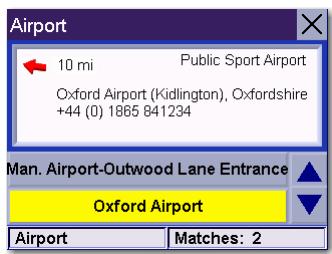

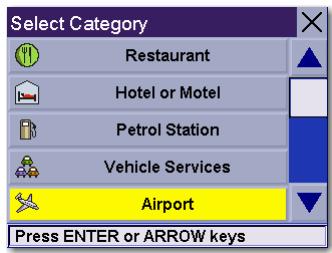

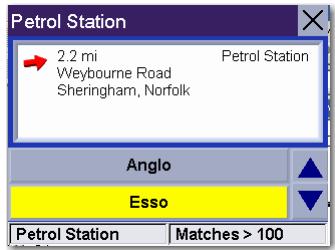

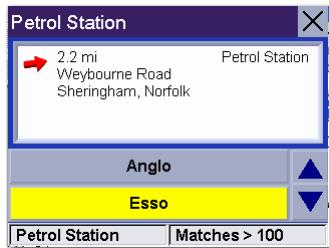

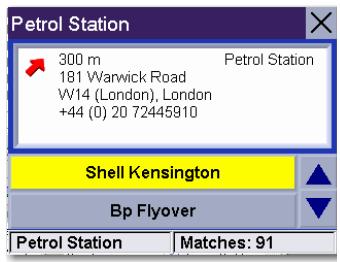

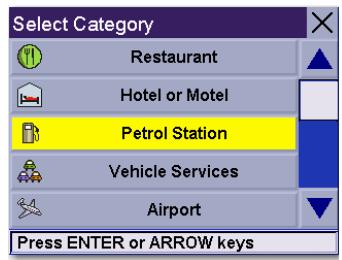

6.14 Finding POIs Along Your Route

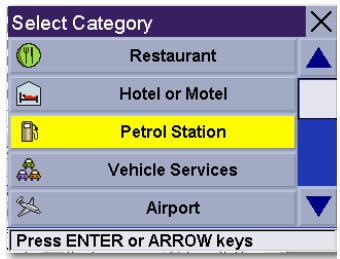

While driving along a route, if you need to find a petrol station, cash point or other POI, the Magellan RoadMate 6O00T can find the nearest POI and route to it. Then, when you have completed the side route, resume guidance to your original destination. While driving along a route, press the ENTER key.

Chapter 6: Travelling

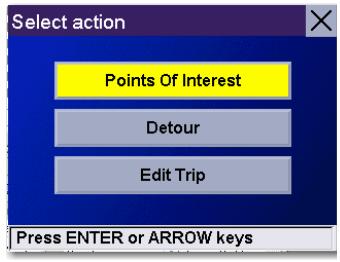

Select Points of Interest. Select action essais Press ENTER or ARROW keys Select the desired POI category. ÉSclect Category M | Restaurant À { Hotel or Motel Ï É Venice Services Es Airport Press ENTER or ARROW keys A list of the nearest POl's is displayed. Use the Navigation key to scroll the list up or down (if necessary) and select the desired POI. Petrol Station nom Patrl Sanon FA rwomikRond 14 (Lonon) London a (0) 20 TAHENT 7 Srelemenin |A { Bp Fiyover Y Petrol Station Matches: 91 The Magellan RoadMate 6000T will calculate a new route to the selected POI from your current mn : re k Resume Trip guidance? position. When you have arrived at the new destination, you will be prompted to resume guidance to your original destination. Select Resume. The Magellan RoadMate 6000T will cree Crus calculate the route to your original destination using the Route Method previously selected. Nonwich, Norfolk

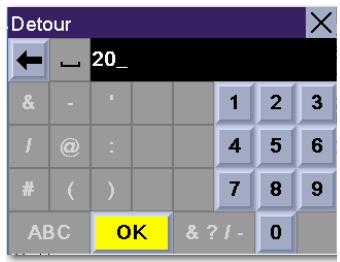

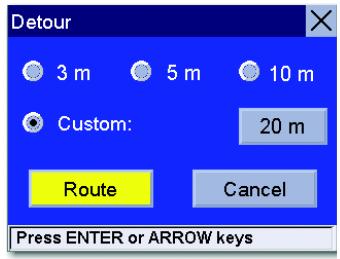

6.15 Finding a Detour Along Your Route

While driving along a route, if you encounter traffic, road construction, or other situation you might need to navigate around, the Magellan RoadMate 6000T can calculate an alternative route to your destination. While driving along a route, press the ENTER key. Select Detour. Select action

Chapter 6: Travelling

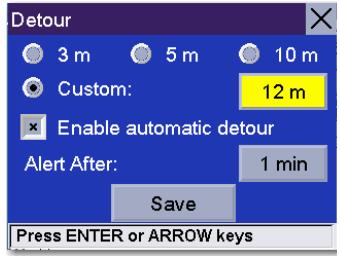

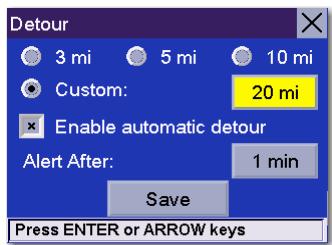

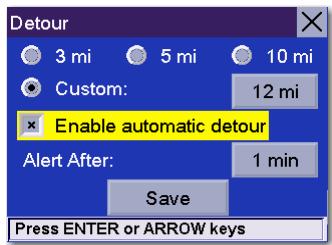

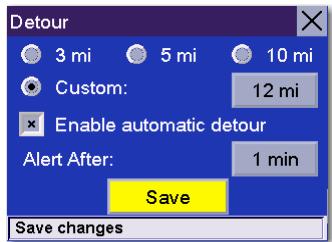

Select the distance of the detour. Select 3 miles, 5 miles, or 10 miles. Detour Enable automatic detour Aer Aer EE Press ENTER or ARROW keys Or, you can enter a custom distance. Select Custom and select the custom distance. Detour @ 5m @ 10m

Enable automatic detour Alert After Enter the number of miles for your detour and then select OK. Select Route. The Magellan RoadMate 60007 will recalculate the alternative route to your destination. You can also choose to have the Magellan RoadMate 6000T detour you around traffic automatically by enabling SmartDetour. See “Detour Options” on page 66. [Press ENTER or ARROW keys

Chapter 7: Selecting Destinations

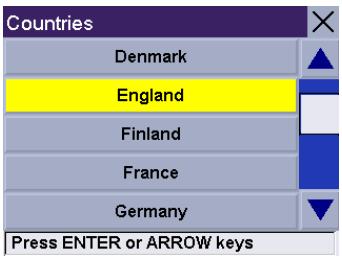

Country selection is used to help speed up searching by narrowing down the database. Before entering a destination, make sure you select the country where your destination is located. To select the country, select the Globe button then, select the country you wish to search. The current destination country is displayed at the top of the Destination screen.

7.3 Entering and Routing to Your Home Address

The Magellan RoadMate 6000T enables you to enter an address to assign to your Home button. The Home button allows you one-touch access to the address you route to most often. Select the Home button. When using this button for the first time, you will be prompted to enter an address. Select Yes. Select either Search by Town, Search by Postcode, or Search by County / Area. For this example select Search by Town. Junction Current Country for Destination Select Address Address Book Points of Interest Counties _à: Denmark À Finland France Germany Y Press ENTER or ARROW Keys Do you wantto enter your HOME address ? Enter the first few characters of the town name (see “Inputting Text Characters” on page 13). Select OK. Use the Navigation key to scroll the list up or down (if necessary) and select the desired town. Enter the street name (see “Help with Address Entry” on page 15). Enter the address. The acceptable range of street numbers is displayed at the top of the screen. Enter the street number and select Done. At this point you can choose to edit the information or, if you have finished, select Save.

Chapter 7: Selecting Destinations

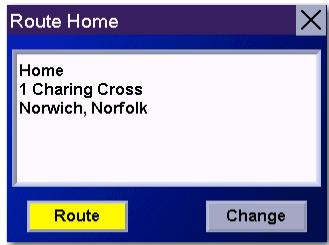

Now, when you press the Home button, you will be prompted to either route to or changethe Frames Home address. Home 1 Charing Cross Norwich, Norfolk

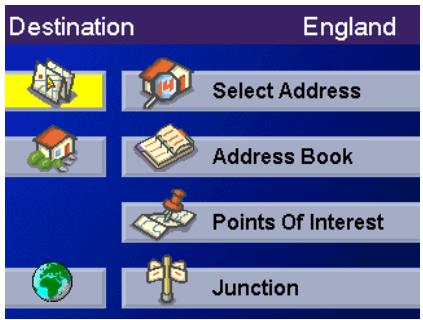

7.4 Selecting a Destination Using Select Address

England Search by Town — page 28 Address Book Points Of Interest Junction Select Address Search by Postcode — page 28 Search by County / Area — page 29 [ertouTows | Previous Town — page 30 A destination can be created by entering the street address that you want to go to. This address is not automatically added to your Address Book but is saved to your Previous Destinations list if you have routed to it. You have four options: Search By Town, Search by Postcode, Search by County / Area, or Previous Town. Use Search By Town when you know the town that the address can be found in. Use Search by Postcode if you are unsure of how to spell the town but you know the postcode. Use Search by County / Area when you don’t know, or are unsure of the town name. You will be given a list of all of the towns in the area you select that have the street name you are looking for. The type of area to search will depend of the country for your destination (it will be the ‘County’ in the United Kingdom, The ‘Département’ in France, the ‘Bundesland”’ in Germany etc.). Use Previous Town to speed up your search by not having to re-enter a town you have used before. Additionally, The Previous Towns list places your current town at the top of the list.

Chapter 7: Selecting Destinations

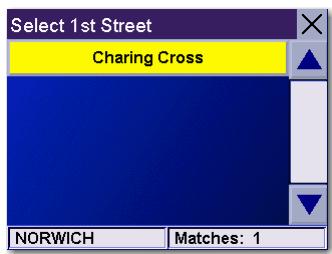

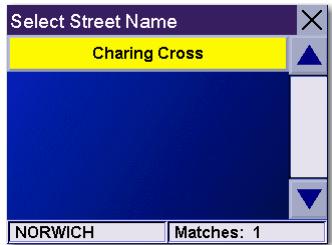

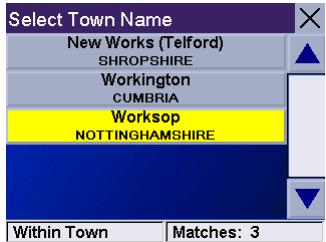

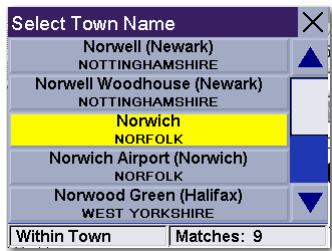

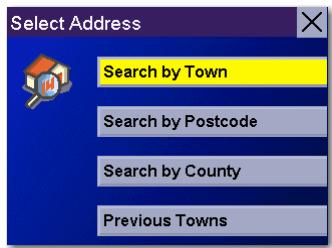

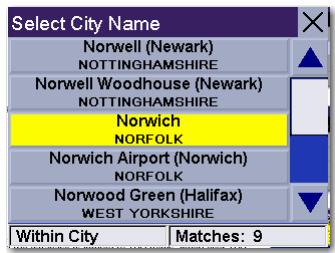

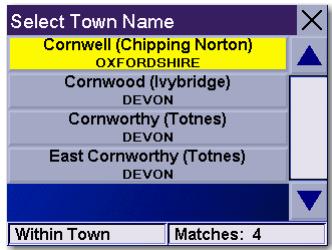

7.4.1 Search By Town

From the Destination screen, select Select Address and then, select Search By Town. Enter the first few characters of the town name (see “Inputting Text Characters” on page 13). [Select TounName Select OK. pop

Nonwell Woadhouss (Newark) NOTTINOHAMENIRE

Use the Navigation key to scroll the list up or down (if necessary) and select the desired town. Enter the street name (see “Help with Address Entry” on page 15). Select OK. Use the Navigation key to scroll the list up or down (if necessary) and select the desired street.

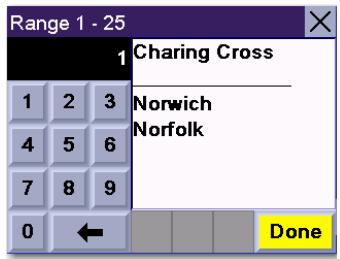

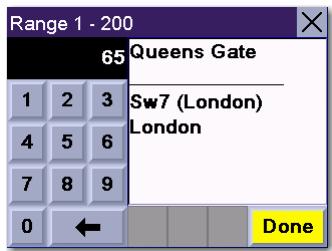

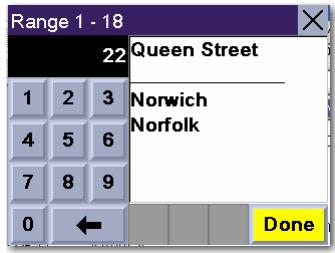

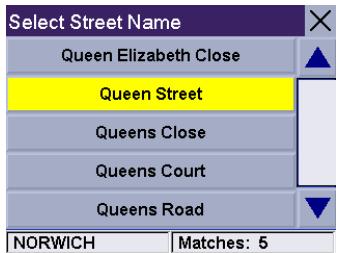

NORWICH Enter the street address. The acceptable range of numbers is displayed at the top of the screen. Select Done. Select the desired Route Method. The Magellan RoadMate 6000T will calculate the route. When the calculations are complete, the Map screen will be displayed.

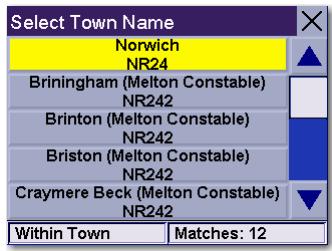

7.4.2 Search by Postcode

From the Destination screen, select Select Address then, select Search by Postcode. Enter the postcode, select OK, and then select the town. [Select Town Name 4

Briningham (Melton Constable) Brnton Mon Constabie) Briston (Melton Constable) RE | NR242 Enter the street name (see “Help with Address Entry” on page 15). Select OK. Use the Navigation key to scroll the list up or down (if necessary) and select the desired street. Matches: 1

Chapter 7: Selecting Destinations

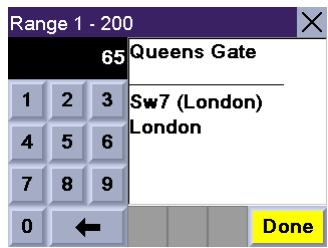

Enter the street address. The acceptable range of numbers is displayed at the top of the screen. Select Done. Select the desired Route Method. The Magellan RoadMate 6000T will calculate the route. When the calculations are complete, the Map screen will be displayed.

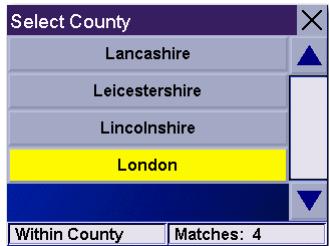

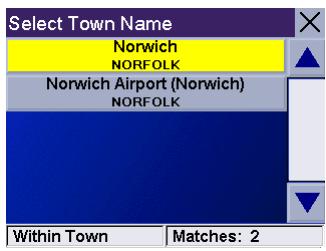

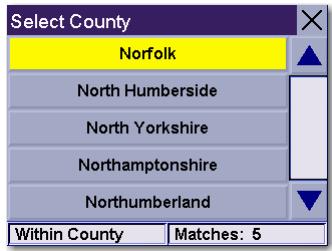

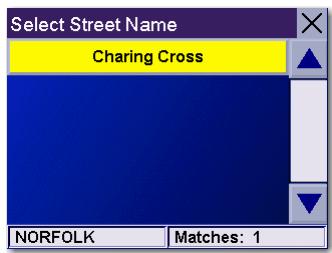

7.4.3 Search by County / Area

From the Destination screen, select Select Address, then select Search by County / Area. The type of area to search will depend of the country for your destination (it will be the ‘County’ in the United Kingdom, The ‘Département’ in France, the ‘Bundesland’ in Germany etc.). Enter the first few characters for the area and select OK. Select the area name. North Humberside North Yorkshire Northamptonshire [| Northumberand Y Within County Matches: 5 __ Enter the street name (see “Help with Address Entry” on page 15). Select OK. Use the Navigation key to scroll the list up or down (if necessary) and select the desired street. Select the desired town from the list. Only those towns that contain the street name and are [Select Toun Name D Within the area selected are displayed. Norich Airport (Nonwich) Within Town Matches: 2 Enter the street address. The acceptable range of numbers is displayed at the top of the screen. Select Done. ueen Street Select the desired Route Method. The Magellan RoadMate 6000T will calculate the route. When the calculations are complete, the Map screen will be displayed.

Chapter 7: Selecting Destinations

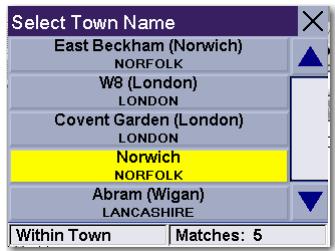

From the Destination screen, select Select Address then, select Previous Town. Select the town from the list. Select Add Tip: The town you are in will appear at the top of the Previous Town list. o Lorvousroms __] Enter the street name (see “Help with Address Entry” on page 15). Select OK. [Select StrestName PQ Queen Elizabeth Close | À Use the Navigation key to scroll the list up or down (if necessary) and select the desired street. uns | Queens Close Queens Court Queens Road L4 NORWICH Matches: 5 Enter the street address. The acceptable range of numbers is displayed at the top of the screen. Select Done. Select the desired Route Method. The Magellan RoadMate 6000T will calculate the route. When the calculations are complete, the Map screen will be displayed.

Chapter 7: Selecting Destinations

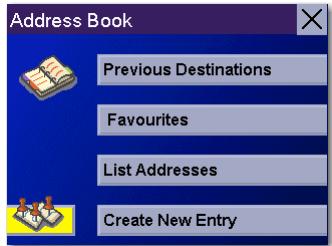

7.5 Selecting a Destination Using the Address Book

Previous Destinations — page 31 Favourites — page 33 Destination England List Addresses — page 35 Address Book Create New Entry — page 36 Trip Planner — page 40 The Address Book can store up to 200 addresses. When you select Address Book you are given five options: Previous Destinations lets you select from a list of the last 50 destinations you routed to; List Addresses displays a list of all of the addresses you have stored in your Address Book; Favourites gives you a shortened list of entries from your Address Book marked as Favourites; Create New Entry lets you add a new address to your Address Book; and Trip Planner (indicated by the Trip button) lets you create a multi-destination trip from entries.

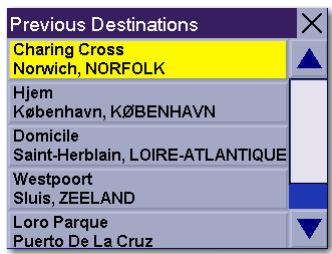

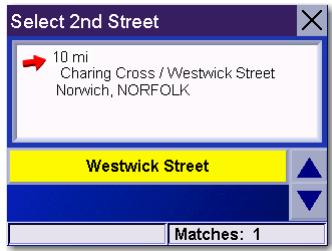

7.5.1 Previous Destinations

Chapter 7: Selecting Destinations

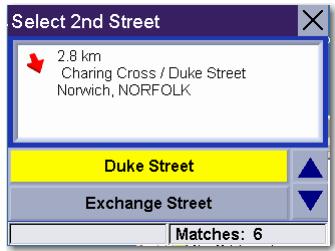

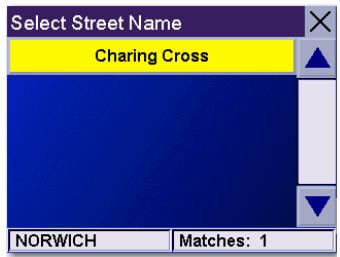

Select Route. Select the desired Route Method. Charing Cross Nonwich, Norfolk The Magellan RoadMate 6000T will calculate the route. When the calculations are complete, the Map screen will be displayed. CD 3 EZ

7.5.1.1 Saving a Previous Destination to the Address Book

From the Destination screen, select Address Book, then select Previous Destinations. Use the Navigation key to scroll the list up or down (if necessary) and select the desired previous destination. Hjem Kebenhaun, KABENHAVN Domicile Saint-Herblain, LOIRE-ATLANTIQUI Westpoort Sluis, ZEELAND Loro Parque Y Select Edit. Charing Cross Norwich, Norfolk The top line (Name) and the bottom line (Information) can be edited. The address cannot be changed. Select the line you want to modify. Use the keypad to enter the desired text and select OK. ÆACharing Cross Sum Ses | When you have finished making changes, select Save.

Chapter 7: Selecting Destinations

7.5.1.2 Deleting A Previous Destination

From the Destination screen, select Address Book then, select Previous Destinations. Use the Navigation key to scroll the list up or down (if necessary) and select the desired previous destination. Hiem Kabenhaun, KGBENHAVN Domicile Saint-Herblain, LOIRE-ATLANTIQUI Westpoort Sluis, ZEEL AND Loro Parque Select Delete. A dialogue box will appear to confirm your selection. Select Yes. EE The Previous Destination is deleted from the list.

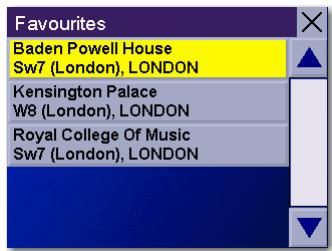

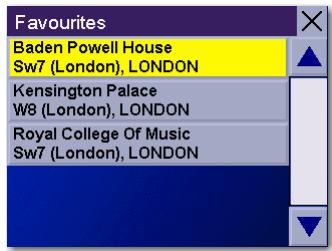

You can add address book entries to your Favourites list by selecting the Favourites box at the bottom of the Edit Address Book screen. Only address book entries can be saved as Favourites, Previous Destinations must be saved to the Address Book first, and can then be designated as a favourite. The Favourites list is a shorter list of those address book entries that you travel to often. From the Destination screen, select Address Book, then select Favourites. Use the Navigation key to scroll the list up or down (if necessary) and select the destination from the list of addresses. [Eee eo | Kensington Palace WB (London), LONDON Royal College Of Music SW (London), LONDON Select Route. LA ddr Baden Powell House Select the desired Route Method. The Magellan RoadMate 6000T will calculate the route. When the calculations are complete, the Map screen will be displayed. (20-75947081 Ce ee

Chapter 7: Selecting Destinations

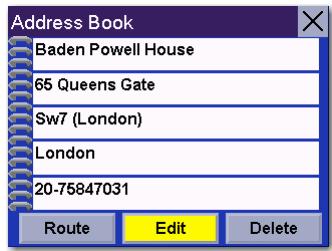

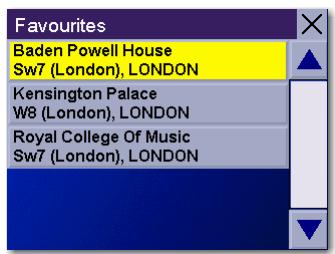

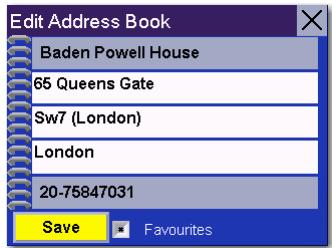

7.5.2.1 Editing a Favourite

From the Destination screen, select Address Book then, select Favourites. Use the Navigation key to scroll the list up or down (if necessary) and select the desired favourite. Select Edit. The top line (Name) and the bottom line (Information) can be edited. À home and work phone number can also be added to an entry in your address book. The address cannot be changed. Select the line you want to modify. Use the keypad to enter the desired text and select OK. When you have finished making changes, select Save and then, press ESCAPE.

7.5.2.2 Deleting À Favourite

From the Destination screen, select Address Book then, select Favourites. Use the Navigation key to scroll the list up or down (if necessary) and select the desired favourite. Select Delete. A dialogue box will appear to confirm your selection. Select Yes. The entry is deleted from the list.

Chapter 7: Selecting Destinations

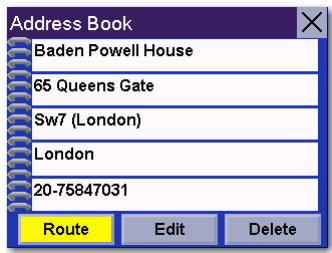

7.5.3 List Addresses

List Addresses shows all entries stored in your address book. It does not include previous destinations but does include those entries designated as Favourites. From the Destination screen, select Address Book then, select List Addresses. Use the Navigation key to scroll the list up or down (if necessary) and select the destination from the list of addresses. Select Route. Select the desired Route Method. The Magellan RoadMate 6000T will calculate the route. When the calculations are complete, the Map screen will be displayed.

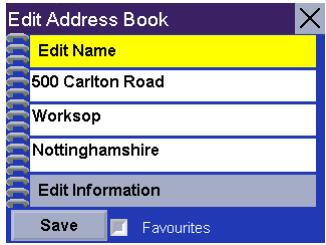

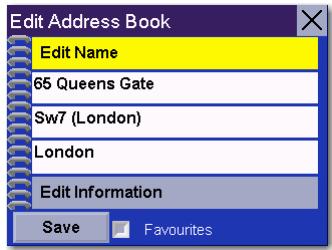

7.5.3.1 Editing an Address

From the Destination screen, select Address Book then, select List Addresses. Use the Navigation key to scroll the list up or down (if necessary) and select the desired address. Select Edit. The top line (Name) and the bottom line (Information) can be edited. The address cannot be changed. Select the line you want to modify. Use the keypad to enter the desired text and select OK. You can also designate the address as a favourite by checking the box at the bottom of the screen. When you have finished making changes, select Save and then, press ESCAPE.

Chapter 7: Selecting Destinations

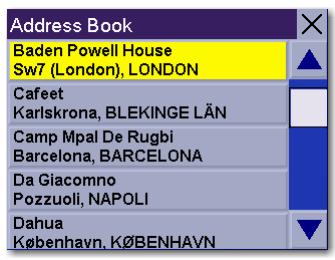

7.5.3.2 Deleting an Address

From the Destination screen, select Address Book then, select List Addresses. Use the Navigation key to scroll the list up or down (if necessary) and select the desired address. Cafeet . Kariskrona, BLEKINGE LAN Camp Mpal De Rugbi Barcelona, BARCELONA Da Glacomno Pozzuoli, NAPOLI Dahua Select Delete. Address Book E crnne 65 queens Gate Su (London) A dialogue box will appear to confirm your selection. Select Yes. The address is deleted from the list and you are returned to the Address Book screen. ÆLonden P20-75047051

7.5.4 Create New Entry

Use Create New Entry to add entries to your address book. These entries can then be designated as Favourites to include in the Favourites list.

7.5.4.1 Search by Town

From the Destination screen, select Address Book then, select Create New Entry. Select Search by Town. Search by Postcode Search by County Enter the first few characters of the town name (see “Inputting Text Characters” on page 13). Select OK. Lite London (Longhope) Little London {Andover} Use the Navigation key to scroll the list up or down (if necessary) and select the desired - Lie London (Tadey) HAMPSHIRE. town. London Apprentice (St Austell) v CORMWALL. Within Town Matches: 12 » x

Chapter 7: Selecting Destinations

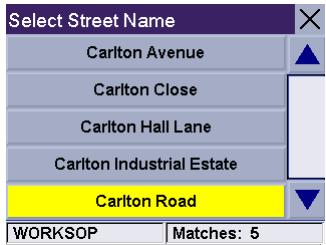

Enter the street name (see “Help with Address Entry” on page 15). Select OK. Use the Navigation key to scroll the list up or down (if necessary) and select the desired | aumem | street. Queens Gate Gardens aucune | Queens Gate Place A4 LONDON Tmatcnes: 7 Enter the street address. The acceptable range of numbers is displayed at the top of the screen. Select Done. The top line (Name) and the bottom line (Information) can be edited. The address cannot be changed. Select the line you want to modify. Use the keypad to enter the desired text and select OK. You can also designate the address as a favourite by checking the box at the bottom of the screen.

When you have finished making changes, select Save and then, press ESCAPE. Ê

7.5.4.2 Search by Postcode

HR EIs»7 cordon METS London Editinformation From the Destination screen, select Address Book then, select Create New Entry. Select Search by Postcode. Enter the postcode and select OK, then select the town. Select Add

Search by County Select Town Name x Briningham (Melton Constable) [| NR242 Brinton (Melton Constable) Briston (Melton Constable)

ER RENEETE | NR242 Within Town Matches: 12

Chapter 7: Selecting Destinations

Enter the street name (see “Help with Address Entry” on page 15). Select OK. Use the Navigation key to scroll the list up or down (if necessary) and select the desired street. Enter the street address. The acceptable range of numbers is displayed at the top of the screen. Select Done. The top line (Name) and the bottom line (Information) can be edited. The address cannot be changed. Select the line you want to modify. Use the keypad to enter the desired text and select OK. You can also designate the address as a favourite by checking the box at the bottom of the screen. When you have finished making changes, select Save and then, press ESCAPE.

7.5.4.3 Search by County / Area

From the Destination screen, select Address Book then, select Create New Entry. Select Search by County / Area. The type of area to search will depend of the country for your destination (it will be the ‘County in the United Kingdom, The ‘Département’ in France, the ‘Bundesland’ in Germany etc.). Use the keypad to enter the first few characters for the area and select OK. Select the area.

(65 Queens Gate ISwT (London) = Edit information

Select Add arch by Postcodi

Chapter 7: Selecting Destinations

Enter the street name (see “Help with Address Entry” on page 15). Select OK. Use the Navigation key to scroll the list up or down (if necessary) and select the desired street. Use the Navigation key to scroll the list up or down and select the desired town. (These are all of the towns in your loaded database that have the street name you selected.) Enter the street address. The acceptable range of numbers is displayed at the top of the screen. Select Done. The top line (Name) and the bottom line (Information) can be edited. The address cannot be changed. Select the line you want to modify. Use the keypad to enter the desired text and select OK. You can also designate the address as a favourite by checking the box at the bottom of the screen. When you have finished making changes, select Save and then, press ESCAPE.

7.5.4.4 Previous Town

From the Destination screen, select Address Book, then select Create New Entry. Select Previous Town.

Queen Elizabeth Drive Queen Elizabeth Way Queen Mary Road NORFOLK Matches: 16 Select Town Name X East Beckham (Norwich) NORFOLK A W8 (London) LONDON Covent Garden (London) LONDON LANCASHIRE Vin Town Mat London Editinformation Search by Town Search by Postcode Search by County

Chapter 7: Selecting Destinations

Use the Navigation key to scroll the list up or down (if necessary) and select the desired eee town. Neu Worrs (Telford) SHROPSHIRE Workington CUMERIA Within Town Matches: 3 Enter the street name (see “Help with Address Entry” on page 15). Select OK. [Select SreetName PQ Cariton Avenue A Use the Navigation key to scroll the list up or down (if necessary) and select the desired street. Carton Close Cariton Hal Lane | CantoninaustialEstæte |

PAORKSOP [Matches 5 Enter the street address. The acceptable range of numbers is displayed at the top of the Range 1 - 509 screen. Select Done. Ein ariton Road The top line (Name) and the bottom line (Information) can be edited. The address cannot be changed. Select the line you want to modify. Use the keypad to enter the desired text and select OK. You can also designate the address as a favourite by checking the box at the bottom of the screen. a Nottinghamshire When you have finished making changes, select Save and then, press ESCAPE.

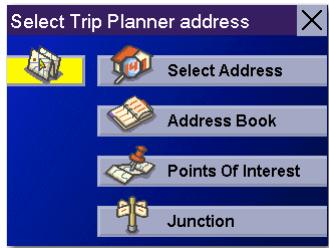

Using the Trip Planner, you can enter multiple destinations for your “trip” and route to each one of them in order. Additionally, using the Trip Planner you can optimise your trip and route to arrive at your destinations in the most efficient manner.

From the Destination screen, select Address Book, then select Trip (Trip button). Se Previous Destinations List Addresses

Chapter 7: Selecting Destinations

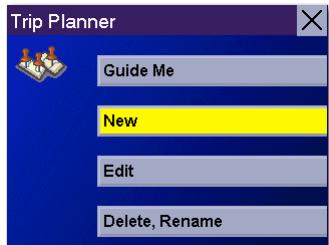

Select New. Use the keypad to enter a name for the new trip and select OK. From the pop-up menu, select Add. From the Select Trip Planner Address screen, select the method for adding a destination to your trip: Map (Map button) will add a destination by selecting a point on the map; Select Address will add a destination by creating a new address; Address Book will add a destination from a previous destination, Address Book, or favourites; Points Of Interest will add a destination from the POI database; and Junction will add a destination of two intersecting streets. Continue adding destinations. When you are finished, select Save.

Chapter 7: Selecting Destinations

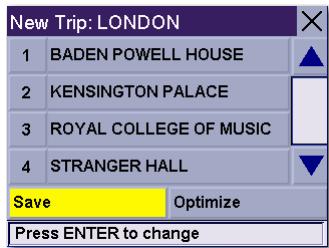

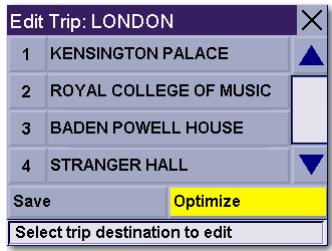

7.5.5.2 Optimising a Trip

With Route Optimisation, you can sort the destinations in your trip from closest to farthest. From the Trip Planner screen, select Edit. Trip Planner Select the trip to optimise. Select Optimise. The destinations are sorted from closest to farthest from your current location. Select Save. Selecttrip destination to edit

Chapter 7: Selecting Destinations

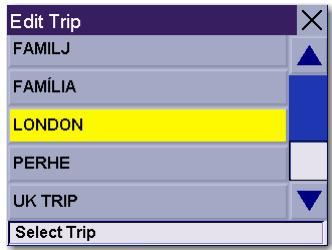

From the Destination screen, select Address Book. then select the Trip (Trip button). Select Guide Me. Select the Trip. Select the first destination in the list you wish to route to. Note: Selecting the second destination in the list will exclude the first destination, selecting the third destination in the list will exclude the first and second destinations, and so on. Select the desired Route Method. The Magellan RoadMate 6000T will calculate the route. When the calculations are complete, the Map screen will be displayed.

Destinations within a trip can be moved up or down, deleted, or added to. From the Trip Planner screen, select Edit.

Chapter 7: Selecting Destinations

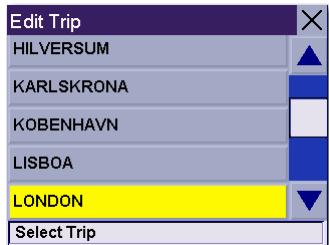

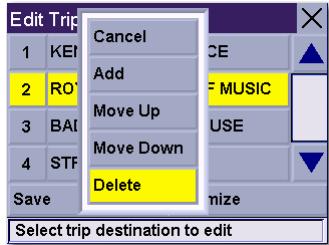

Select the trip to edit. Edit Tip Select the destination you wish to delete, and select Delete from the pop-up menu. Select the destination you wish to change, and select Move Up from the pop-up menu. When you have finished, select Save and you are returned to the Trip Planner screen. Selecttrip destination to edit

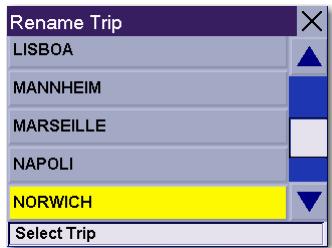

7.5.5.5 Delete and Rename

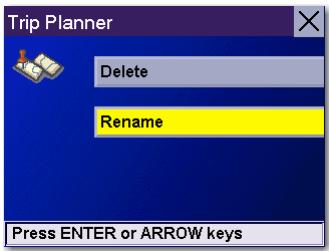

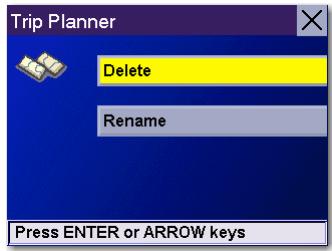

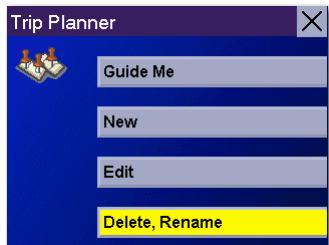

From the Trip Planner screen, select Delete, Rename. Tip Planner

Chapter 7: Selecting Destinations

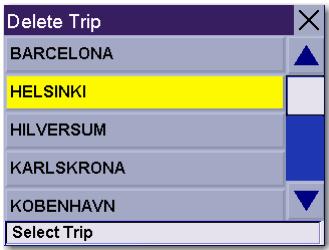

Select Delete. Trip Planner Press ENTER or ARROW keys Select the trip you wish to delete. Delete Tip XI BARCELONA IN HELSINKI HILVERSUM KARLSKRONA Y A dialogue box will appear to confirm your selection. Select Yes. [Are you sure you wantto delete this trip? The trip has been deleted. [Deiete Tip 4 BARCELONA A HILVERSUM KARLSKRONA KOBENHAVN Y Select Rename. Press ENTER or ARROW keys Select the trip to be renamed. [Rename Tip 4 HILVERSUM A KARLSKRONA KOBENHAVN LISBOA

Chapter 7: Selecting Destinations

Use the backspace key to delete the old name; if you are unsure of the town, you can start with the area.Then, enter the new name for the trip. When you have finished, select OK. The trip has been renamed.

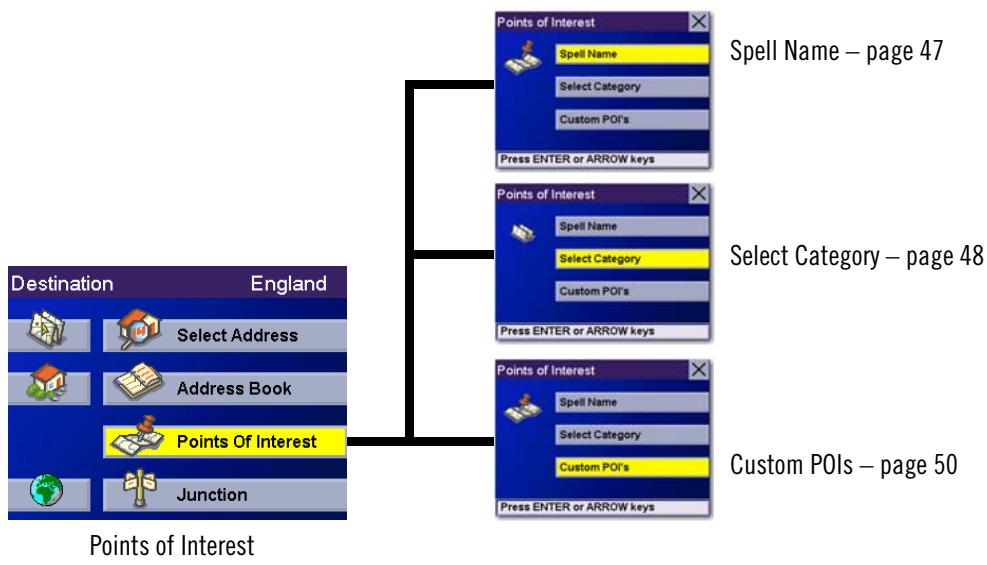

7.6 Selecting a Point of Interest as a Destination

Destination Points of Interest SO Select Address Rename Trip

niscpvers alalkelmnloe alnsiruiviu an | MaRsELLE NAPOLI

Spell Name — page 47 Select Category — page 48 Custom POIs — page 50 Points of Interest (or POIs) are commercial or recreational locations, landmarks or services that are preloaded into the Magellan RoadMate 6000T database. There are over six million POIs in the database, ranging from restaurants, parks, petrol stations and banks, to schools and police stations and more. The purpose of the POI database (accessed through the Points of Interest menu option) is to provide you with a list of popular destinations without having to enter the address manually in order to route to them.

Chapter 7: Selecting Destinations

If you know the name of the POI you are looking for, find it using the Spell Name feature. From the Destination screen, select Points of Interest, then select Spell Name. Enter the name of the POI.

Selecting Nearest will list the POIs matching the name you entered from closest to farthest from your current position. Select Nearest. Use the Navigation key to scroll the list up or down (if necessary) and select the desired POI. Select the desired Route Method. The Magellan RoadMate 6000T will calculate the route. When the calculations are complete, the Map screen will be displayed.

7.6.1.2 List By Town

Selecting List by Town will list the POIs matching the name you entered within a selected town sorted by distance from the town centre. Select List by Town. Enter the town name (see “Help with Address Entry” on page 15). Select OK. Use the Navigation key to scroll the list up or down (if necessary) and select the desired town.

22m C2 ‘Waybourne Road Shernchäm, Nartok: Petroi Station Matches > 100 or | Press ENTER or ARROW keys Sherington (Newport Pagnell} BUCKINGHAMSI Upper Sheringham (SI NORFOLK Within Town Matches: 3

Chapter 7: Selecting Destinations

Use the Navigation key to scroll the list up or down (if necessary) and select the desired POI. Select the desired Route Method. The Magellan RoadMate 6000T will calculate the route. When the calculations are complete, the Map screen will be displayed.

7.6.1.3 Select Category

Selecting Select Category enables you to narrow the list of POIs by selecting the category of the name you spelled. Select Select Category. Use the Navigation key to scroll the list up or down and select the desired POI category. Use the Navigation key to scroll the list up or down (if necessary) and select the desired POI. Select the desired Route Method. The Magellan RoadMate 6000T will calculate the route. When the calculations are complete, the Map screen will be displayed.

7.6.2 Select Category

Relative to city center 14km Perol Station Wesbourne Ruad Sherngham, Norfak Esso Y FSrenngham [Mathes>100 | Fiter by. Press ENTER or ARROW keys [SoiectCatogon ___LS oo Restaurant À ® Hotel or Motel | | À Vehicle Services ES Airport L4 Press ENTER or ARROW keys 22m Peral Station |} C2 ‘Waybourne Road l Srerrchar, Norole | Petroi Station Matches > 100 If you do not know the name of the POI you are looking for, but Know the category (restaurant, bank, petrol station, etc.), you can find it using Select Category From the Destination screen, select Points of Interest, then select Select Category. Select the POI category.

Chapter 7: Selecting Destinations

Selecting Nearest will list the POIs in the category selected from closest to farthest from your current position. Select Nearest. A list of all the POIs in the selected category nearest to your current position is displayed. Select the POI from the list. Select the desired Route Method. The Magellan RoadMate 6000T will calculate the route. When the calculations are complete, the Map screen will be displayed.

7.6.2.2 List by Town

Selecting List by Town will list the POIs in the category selected within a specified town. Select List by Town. Enter the name of the town you wish to search from. When you are finished, select OK. Use the Navigation key to scroll the list up or down (if necessary) and select the desired town. Use the Navigation key to scroll the list up or down (if necessary) and select the desired POI. Select the desired Route Method. The Magellan RoadMate 6000T will calculate the route. When the calculations are complete, the Map screen will be displayed.

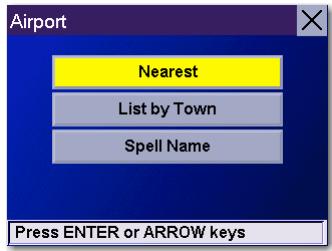

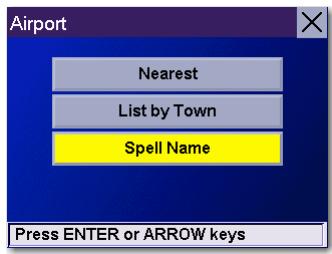

Selecting Spell Name will list the POIs in the category selected, matching the name you entered. Select Spell Name.

Airport Press ENTER or ARROW keys 10m Public Spor ArRoR Æ sue St (Perzonce), Coral 8 (0) 176 7OBTT 1 CAirport _______[Matches:60 Airport RCI Press ENTER or ARROW keys

Cornmeod [Ivybriage) DEVON Comworthy (Totnes) DEVON East Cornworthy (Totnes) DEVON © *"" Public Spor Airport Doré Apart (Hidinghon|, Oxardshire +44 (0) 1886 04129 Press ENTER or ARROW keys

Chapter 7: Selecting Destinations

Enter the name of the POI. When you are finished, select OK. Select Nearest to list the POIs matching the characters entered that are nearest to your current position. Select List by Town to list the POIs matching the characters entered that are nearest to a particular town. Enter the name of the town. When you are finished, select OK. Select the town from the list. Use the Navigation key to scroll the list up or down (if necessary) and select the desired POI. Pubie Spor Airport : Oord Araor {Hidingteni, Cxdardshire Select the desired Route Method. #44 (0) 1805 841284 The Magellan RoadMate 6000T will calculate the route. When the calculations are complete, the Map screen will be displayed.

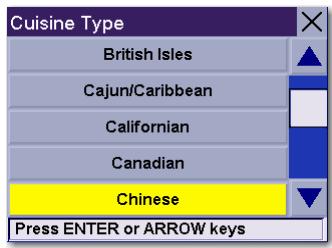

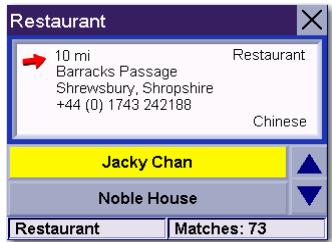

7.6.2.4 Cuisine Type

When selecting restaurants, you are presented with an additional method for finding POIs. Cuisine Type Select Cuisine Type. Use the Navigation key to select the type of restaurant you prefer. Press ENTER or ARROW keys Use the Navigation key to scroll the list up or down (if necessary) and select the desired POI. Laurant 10m Restaurant Baracks Passage Shrevsbury, Shropehire Select the desired Route Method. 4 (0) TAB ADTES Chinese The Magellan RoadMate 6000T will calculate the route. When the calculations are complete, the Map screen will be displayed.

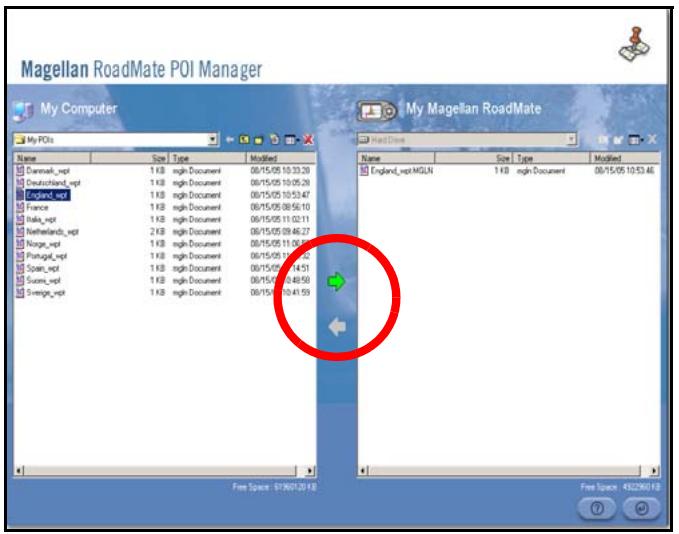

Please refer to page 98 for information on creating and loading Custom POIs. From the Destination screen, select Points of Interest, then select Custom POIs.

Chapter 7: Selecting Destinations

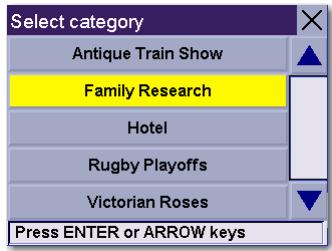

Select the category. Hotel Ruyrmems | Victorian Roses Y (nee If the POI list has more than 15 returns, you can further narrow the search by selecting either Nearest or Spell Name. Select the desired POI from the list. Press ENTER or ARROW keys Select Route to go to the selected Address, or select Cancel to return to the Select Custom Route To This Address POI menu. National Army Museum Select the desired Route Method. Family Research The Magellan RoadMate 6000T will calculate the route. When the calculations are complete, the Map screen will be displayed.

Chapter 7: Selecting Destinations

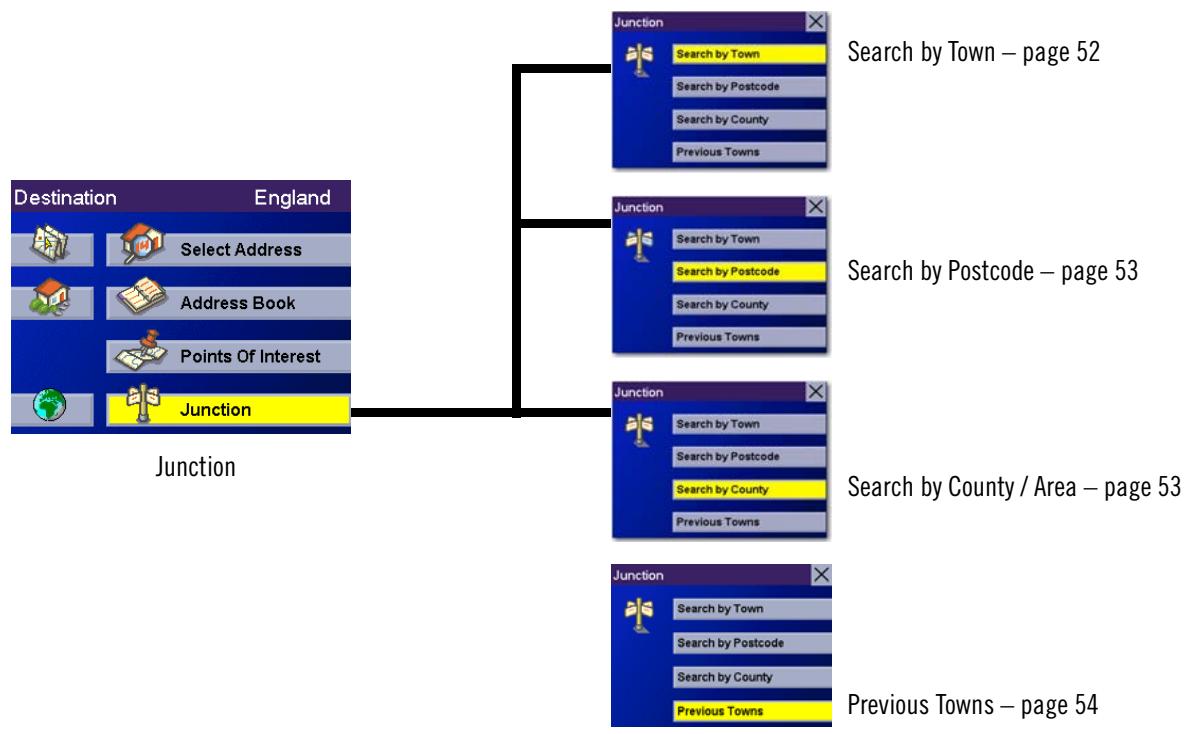

7.7 Selecting a Junction as a Destination

Search by Town — page 52 Destination Search by Postcode — page 53 Junct unction Search by County / Area — page 53 Previous Towns — page 54 A junction of two streets can be used as a destination. You can search for a junction whether you know the town or not. 1f you know the town, you can start there;

7.7.1 Search by Town

From the Destination screen, select Junction then, select Search by Town. Enter the first few characters of the town name (see “Inputting Text Characters” on Sele. x page 13). Select OK. PR A! Nonwell Woadhouss (Newark) NOTTINOHAMENIRE Use the Navigation key to scroll the list up or down (if necessary) and select the desired town. Nonwich Alrport (Nonwich) NORFOLK Nornood Green (Halfax) Y WEST YORKEHIRE. Within City. Matches; 9 Enter the first street name (see “Help with Address Entry” on page 15). Select OK. Use the Navigation key to scroll the list up or down and select the first street from the list. NORMICH [Matches 1

Chapter 7: Selecting Destinations

Enter the second street name and select OK. Use the Navigation key to scroll the list up or down (if necessary) and select the second street from the list. Select the desired Route Method. The Magellan RoadMate 6000T will calculate the route. When the calculations are complete, the Map screen will be displayed.

7.7.2 Search by Postcode

From the Destination screen, select Junction then, select Search by Postcode. Enter the postcode and select OK, then select the town. Enter the first street name (see “Help with Address Entry” on page 15). Select OK. Use the Navigation key to scroll the list up or down and select the first street from the list. Enter the second street and select OK. Use the Navigation key to scroll the list up or down (if necessary) and select the second street from the list. Select the desired Route Method. The Magellan RoadMate 6000T will calculate the route. When the calculations are complete, the Map screen will be displayed.

7.7.3 Search by County / Area

Charng Cross Vestnick Street Nonvich, NORFOLK nn EE | Select Town Name x

Briningham (Melton Constable) Brinton (Melton Constable) Briston (Melton Constable) RE | NR242 Within Town Matches: 12 NORMICH [Matches 1

C7 Charng Cross / Westick Street Nonvich, NORFOLK nn EE | From the Destination screen, select Junction, then select Search by County / Area. The type of area to search will depend of the country for your destination (it will be the ‘County’ in the United Kingdom, The ‘Département’ in France, the ‘Bundesland’ in Germany etc.).

Chapter 7: Selecting Destinations

Enter the first few characters for the area and select OK. Use the Navigation key to scroll the list up or down (if necessary) and select the area from the list. Enter the first street name (see “Help with Address Entry” on page 15). Select OK. Use the Navigation key to scroll the list up or down (if necessary) and select the first street from the list. Enter the second street and select OK. Use the Navigation key to scroll the list up or down (if necessary) and select the second street from the list. Select the desired Route Method. The Magellan RoadMate 6000T will calculate the route. When the calculations are complete, the Map screen will be displayed.

From the Destination screen, select Junction, then select Previous Towns. Use the Navigation key to scroll the list up or down (if necessary) and select the desired town. Enter the first street name (see “Help with Address Entry” on page 15). Select OK. Use the Navigation key to scroll the list up or down (if necessary) and select the first street from the list.

North Humberside North Yorkshire ormamotensnre | Northumberland Y Within County Matches: 5 __ "ec

NORFOLK [Matches 1 arm PF Cherre Cross /Viesvuick Sneet North, NORFOLK Select Town Name x Norwell (Newark) NOTTINGHAMBHIRE. A Norwell Woodhouse (Newark) NOTTINOHAMEHIRE. Norwich Airport (Norwich)

NORFOLK Nornood Green (Halfax) Y WEST YORKEHIRE. Within Town Matches: 9 NORWICH Matches: 1

Chapter 7: Selecting Destinations

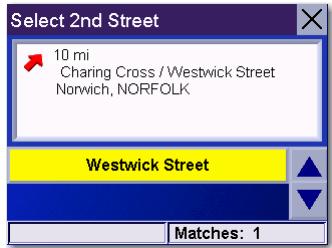

Enter the second street and select OK. Use the Navigation key to scroll the list up or down (if necessary) and select the second RL «EEE street from the list. Select the desired Route Method. D IMaches:6 | The Magellan RoadMate 6000T will calculate the route. When the calculations are complete, the Map screen will be displayed.

Chapter 8: Navigation Options

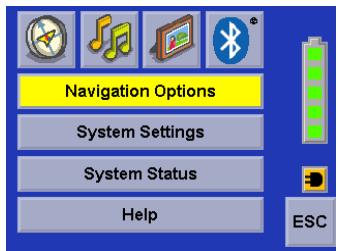

To access these features, press the MENU key on the Magellan RoadMate 6000T and select Navigation Options. This will enable you to customise the advanced navigation features of the Magellan RoadMate 6000T.

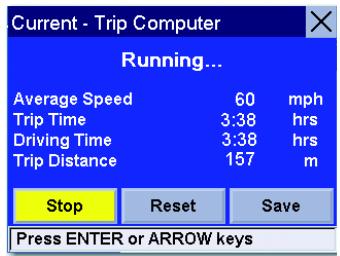

The Trip Computer is a valuable tool for recording the mileage and time spent driving while on business or holiday. The information for the trip can be saved and viewed at any time, providing you easy access to information on your current trip, as well as previous trips. In the Navigation Options menu, select Trip Computer. [Nav Options 4 7 mpGomputer |A POI Selection | Custom PO's Map Options | rueiew Options Y Press ENTER or ARROW keys

When you begin a new trip and you need to record the information, access the Trip Computer. Here you can save the information displayed for the current trip (if needed) and reset the Trip Computer to zero in preparation for your new trip. Select Trip Computer. Select Current from the list of saved Trip Reports. [Trip Computer D cmt A: DISNEY Press ENTER or ARROW keys The Trip Computer is always in a “Running” state. The information for the current trip is en displayed. Running. Average Speed Trip Time Driving Time Trip Distance

Chapter 8: Navigation Options

8.1.1.1 Stopping or Starting the Trip Computer

The Trip Computer can be stopped or started at any time. If the Trip Computer is currently en running, select Stop. The Trip Computer will stop recording until restarted or reset. Running. Average Speed Trip Time Driving Time Trip Distance While the Trip Computer is in a “Stopped” state, select Start to continue recording the current Current - Trip Computer trip or select reset to begin a new trip. Stopped Auerage Speed Trip Time Driving Time Trip Distance

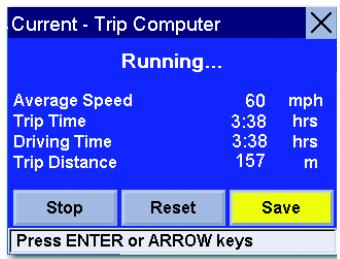

8.1.1.2 Saving the Current Trip Report

When you have finished with your trip, you can save the information for later viewing. en Select Save at any time. R unning. Average Speed Trip Time Driving Time Trip Distance Use the keypad to enter a name for the Trip Report and select OK when you are finished. Trip Computer Name

Before starting a new trip that you want to record, you need to reset the Trip Computer first. en Select Reset and the information will be set to zero. The Trip Computer will remain in à “Running” state. Running. Average Speed Trip Time Driving Time Trip Distance

Chapter 8: Navigation Options

8.1.1.4 Viewing a Saved Trip Report

From the Trip Computer screen, select the Trip Report you wish to view. [Trip Computer PA Current À DISNEY Press ENTER or ARROW keys The saved Trip Report is displayed. Press the ESCAPE key when you are finished to view the BEACH - Trip Computer trip and return to the Trip Computer screen. Auerage Speed Trip Time Driving Time Trip Distance Press ENTER or ARROW keys

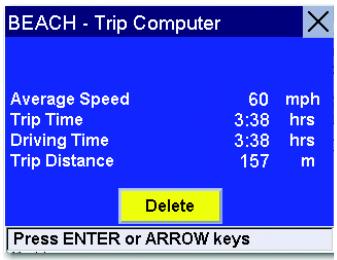

8.1.1.5 Deleting a Trip Report

Select the Trip Report to be deleted. [Trip Computer D Current A DISNEY Press ENTER or ARROW keys Select Delete. - Trip Computer Average Speed Trip Time Driving Time Trip Distance The trip is deleted and you are returned to the Trip Computer screen. [Trip Computer PA

From the POI Selection menu, you can choose which icons to display on the Map screen. We recommend being selective about which icons you choose to display in order to prevent your map screen from being cluttered. For a list of POI Categories, see “POI Categories” on page 103.

Chapter 8: Navigation Options

Select POI Selection. Select Mark All to display all POI icons on the Map screen. [POI Selection DA

• À Select Clear AIl if you wish not to have any POI icons displayed on the Map screen. L BankCash point _ You can also select individual icons to display or hide on the Map screen. When you have BEEN finished, select Save to save your selection and return to the Navigation Options menu. X Draoistaten W Mark All ClearAl | S Press ENTER or ARROW keys

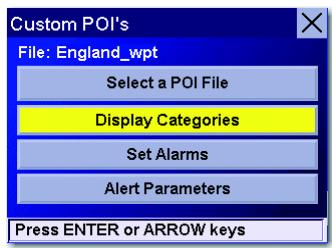

The Custom POI menu enables you to select POIs previously loaded into your Magellan RoadMate 6000T using the Magellan RoadMate POI Manager software (see page 99). The following instructions assume that you have loaded one or more custom POIs into your Magellan RoadMate 6000T. Select Custom POIs. Select Select a POI File. Use the Navigation key to scroll the list up or down (if necessary) and select a POI file. With the file selected, you are returned to the Custom POIs menu. Danmark_wpt Deutsehland_wpt | nn — Malia_wpt R4 Press ENTER or ARROW keys Select Display Categories. Custom File: England_wpt The categories you created are displayed in the same way as the built-in POIs. Select Mark All to display all POI icons on the Map screen. Select Clear AIl if you wish notto Essen] have any POI icons displayed on the Map screen. You can also select individual icons to display or hide on the Map screen. Press ENTER or ARROW keys When you have finished, select Save to return to the Navigation Options menu.

Chapter 8: Navigation Options

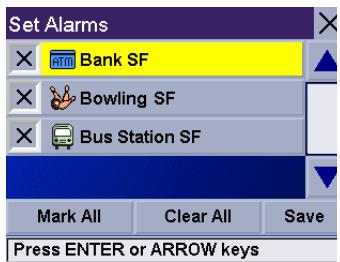

You can also be alerted when you approach a custom POI. The Set Alarm function works for Custom POls only and only if the POI has been selected to show on the Map screen. Select Set Alarms. Custom File: England_wpt Select a POI File Display Categories Alert Parameters Press ENTER or ARROW keys Again, you can select all, none, or individual POIs to have an alert set. Select Mark AII to set an [Set Atarms M alert for all custom POI icons on the Map screen. Select Clear AII if you wish not to have any alerts set for custom POI icons displayed on the Map screen. You can also select individual categories to have an alert set. When you have finished, select Save to return to the Custom POIs menu. With the POI alerts set, you can now choose at what point you will be alerted. Select Alert Parameters. Select the POI category to customise.

Chapter 8: Navigation Options

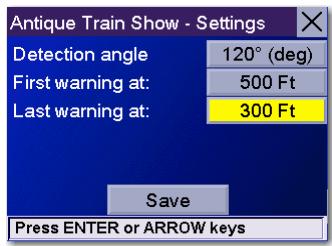

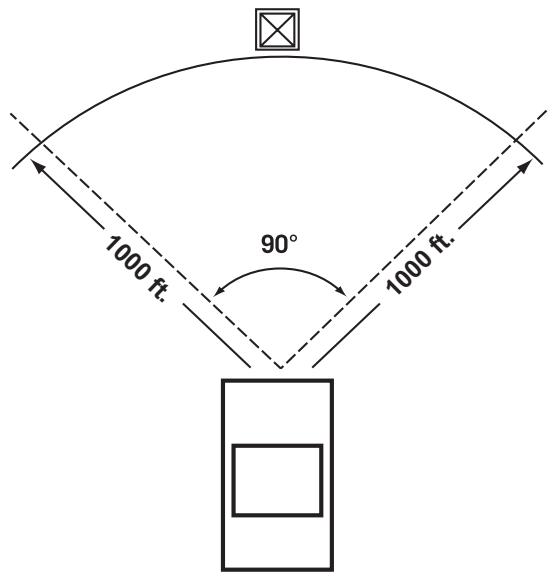

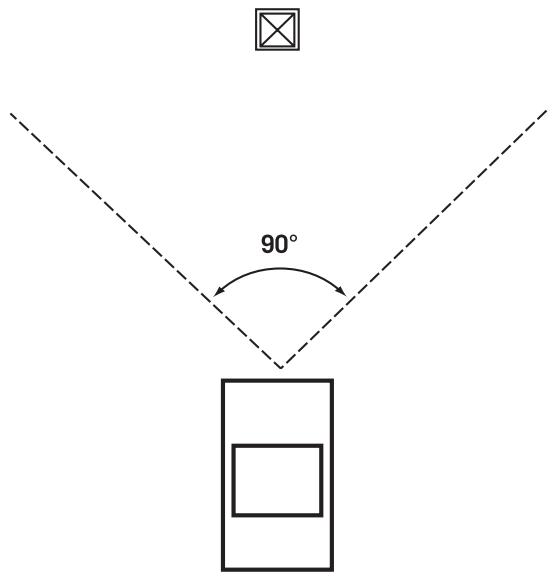

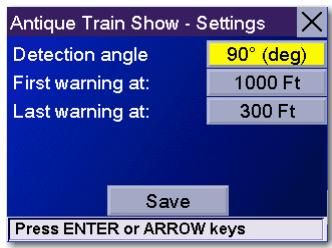

The Detection Angle is set to alert you when you are within so many degrees of the POI.

Select Detection Angle. lAntique Train Show - Settings Detection angle First waming at 1000Ft | Last waming at 300 Ft Use the numeric keypad to enter the number of degrees in which to set the alert. When you have finished, select OK.

Chapter 8: Navigation Options

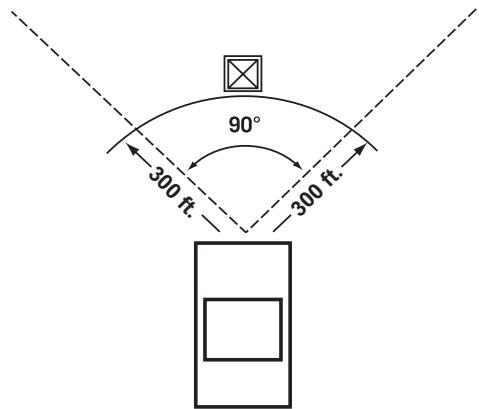

The First Warning is set to alert you when you are within a certain number of feet from the POI.

Select First Warning. fAntique Train Show - Settings D de First waming at Last waming at Use the numeric keypad to enter the number of feet in which to set the alert. When you have finished, select OK. First warning at:

Chapter 8: Navigation Options

The Last Warning is set as a final alert when you are within a certain number of feet from the POI. Select Last Warning. Antique Train Show - Detection angle First waming at Last waming at Press ENTER or ARROW keys Use the numeric keypad to enter the number of feet in which to set the alert. When you have finished, select OK. Last warning at: When you have set the parameters as desired, select Save. [Antique Train Show - Settings Detection angle First waming at Last waming at Save changes

Chapter 8: Navigation Options

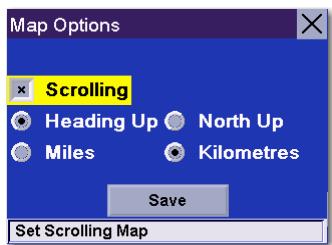

Map Options enable you to determine the behaviour of the Map while you are driving. Select Map Options. With Scrolling enabled, the vehicle position icon will always remain in the same position with FE the map scrolling, or moves while the vehicle is in motion. With Scrolling disabled, the vehicle position icon will move forward slightly; then, the map will scroll down. Having Scrolling C1 disabled allows for a faster display. © Heading Up ® North Up @ Miles © kilometres Heading Up sets the map display so that the direction of travel is always at the top of the screen. North Up sets the map display so that North is always at the top of the screen. Sat Scroling Map North Up is only available in 2D Map mode. Saw Select Miles or Kilometres as the unit of measurement for distance. When you have finished, select Save.

8.5 TrueView Options

TrueView options enable you to control how and when the TrueView screen is displayed. ITrusVio Options Select TrueView Options. ce @ Disable TrueView Select Split TrueView to enable the TrueView/Map Screen mode. See “TrueView Screen” on @ Manual TrueView page 20. © Auto TrueView Saw Press ENTER or ARROW keys Select Disable TrueView if you do not want the TrueView screen to appear during routing. Select Manual TrueView to show the TrueView screen only by pressing the View key. Select Auto TrueView to have the TrueView screen appear automatically when the next manoeuvre is approaching. When you have finished, select Save.

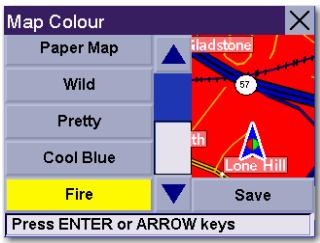

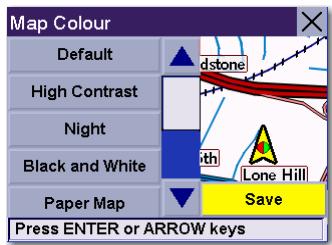

8.6 Select Map Colour

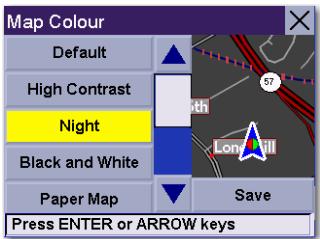

Select Select Map Colour. With Automatic Night Mode enabled, the Magellan RoadMate 60007 will switch between a Day screen and a Night screen based on sunrise and sunset times for your current location. Select Day Screen to choose a colour scheme for the map while you are driving during Map Colour the day. Select Night Screen to select a colour scheme for driving at night. When you have finished, select Save. Press ENTER or ARROW keys

Chapter 8: Navigation Options

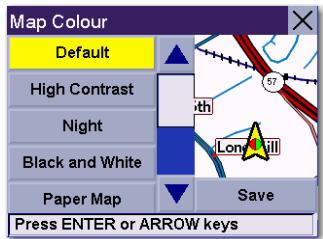

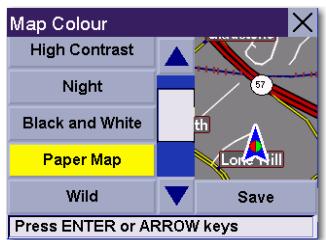

Select from nine available colour schemes: Map Colour Map Colour Map Colour — E o {assnais

| | DA Press ENTER or ARROW Keys ENTER or ARROW K Press ENTER or ARROW Keys When you have finished, select Save and you will be returned to the Select Map Colour menu. [TM Dry mn LA. CrnmlV ee | Press ENTER or ARROW Keys

8.7 Route Preferences

Route Preferences enable you to set parameters for the Magellan RoadMate 6000T to follow when calculating a route. Select Route Preferences. Automatic Re-Route will cause the Magellan RoadMate 6000T to try up to three times to automatically re-route to the destination when it has detected that the vehicle has deterred from the calculated route. When you have finished, select Save.

Chapter 8: Navigation Options

The Magellan RoadMate 6000T comes equipped with SmartDetour. If you are driving on the motorway with SmartDetour enabled and your speed drops below 15 MPH, you may press the detour icon on the Map screen in order for the Magellan RoadMate 6000T to calculate an alternate route around traffic. Select Detour Options. Select the distance of the detour. You can select from a preset distance of three miles, : Detour five miles, or 10 miles. @ 5m @ 10mi @ Cusom El Enabie automatic detour Alert After: Press ENTER or ARROW keys You can also select a custom distance. Select Custom, and then select the button to the right Fm to enter a custom distance. @ 3m @ 5m @ 10mi o CE | 20mi | Cecbameeuer Alert After: Press ENTER or ARROW keys Enter the number of miles and select OK. Next, select the amount of time the Magellan RoadMate 6000T should wait before alerting you. Fr" Select the Time button. @ 3m ®@5m © 10m © Custom El Enabie automatic detour Alert After: | ‘min | Press ENTER or ARROW keys Enter the number of minutes and select OK. Enable Automatic Detour is selected by default as shown by the checkbox mark. To disable Detour automatic detour, deselect Enable Automatic Detour. ® 3m © 5m © 10mi Press ENTER or ARROW keys When you have finished, select Save. Detour @ 3m @ 5m @ 10mi © Custom El Enabie automatic detour Alert After: |_sae | Save changes

Chapter 8: Navigation Options

When you encounter traffic, and the set time has elapsed, the Detour icon will flash on the Map screen. Touch the icon on the screen to allow the Magellan RoadMate 6000T to calculate the detour. You can choose to ignore the Detour alert; and after one minute it will stop flashing until the set time has elapsed again when it will alert you once more.

Voice options allows you to select a male or female voice. Select a male or female voice and then select Save.

You can change the colour of the menu screens by selecting one of four colour schemes. Select Menu Colours. Select the desired colour scheme. When you have finished, select Save.

As you approach a manoeuvre, an audible alert sounds to let you know to make the manoeuvre. Select Tone Options. Select either Bell, Chime, or Beep. one Options When you have finished, select Save. © Bell @ Chime @ Beep [_o _] Save changes

GPS Options provide you with information on the satellite signal as well as the ability to speed up signal acquisition time.

Chapter 8: Navigation Options

The GPS Status screen is available by pressing the GPS Signal icon on the Map screen (see “Map Screen” on page 18) as well as through the GPS Options menu. GPS Status monitors the satellite signal. For more information on the GPS Status screens refer to “GPS Status Screen” on page 105. GPS Status ESCAPE - exit ENTER -next

8.12.2 Set GPS Position

Set GPS Position enables you to manually set the location of the Current Position icon. 1f you have travelled a long distance with the Magellan RoadMate 6000T off, it may take some time for the Magellan RoadMate 6000T to reacquire a satellite signal. By manually setting the position of the Magellan RoadMate 6000T, you are telling the Magellan RoadMate 6000T where you are in order to speed up the satellite signal acquisition. Make sure you first select the country you are in by pressing the Globe button on the Destination screen (see “Country Selection (Globe Button)” on page 26). Select Set GPS Position. Enter the first few characters of the town name (see “Inputting Text Characters” on page 13). [Select City Name DA Select OK. Use the Navigation key to scroll the list up or down (if necessary) and select the Norma) A desired town. Norwell Woodhouse (Newar) [— MOTTINOHAMEIRE Norwich Airport (Norwich) : NORFOLK Norwood Green {Halifax} Y WEST YORKSHIRE. Within City. Matches; 9 Enter the street name (see “Help with Address Entry” on page 15). Select OK. Use the [Select Street Name Pa Navigation key to scroll the list up or down (if necessary) and select the desired street. ChaimgGres | A Enter the street address. The acceptable range of numbers is displayed at the top of the screen. If you do not know the exact address, just select Done and the Magellan RoadMate 6000T will use the lowest number in the range. Select Done to continue. You will be returned to the Navigation Options menu. Go to the Map screen. Your current position is now set to the address you entered.

Chapter 8: Navigation Options

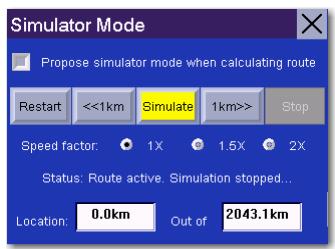

In Simulator Mode, you can demonstrate the capabilities of the Magellan RoadMate 6000T without actually driving. In order for the simulation to work, you must set a route first. Select Simulator Mode. Select Simulate to begin the simulation. Set the speed variance of the simulation: x1 will “drive” at normal speed using known speed limits; x1.5 will “drive” at one and a half times normal speed; x2 will “drive” at two times normal speed. Return to the Map screen to view the simulation. en RE > To disable Simulator Mode, select Stop, or when the power is turned off the Simulator will stop.

8.14 Automatic Volume

The Magellan RoadMate 6000T can be set to automatically increase the volume when the vehicle exceeds 45 MPH in order to compensate for road noise. Select Automatic Volume. Select the number increment by which to increase the volume. Evene teur Select Enable. When you have finished, select Save. El Enabie [sr _| eys to change

These options are used for the traffic portion of the Magellan RoadMate 6000T. Please refer to Chapter 9, Using Magellan Traffic, for details.

8.16 Navigation Instruction

You can select to enable or disable street name or exit sliproad name announcements. If the checkbox is checked, the announcements are enabled. Make your selection and select Save.

8.17 Backup and Restore

The Magellan RoadMate 6000T has the capability to back up your information (Address Book, Previous Destinations, etc.) to an optional memory card.

Chapter 8: Navigation Options

Select Backup and Restore, then select Backup. If you do not have a card inserted, you will be prompted to insert a card. Make sure the card is unlocked to allow data to be copied to it. Insert a card and reselect Backup. A dialogue box will appear asking you to confirm your selection. Select Yes. The files will be copied to the memory card.

To restore the files to the hard disk, select Backup and Restore, then select Restore. If you do not have a card inserted, you will be prompted to insert a card. Insert a card and reselect Restore. A dialogue box will appear asking you to confirm your selection. Select Yes. The files are copied to the hard disk.

8.18 Clear Address Book

This offers you a way to totally delete previous destinations and/or address book/favourites from the internal memory. Select the item or items you would like to delete and select Delete. You will be asked to confirm the deletion.

8.19 Context Sensitive Help Options

You can enable or disable GPS context sensitive help. Make your selection and select Save.

8.20 Map Information Map Information

SM version: 0.01 Product Information displays information about the map and database installed in your RÉLTHNUIN Magellan RoadMate 6000T. This information assists our Technical Support Representative in finding a solution to whatever problem you may have. Map Library Version: 1.8.5: Map GDF Version: Q305 Index Version: 0.0.0.34 Press ESCAPE to exit

Chapter 9: Integrated Magellan Traffic

The Magellan RoadMate 6000T comes complete with integrated traffic capabilities. 1f traffic information is available for the area you are travelling in and the traffic subscription is active, traffic incident information will be displayed on the Map screen.

9.1 Before You Begin

A subscription is required to be able to receive and use the traffic alert information. Included with the TrafficKit is a coupon providing you with a limited free subscription. When the free subscription is about to expire you will be prompted with information, reminding you that you need to renew the subscription. You can find information about renewing your subscription at www.magellanGPS.com.

9.1.1 Activating the Free Subscription

1. Locate the serial number for your Magellan RoadMate. It can be found on the back of the unit. Write this number

down as you will need it later. S/N: Locate the subscription coupon that is included in the Magellan TrafficKit. At the bottom of the coupon is a Subscription Activation Code that you will need to enter when prompted.

3. Go to www.magellanGPS.com/Traffic-Coupon and follow the instructions.

4. Write down the activation code that you receive when you have completed the instructions. Code:

Turn on the Magellan RoadMate. Access the TMC Options function. (This is found on the Nav Options Menu accessible by selecting Navigation Options from the Main Menu.)

7. Select Subscriptions from the menu. At the Subscriptions screen, select New Subscription. ” Ex

8. Using the keypad, enter the code you received in step 4 and press OK.

9 Your subscription is active and your Magellan RoadMate is Traffic-Ready. Pres ferrenpge

Thank you for choosing the Magellan TrafficKit. This system will deliver traffic event information to your Magellan RoadMate.

RDS: Radio Data System. Infrastructure that broadcasts digital information on the FM band. The TrafficKit module can only receive and decode the free-access service. TMC: Traffic Message Channel, one of the types of information that a Radio Data System can broadcast. TrafficKit: TrafficKit is the Magellan brand name for the RDS-TMC module which receives free-access TMC messages. TMC Message: À message received by the TrafficKit module that contains the description of a TMC event. TMC Event: An event liable to disturb the flow of traffic. The list of possible TMC events that can be received by the Magellan RoadMate is provided below, along with the corresponding road sign: Sign Meaning Sign Meaning ÂÀ Danger O Road Closed À \SowTrefic A\ {severe Weather A. [are Reduction © SRE Vehicie-Related A |Aestiok © krésricion LÀ |accident Alert Mode: TMC events are received by the Magellan RoadMate for informational purposes.

Chapter 9: Integrated Magellan Traffic

Re-routing Mode: This mode will reroute the vehicle if a TMC event impacts the route and a faster alternative route is available.

9.2 Understanding How The TrafficKit Works

Please read the following statements before using the TrafficKit.

1. You can enable and disable TMC event categories. By default, all categories are enabled.

2. Selected TMC events will either alert and/or re-route you depending on the operating mode.

3. All selected event categories will be displayed on the map screen in the form of traffic event icons.

4. If you are not routing to a destination, the RDS function will only display TMC events on the map screen.

9.2.1 RDS-TMC Operating Modes

In the Magellan RoadMate, TMC events that impact your route can be processed in one of the following two modes: + __Re-routing Mode. (Default) TMC events affecting your route will trigger the Magellan RoadMate to automatically calculate a new route, if a faster alternative route is available. + __ Alert Mode. You will receive reports on TMC events affecting your route in the form of warning messages on the Magellan RoadMate screen. How to set and use these two operating modes is discussed in the next chapters.

9.2.2 Selecting Categories of TMC Events

You may choose the TMC event categories you would like to be informed of as they occur:

1. Access the Navigation Options.

2. Scroll down the list and select TMC Options.

3. Select Incident Options.

4. In the displayed list, check all categories of TMC events (incidents) that you would like the Magellan RoadMate

to process and deselect events that are of no interest. Use the Down button to scroll to the bottom of the list. For optimum routing Magellan recommends that you leave all of the boxes checked. The existing categories of TMC events are listed at the beginning of this manual in IEEE the Glossary. Checking an option in this list implies that: + __ The Magellan RoadMate's map screen will show ALL of the received events pertaining to this category at their respective locations. + Any event from this category that occurs along the route will trigger the calculation of an alternative route if the Magellan RoadMate decides that the alternative route is faster.

5. Select the Save button to confirm all of your choices.

9.2.3 Re-routing Mode

Setting the Re-routing Mode Access the Navigation Options. Scroll down the list and select TMC Options Select TMC Selection. Unless you have already done so, check the TMC Active option Check the Use Alternative route option (see Diagram 5 below). Note that this causes the button just underneath to be renamed “Reroute option”. HBwRE

Chapter 9: Integrated Magellan Traffic

6. Select the Reroute Option button on the screen. À new screen appears on which you can set the distance from the

event that will trigger the alternative route calculation (see Diagram 6). © Dist to event < 10 mi Check one of the following options:

• Live Alert: With this option checked, the Magellan RoadMate will search for a faster alternative route whenever a TMC event occurs on your current route. This will happen when information about the event is received, regardless of your distance from the event. + Dist. to event <40 mi: With this option checked, the Magellan RoadMate will re-route you only if the distance to this TMC event is less than 40 miles from your current location (not a point-to-point distance but the distance of the route). + Dist. to event <20 miles: Same as above for a distance of 20 miles. + Dist. to event < 10 miles: Same as above for a distance of 10 miles.

7. Select Save to confirm your choice and then Save again to return to your guidance screen.

9.2.4 Travelling with the Re-routing Mode On

When you use your Magellan RoadMate in Re-routing Mode, the following will occur whenever à TMC event that affects your route is received: + The Magellan RoadMate will analyse the impact that this event will have on your route. + A “Re-calculating the route” message will pop up on the Magellan RoadMate screen, along with the reason for the re-calculation. + Once the Magellan RoadMate has calculated an alternative route, it will compare the alternative route with the original route and decide on the best route to follow, taking time and distance into consideration. + __Ifthe original route is still the best one to follow, the route will be unchanged and the time portion of the status bar will be updated to reflect the delay. In this case, you will see the event in the manoeuvre list when you get closer to it. + __Ifthe alternative route is the best route to follow, the Magellan RoadMate will start guiding you along this route. + __ The map screen will also show road signs corresponding to TMC events, including those not affecting the route. + Events that affect your route will also appear as road signs in the manoeuvre list.

9.2.5 Alert Only Mode

Setting the Alert Mode. This mode will not provide you with new routing information, it will only alert you to the event. (Magellan recommends that you keep both incident Options checked.)

1. Access the Navigation Options.

2. Scroll down the list and select TMC Options

3. Select TMC Selection.

4 Unless you have already done so, check the TMC Active option and make sure that the Use alternative route option is deselected (see screen 4. below).

5. Select the Alert Options button on the screen. À new screen appears on which you can set the options relevant to

the Alert mode (see 5. below)

Chapter 9: Integrated Magellan Traffic

lection El mc active Ale Options I Rominder at 40 mi EX Romindor at 10 mi Use alternative route minder at 20 mi Check one or more of the following options:

• Live Alert: When checked, the Magellan RoadMate will inform you of a traffic event located along your route as soon as it is detected. + Reminder at 40 mi: If you check this option, the Magellan RoadMate will remind you of the traffic event that it received earlier. The message will appear when this event, located somewhere along your route, is 40 miles away from your current location (not a point-to-point distance but the distance of the route). + Reminder at 20 mi: Same as above but the distance from the event is only 20 miles + Reminder at 10 mi: Same as above but the distance from the event is only 10 miles

6. Select Save to validate your choices and then return to your usual guidance screen.

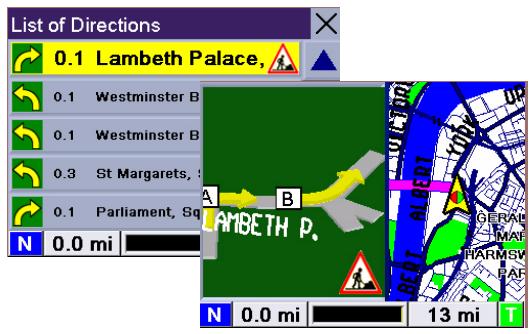

9.2.6 Travelling with the Alert Mode On

When you use the TrafficKit in the Alert Mode, the following will occur when new TMC events are received: + If an event affects your route, a warning message will appear on the screen at a time or distance defined in the Alert Options menu (step 5, page 73). + __If you do not acknowledge the message by pressing the ENTER button, it will automatically disappear after 10 seconds. Additional warning messages, if any, will appear in turn on the screen. + Events that affect your route will also appear as road signs in the manoeuvre list and in the lower part of the True View screen. See examples below: + __ The map screen will show road signs corresponding to the TMC events, including those which do not affect the route. You can obtain detailed information on any event by selecting the icon on the map screen. A dialogue box will open containing a description of the event.

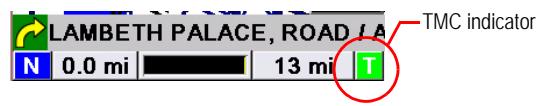

The RDS-TMC function is shown in the status bar (bottom right of the screen): TMC indicator

The background colour of the TMC indicator should be interpreted as follows:

Chapter 9: Integrated Magellan Traffic

Red: Seeking TMC station. Yellow: TMC Station found, no TMC message received. Green: TMC Station found, TMC messages received. How To Disable the RDS When you do not want to use the RDS function:

When the RDS function is off, the Magellan RoadMate ignores all incoming TMC messages. Access the Navigation Options. Scroll down the list and select TMC Options Select TMC Selection. Deselect the TMC Active box Click Save to confirm your choice.

Q1- How does the Magellan RoadMate module choose the frequency on which to receive TMC data? TMC Selection alternative route Alert Options Press ENTER or ARROW Keys R1: This is an automated procedure. When you turn on the system, the Traffic module analyses the 5 best frequencies stored in its memory. These frequencies are classified in order of signal strength. The module then tests to see if TMC data is available on the first station. If the first station is sending TMC messages, the module will stay on that frequency, otherwise it will test the next one until it finds a station that delivers TMC data. If none of the 5 frequencies can be used, the TrafficKit module will start scanning the entire FM band. It will search for the best five frequencies on which TMC data is available and will tune in to the strongest station. These five best frequencies will be saved in the memory to be used the next time the system is powered up. @Q2- Why do we have to wait between 2 and 5 minutes before the RDS module starts delivering RDS data the first time we use it? R2: This is the average time for the module to test all the possible frequencies on the FM band and choose the best one in terms of signal level and TMC data availability/quality.

Chapter 10: Bluetooth

The Dialer program is an important feature of the Magellan RoadMate 6000T that allows you to use it as a hands-free device for a Bluetooth enabled mobile phone. You can answer and dial your phone using the touchscreen on the Magellan RoadMate.

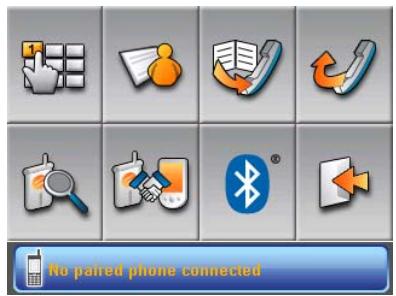

10.1.2 Main Interface

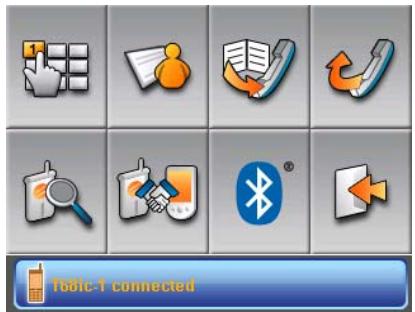

The Magellan Bluetooth Main Screen is as shown:

If this is the first time the feature has been used and no mobile phone is paired or connected, the system will automatically switch to “Pair Mode” and wait for you to pair your mobile phone.

10.1.3.1 The firsttime itis used, the pairing window will pop up. Ifitis notthe first time

O51r275. it has been used, you will need to click on the Bluetooth Manager Menu. Notes: The pairing mode can be cancelled by clicking x completed within 1 minute. in the pairing window. Pairing will fail if the process cannot be

10.1.3.2 (To pair your mobile phone, please consult the user manual for your mobile

Chapter 10: Bluetooth

10.1.3.3 After you have entered the passkey into your mobile phone (you can enter any combination of numbers but we

recommend 0000), a passkey entry window will pop up on your Magellan RoadMate. You need to enter the same numbers into this pop-up window as you entered into your mobile phone.

10.1.4 Establish Connection

There are two ways to establish connection with the Bluetooth wireless technology enabled mobile phone.

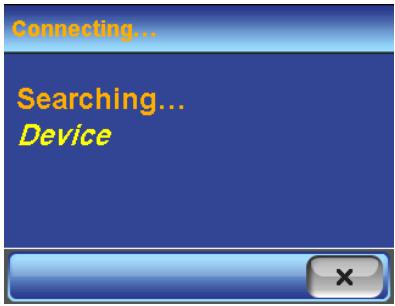

Tap & in the main interface to search and connect your paired mobile phone.

< The searching mode can be cancelled by clicking in the connecting window. - If your mobile phone doesn't support “Hands-free” service and just supports the “Headset” service, you needn't connect. If you dial a number from your mobile phone or receive an incoming call the “Headset” service will connect automatically. The main interface will display a "xx connected, partial function supported only" status message, and the button and

10.1.4.2 The other connection method

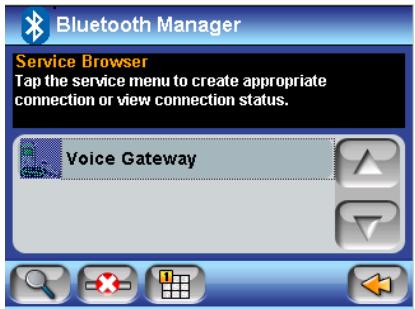

will be greyed out as You can run the Bluetooth Manager by tapping the “ Bluetooth" icon in the main interface. F 3 Bluetooth Manager, Click button to enter the “Bluetooth Manager” Window. Erables communication between Bluetooth devices. Em sorts FA

Chapter 10: Bluetooth

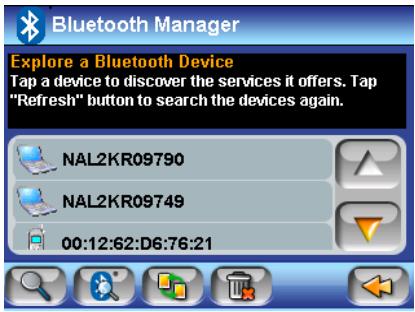

à \Bluetooth.Manager Click to explore the Bluetooth wireless technology enabled mobile phone. Tap a device to discover the services it offers. Tap Rerresh” button to Search 1ne devices again. € à iBluetoothManager Select a mobile phone, click to see the services that the mobile phone provides. Tan the service menu to create appropriate connection or Mew Connection StAUS, Select Hands-free Service, and Click E connect using the hands-free mobile phone. À passkey entry window will pop up in your mobile phone if you haven't paired your mobile phone with the Magellan RoadMate before. You only need to enter 4 passkey numbers to pair with the Magellan RoadMate. After you have entered the passkey into your mobile phone, a passkey entry window will iBluetoothManager be displayed on your Magellan RoadMate. You need to enter the same numbers that you Tapthe service menu to create appropriate entered into your mobile phone. onmection or Mes Gonnectio Status, Tap the E icon to return to the main interface once the connection has been established.

Chapter 10: Bluetooth

Note: If your mobile phone doesn't support the “Hands-free” service but just supports the “Headset” service, you simply need to select your mobile phone from the device list, tap [Es] to pair with your mobile phone, and there is no need to connect. If you dial a number from your mobile phone or receive an incoming call the “Headset” service will connect automatically. The main interface will display a "xx connected, partial function supported only" status message, and the button E G Ÿ and CM be greyed out as E dr] ÿ ©

You can make calls once the “Hands-free” service has connected successfully. Four methods are available:

To place a call via Keypads, tap and the keypads window will pop up. + _ You can enter 13 characters: “0-9”, “ * "and “#” with the buttons in the key- pads. Input “+" by pressing the “ + ” for about 1 second. ° Youcantap Le ] to delete the phone number you have entered. Press the button for about half a second and the entire row will be deleted. + Once you have entered the phone number you want to dial, tap 7 to make the call.

10.1.5.2 Place a call via Contacts

If you have stored your contacts’ information in “Contacts”, you can make the call via “Contacts”. There are two ways to use the “Contacts” to place a call: ° Tap s in the main interface. ° Tap E in the “Keypads” window. °__ Use the “Alphabetical index” to find a contact. ° Tap ms and Mal to move up and down to find a contact. °_ Choose a contact and tap the number of the contact to make the call.

Chapter 10: Bluetooth

10.1.5.3 Place a call via Call History

The “Call History” window displays a list of Incoming / Outgoing / Missed calls. There are two ways to use the “Call History” to make a call: ° Tap in the Bluetooth Manager. ° Tap in the “Keypads” window. ° Tap DE to check the incoming calls history. ° Tap EX to check the outgoing calls history. + Tap Æ 7 to check the missed calls history.> ° Tap ms and Ml to move up and move down to find a record. ° Tap LT] to delete a record selected. ° Tap [au to delete all records in the page. ° Tap CE to save a caller's information to “Contacts”. ° Tap = to call back.

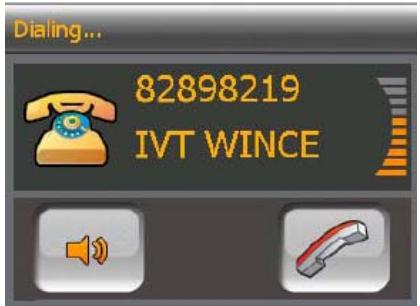

You can redial the most recent incoming or outgoing phone number by tapping the Bluetooth Manager menu. Note: If there is no call history, the button will be shown as 7 in the Bluetooth Manager menu.

After tapping the dialling window will pop up: ° Tap EF to cancel the call. ° Tap 2 to mute the waiting ring before the call is received. *_ After tapping the mute button, it will show as &. tap it to cancel mute. ° Tap (EPA minimise the window as an icon in front of other windows.

Chapter 10: Bluetooth

10.1.5.5 Failed Call

If a call fails due to network problems or other unknown reasons, the “Dialling Failed” window will pop up: . Tap FX to redial. ° Tap x to cancel dialling.

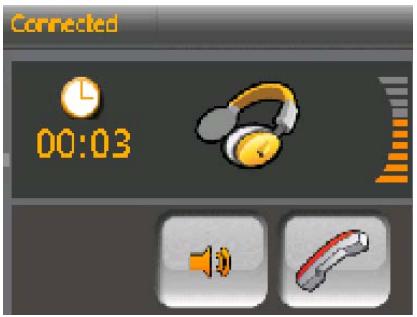

10.1.5.6 Call Connected

If a call connects, the “Connected” window will pop up: ° Tap #E to pop up keypads to enter the extension after you are connected. ° Tap el to transfer the call to your mobile phone. ° Tap w[ to transfer the call back to your Magellan RoadMate after you have transferred the call to your mobile phone. Note: Some mobile phones don't support cycled transfer, so in this case, you need to transfer the call back to your Magellan RoadMate from your mobile phone if you have transferred the call to your mobile phone before. ° Tap 7 to mute the microphone in your Magellan RoadMate. + After tapping the mute button, it will show as &. tap it to cancel mute. ° Tap F to finish the call. Note: If the mobile phone that has been paired with the Magellan RoadMate does not support the Hands-free service and only supports the Headset service, when you make a call from that mobile phone the connected window will be displayed: ° Tap & to mute the microphone in your Magellan RoadMate. + After tapping the mute button, it will show as æ. tap it to cancel mute. ° Tap EE ana (E) to increase and decrease the call volume. ° Tap F to end the call.

Chapter 10: Bluetooth

10.1.6 Incoming call

When there is an incoming call, the “Incoming Call” window will pop up: ° Tap DS to pick up the incoming call. ° Tap a to mute the incoming call ring. °__ After tapping the mute button, it will show asx@%æn, tap it to cancel mute. ° Tap Æ to reject the incoming call. Note: If the mobile phone that has been paired with the Magellan RoadMate does not support the Hands-free service and only supports the Headset service, the “Incoming Call” window will be displayed differently. ° Tap to pick up the incoming call. ° Tap 7 to mute the incoming call ring. *_ After tapping the mute button, it will show as: , tap it to cancel mute. After tapping >, the “Connected” window will pop up: ° Tap el to transfer the call to your mobile phone. ° Tap #[] to transfer the call back to your Magellan RoadMate after you have transferred the call to your mobile phone. Note: Some mobile phones don't support cycled transfer, in this case, you need to transfer the call back to your Magellan RoadMate from your mobile phone if you have transferred the call to your mobile phone before. ° Tap 4: to mute the microphone in your Magellan RoadMate. + After tapping the mute button, it will show ask, tap it to cancel mute. ° Tap æ to hang up.

You can tap in the main interface to exit the Magellan RoadMate Dialer. Actually it is still running in background.

Chapter 10: Bluetooth

10.2 How to use Bluetooth Settings

10.2.0.2 Tap : to enter the “Bluetooth Settings” window:

lagelan Roaditate SOCOT 00: 140: in the Bluetooth Manager window. MOther devices can discover me llow other devices to connect: + _ Select the white box in front of “Other devices can discover me” so that other devices can discover your Magellan RoadMate. + _ Select the white box in front of “Allow other devices to connect” so that other devices can connect to your Magellan RoadMate. sn? 1%

10.2.0.3 Tap the name area, the “Device Name” change window will pop up. «- sein RoadMate 60007.

10.2.0.4 Input the new device name you want to change to, and tap ok to verify or bÉAEUT

If you would like to turn off Bluetooth, take the following steps.

10.3.0.1 Tap [+4 to switch off Bluetooth and return to the main interface.

Note: If your Magellan RoadMate is connected to other devices via Bluetooth, or other devices are connected to your Magellan RoadMate via Bluetooth, you need to disable the connection first; otherwise you will not be able to switch off Bluetooth.

Chapter 11: System Settings

The System Settings Menu contains system wide customisation features which include: Brightness, Power Management, Password, and Language. To access these features, press the MENU key on the Magellan RoadMate 6000T and select System Settings.

To change how light the screen appears, select Brightness. Use the right arrow to make the screen appear lighter, and use the left arrow make the screen appear darker. With On-battery dimming enabled, the screen will decrease in brightness by 20% to save some battery power. When you have finished, select OK to confirm or select ESC to cancel changes.

11.2 Power Management

The Power Management features enable you to customise the features that will conserve Power Management battery power and display life. Select Power Management. Auto Power Of Oo @ 10Minutes Select the time period to put the Magellan RoadMate 6000T in “sleep” mode. @ 20 Minutes @ 30 Minutes Auto Screen Off (MP: Select to enable or disable turning the screen off when music is being played. © Enabled @ Disabied When you have finished, select OK to confirm or select ESC to cancel changes.

You can protect the Magellan RoadMate 6000T form unwanted use by enabling a password. Select Password. Select Set Password to enter a password. Use the keypad to enter the desired password. When you have finished, select OK. Re-enter the password to confirm. Use the keypad to re-enter the password exactly as you entered it the first time. When you have finished, select OK. Select OK to activate the password. To return to the System Settings menu without setting the password, select ESC. Once the password is enabled, you will be required to enter it when the Magellan RoadMate 6000T is turned on or when it wakes up from “sleep” mode.

Chapter 11: System Settings

11.3.2 Change Password

Select Change Password. Use the keypad to enter the desired password. When you have finished, select OK. Re-enter the password to confirm. Use the keypad to re-enter the password exactly as you entered it the first time. When you have finished, select OK. Select OK to activate the password. To return to the System Settings menu without setting the password, select ESC. Once the password is enabled, you will be required to enter it when the Magellan RoadMate 6000T is turned on or when it wakes up from “sleep” mode.

11.3.3 Delete Password

Select Delete Password and use the keyboard to enter the password. A dialogue box will appear asking you to confirm your selection. Select Yes.

To change the language for the menu text and voice prompts for navigation, select ET Language. [Deutsch | Cire Select the desired language. À dialogue box will appear asking you to confirm your [English Nors | selection. Select Yes. [ Portuguese | [Español | The Magellan RoadMate 6000T will restart itself with the new language enabled. | Svenska |

The System Status menu give you further options to check the performance of your Magellan RoadMate 6000T.

12.1 Product Information

Select Product Information to show the current application software versions. [Product Information Also, the current hardware and firmware versions will be displayed. Model name=RoadMate Model number=3000T

Select User Storage to display the available space of the memory card if it is installed. [User Storage Storage Card : 7.55 ME 1968.25 MB

The Audio Test will check the performance of the built-in speaker. —————|

12.3.2 Touchscreen Test

The Touchscreen test will enable you to re-calibrate the touchscreen should it not be tracking properly.

The Keypad test will determine if the buttons on the Magellan RoadMate 6000T are functioning.

The Video test will check to see if the screen is displaying colours properly.

If you experience problems using your Magellan RoadMate 6000T, you can contact us onthe FIXES numbers indicated. magellangps.com

Chapter 13: Magellan RoadMate Tools Installation

The Magellan RoadMate Tools application enables you to create custom POIs and load them onto your Magellan RoadMate 6000T. Additionally, you can load pictures and music onto an SD or MMC card (sold separately) to view or play any time. See “Using Removable Memory Cards” on page 9.

13.1 Installing the Software

Insert the Magellan RoadMate Tools PC Application CD into your PC's CD drive. The setup application will begin automatically. If it doesn't, browse your computer's CD drive and double-click on the setup.exe file. Select a default language for the Application. Select the language for this installation from the choices below. The Welcome screen will appear to begin the installation process. ‘Welcome te the InatalShield Wizard for Magolon RoadMate Tode Choose a destination for the application. Select Next to use the default haha ar real agaln Pod

location, or select Browse to choose a custom destination. oobonsqur canpu To cor, Next, choose a Programme Folder in which to place the application icons. “Bt Cane The Magellan RoadMate Tools software will be installed. After it has finished [statshicté vicord installing, a dialogue box pertaining to Microsoft Digital Signatures may appear, | "#5 select OK. Magaan onde Tale Se proie qui pesto. When it has finished, you can allow the installer to launch the application automatically, or deselect to exit without launching the application. Select Finish. [|

Chapter 14: Magellan RoadMate Music Manager

The Magellan RoadMate Music Manager enables you to transfer song files in MP3 or WMA format from your computer to an optional memory card (see “Using Removable Memory Cards” on page 9) installed in your Magellan RoadMate 6000T. The amount of music you can load depends on the size of the card. Insert the memory card into the memory card slot as shown page 9. Turn on your Magellan RoadMate 6000T by pressing and holding the Power button for approximately 2-3 seconds if in sleep mode. (Ten seconds if not in sleep mode.) When the Warning screen appears, insert the small end of the USB cable into the USB port on your Magellan RoadMate 6000T and the large end into an available USB port on your computer. Launch the Magellan RoadMate Tools application. From the Magellan RoadMate Tools screen, click on Music. MAGELLAN, Magellan RoadMate Tools The left side of the window shows the contents of your computer and the right side of the window shows the contents of the memory card installed in your Magellan RoadMate 60007. op, C0 Locate the song files you wish to load. When you have selected a file, the Transfer arrow will turn green. Click on the Transfer & arrow to copy the file(s) to the memory card. In the same way, if you have loaded song files onto a memory card from another computer, you can copy the files from the memory card to your computer. When you have finished copying files, remove the USB cable from the Magellan RoadMate 6000T.

Chapter 15: Music Player

The Magellan RoadMate 60007 Music Player enables you to play music files in MP3, or WMA format, stored on an optional memory card installed in your Magellan RoadMate 60001. If you have not already done so, you must install the Magellan RoadMate Tools application (page 88) and transfer files onto the card using the Magellan RoadMate Music Manager (page 89). You can also use a memory card that has been preloaded from a card reader. Press the MENU key on the Magellan RoadMate 6000T (see page 5) and select the Music Player da The Music Player control pad will appear. 99 Lun Baioone … Horma

15.1 Single Song Play

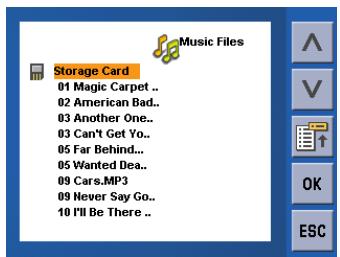

Select Browse Music Use the Navigation key or the Down arrow to select the song file you wish to play and mu ge press OK. APDe ere The song will begin playing automatically. At the top of the screen the name of the song, the artist (if available), the selected play mode, the elapsed time, and the song duration is displayed . Press the Play/Pause button to suspend song play. To resume song play, press the Play/Pause button again. Press the Stop button to stop song play. Once a song has been stopped, pressing the Play/Pause button will start the song from the beginning.

15.2 Multiple Song Play

Multiple song play enables you to create a “playlist”. À playlist consists of one or more songs in a group that can be played continuously.

Chapter 15: Music Player

Select Playlist The Playlist menu will appear. To exit from the playlist menu, select ESC.

To hear a previously created playlist, select Play. Use the Up or Down arrow to select the desired playlist. Select OK. The songs will begin playing automatically in order.

To make a new playlist, select Create. Use the backspace key (<-) to erase the default name and the keypad to enter a new name for your playlist. When you have finished, select OK. The next screen to appear shows the song files stored on the memory card on the left side, and the playlist on the right side. Use the arrow buttons on the left side of the screen to highlight the Music folder and then, select List Files. Use the arrow buttons to highlight the song files you wish to add to the playlist. Select Add to Playlist (right arrow) to add the highlighted song to the playlist. Continue adding files to the playlist. When you have finished, select OK.

Modify enables you to add or remove songs from the selected playlist. Select Modify. To remove a song from the playlist, use the arrow keys on the right side of the screen to highlight the desired song and then select Remove From Playlist (left arrow). Use the arrow buttons on the left side of the screen to highlight the song files you wish to add to the playlist. Select Add to Playlist (right arrow) to add the highlighted song to the playlist. Continue adding files to the playlist. When you have finished, select OK.

To remove a playlist, select Delete. Select the playlist you wish to delete and select OK. A dialogue box will appear asking to confirm your selection. Select Yes to delete the playlist.

Chapter 15: Music Player

If you want to change the name of a playlist, select Rename. Select the playlist you wish to rename and then, select OK. Use the backspace key (<-) to erase the name and the keypad to enter a new name for your playlist. When you have finished, select OK.

While in single song play, select Play Mode for song play options. Repeat All - Repeats all the songs in the current playlist starting at the beginning of the order. This function works only if there are two or more songs in the playlist. Repeat - repeats the song that is currently playing. Preview - Plays the first five seconds of each song in the current playlist. Normal - Plays all songs in the current playlist in order. Random - Plays the songs in the current playlist in random order.

Select List Songs to view the current playlist.

Chapter 15: Music Player

The Equaliser provides advanced sound options so you can customise the quality of the playback. The equaliser will only be available for MP3 format sound files. Select an equaliser preset from the following pre-configured options: Default (flat), Jazz, Classical, Rock, Techno, Dance Hall, Live, Full Bass, Full Treble, and Full Bass & Treble. You are not however able to manually set the equaliser. Select the Equaliser or Select the equaliser preset by pressing the button at the top of the screen . When you are satisfied with your selection, select OK. To exit without setting the equaliser, select ESC.

Select Help for descriptions of the Music Player buttons.

Chapter 16: Magellan RoadMate Photo Manager

The Magellan RoadMate Photo Manager enables you to transfer image files in multiple formats from your computer to an optional memory card (see “Using Removable Memory Cards” on page 9) installed in your Magellan RoadMate 6000T. The number of images you can load depends on the size of the card. You can also use a memory card that has had images preloaded using a card reader. Insert the memory card into the memory card slot as shown page 9. Turn on your Magellan RoadMate 6000T by pressing and holding the Power button for approximately 2-3 seconds (Ten seconds if the Magellan RoadMate 6000T is not in sleep mode.) When the Warning screen appears, insert the small end of the USB cable into the USB port on your Magellan RoadMate 6000T, and the large end into an available USB port on your computer. Launch the Magellan RoadMate Tools application. From the Magellan RoadMate Tools screen, click on Photo. Magellan RoadMate Tools The left side of the window shows the contents of your computer and the right side of the window shows the contents of the memory card installed in your Magellan RoadMate 6000T. Locate the image files you wish to load. When you have selected a file, the Transfer arrow will turn green. Click on the Transfer # arrow to copy the file(s) to the memory card. In the same way, if you have loaded image files onto a memory card from another computer, you can copy the files from the card to your computer. When you have finished copying files, remove the USB cable from the Magellan RoadMate 6000T.

Chapter 17: Photo Viewer

The Magellan RoadMate Photo Viewer enables you to view image files in JPG and BMP format, stored on an optional memory card installed in your Magellan RoadMate 6000T. If you have not already done so, you must install the Magellan RoadMate Tools application (page 88) and transfer files onto the card using the Magellan RoadMate Photo Manager (page 89). Press the MENU key on the Magellan RoadMate 6000T (see page 5). Select the Photo Viewer £ The Photo Viewer screen will appear. The Photo viewer will show the contents of the SD or MMC card installed in your Magellan RoadMate 6000T.

17.1 View Single Photo

The next screen to appear shows the file structure of the memory card. Select List Files ‘È Use the Navigation key or the Down arrow | to highlight the photo you wish to view and EH res are ER >| fe cac Res me saunas Des 3 kS ti cacouse ges cote [l en sauce LREG ke select View. (en suroosn Per While viewing the image, double clicking on the image (by tapping twice on the screen) will show the image in full screen. You can then browse through the images by pressing left or right on the Navigation key.

17.1.1 Previous Image (left arrow)

Press the right arrow button to view the previous image in the folder. This button is greyed out (not functional) when viewing the first image in the folder.

Press the Zoom button to reduce or enlarge the current photo. The top of the zoom menu shows the current zoom level. Select another zoom level from the list of presets. Select Best Fit to adjust the zoom to fit within the display boundaries; select Actual Size to display the image at 100%; select 25% to 150% to reduce or enlarge the image to the preset level.

Chapter 17: Photo Viewer

Press the Slideshow button to browse through all the photos in the Pictures folder automatically.

If you enlarge an image beyond the screen boundaries, press the Pan button to enable image scrolling. While enabled, you can drag the image in any direction to view other areas of the image. Press the Pan button again to disable Pan mode.

17.1.6 Next Image (right arrow)

Press the right arrow button to view the next image in the folder. This button is greyed out (not functional) when viewing the last image in the folder.

Press ESC to return to the folder list.

Press List view to show the files in a hierarchical list view.

Press Thumbnail to show the files as thumbnails.

To change the name of the selected file or folder, press Rename. Use the backspace key (<-) to erase the name; and the keypad to enter a new name for your file. When you have finished, select OK.

Chapter 17: Photo Viewer

To view information on the selected file or folder, press Properties. À thumbnail of the image will be displayed along with the width and height in pixels, the size, and the format (image type). When viewing the properties for folders, width, height, and format are not shown. Size shown is the combined size of all images in the selected folder. When you are finished viewing the properties, select OK.

General - In General preferences, you can set the default file view to either thumbnail or file is re list view. Slideshow — The slideshow preferences enable you to set the view properties, the sequence of photos, the transition between photos, and the duration between photos. Background - The background preferences enable you to set the colour of the background behind the photo being viewed.

Use the arrow keys to select the file or folder you wish to delete. Press the Delete button (trash can). A dialogue box will appear asking to confirm your selection. Select Yes to delete the file.

This option will display the current version of the Photo Viewer software.

Chapter 18: Magellan RoadMate POI Manager

The Magellan RoadMate POI Manager enables you to transfer custom points of interest files from your computer to your Magellan RoadMate 60007. Before we add any custom POIs to the Magellan RoadMate 6000T, you should understand how the POI Manager plots POIs.

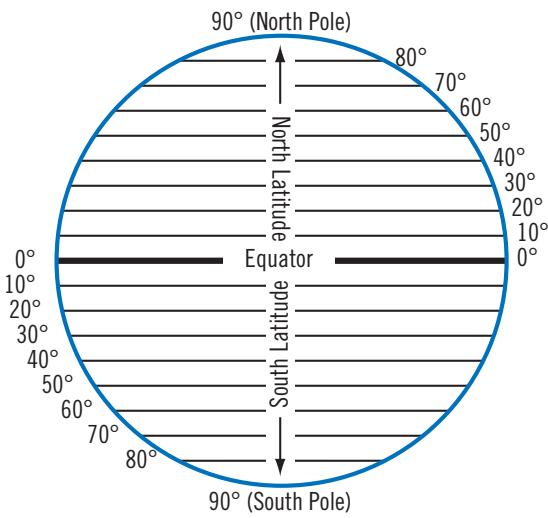

Latitude can be expressed by dividing Earth into horizontal segments totaling 180 degrees. Starting at the Equator, or zero degrees Latitude, lines (or Parallels) are drawn in 10-degree increments 90 degrees to the north and 90 degrees to the south. If your location is below the Equator, you are at a South Latitude.

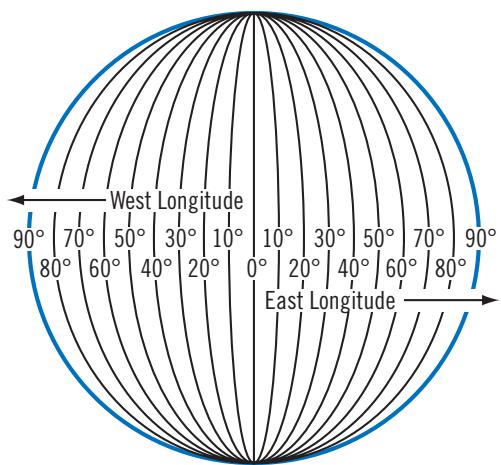

Conversely, longitude lines can be expressed by dividing Earth into vertical segments totaling 360 degrees. Starting at the Prime Meridian (which is The Royal Observatory in Greenwich, England), or zero degrees Longitude, lines are drawn in 10-degree increments 180 degrees to the West and 180 degrees to the East. If your location is on the western hemisphere, you are at a West Longitude. Additionally, to narrow down your location further, each 10-degree segment is divided into 60 smaller segments called minutes and, still further, each minute is divided into 60 segments called seconds. To express this in coordinates, the town of Los Angeles is located at 34° (degrees) 03’ (minutes) and 08 (seconds) North of the Equator and 118° (degrees) 14’ (minutes) and 42 (seconds) West of the Prime Meridian.

Chapter 18: Magellan RoadMate POI Manager

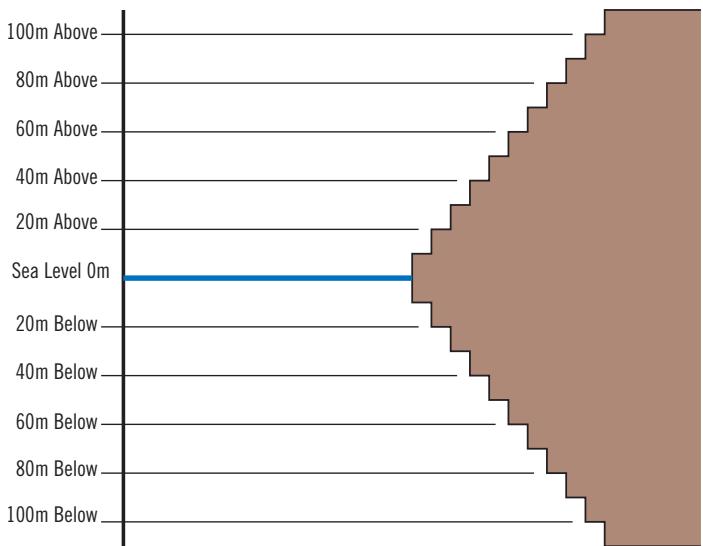

Each location can also have an Altitude. Altitude is expressed by how far the point is above or below the level of the ocean, or 100m Above Sea Level. For example, Los Angeles, California is about 300 80m Above feet above sea level. Death Valley, California is about 270 feet below sea level. 60m Above —| 40m Above —| 20m Above _ | Sea Level Om 20m Below — 40m Below —| 60m Below —| 80m Below: 100m Below Turn on your Magellan RoadMate 6000T by pressing and holding the Power button for approximately 2-3 seconds, 10 seconds if not in sleep mode (see “Top View” on page 6). When the Warning screen appears, insert the small end of the USB cable into the USB port on your Magellan RoadMate 60007, and the large end into an available USB port on your computer. Launch the Magellan RoadMate Tools application. From the Magellan RoadMate Tools screen, click on POIs. Magellan RoadMate Tools The left side of the window shows the contents of your computer and the right side of the window shows the contents of the Magellan RoadMate 60007.

18.4 Opening a POI File

When you start the POI Manager the contents of your “My POIs” folder will be displayed. This is the default location for storing custom POI files.

Chapter 18: Magellan RoadMate POI Manager

Locate the POI files you wish to load. When you have selected a file, the Copy To Unit arrow will turn green. Click on the arrow to copy the file to your Magellan RoadMate 6000T. Magellan RoadMate POI Manager When you have finished copying files, remove the USB cable from the Magellan RoadMate 6000T.

18.5 Creating a New POI File

There are two ways to create a POI file. You can either add POIs individually, or you can import a character delimited file containing the information need to plot the POIs. To plot a POI, each item must have a name, longitude, and latitude. Longitude and latitude must be in decimal format.

18.6 Adding Individual POIs

Click on the New POI File Button to launch the POI Editor. Click on the Add button + . Enter the Name, the Latitude, and the Longitude. The Altitude and Description fields are optional.

Chapter 18: Magellan RoadMate POI Manager

Select the Category field and select New. A dialogue box will appear to create a new POI category. Enter the Name and assign an Image (icon) for the POI. The Description field is optional. The Alert feature is an audible alarm that lets you know when you are within a certain distance from the POI. You can set an initial reminder (Distance 1), a secondary reminder (Distance 2). Distance 1 Distance 2 Select your preferred unit of measurement (Metres or Feet). The Detection angle sets the range of alert in degrees from the POI. Select Activate alert for this category to enable the alert settings. When you have finished, select OK.

Chapter 18: Magellan RoadMate POI Manager

18.7 Importing a Data File

The POI Manager software supports ASCII file format (.ASC,.CSV,.TXT); GPS Exchange file format (.GPS,.XML); Magellan Waypoint file format (.WPT,.RTE); and Garmin PCX5 Waypoint file format (.WPT,.RTE). Click on the Open button (sr) : Select the file you wish to import and click Open. Start by choosing which line in the data file to start importing data. If your data file has a header row, this row will generate an error so you should start at line two or below. Next, choose how the data is separated and click on Next. You now need to define the data columns. Click on the pull down menu and assign a field name to the appropriate column. Click on Finish. Click on The Save POI file button. Assign a name to your file and click on Save. Close the POI File Editor. Select the POI file you have just created and click on the transfer button (right arrow) to upload the file to your Magellan RoadMate 6000T. See page 59 for information on accessing custom POIs on your Magellan RoadMate 6000T.

Appendix POI Categories The Magellan RoadMate 6000T POI database has 25 different categories. The icons will appear on the Map screen (if enabled): O Restaurant Fast food, café-restaurants and supermarkets B Petrol Station Most fuel services [H] Hospital/Health clinic Most medical services & Vehicle Services Repair shops, tyre shops and oil changes S& Airport International and Municipal airports & Car Rental Car rental companies LEE Casino Gambling venues e Town Centre The geographical centre of a selected town l%_ | Convention Centre Major Convention Centres EX Education Reno, colles, and other learning | Entertainment Cinemas, live performance venues & Golf Course Private and public courses rs Hotel or Motel Most overnight stay locations L Marina Docks and harbours Ÿ Nightlife Dance halls, pubs, nightclubs P] Open Parking Area Car parks and garages % Parks County, regional, and local parks ñ Public Buildings Libraries, museums, and government buildings äl Rest Area Rest stops along major highways Cl Shopping Shopping centres and other retail stores + Ski Resorts Most major ski resorts Es Sports & Recreation Stadiums, parks, lakes (ro) Tourist Attraction Most popular tourist spots [ail Transportation Bus and train stations év Vineyard Vineyards and tasting locations When selecting restaurants, you can further narrow the search by cuisine type, such as French, Italian, Greek, Mexican, etc.

Specifications Dimensions: Weight: Display: Screen Resolution: Accepted Card Media: Audio: GPS Aerial: Battery: USB Interface: Operating Temperature: Storage Temperature: Humidity: PC Requirements 128 MB RAM USB Port Appendix 3.8" x 4.8" x 1.4" 9.6cm x 12.2cm x 3.5cm

2458g 3.5" color touch screen display, 2.11" x 2.81” (53.64mm x 71.52mm) 320 x 240 QVGA; 64,000 colours Secure Digital (SD) or Multimedia Card (MMC) Integrated Speaker with integrated stereo headphone jack Integrated with optional external aerial connection 2100maA LI-ION

30 VELOCITY_2D_ONLY 2? satellite fix only for velocity, no position fix 31 BAD_VELOCITY_PDOP 50 too big pdop for velocity 32 TOO_MANY_SATS_FOR_2D_VEL there are 4 or more satellites, but 2D fix provided 51 WRONG_NUMSAT number of satellite for fix > 12 or less 2 56 LOOP_3D_NOT_CONVERGING 3D initial fix is not convergent 57 MILLISECOND_ERROR millisecond jump happened 58 LOOP_2D_NOT_CONVERGING 2D initial fix is not convergent 59 BAD_RANGE_CHITEST; range post-fix residuals chi-test failed 60 BAD_DOPPLER_CHITEST doppler post-fix residuals chi-test failed 610SC_DRIFT_ERR too much clock drift 60HZ for XO, 7.5HZ for TCXO 62 BAD_DOPPLER_ERR too big Doppler errors 4m/s 63 BIG_RANGE_RESID 110m/40m depend on virtual ttagl/ DGPS factors 64 BIG_DOPPLER_RESID 0.7m/s 65 HUGE_RANGE_RESID 10km normal for postfit residuals for range 66 HUGE_DOPPLER_RESID 100m/s normal for postfit residuals for doppler Usually, Bad code is 20 and 23. If fix is good, it would be 0. GPS Status Screen Structure - second page Heading XXX (degree) Speeding XX.X (metre per second) Current Lat: DDD.DDDDD W/E (current latitude, degree) Current Long: DDD.DDDDD N/S (current longitude, degree) Current altitude XXXX (altitude in mean sea level metre) TTFF XXXXs (Time-To-First-Fix in second) #Satellite (U/T) XX/XX (the number of satellite used and tracked) PDOP XX.X (Position Dilution Of Precision) VDOP XXX (Vertical Dilution of Precision) TDOP XX.X (Time Dilution of Precision) HDOP XXX (Horizontal Dilution of Precision) FOMS P/V/H (Figures Of Merits for position, velocity and heading in map matching) UTC TIME MM/DD/YY HH:MM:SS (UTC time without local zone)

Appendix Optional Mounting NOTICE TO DRIVERS IN CALIFORNIA AND MINNESOTA: State law prohibits drivers in California and Minnesota from using suction mounts on their windscreens while operating motor vehicles. Other state or local laws may also prohibit drivers from using suction cups on their windscreens. Other Magellan dashboard or friction mounting options should be used and are available at www.magellanGPS.com. Thales Navigation, Inc. does not take any responsibility for any fines, penalties, or damages that may be incurred as a result of disregarding this notice. (See California Vehicle Code Section 26708(a); Minnesota Statutes 2005, Section 169.71.) Instructions for Mounting the Adhesive Disk

1. Locate a flat, non-porous surface on the dashboard or

console. Clean the selected area with the alcohol pad provided. Do NOT affix to windscreen.

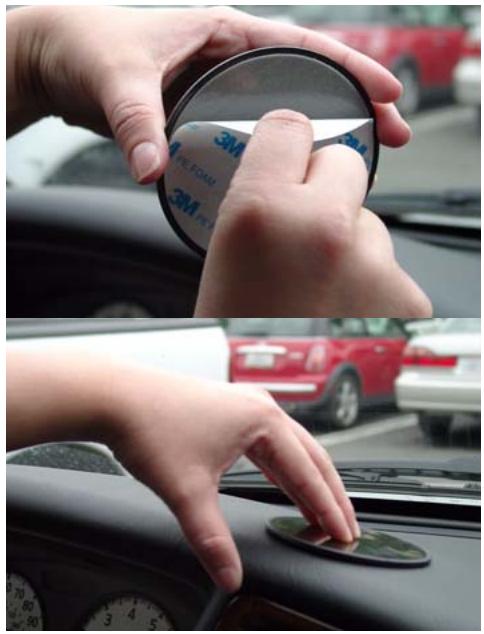

2. Peel the paper cover off the adhesive backing.

3. Apply the disk to the cleaned surface.

Allow the adhesive disk to cure in the vehicle at room temperature (72°F) for 24 hours before attaching the windscreen mount.

4. Attach the windscreen mount to the adhesive disk by firmly

pressing the suction cup against the disk. Lock the suction cup by pressing the locking lever. Position the mount so that the Magellan RoadMate is at a comfortable viewing level.

Appendix Frequently Asked Questions Why is my street not showing up on the map? The Magellan RoadMate 6000T uses the most current available map data. Chances are, your street is in a new housing development or the street is new. Map updates may be made available once per year. Tknow there is a petrol station on this street corner. Why is there not an icon for it on the map? Check your POI settings and make sure you have the necessary POI checked to make it visible on the map. See “POI Selection” on page 58. The Magellan RoadMate 6000T uses the latest POI data available. Chances are the POI you are looking for is relatively new and has not been added to the database. If this is not the case, it may have been overlooked or changed since the POI database was created. You can add custom POIs to your Magellan RoadMate 6000T for those you route to on a frequent basis. See “Chapter 18: Magellan RoadMate POI Manager” on page 98, and “Custom POIs” on page 59. The GPS signal is weak. What's going on? You may be driving through an area that has tall buildings or trees, a canyon or a tunnel. These conditions may interfere with satellite signals. Wait a few moments and the signal should improve as more satellites are acquired. If the problem persists, there may be a problem with the aerial. Contact Technical Support. Why is an address 1 know 1 routed to not in the Previous Destinations list? The Previous Destinations list stores the last 50 places you routed to. When you get to number 51, the first destination on the list is removed and each successive destination is moved up. Can I play MP3's and Route at the same time? Yes Can I import à playlist from Windows Media Player? No. The Music Player does not support playlists from other applications. Can l use any third party SD/MMC card with the Magellan RoadMate 60007 The Magellan RoadMate 6000T is compatible with most major brands of SD/MMC card.
