GS63160WAU - Dishwasher GORENJE - Free user manual and instructions

Type	Dishwasher
Brand	Gorenje
Model	GS63160WAU
Dimensions (H x W x D)	85 x 60 x 60 cm
Weight	46 kg
Energy Efficiency Class	E
Number of Place Settings	12
Noise Level	44 dB(A)
Water Consumption per Cycle	9.5 L
Annual Water Consumption (280 cycles)	2660 L
Annual Energy Consumption (280 cycles)	262 kWh
Number of Programs	6
Programs	Eco, Auto, Intensive, Quick, Glass, Pre-rinse
Drying System	Heat exchanger
Control Type	Electronic push buttons
Display	LED digital display
Delay Start	Yes, up to 24 hours
Salt and Rinse Aid Indicator	Yes
Water Connection	Cold water
Power Supply	230 V, 50 Hz, 10 A
Maximum Power Consumption	2100 W
Type of Installation	Freestanding

Frequently Asked Questions - GS63160WAU GORENJE

How do I load the dishwasher properly?

Place plates facing inward, cups and glasses upside down on the racks. Ensure sharp objects are placed horizontally. Follow the loading instructions in the user manual.

What detergent should I use?

Use a high-quality dishwasher detergent in tablet, powder, or gel form. Always use rinse aid for optimal drying results.

How often should I clean the filters?

Clean the filters every month or more frequently if dishes are not clean. Remove and rinse under running water.

Why is the dishwasher noisy?

Check if dishes are properly stacked and not blocking spray arms. Also ensure the dishwasher is level. If noise persists, contact service.

What do error codes mean?

Error codes are displayed on the screen. Refer to the manual for specific codes like E1 (water inlet issue) or E4 (drain problem).

How do I select the right cycle?

For normally soiled dishes use Eco program. Use Intensive for heavy pots and pans, and Quick for lightly soiled loads.

Can I put aluminum pans in the dishwasher?

Aluminum may discolor or react with detergents. Check the manufacturer's recommendation; generally, it's better to wash aluminum by hand.

How do I activate child lock?

Press and hold the Start button for 3 seconds to lock the control panel. Repeat to unlock.

Why are dishes not drying properly?

Ensure rinse aid is filled and the drying system is working. Use the extra-dry option if available and avoid overloading.

What maintenance is required?

Regularly clean filters, wipe door seals, and run a cleaning cycle with descaler every 3 months to remove limescale.

USER MANUAL GS63160WAU GORENJE

OPERATING INSTRUCTIONS DISHWASHER

gorenje

Front panel 2.

Safety instructions 3.

Before washing for the first time 4.

Loading the dishwasher 4...

Using the dishwasher 6...

Settings 9

Care and cleaning 10...

Troubleshooting 12

Installation 1.5

Service 18

Information for test institute ....19....

Technical information 20.

Front panel

1 Main power switch 8 SpeedWash
2 Program selector 9 Extra dry
3 Heavy wash 10 Half load
4 Intensive wash 11 Delayed start
5 Eco wash 12 Display
6 Quick wash 13 Rinse aid indicator
7 Rinse

General

• Read the operating instructions and keep in a safe place!
• Never use the dishwasher for any purpose than that specified in these operating instruc
• Do not load the dishwasher door or dishv baskets with anything other than dishes.

- Never leave the dishwasher door open as someone may trip on it.

• Use only dishwasher detergent!

- This appliance is not intended for use by (including children) with reduced physical, service or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of appliance by a person responsible for their

- If the supply cord is damaged, it must by a special cord or assembly available manufacturer or its service agent.

- Damaged mains cables must only be replaced by a qualified electrician.

- Only use the dishwasher in domestic house environments for dishwashing household dish. All other use is prohibited.

- Never place dishes with solvent residues dishwasher due to the risk of explosion. dishes that contain ash, wax or lubricants washed in the dishwasher.

WARNING!

Knives and other pointed items must be p with the points down in the cutlery basket zontally in other baskets.

Installation

See the chapter Installation.

Child safety

• Always start the dishwasher immediately after adding detergent.
- Keep children away from the dishwasher the door is open. Some detergent may inside!
- Do not allow children to use or play with the dishwasher. Be especially vigilant when the door is open.

WARNING!

Dishwasher detergents are strongly alkaline. The can be extremely dangerous if swallowed. Avo other contact with skin and eyes and keep children ctons. from the dishwasher when the door is open. /medical attention if swallowed.

Check that the detergent compartment is empty after completion of the wash cycle.

Winter storage/transport

ensoStore the dishwasher where the temperature remain above freezing.

- Avoid long transport distances in very cold weather - the Transport the dishwasher upright or laying on its

Safety guard function

beThereplaceflow protection starts pumping out the machir from times off the water supply if the water level in washer exceeds the normal level. If the overflow pro is triggered, turn off the water supply and call the

department.

Packing material sehold

The packaging protects the product during transport. Packaging material is recyclable. Separate the different packaging materials to help reduce raw material use

The waste. Your dealer can take the packaging for recycle next may to the nearest recycling centre. The packa is decomprised of:

- Corrugated cardboard made from up to 100% recy material.

- Expanded polystyrene (EPS) with no added chlorine, aged fluorine.

or Supports made from untreated wood.

• Protective plastic made from polyethylene (PE).

Disposal

• When the dishwasher has reached the end of its life and is to be disposed of, it should immediat made unusable. Pull out the power cable and cu short as possible.
  • The dishwasher is manufactured and labelled for r cling.
• Contact your local authority for information about \

when and how your dishwasher should be correctly recy remain

Checking water hardness

Contact the local water utility to check the water hard. Less not start the dishwasher until it is fully loaded in your area. This is important with regard to how much save energy.

tergent and rinse aid to use.

Top up with rinse aid

By using rinse aid you will improve your drying will also achieve a better dishwashing result with and dishes.

1 Open the rinse aid compartment lid.
2 Carefully top up with rinse aid. Only add rinse level marked max.
3 Wipe up any splashes of rinse aid around the ment.
4 Close the lid firmly.

Refill rinse aid indicator

When the rinse aid needs topping up, the above lights on the display.

After topping up, it may take a while before the out.

Setting the rinse aid dosage

The chapter Settings describes how to set the rinse aid dosage. Rinse aid dispensing can be set from 0 (Off) (High dose). (Factory settings: 5)

Decrease the rinse aid dosage:

• If the dishes have a sticky white/blue film.
• If the dishes are streaked.
• Build-up of foam. If you have very soft water, aid can be diluted 50:50 with water.

For water with a hardness greater than 10–12 °dH ought to use rinse aid with citric acid (known as aid).

Energy-efficient dishwashing

hardDess not start the dishwasher until it is fully loaded, much save-energy.

- Do not rinse dishes first under running water. Sir scrape off large food particles before loading them the dishwasher.

result Choose an environment-friendly detergent. Read the glass environmental declaration on the packaging!

• If the dishes are only slightly dirty, you can select program with a low temperature.
• You'll achieve better drying results if you open that a little once the program has ended. (If the dist is built-in, the surrounding furnishings must be res compared condensation.)

Fragile dishes

Some cookware is not dishwasher safe. This can be several reasons. Some materials cannot withstand stroi heat, others can be damaged by dishwashing deterge

Exercise caution with, for example, handmade items, f decoration, crystal/glassware, silver, copper, tin, aluminium wood and plastic. Look for the "Dishwasher safe" ma

The dishwasher's baskets

The dishwasher is equipped with an upper basket or lower basket with a cutlery basket.

Upper basket

Place glasses, cups, bowls, side plates and saucers sumpel basket. All dirty surfaces should face inwards downwards! Place wine glasses on the wine glass sh knives in the knife stand on the right (if fitted). symbol goes

Raising and lowering the upper basket

NOTE!

Check that the spray arms can rotate freely. both run-

1 Pull out the upper basket. (The basket must be
2 Turn the basket catch outwards at the end of ners.
3 Grip the upper basket with both hands, pull it out, and move the upper basket to its other position.
4 Turn the basket catch on either side in to lock the basket in place.

Lower basket

Place plates, side plates, serving dishes, pots and cutlery (in the cutlery basket) in the lower basket.

Cutlery basket

Place cutlery with the handles facing down, except for knives, and spread them out as much as possible. Ensure that spoons do not stack inside each other.

Place the cutlery basket in the lower basket.

Points to consider

• All dirty surfaces should face inwards and downwards!
• Dishes should not be placed in or on each other.
• Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important for plastic items.
  • Make sure small items cannot fall through the dishwasher basket; place them in the cutlery basket.

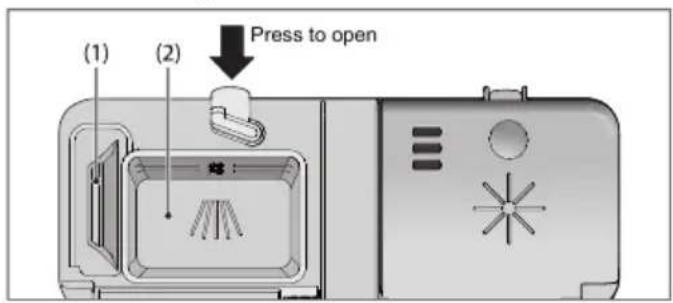

Add detergent

1 Prewash detergent compartment
2 Main wash detergent compartment

Detergent is added according to water hardness.

Follow the instructions on the detergent packaging.

Too much detergent can result in less effective and also entails greater environmental impact.

The detergent compartment must be dry when adding de-

tergent. There is one compartment for the prewash for the main wash. If powder or liquid dishwasher is used, add a small amount of the detergent to compartment. Contact the detergent manufacturer if have questions about the detergent.

NOTE!

Use only dishwasher detergent! Washing up liquid not be used as the foam that forms prevents their from operating effectively.

Dishwasher tablets

Halve the tablet if it is difficult to close the dispenser lid.

There is a risk that the detergent will not be released prop-

erly if the lid is tight and will not open correctly.

NOTE!

Dishwasher tablets are not recommended for short grams (less than 75 minutes). Use powder or liq

washer detergent instead.

3-in-1/All-in-one detergent

If the detergent tablets you use contain rinse aid, washer's rinse aid dosing can be deactivated. See chapter Settings.

Read through the directions for these products carefully and water.

anything is unclear, contact the detergent manufacturer

The main power switch

Press and hold the main power switch until the on. Also check that the water tap is on.

:≡ PROGRAMS - Choose program

Choose a programme to suit the type of dishes and dirty they are.

Press the Program selector one or more times until sired program symbol is lit up.

60° Heavy wash

Use to wash normally soiled load, such as plates, dishes, cups, glasses and so on.

70° Intensive wash

Program for very dirty dishes, such as pans, cassero dishes and oven dishes. If these dishes do not con

dishwashing, you can add plates and the like

ngcode-

and one

detergent

Use when you want to save water and energy. For the prewash soiled load, such as plates, serving dishes, cups, glau and so on.

35° Quick wash

must This program is used for glasses and porcelain that dishwash- slightly dirty, such as coffee cups. Not for normally dishes.

In combination with SpeedWash, a shorter program is achieved (15 minutes).

*° Rinse

Used to rinse dishes while you wait for the dishwas become fully loaded.

pro-EXTRA - Selecting Options

To select an option, press one of the option button: the option is showing as activated. The available opt vary between programs and some options cannot be bined (available options glow dimly).

the dish-

SpeedWash

This option shortens the program time, but uses more flow and water.

Extra dry

A higher temperature in the final rinse improves the results if you activate this option. Energy consumption is slightly turns increased.

1|2 Half load

This option adapts the dishwashing program to a dishwasher, and uses less energy and water.

Delayed start

When you select Delayed start the dishwasher will 24 hours after you close the door.

1 Press the button once to activate Delayed start. the button several times - or hold it in - to sired number of hours.
2 Close the door and the dishwasher counts down at a time and starts after the selected delay.

If you want to cancel the Delayed start option, open and press and hold the main power switch until the turns off.

Starting the dishwasher

Close the door to start the dishwasher. If the main switch is on, the dishwasher will start automatically by the door is closed.

TIME - Time remaining

Once you have chosen a program and options, the program took when last used is displayed.

Once you have started the dishwasher, the display the remaining program time. The remaining time is after the water for the final rinse has been heated

This may differ somewhat from time to time depend the temperature of the water supply, the amount of the ambient temperature and other factors.

Front display

If the dishwasher is turned off due power failure

If the dishwashing program was not finished, the inte program continues when power is restored.

NOTE! start

During drying, the program is interrupted if the power out or the door is open for more than 2 minutes. Press

set the de-

How to get the best drying results

• Fully load the dishwasher.

• Angle dishes with hollows, such as cups, so that then the doverter will run off. This is also important for display
• Top up with rinse aid or increase the rinse aid level.
• Activate the Extra dry option.

n power Open the door a little once the program has fin

- Allow the dishes to cool before unloading the diser.

Once the program has finished

Once the program has finished, "End" appears on the play.

shows The dishwasher switches off automatically after the proc updated ends. Turn off the water tap after each use.

Drying

for additional drying the door should be opened 35 f dishes upon completion of the drying cycle. For more inform see page 20 in the chapter Technical information.

Unloading the dishwasher

Hot porcelain is more fragile. Leave the dishes to c the dishwasher before unloading them.

Unload the lower basket first to avoid any water dry the upper basket falling onto the dishes in the lower

Stopping or changing a program

If you want to change program after starting the dishwasher, open the door, then press and hold the main power switch until the display turns off. Add more detergent if the lid of the detergent dispenser has opened. Then press the main power switch, choose a new program, and close the door.

Do you want to add more dishes?

Open the door. The dishwasher stops automatically. Add the dishes and close the door. After a while, the dishwasher continues the program.

Program chart

PROGRAMS- Program	Detergent, compartment 1 / (ml)	Options		Main wash	PrewashesEXT rinses	Final rinse	Number of consumption values1)
							Dishwashing time (approx. hrs:min)	Energy (approx. kWh)	Water cons. (L)
									161.21:4565 °C260 °C2---
									171.73:3570 °C270 °C210
Eco was2)									13.90.742:2062 °C255 °C1
									100.20:2025 °C135 °C---
				Rinse		--- / ---			40.010:07--- °C1

1) Consumption values vary depending on the temperature of the incoming water, room temperature, load size, selected additional functions and more.
2) The energy label performance figures are based on this program which is recommended for normally soiled load (no options).

Open the Settings menu:

1. First, open the door. Turn off the machine. Press and hold the main power switch lights up.

2. Within 10 seconds:

- press the Program selector and the option button for SpeedWash.

The display shows the Settings menu (current setting and its currently set value).3.

(Exit the menu by browsing through the menu or pressing the main power switch.)

Navigate the Settings menu:

You can now adjust the following settings:

		OptionsSettings
			Rinse aid dosage setting.1:00 - 1:05Rinse aid1.Increase the rinse aid dosage:If the dishes have water marks.Decrease the rinse aid dosage:If the dishes have a sticky white/blue film.If the dishes are streaked.Build-up of foam. If you have very soft water, rinse aid can be diluted 50:50 with water.

Coarse filter

The coarse filter traps larger food particles, which get past the drainage pump. Empty the coarse fi necessary.

Spray arms

docket and bearings can sometimes become blocked.
move any debris using a pin or something similar. T arms also have holes on their undersides.

1 Lift the coarse filter by the handle.

2 Empty the coarse filter. Remember to replace

Fine filter

Debris that collects on the fine filter is automatically away during each wash. Clean the fine filter when sary.

1 Turn the handle anticlockwise.

2 Lift the filter straight up using the handle. Free filter to clean the fine filter.

3 Replace in reverse order. Check that the edges properly when replacing the fine filter.

4 Lock the filter in place by turning the handle to the stop position. The handle should point out from the dishwasher.

NOTE!

The dishwasher must not be used without the place!

Diswashing efficiency can be affected if the course is incorrectly fitted. After cleaning ensure that filter is fully locked with the handle pointing out of the er.

To facilitate cleaning, you can remove the spray arm member to fit them firmly back into place after clea

Lower spray arm

• Pull the lower spray arm straight up to release y rinsed

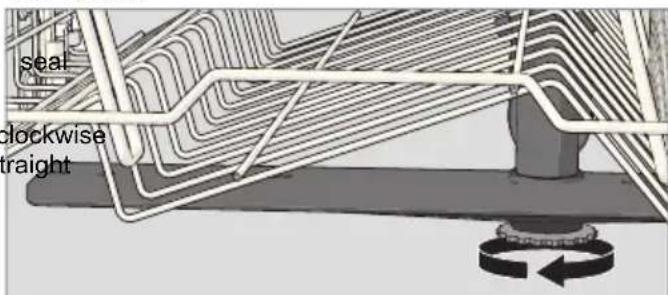

Upper spray arm

1 Pull out the upper basket.

2 Unscrew the spray arm bearings counterclockwise to remove the spray arm from the upper basket. the coarse

filter in

The door and the door seal

Regularly clean the sides of the door and the door a slightly damp cloth (with a little cleaner if necessary handle

dishwash The dishwasher tub

The dishwasher tub is made of stainless steel and clean through normal use.

Limescale deposits

If you have hard water, limescale deposits may build the dishwasher. If this happens, run the Intensive waste programme with two tablespoons of citric acid in the gent compartment (with no dishes in the machine).

Front panel

Keep the buttons clean and free from grease. clean with a dry or slightly damp cloth. Never – they can scratch the surface. Use the main to turn off the dishwasher before cleaning the avoid activating any buttons unintentionally.

NOTE!

Wipe use them Do not forget to replace the drainage pump stop.

Unblocking the drainage pump

If the dishwasher still contains water after the program, there is inlet fault. has finished, something may be blocking the drainage pump. Such items are easily removed. 1 Turn off the

Unblocking the inlet hose filter

If the water supply contains small particles, the outer on the inlet hose may become blocked, which results

Méware inlet fault.

1 Turn off the machine using the main power unplug it from the wall socket.
2 Remove the coarse filter and the fine filter.
3 Scoop out the water from the dishwasher tub.
4 In order to inspect the drainage pump, remove coloured stop on the right in the bottom drain.
5 Turn the pump wheel located behind the drainage stop by hand. Carefully remove any items.
6 Replace the drainage pump stop along with the coarse filters.

1 Turn off the machine using the main power switch unplug it from the wall socket.

^tch T and off the water tap.

3 Unscrew the inlet hose.

4 Carefully remove the outer filter from the inlet ho clean it.

⁵ Replace the filter and check that the gasket is a positioned.

e pump 6 Screw the inlet hose firmly into place.

7 Plug the machine into the wall socket and turn fine and water tap. Allow the pressure to settle for a whi check that the connection is watertight.

7 Plug the machine in again.

If the dishwasher still does not start and a whirring is heard, the overflow protection has been activated.

• Shut off the water.
• Remove the plug from the wall socket.
• Call the service department.

Troubleshooting

	ActionType of fault on the display
OverfillingF10	Clear the drainage pump. See the chapter Care and cleaning. If the problem persists, call the service department.
Water outlet faultF11	See “Water remains in the dishwasher” in the table “Problem” below. If the problem persists, call the service department.
Water inlet faultF12	Check whether dishwasher inlet hose is connected to a pressure limiting valve (some pressure limiting valves may restrict the supply of water to the dishwasher).Check that the water tap is on. If the problem persists, call the service department.Turn off the water tap and call the service department.Inlet valve leakageF40
Water level faultF52	Check that the drainage hose is fitted in accordance with the installation instructions. If the problem persists, call the service department.Turn off the water tap and call the service department.OverfillingF54Call the service department.Circulation pump faultF56

Press any button to clear the error message.

The buttons do not react when pressed.	after opening the door.	ActionPossible causesProblemWait a moment then try again.You have pressed the
	The buttons are dirty.	Clean with a dry or slightly damp cloth.
	The door is closed.	Open the door. The buttons only react to use when the door is open.
Cannot close door.	The baskets are not correctly positioned.	Check that the baskets are correctly positioned horizontally.Check that the dishes are not blocking the baskets from sliding properly into place.
	The dishwasher does not start.	Check.The door is not properly closed.
	You have opened the dishwasher to add more dishes while a program is in progress.	Close the door and wait. After a while, the dishwasher continues the program.
	socket.	Check.A fuse/circuit breaker has been tripped.Check.The plug is not plugged into the wall
		Check.The water tap is turned off.Check.Overflow/leaks
	A whirring sound (the drainage pump) is heard from the dishwasher and does not stop when the main power switch is turned off.	Turn off the water tap. Pull out the plug and call the service department.
	Check that the Delayed start option has not been selected.	Press and hold the main power switch until the display turns off if you want to cancel the Delayed start option. Restart the dishwasher.ActionPossible causesProblem
		Remove the arms and clean them.The blockin the spray arms.
		Check that the dishes are not the spray arms.
	product.	Avoid large packages.Old detergent. De
	Incorrect detergent dosage.	Dose according to water hardness. Far too much or far too little detergent re in poorer dishwashing results.
		Choose a longer programme.Unsuitable
	Dishes loaded incorrectly.	Do not cover porcelain with large bov or the like. Avoid placing very tall gl es in the corners of the baskets.
	during the program.	Place dishes to sit steady.Glasses and
	The filter is not correctly fitted.	Screw the filter firmly into place. See chapter Care and cleaning.
Spots on stainless steel or silver	Some foodstuffs, such as mustard mayonnaise, lemon, vinegar, salt dressings, can mark stainless steel for too long.	Rinse off these types of foodstuffs if starting the dishwasher immediately. Use the Rinse program.
	All stainless steel can cause spots silver if they come into contact dishwashing. Aluminium can also spots on dishes.	order to avoid marks and tarnishing separate dishes made from different coats, such as silver, stainless steel and aluminium.
		See the chapter Settings.Incorrect rinse
	Too high temperature and/or too detergent can cause etching on Unfortunately, this cannot be repa only prevented.	Wash crystal at a low temperature ar cristala conservative amount of detergen contact the detergent manufacturer.
	Rinse aid dosage setting too high	Reduced dishes a moment.a Stickythewhites. Before washing for the first time and Settings. If you have very soft water, may want to dilute the rinse aid 50:1 with water.
Spots left after washing.	Lipstick and tea can be off.	Useificant detergent with a bleaching age
Detergent residue in the detergent partment after dishwashing.	Theondetergent compartment was when adding detergent.	Shep detergent compartment must when adding detergent.
Rattling sound when dishwashing.	The dishes are not correctly placed the spray arms are not rotating.	Check that the dishes are placed scu ly. Spin the spray arms to make sur they can rotate.
1 minute appears in the display.	The program is taking longer than mated.	No estotion. The programme time is stor and next time the programme is run corrected time will be displayed.
Water remains in the dishwasher.	The filter is not locked in complete filter is completely locked with handle pointing towards the door.
		Clean the coarse and fine filters.The
	Debris in the drainage pump.	Clean the drainage pump. See the chapter Care and cleaning.
	Kink in drainage hose.	Check that the hose is free from kin and sharp bends.
	Blocked drainage hose.	Disconnect the drainage hose where it connects to the sink unit's water trap. Check that no debris has fastened ar that the connection has an inner diameter of at least 14 mm.
	Dirt around the seals and in clean Bawithod washing-up dishwasher.and low foaming cleaner.
	Low temperature programs have been a program with a higher temperature about once a month.
The dishes are not dry enough.	drying cycle may be insufficient.	Activate the Extra dry option.Depending
		Fully load the dishwasher.The dishwash
	Rinse aid needs topping up or to page with rinse aid or increase the rinse aid dosage. See the sections Before washing for the first time and Stings.
		Open the door a little once the prog has finished.

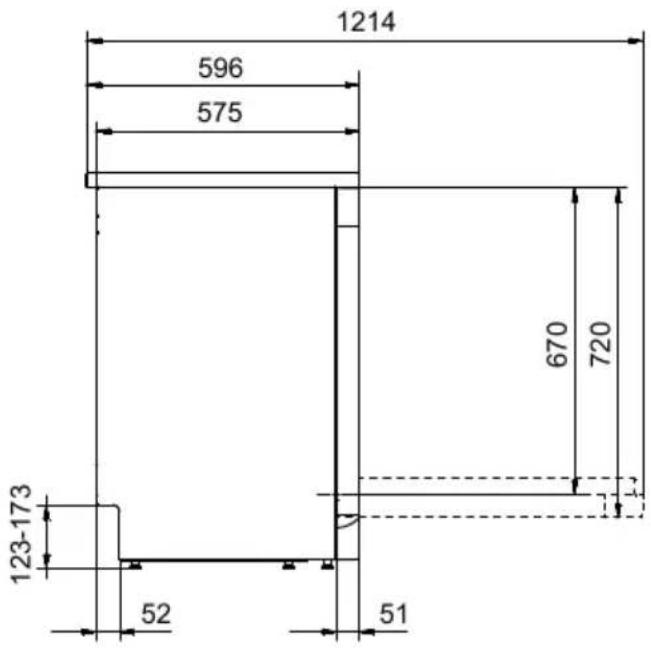

Nominal dimensions. Actual measurements may vary.

[mm]

Safety instructions

• Connections to electricity, water and drainage performed by a qualified professional.
  • Always follow applicable regulations for water, and electricity.
  • Take care during installation! Wear protective gloves! There must always be two people!
• Before screwing the dishwasher into place, test the dishwasher by running the Rinse program. Check that the dishwasher fills with water and drains. Check also that none of the connections leak.

WARNING!

Turn off the water supply when installing the

Transport protection for the door

must do be not forget to remove the transport protection for when unpacking the dishwasher.

dishwasher!

WARNING!

The plug must be disconnected or power to turned off while the work is carried out!

the socket

Placing the dishwasher

The dishwasher is intended for freestanding installation, can also be installed under a worktop.

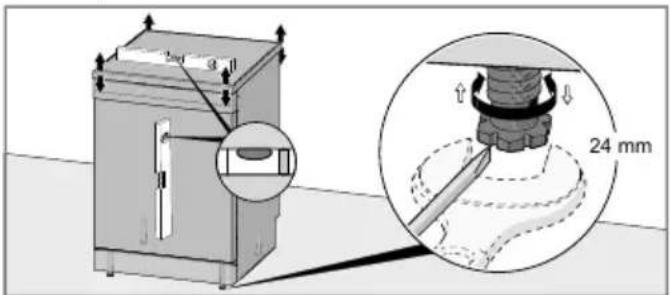

Adjust the height and slide the dishwasher into place

6 Make any final adjustments to the front feet (the washer may not lean more than 5 mm).
7 Once the feet are properly adjusted, adjust the a feet to sit firmly against the floor.

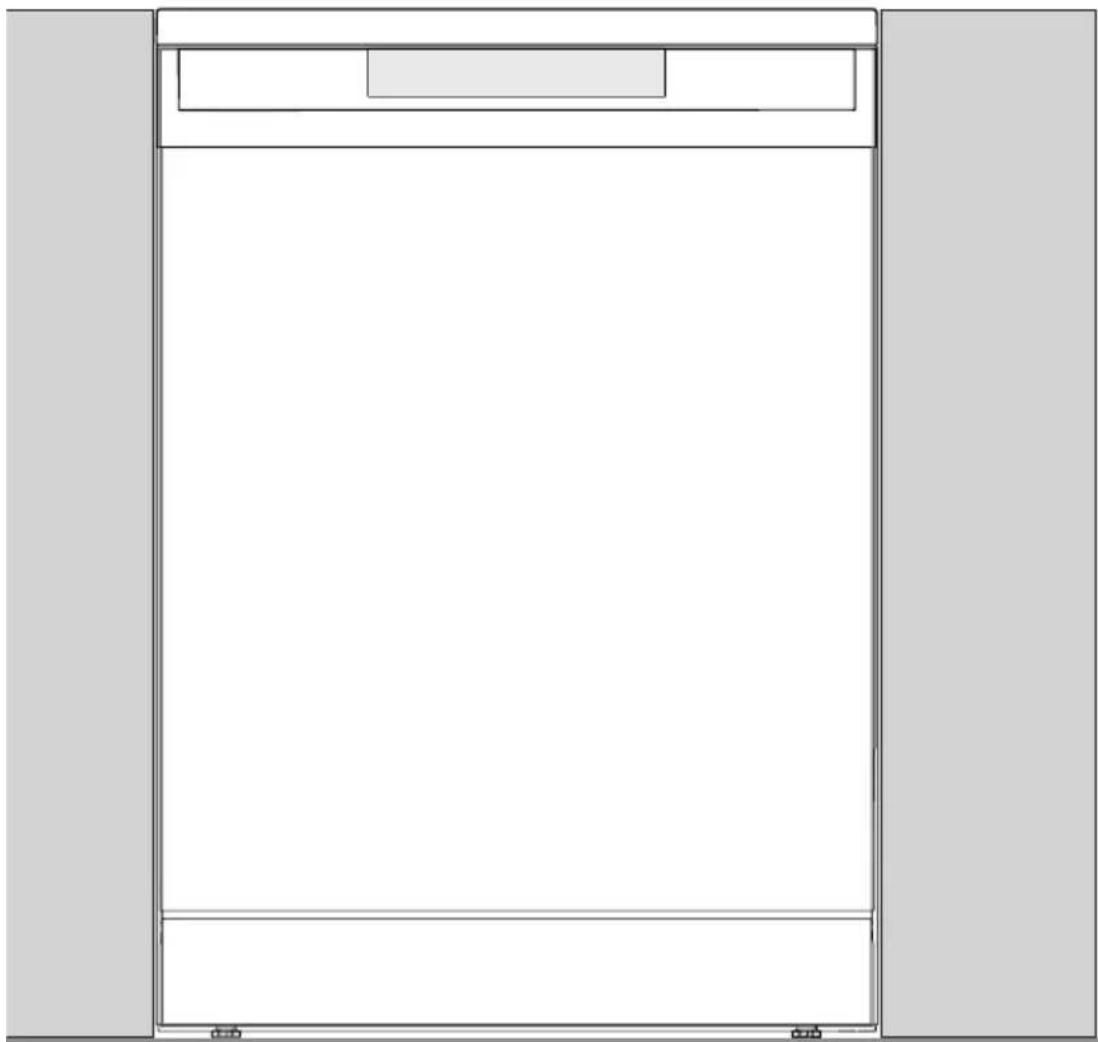

The dishwasher can also be installed in a recess w its worktop. See Remove dishwasher worktop.

Freestanding

1 Make sure the surface on which the dishwasher is to be installed is firm. Adjust the dishwasher's height (packets inside the dishwasher.) four feet so that the dishwasher is level. The dishwasher

2 Once the feet are properly adjusted, adjust the feet to sit firmly against the floor.

Drainage connection

Built-in

1 Start by measuring the height from the floor to tom edge of the worktop.
2 Measure the height from the floor to the top dishwasher.
3 Adjust the dishwasher's feet by turning them clockwise to raise or anticlockwise to lower the machine.
4 Check that there is an air gap of at least 3 mm between the underside of the worktop and the top edge of the dishwasher.
5 Slide the dishwasher into place.

• Pull through the drainage and supply hoses when the machine is slid into place.
• Check that the hoses have no kinks or sharp bends, and check that there is nothing that can damage the hoses.

Connection to water supply

Use only the inlet hose supplied with the dishwasher not re-use old or other spare hoses.

The supply pipe must be fitted with a water tap (s) The water tap must be easily accessible, so that the can be shut off if the dishwasher has to be moved

Once the installation is complete, turn on the water allow the pressure to settle for a while. Check that nections are watertight.

Connection to cold water supply

Connect the dishwasher to the cold water supply if building is heated using oil, electricity or gas.

Connection to hot water supply

Connect the dishwasher to the hot water supply (max if the building is heated using an energy-efficient me such as district heating, solar power or geothermal p Choosing a hot water connection cuts dishwashing tin and reduces the dishwasher's energy consumption.

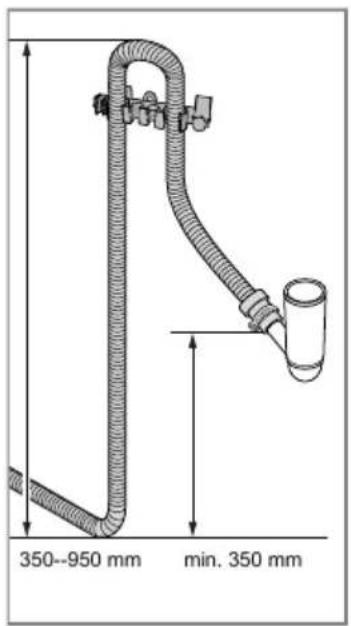

The drainage hose may be extended by a maximum (the total length of the drainage hose must not ex m). Any joins and connecting pipes must have an diameter of at least 14 mm. However, the drainage should ideally be replaced with a new hose without

No part of the drainage hose may be more than above the bottom of the dishwasher. The hose must routed directly to a floor drain or the like. In such hose can act as a siphon and empty the dishwash

The hose must always discharge at least 350 mm the bottom of the machine.

Ensure that the drainage hose has no kinks.

NOTE!

When the drainage hose is routed to a connection on the sink unit's water trap (see Illustration 1), p note that the hose must be attached at the same as the underside of the sink unit. Otherwise dishw from the sink may flow back into the dishwasher. Other connection alternatives, see Illustrations 2 and t

NOTE!

Do not exceed the permitted water supply temperature joins certain materials used in some cookware cannot withstand strong heat. See Fragile dishes in the chapter loading the dishwasher.

NOTE! above

Connecting a dishwasher to the water supply via ce types of pressure limiting valves may restrict the wa supply!

This may cause F12 error code/ Water inlet fault t displayed.

Electrical connection

Information about the electrical connection can be fou the compliance plate. This specification must match the electricity supply.

The dishwasher must be connected to an earthed w: socket.

The electric wall socket must be placed outside of t lation area to be easily accessible after installing the washer. Do not use an extension cord!

NOTE!

Repairs and maintenance must be carried out by a fied professional.

Remove dishwasher worktop

The dishwasher can be installed in a recess without worktop. If the dishwasher's worktop is removed, the

washer must be installed so that it is enclosed on Read the sides chapter Troubleshooting before contacting the and is under a separate worktop. If the dishwasher is in- department. If you have encountered a problem, stalled so that one of its sides is visible, a brace you must not resolve, please contact your nearest dealer fitted to the rear edge of the dishwasher. Accessories.com.

be purchased where you purchased your dishwasher.

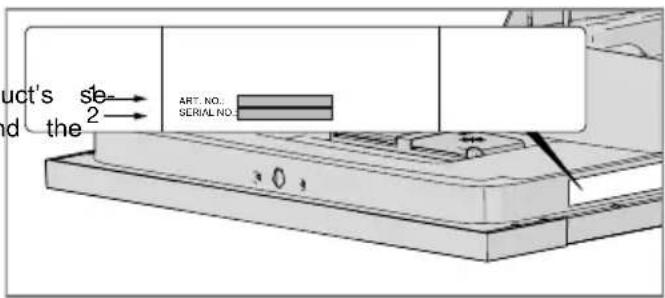

When making contact, provide the details on the ser number plate. Include the article number (1) and the number (2).

For recess installation, see the section Placing the dishwasher.

Request test institute information via e-mail [e-mail].

The request should include the details on the product's serial number plate. Include the article number (1) and the serial number (2).

Information on energy labelling

Energy labelling

AS/NZS 2007 Australian standard:

14Number of place settings:

Eco wash, no optionsDishwashing programs:

2:20 hours:minutesProgram time:

Cold water 20 °CConnection:

IEC 60704-2-3Test method for noise measurement:

1) This dishwashing program is the standard cleaning cycle used to compile the energy labelling information. It is intended for washing normally dirty dishes and is the most effective program in terms of combined energy and water consumption.

Technical data

848-898 mmHeight:

600 mmWidth:

596 mmDepth:

Weight: 54 kg ¹⁾

0.03–1.0 MPaWater pressure:

See compliance plateElectrical connection:

See compliance plateRated power:

1) Weight can vary due to different specifications.
