USER MANUAL DC3200 KODAK

KODAK DC3200 Digital Camera DC3200 User's Guide Visit Kodak on the World Wide Web at www.kodak.com

©Eastman Kodak Company, 2000 Kodak and Photolife are trademarks of Eastman Kodak Company.

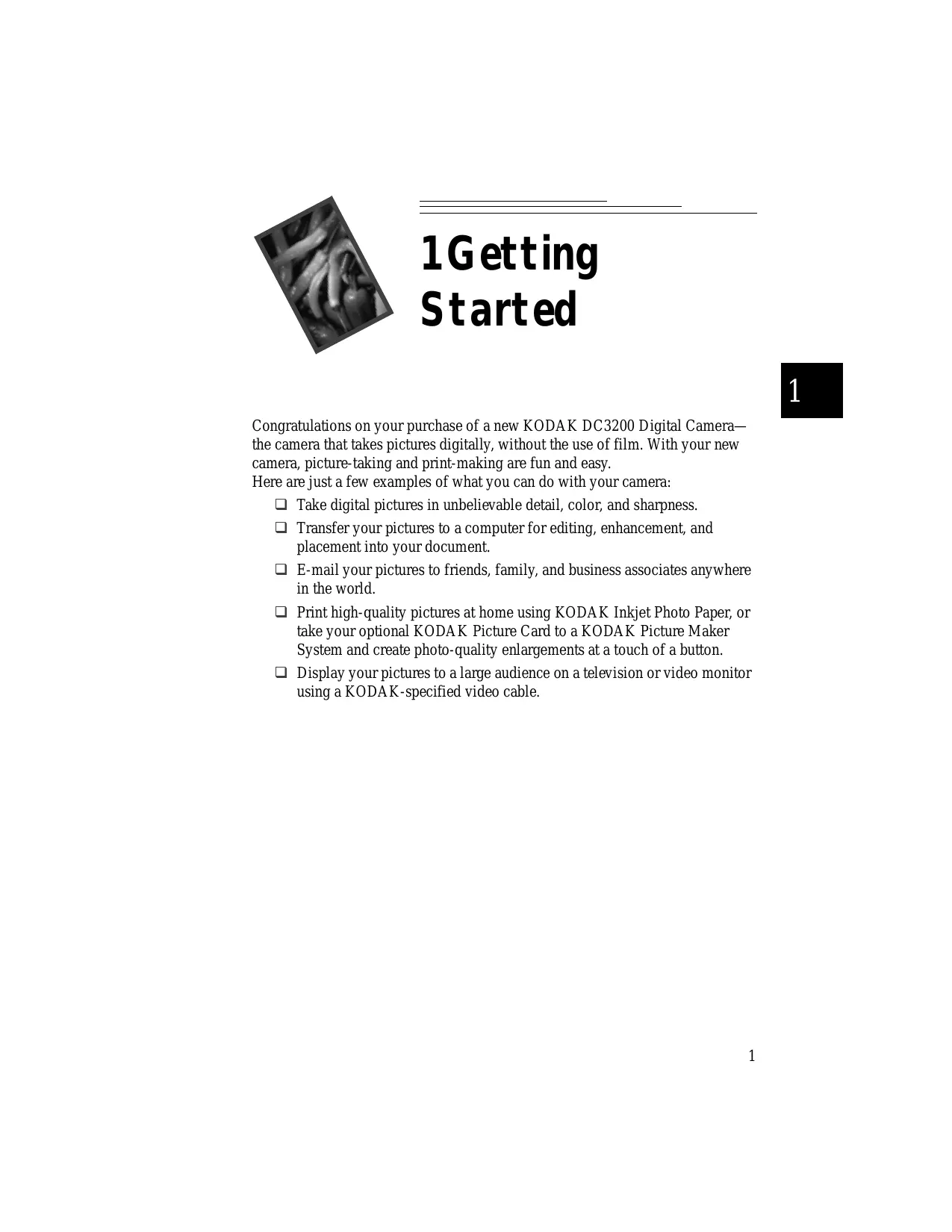

1Getting Started Congratulations on your purchase of a new KODAK DC3200 Digital Camera— the camera that takes pictures digitally, without the use of film. With your new camera, picture-taking and print-making are fun and easy. Here are just a few examples of what you can do with your camera: Q Take digital pictures in unbelievable detail, color, and sharpness. Q Transfer your pictures to a computer for editing, enhancement, and placement into your document. Q E-mail your pictures to friends, family, and business associates anywhere in the word. Q Print high-quality pictures at home using KODAK Inkjet Photo Paper, or take your optional KODAK Picture Card to a KODAK Picture Maker System and create photo-quality enlargements at a touch of a button. Q Display your pictures to a large audience on a television or video monitor using a KODAK-specified video cable.

Preparing to Take Pictures Before you can start taking pictures, you need to install the batteries or connect a KODAK AC Adapter (Cat# 122-0557) for power. The AC adapter is available as an accessory from a dealer of KODAK products or from our Web site at http:// www.kodak.com/go/accessories. Your camera offers 2 MB of internal memory for picture storage. This intemal memory retains pictures even if the power supply is interrupted. To record a greater number of pictures, insert an optional KODAK Picture Card into the camera. When a Picture Card is inserted into the camera, pictures are stored on the card. Attaching the Wrist Strap 1 Thread the small loop end of the wrist strap through the wrist strap eyelet, located on the side of the camera. 2 Thread the large loop end of the strap through the small loop and pull the large loop end to tighten the strap. Loading the Batteries Your camera comes with four AA batteries so you can start taking pictures immediately. For guidelines for battery usage, see page 50. 1° Make sure that the Power/Mode switch is set to OFF. 2 Slide and open the battery compartment cover (located on the side of the camera) in the direction of the arrow. 3 Insert the batteries into the battery compartment, making sure their plus and minus ends are facing as indicated in the diagram. Æ Close the battery compartment cover and slide it in until it locks in place.

Turning the Camera On and Off Tum the camera on and off using the Power/Mode switch, located on the back of the camera. Q To tumn the camera on in the Capture mode (to take pictures), set the Power/ Mode switch to the gg position. To tum the camera on in the Review mode (to review captured pictures), set the Power/Mode switch to the (w) position. The green Ready light (next to the viewfinder) and the LCD turn on. A message appears on the LCD for several seconds to indicate which medium (internal memory or a Picture Card) you are accessing. Q To tumn the camera off, set the Power/ Mode switch to OFF. If you are using the batteries for power, and the camera is idle for approximately five minutes, the Auto Power Off function automatically turns the power off. To turn the camera on again, set the Power/Mode switch to OFF and then back to the D or (>) position.

Checking the Batteries The DC3200 Digital Camera displays a battery symbol to indicate the battery power level. For guidelines on battery usage, See “Using Your Batteries” on page 50. Since digital cameras are demanding on batteries, keep extra sets of batteries handy. Consider purchasing either a KODAK AC Adapter (Cat#122-0557) or a KODAK Ni-MH/Ni-Cd Battery Charger with KODAK Ni-MH Rechargeable Batteries. Both are available as accessories from a dealer of KODAK products or from our Web site at http://www.kodak.com/go/accessories. 1° Set the Power/Mode switch to the © © @) position. 2 Check the battery status symbol that appears on the LCD. In the Capture mode, you can turn on the LCD by pressing the SELECT button. You can also use the Preview feature to keep the LCD on constantly while the camera power is turned on. (See “Previewing a Picture Before it is Taken” on page 8.) Q Full indicates the batteries are charged and ready to use.

Q Low—indicates the batteries are not = fully charged and will soon need to be replaced or recharged. LR, _ Cu | _ Q Exhausted (flashing)— indicates the PET batteries are too weak to power the camera and need to be replaced. The red Ready light (next to the viewfinder) blinks when the batteries are exhausted.

Inserting a Picture Card Your camera accepts an optional KODAK Picture Card, which stores pictures. The Picture Card (also known as a CompactFlash or camera memory card) is removable and reusable for easy storage and transfer of your pictures. KODAK Picture Cards are available as an accessory through a dealer of KODAK products or from our Web site at http://www.kodak.com/go/accessories. 1 Slide and open the card slot cover (located on the bottom of the camera) in the direction of the arrow. Hold the Picture Card so the connection end (with tiny holes) is pointed at the camera, and the small lip on the other end is facing the front of the camera. The Picture Card can only be inserted one way into the camera. Forcing the card may damage your camera or the card. Push the center of the Picture Card edge so the card is inserted all the way into the card slot. Close the card slot cover and slide it in until it locks in place. 1 Open the card slot cover. Push the Eject button. The Picture Card partially slides out of the slot. Remove the Picture Card from the slot, and close the card slot cover.

WARNING: Do not insert or eject a Picture Card while the green

Ready light (next to the viewfinder) is blinking; this may damage your pictures or camera. Use only certified Picture Cards that cany CompactFlash"* the CompactFlash logo.

2 Taking Pictures Your KODAK DC3200 Digital Camera makes taking pictures fun. Just set the camera to the Capture mode and you are on your way to creating great pictures. Everything you need is at your fingertips. With the DC 3200 Digital Camera, you can: Q Zoom in digitally (two times closer) on your subject. 2 | Q Vary the flash settings to give you control over the type of flash needed for specific conditions. Q Select a picture quality setting to meet your picture-taking needs. Q Adjust the white balance to obtain the natural color of a subject under different lighting conditions. Q Preview a picture before it is taken. Q Review a picture you just took.

Previewing a Picture Before it is Taken If you want to see what a picture looks like before you take it, you can preview the image on the LCD on the back of your camera. The live image that appears is helpful for framing your subject. NOTE: Because any LCD is demanding on batteries, consider purchasing a KODAK Ni-MH/Ni-Cd Battery Charger with KODAK Ni-MH Rechargeable Batteries, available as an accessory through a dealer of KODAK products or from our Web site at http://www.kodak.com/go/accessories. on ® Li m)

LD QUALITY Le WHITE BALANCE BS> QUICKVIEW ÉD PREVIEW PREVIEW

v OFF 1 Set the Power/Mode switch to the Q position. 2 Press the MENU button to display the Menu screen. Press a À/W button until PREVIEW is highlighted, and then press the SELECT button. The Preview screen appears. The current setting is checked. Press a À/W button until ON is highlighted, and then press the SELECT button. The camera accepts the change and returns to the Menu screen. Press the MENU button to turn off the Menu screen. The LCD displays a live image with status icons. You can turn the LCD on and off by pressing the SELECT button. To turn Preview off, highlight OFF on the Preview screen, and then press the SELECT button.

Taking a Picture Taking pictures is a snap with your DC3200 Digital Camera. You can take a picture of a subject as close as 2 ft (0.6 m). 1 Setthe Power/Mode switch to the Ô position. 2 Center the subject in the viewfinder, ortum Preview on (see page 8) and use the LCD to frame your subject.

20 3 Press the Shutter button half-way down to Lœiim)) lock in the exposure on the subject. The green Ready light turns on when the camera is ready to take a picture. 4° Press the Shutter button completely down to take a picture. The green Ready light blinks as the picture is stored in the memory or on a Picture Card. If the orange Ready light comes on, then the flash is not fully charged. Wait for the flash to charge before taking a picture. Zooming in on Your Subject You can zoom from Wide Angle (giving you more of the surrounding area) to TelePhoto, which brings the subject two times closer. To use the Zoom feature, you need to select the Good picture quality setting. For information on selecting the picture quality, see “A djusting the Picture Quality” on page 11. Set the Power/Mode switch to the © »osition. Press the À button. The subject on the LCD is magnified. To return to the normal size, press the W button.

Setting the Flash Use the flash when taking pictures at night, indoors, or outdoors in heavy shadows. Your camera has three different flash options and a range of 8 ft (2.4 m), to accommodate most picture-taking situations.

WARNING: Never use the flash while the camera is close to the eyes of the

subject, especially young children. Intense light from the flash can cause permanent eye damage if used too close to the eyes. When using the flash, the camera should be at least 5 ft (1.5 m) away from the subject. 1 Set the Power/Mode switch to the Ô position. 2 Press the Flash button to scroll though the flash options. The flash option changes each time you press the Flash button. Q Auto— flash fires automatically, when needed. Ideal for everyday picture-taking. This is the default flash setting. Q Off flash does not fire. Ideal for taking pictures where flash is prohibited, as in museums. Q Fill flash fires every time you take a picture. Ideal for outdoor pictures, when your subject is in heavy shadow. 3 To retum to the Auto setting, press the Flash button, or turn the camera off.

Adjusting the Picture Quality Your camera compresses pictures according to the picture quality setting. If you intend to make large prints, you can capture more detail in the picture using the Best setting (but you will use more space in the internal memory or on a Picture Card). For everyday pictures, use the Better setting, which gives you more pictures using less storage space. If you need to take a large number of pictures, or you are going to e-mail or use the pictures online, use the Good setting. LD QUALITY

BS QUICKVIEW ÉD PREVIEW QUALITY BEST v BETTER Go0D 0050) 1 Setthe Power/Mode switch to the O vosition. 2 Press the MENU button to display the Menu screen. 3 Pressa A/w button until QUALITY is highlighted, and then press the SELECT button. The Quality screen appears. The current setting is checked. 4 Press a À / Y button until the desired Quality option is highlighted, and then press the SELECT button. Q BEST— captures a 1,152 x 864-pixel picture in low compression. Q BETTER captures a 1,152 x 864-pixel picture in high compression. Q GOOD-— captures a 576 x 432-pixel picture in low compression. The camera accepts the change and returns to the Menu screen. 5 Press the MENU button to tu the Menu screen off. The Picture Quality icon for the selected setting is displayed when the LCD is on. You can switch freely among these settings when taking pictures.

Adjusting the White Balance The color of the image may look different from that of the actual subject, depending on the type of Lighting source. For recording pictures in as natural colors as possible, your camera has four white balance options. 1 Setthe Power/Mode switch to the Ô position. @ 2 Press the MENU button to display the Menu screen. Ô 3 Press a A/ button until WHITE © BALANCE is highlighted, and then press the Tœiiæ)) SELECT button. The White Balance screen appears. The z current setting is checked. WI QUALITY Hé umire sarance À Press a À / w button until the desired white balance option is highlighted, and then press RS QUICKVIEW the SELECT button. ED PREVIEW Q AUTO— adjusts the white balance — = automatically for the current lighting conditions. Ideal for everyday pictures. This is the default white balance setting. WHITE BALANCE Q DAYLIGHT— ideal for outdoor pictures, Ÿ AUTO iGur or indoor pictures under natural lighting FLUORESCENT conditions. TUNGSTEN Q FLUORESCENT— balances the green color of indoor pictures under fluorescent lighting. Q TUNGSTEN-— balances the red/orange color of indoor pictures under tungsten lighting. The camera accepts the change and returns to the Menu screen. 5 Press the MENU button to turn the Menu screen off. To return to the Auto setting, highlight AUTO on the White Balance screen, and then press the SELECT button.

Setting a Quickview for Each Picture You can tum the Quickview feature on so that a picture just taken is displayed on the LCD for a few seconds. This lets you confirm a picture immediately after it has been taken.

Set the Power/Mode switch to the © position. Press the MENU button to display the Menu screen. Press à AÀ/w button until QUICKVIEW is highlighted, and then press the SELECT button. The Quickview screen appears. The current setting is checked. Press a À / Y button until ON is highlighted, and then press the SELECT button. The camera accepts the change and returns to the Menu screen. Press the MENU button to turn the Menu screen off. To turn Quickview off, highlight OFF on the Quickview screen, and then press the SELECT button.

3 Reviewing Your Pictures Now that you have taken pictures, you can review them by setting the camera to the Review mode. Here, you can: Q View your pictures. Q Copy pictures stored in the internal memory to an optional KODAK Picture Card. Q Protect your important pictures from accidental erasure. Q Delete unwanted pictures to free up space in the internal memory oron a Picture Card. Q Select specific pictures and quantities to be printed. Q Display and run a slide show from the camera to your television using a KODAK-specified video cable. Q Format other Picture Cards for use in your camera.

Viewing Your Pictures Pictures can be displayed individually in full LCD size, or as six thumbnail-size pictures at one time. NOTE: Because any LCD is demanding on batteries, consider purchasing a KODAK Ni-MH/Ni-Cd Battery Charger with KODAK Ni-MH Rechargeable Batteries, available as an accessory through a dealer of KODAK products or from our Web site at http://www.kodak.com/go/accessories. 1 Setthe Power/Mode switch to the D») position. The LCD turns on, and the access message appears. Then the last picture taken is displayed in full LCD size with the status icons and the Picture Number indicator. 2 Usethe A/w buttons to scroll through the pictures. 3 To view the pictures in a thumbnail format, press the SELECT button. 4 Usethe À/w buttons to scroll through the thumbnails. The selected picture is indicated by a frame. The selection frame moves as you advance or go back through the pictures. 5 To retum to the full LCD size, press the SELECT button.

Copying Pictures from the Camera to a Picture Card You can copy all the pictures stored in the internal memory to a Picture Card. KO suine show [oi On cor FORMAT Copy all from internal memory to card. EXIT YES —_—_—_—_—————— tt

Insert a Picture Card. Set the Power/Mode switch to the @œ) position. Press the MENU button to display the Menu screen. Press a À /w button until COPY is highlighted, and then press the SELECT button. The Copy screen appears. Press a À /W button until YES is highlighted. Press the SELECT button to copy the pictures. “Copying completed.” is displayed, and then the Menu screen reappears. If copying fails (because not all the pictures fit on the Picture Card), a message appears. Insert a Picture Card with more available storage, then repeat Steps 2-6. Press the MENU button to turn the Menu screen off.

Protecting Pictures from Deletion Use the Delete-protection feature to prevent your important pictures (in the intemal memory or on a Picture Card) from being accidentally erased. Protecting a Particular Picture DELETE PC CONNECT [D El Et PROTECT PROTECT CURRENT EXIT ALL

1 Setthe Power/Mode switch to the D) position. 2 Pressa À/w button until the desired picture is displayed in full LCD size or is selected in the thumbnail format. 3 Press the MENU button to display the Menu screen. 4 Press a A/W button until PROTECT is highlighted, and then press the SELECT button. The main Protect screen appears. 5 Press a A/ button until CURRENT is highlighted, and then press the SELECT button. The Protect screen appears. 6 Press a A/w button until YES is highlighted, and then press the SELECT button. The Protect icon appears. To protect another picture, highlight NEXT or PREVIOUS, press the SELECT button until the desired picture appears, and then repeat the same procedure. 7 Highlight DONE, and then press the SELECT button to tum the Protect screen off. The protection setting is assigned to the picture or pictures.

PROTECT ALL 1 Setthe Power/Mode switch to the @œ) position. 2 Press the MENU button to display the Menu screen. 3 Pressa A/W button until PROTECT is highlighted, and then press the SELECT button. The main Protect screen appears. À Press a À /Y button until ALL is highlighted, and then press the SELECT button. The Protect All screen appears. 5 Press a A / button until YES is highlighted, and then press the SELECT button. The protection setting is assigned to all the pictures. 6 Press the MENU button to turn the Protect All screen off. To cancel the protection setting for all the pictures, highlight NO on the Protect Al screen, and then press the SELECT button.

Deleting One or All of Your Pictures If you decide that you do not want the pictures in the intemal memory or on a Picture Card, or you want to free up space, use the Delete feature. You can erase one or all of the pictures in the memory (except those that are delete-protected). Deleting a Particular Picture 1 Setthe Power/Mode switch to the

D DeLETE (2 PC CONNECT & ProTEcT DELETE? CURRENT EXIT ALL DELETE?

D») position. Press a À / Y button until the desired picture is displayed in full LCD size or is selected in the thumbnail format. Press the MENU button to display the Menu screen. Press a À /w button until DELETE is highlighted, and then press the SELECT button. The main Delete screen appears. Press a À/W button until CURRENT is highlighted, and then press the SELECT button. The Delete screen appears. Press a À /W button until YES is highlighted, and then press the SELECT button. The picture is deleted. To delete another picture, highlight NEXT or PREVIOUS, press the SELECT button until the desired picture appears, and then repeat the same procedure. Press the MENU button to turn the Delete screen off.

Deleting All Stored Pictures

Delete all in internal memory? YES

Set the Power/Mode switch to the [D] position. Press the MENU button to display the Menu screen. Press a À / Y button until DELETE is highlighted, and then press the SELECT button. The main Delete screen appears. Press a À /Y button until ALL is highlighted, and then press the SELECT button. The Delete All screen appears, indicating the medium in which you are deleting the pictures. Press a À /Y button until YES is highlighted, and then press the SELECT button to delete all the pictures. “No picture in internal memory (on memory card)." appears when the deleting ends. If pictures that are delete-protected exist in the memory, the camera deletes all other pictures and returns to the main Delete screen. Press the MENU button to turn the main Delete screen off.

Selecting Pictures for Printing With the Print Order feature, you can select certain pictures on an optional KODAK Picture Card, then print them on the KODAK Picture Maker System (or on a printer that accepts Picture Cards). Assigning a Print Order to a Particular Picture 1 Insert a Picture Card with pictures for printing. Set the Power/Mode switch to the [D] position. 2 Pressa À/w button until the desired picture is displayed in full LCD size or is selected in the thumbnail format. 3 Press the MENU button to display the Menu screen. pa 4 Press a A/W button until PRINT ORDER g PELETE is highlighted, and then press the SELECT 2 PC CONNECT button. E PRINT ORDER The main Print Order screen appears. & protect | 5 Pressa À/W button until CURRENT is highlighted, and then press the SELECT button. a ———— PRINT ORDER The Print Order screen appears. GUKKEN 6 Press a A/ button until +COPIES is Eur highlighted, and then press the SELECT INDEX button until the desired number of prints appears. = = To assign another picture to this print order, highlight NEXT or PREVIOUS, press the SELECT button until the desired picture PRINT ORDER E appears, and then repeat the procedure. 2 DONE EI AGOP ES 7 Highlight DONE, and then press the NEXT SELECT button to turn off the Print Order PREVIOUS screen. The print order is accepted. 8 Press the MENU button to turn the main Print Order screen off.

To cancel the print order for a particular picture, display the desired picture on the Print Order screen, highlight - COPIES, and press the SELECT button until “0” appears. Then highlight DONE and press the SELECT button. Assigning a Print Order to All Stored Pictures

PRINT ALL DONE -COPIES 4COPIES Insert a Picture Card with pictures for printing. Set the Power/Mode switch to the [D] position. Press the MENU button to display the Menu screen. Press a À /Y button until PRINT ORDER is highlighted, and then press the SELECT button. The main Print Order screen appears. Press a À /Y button until ALL is highlighted, and then press the SELECT button. The Print All screen appears. Press a À / Y button until +COPIES is highlighted, and then press the SELECT button until the desired number of prints appears. Highlight DONE, and then press the SELECT button to turn off the Print AIl screen. The print order is accepted. Press the MENU button to turn off the main Print Order screen. To cancel the print order for all the pictures, highlight - COPIES on the Print All screen, and press the SELECT button until “0” appears. Then highlight DONE and press the SELECT button.

Assigning a Print Order to Thumbnail-format Pictures Using the Index Print Order feature, you can create an index of all the pictures stored on a Picture Card by printing them as a group of small, thumbnail images. You can make only one index print.

Insert a Picture Card with pictures for printing. Set the Power/Mode switch to the @œ) position. Press the MENU button to display the Menu screen. Press a À/Y button until PRINT ORDER is highlighted, and then press the SELECT button. The main Print Order screen appears. Press a À/W button until INDEX is highlighted, and then press the SELECT button. The Index Print screen appears. Press a À / button until YES is highlighted, and then press the SELECT button. The index print order is accepted. Press the MENU button to turn the main Print Order screen off. To cancel the index print order, highlight CANCEL on the Index Print screen, and then press the SELECT button.

Running a Slide Show on Your Television You can show your pictures to an audience by connecting your camera to a television with a KODAK Video Cable (Cat# 181-7774) and using the Slide Show feature. With Slide Show activated, the camera consecutively displays stored pictures at the selected intervals. To conserve batteries, use a KODAK- specified AC adapter. KE sL1DE sHow [oi FORMAT SLIDE SHOW EXIT 3 Sec 5 Sec 10 Sec 20 Sec 30 Sec —_—_——_—_—_—_—_— 1 Tum off your television and camera. 2 Insert a video cable into the VIDEO OUT port on the side of your camera, and connect the other end of the cable to the video-in port on the television. Set the Power/Mode switch to the D») position. Tum the television on, and select the correct channel for video input. The picture appears on the television. Press a À / W button until the picture from which you want to begin the slide show appears on the television. Press the MENU button to display the Menu screen on the television. Press a À /W button until SLIDE SHOW is highlighted, and then press the SELECT button. The Slide Show screen appears. Press a À / Y button until the time interval option you want is highlighted, and then press the SELECT button. The pictures change according to the selected time interval. After showing all the stored pictures once, the slide show automatically stops. To stop a Slide Show, press the SELECT button.

Formatting Your Picture Card If you own Picture Cards that have been used in other digital cameras, the cards may not be properly formatted for use in your DC3200 Digital Camera (or the data on the cards may have become corrupted). When these issues arise, your camera indicates that the Picture Card needs to be formatted. Formatting a Picture Card erases all of the information on the card, including any delete-protected pictures. Be sure to copy important data to your computer or other recording medium before formatting the card. You can also format the internal memory so that all pictures in the internal memory are erased, freeing up space for new pictures. 1 Insert a Picture Card to be formatted, or remove the card from the camera to format the internal memory. 2 Set the Power/Mode switch to the ©) or 2 position. 3 Press the MENU button to display the Menu screen. 4 Press a À/Y button until FORMAT is {E sine show s highlighted, and then press the SELECT Fa button. Cu copy FORMAT The Format screen appears.

oo © Pressa À/ button until CONTINUE is highlighted, and then press the SELECT Formatting will delete button to begin formatting. everything on memory card! “No picture on memory card (in internal CANCEL memory).” appears as formatting ends. CONTINUE y." app q —_—_—_—_—_———

4 Installing Your Software The KODAK DC3200 Installation Software (Installer) included with your camera contains software for Windows-based personal computers. The features let you access and use the pictures stored in the camera memory or on an optional KODAK Picture Card. KODAK DC3200 Picture Transfer Software Picture Transfer Software is included on the supplied CD-ROM, and provides an easy way to transfer pictures from the camera memory or Picture Card to your computer. System Requirements Q Windows 95, Windows 98, Windows 98 Second Edition, Windows NT Workstation 4.0 SP3 - SP6, or Windows 2000 Professional operating system Q PCAT-compatible personal computer with Pentium 90-MHz microprocessor (minimum) with CD-ROM drive Q Color display monitor with a minimum resolution of 640 x 480 and 256 colors (16- or 24-bit recommended) Q 32 MB or more of available RAM for Windows 95 and Windows 98 Q 64 MB or more of available RAM for Windows NT 4.0 and Windows

Installing KODAK DC3200 Picture Transfer Software Take a few minutes to register your product. This allows you to receive information regarding software updates and registers some of the products included with the camera.

Close all other software programs (including any background applications) before starting the Installer. Place the Installer CD into the CD-ROM drive. Load the software. With Auto Play enabled, the KODAK CD Software will start. If the first install window does not automatically appear, open My Computer, double-click the CD icon, then double-click the Setup (Setup.exe) application. Follow the on-screen instructions to install the software. 5 Restart the computer when the software installation is complete. The system will not operate normally unless the computer is restarted after installation. Uninstalling KODAK DC3200 Picture Transfer Software

Click the Start button on the desktop. From the Programs menu, choose Kodak, then DC3200, and then Uninstall KODAK DC3200. Follow the prompts to uninstall the software.

5 Usingthe Camera with Your Computer To transfer pictures from your camera, you need to connect the camera to your computer. The camera can communicate with your computer using: Q AnRS-232 serial cable connection for Windows-based computers, to transfer pictures stored in the camera memory or on an optional KODAK Picture Card. Q A CompactFlash card reader, to transfer pictures stored on a Picture Card. CF card readers provide a fast and easy alternative to serial cable connections. For details about available accessories, ask a dealer of KODAK products, or visit our Web site at http://www.kodak.com/go/ accessories. Once the camera is connected to a computer and the software is installed, you are ready to copy pictures from the camera to your computer.

Connecting the Camera to Your Computer An RS-232 serial cable is provided, so you can connect your camera to a Windows-based computer. When connecting the camera, use a KODAK- specified AC adapter. For details about available accessories, ask a dealer of KODAK products, or visit our Web site at http://www.kodak.com/go/ accessories. 1 With the computer turned off, plug the appropriate end of the serial cable into an available 9-pin serial port on the computer. Serial ports are usually labeled COM1 and COM2, or A and B. If your computer has a 25-pin port, you need to attach a 9-pin adapter (available at your local computer store) to the port before attaching the serial cable to the computer. If the ports are not labeled, see your computer User’s Guide for a diagram that illustrates the external ports. 2 Plug the other end of the serial cable into the serial port on the side of your camera. 3 Tum the computer on. Set the camera Power/Mode switch to the (>) position. 5 Press the MENU button to display the Menu screen on the LCD.

6 Press a A/W button until PC CONNECT is T DELETE s highlighted, and then press the SELECT button. 2 PC CONNECT Æ PRINT ORDER The PC Connect screen appears. & PROTECT = 7 Pressa À/W button until ON is highlighted, PC CONNECT and then press the SELECT button. EXIT The camera is ready to communicate with the

computer. If you get a message on your computer stating 2 ——_—_—_—_—_—_—_—_—_—_—_—_—— tt that the camera is not connected, refer to the “Troubleshooting” chapter. To cancel the PC Connection mode, press the MENU button.

Using the DC3200 Picture Transfer Software With the camera connected to your computer, you are ready to open and use the software that you installed. (See “4 Installing Your Software” on page 27.) NOTE: The DC3200 Picture Transfer Software will display pictures from the camera internal memory unless a Picture Card is present in the camera. To display pictures from the intemal memory, eject the Picture Card before starting the software. To display pictures from a Picture Card, insert the Picture Card before starting the software. 1 To start the DC3200 Picture Transfer Software, click the Start button on the desktop. From the Programs menu, choose Kodak, then DC3200, then KODAK DC3200. The DC3200 Picture Transfer Software communicates with the camera and retrieves pictures from the camera. Pictures are displayed as thumbnails. Save button Select AI] button Settings button Close button Thumbnail image

2 Click the picture you want to copy to your computer. The border of the selected thumbnail picture turns light blue. To select all pictures, click the Select AIl button. To select multiple pictures, hold down the Ctrl key and click the desired pictures. To select all pictures that reside between two pictures, hold down the Shift key and click the first and last desired pictures. 3 Click the Save button. The Select Folder dialog box appears. 4 Specify the destination folder and click the OK button. The pictures are copied to your computer. Q Unless you specify a different folder name and location, a folder is created based on the current date using the format [YYYY-MM-DD]in this location: c:\My Documents\My Pictures. Pictures are copied into this new folder. Example: If the date is August 1, 2000, the pictures are copied into the folder named “2000-08-01”. 5 | Q If a picture has the same name as a file in the destination folder it is automatically saved using a name with a “_n” suffix (where “n” is a number). Example: If the file “DCP_0001.JPG” already exists, a picture having the same name is saved using the name “DCP_0001_1.JPG”. 5 To exit the DC3200 Picture Transfer Software, click the Close button. After you save pictures to your computer, you can delete them from the camera memory or Picture Card to make room for new pictures. Changing Communication Settings— If connection errors occur, you may need to adjust the serial port and speed settings by following these steps: 1 Click the Settings button. The Communication Port Setting dialog box appears. 2 Adjust the serial port and port speed and click the OK button.

Navigating to Your Pictures Pictures are stored in the memory of the camera or on a Picture Card according to a standard agreed upon by many camera manufacturers. This standard allows you to use the Picture Card in different cameras. The KODAK DC3200 Picture Transfer Software application guides you to your pictures in the memory. However, if you use a card reader to retrieve your pictures on the Picture Card or cannot locate your pictures using the software provided, the following description of the camera file structure may be helpful. Q Root level folder is named \DCIM. Each time you turn on the camera or insert a Picture Card, any empty folders within the \DCIM folder are removed. Q Typically, all pictures taken with the DC3200 Digital Camera are stored in the \DCIM\100K 3200 folder. Q Pictures are numbered in the order in which they are taken. The first picture in the \DCIM\100K 3200 folder is DCP_0001.JPG. Q When you copy pictures to the computer or delete pictures from the memory, the camera uses consecutive numbers for subsequent pictures. For example, if the last picture taken was DCP_0007.JPG, the next picture is DCP_0008.JPG. Q When you insert the Picture Card into another DC3200 Digital Camera, the next picture is derived by incrementing either the highest existing picture number, or the highest picture number previously taken by that camera. Once you take picture DCP_9999.JPG in the \DCIM\100K 3200 folder, subsequent pictures appear in a new folder (\DCIM\101K 3200) on the Picture Card, beginning with picture DCP_0001.JPG. If you use the Picture Card in a camera other than the KODAK DC3200 Digital Camera, and that camera manufacturer adheres to this file structure standard, the \DCIM folder will contain a folder named by that camera. Pictures taken with that camera are stored in the folder using the naming conventions established by the manufacturer. For more information, refer to the documentation accompanying that camera.

Troubles hooting If you are experiencing difficulties with your camera, check the following table for possible solutions. is blinking. The camera is processing a picture. Camera Problem Cause Solution The camera |The batteries are not | Remove and reinstall the does not propery installed. batteries. See page 2. tum on. The camera |The batteries are low or | The batteries need to be does not dead. replaced. See page 2. work. The camera is not Tum on the camera. See page 3. turned on. The shutter |The camera is not Turn on the camera. See page 3. button does |turned on. notwork. [The Power/Mode Set the Power/Mode switch to switch is not set to oO. oO. The green Ready light | Wait until the Ready light stops blinking before attempting to take another picture. The red Ready light is on. The intemal memory or Picture Card is full. Transfer pictures to a computer (see page 30), delete pictures (see page 20), or insert a Picture Card with available memory (see page 5). The Menu screen is displayed. Turn off the Menu screen by pressing the MENU button.

Camera Problem Cause Solution The Pictures The quality setting The camera is operating Remaining does not use up normally. Continue taking indicator does not | enough space forthe |pictures. decrease after Pictures Remaining taking a picture. |indicator to decrease. The number of The Pictures Remaining pictures remaining is |indicator begins counting more than 999. when the number of pictures remaining is below 998. The camera is operating normally. The power The camera was not |Setthe Power/Mode suddenly turns operated for more than |switch to OFF and then off. five minutes andthe |backto gg or (w). Auto Power Off function tumed off the power. Part of the picture | Something was Keep hands, fingers, or is missing. blocking the lens other objects away from when the picture was |the lens when taking taken. pictures. Your eye or the picture was not centered correctly in the viewfinder. Leave space around the subject when centering a picture in the viewfinder.

Camera Problem Cause Solution The picture is |The flash is not on or did | Turn on the flash. See too dark. not function. page 10. The subject is too far Move to within 8 ft away for the flash to (2.4 m) of subject. have an effect. The subject is in front of | Change your position so a bright light. light is not behind the subject. Thepictureis |The flash is not needed. | Change to Auto flash. too light. See page 10. The subject was too Move at least 5 ft close when the flash was | (1.5 m) from the subject. used. Stored pictures |The Picture Card was Make sure the Ready are damaged. |inserted or removed light is not blinking when the green Ready | before inserting or light was blinking. removing a Picture Card. Thepictureis |The lens is dirty. Clean the lens. See page not clear 52. The subject was too Stand at least 2 ft (0.6 m) close when a picture was | away from the subject. taken. The subject or camera | Hold the camera steady moved while a picture |until a picture is taken. was taken. Subject was too far away | Move to within 8 ft for the flash to havean |(2.4 m) of the subject. effect. Cannot delete a | The picture is delete- Cancel the protection picture. protected. setting. See page 19.

Camera Communications Problem Cause Solution The computer cannot communicate with the camera. The camera is not set to PC Connect mode. Set the camera to PC Connect mode. See page 30. The camera is not connected to a serial cable, or the cable is not connected to a computer serial port. Connect the serial cable to the camera and computer port. See page 30. The port setting in the software is set to an Change the COM port setting to Auto-Search incorrect COM port. |orto a specific COM port. The communication | Setthe speed setting to speed setting in the 9,600 bps. If software is not communication is adjusted. successful, gradually raise the speed to optimize communication time. There is a conflict Refer to the serial with another serial device andor device, such as operating system infrared User’s Guide, or communication, consult the computer internal fax modem, or | manufacturer. other communication system. The software that Exit that software generates frequent before starting the interrupts (such as a Web browser or e-mail software) is running. KODAK Software.

Camera Communications Problem Cause Solution The computer cannot The computer is Communications may communicate with the |connected to a LAN or | be hindered due to the camera. to a special network | generation of forcible line. interrupts in the environment where the computer is connected to the LAN orto a special network line. Some A dvanced See the Power Power Management | Management section utilities on laptops can | of the laptop User’s tum off ports to save | Guide to disable this battery life. feature. The Battery Monitor |Close that software or other such software | before starting the runs constantly. KODAK Software. Computer Monitor Problem Cause Solution The image on the The monitor is not set | Refer to the computer monitor is jagged or correctly. User's Guide for inappropriately colored. information on how to adjust the monitor display settings.

Picture Card Problem Cause Solution The camera does not recognize | The Picture Cardis | Purchase a certified the Picture Card. not CompactFlash CompactFlash Picture certified. Card. See page 5. The Picture Cardis |Reformat the Picture corupt or formatted | Card. See page 26. for use in other digital cameras. The Picture Cardis | Insert a Picture Card. not inserted in the See page 5. camera. Warning Messages Message Cause Solution Internal memory is full./ The internal memory | Transfer pictures Memory card is full. or Picture Card is full |to a computer (see and cannot hold additional pictures. page 30), delete pictures (see page 20), or insert a Picture Card with available memory (see page 5). Access error on memory card. Card requires formatting. The Picture Card is corrupted. Insert a new Picture Card (see page 5) or reformat the existing card (see page 26).

7 Where to Get Help If you need help with your camera, it is available from place of purchase, the “Troubleshooting” section of this manual, or at any of the resources listed in this chapter. Software Help For help with any software packaged with your camera, contact the software manufacturer. Kodak Online Services Q World Wide Web http://www.kodak.com (click Service and Support) Kodak Fax Support O US. and Canada 1-800-508-1531 Q Europe 44-0-131-458-6962 O UK. 44-0-131-458-6962

Telephone Customer Support If you have questions concerning the operation of KODAK software or the camera, you may speak directly to a customer support representative. Before You Call Before you call, please have the camera connected to the computer, be at your computer, and have the following information available: Q Operating system Q Processor speed (MHz) Q PC model Q Amount of memory (MB) Q Exact error message you received Q Version of installation CD Q Camera serial number Telephone Numbers Q UsS.— call toll free, 1-800-235-6325, between the hours of 9:00 a.m. and 8:00 p.m. (Eastern Standard Time) Monday through Friday. Q Canada-— call toll free, 1-800-465-6325, between the hours of 9:00 a.m. and 8:00 p.m. (Eastern Standard Time) Monday through Friday. Q Europe call the Kodak Digital Imaging Support Centre number associated with your location, orthe U.K. toll line, 44-0-131-458-6714, between the hours of 09.00 and 17.00 (GMT/CET) Monday through Friday. Q Outside the U.S., Canada, and Europe— visit our Worldwide Contacts Web site at http://www.kodak.com/include/intemational.shtml

8 Warranty and Regulat ory Information

Limited Warranty Kodak warrants the KODAK DC3200 Digital Camera (excluding batteries) to be free from malfunctions and defects in both materials and workmanship for one year from the date of purchase. Retain the original dated sales receipt. Proof of the date of purchase will be required with any request for warranty repair. Limited Warranty Coverage THIS LIMITED WARRANTY WILL BE HONORED ONLY WITHIN THE GEOGRAPHICAL LOCATION THAT THE KODAK DC3200 DIGITAL CAMERA WAS PURCHASED. Kodak will REPLACE the KODAK DC3200 Digital Camera if it fails to function propedy during the warranty period, subject to any conditions and/or limitations stated herein. Such replacement is the sole remedy under this warranty. Ifitis necessary to replace the entire product, it may be replaced with a remanufactured product. Limitations Request for Warranty service will not be accepted without proof of date of purchase, such as a copy of the original dated KODAK DC3200 Digital Camera sales receipt. (Always keep the original for your records.) This warranty does not apply to the batteries used in this camera. This warranty does not cover circumstances beyond Kodak's control, nor problems caused by failure to follow the operating instructions in the KODAK DC3200 Digital Camera User's Guide. THIS WARRANTY DOES NOT APPLY WHEN FAILURE IS DUE TO SHIPPING DAMAGE, ACCIDENT, ALTERATION, MODIFICATION,

INSTRUCTIONS, FAILURE TO USE ITEMS SUPPLIED BY KODAK (SUCH AS ADAPTERS AND CABLES), OR CLAIMS MADE AFTER THE DURATION OF THIS WARRANTY. Kodak makes no other express or implied warranty for this product. In the event that the exclusion of any implied warranty is ineffective under the law, the duration of the implied warranty will be one year from the purchase date. The option of replacement is Kodak’s only obligation. Kodak will not be responsible for any special, consequential or incidental damages resulting from the sale, purchase, or use of this product, regardless of the cause. Liability for any special, consequential or incidental damages (including but not limited to loss of revenue or profit, downtime costs, loss of the use of the equipment, cost of substitute equipment, facilities or services, or claims of your customers for such damages resulting from the purchase, use or failure of the product), regardless of cause or for breach of any written or implied warranty is expressly disclaimed and excluded herefrom. Your Rights Some states or jurisdictions do not allow exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Some states or jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific rights, and you may have other rights which vary from state to state or by jurisdiction. Outside the United States In countries other than the United States, the terms and conditions of this warranty may be different. Unless specific Kodak warranty is communicated to the purchaser in writing by a Kodak company, no warranty or liability exists beyond any minimum requirements imposed by law, even though defect, damage, or loss may be by negligence or other act. Regulatory Information FCC Compliance and Advisory This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and

2) this device must accept any interference received, including interference that

may cause undesired operation. RESPONSIBLE PARTY

EASTMAN KODAK COMPANY

Rochester, New York 14650 www.kodak.com This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause hamnful interference to radio or television reception, which can be determined by tuming the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the receiver is connected; 4) consult the dealer or an experienced radio/TV technician for additional suggestions. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulation. Canadian DOC Statement DOC Class B Compliance— This Class B digital apparatus complies with Canadian ICES-003. Obervation des normes-Class B— Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

9 Appendix This appendix serves as a resource for specific technical information and care for your camera, and contains the following information: Q Original default settings Q Specifications Q Printing guidelines Q Battery usage guidelines Q Care and maintenance Original Camera Default Settings Your camera is set to these values when you take the camera out of the box for the first time. Feature Setting Preview Of Flash Auto [Quality [Better | White Balance |Auto Quickview On Slide Show 5 seconds PC Connect Off

Getting Better Results from Your Printer You may notice that the colors on your computer screen do not always match those of your documents or prints. This is because monitors and printers use different color systems. You may be able to achieve more predictable results in your printed documents by: Q Improving the quality of your paper. Copier paper may not offer the same results as coated paper or paper made specially for inkjet printers. Q Adjusting your printer software settings. Q Using fresh ink cartridges. Do not use ink cartridges beyond their life expectancy. Remember these tips when printing a document: Q Color printing takes more time. More complex pictures increase the printing and drying time. Q Color printing is more memory intensive than black and white. If your computer gives you an insufficient memory message, you may need to close some applications, change some settings, or add additional memory. Q Color prints may not photocopy as clearly as black and white. If you plan to photocopy documents, consider printing the document in grayscale. This setting is usually changed from the Print dialog box. Q Resizing the picture to a smaller size or printing the picture on glossy paper may increase the quality of the print. To improve the quality of your prints, you may want to print your pictures on KODAK Inkjet Snapshot Paper (Snapshot Paper). Snapshot Paper is made to work with most inkjet printers to give you clearer, crisper, and more detailed images on your prints.

Keep batteries away from children. In the unlikely event that battery fluid leaks onto your skin, immediately wash the contaminated skin with soap and plenty of water. Contact your local health care provider, or in the U.S. contact Kodak Health, Safety, and Environment Information at 1-716-722-5151. In the unlikely event that battery fluid leaks inside the camera, U.S. customers can contact the Kodak Information Center at 1-800-242-2424. Customers outside the U.S. can contact their local Kodak Customer Service representative. Kodak recommends KODAK PHOTOLIFE AA Alkaline Batteries, or KODAK AA Ni-MH Rechargeable Batteries for use in KODAK digital cameras. Remove the batteries when the camera is stored for extended periods of time. Always follow your battery manufacturer’s directions fully. Do not attempt to disassemble, short circuit, or subject the battery to high temperature or fire. Your camera has been designed to operate correctly using a variety of AA-size batteries currently available. These include 1.5-volt alkaline and rechargeable 1.2-volt Nickel Metal Hydride (Ni-MH). Replace all batteries of a set at the same time. New batteries should not be mixed with used ones. Do not mix rechargeable and nonrechargeable batteries. Do not mix alkaline or Ni-MH types of batteries. Do not mix different grades or brands of batteries. Failure to observe this precaution may result in some batteries in a set being driven beyond their normal exhaust point and increase their possibility of leakage. NOT ALL BATTERIES ARE CREATED EQUAL! Battery life depends significantly on age, usage conditions, type, brand, and camera. Digital camera requirements are very demanding on batteries. Not all batteries perform well under these challenging conditions. In Kodak lab tests, Ni- MH rechargeable batteries delivered the outstanding results in a variety of conditions. Ni-MH batteries are designed for high-demand devices, such as digital cameras, and do not exhibit the “memory” effects seen with other rechargeable technologies. If you elect to use alkaline batteries in your camera, you will obtain better performance from “photo-flash grade” alkaline batteries, such as KODAK PHOTOLIFE alkaline batteries. These types of batteries last

more than twice as long in digital cameras as ordinary alkaline batteries. Alkaline batteries are not rechargeable; do not attempt to recharge them in the battery charger. Q When using your camera on battery power, we recommend you limit continuous LCD Preview or Review to less than 10-minutes per session. If you are using the camera for longer periods, it is recommended that you do so with the camera powered by a KODAK-specified AC adapter. Q When disposing of batteries, follow the manufacturer's instructions and all federal, state, and local regulations. Kodak suggests customers take advantage of any community battery recycling programs that may exist in your area. Contact your local waste remover or recycler for details. Caution Hot Surface Q When removing batteries, allow to cool before touching, since the batteries may be hot. Battery Charger Tips: For charging Ni-Cd or Ni-MH batteries only, with a maximum of 4 cells, and a maximum charge of 1600mAH. Do not charge nonrechargeable batteries. Endast fôr att ladda Ni-Cd eller Ni-MH batterier, med maximalt 4 celler och en maximal laddning av 1600mAH. Âterladda inte batterier som inte är laddningsbara.

General Maintenance and Safety

To keep from damaging your camera, avoid exposing it to moisture and extreme temperatures. Clean the outside of the camera by wiping with a clean, dry cloth. Never use harsh or abrasive cleaners or organic solvents on the camera or any of its parts. Do not allow any chemicals, such as suntan lotion to come into contact with the painted surface of the camera. Never disassemble or touch the inside of the camera. This could result in electrical shock. If you notice smoke or a strange smell coming from the camera, immediately turn off the camera, wait a few minutes until the camera cools, and then remove the batteries. Clean the lens and back LCD screen: Do not use cleaning solutions unless they are designed specifically for camera lenses. Do not wipe the camera lens or LC D screen with chem- ically treated eyeglass lens tissue as it may scratch the lens. 1 Blow gently on the lens or LCD screen to remove dust and dirt. 2 Moisten the lens or LCD screen by breathing lightly on it. 3 Wipe the lens or LCD screen gently with a soft, lint-free cloth oran untreated lens-cleaning tissue. Service agreements are available in some countries. Please contact a dealer of KODAK products for more information.

Daylight Setting 12 DC3200 Picture Transfer Software 27 Default Camera Settings 47 Deleting Pictures 20 Difficulties 35 Ejecting a Picture Card 5
