GV64161CN - Dishwasher GORENJE - Free user manual and instructions

Product Type	Freestanding Dishwasher
Dimensions (H x W x D)	81.5 x 44.8 x 55.0 cm
Weight	37 kg
Power Supply	220-240 V, 50 Hz, 10 A
Energy Efficiency Class	E
Annual Energy Consumption	294 kWh
Water Consumption per Cycle	9.5 L
Number of Place Settings	9
Noise Level	49 dB(A)
Number of Programs	6
Programs	Eco 50°C, Intensive 70°C, Normal 65°C, Quick 30 min, Glass 45°C, Pre-rinse
Additional Functions	Half Load, Delayed Start (3-9h), Extra Dry
Display Type	LED with program indicators
Water Connection	Cold water, 3/4" thread
Salt and Rinse Aid Indicators	Yes
Cutlery Basket	Yes, removable cutlery tray
Adjustable Upper Basket	Yes, height adjustable
Child Lock	Yes
Overflow Protection	Yes (AquaStop system)
Filter Maintenance	Clean multi-filter after every few cycles
Spare Parts Available	Filters, spray arms, detergent dispenser, salt cap, rack wheels
Repairability Index	7.4/10

Frequently Asked Questions - GV64161CN GORENJE

How do I install the dishwasher?

Ensure a level floor. Connect the water inlet hose to a cold water supply with a 3/4 inch thread. Plug the drain hose into a sink drain. Connect to a grounded outlet. Refer to the manual for detailed installation steps.

What type of detergent should I use?

Use only dishwasher-specific detergent (powder, gel, or tablets). Avoid hand dishwashing liquid. For best results, use a combined product with salt and rinse aid.

How often should I refill salt and rinse aid?

Refill salt when the salt indicator lights up (usually after 20-30 cycles). Refill rinse aid when the indicator shows low. Use only dishwasher salt and rinse aid.

Why is the dishwasher not cleaning properly?

Check if the spray arms are blocked by large food particles. Clean the filters. Ensure proper loading: avoid overlapping dishes. Verify that the water inlet temperature is at least 50°C for main wash.

How do I clean the dishwasher itself?

Run a maintenance cycle with a dishwasher cleaner or use the self-cleaning program if available. Clean the door seal and filter manually. Remove and rinse the spray arms.

What does the error code E1 mean?

E1 typically indicates a water heating problem. Check if the water inlet is open and the filter is clean. If persistent, call a service technician.

Can I use the dishwasher with half load?

Yes, select the Half Load function to wash only the upper or lower basket. This reduces water and energy consumption.

How do I activate the child lock?

Press and hold the Child Lock button (usually marked with a key symbol) for 3 seconds. The symbol lights up when active. Repeat to deactivate.

What is the recommended cycle for heavily soiled pans?

Use the Intensive 70°C cycle. Ensure pans are placed upside down and not blocking the spray arms. Pre-rinse excessive grease.

Where can I find spare parts?

Spare parts like filters, spray arms, and detergent dispensers are available online or through authorized Gorenje service centers. Use genuine parts for best performance.

USER MANUAL GV64161CN GORENJE

OPERATING INSTRUCTIONS

DISHWASHER GV64161

gorenje

Your dishwasher 2.

Safety instructions 3.

Before washing for the first time 4.

Loading the dishwasher 6...

Using the dishwasher 8...

Settings 1.2

Care and cleaning 15...

Troubleshooting 18

Installation 25

Service 27

Information for test institute 28....

Technical information 32.

Your dishwasher

1. Main power switch
2. Programme selector
3. Auto wash
4. Intensive wash
5. Eco wash
6. Quick wash

7. Rinse

8. SpeedWash

9. Auto open
10. Half load
11. Delayed start
12. Display
13. Rinse aid indicator
14. Salt indicator

General

• Read the operating instructions and See the chapter Installation. keep them in a safe place!
• Never use the dishwasher for any purpose other than that specified these operating instructions.
• Do not load the dishwasher door dishwasher baskets with anything of than dishes.
• Never leave the dishwasher door as someone may trip on it.
• Use only dishwasher detergent!
• This machine can be used by aged 8 and upwards, and by p with reduced physical capacity, m
  See the chapter Installation.
  Children must be supervised – dishwasher detergent is corrosive!

ability, memory loss or lacking experience and knowledge. These individuals must be supervised with using the machine or have instruction on how to use the machine and

understand the risks that can oo Cleaning of the machine must n carried out by children without supervision.

• Damaged mains cables must only replaced by a qualified electrician.
• Only use the dishwasher in household-type environments for dishwashing household dishes. All other use is prohibited.
• Never place dishes with solvent residues in the dishwasher due to risk of explosion. Nor may dishes contain ash, wax or lubricants be washed in the dishwasher.

WARNING!

Knives and other pointed items must placed horizontally in the dishwasher's special cutlery baskets.

Installation

Child safety

Children must be watched. Do not a in children to use or play with the dishwasher. Be especially vigilant when or the door is open. Some detergent m ther remain inside! After adding detergent, always start the dishwasher immediatel open

WARNING!

Winter storage/transport

Store the dishwasher above freezing a avoid long transport distances in very en weather. Transport the dishwasher upri of laying on its back.

@overflow guard function

The overflow protection starts pumping out the machine and turns off the supply if the water level in the dish exceeds the normal level. If the over protection is triggered, turn off the w supply and call the service department

Packing material

The packaging protects the product du transport. The packaging material is recyclable. Separate the different packaging materials to help reduce raw material use and waste. Your dealer take the packaging for recycling or do you to the nearest recycling centre.

packaging is comprised of:

st be Garrugated cardboard made from up to 100% recycled material.

- Expanded polystyrene (EPS) with no added chlorine or fluorine.

• Protective plastic made from polyethylene (PE).

• Supports made from untreated wooChecking water hardness

Disposal

The dishwasher is manufactured and labelled for recycling.

When the dishwasher has reached end of its service life and is to of, it should immediately be made unusable. Pull out the power cable cut it as short as possible.

Contact your local authority for inform about where and how your dishwash should be correctly recycled.

Checking water hardness

In order to achieve good dishwashing results, the dishwasher needs soft water (water with low mineral content). Hard water leaves a white coating on dish and the dishwasher.

Water hardness is specified using the German water hardness scale (°dH) of the disposed French water hardness scale (°fH).

A water supply with a water hardness excess of 6° dH ( 9° fH) must be softer. This is done automatically with the addition of the built-in water softener. In order for water softener to function optimally, it must be adjusted to the hardness of water supply. Once you have adjusted water softener, use detergent and rinsed aid doses suitable for soft water.

Contact the local waterworks to check water hardness in your area.

Make a note of the water hardness: ____

If the water hardness exceeds 50° dH ( 89° fH), we recommend connecting an external water softener.

WARNING!

Hard water leaves a white coating of dishes and inside the dishwasher. It therefore important that you select the right setting for the water softener! Water hardness.

Never run the dishwasher with an e salt compartment if the water supply a water hardness in excess of 6° dl- (9° fH).

Set the Water hardness Chapter Settings describes how to the water softener.

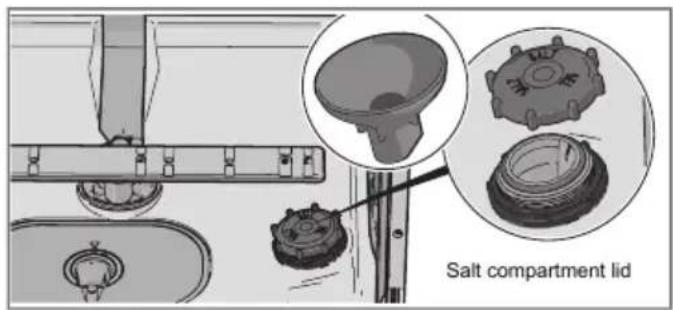

Top up with salt

1. Unscrew the salt compartment lid.
   2 Place the funnel supplied with the dishwasher in the salt compartment top-up hole. First, pour in about water.
2. Then add salt, a maximum of 1.0 kg, until the compartment is full. Use large grain salt or special dishwasher salt.
3. Wipe up any excess salt so that the lid can be screwed on firmly.

In order to avoid rust stains a dishwashing programme must be started immediately after adding salt.

Set the Rinse aid

The section Settings describes how to set the rinse aid dosage.

Top up with rinse aid

Drying is faster and a better result is achieved if you use rinse aid. You will also

achieve a better dishwashing result w adjust and spotless dishes.

1. Open the rinse aid compartment lic
   2 Carefully top up with rinse aid to level marked max.
2. Wipe up any splashes of rinse aid around the compartment.
3. Close the lid firmly.

Greener dishwashing

• Do not rinse under running water. Simply scrape off large food particles before loading the dishwasher.
• Choose an environmentally-friendly detergent. Read the environmental declaration on the packaging!
• Do not start the dishwasher until fully loaded to save energy.
• If the dishes are only slightly dirty, you can select a programme with a low temperature.
• Better drying results are achieved use the Auto open option, which automatically opens the dishwasher door. Wait until the dishwasher

indicates that the programme has ended and the dishes have cooled

before unloading the dishwasher. (If

dishwasher is built-in the surrounding furnishings must be resistant to an condensation from the dishwasher.) if

• Angle dishes with hollows, such as cups, so that the rinse water will lies. This is also important for plastic it
  • Make sure small items cannot fall through the dishwasher basket; place them in the top cutlery tray.

NOTE!

it is Check that the spray arms can rota freely.

The dishwasher's baskets

The dishwasher is equipped with a t cutlery tray, an upper basket and a basket.

The appearance of the baskets may depending on the dishwasher setup.

- Top the cutlery tray

The top cutlery tray has space for haddles, whisks, serving cutlery and sin items.

Fragile dishes

Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot withstand strong heat, others can be damaged by dishwashing detergent.

Exercise caution with, for example, handmade items, fragile decoration, crystal/glassware, silver, copper, tin, aluminium, wood and plastic. Look "Dishwasher safe" marking.

Upper basket

Place glasses, cups, bowls, side plates and saucers in the upper basket. All surfaces should face inwards and

downwards! Wine glasses are placed

Points to consider

• All dirty surfaces should face and downwards!
- Dishes should not be placed in each other.

the wine glass shelf and knives in the knife stand on the right

are Foldable tines

(if Tilted) foldable tines can be folded up down to make it easier to load pots and glasses. Release the foldable tines by pressing the catch inwards before adjusting their position.

Lower basket

Place plates, side plates, serving dish and pots in the lower basket.

Raising and lowering the upper basket

1. Pull out the upper basket.
   2 Grab the sides of the upper basket with both hands and lift it up.
2. Repeatedly lift the basket with both hands to change its position. (The upper basket can be set in three positions.) When the upper basket the highest position lifting it will it to the lowest position. Note that sides of the basket must always to the same height.

return Foldable tines at both

Fold down the foldable tines (plate be set supports) when dishwashing pots. Release the foldable tines by pressing catch inwards before adjusting their position.

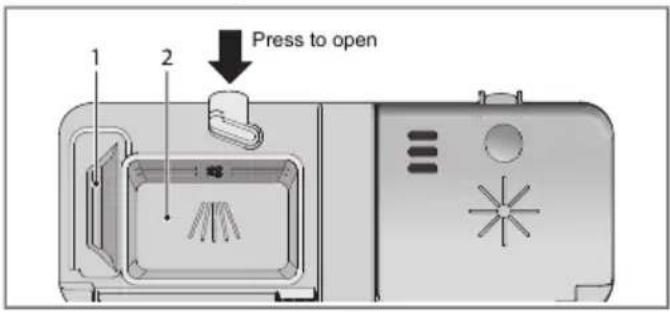

Add detergent

1. Prewash detergent compartment
   2 Main wash detergent compartment

Detergent is added according to wat hardness.

detergent will not be released properly the lid is tight and will not open c

NOTE!

Dishwasher tablets are not recommended for short programmes (less than 75 minutes). Use powder liquid dishwasher detergent instead.

All-in-one detergent

There are many types of all-in-one detergents on the market. Read through the directions for these products caref

Follow the instructions on the deterg packaging. This dishwasher is fitted a water softener, so use detergent rinse aid doses suitable for soft wa

Too much detergent can result in le effective dishwashing and also entails greater environmental impact.

The detergent compartment must be when adding detergent. There is one compartment for the prewash and on the main wash. If powder or liquid dishwasher detergent is used, add a amount of the detergent to the pre compartment. Contact the detergent manufacturer if you have questions a the detergent.

NOTE!

Use only dishwasher detergent! Wa up liquid must not be used as that forms prevents the dishwashe operating effectively.

Chapter Settings describes how to activate TAB (3-in-1/ All-in-one detergent) that salt must be put in the compartment. If you are not satisfied the dishwashing or drying results, deactivate the setting TAB (3-in-1/ All-in-one detergent) and top up with detergent and rinse aid. See Chapter Before washing for the first time.

NOTE for

Optimal washing and drying results achieved by using normal dishwasher detergent together with separately dispensed rinse aid and salt.

① The main power switch

Press and hold the main power swit ashing until the display lights up. Also chec the foam the water tap is on. er from

Dishwasher tablets

Halve the tablet if it is difficult to close the dispenser lid. There is a risk that the

≡ PROGRAMS - Select a programme

effective programme in terms of combi energy and water consumption.

Select a programme to suit the type of dishes and how dirty they are. Eco ³⁵ wash Quick wash

is always pre-selected.

Press the Programme selector one more times until the desired progra

symbol is activated.

This programme is used for glasses porcelain that is slightly dirty, such as coffee cups.

In combination with SpeedWash, a short programme is achieved (15 minutes).

auto

45-65° Auto wash

The dishwasher can measure how dirty Rinse

the dishes are and adjust water. Used to rinse dishes while you wait consumption and temperature accordingly dishwasher to become fully loaded.

When newly installed, the programme

needs to be run five times before adapted and can provide the best

auto

45-65° Auto wash + SpeedWash +

Auto open

EXTRA Select an option

Results: select an option, press one of the option buttons until the option is active. The available options vary between programmes and some options cannot combined (available options glow dimly

An effective programme for daily use for slightly dried leftovers. (This programme).

is not intended for burnt food, such as on oven dishes.) This option shortens the programme that but uses more energy and water.

70° Intensive wash

Auto open

Programme for very dirty dishes, s pans, casserole dishes and oven d Also ideal for situations where dem on hygiene are especially high, suc when dishwashing baby bottles and cutting boards. If these dishes do completely fill the dishwasher, you add plates and the like.

The dishwasher door opens automatical which improves the drying results. Wa sh as until the dishwasher indicates that the programmes has ended and the dishes have cooled before unloading the dishwasher. (If the dishwasher is built the surrounding furnishings must be not resistant to any condensation from the dishwasher.)

eco

55° Eco wash

This programme is intended for cle normally dirty dishes and is the m

NOTE!

The dishwasher door must not b blocked when set to open automingThis can disrupt door lock functi st

¹ |2 Half load

This option adapts the dishwashing programme to a half-filled dishwasher using less energy and water.

If you want to load more dish Open the door. The dishwasher stops automatically. Add the dishes and cloth the door. After a while, the dishwasher continues the programme.

Delayed start

When you select Delayed start the dishwasher will start 1-24 hours after close the door.

If the dishwasher is turned off to you a power failure

If the dishwashing programme was not finished, the interrupted programme continues when power is restored. several

1. Press the button once to activate Delayed start. Press the button set times - or hold it in - to set number of hours.

2 Close the door and the dishwash counts down 1 hour at a time after the selected delay.

theTEdesired

During drying, the programme is interrupted if the power is cut on his spots for more than 2 minute

If you want to cancel the Delayed Once the programme has finish option, open the door and press and the dishwasher switches off automatica the main power switch until the displer the programme ends. Shut off turns off. water tap after each use.

Starting the dishwasher

Close the door to start the dishwashe the main power switch is on the . dishwasher will start automatically when the door is closed.

How to get the best drying re

eFully load the dishwasher.

Angle dishes with hollows, such as cups, so that the rinse water will This is also important for plastic it

TIME - Time remaining

Once you have chosen a programme options, the time the programme took when last used is displayed.

• Top up with rinse aid or increase rinse aid dosage level.
  Activate the Auto open option.
• Allow the dishes to cool before unloading the dishwasher.

Stopping or changing a programme

If you want to change programme unloading the dishwasher starting the dishwasher, open the dop. Not porcelain is more fragile. Leave then press and hold the main power dishes to cool in the dishwasher be switch until the display turns off. Add unloading them. detergent if the lid of the detergent dispenser has opened. Then press the main power switch, choose a new programme and close the door. Unload the lower basket first to avoid water drops from the upper basket for onto the dishes in the lower basket.

Programme chart

PROGRAMS- Programme	Detergent, compartment 1 / (ml)	- Options 2		Main wash	Prewashes EXTRinses	Anal rinse	Number of consumption values1)
							Dishwashing time (approx. hrs:min)	Energy (approx. kWh)	Water cons. (L)
									11-200.9-1.52:
Intensive wash	10 / 25		2	70 °C	2	70 °C	2:55	1.7	17
Eco wash2)	--- / 25	Auto open	1	55 °C	2	49 °C	3:00	0.86	9.5
					--- / 10Quick wash		35 °C25 °C1		100.20:20
Rinse	--- / ---				1	--- °C	0:07	0.01	3

1) Consumption values vary depending on the temperature of the incoming water, room temperature, load size, selected additional functions and more.
2) This dishwashing programme is the standard cleaning cycle used to compile the energy labelling information. It is intended for washing normally dirty dishes and is the most effective programme in terms of combined energy and water consumption.

Open the settings menu:

1..First, open the door. Turn off the machine. Press and hold power switch until the display lights up.

2..Within 10 seconds:

- press the Programme selector and the option button for S

3..The display shows the settings menu (current setting and its set value).

(Exit the menu by browsing through the menu or pressing power switch.)

Navigate the settings menu:

You can now adjust the following settings:

		OptionsSettings
			Rinse aid dosage setting.1:00 - Increase the rinse aid dosage:If the dishes have water ma Decrease the rinse aid dosage:If the dishes have a sticky film.If the dishes are streaked.Build-up of foam. If you have soft water, the rinse aid can diluted 50:50 with water.Pre-selected at factory: 05
		2:00 - 2:09Water	Adjusting2.the water softener. Select setting depending on the hardness the water supply. It is important th this setting is correct!
			German water hardness scale	French wa ter hard-ness scale	Recommended setting
					2:000-9°fH0-5°dH
					2:0110-14°fH6-8°
					2:0215-20°fH9-11
					2:0321-25°fH12-1
					2:0426-34°fH15-1
					2:0535-43°fH22-2
					2:0644-52°fH25-2
					2:0753-70°fH30-3
					2:0871-88°fH40-4
					2:0989°fH50°dH
			Do not forget to put salt in the compartment after you have set the water softener to 2:01 - 2:09.For a water supply with a hardness under 6°dH (9°fH), select 2:00. The water softener is deactivated and n salt is needed.Pre-selected at factory: 04
3.	TAB(3-in-1/all-in-one detergent)	3:00 (Off)3:01 (On)	You can activate this setting when using 3-in-1/ All-in-one detergent. Th dishwashing programmes automatically adapt to provide the best possible dishwashing and drying results every time. If this setting is activated the no need to add rinse aid since the option disables rinse aid dispensing. also reduces the amount of salt a to the water softener. Note that sa must be put in the salt compartmentNOTE!In order to achieve good dishwashi results, it is essential to check with type of detergent or all-in-one product best suits your needs! Read the detergent packaging carefully for information on proper use. Always follow the directions for use or information on the detergent packaging!

Top up with rinse aid

When the rinse aid needs topping above symbol lights on the display.

1. Open the rinse aid compartment
   2 Carefully top up with rinse aid level marked max.
2. Wipe up any splashes of rinse around the compartment.
3. Close the lid firmly.

After topping up, it may take a before the symbol goes out.

Top up with salt

When the salt needs topping up, t above symbol lights on the display.

When the salt runs out, unscrew t and fill the container with salt. Wa only needed the first time! Wipe cl tighten. Run a programme to ensure any salt in the dishwasher is rinse

After topping up, it may take a while before the symbol goes out. 1.

WARNING!

up, order to avoid rust stains a dishwashing programme must be starte immediately after adding salt.

Never pour dishwasher detergent into the salt compartment. This destroys 1 water softener!

Coarse filter

The coarse filter traps larger food lid particles, which cannot get past the drainage pump. Empty the coarse filter when necessary.

1. Lift the coarse filter by the handle
2. Empty the coarse filter. Remember refit it!

Fine filter

Debris that collects on the fine filter automatically rinsed away during each wash. Clean the fine filter when necessary.

1. Turn the handle anticlockwise.

2 Lift the filter straight up using the Lower spray arm handle. Free the coarse filter to ele Pull the lower spray arm straight the fine filter. release it.

1. Refit in reverse order. Check that the edges seal properly when refitting the fine filter.

2. Lock the filter in place by turning the handle clockwise to the stop position. The handle should point straight out from the dishwasher.

NOTE!

Dishwashing results may be affected if the filters are incorrectly fitted. Note that the dishwasher must not be used without the filters in place!

NOTE!

Check that the coloured stop on the right in the bottom drain is in place.

Spray arms

Holes and bearings can sometimes become blocked. Remove any debris using a pin or the like. The spray also have holes underneath.

Upper spray arm

1. Pull out the upper basket.
   2 Unscrew the spray arm bearings counterclockwise to remove the spray arm from the upper basket.

The door and the door seal Regularly clean the sides of the doo the door seal. Use a slightly damp (with a little cleaner if necessary).

Front panel

Keeps the buttons clean and free from grease. Wipe them clean with a dry slightly damp cloth. Never use cleane they can scratch the surface. Use th main power switch to turn off the dishwasher before cleaning the buttons to avoid activating any buttons unintentionally.

To facilitate cleaning you can remove the spray arms. Remember to fit them firmly back into place afterwards.

The dishwasher tub

- Call the service department.

The dishwasher tub is made of stainless

steel and is kept clean through normal use.

Limescale deposits

If you have hard water, limescale may build up in the dishwasher. If happens, run the Intensive wash programme with two tablespoons of acid in the detergent compartment (no dishes in the machine).

citric NOTE! (with Do not forget to refit the drainage stop.

Unblocking the drainage pump

If the dishwasher still contains water the programme has finished, something may be blocking the drainage pump. items are easily removed.

1. Turn off the machine using the power switch and unplug it from wall socket.
   2 Remove the coarse filter and the filter.
2. Scoop out the water from the dishwasher tub.
3. In order to inspect the drainage remove the coloured stop on the in the bottom drain.
4. Turn the pump wheel located behind the drainage pump stop by hand. Carefully remove any items.
5. Refit the drainage pump stop along the fine and coarse filters.
6. Plug the machine in again.

If the dishwasher still does not s a whirring sound is heard, the o protection has been activated.

• Shut off the water.
• Remove the plug from the wall socket.

after Unblocking the inlet hose filter ing if the water supply contains small particles, the outer filter on the inlet may become blocked, which results in water inlet fault.

the

1. Turn off the machine using the m power switch and unplug it from t fine wall socket.
   2 Turn off the water tap.
2. Unscrew the inlet hose.
   4 Carefully remove the outer filter fro pump, the inlet hose and clean it.
3. Refit the filter and check that the ind is correctly positioned.
4. Screw the inlet hose firmly into pl
5. Plug the machine into the wall so g with turn on the water tap. Allow pressure to settle for a while and that the connection is watertight.

play		ActionType of fault on the dis-
	OverfillingF10	Clear the drainage pump. See the chapter Care cleaning. If the problem persists, call the service department.
	Water outlet faultF13	See “Water remains in the dishwasher” in the tal “Problem” below. If the problem persists, call the department.
	Water inlet faultF12	Check that the water tap is on. Check that the on the inlet hose is not blocked. See Unblocking hose filter in the chapter Care and cleaning. If the persists, call the service department.
		Turn off the water tap and call the service depa
	Water level faultF52	Clean the coarse and fine filters. Check that the filter on the inlet hose is not blocked. If the pr persists, call the service department.
		Turn off the water tap and call the service depa
		Call the service department.Circulation faultF56

Press any button to clear the error message.

		ActionPossible causesProble
The buttons do not re when pressed.	You have pressed the buttons too soon after opening the door.	Wait a moment then try again.
	The buttons are dirty.	Clean with a dry or slight damp cloth.
	The door is closed.	Open the door. The button only react to use when the door is open.
Cannot close door.	The baskets are not correctly positioned.	Check that the baskets are correctly positioned horizontally.
		Check that the dishes are not blocking the baskets from sliding properly into place.
	The door lock does not touch into place and lock.	Check the door lock. If it does not click into place a lock, open the door. Press and hold the button for the Auto open option for 15 seconds. Then wait 30 seconds. Close the door. Check that the door lock clicks into place and locks
The dishwasher does not start.	not closed.	Check.The door is not prop
	You have opened the dishwasher to add more dishes while a program is in progress.	Close the door and wait.After a while, the dishwasher continues the programme.
	The door lock has not clicked into place and locked.	Check the door lock. If it not clicked into place and locked, open the door. Pres and hold the button for the Auto open option for 15 seconds. Then wait 30 seconds. Close the door. Check that the door lock clicks into place and locks
	been tripped.	Check.A fuse/circuit breaker
	the wall socket.	Check.The plug is not plug
		Check.The water tap is turn
		Check.Overflow/leaks.
	A whirring sound (the drainage pump) is heard out the plug and call from the dishwasher and service department. does not stop when the main power switch is turned.	Turn off the water tap. Pr
	Check that the Delayed option has not been selected.	Pstart and hold the main power switch until the display turns off if you want to cancel the Delayed option. Restart the dishwasher.

		ActionPossible causes	Problem
The dishes are not clear.	Time spray arms do not rotate.	Remove the arms and them.	clear are arm. See
		Check that the dishes not blocking the spray
	Spray arm holes or be blocked.	Drugs the spray arms. the chapter Care and cleaning.
	Unsuitable dishwashing programme.	Choose a longer programme.
	Incorrect detergent dosage.	Pose according to water hardness. Far too much or far too little detergent in poorer dishwashing results.
	a perishable product.	Avoid large packages.Old do
	Dishes loaded incorrectly.	Do not cover porcelain with large bowls or the like. A placing very tall glasses in the corners of the baskets
	toppled over during the programme.	Place dishes to sit steady.
	The filters are not fitted correctly.	Check that the filter handle is locked in the stop position. The handle should point straight out from the dishwasher.
	Drainage pump stop missing.	Check that the coloured stool on the right in the bottom drain is in place. See the chapter Care and cleaning.

		ActionPossible causesProble
Spots on stainless steel.	Some foodstuffs, such mustard, mayonnaise, lemon, vinegar, salt and dressings, can mark stainless steel if left for too long.	Rinse off these types of foodstuffs if not starting the dishwasher immediately. Use the Rinse programme.
	All stainless steel can spots on silver if they into contact during dishwashing. Aluminium also cause spots on dishes. and aluminium.	caus order to avoid marks a tonishing, separate dishes made from different metals, such as silver, stainless
Spots or films on the	The water softener is leaking salt.	Check that the salt compartment lid is properly tightened. Otherwise call the service department.
	setting.	See the chapter Settings.Inc
	setting.	See the chapter Settings.Inc
	Salt compartment empty.	Top up with salt. See the chapter Before washing for the first time.
	3-in-1/ All-in-one detergent is used and the setting (3-TAB All-in-one detergent) (3-in-1/ All-in-one detergent) is activated.	activate the setting TAB
	Too high temperature and water is used and the setting (3-TAB All-in-one detergent) is activated.	d top up salt and rinse aid.
	Too much detergent can be repaired, only prevent detergent manufacturer.	Wash crystal at a low temperature and with a conservative amount of detergent. Contact the detergent manufacturer.
The dishes have a sticty white/blue film.	Rinse aid dosage setting high.	Replace the amount. See the sections Before washing for the first time and Settings. you have very soft water, you may want to dilute the rinse aid 50:50 with water.
Spots left after washing	Lipstick and tea can be difficult to wash off.	bse a detergent with bleaching agent.
Detergent residue in the detergent compartment dishwashing.	The detergent compartment was damp when adding detergent.	The detergent compartment must be dry when adding detergent.
Rattling sound when dishwashing.	The dishes are not placed or the spray am not rotating.	Check that the dishes are placed securely. Spin the spray arms to make sure they can rotate.
dishwasher.	The filters are blocked.	Water remains that filters.
	The filters are not fitted correctly.	Check that the filter handle is locked in the stop position. The handle should point straight out from the dishwasher.
	Debris in the drainage pump.	Clean the drainage pump. See the chapter Care and cleaning.
	Drainage pump stop missing.	Check that the coloured stop on the right in the bottom drain is in place. See the chapter Care and cleaning.
	Kink in drainage hose.	Check that the hose is from kinks and sharp bend
	Blocked drainage hose.	Disconnect the drainage hose where it connects to the sink unit's water trap. Check that no debris has fastened and that the connection has an inner diameter of at least 14 m
Bad odour in dishwash	Dirt around the seals corners.	Clearin with washing-up brush and low foaming cleaner.
	Low temperature programmes have been selected for a prolonged period.	Run a programme with a higher temperature about once a month.
The dishes are not dry enough.	The Auto open option activated.	Activate the Auto open option.
	loaded.	Fully load the dishwasher.TI
	Rinse aid needs topping or dosage is set too	Top up with rinse add or increase the rinse aid dosage. See the sections Before washing for the first time and Settings.
	3-in-1/ All-in-one detergent is used and the setting (3-in-1/ All-in-one detergent) is activated.	Activate the setting TAB (3-in-1/ All-in-one detergent) top up salt and rinse aid.

It is important that you read through and follow the instructions and dire Conduct installation and connection in accordance with the separate installa instructions.

Safety instructions

- Connections to electricity, water and drainage must be performed by a qualified professional.

• Always follow applicable regulations water, drainage and electricity.

• Take care during installation! Wear protective gloves! There must always be two people!

- Place a drip tray on the floor beneath the dishwasher to prevent damage setup any water leaks. - The

- Before screwing the dishwasher into are included in the separate installa place, test the dishwasher by running instructions. Check that all dimension the Rinse programme. Check that there are correct before starting the dishwasher fills with water and drains installation. Note that the height of cover door can be adjusted to ma other fittings.

Check also that none of the connections leak.

• The recess and connection dimensio

• Make sure the area on which the. However, the drainage hose should ideal dishwasher is to be installed is fibre. replaced with a new hose without Adjust the adjustable feet so that the dishwasher is level. No part of the drainage hose may be
• If the dishwasher is built-in the surrounding furnishings must be resistant to any condensation from dishwasher.
  However, the drainage hose should ideal be replaced with a new hose without the No part of the drainage hose may be than 950 mm above the bottom of dishwasher.
• Affix the protective film (packed document bag) to the underside worktop. The protective film is to the worktop from moisture.
  Attach the drainage hose with a hos clamp. Ensure that the drainage hose no_kinks.
• Check that the machine is installed spare hoses. such that the door opens freely, the supply otherwise door lock functionality may be disrupted.
  oConnection to water supply protect only the inlet hose supplied with dishwasher. Do not re-use old or oth

Drainage connection

The supply pipe must be fitted with water tap (stopcock). The water tap be easily accessible, so that the water be shut off if the dishwasher has to

See the separate installation instructions moved. for necessary information. Once

This dishwasher is suitable for installing the water tap and allow the pressure in a raised recess (to attain an ergonomic working height). This means that the connections are watertight.

dishwasher can be placed so that the drainage hose runs to a lower level of the bottom of the dishwasher, such routing it directly to a floor drain. The dishwasher is fitted with an integrated anti-siphon device to prevent the mode from being emptied of water during wash cycle.

Once the installation is complete, turning the water tap and allow the pressure settlement for a while. Check that all connections are watertight.

The drainage hose can also be con to a connection nipple on the sink water trap. The connection nipple must have an internal diameter of at least mm.

the Connection to cold water supply than Connect the dishwasher to the cold as by supply if the building is heated using The electricity or gas.

Connection to hot water supply

Connect the dishwasher to the hot supply (max. 70 °C) if the building heated using an energy-efficient means such as district heating, solar power unit's geothermal power. Choosing a hot wall connection cuts dishwashing times and reduces the dishwasher's energy consumption.

The drainage hose may be extended by a maximum of 3 m (the total length of the drainage hose must not exceed 4.5 m).

Any joins and connecting pipes must have an internal diameter of at least 14 mm.

NOTE!

Do not exceed the permitted water supply temperature. Certain materials used in some cookware cannot withstand strong heat. See Fragile dishes in the chapter Loading the dishwasher.

Read the chapter Troubleshooting before contacting the service department. If you have encountered a problem that you cannot resolve, please contact your nearest dealer, see www.gorenje.com.

When making contact, provide the de on the serial number plate. Include t article number (1) and the serial nur (2).

Electrical connection

Information about the electrical connection can be found on the serial number plate. This specification must match the electricity supply.

The dishwasher must be connected to an earthed socket.

The electric wall socket must be placed outside of the installation area to be easily accessible after installing the dishwasher. Do not use an extension cord!

NOTE!

Change of electrical cables as well as repairs and maintenance relating to safety or performance must be carried out by the manufacturer's service agent or someone with similar professional qualifications.

Request test institute information via e-mail [e-mail].

The request should include the detail of the serial number plate. Include the number (1) and the serial number (2).

Information on energy labelling

Information sheet, in compliance with Commission Delegated Regulation (EU 1059/2010

Gorenje

Number of standard place settings:	GV64161Model designation: 161) A+++Energy efficiency class:
Annual energy consumption(A)E	245 kWh per 2 year( Et ):0.86 kWhEnergy consumption
Power consumption
Off-mode (P):	0.49 W
Left-on mode 1 (P)	0.49 W
Annual water consumption (AW)	2660 litres per 3 year A4)
Drying efficiency class:
1 :	Eco wash, 5) , option Auto open:180 minutesProgramme time 1 InfiniteDuration of the left-on47 dB(A) re 1 pWNoise emIntegrated productConstruction:

1) In accordance with standard, EN 50242.
2) Based on 280 standard cleaning cycles with a cold water connection and consumption in accordance with energy saving mode. The actual energy consumption depends on how the machine is used.
3) Based on 280 standard cleaning cycles. The actual water consumption depends on how the machine is used.
4) On a scale from G (least efficient) to A (most efficient).
5) This dishwashing programme is the standard cleaning cycle used to compile the energy labelling information. It is intended for washing normally dirty dishes and is the most effective programme in terms of combined energy and water consumption.

Technical data

Height:	817-890 mm
Width:	596 mm
Depth:	556 mm
Weight:	35 kg
Water pressure:	0.03–1.0 MPa
Electrical connection:
Rated power: See serial number plate

1) Weight can vary due to different specifications.
