USER MANUAL ACE15KE HAIER

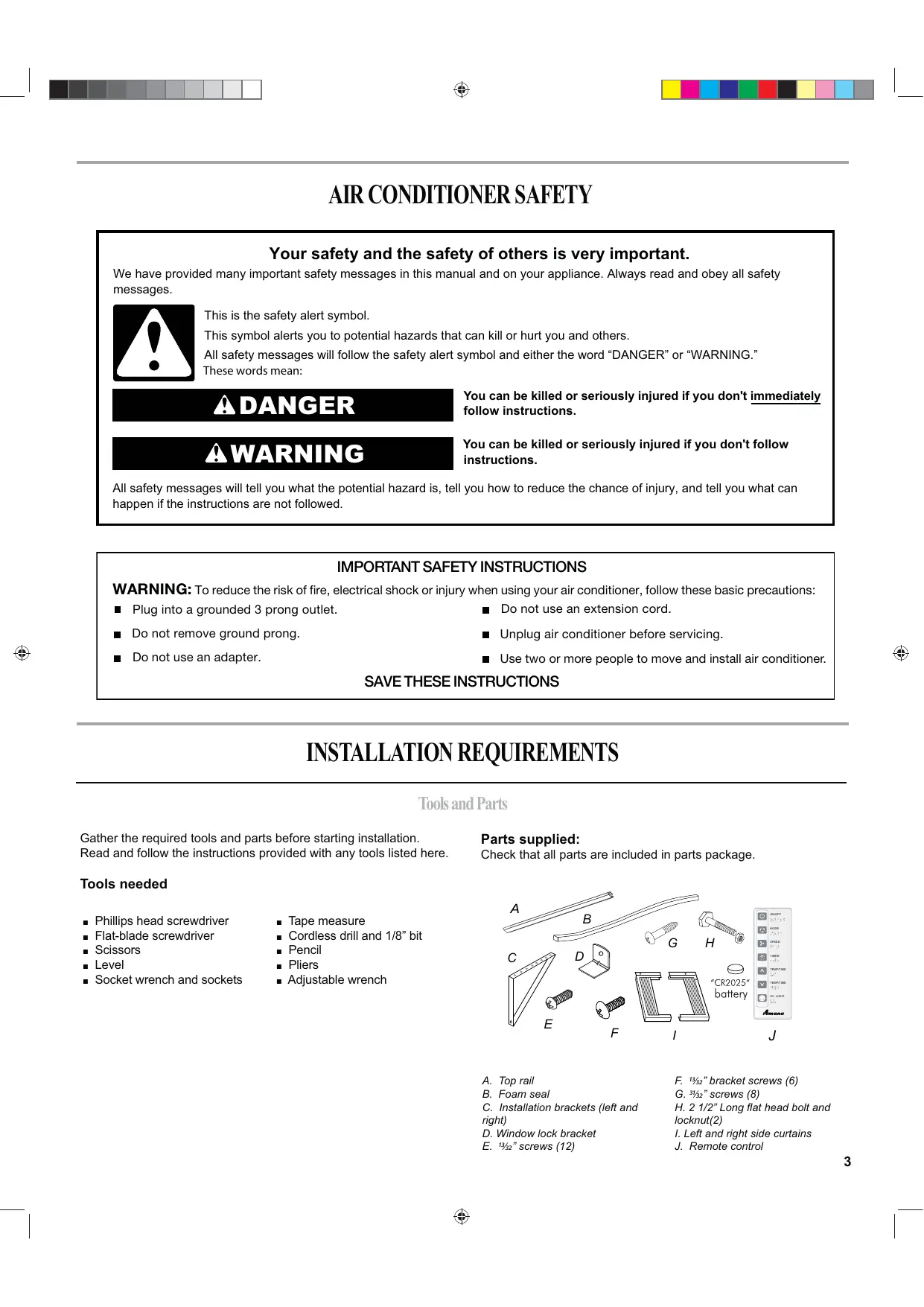

Your safety and the safety of others is very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean: À You can be killed or seriously injured if you don't immediately DANGER follow instructions. _ You can be killed or seriously injured if you don't follow À WARNING instructions. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electrical shock or injury when using your air conditioner, follow these basic precautions: "Plug into a grounded 3 prong outlet. m Do not use an extension cord. m Do not remove ground prong. = Unplug air conditioner before servicing. m Do not use an adapter. = Use two or more people to move and install air conditioner.

SAVE THESE INSTRUCTIONS

INSTALLATION REQUIREMENTS Gather the required tools and parts before starting installation Parts supplied: Read and follow the instructions provided with any tools listed here. Check that all parts are included in parts package. Tools needed = Phillips head screwdriver = Tape measure Fe = Flat-blade screwdriver = Cordless dril and 1/8” bit mn = Scissors = Pencil = Level = Pliers pu = Socket wrench and sockets = Adjustable wrench a Le)

A. Top rail F. %" bracket screws (6) B. Foam seal G. 2" screws (8) C. Installation brackets (left and H. 2 1/2" Long flat head boit and right) locknut(2} D. Window lock bracket 1. Left and right side curtains E. %2" screws (12) J. Remote control

IMPORTANT: Observe all governing codes and ordinances. Check the location where the air conditioner will be installed. Make sure you have everything necessary for correct installation. The location should provide: = Grounded electrical outlet within 4 ft (122 cm) of where the power cord exits the air conditioner. NOTE: Do not use an extension cord. = Free movement of air in room to be cooled. = Alarge enough opening for the air conditioner. Installation paris are supplied for double-hung windows. = Adequate wall support for weight of air conditioner. Air conditioner weighs 90 lbs to 120 lbs (40.8 Kg to 54.4 kg) NOTE: Cabinet louvers must not be obstructed. Air must be able to pass freely through the cabinet louvers. A. Cabinet louvers Window Installation Window opening measurements: = 28%" minimum to 38” (72.1 cm to 96.5 cm) maximum opening width = 17%" (44.1 cm) minimum opening height

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. The electrical ratings for your air conditioner are listed on the model and serial number label. The model and serial number label is located either on the side or back of the air conditioner cabinet or behind the front grille. Specific electrical requirements are listed in the chart below. Follow the requirements for the type of plug on the power supply cord. Power Supply Cord Electrical Requirements ACE15KE: = 115-voit (103.5 min. to 126.5 max.) = Oto12amps = 15-amp time-delay fuse or circuit breaker = Use on single outlet circuit only. ACE18KE: = 208/230-volt (187 min. to 253 max.) = Oto 12 amps = 15-amp time-delay fuse or circuit breaker = Use on single outlet circuit only. Recommended Grounding Method This air conditioner must be grounded. This air conditioner is equipped with a power supply cord having a 3 prong grounding plug. The cord must be plugged into a mating, grounded 3 prong outlet, grounded in accordance with all local codes and ordinances. If a mating outlet is not available, it is the customer's responsibility to have à properly grounded 3 prong outlet installed by a qualified electrical installer. Itis the customers responsibility: = To contact a qualified electrical installer. = To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70— latest edition, and all local codes and ordinances. Copies of the standards listed may be obtained from: National Fire Protection Association 1 Batterymarch Park Quincy, MA 02169

Power Supply Cord AWARN NG NOTE: Your air conditioner's device may differ from the one shoun il

—?. Electrical Shock Hazard [TE : 1] É Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. À. Test button Do not use an extension cord. B. Reset button Failure to follow these instructions can result in death, fire, or electrical shock. This room air conditioner is equipped with a power supply cord required by UL. This power supply cord contains state-of-the-art electronics that sense current leakage. If the cord is crushed, the To test your power supply cord: electronics detect current leakage and power will be disconnected 1. Plug power supply cord into a grounded 3 prong outlet. in a fraction of a second. 2. Press RESET (on some devices, a green light will turn on).

3. Press TEST (listen for click; Reset button will trip, and on

some devices, a green light will turn off).

4. Press and release RESET (listen for click; Reset button will

latch, and on some devices, a green light will turn on). The power supply cord is ready for operation. NOTES: = The Reset button must be pushed in for proper operation. = The power supply cord must be replaced if it fails to trip when the test button is pressed or fails to reset. = Do not use the power supply cord as an offfon switch. & = A damaged power supply cord must be replaced with a new power supply cord obtained from the product manufacturer and must not be repaired = The power supply cord contains no user serviceable parts. Opening the tamper-resistant case voids all warranty and performance claims. INSTALLATION INSTRUCTIONS AWARN (| [Te Prepare unit for installation Excessive Weight Hazard Unpack unit on the floor next to installation location. Use two or more people to move and install air conditioner. 1. Remove two front attachment screws.Separate the outer case from the front with a putty knife at the catch points designated by the Failure to do so can result in back or other injury. arrows.

2. Remove the four screws on both sides of the outer case.

Remove Packaging Materials 3. Using the basepan handle, slowly and evenly pull chassis out = Remove and dispose of/recycle packaging materials. Remove tape "OM Outer case. and glue residue from surfaces before tuming on the air NOTE: Cover putty knife blade with masking tape to guard conditioner. Rub a small amount of liquid dish soap over the against damage of the unit finish. adhesive with your fingers. Wipe with warm water and dry. = Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your air conditioner. = Handie the air conditioner gently.

Measure the width of the window opening. Mark the center line on the inside windowsill. A. Width of window opening B. Center line CAUTION:Never expose plastic front or grille to extreme temperatures. Assemble Curtain/Top rail NOTE: Attach curtains to the air conditioner before placing the air conditioner in window.

1. Install top rail with four 13/32” screws.

2. Slide left-hand curtain assembly into left end of top and bottom

rails. Repeat for right-hand curtain assembly. AWARNING Excessive Weight Hazard Use two or more people to move and install air conditioner. Failure to do so can result in back or other injury.

3. Fasten curtain retainer strips to the sides of the outer case with

eight 13/32” screws.. NOTES: A. Top channel C. 13/32" screws B. 13/32" screws D. Side curtains Handle the air conditioner gentiy. Be sure your air conditioner does not fall out of the opening during installation or removal. The place where the power cord exits the air conditioner should be no more than 4 ft (122 cm) from a grounded outlet. Do not block the louvers in the front panel. Do not block the louvers on the outside of the air conditioner. À. Side curtain against window channel B. Window sash behind top channel C. Bottom channel in behind windowsil NOTE: Your model may differ from the one shown.

install out mn wind 4." Install left & right installation bracket and as shown in fig. nstall outer case In window Install bolt(2 1/2” long flat head bolt and locknut) to the installation bracket and adjust them to proper length then use

1. Place outer case in window. Lower sash until it rests behind 6 (13/32")screws to fix the bracket on the case.

front flange of top rail. Bottom rail must rest behind window sil. fop rail Window sash N L About

2. Expand both curtains to contact the window frame. Install

four wood screws 31/32". Two in each upper right and left of 5. Use a wood block between the leveling bolts and the wall if the curtains. : the wall is weak or if the weight of the air conditioner falls between

3. Use three wood screws 31/32" to fix the case to windows the studs in the wall.

sash. NOTE: To make screws easier to drive, drill a pilot hole into the sash through clearance hole in curtains.

1. Insert the foam seal behind the top of the lower window sash

and against the glass of the upper window.

A. Top of lower window sash B. Foam seal

2. Place the window lock bracket as shown. Use a %" dril bit to

drill a starter hole through the hole in the window lock bracket and into the upper window.

3. Attach the window lock bracket to the upper window with one

3" screw to secure the window in place. Return chassis to the outer case AWARNING Excessive Weight Hazard Use two or more people to move and install air conditioner. Failure to do so can result in back or other injury. Find someone to help you replace the chassis in outer case. Replace front panel and grille. Note: For security purposes, reinstall screws at cabinets sides, removed in step one. IMPORTANT: Because the window sash helps keep the unit in window, make certain the window sash contacts the outer case before reinstalling the chassis.

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock.

1. Plug into a grounded 3 prong outlet

2. Press RESET on the power supply cord. See “Electrical

Operating your air conditioner properly helps you to obtain the best possible results. This section explains proper air conditioner operation. IMPORTANT: =_ If you turn off the air conditioner, wait at least 3 minutes before turning it back on. This keeps the air conditioner from blowing a fuse or tripping a circuit breaker. = Do not try to operate your air conditioner in the Cool mode when outside temperature is below 61°F (16°C). The inside evaporator coil will freeze up, and the air conditioner will not operate properiy. Starting Your Air Conditioner SPEED

1. Remove the clear plastic film from the control panel.

2. Press POWER to turn on the air conditioner. The Power

indicator light will turn on.

@ POWER NOTE: When the air conditioner is plugged in, the LED display will show “88” for 3 seconds. After the air conditioner is turned on for the first time, the display will show the current room temperature and the fan is set to Low speed. After the unit is plugged in, but before the unit is turned on, press and hold the POWER button for 5 seconds to switch the temperature display between Fahrenheit (F) and Celsius(C) degrees.

3. Select mode. See “Mode.”

4. Select fan speed. See “Fan Speed.”

5. Set temperature. See “Temperature.”

1. Press MODE until you see the indicator light glow for the

2. Choose Fan, Cool, Energy Saver or Dehum.

= Fan—Only the fan runs. Press SPEED to select High, Med or Low fan speed. The display shows the current room temperature. = Cool—Cools the room. Press SPEED to select High, Med or Low fan speed. Press the TEMP/TIME up or down arrow button to adjust the temperature. = Energy Saver—Fan runs only when cooling is needed. Press SPEED to select High, Med or Low fan speed. Because the fan does not circulate the room air continuously, less energy is used, but the room air is not circulated as often. = Dehum—Dries the room. The air conditioner automatically selects the temperature. Fan runs on Low speed only. NOTE: = Dehum mode should not be used to cool the room. = In Dehum mode,Please do not operate the speed button. MODE Oran © coot ENEROY LL SAVER © venu Fan Speed

1. Press FAN SPEED until you see the indicator light glow for

the desired setting.

2. Choose High, Med or Low.

= High—for maximum cooling = Med—for normal cooling = Low—for minimum cooling SPEED Temperature Press the TEMP/TIME up arrow button to raise the temperature. Each time you press or hold the TEMP/TIME up arrow button, the temperature will go up 1°F until it reaches 86°F (30°C). NOTE: After 5 seconds, the display will show the current room temperature. TEMP / TIME

= Press the TEMP/TIME down arrow button to lower the temperature. Each time you press or hold the TEMP/TIME down arrow button, the temperature will go down 1%F until it reaches 61°F (16°C). NOTE: After 5 seconds, the display will show the current room temperature. Timer Delay To set the Timer for a 1-hour to 24-hour delay until the air conditioner turns off (the air conditioner must be On):

1. Press TIMER. Timer OFF indicator light will flash. Display will

Show remaining hours before the air conditioner will turn off. TIMER

delay time from 1 hour to 24 hours.

3. After 5 seconds, Timer OFF indicator light will remain on.

Display will show the current room temperature. To set the Timer to turn on the air conditioner, keeping previous settings:

1. Turn on the air conditioner.

2. Press TIMER. Timer On indicator light will flash. Display will

show remaining hours before the air conditioner will turn on.

3. Press the TEMP/TIME up or down arrow button to change the

delay time from 1 hour to 24 hours.

4. Timer On indicator light will remain on.

To set the Timer to turn on the air conditioner, changing the previous settings:

1. Turn on the air conditioner.

2. Adjust the mode to Fan, Cool, Energy Saver or Dehum.

4. Adjust the temperature between 61°F and 86°F (16°C and

show remaining hours before the air conditioner will turn on.

6. Press the TEMP/TIME up or down arrow button to change the

delay time from 1 hour to 24 hours.

7. Timer On indicator light will remain on.

To clear Timer delay program: NOTE: Air conditioner can be either on or off.

1. Press TEMP/TIME once after it has been programmed.

Display will show remaining time.

2. While the display is showing the remaining time, press TIMER

until! Timer indicator light turns off.

To see or change the remaining time (in hours): Timer Off :

1. Press TEMP/TIME once after it has been programmed.

Display on the air conditioner control panel will show remaining time.

2. While the display is showing the remaining time, press

the TEMP/TIME up or down arrow button to increase or decrease the time.

3. After 5 seconds, the display on the air conditioner control

panel will show the current room temperature. Timer On :

1. Display on the air conditioner control panel will show

2. While the display is showing the remaining time, press the

TEMP/TIME up or down arrow button to increase or decrease the time. UV Light Air Purifier The photo catalÿtic air purification system cleans, deodorizes and purifies the interior air by using a filter treated with titanium dioxide. À small UV LED light positioned over the filter activates the titanium dioxide coating and produces a cleansing reaction similar to that of sunlight. This reaction converts oxygen and water into hydroxyl-free radicals that cleanse the air. NOTES: = To turn on the UV Light air Purifier, press the UV Light icon on the remote control. See “Using the Remote Control.” =_Itis recommended that the UV Light filter be replaced yearly. See Air Conditioner Care.” UV-LIGHT

NOTE: Remote control may differ in appearance. ON/OFF DNS LS MODE BRAILLE SPEED

• Dots are Braille text for sight Impaired. UV LIGHT

Amana NOTE: One CR2025 battery (included) powers the remote control. Replace battery after 6 months of use, or when the remote control starts to lose power. Power Press ON/OFF to turn on the air conditioner. ON/OFF CR ES Mode Press MODE to choose Fan, Cool, Energy Saver or Dehum. MODE SELS Speed Press SPEED to choose High, Med or Low. E SPEED Temperature (1) Press the TEMP/TIME up arrow button to raise the temperature. Each time you press or hold the TEMP/TIME up arrow button, the temperature will go up 1°F until it reaches 86°F (30°C). TEMP/TIME (2) Press the TEMP/TIME down arrow button to lower the temperature. Each time you press or hold the TEMP/TIME down arrow button, the temperature will go down 1°F until it reaches 61°F (16°C). TEMP/TIME Timer To set the Timer for a 1-hour to 24-hour delay before the air conditioner is turned off (the air conditioner must be On):

1. Press TIMER. Timer OFF indicator light on the air conditioner

control panel will flash.

2. Press the TEMP/TIME up or down arrow button to change the

delay time from 1 hour to 24 hours.

3. After 5 seconds, Timer OFF indicator light on the air

conditioner control panel will remain on. To set Timer to turn on the air con previous settings:

control panel will flash.

3. Press the TEMP/TIME up or down arrow button to change the

delay time from 1 hour to 24 hours.

4. After 5 seconds, Timer On indicator light on the air

conditioner control panel will remain on. itioner while keeping To set Timer to turn on the air con previous settings:

1. Turn on the air conditioner.

2. Adjust the mode to Fan, Cool, Energy Saver or Dehum.

3. For Fan, Cool or Energy Saver mode, adjust the fan speed to

High, Med or Low. iitioner and change the

4. Adjust the temperature between 61°F and 86°F (16°C and

control panel will flash. Display will show remaining hours before the air conditioner will turn on.

6. Press the TEMP/TIME up or down arrow button to change

the delay time from 1 hour to 24 hours.

7. Timer On indicator light on the air conditioner control panel

will remain on. To clear Timer delay program: NOTE: Air conditioner can be either on or off.

1. Press TIMER once after it has been programmed. Display on

the air conditioner control panel will show remaining time.

2. While the display is showing the remaining time, press

TIMER until! Timer indicator light turns off. To see or change the remaining time (in hours): Timer Off :

1. Press TEMP/TIME once after it has been programmed.

Display on the air conditioner control panel will show remaining time.

2. While the display is showing the remaining time, press

the TEMP/TIME up or down arrow button to increase or decrease the time.

3. After 5 seconds, the display on the air conditioner control

panel will show the current room temperature. Timer On :

1. Display on the air conditioner control panel will show

2. While the display is showing the remaining time, press the

TEMP/TIME up or down arrow button to increase or decrease the time. 4-Way Air Flow:The air directional louvers let you control the direction of the airflow to the desired direction.The airflow can be directed up-down,left-right. Vent:The Fresh air vent allows the air conditioner to recirculate inside air,draw fresh air into the room and exhaust stale air to the outside. 4may Air Flow The Fresh ar vent When your air conditioner is operating normally, you may hear sounds such as: = Droplets of water hitting the condenser, causing a pinging or clicking sound. The water droplets help cool the condenser. = Air movement from the fan. = Clicks from the thermostat cycle. « Vibrations or noise due to poor wall or window construction. = Ahigh-pitched hum or pulsating noise caused by the modern high-efficiency compressor cycling on and off.

AIR CONDITIONER CARE

Your new air conditioner is designed to give you many years of dependable service. This section tells you how to clean and care for your air conditioner properly. The air filter is removable for easy cleaning. À clean filter helps remove dust, lint, and other particles from the air and is important for best cooling and operating efficiency. Check the filter every 2 weeks to see whether it needs cleaning. NOTE: Do not operate the air conditioner without the filter in place.

1. Turn off the air conditioner.

2. Remove the air filter by opening the front panel and removing

3. Use a vacuum cleaner to clean air filter. Ifthe air fier is very

dirty, wash it in warm water with a mild detergent. Do not wash the air filer in the dishwasher or use any chemical cleaners. Air dry the air filter completely before replacing to ensure maximum efficiency.

4. Replace the air filter.

5. Close the front panel.

6. Turn on the air conditioner.

A. Air filter B. Front panel

2. Clean the front panel with a soft, damp cloth.

3. Air dry the front panel completely.

4. Turn on the air conditioner.

Air Conditioner Your air conditioner needs annual maintenance to help ensure steady, top performance throughout the year. Call your local authorized dealer to schedule an annual checkup. The expense of an annual inspection is your responsibility. UV Filter The UV filter is located behind the air filter. & A. UV filter behind air filter

1. Turn off the air conditioner.

2. Remove the air filter. See “Cleaning the Air Filter."

3. Use a vacuum cleaner to clean the UV filter.

4. Replace the air filter. See “Cleaning the Air Filter."

5. Turn on the air conditioner.

TROUBLE SHOOTING Before calling for service, try the suggestions below to see whether you can solve your problem without outside help. Air Conditioner Will Not Operate A ARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. = _The power supply cord is unplugged. Plug into a grounded 3 prong outlet. See “Electrical Requirements." The power supply cord has tripped (Reset button has popped out). Press and release RESET (listen for click; Reset button wil latch and on some devices, a green light will turn on) to resume operation. A household fuse has blown, or circuit breaker has tripped. Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician. See “Electrical Requirements." The Power button has not been pressed or the Mode control knob is turned to Off. Press POWER or turn the Mode control knob to an active setting. The local power has failed. Wait for power to be restored. Air conditioner blows fuses or trips circuit breakers = Too many appliances are being used on the same circuit. Unplug or relocate appliances that share the same circuit. = Time-delay fuse or circuit breaker of the wrong capacity is being used. Replace with a time-delay fuse or circuit breaker of the correct capacity. See “Electrical Requirements.”

= An extension cord is being used. Do not use an extension cord with this or any other appliance. = You are trying to restart the air conditioner too soon after turning off the air conditioner. Wait at least 3 minutes after turning off the air conditioner before trying to restart the air conditioner. Air conditioner power supply cord trips (Reset button pops out) Disturbances in your electrical current can trip (Reset button will pop out) the power supply cord. Press and release RESET (listen for click; Reset button wil latch and on some devices, a green light will turn on) to resume operation. Electrical overloading, overheating, cord pinching or aging can trip (Reset button will pop out) the power supply cord. After correcting the problem, press and release RESET (listen for click; Reset button will latch and on some devices, a green light will turn on) to resume operation. NOTE: À damaged power supply cord must be replaced with a new power supply cord obtained from the product manufacturer and must not be repaired. Air conditioner seems to run too much = The current air conditioner replaced an older model. The use of more efficient components may cause the air conditioner to run longer than an older model, but the total energy consumption will be less. Newer air conditioners do not emit the ‘blast” of cold air you may be accustomed to from older air conditioners, but this is not an indication of lesser cooling capacity or efficiency. Refer to the efficiency rating (EER) and capacity rating (in Btu/h) marked on the air conditioner. The air conditioner is in a heavily occupied room, or heatproducing appliances are in use in the room. Use exhaust vent fans while cooking or bathing and try not to use heatproducing appliances during the hottest part of the day. A higher capacity air conditioner may be required, depending on the size of the room being cooled.

Air conditioner cycles on and off too much or does not cool room in cooling mode The air conditioner is not properly sized for your room. Check the cooling capabilties of your room air conditioner. Room air conditioners are not designed to cool multiple rooms. The filter is dirty or obstructed by debris. Clean the filter. There is excessive heat or moisture (open container cooking, showers, etc.) in the room. Use a fan to exhaust heat or moisture from the room. Try not to use heatproducing appliances during the hottest part of the day. The louvers are blocked. Install the air conditioner in a location where the louvers are free from curtains, blinds, furniture, etc. The outside temperature is below 61°F (16°C). Do not try to operate your air conditioner in the cooling mode when the outside temperature is below 61°F (16°C). The temperature of the room you are trying to cool is extremely hot. Allow extra time for the air conditioner to cool off a very hot room. = Windows or doors to the outside are open. Close all windows and doors. The Temperature control is not at a cool enough setting. Adjust the TEMP/TIME control to a cooler setting by pressing the minus button to reduce the temperature. Set the Fan Speed control to the highest setting. Water drips from cabinet into your house = The air conditioner is not properly leveled. The air conditioner should slope slightiy downward toward the outside. Level the air conditioner to provide a downward slope toward the outside to ensure proper drainage. See the Installation Instructions. NOTE: Do not drill a hole into the bottom of the metal base and condensate pan.

Before calling for assistance or service, please check “Troubleshooting." lt may save you the cost of a service call. If you still need help, follow the instructions below. When caling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to our request. If you need replacement parts If you need to order replacement parts, we recommend that you use only factory-specified replacement parts. Factory-specified replacement parts will fit right and work right because they are made with the same precision used to build every new appliance. To locate factory-specified replacement parts in your area, call your nearest designated service center. Please record your models information. Whenever you call to request service on your appliance, you need to know your complete model number and serial number. You can find this information on the model and serial number label. See “Electrical Requirements” for the location of the model and serial number label. Please record the model and serial number information below. Also, record the purchase date of your appliance and the store's name, address, and telephone number. Model Number. Serial Number Purchase Date. Store Name Store Address Store Phone Keep this book and the sales slip together for future reference. Visit www.haieramerica.com or call Haïer America toll free: 1-888-842-2440. Our consultants provide assistance with: = Features and specifications on our appliances. Installation information. Use and maintenance procedures. Repair parts sales. Referrals to repair parts distributors, and service companies. Manufacturer-authorized service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the United States. For Further Assistance If you need further assistance, you can write with any questions or concems to: Haïer America 1356 Broadway New York, NY 10018 Please include a daytime phone number in your correspondence. Call Haier America toll free: 1-888-842-2440. Our consultants provide assistance with: = Features and specifications on our appliances. Installation information. Use and maintenance procedures. Repair parts sales. Referrals to repair parts distributors, and service companies. Manufacturer-authorized service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the Canada. For Further Assistance If you need further assistance, you can write with any questions or concems to: Haïer America 1356 Broadway New York, NY 10018 Please include a daytime phone number in your correspondence.

This warranty covers all defects in workmanship or material for the mechanical and electrical parts (including labor costs) contained in this product for a period of 12 months from the date of purchase. For commercial or rental application, the warranty is 90 days. You must keep and be able to provide your original sales receipt as proof of the date of purchase. FIVE YEAR LIMITED WARRANTY ON THE SEALED SYSTEM The sealed system and compressor (hermetic compressor, condenser and evaporator) contained in this product is for a period of 5 years from the date of purchase (excluding labor costs after the initial 12-month period). In commercial or rental use, the additional limited compressor warranty is for 1 year and 9 months (excluding labor costs after the initial 90-day period). You must keep and be able to provide your original sales receipt as proof of the date of purchase.

The original retail purchaser of this product.

Haïer America will repair or replace any mechanical, electrical part or the compressor, which proves defective in normal household use for a period of 12 months. Haïer America wi repair or replace (excluding labor costs) the sealed system and compressor (parts only) for an additional 4-year period.

HOW CAN YOU GET SERVICE

Contact your nearest manufacturer-authorized Service Depot. For the name of the Service Depot nearest you, contact Haïer America at 1-888-842-2440. All service must be performed by a manufacturer-authorized Service Depot.

THIS WARRANTY DOES NOT COVER

Damages from improper installation. Damages in shipping. Defects other than manufacturing. Damages from misuse, abuse, accident, alteration, lack of proper care and maintenance or incorrect current or voltage. Damage from other than household use. Damages from service by other than an authorized dealer or service center. Decorative trims or replaceable light bulbs. Labor, service, transportation and shipping charges for the removal of defective parts and installation of replacement parts beyond the initial 12-month period. 9. Credit or refund for products over 30 days past date of purchase, or for any loss or injury caused by the product or defects to the product including but not limited to incidental or consequential damages. 40. Food loss for food spoiled as a direct result of mechanical failure of a product or of any delay in providing service, repair or replacement.

11. Refurbished product purchased as/like new or second-hand.

DNONBRON 2 THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The remedy provided in this warranty is exclusive and is granted in lieu of all other remedies. This warranty does not cover incidental or consequential damages. Some states do not allow the exclusion of incidental or consequential damages, so this limitation may not apply to you. Some states do not allow limitations on how long an implied warranty lasts, so this limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. This warranty covers units within the continental United States, Canada and Puerto Rico. 110 ©Copyright 2010 Amana® is a registered Trademark/TM of Maytag Corporation or its related All rights reserved. companies. Manufactured under license by Haier America, New York, New York. Used under license by Maytag Limited in Canada.
