Product Type	Germanium Preamp / Direct Inject Box
Brand	Chandler Limited
Model	Germanium Pre Amp/DI
Dimensions (H x W x D)	1.75 x 8.5 x 6.5 inches (44 x 216 x 165 mm)
Weight	2.5 lbs (1.13 kg)
Power Supply	External 24V AC adapter (included)
Inputs	1 x XLR (mic), 1 x 1/4-inch (instrument)
Outputs	1 x XLR (balanced line), 1 x 1/4-inch (DI thru)
Controls	Gain, Trim, Low Cut Filter, Pad, Phase, DI Level
Frequency Response	20 Hz – 50 kHz (±0.5 dB)
Maximum Gain	60 dB (mic), 40 dB (instrument)
Input Impedance	2.4 kΩ (mic), 1 MΩ (instrument)
Output Impedance	600 Ω
Equivalent Input Noise	-127 dBu (A-weighted)
Max Output Level	+26 dBu
Special Features	Custom germanium transistors, variable bias control, unique saturation
Construction	Steel chassis, black finish
Warranty	2 years limited
Country of Origin	USA

Frequently Asked Questions - Germanium Pre Amp/DI Chandler

What power supply does the Chandler Germanium Pre Amp/DI require?

It requires an external 24V AC power adapter, which is included with the unit. Do not use a different voltage as it may damage the circuitry.

Can I use the Germanium Pre Amp/DI as a standalone DI box without power?

No, the unit requires power to operate. The DI output is active and will not pass signal without power. Always use the included AC adapter.

What is the difference between the mic input and instrument input?

The mic input is a balanced XLR with 2.4 kΩ impedance, designed for microphones. The instrument input is a 1/4-inch high-impedance (1 MΩ) input for electric guitars, basses, or other pickups.

How do I connect the Germanium Pre Amp/DI to a mixer or audio interface?

Use the balanced XLR output to connect to a microphone preamp input or line input. The output level can be adjusted with the DI Level control. You can also use the 1/4-inch output as a direct thru.

What does the 'Bias' control do?

The Bias control adjusts the operating point of the germanium transistors, varying the harmonic distortion character from clean to more saturated and colored tones. It is a key feature for shaping the sound.

Is the Germanium Pre Amp/DI suitable for bass guitar?

Yes, it works exceptionally well with bass due to its high input impedance and ability to add subtle or pronounced saturation. The low cut filter can tighten low end if needed.

What is the maximum input level before clipping?

The mic input can handle up to +20 dBu before clipping, while the instrument input can handle up to +22 dBu. The Pad switch (-20 dB) allows handling hotter sources.

How do I clean and maintain the unit?

Unplug the power and use a dry, soft cloth to wipe the exterior. Avoid solvents or abrasives. Keep the unit in a dry, dust-free environment. No internal user-serviceable parts.

Can I rack mount the Germanium Pre Amp/DI?

The unit is a half-rack size. A rack tray or adapter (sold separately) is required to mount it in a standard 19-inch rack. It occupies 1U of rack space.

What is the warranty on this product?

Chandler Limited offers a 2-year limited warranty covering defects in materials and workmanship. Register your product online for support.

USER MANUAL Germanium Pre Amp/DI Chandler

Thank you for purchasing the Chandler Limited Germanium Pre amp/DI. This unit is proudly hand wired and assembled in the USA. This unit is made with a 100% discrete transistor circuit and specially wound transformers. Included are item descriptions and hints to get you on your way.

For peak performance, please allow the unit to warm up for at least 25 minutes before use.

Please feel free to call our shop anytime for help or questions.

Prior to sending in your gear for repair, please contact our shop at the number below. We will assist you in troubleshooting the problem and if needed, we will issue you an RMA# to send in the gear.

Send repairs to: Chandler Limited, Inc.

Attention: Repairs

222 S. Cherry St.

Shell Rock, IA 50670

Phone: [phone]

Email: [e-mail]

Connections - All connections on the Germanium are transformer balanced with pin 2 hot.

Power supply - This is designed to be used with Chandler Limited PSU-1 MKII power supply.

The power pin out is as follows:

1) chassis and audio ground

2) 48 volt

3) +28 volt

4) -28 volt

Notes on Grounding - The back of the power supply has two black banana connectors. These join the audio ground to the earth ground with a solid wire between them. Depending on your studio you may want to connect or disconnect this. Turn up your monitors or headphones to experiment with which has a lower noise floor in your system. You may also need to join the audio banana plug to other sections of your studio to obtain the lowest noise floor. The connectors are located near the closest edge of the power supply case. Use something simple, like a guitar cord, and touch the tip to other portions of your studio to find the best results.

CHANDLER LIMITED®

Controls and Features

GAIN/GERMANIUM DRIVE - This is your standard input gain control. It is a 10-position Elma switch with 3db step increments. The full range of the unit is -5db, with the pad, to +65db, without the pad and Germanium Drive and Feedback at full. The actual amount of overall gain, however, is affected by feedback control. When the gain is at 0 and the feedback is at 0, the overall gain is +10db. Increasing the feedback to 10 changes the overall gain to +40db, with all the tonal changes described under the feedback control. Using different combinations of feedback and input gain is essential if you want to take advantage of all the tones available from the Germanium pre amp.

FEEDBACK - The Feedback control is essential to the sound and function of this pre amp. Audio amplifiers incorporate some amount of negative feedback which is where the output signal of the amplifier is fed back to its input. This affects the sound and function of the amplifier in many ways. THD, frequency response, gain, and amplifier stabilization change considerably with varying feedback.

In use you will find these results: When feedback is at 0 the unit will produce more high frequency information, less THD, less gain, and generally a more pristine clear tone. Pushing the feedback higher will add THD, gain, a small bass rise, and a small hi end roll off.

PAD - A 15db pad switch. Do not be afraid to use the pad on the unit as you will not find the adverse effects associated with many pads. The pad is also very helpful with discovering all the tonal variations the Germanium is capable of producing. Use the pad when you are driving the Germanium very hard to keep the output levels in a usable range. Another important use for the PAD is to drop the gain to a line level while sending tape/disk tracks or line sources into the transformer balanced rear input.

THICK - The thick switch adds a gentle low end rise to the signal. It sounds simple but all of our beta testers commented about this being their favorite part of the unit. One said "Why don't you just wire it in permanently?" "It's great for making large, meaty guitars."

CHANDLER LIMITED®

Controls and Features continued

VU METER - An LED meter that functions in two ranges. The ranges are from -12 to +3 and +5 to +20db. You can select the range with the pushbutton to the left of the meter.

DI/UNBALANCED IN - This is an unbalanced input for guitar, bass, samples, etc. Simply throw the toggle switch and you're off.

48 VOLT SWITCHING -48 volt switches phantom power.

PHASE - Reverses the polarity of the pre amp's output.

SPECIAL NOTE ABOUT THICK -

In some cases, when extremely high gain and feedback are used with transformerless microphones, you may get oscillation from the Germanium pre amp. This is a very rare occasion, but we thought it was worth mentioning. This was not compensated for in the final design for two reasons. First, any correction of this changed the sound of the pre amp. Second, it happens in VERY rare times when a combination of Gain, Feedback, Thick, and a transformerless mic is used, and all oscillation can be removed when the PAD is engaged.

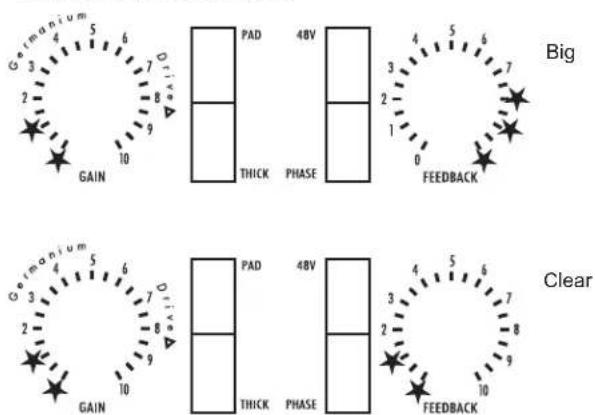

EXAMPLE SETTINGS-

CHANDLER LIMITED®

CE Certification

Chandler Limited declares under its sole responsibility that all products manufactured by them are in compliance with EC directives 2004/108/EC Electromagnetic Compatibility; 2004/108/EG Electromagnetic Compatibility; 2006/95/EC Low Voltage Equipment Safety.
