Product Type	Freezer
Brand	AEG
Model	NAB7N181DC
Net Capacity	181 L
Dimensions (H x W x D)	1850 mm x 595 mm x 650 mm
Weight	62 kg
Energy Class	E
Annual Energy Consumption	250 kWh
Voltage / Frequency	220-240 V / 50 Hz
Noise Level	42 dB(A)
Climate Class	SN-T
Freezing Capacity	20 kg/24h
Storage Time During Power Failure	18 h
Defrost System	Manual
Cooling System	Static
Temperature Range	-24 °C to -16 °C (adjustable)
Number of Drawers / Shelves	4
Door Alarm	Yes
Interior Light	LED
Reversible Door	Yes
Refrigerant	R600a
Installation	Freestanding

Frequently Asked Questions - NAB7N181DC AEG

What is the net capacity of the AEG NAB7N181DC freezer?

The AEG NAB7N181DC has a net capacity of 181 liters.

What is the energy class of this freezer?

The energy class is E, with an annual consumption of approximately 250 kWh.

How do I adjust the temperature?

Use the thermostat dial inside the freezer. Turn it to a higher number for colder temperatures. Recommended setting is -18 °C.

Does the freezer have a door alarm?

Yes, it is equipped with a door alarm that sounds if the door is left open for too long to prevent food spoilage.

How do I defrost the freezer?

Turn off the appliance and remove all food. Leave the door open and place towels to collect melted ice. Never use sharp objects to remove ice. Dry thoroughly before restarting.

Can the door be reversed?

Yes, the door is reversible. Follow the instructions in the manual to change the hinge side.

What is the noise level?

The noise level is approximately 42 dB(A), which is normal for this type of appliance.

How much food can I freeze in 24 hours?

The freezing capacity is 20 kg per 24 hours.

What should I do if the freezer is not cooling properly?

Check if the thermostat is set correctly, ensure the door is fully closed, and verify that air vents are not blocked. If the problem persists, contact AEG service.

How do I clean the freezer?

Unplug the appliance, remove food and shelves, and wipe interior with a solution of mild detergent and water. Rinse and dry thoroughly before restarting.

USER MANUAL NAB7N181DC AEG

Welcome to AEG! Thank you for choosing our appliance.

Get usage advice, brochures, troubleshooting, service and repair information:

www.aeg.com/support

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION...... 16
2. SAFETY INSTRUCTIONS.... 18
3. CONTROL PANEL....20
4. DAILY USE....23
5. HINTS AND TIPS....23
6. CARE AND CLEANING.... 24
7. TROUBLESHOOTING....25
8. TECHNICAL DATA....27
9. INFORMATION FOR TEST INSTITUTES.... 27
10. ENVIRONMENTAL CONCERNS......27

1. ⚠ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children aged from 3 to 8 years and persons with very extensive and complex disabilities are allowed to load and unload the appliance provided that they have been properly instructed. Children of less than 3 years of age should be kept away from the appliance unless continuously supervised.

• Children should be supervised to ensure that they do not play with the appliance.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.
• Keep all packaging away from children and dispose of it appropriately.

1.2 General Safety

• This appliance is for storing food and beverages only.
• This appliance is designed for single household domestic use in an indoor environment.
• This appliance may be used in offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.

- To avoid contamination of food respect the following instructions:

- do not open the door for long periods; - clean regularly surfaces that can come in contact with food and accessible drainage systems;

- WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- WARNING: Do not damage the refrigerant circuit.

- WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Do not use water spray and steam to clean the appliance.

- Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

- When the appliance is empty for long period, switch it off, defrost, clean, dry and leave the door open to prevent mould from developing within the appliance.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Do not use the appliance before installing it in the built-in structure due to safety manner.
• Follow the separate instructions for the appliance installation and door reversing available on our website. • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Make sure the air can circulate around the appliance.
• At first installation or after reversing the door, wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor.
• Before carrying out any operations on the appliance (e.g. reversing the door), remove the plug from the power socket.
• Do not install the appliance close to radiators or cookers, ovens, or hobs, unless otherwise specified in the installation instructions.
• Do not expose the appliance to the rain.
• Do not install the appliance where there is direct sunlight.
• Do not install this appliance in areas that are too humid or too cold.
• When you move the appliance, lift it by the front edge to avoid scratching the floor.
• Protect the floor from scratches when reversing the appliance door.

- The appliance contains a bag of desiccant. This is not a toy. This is not food. Please dispose of it immediately.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

WARNING!

When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING!

Do not use multi-plug adapters and extension cables.

• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply. • The appliance must be earthed. • Always use a correctly installed shockproof socket.
• If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.
• Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable, compressor). Contact the Authorised Service Centre or an electrician to change the electrical components.
• The mains cable must stay below the level of the mains plug.
• Connect the mains plug to the mains socket only at the end of the installation.

Make sure that there is access to the mains plug after the installation.

- Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

2.3 Use

WARNING!

Risk of injury, burns, electric shock or fire.

The appliance contains flammable gas, isobutane (R600a), a natural gas with a high level of environmental compatibility. Be careful not to cause damage to the refrigerant circuit containing isobutane.

• Do not change the specification of this appliance.
• Any use of the built-in product as freestanding is strictly prohibited.
• This appliance is intended to be used at ambient temperatures ranging from 10°C to 43°C. The specified temperature range guarantees the correct operation of the appliance.
• Do not place electrical appliances (e.g., ice cream makers) inside the appliance unless they are stated as applicable by the manufacturer.
• If damage occurs to the refrigerant circuit, ensure that there are no flames or sources of ignition in the room. Ventilate the room.
• Do not let hot items touch the plastic parts of the appliance.
• Do not place soft drinks in the freezer compartment. This will create pressure on the drink container.
• Do not store flammable gas or liquid in the appliance.
• Do not place flammable products or items that are wet with flammable products in, near, or on the appliance.
• Do not touch the compressor or the condenser. They are hot.
• Do not remove or touch items from the freezer compartment if your hands are wet or damp.
• Do not refreeze food that has been thawed.
• Follow the storage instructions on the packaging of frozen food.
• Wrap the food in any food contact material before placing it in the freezer compartment.
• Do not allow food to come into contact with the inner walls of the appliance compartments.

2.4 Care and cleaning

WARNING!

Risk of injury or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• This appliance contains hydrocarbons in the cooling unit. Only a qualified person must do the maintenance and the recharging of the unit.

2.5 Service

• To repair the appliance contact the Authorised Service Centre. Use only original spare parts. - Please note that self-repair or non-professional repair can have safety consequences and might void the guarantee. - The following spare parts are available for at least 7 years after the model has been discontinued: thermostats, temperature sensors, printed circuit boards, light sources, door handles, door hinges, trays and baskets. Door gaskets are available for at least 10 years after the model has been discontinued. The duration may be longer in your country. For further information, please visit our website. - Please note that some of these spare parts are only available to professional repairers, and that not all spare parts are relevant for all models.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

- Disconnect the appliance from the mains supply.

• Cut off the mains cable and discard it.
• Remove the door to prevent children and pets to be closed inside of the appliance.
• The refrigerant circuit and the insulation materials of this appliance are ozone-friendly. • The insulation foam contains flammable gas. Contact your municipal authority for

information on how to discard the appliance correctly.

- Do not cause damage to the part of the cooling unit that is near the heat exchanger.

3. CONTROL PANEL

1 ECOMETER indicator 2 Extra Freeze button / indicator 3 Freezer compartment indicator 4 Alarm indicator 5 Door open alarm indicator 6 Freezer temperature button / indicator 7 ECO button

3.1 Switching on/off

Switch on

Connect the mains plug to the power socket. To select a different set temperature, refer to "Temperature regulation".

If dE on appears on the display, refer to "Troubleshooting".

Switch off

1. Press and hold the freezer temperature button for 5 sec.

The display shows blinking OF

1. When display reads, disconnect the main plug from the power socket.

3.2 Temperature regulation

The temperature range may vary between -15°C and -24°C for freezer (recommended -18°C).

Press the freezer temperature button to set the temperature of the appliance.

Set recommended temperature by switching on ECO function. Refer to "ECO function".

The temperature indicators show the set temperature.

The set temperature will be reached within 24 h. After a power failure, the appliance restores to the set temperature.

3.3 ECO function

The ECO function sets the optimal freezer temperature to ensure food preservation while minimizing energy consumption.

1. To activate the function press the ECO button. The freezer temperature is set to -18°C.
2. To deactivate the function, press the ECO button again or select a different set temperature (refer to "Temperature regulation"). After deactivating the ECO function, the freezer temperature is set to -20°C.

Activation of the ECO deactivates Extra Freeze function.

The ECOMETER indicator shows the appliance's current energy consumption. Three fully lit bars indicate the most energy-efficient setup.

3.4 Extra Freeze function

Extra Freeze function is used to pre-freeze and fast freeze in sequence in the freezer compartment. This function accelerates the freezing of fresh food and protects foodstuffs already stored from warming.

To freeze fresh food, activate the Extra Freeze function at least 24 h before placing the food to complete pre-freezing.

Press the Extra Freeze button to activate this function.

The Extra Freeze indicator lights up. The Extra Freeze function stops automatically after a maximum of 52 h.

Press the Extra Freeze button to deactivate the function before it automatically ends.

3.5 High temperature alarm

When the temperature in the freezer compartment increases, the alarm indicator flashes, the freezer temperature indicator shows blinking H° and the sound is on. To deactivate the alarm, press any button.

The alarm indicator and sound turn off. The freezer temperature indicator shows H° for 5 sec before indicating the freezer temperature again.

The alarm restarts 1 h after deactivation until the normal conditions are restored. If you do not press any button, the sound switches off automatically after 1h.

3.6 Door open alarm

The door open alarm indicator turns on with the sound if the freezer door is left open for 80 sec.

The alarm stops after closing the door. Press any button to switch off the sound.

If you do not press any button, the sound switches off automatically after 1 hour.

3.7 Setting mode

The Setting mode allows you to enable or disable the ECOMETER indicator, the Rest mode, the Sabbath mode, to reset the appliance factory settings and to change the temperature units from °C to °F.

Activating the Setting mode

1. Press and hold the ECO button for approx. 3 sec. The display alternately shows blinking and .
2. Once the Setting mode is switched on, the display alternately shows PE and On

Press and hold the ECO button for approx. 3 sec to deactivate the Setting mode.

The Setting mode deactivates if you do not interact with the control panel for 60 sec.

Navigating the Setting mode

Tap the temperature button to change the parameter.

Tap the Extra Freeze button to change the parameter value.

Display Default parameters
PE On	ECOMETER indicator
tS On	Button sounds
CF PC	Temperature units
5b OF	Sabbath mode
rN of	Rest mode
FS 03	Factory settings

ECOMETER indicator

In order to switch the ECOMETER on or off:

1. Activate the Setting mode.
2. Tap the Extra Freeze button repeatedly to switch ECOMETER indicator off or on. The indicator will alternately show PE and either for the enabled or for the disabled ECOMETER indicator.
3. Exit the Setting mode.

Button sounds

To enable or disable the sounds:

1. Activate the Setting mode.
2. Tap the temperature indicator until the display shows. Tap the Extra Freeze button repeatedly to switch the sounds either on or off. The display alternately shows the enabled or disabled sounds.
3. Exit the Setting mode.

Temperature units

To change the temperature unit:

1. Activate the Setting mode.
2. Tap the temperature indicator until the display shows CF. Tap the Extra Freeze button repeatedly to select between °C for Celsius and °F for Fahrenheit.
3. Exit the Setting mode.

Rest mode

The Rest mode ensures food preservation while minimizing energy consumption during periods of non-operation.

To switch on the Rest mode:

1. Activate the Setting mode.
2. Tap the temperature indicator until the display shows rN. Tap the Extra Freeze button repeatedly to switch the Rest mode on or off. The display alternately shows rN and for the enabled or of for the disabled Rest mode.
3. Exit the Setting mode.

The Rest mode activates after 3 days without interaction with the appliance, deactivates automatically after any interaction with the appliance, remains active once the power is restored after a power failure.

Sabbath mode

Sabbath mode disables the following features during religious holidays:

• all buttons except for the button combination necessary to deactivate the mode • sound, except for the High temperature alarm
• alarm indicators, except for the High temperature alarm.

To switch on the Sabbath mode:

1. Activate the Setting mode.
2. Tap the temperature indicator until the display shows Swap the Extra Freeze button repeatedly to switch the Sabbath mode on or off. The display alternately shows 5b and for the enabled or for the disabled Sabbath mode.
3. Exit the Setting mode.

After switching on the Sabbath mode, the display shows the ECO indicator and 5b. Accessing any other setting is blocked.

Press and hold the ECO button for approximately 3 seconds to switch off the Sabbath mode.

Factory settings

This function restores each setting to the factory default settings. To restore the factory default settings:

1. Activate the Setting mode.
2. Tap the temperature button until the display shows F5. Tap the Extra Freeze button until the display shows 'on' turns into blinking and then into 03, which indicates that factory settings are restored.
3. Exit the Setting mode.

4. DAILY USE

4.1 Removing drawers

WARNING!

Two top compartments are rotating flaps with fixed glass shelves. Do not remove them as you could damage them.

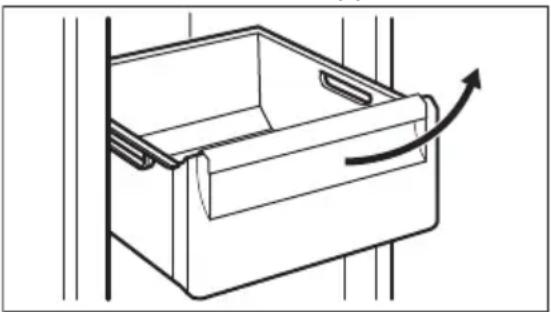

To remove a drawer from a compartment:

1. Pull the drawer out until it stops.
2. Once you reach the end of the runners, lift slightly the front of the drawer and remove it from the appliance.

To put the drawer into a compartment, follow the above steps in reverse order.

4.2 Freezing fresh food

Use the freezer compartment for freezing fresh food and storing frozen and deep-frozen food for a long time.

Activate the Extra Freeze function at least 24 h before placing the food to be frozen in the freezer compartment.

Store the fresh food evenly distributed in the first and second compartment or drawer from the top.

Do not exceed the max. amount of food that can be frozen without adding other fresh food within 24 h (refer to the rating plate).

When the freezing process is complete, the appliance automatically returns to the previous temperature setting (see "Extra Freeze function").

For more information refer to "Hints for freezing".

4.3 Storage of frozen food

When activating the appliance for the first time or after a period out of use, activate the Extra Freeze function at least 3 h before putting the products in the freezing compartment.

To store large quantities of food, remove the drawers and place the food directly on the shelves, at least 15 mm away from the door.

CAUTION!

If the power has been off for longer than the value shown on rating plate under "rising time", the defrosted food must be consumed immediately. Refer to "High temperature alarm".

4.4 Ice-cube production

This appliance is equipped with one or more trays for the production of ice-cubes.

Do not use metallic instruments to remove the trays from the freezer.

5. HINTS AND TIPS

5.1 Hints for energy saving

• The original configuration ensures the most efficient use of energy.
• Do not open the door frequently or leave it open longer than necessary.
• The colder the temperature setting, the higher the energy consumption.
• Do not cover the ventilation grilles or holes.
• Ensure that food products inside the appliance allow air circulation through holes in the rear interior of the appliance.

5.2 Hints for freezing

• Do not freeze bottles or cans with liquids, in particular drinks containing carbon dioxide. They may explode during freezing.
• Do not put hot food in the freezer compartment.
• Do not place fresh unfrozen food directly next to already frozen food.
• Do not eat ice cubes, water ices or ice lollies immediately after taking them out of the freezer to avoid frostbites.
• Do not re-freeze defrosted food.

5.3 Hints for storage of frozen food

- Freezer compartment is marked with

- Good temperature setting that ensures preservation of frozen food products is a temperature less than or equal to -18°C .

- Higher temperature setting inside the appliance may lead to shorter shelf life.

- The whole freezer compartment is suitable for storage of frozen food products.

- Leave enough space around the food to allow air to circulate freely.

5.4 Shelf life

Type of food Shelf life (months)

Bread 3

Fruits (except citrus) 6 - 12

Vegetables 8 - 10

Leftovers without meat 1 - 2

Dairy food:

Butter	6 - 9
Soft cheese (e.g. mozzarella)	3 - 4
Hard cheese (e.g. parmesan, cheddar)	6

Seafood:

Fatty fish (e.g. salmon, mackerel)	2 - 3
Lean fish (e.g. cod, flounder)	4 - 6
Shrimps	12
Shucked clams and mussels	3 - 4
Cooked fish	1 - 2

Meat:

Poultry	9 - 12
Beef	6 - 12
Pork	4 - 6
Lamb	6 - 9
Sausage	1 - 2
Ham	1 - 2
Leftovers with meat	2 - 3

6. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

6.1 Cleaning the interior

Before first use, clean the interior and all accessories with lukewarm water and neutral soap, then dry.

CAUTION!

The accessories and parts of the appliance are not suitable for washing in a dishwasher.

CAUTION!

Clean the control panel with a moist cloth. Do not use any detergents. Wipe the control panel dry with a soft cloth.

6.2 Periodic cleaning

Clean the equipment regularly:

• Clean the inside and accessories with lukewarm water and neutral soap. Rinse and wipe them dry.
• Wipe down the door seals regularly.

6.3 Defrosting of the freezer

The freezer compartment is frost free. There is no build-up of frost on the internal walls nor on the foods, when the appliance is in operation.

6.4 Period of non-operation

When the appliance is not in use for a long period, take the following precautions:

1. Disconnect the appliance from the electricity supply.
2. Remove all food.
3. Clean the appliance and all accessories.
4. Leave the door open to prevent unpleasant smells.

7. TROUBLESHOOTING

WARNING!

Refer to the Safety chapters.

7.1 What to do if...

Problem Possible cause Solution

The appliance does not operate. The appliance is switched off. Switch on the appliance.
The mains plug is not connected to the mains socket correctly.		Connect the mains plug to the mains socket correctly.
There is no voltage in the mains socket.		Connect a different electrical appli-ance to the mains socket. Contact a qualified electrician.
The appliance is noisy. The appliance is not supported properly.		Check if the appliance stands sta-ble.
Acoustic or visual alarm is on. The cabinet has been recently switched on.		Refer to "High temperature alarm" or "Door open alarm".
	The temperature in the appliance is too high.	Refer to "High temperature alarm" or "Door open alarm".
	The door is left open. Close the door.
The compressor operates continually.	Temperature is set incorrectly. Refer to "Control panel" chapter.
Too much food is put in at the same time.		Wait a few hours and then check the temperature again.
The room temperature is too high. Refer to "Installation" chapter.
Food placed in the appliance is too warm.		Allow food to cool to room tempera-ture before storing.
The door is not closed correctly. Refer to "Closing the door" section.
	The Extra Freeze function is switch-ed on.	Refer to "Extra Freeze function" section.
The compressor does not start im-mediately after pressing the "Extra Freeze", or after changing the tem-perature.	The compressor starts after a period of time.	This is normal, no error has occurred.
Door is misaligned or interferes with ventilation grill.	The appliance is not levelled. Refer to installation instructions.
Problem Possible cause Solution
Door does not open easily. You attempted to re-open the door immediately after closing.		Wait a few seconds between closing and re-opening of the door.
There is too much frost and ice. The door is not closed correctly. Refer to "Closing the door" section.
The gasket is deformed or dirty. Refer to "Closing the door" section.
Food is not wrapped properly. Wrap the food properly.
Temperature is set incorrectly. Refer to "Control panel" chapter.
Appliance is fully loaded and is set to the lowest temperature.		Set a higher temperature. Refer to "Control panel" chapter.
Temperature set in the appliance is too low and the ambient temperature is too high.		Set a higher temperature. Refer to "Control panel" chapter.
Water flows on the floor. The melting water outlet is not connected to the evaporative tray above the compressor.		Attach the melting water outlet to the evaporative tray.
Temperature cannot be set. The Extra Freeze function is switched on.		Switch off Extra Freeze function manually, or wait until it deactivates automatically. Refer to "Extra Freeze function" section.
The temperature in the appliance is too low/too high.	The temperature is not set correctly.	Set a higher/lower temperature.
The door is not closed correctly. Refer to the "Closing the door" section.
The food is too hot. Let the food cool down before storage.
Too much food is stored at the same time.		Store less food at the same time.
The door has been opened often. Open the door only if necessary.
	The Extra Freeze function is switched on.	Refer to the "Extra Freeze function" section.
There is no cold air circulation in the appliance.		Ensure cold air circulation in the appliance. Refer to the "Hints and tips" chapter.
dE on appears on the display.	The appliance is in the demo mode.	Press and hold the Extra Freeze and ECO buttons for approx. 10 sec until you hear 3 short beeps.
Er CE appears and the alarm indicator is on.	Communication problem. Contact the Centre. The cooling system will continue to keep food cold, but temperature adjustment will not be possible.
Er t1 or t3 and the current setting appear alternately for 5 sec and the alarm indicator is on.	Temperature sensor problem.	Contact the Authorised Service Centre. The cooling system will continue to keep food cold, but temperature adjustment will not be possible.

If the problem persists, contact the Authorised Service Centre.

7.2 Closing the door

1. Clean the door gaskets.

8. TECHNICAL DATA

The technical information is situated in the rating plate on the internal side of the appliance and on the energy label.

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database. Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

1. To adjust the door, refer to installation instructions.
2. To replace the defective door gaskets, contact the Authorized Service Centre.

It is also possible to find the same information in EPREL using the link

https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance.

See the link www.theenergylabel.eu for detailed information about the energy label.

9. INFORMATION FOR TEST INSTITUTES

Installation and preparation of the appliance for any EcoDesign verification shall be compliant with EN 62552 (EU). Ventilation requirements, recess dimensions and minimum rear clearances shall be as stated

in this User Manual in "Installation". Please contact the manufacturer for any other further information, including loading plans.

10. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol 📀 with the household waste. Return the product to your local recycling facility or contact your municipal office.
