DTAC120F1WDB - Air conditioner DANBY - Free user manual and instructions

Product type	Portable monobloc air conditioner
Brand	Danby
Model	DTAC120F1WDB
Cooling capacity	12,000 BTU/h (approximately 3.5 kW)
Dimensions (W x D x H)	Approximately 76 x 38 x 51 cm
Net weight	Approximately 32 kg
Power supply	115 V / 60 Hz (standard plug)
Power consumption	Approximately 1,200 W (cooling)
Main functions	Cooling, ventilation, dehumidification, sleep mode, timer
Dehumidification	Up to 2.5 liters per hour (continuous function possible with hose)
Ventilation speed	3 speeds (low, medium, high)
Remote control	Yes, infrared
Built-in Wi-Fi	Yes (compatible with Danby app)
Maintenance and cleaning	Clean the air filter every 2 weeks; empty the condensate tray regularly
Safety	Automatic shutdown in case of overheating; anti-freeze protection
Spare parts and repairability	Filters, remote control, window kit available; repairability index: 7.4/10 (indicative rating)
General information	1-year warranty; made in China

Frequently Asked Questions - DTAC120F1WDB DANBY

How to install the Danby DTAC120F1WDB air conditioner?

Place the unit near a window or door. Use the provided exhaust kit to vent hot air outside. Plug into a 115 V outlet. Refer to the manual for details.

How to use the remote control?

Insert two AAA batteries. Use the buttons to turn on/off, change mode, adjust temperature and fan speed. Point at the receiver on the unit.

How to clean the air filter?

Turn off and unplug the unit. Remove the filter, wash it with warm soapy water, dry it completely before reinstalling. Clean every 2 weeks.

How to empty the condensate tray?

If the tray is full, a light turns on. Remove the drain plug located at the back, empty the water into a container. You can also use a hose for continuous drainage.

What to do if the air conditioner does not cool?

Check that the filter is clean, the air exhaust is not blocked, and the set temperature is lower than the room temperature. Make sure the unit is in 'Cool' mode.

How to connect Wi-Fi?

Download the 'Danby' app from your app store. Follow the instructions in the app to pair the unit. Make sure your Wi-Fi is on 2.4 GHz.

What is the maximum area to cool?

This unit is designed for rooms up to approximately 42 m² (450 sq ft) under normal insulation conditions.

How to use the timer?

Press the 'Timer' button on the remote control or panel. Set the number of hours before shut down or start. Confirm with 'OK'.

The air conditioner makes noise, is this normal?

A slight compressor and fan noise is normal. If the noise is loud or unusual, check that the unit is level and that nothing is blocking the grilles.

Where to find spare parts?

Contact Danby customer service or visit their website. Filters and remote controls are available. Use the exact model number: DTAC120F1WDB.

USER MANUAL DTAC120F1WDB DANBY

Owner's Manual....1 - 10

WALL-MOUNTED AIR CONDITIONER

Welcome to the Danby family. We are proud of our quality products and we believe in dependable service. We suggest that you read this owner's manual before plugging in your new appliance as it contains important operation information, safety information, troubleshooting and maintenance tips to ensure the reliability and longevity of your appliance.

Visit www.Danby.com to access self service tools, FAQs and much more. For additional assistance call 1-800-263-2629.

Note the information below; you will need this information to obtain service under warranty.

You must provide the original purchase receipt to validate your warranty and receive service.

Model Number: ____

Serial Number: ____

Date of Purchase: ____

Need Help?

Before you call for service, here are a few things you can do to help us serve you better.

Read this owner's manual:

It contains instructions to help you use and maintain your appliance properly.

If you receive a damaged appliance:

Immediately contact the retailer or builder that sold you the appliance.

Save time and money:

Check the troubleshooting section at the end of this manual before calling. This section will help you solve common problems that may occur.

1-800-26- Danby

(1-800-263-2629)

Important Safety Information READ AND FOLLOW ALL SAFETY INSTRUCTIONS

ELECTRICAL REQUIREMENTS

All wiring must comply with local and national codes and must be installed by a qualified electrician. Check the available power supply and resolve any wiring problems before installing and operating this appliance.

This 115 V appliance may be used in any properly wired, general purpose household receptacle. The rating plate located on the right side of the appliance just above the power cord contains electrical and other technical data.

SAFETY INSTRUCTIONS

This appliance is not intended for use by persons, including children, with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Do not install the appliance where leakage of combustible gas is suspected.

POWER CORD INSTRUCTIONS

The power supply cord contains a current device that senses damage to the power cord. To test the power supply cord:

1. Press the TEST button on the power supply cord. The RESET button will click and pop out.
2. Press the RESET button until it clicks into place.
3. The power supply cord is now supplying electricity to the appliance.

Do not use this device to turn the appliance on or off. Ensure that the RESET button is pushed in for correct operation. The power supply cord must be replaced if it fails to reset when the TEST button is pushed.

GROUNDING INSTRUCTIONS

This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.

This appliance has a cord that has a grounding wire with a 3-prong plug. The power cord must be plugged into an outlet that is properly grounded. If the outlet is a 2-prong wall outlet, it must be replaced with a properly grounded 3-prong wall outlet.

WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

Do not connect your appliance to extension cords or together with another appliance in the same wall outlet. Do not splice the power cord. Do not under any circumstances cut or remove the third ground prong from the power cord. Do not use extension cords or ungrounded (two prongs) adapters.

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid hazard.

INSTALLATION INSTRUCTIONS

AIR CONDITIONER ACCESSORIES

1. 1" x 1 1/2" x 84" Stuffer seal
2. 17" long Tapered spacer blocks (x2)
3. 4 1/2" x 3 1/2" x 1 1/2" Centering support blocks (x4)
4. 1/8" × 4 1/2" × 14 1/2" Plastic divider (x2)
5. 1" x 1 1/2" x 25" Seal (x3)
6. 1" x 1 1/2" x 14" Seal (x2)
7. 1" x 3/8" x 25" Seal (x3)
8. 1" x 3/8" x 14" Seal (x2)
9. 1" x 3/4" x 14" Seal (x2)
10. Side trim frame (x2)
11. Top and bottom trim frame (x2)
12. Green ground wire
13. Toothed washer for grounding screw (x2)
14. Grounding screw
15. Plastic grille
16. Aluminum grille
17. Plastic nuts (x4)
18. Screw washer (x4) 19. Screw (x4)

GRILLE INSTALLATION

The installation of this air conditioner requires the installation of a compatible air conditioner sleeve, which should be purchased separately.

A grille must be installed on the appliance before it is placed inside the air conditioner sleeve. This grille can be aluminum or plastic, depending on what will work best with the sleeve.

Aluminum Grille Installation

Place the aluminum grille on the rear of the appliance and secure it with screws.

Ensure that the aluminum grille is installed in the right direction, with the fins pointed outward.

Plastic Grille Installation

A plastic grille can also be installed, but it is recommended to use the aluminum grille if possible for better air flow.

INSTALLATION INSTRUCTIONS

GROUNDING WIRE

The installation of the grounding wire is an optional step. If the grounding wire will be used, it should be installed before the appliance is placed inside the wall sleeve.

Locate the screw on the side of the appliance. Remove the screw and the plastic washer.

Secure the grounding wire to the side of the appliance using the toothed washer and the screw. Ensure that the toothed washer is against the side of the appliance. Ensure that the grounding wire does not become tangled when placing the appliance inside the wall sleeve.

SUPPORT BLOCKS

The installation of the support blocks on the sides of the appliance is optional, based on what can fit into the wall sleeve.

Attach four support blocks to the sides of the appliance, two on each side. The support blocks provide stability to the appliance inside the sleeve.

WALL FRAME

Place the appliance inside the wall sleeve. Install the long seal between the wall sleeve and the appliance to ensure the enclosure is sealed. A flat bladed screwdriver or putty knife may be used.

Assemble the trim by inserting the top and bottom pieces into the side pieces and snapping them into place.

Pull the power cord through the frame and slide the frame over the appliance until it is flush with the wall.

OPERATING INSTRUCTIONS

CONTROL PANEL

1. Display Panel: Displays the set temperature, the ambient temperature, and the timer settings. To change the temperature scale being displayed, press the up and down buttons at the same time.
2. Remote control receiver
3. Filter Button: The indicator light will illuminate as a reminder to check the filter. Once the filter has been cleaned, press this button to resume normal operation.
4. Mode Button: Used to choose the operating mode: cool, fan, dry, and auto.
5. Fan Button: Used to set the fan speed: low, medium, and high.
6. Energy Saver Button: Used to set the energy saver function.
7. Sleep Button: Used to set the sleep function.
8. Up and Down Arrows: Used to adjust the set temperature and the timer function.
9. Timer Button: Used to set the auto on and auto off timer.
10. Power Button: Used to turn the appliance on or off.

REMOTE CONTROL

1. Mode Button: Used to choose the operating mode: cool, fan, dry and auto.
2. Up and Down Arrows: Used to adjust the set temperature and the timer function.
3. Sleep Button: Used to set the sleep function.
4. Power Button: Used to turn the appliance on or off.
5. Fan Buttons: Used to set the fan speed: low, medium and high.
6. Lock Button: Press this button to lock the remote control and prevent the settings from being inadvertently changed.
7. Energy Saver Button: Used to set the energy saver function.
8. Timer Button: Used to set the auto on and auto off timer.
9. °C/°F Button: Used to change the temperature scale displayed.
10. Follow Me Button: Used to set the Follow Me function.

OPERATING INSTRUCTIONS

REMOTE CONTROL BATTERIES

The remote control requires two AAA alkaline batteries (included). Batteries should be replaced when:

a) No sound is heard when attempting to program the appliance. b) The appliance does not respond to a command issued by the remote control.

Battery replacement:

1. Slide the rear cover on the remote in the direction of the arrow.
2. Insert two AAA batteries following the same orientation depicted inside the battery chamber (+/-).
3. Reinstall the rear cover.
4. If the remote control will not be used for extended periods of time, the batteries should be removed.

Notes:

• Protect the remote control from high temperatures, and keep it away from radiation exposure.
• Keep the control panel receiver out of direct sunlight.
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.
• The remote operates within a range of 8 meters (26 ft.) from the receiver located inside the main appliance. Any obstruction between the receiver and remote may cause signal interference, limiting the ability to program the main unit.

This Class B digital apparatus complies with the Canadian ICES-003 standard. CAN ICES-3 (B)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not approved by the party responsible for FCC compliance could void the user's authority to operate the equipment. This appliance complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

OPERATING INSTRUCTIONS

FUNCTION INSTRUCTION

Operating Modes

There are four operating modes to choose from. Press the Mode Button repeatedly to choose the desired mode. The adjacent indicator light will illuminate to show which mode has been selected.

- Cool Mode

Choose Cool Mode to set the cooling function. Use the Up and Down Arrows to choose the desired temperature. When Cool Mode is selected, the fan speed can be adjusted by pressing the fan button.

- Dry Mode

Choose Dry Mode to remove excess moisture from the air during periods of high humidity. All water pulled from the air will condense inside the appliance and drain out the back. The fan speed will be automatically set and cannot be modified in Dry Mode.

- Fan Mode

Choose Fan Mode to run the internal fan without engaging the cooling function. Press the fan button repeatedly to choose the fan speed: Low, Med, or High.

- Auto Mode

Auto Mode is a pre-set factory program that automatically defines the mode and fan speed based on the set temperature, the ambient temperature, and the ambient humidity.

Up and Down Arrows

The Up and Down Arrows will modify the set temperature in 1° increments.

The Up and Down Arrows will modify the set time of the timer function in 0.5-hour increments up to 10 hours, and then in 1-hour increments up to a maximum of 24 hours.

Timer Function

The Timer Function can be used to turn the appliance on or off after a set period of time.

Auto On Function

1. Press the Timer Button once and the Auto On indicator light will illuminate.
2. Use the Up and Down Arrows to select the desired amount of time before the appliance should turn on.
3. Use the Mode Button to select the desired mode.
4. Use the Fan Button to select the desired fan speed.
5. The time selected will appear on the display panel and will count down until the appliance turns on.

Auto Off Function

1. Press the Timer Button twice and the Auto Off indicator light will illuminate.
2. Use the Up and Down Arrows to select the desired amount of time before the appliance should turn off.
3. The time selected will appear on the display panel and will count down until the appliance turns off.

Using Auto On and Auto Off Simultaneously

If there is a need for the appliance to turn on, run for a set period of time and then turn off, the Auto On and Auto Off functions can be used at the same time by first setting one and then the other. Both indicator lights will illuminate and the display will count down to the appliance either turning off or on, whichever function was set first.

Note: The timer will not cycle the appliance on and off indefinitely. The Auto On and Auto Off timers will function one time and then the appliance will return to regular functioning.

Turning the appliance off, pressing the default button on the remote or unplugging the appliance will clear all memory settings, including the timer.

OPERATING INSTRUCTIONS

Energy Saver Function

The Energy Saver Function will automatically cycle the fan on and off when the compressor is not in use to minimize how often the compressor needs to turn on. This function is available in Cool, Dry, and Auto modes.

The fan will continue to run for 3 minutes after the compressor turns off. The fan will then cycle on for 2 minutes in 10 minute intervals until the ambient temperature is above the set temperature, at which point the compressor will turn on and cooling will resume.

Sleep Function

The Sleep Function can be used to conserve energy during sleeping hours. When selected, the set temperature will increase by 2° per hour for two hours. The appliance will hold the new set temperature for 6 hours before automatically returning to normal operation.

The Sleep Function can be canceled at any time by pressing the Sleep Button.

Follow Me Function

There is a temperature sensor built into the remote control that will continuously collect the current room temperature. Keep the remote control with you and the appliance will automatically adjust the set temperature based on the current temperature where you are located.

Press the Follow Me button on the remote control to activate the Follow Me function. The remote will display the current temperature at its location. The remote will send a signal to the air conditioner every 3 minutes, so long as you remain within range of the appliance.

The maximum distance for the Follow Me feature is 8 meters (26 feet). This feature is available in Cool and Auto modes.

CARE & MAINTENANCE

AIR FILTER

The air filter should be cleaned approximately every 2 weeks. The air filter may require more frequent cleaning if there is significant dander or fur in the air.

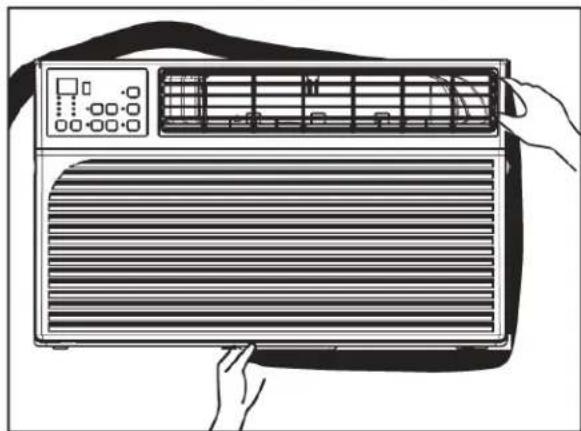

1. The air filter is located behind the front intake grill. Grasp the filter by the center and pull up and out.
2. Use a vacuum cleaner with a soft brush attachment to remove any large debris or dust build up from the air filter.
3. Wash the filter in lukewarm, soapy water, below 40°C (104°F), or use a neutral cleaning agent.
4. Rinse the filter with clean water and dry thoroughly before reinstalling in the appliance.
5. Press the filter button on the control panel to resume normal functioning.

Note: Do not operate the appliance without the air filter installed.

CLEANING

To avoid possible electric shock, ensure that the appliance is unplugged before performing any cleaning or maintenance.

The outside of the appliance can be wiped clean with a soft cloth or with a lukewarm, damp cloth if necessary.

Do not use gasoline, benzene, thinner or any other chemicals to clean this appliance as these substances can cause damage to the finish and deformation of plastic parts.

Never pour water directly onto the appliance as this will cause deterioration of electrical components and wiring insulation.

TROUBLESHOOTING

Danby Consumer Care: 1-800-263-2629

Hours of operation:

Monday to Thursday 8:30 am - 6:00 pm Eastern Standard Time

Friday 8:30 am - 4:00 pm Eastern Standard Time

Information in this manual is subject to change without notice.

PROBLEM POSSIBLE CAUSE

Appliance will not operate • Plug is not fully inserted into the wall outlet• Blown fuse or circuit breaker
Insufficient cooling	• Air filter is dirty• Blocked air flow• Appliance size is too small for application
Noise • Inadequate support in window installation
Odors • Formation of mold or mildew on internal wet surfaces• Place an algaecide tablet in base pan; push the tablet through the grill on either side of the appliance
Water dripping inside • Appliance is not properly angled to allow water to drain to the outside
Water dripping outside • On very hot or humid days dripping water from the back of the appliance is normal
Frost build up • When outdoor temperatures are below 18.3°C (65°F) frost may form when the appliance is in cooling mode• Switch the appliance to fan only mode until the frost melts

LIMITED "IN HOME" WARRANTY

This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer.

This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferable.

TERMS OF WARRANTY

Plastic parts are warranted for thirty (30) days from the date of purchase, with no extensions provided.

First 12 months: During the first twelve (12) months, any functional parts of this product found to be defective will be repaired or replaced, at warrantor's option, at no charge to the original purchaser.

To obtain service: Contact the dealer where the unit was purchased, or contact the nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, all obligations of Danby under this warranty shall be void.

Boundaries of in-home service: Danby reserves the right to limit the boundaries of "In Home Service" to the proximity of an authorized service depot. Any appliance requiring service outside the limited boundaries of "In Home Service" will be the consumer's responsibility to transport at their own expense to the original point of purchase or a service depot for repair. If the appliance is installed in a location that is 100 kilometers (62 miles) or more from the nearest service center, it must be delivered to the nearest authorized Danby Service Depot by the purchaser.

Transportation charges to and from the service location are not protected by this warranty and are the responsibility of the purchaser.

Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.

EXCLUSIONS

Save as herein provided, by Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.

GENERAL PROVISIONS

No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

1) Power failure. 2) Damage in transit or when moving the appliance. 3) Improper power supply such as low voltage, defective house wiring or inadequate fuses. 4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (i.e. extremely high or low room temperature). 5) Use for commercial or industrial purposes (i.e. If the appliance is not installed in a domestic residence). 6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc. 7) Service calls resulting in customer education. 8) Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application, including but not limited to: garages, patios, porches or anywhere that is not properly insulated or climate controlled).

Proof of purchase date will be required for warranty claims; retain bills of sale. In the event that warranty service is required, present the proof of purchase to our authorized service depot.

Warranty Service

In Home

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: [phone] FAX: [phone]

1-800-263-2629

04/17

Danby Products Inc

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [phone] FAX: [phone]

Welcome

1-800-26-Danby

(1-800-263-2629)

INSTALLATION OF THE GRILLE

INSTALLATION INSTRUCTIONS

GROUND WIRE

SUPPORT BLOCKS

WALL FRAME

OPERATING INSTRUCTIONS

CONTROL PANEL

PROBLEM POSSIBLE CAUSE

1-800-26-Danby (1-800-263-2629)

INSTALLATION OF THE GRILLE

SUPPORT BLOCKS

WALL FRAME

PROBLEM POSSIBLE CAUSE

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: [519] 837-0920 FAX: [519] 837-0449

1-800-263-2629

04/17

Danby Products Inc.

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [phone] FAX: [phone]

MODEL • MODÈLE • MODELO

DTAC100F1WDB

DTAC120F1WDB
