ErgoMaster MSM6M831 - Blender BOSCH - Free user manual and instructions

Brand	Bosch
Model	ErgoMaster MSM6M831
Product type	Immersion blender
Power	750 W
Number of speeds	12 + turbo
Shaft material	Stainless steel
Body material	ABS plastic
Cable length	1.2 m
Weight	0.85 kg
Dimensions (H x W x D)	40 x 6 x 6 cm
Measuring beaker capacity	1 L
Box contents	Blender, measuring beaker, whisk, chopper
Main functions	Blend, chop, whisk, emulsify, crush
Anti-splash system	Yes
Sound level	Approximately 70 dB
Safety	Safety lock, automatic shut-off in case of overload
Cleaning	Removable shaft, dishwasher safe
Spare parts	Available on the Bosch website
Repairability	Repairability score 8/10
Warranty	2 years
Color	White and silver

Frequently Asked Questions - ErgoMaster MSM6M831 BOSCH

How to use the Turbo button?

The Turbo button allows you to activate maximum speed instantly. Hold it down during blending for a faster and more powerful result. Release to return to the set speed.

Can the shaft go in the dishwasher?

Yes, the blender shaft is removable and dishwasher safe. Place it in the top rack. Rinse thoroughly after each use.

How to clean the chopper?

The chopper (accessory) can be hand washed with soapy water. Avoid the dishwasher for the blades to preserve their sharpness. Dry immediately.

Why is the appliance not working?

First check that the appliance is properly plugged in and the base is securely engaged. Make sure the safety lock is activated. In case of overload, the appliance stops automatically; let it cool down for a few minutes.

How to change the blades?

The blender blades are not replaceable individually. If worn, the entire shaft must be replaced. Contact Bosch customer service to order a replacement part.

What accessories are included in the box?

The box contains the main blender, a 1 L measuring beaker, a whisk for eggs and cream, and a chopper for herbs, onions, etc.

Can you blend hot foods?

Yes, the blender can blend hot foods, but do not exceed 60°C to avoid splashes and damage to plastic parts. Remove the measuring beaker when blending hot liquids.

How to adjust the speed?

Use the speed slider located on the body of the appliance. There are 12 progressive speeds. Start at low speed and increase gradually according to the consistency of the food.

Is the whisk suitable for egg whites?

Yes, the provided whisk is specially designed for whipping egg whites, whipped cream, and other airy preparations. Use the deep measuring beaker to avoid splashes.

Where to find spare parts?

Spare parts are available on the Bosch website (www.bosch-home.fr) in the Spare parts and accessories section, or from your authorized dealer.

USER MANUAL ErgoMaster MSM6M831 BOSCH

https://digitalguide.bsh-group.com/?mat-no=8001320302

You can find additional information and explanations online. Scan the QR code on the title page.

2

3

4

5

6

7

8

9

10

11

13

35

37

39

41

43

45

			200 - 500 g	40 - 60 s
			200 - 500 g	60 - 90 s
			200 - 500 g	60 - 90 s
			200 - 500 g	60 - 90 s
			1 x O	60 - 120 s
			200 - 500 g	40 - 60 s
			200 - 500 g	60 - 90 s
			50 - 100 g	(5 - 10) x 1 s
			50 - 100 g	10 - 30 s
			5 - 20 x	(3 - 8) x 1 s
			50 - 100 g	(3 - 8) x 1 s
			5 - 15 g	5 - 20 s
			50 - 150 g	5 - 30 s
			150 g	● L 7 - 10 s
				● M 16 - 20 s
				● S 20 - 30 s
			100 - 300 g	20 - 180 s
			1 - 3 x	40 - 120 s
			50 - 150 g	60 - 120 s

			[WWG2 7H42]

48

49

Therefore, m = 3/11

51

Safety

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.

Only use this appliance:

■ with genuine parts and accessories. ■ for cutting up, chopping, mixing, puréeing and emulsifying liquid or semi-solid food. ■ for normal processing quantities and for normal processing times for domestic use. ■ in private households and in enclosed spaces in a domestic environment at room temperature. ■ up to an altitude of max. 2000 m above sea level.

The appliance must always be disconnected from the mains after each use, whenever it is left unattended, prior to assembly, disassembly or cleaning and in the event of an error.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or a lack of experience and/or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Do not let children play with the appliance.

Cleaning and user maintenance must not be performed by children.

The appliance must not be used by children. Keep children away from the appliance and power cord.

• Connect and operate the appliance only in accordance with the specifications on the rating plate. If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk. ▶ Never immerse the appliance or the power cord in water or clean in the dishwasher. ▶ Only immerse the blender foot into the ingredients as far as the "max" marking. ▶ Never use the appliance further if it has fallen into water or any other liquid.
• Do not use the appliance with damp hands. ▶ Never operate a damaged appliance.

▶ Never let the power cord come into contact with hot parts or be dragged over sharp edges. ▶ Never place the appliance on or near hot surfaces. ▶ After switching off, wait until the drive has come to a complete standstill. - Keep hands, hair, clothing and utensils away from rotating parts. - Only attach and remove accessories once the drive has stopped and the appliance has been unplugged. ▶ Only use the accessories once fully assembled. ▶ Never touch the edges of the blades with bare hands. - Care should be taken when handling sharp blades, emptying the container and during cleaning. ▶ Be careful when processing hot food. - Leave boiling food to cool down to at least 70 °C before processing. ▶ Follow the cleaning instructions. - Clean surfaces which come in contact with food before each use.

Avoiding material damage

• Do not operate the appliance at no-load. ▶ Never use the blender jug in the microwave or oven. ▶ Never immerse the gear attachments in liquids and do not clean in the dishwasher. ▶ Never use the chopper container in the microwave or oven. ▶ Never use the blender foot or the whisk in the chopper container.

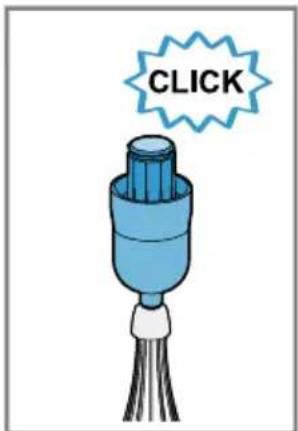

• Place the main unit fully on the blender foot or accessory and lock into position with a click.
• Remove hard pieces of food before processing, e.g. gristle, bones, sinews or stones from stone fruit.

Overview

→Fig. 1

A Whisk ¹

B "ProPuree" masher attachment ¹

C Chopper ¹

1 Switch-on lock 2 Control lever 3 Release buttons 4 Blender foot ¹ 5 Plastic blender jug 6 Gear attachment for the whisk 7 Gear attachment for the masher attachment 8 Masher paddle (detachable) 9 Gear attachment for the chopper 10 Universal blade 11 Container

Notes

■ The maximum quantity that can be processed in the plastic blender jug is 500 ml. The full scale on the blender jug is only intended for measuring.

■ If an accessory is not included in the scope of supply, it can be ordered from customer service.

en Controls

- An additional chopper can be ordered from customer service. Order numbers: - CNHR37: 0012042772 - CNHR36C: 0012043110 With the chopper use the appliance at full power when making the honey and apple mixture and follow the recipe in the instruction manual for the chopper.

Controls

Control lever with switch-on lock

You can use the control lever for stepless control of the speed of your appliance.

To switch on the appliance, first press the switch-on lock and then the control lever.

The more firmly the control lever is pressed, the higher the speed of the motor.

Note: The appliance remains switched on as long as the control lever is pressed.

→Fig. 2

Blender foot

The blender foot is suitable for the following purposes:

■ Making drinks ■ Making pancake batter, mayonnaise, sauces and baby food ■ Puréeing cooked food, e.g. fruit, vegetables, soup

Note: The blender foot is not suitable for preparing purées consisting solely of potatoes or foods with a similar consistency.

Processing food with the blender foot

Notes

• Solid foods should always be cut up and cooked until soft before processing, e.g. apples, potatoes or meat. ■ Use the chopper for cutting up raw food without adding liquid, e.g. onions, garlic or herbs. ■ Before processing the food in a pan, take the pan off the heat.

→Fig. 3 - 11

Sample recipe Mayonnaise

• 1 egg (egg yolk and egg white)
• 1 tbsp mustard
• 1 tbsp lemon juice or vinegar
• 200-250 ml oil
• Salt and pepper to taste

Making mayonnaise

Notes

• When using the blender foot, mayonnaise can only be made with whole eggs (egg white and egg yolk).
• When making mayonnaise, air underneath the blender foot prevents the ingredients blending together well. For optimum results, let the air escape before mixing.

→Fig. 12 - 16

Chopper

The chopper is suitable for cutting up food, e.g. meat, hard cheese, onions, garlic, fruit, vegetables, herbs, nuts or almonds.

Note: The chopper is not suitable for cutting up very hard food, e.g. coffee beans, nutmegs, radishes or frozen food, e.g. fruit or ice cubes.

Using the chopper

→Fig. 17 - 28

Whisk

The whisk is suitable for whipping cream, beating egg whites or milk froth and for making sauces or desserts.

Recommendations for optimum results:

■ Use cream with a minimum fat content of 30% and a temperature of 4-8 °C ■ Use milk with a high protein content and a temperature of max. 8 °C ■ Whip cream or beat egg whites in a wide jug

Note: To prevent splashing, use deep containers with the whisk.

Using the whisk

→Fig. 29 - 38

"ProPuree" masher attachment

The masher attachment is suitable for preparing purées from boiled potatoes, peas, fruit or foods with a similar consistency.

Notes

■ Do not process hard ingredients. ■ Before processing the food in a pan, take the pan off the heat. - Do not strike the masher attachment against hard edges (e.g. pots, bowls).

Using the masher attachment

→Fig. 39 - 45

Mashed potatoes

• 1 kg boiled potatoes
• 0.15 l warm milk
• 50 g soft butter
• Salt, pepper and nutmeg

Preparation

• Add the ingredients to a suitable jug and process with the masher attachment for approx. 1 minute.
• Lastly, season to taste with salt, pepper and nutmeg.

Application examples

Observe the information and values in the tables.

Blender foot

After each operating cycle let the appliance cool down to room temperature.

→Fig. 46

Chopper and whisk

→Fig. 47

Overview of cleaning

Clean all parts immediately after use so that residues do not dry on.

Clean the individual parts as indicated in the table.

→Fig. 48

Cleaning the masher attachment

Remove the masher paddle to ensure especially thorough cleaning.

→Fig. 49 - 52

Troubleshooting

Appliance switches off during processing (800 W – 1200 W models only).

The overload protection feature has been activated.

- Remove the mains plug and leave the appliance to cool down for approx. 1 hour to deactivate the overload protection device.

Note: If the fault cannot be eliminated, please contact customer service.

Disposing of old appliance

- Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Customer Service

Detailed information about the warranty period and the warranty conditions in your country is available via the QR code on the enclosed document on service contacts and warranty conditions, from our customer service or on our website.

You can find the contact details for our customer service via the QR code on the enclosed document on service contacts and warranty conditions or on our website.

You can find the information required as per Regulation (EU) 2023/826 online at www.bosch-home.com on the product and service pages for your appliance, in the area of user manuals and additional documents.
