USER MANUAL A75100GA4 AEG

Contents Thank you for choosing one of our high-quality products. To ensure optimal and regular performance of your appliance please read this instruction manual carefully. It will enable you to navigate all processes perfectly and most efficiently. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner ofthe appliance. We wish you much joy with your new appliance. CONTENTS

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these in- structions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety. For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

BEM Safety information Children and vulnerable people safety + This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. + Keep all packaging well away from children. There is risk of suffocation. + If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it. If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child. General safety

CAUTION! Keep ventilation openings clear of obstruction. + The appliance is intended for keeping foodstuff and/or beverages in a normal household as explained in this instruction booklet. + Do not use a mechanical device or any artificial means to speed up the thawing process. Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer. + Do not damage the refrigerant circuit. The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the ap- pliance, a natural gas with a high level of environmental compatibility, which is never- theless flammable. During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged. If the refrigerant circuit should become damaged: - avoid open flames and sources of ignition — thoroughly ventilate the room in which the appliance is situated Itis dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short-cireuit, fire and/or electric shock. WARNING! Any electrical component (power cord, plug, compressor) must be replaced by a certified service agent or qualified service personnel.

1. Power cord must not be lengthened.

2. Make sure that the power plug is not squashed or damaged by the back of the

appliance. À squashed or damaged power plug may overheat and cause a fire.

3. Make sure that you can come to the mains plug of the appliance.

Do not pull the mains cable.

5. lfthe power plug socket is loose, do not insert the power plug. There is a risk of

electric shock or fire.

6. You must not operate the appliance without the lamp cover®) of interior lighting.

+ This appliance is heavy. Care should be taken when moving it. + Do not remove nor touch items from the freezer compartment if your hands are damp/ wet, as this could cause skin abrasions or frost/freezer burns. + Avoid prolonged exposure of the appliance to direct sunlight. + Bulb lamps/) used in this appliance are special purpose lamps selected for household appliances use only. They are not suitable for household room illumination. WARNING! Do not place frozen food on the worktop since cold and vapour may produce water con- densate within its inner side. The resulting drip liquid may cause malfunctions. Therefore, do not place nor leave frozen items of any kind on the worktop. Daily Use + Do not put hot pot on the plastic parts in the appliance. + Do not store flammable gas and liquid in the appliance, because they may explode. Do not place food products directly against the air outlet on the rear wall.) + Frozen food must not be re-frozen once it has been thawed out. Store pre-packed frozen food in accordance with the frozen food manufacturer's in- structions. Appliance's manufacturers storage recommendations should be strictly adhered to. Refer to relevant instructions. + Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. +_Ice lollies can cause frost burns if consumed straight from the appliance. Care and cleaning + Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket. + Do not clean the appliance with metal objects. + Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. + Never use a hair drier or other heating appliances to speed up defrosting. Excessive heat may damage the plastic interior, and humidity could enter the electric system making it live. Installation

For electrical connection carefully follow the instructions given in specific paragraphs. Unpack the appliance and check if there are damages on it. Do not connect the appliance ifit is damaged. Report possible damages immediately to the place you bought it. In that case retain packing. It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor. Adequate air circulation should be around the appliance, lacking this leads to overheat- ing. To achieve sufficient ventilation follow the instructions relevant to installation. 6] f the lamp cover is foreseen

7) If the lamp is foreseen

8) Ifthe appliance is Frost Free

Control panel Wherever possible the back of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn. + The appliance must not be located close to radiators or cookers. + Make sure that the mains plug is accessible after the installation of the appliance.

• Connect to potable water supply only.5) Service + Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person. This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used. Environment Protection (&) This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the applicable regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. The materials used on this appliance marked by the symbol &5 are recyclable. CONTROL PANEL © (e OT LT 1 OÙ TI OT JALARM sToP | SUPER

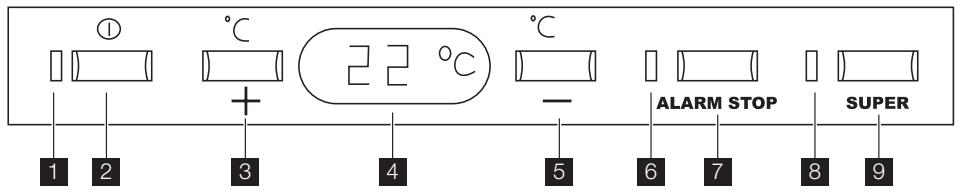

LE OO à dou ui Green ON/OFF Indicator Light BA ON/0F Button E Temperature Regulator Button (for higher temperatures) Display (shows the set temperature) Temperature Regulator Button (for lower temperatures) Red ALARM Indicator Light LARM STOP Button Yellow SUPER function Indicator Light SUPER Button Switching on + Allow the appliance to stand for 4 hrs after installation. + Insert the plug into the wall socket. + Press the ON/OFF Button (not necessary to press at the first switching on). +_The Green ON/OFF Indicator Light will light up continuously.

9) If a water connection is foreseen

Control panel The lighting up of the Green ON/OFF Indicator Light means that the appliance is switched on. The blinking of the Red ALARM Indicator Light and the Acoustic Alarm means an improper temperature in the freezer. To switch off the Acoustic Alarm and the Temperature Display flashing, press ALARM STOP Acoustic Alarm OFF Button. When switching on the freezer for the first time, the Red ALARM Indicator Light will blink until the internal temperature has reached a level required for the safe conservation of frozen food. Switching off + Press the ONJOFF Button for appr. 3 seconds. +_The Green ON/OFF Indicator Light and the Display switches off. + To disconnect the appliance from the power disconnect the mains plug from the wall socket. Temperature regulation

The set temperature of the freezer may be adjusted by pressing the Temperature Regulator Buttons. Set default temperature -18 °C, it is optimal for food storage. The Display shows the set temperature. The set temperature will be reached within 24 hours. uctuations of some degrees around set temperature are normal and does not mean any fault in the appliance. After a power failure the set temperature remains stored. Red ALARM Indicator Light

Under normal operating conditions, the internal temperature of the freezer will ensure the long-term conservation of the stored food. When such temperature rises above a certain level (-12 °C), the appliance will trigger an acoustic and light alarm. The light alarm is a blink red light (Red ALARM Indicator Light), while the acoustic alarm is an intermittent sound. You can stop the acoustic alarm by pressing the ALARM STOP Button. When switching on the freezer for the first time, the Red ALARM Indicator Light will blink until the internal temperature has reached a level required for the safe conservation of frozen food. Quick Freeze FROSTMATIC function If more than 3-4 kg of food is to be frozen:

1. Press the SUPER Quick Freeze Button for 2-3 seconds to activate the FROSTMATIC

function 6-24 hours before placing the fresh food in the freezer, the Yellow SUPER Indicator Light will illuminate. The compressor will now run continuously, to ensure that the fresh food is frozen as quickly as possible.

2. Itis possible to deactivate the function at any time by pressing the SUPER Quick Freeze

3. Place the food in the freezing compartment or compartments (indicated with graphics)

and leave the FROSTMATIC function for a further 24 hours.

4. Then push the SUPER Quick Freeze Button again (the Yellow SUPER Indicator Light will

5. Move frozen food from the freezing compartments into the other compartments (stor-

ing compartments) to make room for another freezing. Ifthe SUPER Quick Freeze Button is accidentally left on, the freezer will not be damaged, but energy will be wasted and it will be automatically switched off 48 hours later. The SUPER Indicator Light will also go out. FIRST USE Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand- new product, then dry thoroughly. Do not use detergents or abrasive powders, as these will damage the finish. DAILY USE Freezing fresh food The freezer compartments (indicated with graphics) are suitable for freezing fresh food and storing frozen and deep-frozen food for a long time. To freeze fresh food activate the SUPER Quick Freeze function. The maximum amount of food that can be frozen in 24 hours is specified on the rating plate , a label located on the inside of the appliance. The freezing process lasts 24 hours: during this period do not add other food to be frozen. Storage of frozen food

When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 2 hours on the higher settings. In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re- frozen (after cooling). Thawing Deep-frozen or frozen food, prior to being used, can be thawed at room temperature. Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer.

Helpful Hints and Tips

HELPFUL HINTS AND TIPS

Normal Operating Sounds + You may hear a faint gurgling and a bubbling sound when the refrigerant is pumped through the coils or tubing. This is correct. + When the compressor is on, the refrigerant is being pumped around and you will hear a whirring sound and a pulsating noise from the compressor. This is correct. + The thermic dilatation might cause a sudden cracking noise. It is natural, not dangerous physical phenomenon. This is correct. + When the compressor switches on or switches off, you will hear a faint "click" of the temperature regulator. This is correct. Hints for freezing To help you make the most of the freezing process, here are some important hints: + the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate; the freezing process takes 24 hours. No further food to be frozen should be added during this period; + only freeze top quality, fresh and thoroughly cleaned, foodstuffs; + prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required; wrap up the food in aluminium foil or polythene and make sure that the packages are airtight; do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter; +_lean foods store better and longer than fatty ones; salt reduces the storage life of food; water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt; it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time. Hints for storage of frozen food To obtain the best performance from this appliance, you should: + make sure that the commercially frozen foodstuffs were adequately stored by the re- tailer; be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time; not open the door frequently or leave it open longer than absolutely necessary. + Once defrosted, food deteriorates rapidly and cannot be refrozen. + Do not exceed the storage period indicated by the food manufacture.

CAUTION! Unplug the appliance before carrying out any maintenance operation.

Care and cleaning ©) This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians. Periodic cleaning The equipment has to be cleaned regularly: + clean the inside and accessories with lukewarm water and some neutral soap. + regularly check the door seals and wipe clean to ensure they are clean and free from debris. + rinse and dry thoroughly. AN Do not pull, move or damage any pipes and/or cables inside the cabinet. Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odour. Clean the condenser (black grill) and the compressor at the back of the appliance with a brush or a vacuum cleaner. This operation will improve the performance of the appliance and save electricity consumption. AN Take care of not to damage the cooling system. Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the plastics used in this appliance. For this reason it is recommended that the outer casing of this appliance is only cleaned with warm water with a little washing-up liquid added. After cleaning, reconnect the equipment to the mains supply. Defrosting of the freezer The freezer compartment of this model, on the other hand, is a "no frost" type. This means that there is no buildup of frost when it is in operation, neither on the internal walls nor on the foods. The absence of frost is due to the continuous circulation of cold air inside the compartment, driven by an automatically controlled fan. No-Frost technology In order to facilitate the removal of the ice layer, the evaporator is assisted by electric heating during the defrosting procedure. The ventilator is in OFF position. The defrost water will drip in the tray placed at the compressor and will evaporate. In the course of the defrosting procedure (approx. 30 minutes) the evaporator becomes warm but it has no influence on the internal temperature. The foods should be kept well-packed in order to avoid any moisture loss as a result of air circulation. Do not obstruct the vent holes. It is recommended to put all foods in the baskets in the freezer compartment. Periods of non-operation When the appliance is not in use for long periods, take the following precautions:

1. disconnect the appliance from electricity supply

3. clean the appliance and all accessories

4. leave the lid open to prevent unpleasant smells.

If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure. WHAT TO DO IF... WARNING! Before troubleshooting, disconnect the mains plug from the mains socket. Only a qualified electrician or competent person must do the troubleshooting that is not in this manual. AN There are some sounds during normal use (compressor, refrigerant circulation).

The appliance operates discontinuously, so the stopping of compressor does not mean being no current. That is why you must not touch the electrical parts of the appliance before breaking the circuit. The appliance is noisy The compressor operates continually There is too much frost and ice Possible cause The appliance is not supported properly The thermostatic control is set incorrectly Doors are not shut properly or do not close tightiy The door has been opened too frequentiy Large quantities of food to be frozen were put in at the same time Food placedin the appliance was too warm The room temperature is too high. Products are not wrapped prop- erly Doors are not shut properly or do not close tightiy The Temperature regulator may be set incorrectiy Solution Check ifthe appliance stands sta- ble (all the four feet should be on the floor) Set a warmer temperature Check if the doors close well and the gaskets are undamaged and clean Do not leave the door open longer han necessary Wait some hours and then check the temperature again Allow food to cool to room tem- perature before storing Decrease the room temperature. Wrap the products better Check if the doors close well and the gaskets are undamaged and clean Set a warmer temperature

What to do if... It is too warm in the freezer It is too cold inside the freezer The appliance does not work at all. Neither cool- ing nor lighting works The appliance does not cool at all A rectangular symbol is shown on the right side of the Temperature Dis- play Closing the door

1. Clean the door gaskets.

Temperature regulator may be set incorrectly The door does not close tightly or it is not shut property Large quantities of food to be frozen were put in at the same time Food placediin the appliance was too warm Products to be frozen are placed too closely to each other Temperature regulator may be set incorrectly Plug is not connected to the mains socket properly Power does not reach the appli- ance The appliance is not switched on There is no voltage in the mains socket (try to connect another appliance into it) Plug is not connected to the mains socket properly There is no voltage in the mains socket (try to connect another appliance into it) The appliance is not switched on Temperature sensor problem

2. lfnecessary, adjust the door. Refer to "Installation".

3. If necessary, replace the defective door gaskets. Contact the Service Center.

Set a lower temperature Check if the door closes well and the gasket is undamaged and clean Insert smaller quantities of food to be frozen at any one time. Allow food to cool to room tem- perature before storing. Place the products in a way 50 that cold air could circulate among them Set a warmer temperature Connect the mains plug properly Try connecting another electrical device to the power outlet Switch on the appliance Call an electrician Connect the mains plug properly Call an electrician Switch on the appliance Call the service personnel

Technical data TECHNICAL DATA Dimension Height 850 mm Width 595 mm Depth 635 mm Rising Time 13h The technical information are situated in the rating plate on the internal left side of the appliance and in the energy label. INSTALLATION WARNING! Read the "Safety Information" carefully for your safety and correct operation of the ap- pliance before installing the appliance. Positioning Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance: SN +10°C to + 32°C N +16°C to + 32°C ST +16°C to + 38°C T +16°C to + 43°C Levelling When placing the appliance ensure that it stands level. This can be achieved by two adjustable feet at the bottom in front (2). If necessary adjust the feet by removing the spacer (1).

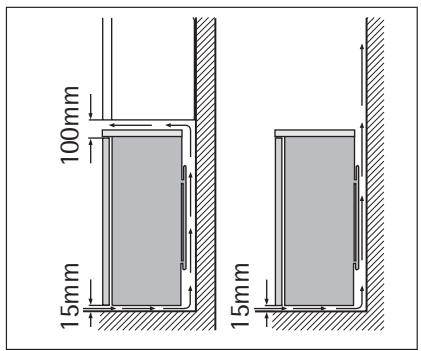

Installation Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet.To ensure best É Es | performance, if the appliance is positioned below 8 | | / an overhanging wall unit, the minimum distance T between the top of the cabinet and the wall unit | must be at least 100 mm . Ideally, however, the | appliance should not be positioned below over- E E hanging wall units. Accurate levelling is ensured El Ë Il by one or more adjustable feet at the base of the fi sf 71 cabinet. If the cabinet is placed in a corner and the side with the hinges facing the wall, the distance between the wall and the cabinet must be at least 10 mm to allow the door to open enough so that the shelves can be removed. WARNING! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation. Door reversibility

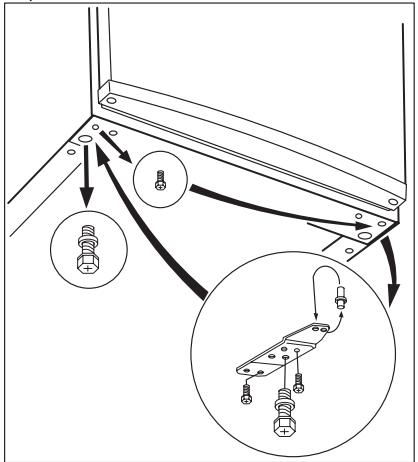

To carry out the following operations, we suggest that this be made with another person that will keep a firm hold on the doors of the appliance during the operations. To change the opening direction of the door, do these steps:

1. Remove the plug from the power socket.

2. Tilt back the appliance carefully so that the compressor cannot touch the floor.

3. Unscrew both adjustable feet.

4. Unscrew the screws of the door bottom

5. Take off the appliance door by pulling it

Environmental concerns

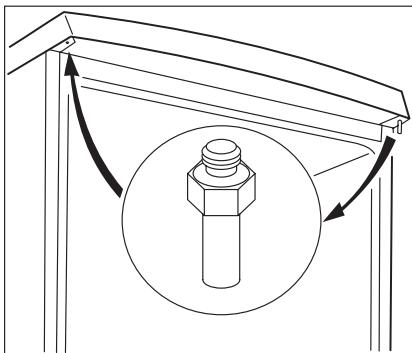

pin in the direction of the arrow.

9. Unscrew and install the screw on the |

10. Install the lower hinge on the opposite |

side leaving the position of the door un- changed.

11. Screw in the one screw in the place set

free on the other side as well as the adjustable feet (2 pieces).

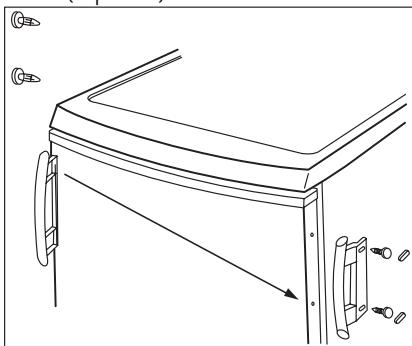

12. Remove and install the handle! on the

13. Reposition, level the appliance, wait for

at least four hours and then connect it to the power socket. Do a final check to make sure that: + Allscrews are tightened. +_The door opens and closes correctly. If the ambient temperature is cold (.e. in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait for the natural fitting of the gasket. In case you do not want to carry out the above mentioned operations, contact the nearest After Sales Service Force. The After Sales Service specialist will carry out the reversibility of the doors at your cost. Electrical connection Before plugging in, ensure that the voltage and frequency shown on the rating plate cor- respond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician. The manufacturer declines all responsibility if the above safety precautions are not ob- served. This appliance complies with the E.E.C. Directives. ENVIRONMENTAL CONCERNS The symbol X on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed

Environmental concerns of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.
