DS50U7 - Compact computer Shuttle - Free user manual and instructions

Product Type	Compact Computer
Brand	Shuttle
Model	DS50U7
Dimensions (W x D x H)	190 x 165 x 43 mm (7.5 x 6.5 x 1.7 inches)
Weight	1.2 kg (2.65 lbs)
Power Supply	External 65W AC adapter
Processor	Intel Core i5-1135G7 (Quad-Core, up to 4.2 GHz)
Memory	8GB DDR4 SODIMM (upgradeable to 32GB)
Storage	256GB M.2 NVMe SSD
Graphics	Intel Iris Xe Graphics
Operating System	Windows 10 Pro (pre-installed)
Connectivity	Wi-Fi 6, Bluetooth 5.1, Gigabit Ethernet
Front Ports	2x USB 3.2 Gen 2, 1x USB-C, 1x SD card reader
Rear Ports	2x USB 3.2 Gen 2, 2x HDMI, 1x DisplayPort, 1x RJ45
Audio	3.5mm headphone/mic combo, built-in speaker
Cooling	Intelligent fan with heat-pipe
Mounting	VESA mountable (75x75mm)
Operating Temperature	0°C to 35°C (32°F to 95°F)
Humidity	10% to 90% (non-condensing)
Maintenance	Clean with dry cloth; avoid liquids
Security	Kensington lock slot, TPM 2.0
Spare Parts Availability	Power adapter, fan, battery (CMOS) available

Frequently Asked Questions - DS50U7 Shuttle

How do I clean my Shuttle DS50U7?

Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or spray directly. Ensure the device is powered off and unplugged before cleaning.

Can I upgrade the RAM?

Yes, the DS50U7 has two SO-DIMM slots supporting DDR4 memory up to 32GB. You can access the slots by removing the bottom panel.

How do I connect multiple monitors?

The DS50U7 has two HDMI ports and one DisplayPort. You can connect up to three displays simultaneously using the integrated Intel Iris Xe Graphics.

Is the DS50U7 VESA mount compatible?

Yes, it supports VESA 75x75 mm mounting. Use the included bracket to attach it to a monitor arm or wall mount.

What should I do if the device overheats?

Ensure vents are not blocked and the fan is functioning. Place the unit in a well-ventilated area. If the problem persists, contact Shuttle support.

How can I reset the BIOS?

Power off and disconnect all cables. Remove the bottom cover, locate the CMOS battery, remove it for 30 seconds, then reinsert. Reassemble and power on.

Does the DS50U7 support wireless networking?

Yes, it has built-in Wi-Fi 6 (802.11ax) and Bluetooth 5.1 for high-speed wireless connectivity.

Can I install Linux on this device?

Yes, the DS50U7 is compatible with many Linux distributions. You may need to disable Secure Boot in BIOS for installation.

What is the maximum storage capacity?

It supports one M.2 NVMe SSD (up to 2TB) and one 2.5-inch SATA HDD/SSD (up to 2TB), for a total of up to 4TB.

How do I access the user manual?

Download the PDF manual from the Shuttle website or use the QR code on the product box. The manual contains detailed setup and troubleshooting instructions.

USER MANUAL DS50U7 Shuttle

©2023 by Shuttle® Inc. All Rights Reserved.

No part of this publication may be reproduced, transcribed, stored in a retrieval system, translated into any language, or transmitted in any form or by any means such as electronic, mechanical, magnetic, optical, chemical, photocopy, manual, or otherwise, without prior written permission from Shuttle® Inc.

Other brands and product names used herein are for identification purposes only and may be trademarks of their respective owners.

Disclaimer

Shuttle® Inc. shall not be liable for any incidental or consequential damages resulting from the performance or use of this product.

Shuttle® Inc. makes no representation or warranty regarding the contents of this manual. Information in this manual had been carefully checked for accuracy; however, no guarantee is given as to the correctness of the contents. For continuing product improvement, Shuttle® Inc. reserves the right to revise the manual or make changes to the specifications of this product at any time without notice and obligation to any person or entity regarding such change. The information contained in this manual is provided for general use by customers.

This device complies to Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must withstand any background interference including those that may cause undesired operation.

Trademarks

Shuttle is a registered trademark of Shuttle Inc.

Intel and Pentium are registered trademarks of Intel Corporation.

PS/2 is a registered trademark of IBM Corporation.

AWARD is a registered trademark of Award Software Inc.

Microsoft and Windows are registered trademarks of Microsoft Corporation.

General Notice

Other brand and product names used herein are for identification purposes only and may be trademarks of their respective owners.

Safety Information

Read the following precautions before setting up.

CAUTION

Incorrectly replacing the battery may damage this computer. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

Installation Notices

Do not place this device underneath heavy loads or in an unstable position.

Do not expose this device to high levels of direct sunlight, high-humidity or wet conditions.

Do not use or expose this device around magnetic fields as magnetic interference may affect the performance of the device.

Do not block the air vents to this device or impede the airflow in any way.

TABLE OF CONTENTS

Driver and Software Installation....1

Motherboard Driver DVD ....1

User Manuals....2

Appendix....3

Starting BIOS....3

BIOS Setup Menu....3

Main Setup....5

Advanced....6

TPM Configuration....7

Power Management Configuration ....8

CPU Configuration....9

SATA Configuration ...... 11

OnBoard Device Configuration 12

Hardware Health Configuration....14

Product Information....15

Boot....16

Security....18

Exit....20

■ Motherboard Driver DVD

The DVD contents attached in DS50U Series motherboard are subject to change without notice.

The Motherboard Driver DVD contains all the motherboard drivers necessary to optimize the performance of this Shuttle Xvision in a Windows® OS. Install these drivers after installing Microsoft® Windows®.

Insert the attached DVD into your DVD-ROM drive. The DVD AutoRun screen should appear. If the AutoRun screen does not appear, double click on Autorun icon in My Computer to bring up Shuttle Mainboard Software Setup screen.

Navigation Bar Description:

Auto Install Driver. Install Intel Rapid Storage Tech. Driver. User Manuals - Motherboard Manual, Quick Guide. Link To Shuttle Website - Link to shuttle website homepage. Browse This DVD - Allows you to see contents of this DVD.

■ User Manuals

Install Adobe Reader 9.5 MotherBoard Manual Quick Guide

Appendix

Starting BIOS

AMIBIOS has been integrated into many motherboards for over a decade. In the past, people often referred to the AMIBIOS setup menu as BIOS, BIOS setup, or CMOS setup.

American Megatrends refers to this setup as BIOS. Specifically, it is the name of the AMIBIOS BIOS setup utility. This chapter describes the basic navigation of the BIOS setup screens.

Enter the BIOS

To enter the BIOS setup screens, follow the steps below:

Step1. Power on the motherboard.

Step 2. Press the key on your keyboard when you see the following text prompt: Press DEL to run Setup.

Step 3. After you press the key, the main BIOS setup menu displays. You can access the other setup screens from the main BIOS setup menu, such as the Chipset and Power menus.

This manual describes the standard look of the BIOS setup screen. The motherboard manufacturer has the ability to change any and all of the settings described in this manual. This means that some of the options described in this manual do not exist in your motherboard's AMIBIOS.

In most cases, the key is used to invoke the BIOS setup screen. There are a few cases that other keys are used, such as , , and so on.

BIOS Setup Menu

The main BIOS setup menu is the first screen that you can navigate. Each main BIOS setup menu option is described in this user's guide.

The Main BIOS setup menu screen has two main frames. The left frame displays all the options that can be configured. "Grayed-out" options cannot be configured. Options in blue can be.

The right frame displays the key legend. Above the key legend is an area reserved for a text message. When an option is selected in the left frame, it is highlighted in white.

Often a text message will accompany it.

AMIBIOS has default text messages built into it. The motherboard manufacturer retains the option to include, leave out, or change any of these text messages. They can also add their own text messages. Because of this, many screen shots in this manual are different from your BIOS setup screen.

The BIOS setup/utility uses a key-based navigation system called hot keys.

Most of the BIOS setup utility hot keys can be used at any time during the setup navigation process. These keys include , , , , keys, and so on.

There is a hot key legend located in the right frame on most BIOS setup screens.

Hot Key Description
→ Left← Right	The Left and Rightkeys allow you to select a BIOS setup screen. For example: Main screen, Advanced screen, Chipset screen, and so on.
↑ Up↓ Down	The Up and Downkeys allow you to select an BIOS setup item or sub-screen.
+- Plus/Minus	The Plus and Minuskeys allow you to change the field value of a particular setup item. For example: Date and Time.
Tab Thekey allows you to select BIOS setup fields.
F1	Thekey allows you to display the General Help screen.Press thekey to open the General Help screen.
F4	Thekey allows you to save any changes you have made and exit BIOS Setup. Press thekey to save your changes. Press thekey to save the configuration and exit. You can also use thekey to select Cancel and then press thekey to abort this function and return to the previous screen.
ESC	Thekey allows you to discard any changes you have made and exit the BIOS Setup. Press thekey to exit the BIOS setup without saving your changes. Press thekey to discard changes and exit. You can also use thekey to select Cancel and then press thekey to abort this function and return to the previous screen.
Enter	Thekey allows you to display or change the setup option listed for a particular setup item. Thekey can also allow you to display the setup sub- screens.

Main Setup

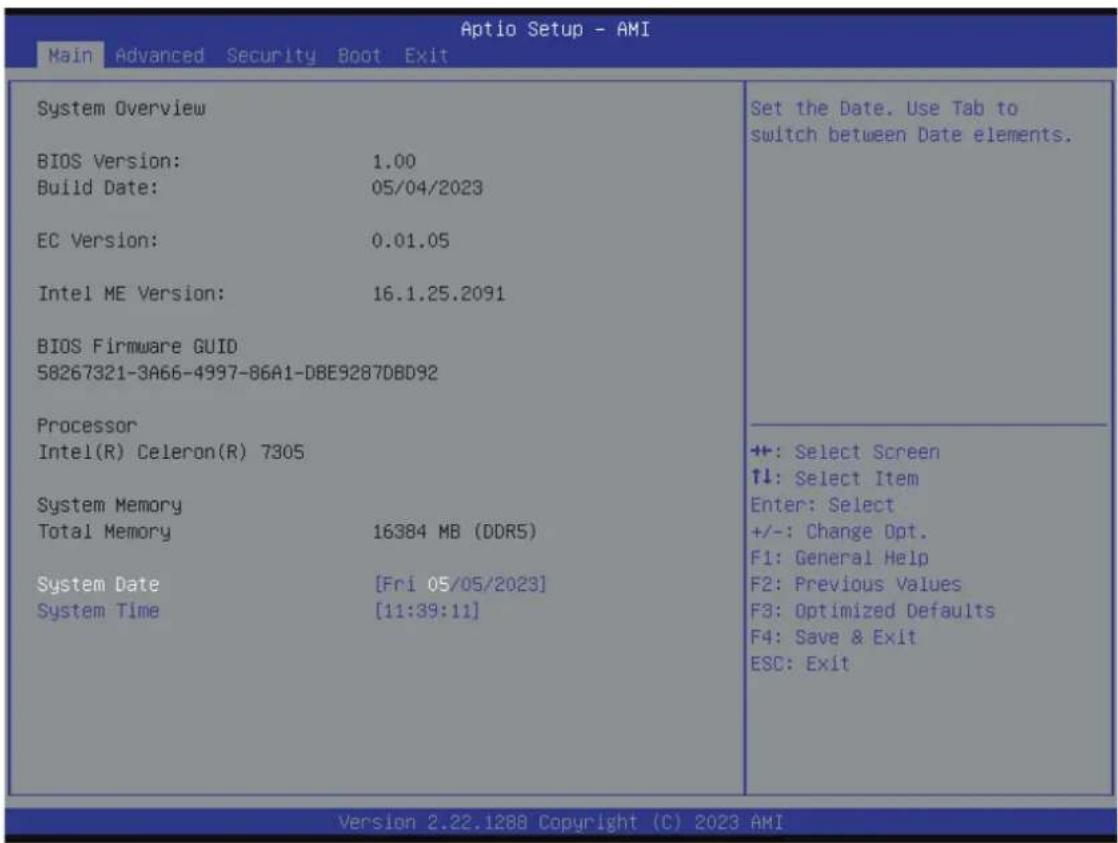

When you first enter the BIOS Setup Utility, you will enter the Main setup screen.

You can always return to the Main setup screen by selecting the Main tab. There are two Main Setup options. They are described in this section. The Main BIOS Setup screen is shown below.

System Time/System Date

Use this option to change the system time and date. Highlight System Time or System Date using the keys. Enter new values through the keyboard. Press the key or the keys to move between fields. The date must be entered in MM/DD/YY format. The time is entered in HH:MM:SS format.

The time is in 24-hour format. For example, 5:30 A.M. appears as 05:30:00, and 5:30 P.M. as 17:30:00.

Advanced

Select the Advanced tab from the BIOS setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as CPU Configuration, to go to the sub menu for that item.

You can display an Advanced BIOS Setup option by highlighting it using the keys. All Advanced BIOS Setup options are described in this section.

The Advanced BIOS Setup screen is shown below. The sub menus are described on the following pages.

TPM Configuration

Aptio Setup - AMI Advanced
Security Device Support [Enabled]	Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.
	++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Security Device Support

This item allows you to enable or disable fTPM.

The choice: Enabled, Disabled.

Power Management Configuration

Wake Up By USB (S3)

This item allows you to enable or disable system wake up by USB (S3).

The choice: Enabled, Disabled.

EuP Function

This item allows you to enable or disable the system EuP function in S4/S5.

The choice: Enabled, Disabled.

Power-On after Power-Fail

This item allows you to set the system to power on automatically after AC power is restored.

The choice: Power On, Former-sts, Power Off, Power On by LAN, Power On by RTC.

PowerOn by RTC Alarm

When enabled, the system will wake on the hr::min::sec specified.

The choice: Enabled, Disabled.

Wake Up By LAN

This item allows you to enable or disable system wake-up by the onboard LAN chip.

The choice: Enabled, Disabled.

> CPU Configuration

You can use this screen to select options for the CPU Configuration settings.

Use the up and down keys to select an item. Use the left and right keys to change the value of the selected option. A description of the selected item appears on the right side of the screen. The settings are described on the following pages. An example of the CPU Configuration screen is shown below.

The CPU Configuration setup screen varies depending on the installed processor.

Active Efficient-cores

This item allows you to enable E-cores in each processor package.

The choice: All, 0, 1, \~n-1.

Intel(R) V. T.

When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

The choice: Enabled, Disabled.

CPU support, item appears.

C State Support

This item allows you to enable or disable CPU C State.

The choice: Enabled, Disabled.

EIST

This item allows you to enable or disable Enhanced Intel SpeedStep(R) Technology.

The choice: Enabled, Disabled.

Intel(R) Speed Shift Technology

This item allows you to enable or disable Intel(R) Speed Shift Technology (ISST).

The choice: Enabled, Disabled.

Turbo Mode

This item allows you to enable or disable Turbo Mode.

The choice: Enabled, Disabled.

The CPU Configuration setup screen varies depending on the installed processor.

Intel(R) HT Technology

This item allows you to enable or disable Intel(R) HT Technology.

The choice: Enabled, Disabled.

SATA Configuration

SATA Mode Selection

This item allows you to set the SATA Mode Selection.

The choice: AHCI, RAID.

OnBoard Device Configuration

High Definition Audio

This item allows you to enable or disable system High Definition Audio.

The choice: Enabled, Disabled.

CNVi Function

This item allows you to enable or disable CNVi module.

The choice: Enabled, Disabled.

M.2 Device Select

M.2 PCIe and SATA device selection.

The choice: Auto, PCIE, SATA.

Onboard LAN1/2 Function

This item allows you to enable or disable LAN1/2 Function.

The choice: Enabled, Disabled.

Onboard LAN BOOT ROM

This item allows you to enable or disable Onboard LAN BOOT ROM.

The choice: Enabled, Disabled.

IGD Memory Size Select

Allows you to select the size of system memory used by the internal graphics device.

The choice: 32MB, 64MB, 128MB, 256MB, 512MB.

Intel(R) VT-d

This item allows you to enable or disable Intel(R) VT-d.

The choice: Enabled, Disabled.

Serial Port Configuration

Options are in its sub-menu.

Press to enter the sub-menu of detailed options.

Serial Port 1/2

Enabled/Disabled Serial Port (COM).

The choice: Enabled, Disabled.

Change Mode

COM mode select.

The choice: RS232, RS422, RS485.

Termination (120 ohm)

This item allows you to enable or disable the termination for RS422 and RS485.

The choices are: Enabled, Disabled.

Change Settings

This item allows you to set the Serial Port 1/2 address.

The choices are: 3F8h, 2F8h, 3E8h, 2E8h.

Hardware Health Configuration

Aptio Setup - AMI
CPU Temperature : +53 ° System Temperature : +41 ° CPU Core : +0.914 V DRAM : +1.095 V
	+: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Version 2.22.1288 Copyright (C) 2023 AMI

Product Information

Insert Serial Number

This item allows you to insert the serial number.

Insert UUID

This item allows you to insert the UUID.

Boot

Select the Boot tab from the BIOS setup screen to enter the Boot BIOS Setup screen. You can select any of the items in the left frame of the screen, such as Boot Settings Configuration, to go to the submenu for that item.

You can display a Boot BIOS Setup option by highlighting it using the arrow keys. All Boot BIOS Setup options are described in this section.

The Boot BIOS Setup screen is shown below. The submenus are described on the following pages.

Boot Settings Configuration Bootup Num-Lock [Enabled] Boot from USB [Enabled] device/Card-Reader
Fast Boot Function [Enabled]
Boot Device Priority Boot Option #1 [Hard Disk] Boot Option #2 [USB Hard Disk] Boot Option #3 [USB CD/DVD] Boot Option #4 [USB Key:UEFI: ADATA, Partition 1]
Boot Option #5 [USB Floppy] Boot Option #6 [Network]
▶ UEFI USB Key Drive BBS Priorities	Select the keyboard NumLock state.
	+: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Bootup Num-Lock

Select NumLock state after system bootup.

The choice: Enabled, Disabled.

Boot from USB device/Card-Reader

Enabled/Disabled onboard USB storage/Card-Reader boot function.

The choice: Enabled, Disabled.

Fast Boot Function

This item allows you to enable or disable Fast Boot Function.

The choice: Enabled, Disabled.

Boot Device Priority (Boot Option #1/2/3/....)

Specifies the boot sequence from the available devices. A device enclosed in parenthesis has been disabled in the corresponding type menu.

Security

Select the Security tab from the BIOS setup screen to enter the Security BIOS Setup screen. You can display a Security BIOS Setup option by highlighting it using the keys. All Security BIOS Setup options are described in this section.

The Security Setup screen is shown below. The submenus are documented on the following pages.

Supervisor Password

Indicates whether a supervisor password has been set. If the password has been installed, Installed displays. If not, Not Installed displays.

User Password

Indicates whether a user password has been set. If the password has been installed, Installed displays. If not, Not Installed displays.

Change Supervisor Password

Select Change Supervisor Password from the Security Setup menu and press .

Enter New Password:

Type the password and press . The screen does not display the characters entered. Retype the password as prompted and press . If the password confirmation is incorrect, an error message appears. The password is stored in NVRAM after BIOS completes.

Change User Password

Select Change User Password from the Security Setup menu and press .

Enter New Password:

Type the password and press . The screen does not display the characters entered. Retype the password as prompted and press . If the password confirmation is incorrect, an error message appears. The password is stored in NVRAM after BIOS completes.

Password Login control

This item allows user to adjust Password Login control.

The choice: Setup, Boot, Both.

Flash Write Protection

Choose [Enabled] to avoid virus damage to the BIOS. If you want to flash the BIOS, you must set it to [Disabled].

The options are: Enabled or Disabled.

Exit

Select the Exit tab from the BIOS setup screen to enter the Exit BIOS Setup screen.

You can display an Exit BIOS Setup option by highlighting it using the arrow keys. All Exit BIOS Setup options are described in this section.

The Exit BIOS Setup screen is shown below.

Save Changes and Exit

When you have completed the system configuration changes, select this option to leave BIOS Setup and reboot the computer so the new system configuration parameters can take effect.

Select "Save Changes and Exit" from the Exit menu and press Enter.

Save Configuration Changes and Exit Now?

[Ok] [Cancel]

appears in the window. Select Ok to save changes and exit.

Exit Without Saving Changes

Select "Exit without Saving Changes" from the Exit menu and press Enter.

Select OK to discard changes and exit.

Load Default Settings

BIOS automatically sets all BIOS Setup options to a complete set of default settings when you select this option. The optimal settings are designed for maximum system performance, but may not work best for all computer applications. In particular, do not use the optimal BIOS Setup options if your computer is experiencing system configuration problems.

Select Load Optimal Defaults from the Exit menu and press Enter.

Select OK to load optimal defaults.
