Product type	Sports roadster
Brand	McLaren Automotive
Model	Elva
Launch year	2020
Engine	4.0L twin-turbo V8 petrol
Maximum power	804 hp (600 kW) at 7,500 rpm
Maximum torque	800 Nm at 5,500 rpm
Transmission	7-speed dual-clutch (SSG)
Drive type	Rear-wheel drive
0-100 km/h acceleration	Approximately 2.7 seconds
Top speed	330 km/h (electronically limited)
Combined consumption (WLTP)	12.7 L/100 km
Fuel	Unleaded premium 98 octane minimum
Chassis	Carbon fiber monocoque
Bodywork	No roof or windshield (windshield option available)
Curb weight	1,248 kg
Weight distribution front/rear	42/58%
Length	4,600 mm
Width (mirrors folded)	2,050 mm
Height	1,145 mm
Wheelbase	2,670 mm
Fuel tank capacity	72 L
Front brakes	380 mm ceramic ventilated discs
Rear brakes	380 mm ceramic ventilated discs
Front tires	Pirelli P Zero Corsa 245/35 R19
Rear tires	Pirelli P Zero Corsa 305/30 R20
Safety system	ABS, ESC, traction control, front airbags
Routine maintenance	Oil change every 15,000 km or 1 year
Manufacturer warranty	3 years unlimited mileage

Frequently Asked Questions - Elva McLaren

What type of engine oil to use for the McLaren Elva?

Use a fully synthetic 0W-40 engine oil meeting McLaren M-Spec 1 standard. The oil capacity is approximately 8.5 liters.

How to activate Track mode on the McLaren Elva?

Turn the driving mode selector on the center console to the Track position. This adjusts suspension, steering, and engine response for track use.

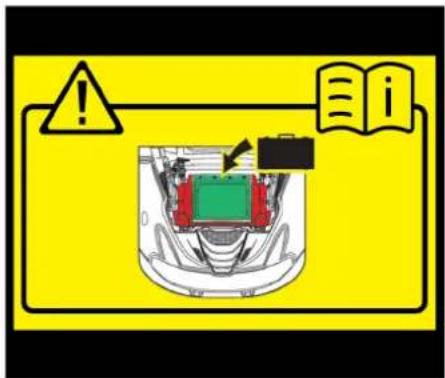

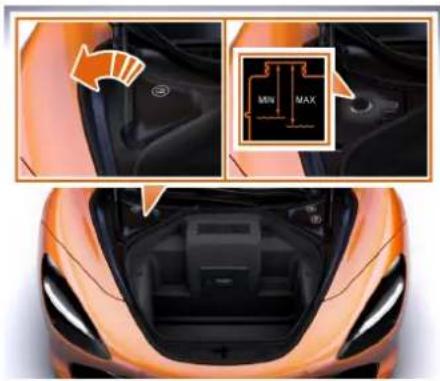

What is the procedure to open the front hood?

The front hood opens by pulling the lever located in the passenger compartment, on the passenger side. A second latch is under the hood. Use both hands to lift.

How to maintain ceramic brakes?

Ceramic brakes require an initial break-in. Avoid harsh braking for the first 500 km. Use a non-abrasive brake cleaner and a soft brush for the discs.

What is the trunk capacity?

The McLaren Elva has a front trunk with a capacity of 150 liters, sufficient for a carry-on bag or a full-face helmet.

How to connect my smartphone to the infotainment system?

Enable Bluetooth on your smartphone, then in the Connections menu on the central screen, select 'New device'. Follow the on-screen instructions. Compatible with Apple CarPlay and Android Auto.

What tire pressure is recommended?

For normal driving, inflate front tires to 2.2 bar and rear tires to 2.4 bar. For track use, increase by 0.1 bar when cold.

How to adjust the nose lift system?

The nose lift system is activated via a button on the console. It raises the front by 40 mm at speeds below 50 km/h. Deactivate it manually or automatically above 60 km/h.

What to do if the check engine light comes on?

Stop the vehicle as soon as possible and check the warning messages on the screen. Contact your authorized McLaren dealer. Do not continue driving if the light is flashing.

How to clean unvarnished carbon fiber?

Use a clean microfiber cloth and a spray of demineralized water. Do not rub too hard. Avoid abrasive cleaners. For stubborn stains, use a mild car shampoo.

USER MANUAL Elva McLaren

[e-mail]

Table des matières

© McLaren Automotive Limited.

McLaren Automotive Inc.

750 3rd Avenue, Suite 2400

New York

NY 10017

Rétrogradation forcée

The stored messages can be viewed at any time when the ignition is on, see Messages, page 3.11.

AVERTISSEMENT : Operating and browsing menus whilst the vehicle is in motion could make you unable to observe road and traffic conditions and could cause an accident.

AVERTISSEMENT : Do not ignore warning messages, failure to take appropriate action may result in personal injury or damage to the vehicle.

Driver Display deployment

The écran pliable du conducteur deployment mode can be manually changed, using the button located on the dashboard.

AVERTISSEMENT: Even if the temperature displayed is above freezing point, the road surface may still be icy. You should always adapt your driving style and speed to suit the weather conditions.

Temperature is the current outside temperature. There is a short delay before a change in outside temperature is displayed.

When the outside air temperature falls below 3° C ( 37° F), the frost warning message will be displayed and the temperature reading will change colour after the message has been displayed.

When the outside temperature falls below 0° C ( 32° F), the ice warning will be displayed.

Instruments

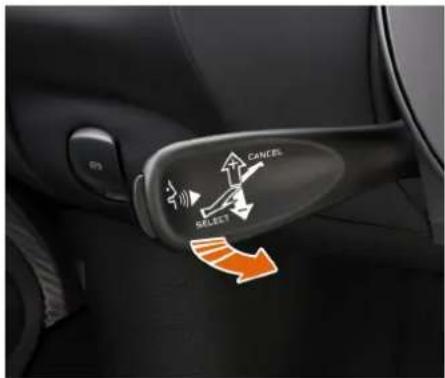

Navigation through the menu structure is achieved using the control stalk mounted on the left of the steering column.

The following categories are available:

1. Move the control stalk up or down (SCROLL + or -) to highlight your choice.
2. Pull the stalk towards you (FORWARD) to enter your selection.
3. Then select the topic of interest from the list, move the control stalk up or down (SCROLL + or -) to highlight your choice.
4. Pull the stalk towards you (FORWARD) to move through to the next menu in the structure.
5. At the end of each structure there will be a display of information or a screen where a setting can be changed or information viewed.

1. When the function required is selected or a setting is made, pull the stalk towards you (FORWARD) to confirm.

Instruments

Radio data system (RDS) 4.44

Modes Bowers & Wilkins

Radio data system (RDS)

Affichage central

Protection antipincement

AVERTISSEMENT : Have worn tyres replaced in axle pairs and ensure the tyres are fitted as specified. With worn tyres, the driving stability of the vehicle will be adversely affected, especially when driving at high speeds.

Consult your McLaren retailer if you have had new tyres fitted for information on the appropriate bedding in time based on your driving style.

• With new tyres, avoid high speed cornering and excess speed.
• Only have wheels and tyres of the same type and make fitted.
• Never use a tyre which has been punctured and then repaired.
• Only have tyres of the correct size fitted.
• Tyres degrade over time due to the effects of ultraviolet light, extreme temperatures, high loads, and environmental conditions. It is recommended that tyres are replaced every 6 years, or sooner if required.

McLaren recommend that you only use Pirelli summer or winter tyres, see Dimensions des roues et pneus, page 7.09.

These tyres provide the best possible performance in conjunction with the safety systems on your vehicle and have been specifically approved by McLaren.

McLaren cannot accept any responsibility for damage that may result from use of other tyres and wheels. Further information about wheels and tyres can be obtained from your McLaren retailer.

AVERTISSEMENT: Using tyres other than those which have been recommended by McLaren, may contact the body work and adversely affect the handling. This may cause loss of vehicle control, resulting in serious personal injury or death. Noise levels and fuel consumption may also be adversely affected. In addition, when driving with a load or when using snow traction devices, they could cause contact between the bodywork and axle components. This could result in damage to the tyres or the vehicle.

i REMARQUE: Retreaded tyres must not be used. Do not fit used tyres if you have no information about their previous usage.
i REMARQUE : Modification to the brake system and wheels is not permitted, nor is the use of spacer plates or brake dust shields. Any such modifications will invalidate the vehicle warranty on the area modified.
i REMARQUE: A wheel change must be carried out at your McLaren retailer. The vehicle could be damaged if it is jacked up incorrectly.
i REMARQUE: Store tyres in a cool, dry place, preferably in the dark. Protect the tyres from oil, grease and petrol.

1. Width of tyre in millimetres.
2. Tyre profile given as percentage of tyre width.
3. Indicates that the tyre is radial ply.
4. Indicates the diameter of the wheel rim in inches.

5. The numbers denote load index and the letter indicates the speed rating. 91 indicates a weight of 615 kg (1,350 lbs) and Y indicates speeds over 186 mph (300 km/h).

6. Displays the maximum load which can be carried by the tyre.

7. Treadwear grade number. The higher the figure the longer a tyre will last.
8. The alpha character denotes resistance to heat. An 'A' rated tyre offers most heat resistance.
9. Information about the manufacture of the tyre. Contains place and date of manufacture.

Tyres

AVERTISSEMENT: The tyres must be mounted according to the labelling on the tyre wall. The word 'OUTSIDE' must be on the outer edge of the tyre when it is fitted to the wheel or the stability of the vehicle will be adversely affected, especially at high speeds.

Asymmetric tyres

Asymmetric tyres have a tread pattern that is different from one side of the tread to the other. This combination of tread offers better grip in both wet and dry conditions.

The outer tread features a larger stiffer tread pattern that aids with cornering stability. The inner tread pattern aids stability in wet conditions. A central groove in the tyre aids straight line stability.

AVERTISSEMENT : Only tyres recommended by McLaren are to be fitted to the vehicle.

AVERTISSEMENT: The tyres must be mounted according to the labelling on the tyre wall. The benefits of asymmetric tyres will only be available if the tyres are fitted correctly.

Trofeo R tyres

The driver's skill level must be commensurate with the vehicle performance levels in the upper range limits due to increased safety risks.

i REMARQUE: Due to ultra high performance design and the particular manufacturing process of these tyres, they must always be replaced in axle sets (front and rear) regardless of wear or mileage. Failure to do so may have a negative affect on the handling characteristics of the vehicle.

The main features of the Trofeo R tyres are a reduced tread depth and a special tread pattern and carcass compared with other tyres.

AVERTISSEMENT: Risk of accident from worn tyres. Trofeo R tyres have a smaller tread depth, and thus can reach their wear limit sooner. It is important to check tyre wear frequently to avoid risk of serious personal injury or death from worn tyres.
AVERTISSEMENT : Risk of accident through loss of road surface contact, control over the vehicle and braking ability, leading to serious personal injury or death. The reduced tyre tread depth means that there is an increased risk of hydroplaning on wet roads. When driving on wet or mud-covered roads reduce speed significantly.
i REMARQUE : Notify anyone using your car of these characteristics and possible effects.

Inspecting wheels and tyres

At least every 7 days, check the tyres for cuts, punctures, tears, bumps, deformation and cracks. Check wheels for severe corrosion. Damaged wheels could cause a loss of tyre pressure.

Regularly check the tyre tread depth and the condition of the tread across the whole width of the tyre. Turn the front wheels to full lock in order to inspect the inner tread.

When the tread is worn to 1.6 mm, the wear indicators appear on the surface of the tread pattern, producing a continuous band of rubber across the width of the tyre. Tyres must be replaced as soon as the wear indicator becomes visible, or sooner if legislation dictates replacement at a greater tread depth.

i REMARQUE: It is recommended that you always have your tyres replaced by your McLaren retailer. Each wheel has a tyre pressure sensor connected to the tyre valve. In order to avoid damage to the sensor, the tyres must be replaced using the correct procedure.
AVERTISSEMENT : Tyre grip decreases rapidly on wet or icy roads, particularly when the tread depth is close to the minimum. You could lose control of the vehicle and cause an accident due to the reduced grip of the tyres. Reduce your speed and drive with greater care.
i REMARQUE: If tread wear is uneven across the tyre, or becomes excessive, the wheel alignment should be checked.

Regularly check the pressure of all your tyres and correct the pressure as necessary, see Pression des pneus, page 7.10.

All wheels must have a valve cap fitted to protect the valve against dirt and moisture.

Driving precautions

When parking your McLaren, ensure that the tyres do not contact the kerb or other obstacles. If it is necessary to drive over kerbs, speed humps or potholes, drive slowly and approach the obstacle at a shallow angle or the tyres could be damaged.

While driving, pay attention to vibrations, noises and unusual handling characteristics, e.g. pulling to one side. This may indicate that the tyres or wheels are damaged. If you experience anything unusual, reduce your speed and stop the vehicle as soon as safety permits to check the tyres and wheels for damage. If you find no signs of damage, have the tyres and wheels inspected at your McLaren retailer.

Tyre pressures

AVERTISSEMENT: Tyre pressure that is too high or too low has a negative effect on the vehicle's active safety, this could lead to an accident. Frequently check the pressure of all tyres, particularly prior to long trips, and correct the pressure as necessary.

AVERTISSEMENT: If the pressure in a tyre drops repeatedly, inspect the tyre for foreign objects or signs of punctures, check the valve for air leaks.

For the tyre pressures for various operating conditions, see Pression des pneus, page 7.10. They are also printed on a label attached to the fuel filler flap.

If the vehicle is to be driven at high speeds, the tyre pressure must be checked, and if necessary adjusted.

i REMARQUE: In some markets, the tyre pressure label is attached to the base of the driver's side door.
i REMARQUE: Tyre pressures given for low loads are minimum values which offer optimum ride comfort. Increased pressures for higher loads will not adversely affect the running of the vehicle, but ride comfort will be impaired.

Check the pressures when the tyres are cold. If it is necessary to check the tyres when they are warm, pressures will be higher. Do not let air out of warm tyres to match the recommended cold tyre pressures.

Driving with tyre pressure that is too high or too low can:

• create a risk of tyre failure with resultant accidents, causing injury or death.
  • shorten the life of the tyres.
• cause increased tyre damage.
  • have a negative effect on handling characteristics (e.g. by causing aquaplaning).

RESPECT DE L'ENVIRONNEMENT: Check tyre pressures at least every 7 days.

Interchanging wheels

AVERTISSEMENT : Only approved wheels with winter tyres can be fitted to your McLaren as alternatives.

Pneu dégonflé

Vehicle identification number (VIN)

The vehicle identification number can be found on the bottom left-hand corner of the windscreen.

The number can also be found engraved on the body behind the right-hand seat, stamped on a plate at the base of the driver's side door aperture and viewed in the Vehicle info section on the écran pliable du conducteur, see Identification du véhicule, page 3.09.

VIN plate

The vehicle identification number plate also contains the following:

• Maximum permitted laden weight
- Maximum permitted laden weight including trailer
• Maximum permitted front axle laden weight
• Maximum permitted rear axle laden weight

Model: ECI1-MC100E, ECI1-MC100J, ECI1-MC100K, ECI1-MC100M

Speaker Impedance: 4-8Ω

Operating Voltage: 14.2V (9V - 16V allowable) U.S.

FCC ID: IOMKC014

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance may void the user's authority to operate this equipment.

This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Canada

IC: 282C-KC014

This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two conditions:

1. This device may not cause interference; and
2. This device must accept any interference, including interference that may cause undesired operation of the device.

This device complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

No changes shall be made to the equipment without the manufacturer's permission as this may void the user's authority to operate the equipment.

This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Canada

IC: 10176A-003

This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two conditions:

1. This device may not cause interference; and

2. This device must accept any interference, including interference that may cause undesired operation of the device.

IC ID: 10176A-003

● Key fob model number: A-0775G40 (433.96MHz)

• Key fob manufacturer: Pektron

IC:10176A-003
