WMD54MX - Microwave Oven WHIRLPOOL - Free user manual and instructions

Product type	Microwave oven
Brand	Whirlpool
Model	WMD54MX
Dimensions (W x H x D)	520 mm x 310 mm x 400 mm
Capacity	25 liters
Microwave power	900 W
Grill power	1100 W
Opening type	Side-opening door with handle
Display	LED digital display
Controls	Touch controls and rotary knobs
Main functions	Microwave, grill, convection, defrost, reheating, automatic cooking
Automatic programs	10 preset programs
Power levels	8 levels
Child safety lock	Control panel lock
Auto shut-off	Yes, with adjustable timer
Interior material	Easy-clean enamel
Turntable	Diameter 315 mm, removable
Interior lighting	LED
Net weight	14.5 kg
Power supply	230 V / 50 Hz
Power consumption	1300 W (max)
Cleaning and maintenance	Clean with a damp cloth and mild detergent; do not use abrasive products
Spare parts	Available from Whirlpool after-sales service
Repairability	Repairability index of 8.2/10 according to French regulations

Frequently Asked Questions - WMD54MX WHIRLPOOL

How to use the defrost function?

Place the food in the oven, select the defrost program, enter the weight, and press Start. The oven automatically adjusts the time and power.

Can I use metal containers in this microwave?

No, metal containers can cause sparks. Use only microwave-safe containers (glass, ceramic, specific plastic).

How to clean the interior of the oven?

Use a soft damp cloth with a little detergent. For stubborn stains, heat a cup of water with lemon for 3 minutes, then wipe.

What to do if the oven does not heat?

Check that the door is properly closed, that the appliance is plugged in, and that the fuse has not blown. If the problem persists, contact customer service.

How to set the clock?

Press the Clock button, then use the numeric keys to enter the time. Confirm by pressing Clock or Start again.

Can I cook food with the microwave + grill combined function?

Yes, select the combined mode, set the time and power. This allows you to brown food while cooking it quickly.

How to activate the child safety lock?

Press the Child Safety button for 3 seconds until the lock icon appears. To deactivate, repeat the same action.

Do automatic programs exist for popcorn?

Yes, there is a specific program for popcorn. Select it, and the oven automatically adjusts the duration. Do not leave popcorn unattended.

What is the maximum microwave power?

The maximum microwave power is 900 W. You can adjust it to 8 different levels according to your needs.

How to replace the interior bulb?

Unplug the appliance, remove the bulb cover (often clipped), replace with a bulb of the same type (usually 25W/230V), then reassemble the cover.

USER MANUAL WMD54MX WHIRLPOOL

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT In order to receive a more complete assistance, please register your product on www.whirlpool.eu/register

Before using the appliance carefully read the Safety Instruction.

PLEASE SCAN THE QR CODE ON YOUR APPLIANCE IN ORDER TO REACH MORE INFORMATION

PRODUCT DESCRIPTION

1. Control panel
2. Identification plate (do not remove)
3. Door
4. Upper heating element/grill
5. Light
6. Turntable

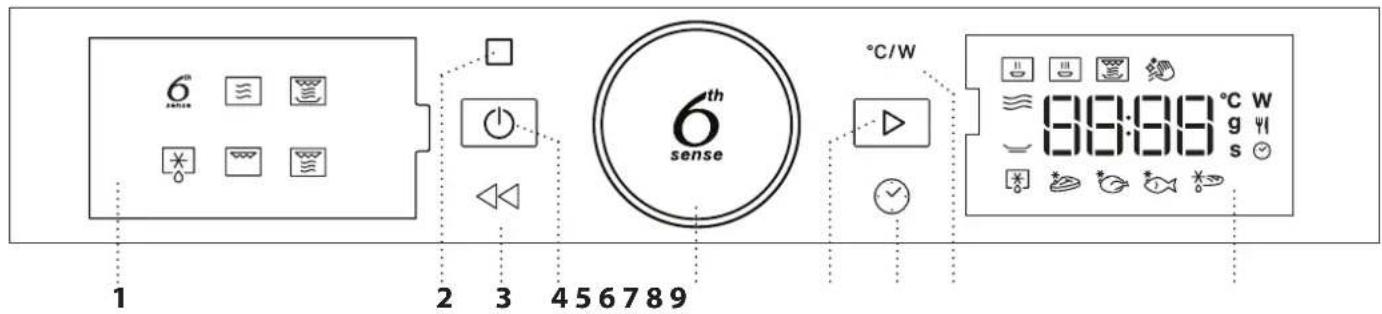

CONTROL PANEL DESCRIPTION

1. LEFT-HAND DISPLAY

2. PAUSE

To pause a cooking cycle.

1. BACK

For returning to the previous screen.

1. ON/OFF

For switching the oven on and off and for stopping an active function at any time.

1. ROTARY KNOB / 6 ^th SENSE BUTTON

Turn this to navigate through the functions and adjust all of the cooking parameters. Press to select, set, access or confirm functions or parameters and eventually start the cooking program.

1. START

For starting functions and confirming settings.

1. TIME

For setting the time as well as setting or adjusting the cooking time.

1. POWER

To adjust the microwave power.

1. RIGHT-HAND DISPLAY

ACCESSORIES

TURNTABLE

Placed on its support, the glass turntable can be used with all cooking methods.

The turntable must always be used

as a base for other containers or accessories.

TURNTABLE SUPPORT

Only use the support for the glass turntable.

Do not rest other accessories on the support.

WIRE RACK

This allows you to place food closer to the grill, for perfectly browning your dish.

Place the wire rack on the turntable, making sure that it does not come

into contact with other surfaces.

The number and the type of accessories may vary depending on which model is purchased.

There are a number of accessories available on the market. Before you buy, ensure they are suitable for microwave use and resistant to oven temperatures.

Metallic containers for food or drink should never be used during microwave cooking.

CRISP PLATE

Only for use with the designated functions.

The Crisp plate must always be placed in the centre of the glass turntable and can be pre-heated

when empty, using the special function for this purpose only. Place the food directly on the Crisp plate.

HANDLE FOR CRISP PLATE

Useful for removing the hot Crisp plate from the oven.

Other accessories that are not supplied can be purchased separately from the After-sales Service.

Always ensure that foods and accessories do not come into contact with the inside walls of the oven.

Always ensure that the turntable is able to turn freely before starting the oven. Take care not to unseat the turntable whilst inserting or removing other accessories.

FUNCTIONS

6TH SENSE

sense These functions automatically select the best cooking method for all types of food.

REHEAT

For reheating ready-made food that is either frozen or at room temperature. The oven automatically calculates the settings required to achieve the best results in the shortest amount of time. Place food on a microwave-safe and heatproof dinner plate or dish.

	FOOD WEIGHT (g)
	PLATED MEAL 250 - 500
	FROZEN LASAGNA 250 - 500
	MILK/WATER 100 - 500
	SOUP 200 - 800

COOK

For cooking foods quickly and achieving optimal results. Use a heatproof container suitable for microwave use.

	FOOD WEIGHT (g)
	ROAST CHICKEN 800 - 1500
	POTATOES GRATIN 200 - 1000
	STUFFED VEGETABLES 200 - 800
	PORK RIBS 200 - 800
	SCRAMBLED EGGS 100 - 500
	POPCORN 90

CRISP

For quickly reheating and cooking frozen foods and giving them a golden, crunchy top. Only use this function with the crisp plate provided. Turn the food when prompted.

	FOOD WEIGHT (g)
	PIZZA [FROZEN] 200 - 800
	BURGER PATTIES 200 - 600
	POTATOES FRIED [FROZEN]	200 - 500
	CHICKEN NUGGETS [FROZEN]	100 - 500
	FISH FINGERS [FROZEN]	100 - 500

Required accessories: Crisp plate, handle for crisp plate

Hydro Self Clean

The action of the steam released during this special cleaning cycle allows dirt and food residues to

be removed with ease. Pour a cup of drinking water into a microwave proof container and activate the function.

MICROWAVE

For quickly cooking and reheating food or drinks.

POWER (W)	RECOMMENDED FOR
1000	Quickly reheating drinks or other foods with a high water content.
800	Cooking vegetables.
650	Cooking meat and fish.
500	Cooking meaty sauces, or sauces containing cheese or egg. Finishing off meat pies or pasta bakes.
350	Slow, gently cooking. Perfect for melting butter or chocolate.
160	Defrosting frozen foods or softening butter and cheese.
90	Softening ice cream.

ACTION	FOOD	POWER (W)	DURATION (min.)
Reheat	2 cups	1000	1 - 2
Reheat	Mashed potatoes(1 kg)	1000	9 - 11
Defrost	Minced Meat (500 g)	160	13 - 14
Cook	Sponge cake	800	6 - 7
Cook	Egg custard	650	11 - 12
Cook	Meat loaf	800	18 - 20

CRISP

For perfectly browning a dish, both on the top and bottom of the food. This function must only be used with the special Crisp plate.

FOOD	DURATION (min.)
Leavened cake	7 - 10
Hamburger	8 - 10*

* Turn food halfway through cooking.

Required accessories: Crisp plate, handle for the Crisp plate

DEFROST

For quickly defrosting various different types of food simply by specifying their weight. Food should be placed directly on the glass turntable, except for Crisp Bread Defrost. Turn the food when prompted.

CRISP BREAD DEFROST

This exclusive function allows you to defrost frozen bread. Combining both Defrost and Crisp technologies, your bread will taste and feel as if it were freshly baked. Use this function to quickly defrost and heat frozen rolls, baguettes & croissants. The Crisp Plate must be used in combination with this function, directly placed on wire shelf.

	FOOD WEIGHT (g)
	TIMED DEFROST -
	MEAT 100 - 2000
	POULTRY 100 - 2500
	FISH 100 - 1500
	CRISP BREAD DEFROST 50 - 500

GRILL

For perfectly browning a dish, both on the top and bottom of the food. This function must only be used with the special Crisp plate.

FOOD DURATION (min.)

Leavened cake 7 - 10

Hamburger 8 - 10 *

* Turn food halfway through cooking.

Required accessories: Wire rack

FIRST TIME USE

. SETTING THE TIME

You will need to set the time when you switch on the oven for the first time.

The two digits for the hour will start flashing: Turn the rotary knob to set the hour and then press Ⓞ to confirm.

DAILY USE

1. SELECT A FUNCTION

When the oven is off, only the time is shown on the display. Press and hold to switch the oven on. Turn the rotary knob to view the main functions available on the left-hand display. Select one and press .

To select a sub-function (where available), select the main function and then press Ⓠ to confirm and go to the function menu.

GRILL+MW

For quickly cooking and gratinating dishes, ining the microwave and grill functions.

FOOD POWER (W) DURATION (min.)

Potatoes gratin	650	20 - 22
Roast chicken	650	40 - 45

Recommended accessories: Wire rack

The two digits for the minutes will start flashing. Turn the rotary knob to set the minutes and press ⓐ to confirm.

Please note: To change the time at a later point, press and hold ☑ for at least one second while the oven is off and repeat the steps above.

You may need to set the time again following lengthy power outages.

Turn the rotary knob to select from amongst the subfunctions available on the right-hand display and then press Ⓞ to confirm.

2. SET A FUNCTION

.6 ^TH SENSE / DEFROST

FOOD CLASS

Once you have chosen one of the automatic functions, you will need to select a category for the food you are cooking.

When the i#on flashes, turn the rotary knob to select the category you require and then press ⓐ to confirm. WEIGHT

To achieve the best results, the 6^th Sense (and Jet Defrost) require you to enter the weight of the food, selecting from amongst the default settings: the oven will calculate the ideal length of time for the function to run for each category of food.

When the default setting appears on the display and the 9 icon flashes, turn the rotary knob to set the weight and then press Ⓞ to confirm.

. MANUAL FUNCTIONS

After having selected the function you require, you can change its settings.

The display will show the settings that can be changed in sequence.

MICROWAVE POWER

When the Mon flashes on the display, turn the rotary knob to adjust the power setting and then press ⚙ to confirm and continue to alter the settings that follow (if possible).

Please note: Once the function has been activated, the power can be changed by pressing ow to access the settings menu, then turning the rotary knob to change the setting.

DURATION

When the icon flashes on the display, use the rotary knob to set the cooking time you require and then press Ⓧ to confirm or press to confirm and start the function.

Note: During cooking, you can adjust the cooking time by turning the rotary knob; each time you press ☐, the cooking time increases by 30 seconds.

3. ACTIVATE THE FUNCTION

Once you have applied the settings you require, press ▶ to activate the function.

Every time the ▶ button is pressed again, the cooking time will be increased by a further 30 seconds.

Please note: You can press Ⓞ at any time to stop the function that is currently active.

.JET START

When the oven is switched off, it is possible to press to activate cooking with the microwave function set at full power (1000 W) for 30 seconds.

.SAFETY LOCK

This function is automatically activated to prevent the oven from being switched on accidentally.

Open and close the door, then press to start the function.

4. PAUSE

To pause an active function, for example to stir or turn the food, simply open the door.

To start it up again, close the door and press ▶.

AUTOMATIC PAUSE

(TURN OR STIR FOOD)

Certain functions will pause to allow you to turn or stir the food.

Once the oven has paused cooking, open the door and carry out the action you are prompted to perform before closing the door again and pressing ▶ to continue with cooking.

5. COOKING END

An audible signal will sound and the display will indicate that cooking is complete.

To extend the cooking time without changing the settings, turn the rotary knob to set a new cooking time and press ▶.

. KEY LOCK

To lock the keypad, press and hold for at least 5 seconds.

Do this again to unlock the keypad.

Please note: The key lock can also be activated while cooking is in progress. For safety reasons, the oven can be switched off at any time by pressing and holding [b].

CLEANING

Make sure that the appliance has cooled down before carrying out any maintenance or cleaning.

Never use steam cleaning equipment.

Do not use wire wool, abrasive scourers or abrasive/corrosive cleaning agents, as these could damage the surfaces of the appliance.

INTERIOR AND EXTERIOR SURFACES

• Clean the surfaces with a damp microfibre cloth. If they are very dirty, add a few drops of pH-neutral detergent. Finish off with a dry cloth.
• Clean the glass in the door with a suitable liquid detergent.
• At regular intervals, or in case of spills, remove the turntable and its support to clean the bottom of the oven, removing all food residue.
• The grill does not need to be cleaned as the intense heat burns away any dirt. Use this function on a regular basis.

ACCESSORIES

All accessories are dishwasher safe with the exception of the Crisp plate.

The Crisp plate should be cleaned using water and a mild detergent. For stubborn dirt, rub gently with a cloth. Always leave the Crisp plate to cool down before cleaning.

TROUBLESHOOTING

Problem Possible cause Solution
The oven is not working.	Power cut.Disconnection from the mains.	Check for the presence of mains electrical power and whether the oven is connected to the electricity supply.Turn off the oven and restart it to see if the fault persists.
The oven makes noises, even when it is switched off.	Cooling fan active.	Open the door or hold or wait until the cooling process has finished.
The display shows the letter “F” followed by a number.	Software fault.	Contact the Call Center and state the number following the letter “F”.

Policies, standard documentation and additional product information can be found by:

• Using the QR on your product
- Visiting our website docs.whirlpool.eu
• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

DANKE, DASS SIE SICH FÜR EIN WHIRLPOOL-PRODUKT ENTSCHIEDEN HABEN

MERCI D'AVOIR CHOISI UN PRODUIT WHIRLPOOL

1. ÉCRAN AFFICHAGE GAUCHE

2. PAUSE

. FONCTIONS MANUELLES

1. PANTALLA DE LA IZQUIERDA
2. PAUSA

ZAHVALJUJEMO VAM NA KUPOVINI PROIZVODA WHIRLPOOL

Kako bismo vam mogli pružiti potpuniju pomoć, registrirajte svoj uređaj na adresi www.whirlpool.eu/register

Pažljivo pročitajte sigurnosne upute prije upotrebe uređaja.

SKENIRAJTE QR KOD NA SVOM UREĐAJU DA BISTE DOBILI VIŠE INFORMACIJA

OPIS PROIZVODA

1. LEVÝ DISPLEJ

2. PAUZA

1. VASAKPOOLNE NÄIDIK

2. PAUS

SISE- JA VÄLISPINNAD

. MANUĀLĀS FUNKCIJAS

1. KAIRYSIS EKRANAS
2. PRISTABDYMAS

Pristabdomas gaminimo ciklas.

1. ATGAL

1. WŁĄCZANIE/WYŁĄCZANIE (ON/OFF)

VĂ MULȚUMIM CĂ AȚI ACHIZIȚIONAT UN PRODUS WHIRLPOOL

1. DISPLEJ SA LEVE STRANE

2. PAUZA

Za pauziranje ciklusa pripreme hrane.

1. NAZAD

Za povratak na prethodni ekran.

1. ON/OFF (UKLJUČENO/ISKLJUČENO)

Za uključivanje i isključivanje pećnice ili za pauziranje ili prekid rada u bilo kom trenutku.

1. ROTACIONI PREKIDAČ/6 ^th SENSE DUGME

Okrenite za navođenje kroz funkcije i podešavanje svih parametara za pripremanje hrane. Pritisnite da biste odabrali, postavili, pristupili ili potvrdili funkcije ili parametre i pokrenuli program pripreme hrane.

1. START

1. DISPLEJ SA DESNE STRANE

DODACI

OBRTNA PLOČA

Kada je postavljena na svoje postolje, staklena obrtna ploča se može koristiti za sve načine pripreme hrane.

(OKRENITE ILI PROMEŠAJTE HRANU)

. FUNKCIE S MANUÁLNYM NASTAVENÍM

1. LEVI PRIKAZOVALNIK

2. PAUSE (PREMOR)

1. ЛІВИЙ ДИСПЛЕЙ

2. ПАУЗА

.7 alوقت

قم.SEJI ME MRE ACHRI ILELGAQ CFL LOUHA MAFATIYG. IRGJE MLAHOPE: IMKN TFGOIL WQIYFVE CFL MAFATIYG ANTNAE TGHEY. LDOAGY SLAMA, I IMKEN EYICAF FRON FVI AY QCT BASTMTRAR PUSGP OLE LAZR.
