Product Type	Microwave Oven
Brand	Whirlpool
Model	WMN571BX
Capacity	0.7 cu ft
Power Output	700 W
Power Levels	10
Display Type	LED
Door Type	Pull-down
Interior Light	Yes
Turntable	Yes, 10.6 inches
Timer	Up to 99 minutes 99 seconds
Child Lock	Yes
Dimensions (W x D x H)	17.3 x 12.9 x 10.2 inches
Weight	22.5 lbs
Power Supply	120 V, 60 Hz, 10 A
Color	Stainless Steel
Defrost Function	Yes, by weight or time
One-Touch Cooking	Yes, preset programs
Maintenance	Wipe with damp cloth; avoid abrasive cleaners
Safety Features	Child lock, automatic shut-off

Frequently Asked Questions - WMN571BX WHIRLPOOL

How do I set the clock on my Whirlpool WMN571BX microwave?

Press the Clock button once. Use the number keys to enter the current time. Press Clock again to confirm. The clock will display in 12-hour format.

How do I defrost food using this microwave?

Press the Defrost button. Choose either defrost by weight or time. Enter the weight or time using the number keys, then press Start. The microwave will automatically adjust power for even defrosting.

How do I clean the interior of the microwave?

Unplug the microwave. Remove the turntable and wash it with warm soapy water. Wipe the interior with a soft, damp cloth. Do not use abrasive cleaners or scouring pads. Dry thoroughly before next use.

How do I activate the child lock?

Press and hold the Lock button (often the Stop/Clear button) for 3 seconds. A lock icon will appear on the display. Repeat to unlock.

Why is my microwave making noise?

Some noise is normal due to the fan, turntable motor, and magnetron. If the noise is unusually loud, check that the turntable is properly seated and that no metal objects are inside. If it persists, contact Whirlpool customer service.

Can I use metal containers in this microwave?

No, metal can cause sparks and damage the microwave. Use only microwave-safe containers: glass, ceramic, or plastic labeled for microwave use. Avoid aluminum foil unless in small amounts specified in the manual.

How do I adjust the power level?

Press the Power Level button. Use the number keys to select a level from 1 to 10 (1=low, 10=high). Then set the cooking time and press Start.

What should I do if the microwave door doesn't close properly?

Inspect the door hinges and latch for obstructions or damage. Clean any food debris around the seal. If the door is misaligned, contact a qualified technician for repair. Never operate the microwave with a broken door.

How long does it take to reheat a cup of coffee?

Typically 1-2 minutes on high power, depending on the starting temperature and cup size. Use a microwave-safe mug and stir after reheating for even temperature.

Where can I find the serial number?

The serial number is located on a sticker on the back or side of the microwave. It is also listed in the user manual's warranty section. Keep it handy for service requests.

USER MANUAL WMN571BX WHIRLPOOL

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT In order to receive a more complete assistance, please register your product on www.whirlpool.eu/register

Before using the appliance carefully read the Safety Instruction.

PLEASE SCAN THE QR CODE ON YOUR APPLIANCE IN ORDER TO REACH MORE INFORMATION

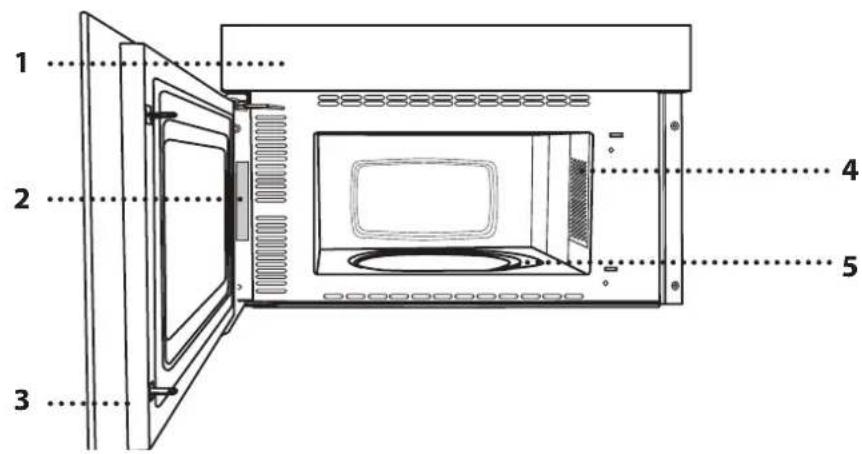

PRODUCT DESCRIPTION

1. Control panel
2. Identification plate (do not remove)
3. Door
4. Light
5. Turntable

CONTROL PANEL DESCRIPTION

1. STOP

For stopping a function or an audible signal, cancelling the settings and switching off the oven.

2. JET DEFROST

3. MICROWAVE FUNCTION/POWER

For selecting the microwave function and setting the required power level

4. DISPLAY

1. • / - BUTTONS

For adjusting the settings of a function (e.g. length, weight).

6. START

For starting a function.

1. DOOR OPENING BUTTON

ACCESSORIES

TURNTABLE

Placed on its support, the glass turntable can be used with all cooking methods.

The turntable must always be used

as a base for other containers or accessories.

The number and the type of accessories may vary depending on which model is purchased.

There are a number of accessories available on the market. Before you buy, ensure they are suitable for microwave use and resistant to oven temperatures.

Metallic containers for food or drink should never be used during microwave cooking.

TURNTABLE SUPPORT

Only use the support for the glass turntable.

Do not rest other accessories on the support.

Other accessories that are not supplied can be purchased separately from the After-sales Service.

Always ensure that foods and accessories do not come into contact with the inside walls of the oven.

Always ensure that the turntable is able to turn freely before starting the oven. Take care not to unseat the turntable whilst inserting or removing other accessories.

FUNCTIONS

MICROWAVE

For quickly cooking and reheating food or drinks.

POWER RECOMMENDED FOR

750 W	Quickly reheating drinks or other foods with a high water content or meat and vegetables.
500 W	Cooking fish, meaty sauces, or sauces containing cheese or egg. Finishing off meat pies or pasta bakes.
350 W	Slow, gently cooking. Perfect for melting butter or chocolate.

160 W Defrosting frozen food or softening butter and cheese.
0 W When using the minuteminder only.

JET DEFROST

For quickly defrosting various different types of food simply by specifying their weight. Food should be placed directly onto the glass turntable. Turn the food when prompted. Food should be placed directly onto the glass turntable. Turn the food when prompted. A standing time after defrosting always improves the result.

DAILY USE

1. SELECT A FUNCTION

Simply press the button for the function you require to select it.

2. SET THE LENGTH

After selecting the function you require, use or to set the length for it to run.

The time can be changed during cooking by pressing or by increasing the length for 30 seconds each time by pressing ▶.

Press as many times as required to select the power level for the microwave.

Please note: You can also change this setting during cooking by pressing ≡.

4. JET DEFROST

Press, then use or to set the weight of the food. During defrosting, the function will pause briefly to allow

you to turn the food. Once the operation is complete, close the door and press ▶.

5. ACTIVATE THE FUNCTION

Once you have applied the settings you require, press ▶ to activate the function.

Every time the ▶ button is pressed again, the cooking time will be increased by a further 30 seconds.

You can press at any time to stop the function that is currently active.

6. JET START

When the oven is switched off, press to activate cooking with the microwave function set at full power (750 W) for 30 seconds.

7. PAUSE

To pause an active function, for example to stir or turn the food, simply open the door.

The setting will be maintained for 10 minutes.

To start it up again, close the door and press ▶.

A beep will signal once ot twice a minute for 10 minutes when the cooking is finished. Press the STOP button or open the door to cancel the signal.

Please note: The oven will only hold the setting for 60 seconds if the door is opened and then closed after the cooking is finished.

8. COOLING DOWN

When a function is finished, the oven may carry out a cooling procedure the oven switches off automatically.

9. SAFETY LOCK

This function is automatically activated to prevent the oven from being switched on accidentally. Open and

close the door, then press ▶ to start the function.

10. SET THE TIME OF THE DAY

Press until the two digits for the hour (on the left) starting flashing.

Use △ or to set the correct hour

and press ▶ to confirm: The minutes will flash on the display. Use △ or ∅ set the minutes and press to ▶ confirm.

Please note: You may need to set the time again following lengthy power outages.

11. MINUTEMINDER

The display can be used as a timer. To activate the function and set the length of time you require, use △ or ▽Press to set the power to 0 W, then press to ▶ activate the countdown.

Please note: The timer does not activate any of the cooking cycles. To stop the timer at any time, press☐.

CLEANING

Never use steam cleaning equipment. Do not use wire wool, abrasive scourers or abrasive/corrosive cleaning agents, as these could damage the surfaces of the appliance.

INTERIOR AND EXTERIOR SURFACES

• Clean the surfaces with a damp microfibre cloth. If they are very dirty, add a few drops of pH-neutral detergent. Finish off with a dry cloth.
• Clean the glass in the door with a suitable liquid detergent.
• At regular intervals, or in case of spills, remove the turntable and its support to clean the bottom of the oven, removing all food residue.

ACCESSORIES

All accessories are dishwasher safe.

TROUBLESHOOTING

Problem Possible cause Solution
The oven is not working.	Power cut.Disconnection from the mains.	Check for the presence of mains electrical power and whether the oven is connected to the electricity supply.Turn off the oven and restart it to see if the fault persists.
The display is showing "Err". Software fault.		Contact you nearest After-sales Service Centre and state the letter or number that follows "Err".
The display shows unclear text and appears to be broken.	Another language set. Contact you	nearest Client After-sales Service Centre.

Policies, standard documentation and additional product information can be found by:

• Using the QR on your product
- Visiting our website docs.whirlpool.eu
• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.
