Product type	Combined refrigerator with freezer
Brand	Samsung
Model	RR40B99C5AP
Total capacity	Approximately 400 L
Refrigerator capacity	270 L
Freezer capacity	130 L
Dimensions (H x W x D)	185 x 70 x 75 cm
Net weight	80 kg
Power supply	220-240 V, 50 Hz
Energy class	A+
Annual energy consumption	300 kWh
Noise level	42 dB
Defrost type	Automatic (No Frost)
Refrigerant	R600a
Main features	External water dispenser, LED lighting, fresh food compartment, door alarm
Maintenance and cleaning	Clean with a soft cloth and soapy water; accessible condenser for dusting
Safety	Child safety lock, control lock
Spare parts	Available on Samsung website or from authorized dealers
Repairability	Repairability index of 7.5/10
Warranty	2 years
Country of origin	South Korea

Frequently Asked Questions - RR40B99C5AP SAMSUNG

How to set the temperature on my Samsung RR40B99C5AP refrigerator?

Use the control panel on the front of the appliance. Press the Temp. button to adjust the refrigerator temperature (usually between 1°C and 7°C) and freezer temperature (between -15°C and -23°C).

How to clean the water dispenser?

Unplug the appliance, remove the water tank and wash it with warm soapy water. Rinse thoroughly and dry before replacing. Do not use abrasive cleaners.

What to do if the door alarm light turns on?

Check that the door is properly closed. If it is open, close it. If the alarm persists, check the door gaskets and ensure they are not obstructed. If the problem continues, contact after-sales service.

How to defrost the freezer?

This model is equipped with No Frost technology that prevents frost formation. No manual defrosting is necessary. The appliance defrosts automatically.

Where to find the serial number of my appliance?

The serial number is on the rating plate inside the refrigerator, usually on the left side wall or behind the vegetable drawer.

How to activate vacation mode?

On the control panel, press the Mode button until the vacation icon appears. This mode maintains a lower temperature in the freezer while reducing energy consumption.

What is the maximum capacity of the appliance?

The total capacity is approximately 400 liters, consisting of 270 liters for the refrigerator and 130 liters for the freezer. Do not overload the shelves to ensure proper air circulation.

How to change the water filter?

The water filter is usually inside the refrigerator near the dispenser. Turn it a quarter turn to unlock, remove it, and replace with a new one. Make sure the seal is properly in place.

Why is my refrigerator making noise?

Slight noises are normal (compressor, fan, gas circulation). If the noise is excessive, check that the appliance is level and not touching other furniture. A clicking noise may indicate a problem with the compressor; contact technical service.

How to contact Samsung after-sales service?

You can reach Samsung customer service by phone at 0800 726 786 (toll-free) or via the official website. Have your model and serial numbers handy.

USER MANUAL RR40B99C5AP SAMSUNG

User servicing manual

1. You can check where to buy replacement parts at http://samsung.com
2. Visit the part purchase site and enter the model code of your product to check the parts available for purchase. The model code is labelled on the outer side of your product.
3. You can check the model code and version on the barcode label at the bottom left of the product.
4. For replacement parts, make sure the part name matches that of the illustration in this manual.
5. User-serviceable parts are limited to handles (some models only), gaskets, drawers, and hinges.

NOTE

Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certified service provider will not be covered by the warranty.

CAUTION

• The part name listed on the site may differ from that in this manual. Please make sure you choose the right part name.
• Replacing hinges requires extreme caution because it involves detaching the door.
• Be sure to wear safety gloves while making repairs.

English

The actual image and provided parts of the refrigerator may differ, depending on the model and the country.

RZ38* RR40* RW33*

01 Top hinge 02 Gasket

03 Drawer 04 Barcode label

05 Flex Pantry

NOTE

The order of parts disassembly and assembly are the same for the freezer and fridge.

Gasket replacement

CAUTION

Make sure you firmly attach the gasket. Otherwise, cold air from the refrigerator may leak.

To remove the gasket

Open the door and remove the gasket from the door.

To replace the gasket

Attach a new gasket to the refrigerator door. Make sure there is no gap between the new gasket and the door.

English

Drawer / Flex Pantry replacement

CAUTION

Check that the drawer is inserted properly into the rail during assembly.

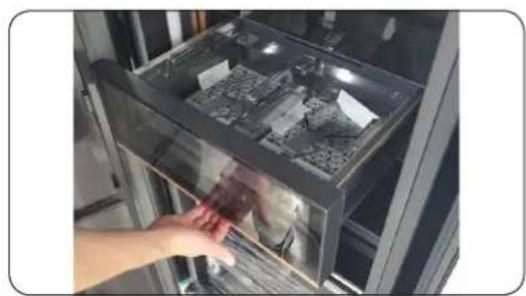

To remove the drawer

1. Pull the drawer forward.
2. Remove the drawer by tilting it.

To remove the Flex Pantry

1. Pull the drawer forward.
2. Press the hooks on the lower left/right sides to detach.

1. Lift it to remove.

To reattach the drawers / Flex Pantry

Reattaching the drawers follows the reverse order of their respective removal steps.

Hinge replacement

To replace the hinges, you must remove the doors first.

CAUTION

• When removing the doors, take extreme caution because the doors are heavy.
• Before replacing the hinges, put a soft pad such as cardboard on the floor to prevent scratches on the door when you place the doors down.
• As the hinges must be handled carefully and replaced by two or more persons, we recommend you to call for professional technical service.
• If you remove the hinge without holding the door, the door may fall and cause injury.
• Ensure that the shaft is firmly tightened on the hinge.
• Check that the hinge is firmly attached to the cabinet. • Make sure the wire connectors are connected properly.
• Be careful not to damage the wires when fastening the top cover.

WARNING

• Tilting/laying the refrigerator requires a minimum of 2 people.
• Disconnect the power cord before reversing the doors.

Tools required (not provided)

Phillips screwdriver Flat-head screwdriver 10 mm spanner

(for top hinge shaft)

8 mm socket wrench (for bolts)

12 mm spanner (for bottom hinge shaft)

Remove the door

1. Open the door and disassemble the cover cap door.

NOTE

Keep the cover cap door in a safe place.

1. Unfasten 1 screw at the bottom of the hinge cover assembly to remove the hinge downward.

1. Separate the wire housing.

Hinge

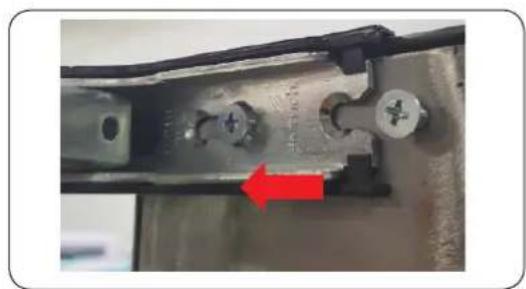

1. Remove 4 screws at the top/bottom.

NOTE

Keep the screws in a safe place.

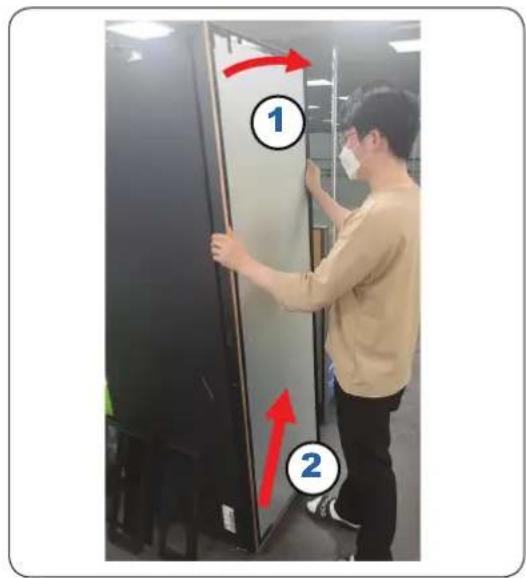

1. Remove the upper part of the door by pulling forward, then lift it to remove the door.

CAUTION

Be careful not to drop the DOOR. Hold the door firmly while taking out SCREWs.

The DOORS weigh a lot. Take extra care when removing the DOOR to prevent damage to the DOOR or injury to you.

The identical procedure is used if the DOORS open the opposite way.

(Only the parts' placements are reversed.)

1. With the HINGE wide open,

1. Remove CAP HINGE
2. Remove 2 fixed SCREWs for the HINGE
3. Take out HINGE.

NOTE

Due to the auto close function, a unit of HINGE folds quickly and securely owing to the activity of the spring. Avoid getting your fingers stuck inside the multi-joint HINGE.

CAUTION

• After removing the DOOR, disassemble the HINGE.

- The remaining HINGE may become overloaded if you disassemble one of the Top or Bottom HINGES while the DOOR is still attached.

• The identical procedure is used if the DOORS open in the opposite way.

- The same disassembly method is applied to the Top/Bottom HINGEs.

• To assemble, just reverse the same steps for the disassembly.

Repair Guide

05 Flexible compartment

NOTE

Hinge

1. Remove 4 SCREWS at the top/bottom.

NOTE

Hinge

Hinge

1. Disconnect the wiring harness.

Dutch

Hinge

Hinge

1. Open the DOOR and remove the DOOR SPACER.

NOTE

Hinge

1. Remove 4 SCREWS on the top/bottom.

NOTE

Hinge

1. Separate the cable cover.

Swedish

Hinge

1. Lift to remove.

How to reassemble the drawers/flex-pantry

1. Open the DOOR and separate the DOOR COVER.

NOTE

Hinge

1. Remove 4 SCREWS at the top/bottom.

NOTE

Store the SCREWS in a safe place.

1. Lift to remove.

8 mm socket wrench (for bolts)

Hinge

1. Lift and remove.

1. Disconnect the cable box.

Hinge

Hinge

1. Disconnect the cables.

Hinge

1. Open the DOOR and remove the DOOR COVER.

NOTE

Keep the door cover in a safe place.

Hinge

Hinge

Hinge

Hinge

Open the door and remove the gasket from it.

To replace the gasket

Place the new gasket on the refrigerator door. Make sure there is no gap between the new gasket and the door.

Serbian

Replacing the drawer / flexible storage

CAUTION

During installation, check that the drawer is properly inserted into the guides.

To remove the drawer

1. Pull the drawer forward.
2. Pull the drawer to remove it.

To remove the flexible storage

1. Pull the drawer forward.
2. Press the hooks on the lower left/right side to separate.

1. Lift the storage to remove it.

To reinstall the drawers / flexible storage

1. Open the DOOR and remove the DOOR COVER.

NOTE

1. Unscrew 1 SCREW from the underside of the HINGE COVER ASSEMBLY to remove the hinge downward.

1. Disconnect the wire housing.

Serbian

Hinge

1. Remove 4 SCREWS from the top/bottom side.

NOTE

1. Pull the drawer forward.
2. Remove the drawer by tilting it.

To remove the adjustable storage

1. Pull the drawer forward.

1. Lift it to remove it.

To reinstall the drawers / adjustable storage

1. Open the DOOR and disassemble the DOOR CAP COVER.

NOTE

Hinge

1. Remove the 4 SCREWS at the top/bottom.

NOTE

Hinge

Hinge

1. Pull the drawer forward.
2. Remove the drawer by tilting it.

1. Pull the drawer forward.
2. Press down on the hooks on the left/right side to release it.

To put the drawers / Flex Pantry back

Hinge

1. Remove the drawer.

1. Open the DOORS and remove the DOOR TOP COVER.

NOTE

1. Separate the wire body.

Lithuanian language

Hinge

1. Pull the drawer forward.
2. Remove the drawer by tilting it.

1. Pull it out to remove it.

1. Open the DOOR and detach the DOOR PANEL COVER.

NOTE

1. Separate the wire housing.

Latvian

Angle

1. Pull the drawer forward.
2. Remove the drawer by tilting it.

Removing the flexible storage

1. Pull the drawer forward.
2. Press the hooks on the bottom left/right side to remove the drawer.

1. Lift the drawer and remove it.

Reinstalling the drawers/flexible storage

1. Open the DOORS and disassemble the DOORS WITH COVER.

NOTE

Store the DOORS WITH COVER in a safe place.

1. Unscrew 1 SCREW at the bottom of the COVER HINGE ASSEMBLY to remove the hinge downward.

Hinge

1. Remove 4 SCREWS from top/bottom.

NOTE

Store the SCREWS in a safe place.

1. Remove the upper part of the DOOR by pulling it forward and lifting it to remove the DOOR.

CAUTION
