NQ5B6753CCB - Oven SAMSUNG - Free user manual and instructions

Product type	Built-in oven
Dimensions (H x W x D)	595 x 595 x 550 mm
Net weight	35 kg
Power supply	220-240 V, 50/60 Hz, 16 A
Capacity	77 L
Energy class	A+
Maximum power	3400 W
Cooking type	Convection, natural convection, grill, pyrolysis
Special functions	Assisted cooking, defrosting, reheating, keep warm
Cleaning	Pyrolysis (self-cleaning at high temperature)
Interior coating	Easy-clean glossy enamel
Interior lighting	Halogen, switched by door switch
Door	Cool door, removable double glazing
Child safety	Key and door lock
Control panel	Touch screen and rotary knobs
Included accessories	1 grill, 1 dripping pan, 1 baking tray
Repairability	Spare parts available via Samsung after-sales service
Repairability index	8.0/10
Warranty	2 years (parts and labor)

Frequently Asked Questions - NQ5B6753CCB SAMSUNG

How to install the built-in oven NQ5B6753CCB?

The installation must be carried out by a qualified professional. Ensure the cabinet has dimensions 595x595x550 mm and the ventilation complies with the diagrams provided in the manual. Connect the appliance to a 220-240 V grounded outlet.

How to use the pyrolysis program?

Remove the accessories, close the door and select the Pyrolysis mode on the control panel. The temperature rises to about 500°C to burn off residues. Once the cycle is complete, wipe up the ashes with a damp cloth.

What to do if the oven does not heat up?

Check that the oven is properly plugged in and the circuit breaker has not tripped. Make sure the child lock function is not activated. If the problem persists, contact Samsung after-sales service.

How to replace the oven bulb?

Unplug the appliance. Remove the glass cover by turning it counterclockwise. Replace the halogen bulb (230 V, 25 W) and reassemble the cover. Plug the oven back in.

What is the maximum cooking capacity?

The oven has a capacity of 77 liters, allowing cooking up to three dishes simultaneously on multiple levels, depending on the cooking modes.

How to clean the enamel walls?

Use a soft sponge with warm soapy water. Avoid abrasive products. For stubborn stains, activate the pyrolysis cycle which automatically cleans the interior.

The oven displays an error code, what should I do?

Note the displayed code (e.g., C-dXX). Consult the error code section in the manual. Common codes may indicate a temperature probe or door lock issue. Reset the oven by unplugging it for 30 seconds.

How to activate child lock?

Press the 'Menu' and 'Timer' buttons simultaneously for 3 seconds. A beep sounds and the lock icon appears. To deactivate, repeat the operation.

Which accessories are compatible with this oven?

Use only original Samsung accessories: grill, dripping pan, baking tray (references on Samsung website). Aluminum or plastic accessories are not suitable for pyrolysis cycles.

How to set the time on the oven?

Press the 'Settings' button (gear) until the time flashes. Use the '+' and '-' buttons to set hours and minutes, then press 'OK' to confirm.

USER MANUAL NQ5B6753CCB SAMSUNG

Installation

What is included

Oven (mm)

A 560 F 595
B 446 G 354
C 549 H 85
D 211 456
E 341

Oven (mm)

A 595

B 83

C 360

D 6

Installation

Oven (mm)

A	549	E	10
B	233	F	456
C	316	G	6
D	21	H	446

Oven (mm)

A 560 D 21
B 549	E	45
C 570

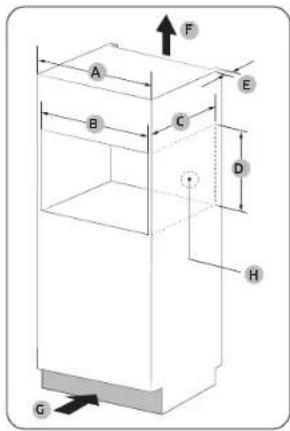

Built-in cabinet (mm)

A 600

B M n. 564-568

C M n. 550

D M n. 446 / Máx. 450

E M n. 50

F 200 cm2

G 200 cm2

H Espacio para la toma de corriente(Agujero de 30 ∅)
