Product Type	Professional LED Panel
Brand	Chauvet
Model	WELL Panel X
Dimensions (L x W x H)	305 x 254 x 127 mm
Weight	2.3 kg
Power Supply	100-240 V AC, 50/60 Hz
Power Consumption	120 W
Light Sources	RGBWA LED (red, green, blue, white, amber)
Beam Angle	120°
Number of DMX Channels	4, 5, 9 or 12 channels
Control Modes	DMX512, standalone, master/slave, audio
Built-in Functions	Electronic dimmer, strobe, color macros
Connectors	5-pin XLR (DMX input/output), IEC power connector
Cooling	Silent fan
Operating Temperature	0 °C to 40 °C
Maintenance and Cleaning	Wipe with a dry, non-abrasive cloth
Safety	Do not expose to moisture or water splashes
Spare Parts and Repairability	Contact Chauvet after-sales service
Included Accessories	Power cord, mounting bracket

Frequently Asked Questions - WELL Panel X Chauvet

How to connect the WELL Panel X to a DMX console?

Use a DMX cable with 5-pin XLR connectors. Connect the DMX input of the panel to the output of your console or of the previous device. Set the DMX address via the control panel.

How to change the DMX mode of the panel?

Press the MENU button until "DMX Mode" is displayed, then select the desired number of channels (4, 5, 9 or 12) with the UP/DOWN buttons and confirm with ENTER.

Can I use the WELL Panel X without a DMX console?

Yes, you can use standalone modes (Auto, Audio) or master/slave mode. In standalone mode, choose a built-in program via the menu.

How to clean the LED panel?

Disconnect the power supply. Use a soft, dry cloth to dust the surface. Do not use solvents or abrasive products.

What to do if the WELL Panel X fan makes noise?

Check that the vents are not blocked. If the noise persists, contact Chauvet support for a fan replacement.

How to configure a group of panels in master/slave mode?

Set one panel to MASTER mode and the others to SLAVE mode via the menu. Connect them with a DMX cable. The master controls all slaves.

What is the maximum projection distance?

The distance depends on the desired intensity. Indoors, a distance of 5 to 8 meters is recommended for uniform coverage.

Is the WELL Panel X compatible with wooden supports?

Yes, thanks to the included mounting bracket, it can be fixed on wooden structures provided the support is strong enough.

How to update the firmware?

The firmware can only be updated by an authorized technician. Contact Chauvet after-sales service for any update.

What to do if the LED display remains off?

Check the power cord and outlet. If the problem persists, the panel may need repair. Contact technical support.

USER MANUAL WELL Panel X Chauvet

Scan the QR code to access the product page, warranty terms, and the complete User Manual

WELL PANEL X

WIRELESS EVENT LED LUMINAIRE

Quick Reference Guide

English EN

Español ES

Français FR

Deutsch DE

Nederlands NL

Model ID: WELLPANELXX4

Intentionally Left Blank Page

Safety Notes

These Safety Notes include important information about installation, use, and maintenance of the WELL Panel X X4.

- The luminaire is intended for professional use only.

• The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 1.64 ft (0.5 m) is not expected.
• If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or its service agent.
• The light source contained in this luminaire shall only be replaced by the manufacturer or its service agent or a similar qualified person.

- CAUTION:

• This product's housing may be hot when operating. Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• When transferring the product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow the product to fully acclimate to the surrounding environment before connecting it to power.
• Flashing light is known to trigger epileptic seizures. User must comply with local laws regarding notification of strobe use.

• ALWAYS:

• Disconnect from power before cleaning the product or replacing the fuse.
• When using an IP65-rated product in an outdoor environment, use IP65- (or higher) rated power and data cable.
• Replace and secure IP-rated protective covers to all power, data, USB, or other ports when not in use.
• Replace the fuse with the same type and rating.
• Use a safety cable when mounting this product overhead.
• Connect this product to a grounded and protected circuit.

D O N O T :

• Open this product. It contains no user-serviceable parts.
• Look at the light source when the product is on.
• Leave any flammable material within 50 cm of this product while operating or connected to power.
• Connect this product to a dimmer or rheostat.
• Operate this product if the housing, lenses, or cables appear damaged.
  • Submerge this product (adhere to standards for the published IP rating). Regular outdoor operation is fine.

• Permanently install outdoors in locations with extreme environmental conditions. This includes, but is not limited to:

• Exposure to a marine/saline environment (within 3 miles of a saltwater body of water).

• Locations where normal temperatures exceed the temperature ranges in this manual.
• Locations that are prone to flooding or being buried in snow.
  • Other areas where the product will be subject to extreme radiation or caustic substances.

- ONLY use the hanging/mounting bracket to carry this product.

• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
• The minimum startup temperature is -4°F ( -20°C ). Do not start the product at lower temperatures.
- The minimum ambient temperature is -22°F (-30°C). Do not operate the product at lower temperatures.
- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
- In the event of a serious operating problem, stop using immediately.

FCC Statement of Compliance

This device complies with Part 15 Part B of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

RF Exposure Warning for North America and Australia

Warning! This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and the user. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Connection of the control signal: DMX line

• The product has XLR sockets for DMX input and output.
• Notice: This control circuit is isolated and belongs to the Class 2 data port.
• The control circuit has a cumulative leakage current of less than 3.5 mA.

What is Included

• WELL Panel X X4

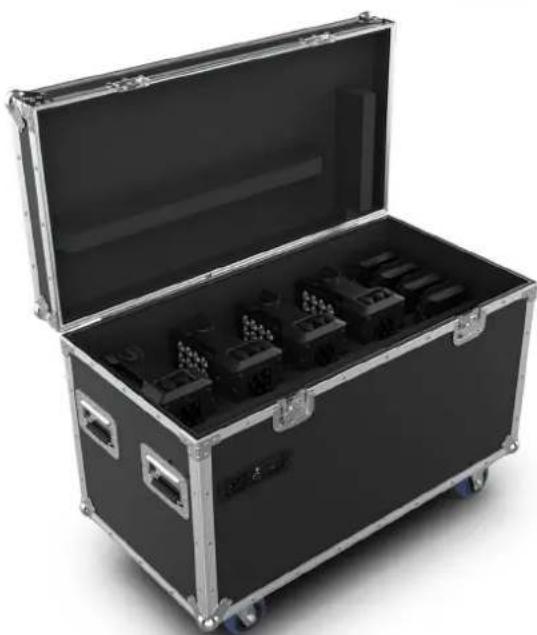

• Charging case
• RF controller

• 4 Seetronic Powerkon IP65 power cables
• 4 omega brackets with mounting hardware
- Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground	Green/Yellow	Green/Yellow	Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Power Linking

It is possible to power link WELL Panel X X4 products and cases. See the table below for the current draw at each voltage and frequency:

WELL Panel X	100 V, 60 Hz	120 V, 60 Hz	208 V, 60 Hz	230 V, 50 Hz	240 V, 50 Hz
Current Draw	1.65 A	1.35 A	0.80 A	0.70 A	0.60 A
Case	100 V, 60 Hz	120 V, 60 Hz	208 V, 60 Hz	230 V, 50 Hz	240 V, 50 Hz
Current Draw	6.00 A	5.20 A	3.00 A	2.60 A	2.50 A

Never exceed 12 A on a single circuit. Power-linking cables can be purchased separately.

Mounting

Before mounting this product, read the Safety Notes. Make sure the mounting clamp is capable of supporting the weight of the product. For the Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps.

Mounting Diagram

Battery Charge Notes

Rechargeable lithium-ion batteries are potentially hazardous and can present a serious FIRE HAZARD, SERIOUS INJURY, and/or PROPERTY DAMAGE if damaged, defective, or improperly used.

• ALWAYS:

• Charge using a manufacturer-provided charger while the product is powered off.
• Charge the battery in temperatures between 32° - 95°F (0° - 35°C) .
• Allow a depleted battery to charge for a few minutes before turning on the product. If the battery is completely discharged, the device cannot be turned on immediately when the charger is connected.
• Keep at least 3 ft (1 m) distance to any heat source and away from flammable materials.
• Keep the lid of any charging case open while charging.
• Keep batteries away from children.
• Store batteries between 40–60% charge.
• Follow local regulations when disposing of batteries.
• Replace with an authentic Chauvet battery.

• D O N O T :

• Continue charging if the battery becomes hot, smokes, swells, or gives off an odor during charging.
• Leave the product unattended while charging.
• Deplete the battery below 10%.
• Charge the battery in a closed container.
• Charge for more than 24 hours.

Control Panel Description

Button Function
	Exits from the current menu or function
	Enables the currently displayed menu or sets the currently selected value into the selected function
	Navigates upwards through the menu list or increases the numeric value when in a function
