VERI55 - Air Conditioning DCG - Free user manual and instructions

Product Type	Portable Air Conditioner
Brand	DCG
Model	VERI55
Cooling Capacity	12000 BTU/h
Air Flow	350 m³/h
Noise Level	52 dB(A) (max)
Dimensions (W x D x H)	450 x 350 x 700 mm
Weight	28 kg
Power Supply	220-240 V ~ 50 Hz
Power Consumption (Cooling)	1100 W
Refrigerant Type	R-410A
Functions	Cool, Fan, Dehumidify, Sleep Mode
Remote Control	Included
Timer	24-hour programmable
Filter Type	Washable mesh filter
Filter Cleaning	Every 2 weeks (recommended)
Water Drainage	Self-evaporating (manual drain for high humidity)
Installation	Window kit included
Safety Features	Auto shut-off, overheat protection
Certifications	CE, RoHS
Warranty	2 years

Frequently Asked Questions - VERI55 DCG

How do I install the VERI55 air conditioner?

Install the window kit provided. Extend it to fit your window width, then connect the exhaust hose. Ensure the unit is level and plug into a grounded outlet. See the manual for step-by-step instructions.

How often should I clean the filter?

Clean the washable filter every 2 weeks for optimal performance. More frequently in dusty environments. Remove the filter, rinse with water, dry completely before reinserting.

Does the VERI55 need to be drained?

It uses self-evaporating technology; most water is evaporated. In high humidity, you may need to manually drain via the bottom plug. Check the water level indicator.

How do I use the remote control?

Insert 2 AAA batteries (not included). Point at the unit and press power to turn on/off. Use MODE to select Cool, Fan, or Dehumidify. Adjust temperature and fan speed with +/- buttons.

What is the maximum room size for this unit?

The VERI55 is suitable for rooms up to 25 m² (about 270 sq ft). For best results, keep doors and windows closed and minimize direct sunlight.

Why is my air conditioner not cooling?

Check if the filter is dirty, the exhaust hose is kinked, or the unit is in Fan mode. Ensure the window kit is sealed. If problem persists, contact support.

Can I use an extension cord?

No, do not use an extension cord. Plug directly into a grounded outlet. Using an extension cord can cause voltage drop and damage the compressor.

How do I set the timer?

Press the Timer button on the remote or control panel. Use +/- to set the desired hours (1-24). The unit will automatically turn on or off at the set time.

What does the sleep mode do?

Sleep mode gradually increases the temperature by 1°C per hour (up to 2°C) to save energy and provide comfortable cooling during the night. It also reduces fan noise.

Where can I find spare parts?

Contact DCG customer service or visit the official website. Common spare parts include filters, remote controls, and exhaust hoses. Provide the model number (VERI55).

USER MANUAL VERI55 DCG

MANUALE D'ISTRUZIONI INSTRUCTION MANUAL

Gentile Cliente,

Pulire il serbatoio

• Avoid using the evaporative air cooler in a closed area. The unit should be used in well ventilated areas only.
• Before turning the unit on, fill the tank with water to ensure efficient operation of the evaporative air cooler. Avoid operating COOL function while the water tank is empty. Remarks: Water level must not exceed the limit of water level scale.
• Drain the water tank and clean the tank frequently
• Fill the tank with clean water only, do not put any other liquid into the tank.
• Make sure that the operating voltage is not lower than regular voltage (220 V) or exceed than 5% of regular voltage. If the voltage is lower than the limit, the air cooler cannot be operated smoothly or even turned on. If the voltage is higher than the limit, it can cause the damage to the machine.
• Remove the plug from the socket when the machine is not being used.

CAUTIONS

• Be careful the water spilled out while moving the unit
• Do not put anything on top of this air cooler or obstruct the air inlet and outlet. Do not insert any object into the vent while the machine is operating
• Unplug the machine before cleaning to prevent the electric shock
• Stop operating this air cooler immediately if it functions abnormally for example the power cord damaged, electricity leaks, and contact our service center for further instruction.
• User is not recommended to unassembled and repair the machine.

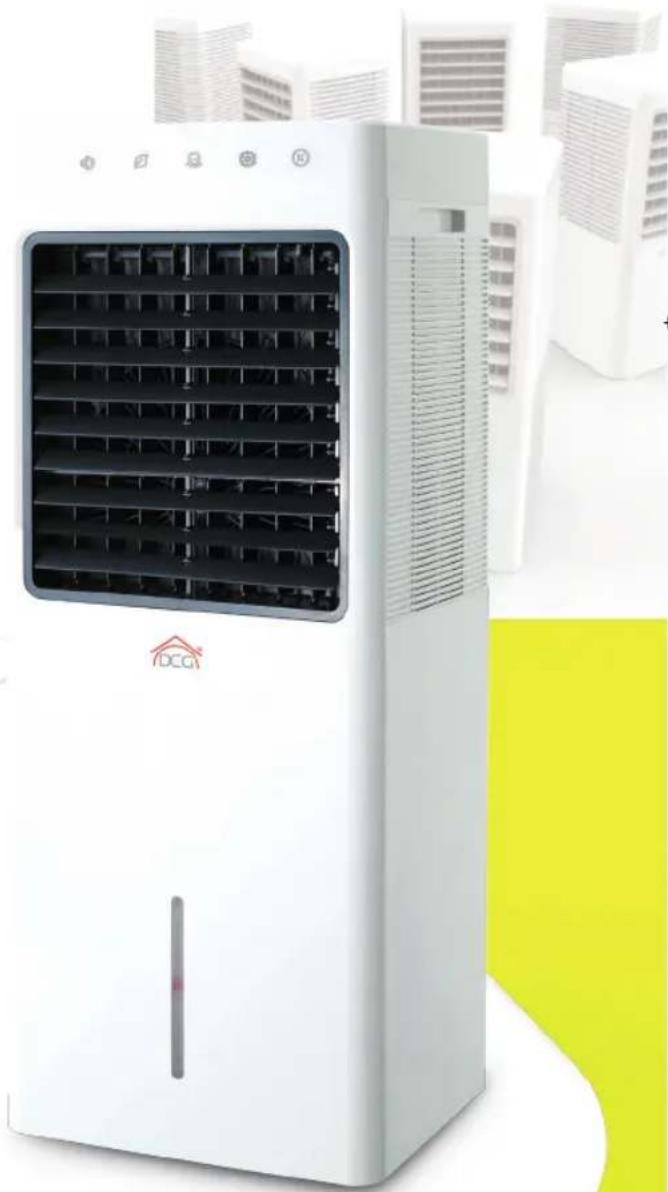

STRUCTURE DIAGRAM

EN

FUNCTIONS

By pulling the back water tank, then use the water container or water pipe to fill up the water tank until the Orange water level indicator reach the top of water level scale.

Caution: Do not fill up the water exceed the limit of water level scale to avoid the water spilling out while moving the air cooler.

2. How to use the functions

- POWER

Press POWER ⏻ button on the Control Panel or the remote control to turn on the air cooler and its Blue light is illuminated. Press this ⏻ button again to turn it off and its Red light is illuminated.

- SWING

Press SWING ☐ button on the Control Panel or the remote control to let the vertical front grille swing automatically and its light is illuminated. Press this SWING ☐ button again to stop the SWING mode, then its light is off.

- FAN SPEED

Press SPEED 🌿 button on the Control Panel or the remote control to adjust wind speeds to low (1), medium (2), high (3), speed lights (1,2,3) indicates selected current wind speed. The wind speeds change on rotating basis.

- ANION ∅

Press ANION ∅ button on the control panel or the remote control. To turn on ANION mode, press ∅ button again. The system will stop ANION function. (ANION is used for air purifier)

- COOL

Enter the COOL mode by pressing COOL ✕ button on the control panel or the remote control. To turn off the COOL mode, press COOL ✕ button again. The system will automatically exit the COOL mode.

REMARKS: When the COOL mode is activated, the pump inside the water tank will pump water to saturate the cooling pad. Heat that flows through the cooling pad will exchange with the water and cool the air flowing through the cooling pad to lower the temperature. Therefore, a decrease in temperature depends on relative humidity and air temperature when the unit is in COOL mode. In the case where the fan speed is high, when the icon is pressed, the fan will drop to the lowest speed for 30 seconds before resuming the speed previously set.

-HEAT

Press HEAT button on the control panel or the remote control to turn on HEAT mode, press HEAT button again, the system will stop HEAT function. While operating the HEAT mode, the wind speed is adjustable from low (1) - medium (2) - high (3) normally. If the humidity is required during the HEAT mode, Press COOL button to reduce the dryness. After turn off the unit while the HEAT mode is activated, the fan keeps functioning for 1 minute for heat release purpose.

CLEANING, FILLING AND DRAINING

Cleaning cooling pad

Remove the back shutter and then pull the cooling pad as below arrow.

Clean the cooling pad with normal water and wipe the dirt by soft brush.

Cleaning water tank

Pull out water tank, and clean by soft brush, then push water tank back into the air cooler completely.

Filling the water

Pull out water tank, fill up water until the max level, then push water tank back into the air cooler completely

Draining water

Pull out water tank, remove drain valve and wait until water tank is empty, then put drain valve and push water tank back

TROUBLESHOOTING

Problem Possible	Cause Corrective	Action Remarks
The evaporative air cooler is not functioning and does not respond when buttons are pressed.	Blackout or faulty power connection.	Measure the input voltage and connect to a designated power supply.	Recommended to use Voltage meter to get the right voltage.
	AC fuse is damaged or the circuit stops functioning in order to prevent power overload.	Replace the fuse or restart the unit.	If the problem remains unsolved, please contact Service Center
	Remote control batteries have run out.	Change the batteries.
	Remote Control or Control Panel is damaged	Repair or replace the control panel with another of the same model.	Contact Service Center
No air flows from the unit while the machine is operating.	Damaged motor Repair or	replace the motor with another of the same model.	Contact Service Center
	Incorrect motor connection or loose motor connection	Determine whether or not the motor with connections are in order.
	Thermal protection inside the motor is working	Leave the unit off until the fan motor is cool enough to be used as usual.
The pump functions but it is not cool enough.	The dust filters clogged or dirty clogged.	Clean or replace the dust filters.
	The cooling pads clogged.	Clean or replace the cooling pads.
	The cooling pads are dry or contain insufficient water while the evaporative air cooler is working.	Check the top water distribution tray to determine whether or not there is a clog. Determine if the pump is functioning correctly.
	Excessively high relative humidity.	When the evaporative air cooler is used for a long period of time the room humidity will be very high, so the evaporative a cooler will be unable to lower temperature as much as when the room's humidity is lower. Turn the Cool mode of and is lower. Turn the Cool mode off and increase ventilation.
Problem Possible Cause Corrective		Action Remarks
The pump fails to function and provide cooling.	Damaged pump. Repair or	replace the pump with a pump of the same model.
	Loose pump motor connection.	Tighten connection.
The pump functions but does not circulate water, or the cooling pads contain too little water	Clogged top water distribution tray.	Clean the top water distribution tray.	.
	Clogged water supply hose or pump strainer.	Clean the water hose or remove the particles clogged at the pump strainer.
Water spitting from the unit	Cooling Pad stay out of the position..	Place Cooling Pad in the right position.
	Clogged top water distribution tray.	Clean the top water distribution tray.
Undesirable odor	The unit is placed in an area where undesirable odors are present, or algae are present in the water tank.	Clean the water tank and the cooling pads.
White sediments in the water tank.	Water has a high content of salt.	Drain the tank and clean the cooling pads more frequently.

Model Name VERI55
Air volume 760 m3/h
Area coverage 10 m2
Power 1400 W
Current 6,4 A
Water tank capacity 9,3 L
Water continuous usage	10 - 13 hour
Water evaporation rate	0,7-0,9 L/h
Fan speed 3 speedww
Vent size 21,5 x 25 cm
Cooling Pad Type 5090
Overall dimension 28 x 25 x 75 cm
Net weight	6,0 kg
Operating Weight	15,3 kg
Remote Control	√
Anion	√
Heating	√

CORRECT DISPOSAL OF THIS PRODUCT

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

CE

ITALIAN COMPANY

DCG S.R.L.

Via G. Garibaldi 68

20861 Brugherio (MB)

MADE IN CHINA
