Product Type	Keyboard cover for tablet
Brand	Samsung
Model	EF-DX720
Compatibility	Samsung Galaxy Tab S9 FE / S9 FE+
Dimensions (L x W x H)	253.9 x 165.3 x 6.5 mm
Weight	Approximately 300 g
Power supply	Powered via the tablet's Pogo pins (no internal battery)
Main functions	Full keyboard with shortcut keys, integrated touchpad, tablet stand
Number of keys	82 keys (AZERTY layout)
Touchpad	Yes, multi-touch
Backlighting	Yes (depending on version)
Material	Plastic with soft-touch coating
Color	Gray
Care and cleaning	Clean with a soft, dry cloth, avoid liquids
Safety	Contains magnets, keep away from credit cards and medical devices
Spare parts and repairability	No spare parts available, device not user-repairable
General information	Specifically designed for Samsung Galaxy Tab S9 FE and S9 FE+ tablets, provides a comfortable typing experience

Frequently Asked Questions - EF-DX720 SAMSUNG

Is the EF-DX720 keyboard compatible with my Samsung Galaxy Tab S9 tablet?

This keyboard is only compatible with the Galaxy Tab S9 FE and S9 FE+ models. It is not compatible with the standard Galaxy Tab S9 or other tablets.

How do I connect the keyboard to my tablet?

No Bluetooth connection is required. The keyboard attaches magnetically to the tablet and connects via the Pogo pins located on the back of the tablet.

Does the keyboard need a battery?

No, the keyboard is powered directly by the tablet via the Pogo pins, it does not contain an internal battery.

Does the touchpad work with all gestures?

Yes, the touchpad supports multi-touch gestures such as two-finger scrolling, zooming, and clicking. Some gestures may require a software update for the tablet.

How do I clean the keyboard?

Use a soft, dry cloth to remove dust. For stains, slightly dampen the cloth with water (never chemicals) and gently wipe. Avoid any contact with liquids.

Can I use a screen protector with this keyboard?

Yes, the keyboard is designed to work with thin screen protectors. Very thick tempered glass protectors may interfere with closing.

Does the keyboard have backlighting?

Some versions of the EF-DX720 model include backlighting. It adjusts automatically according to ambient light or manually via the tablet.

What should I do if the keyboard stops responding?

Try to detach and reattach the keyboard to the tablet. If the problem persists, restart the tablet. Also ensure that the tablet's software is up to date.

Is the keyboard splash-resistant?

No, the keyboard is not waterproof. Avoid any contact with water or liquids to prevent damaging electronic components.

Where can I find the full user manual?

The full manual is available for free download in PDF format on notice-facile.com for the Samsung EF-DX720 model.

USER MANUAL EF-DX720 SAMSUNG

Book Cover Keyboard — AI Key

Book Cover Keyboard Slim — AI Key

USER GUIDE

EF-DX720

EF-DX725

EF-DX820

EF-DX825

EF-DX920

EF-DX925

Table of Contents

English	Ελληνικά
Français	Slovenščina
Deutsch	Slovenčina
Italiano	Čeština
Español	Українська
Magyar	Türkçe
Polski	ไทย
Română	Bahasa Indonesia
Български	العربية
Hrvatski	Русский
Srpski	Қазақ тілі
Português	简体中文
Latviešu	繁體中文 (台灣)
Lietuvių kalba	日本語
Eesti	Français (Canada)
Nederlands	Português (Brasil)
Svenska	한국어
Norsk
Suomi
Dansk

Getting Started

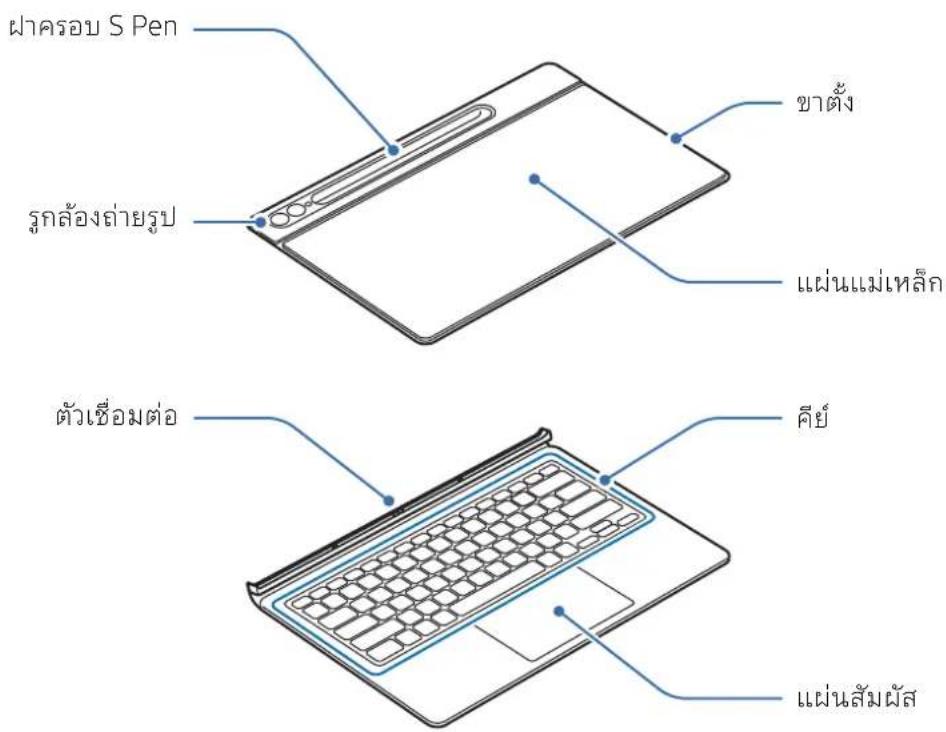

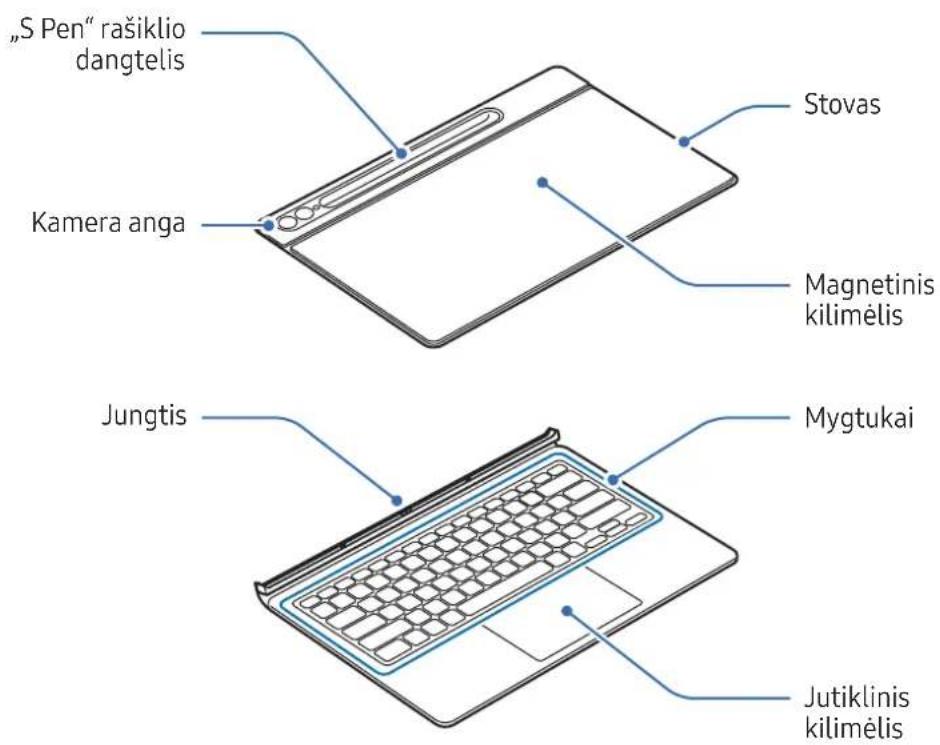

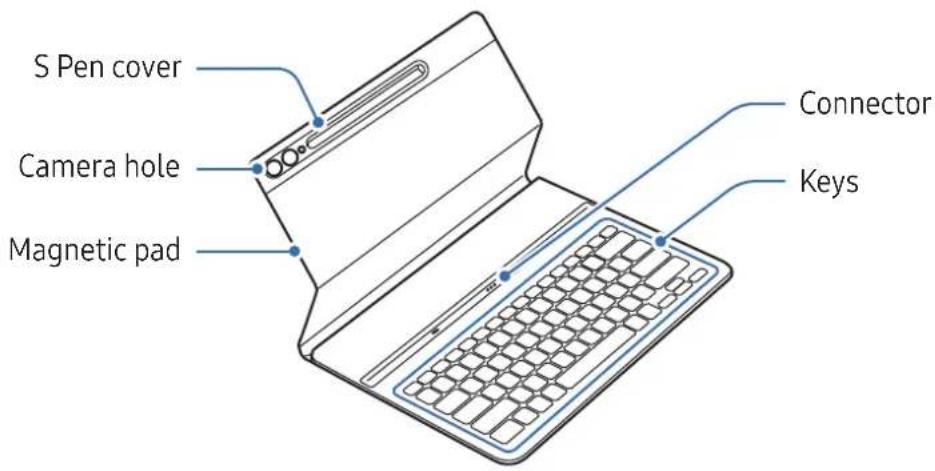

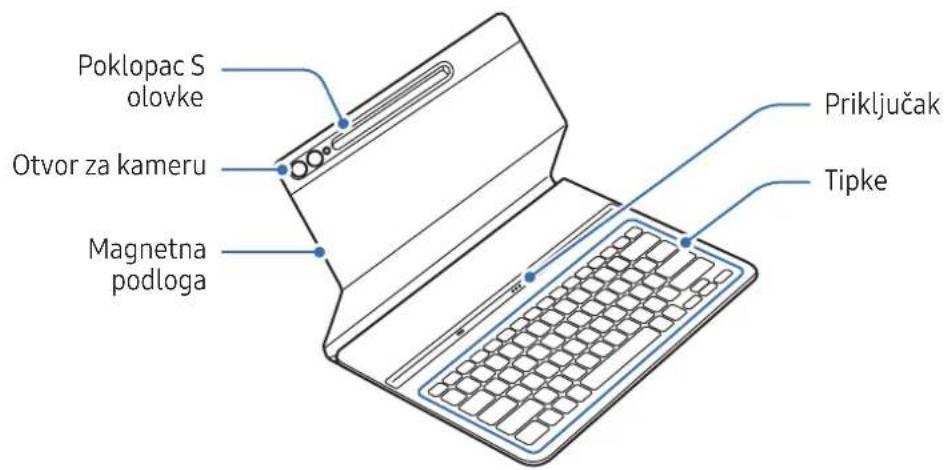

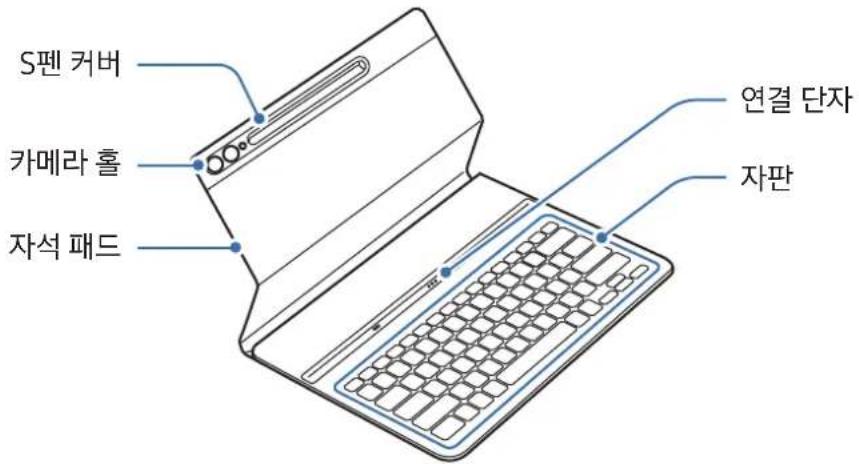

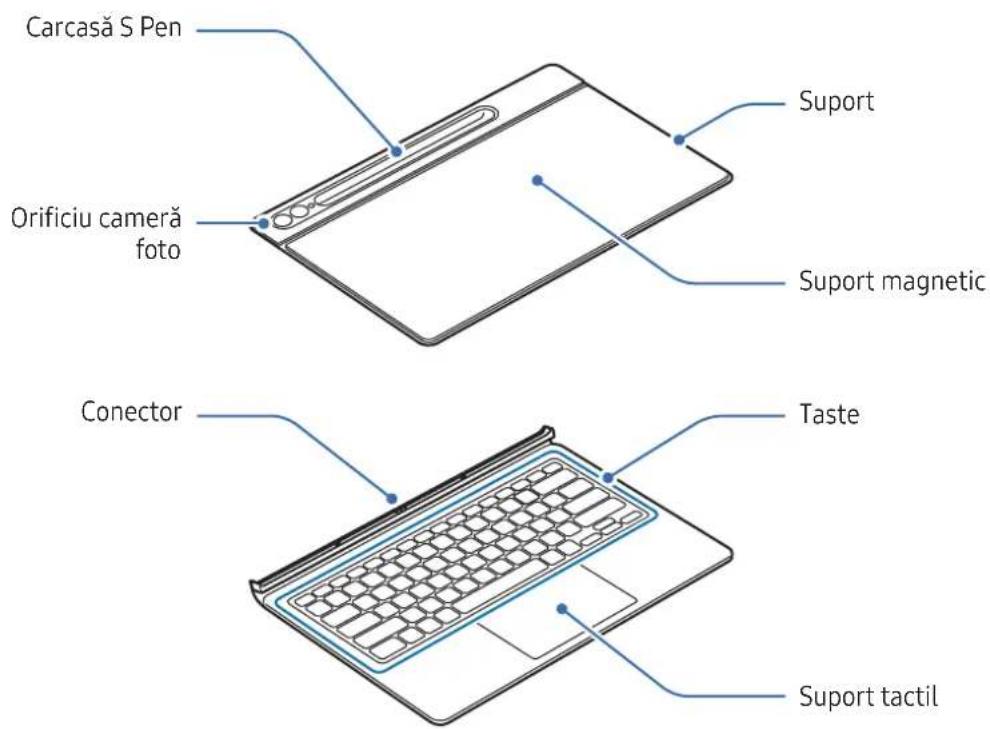

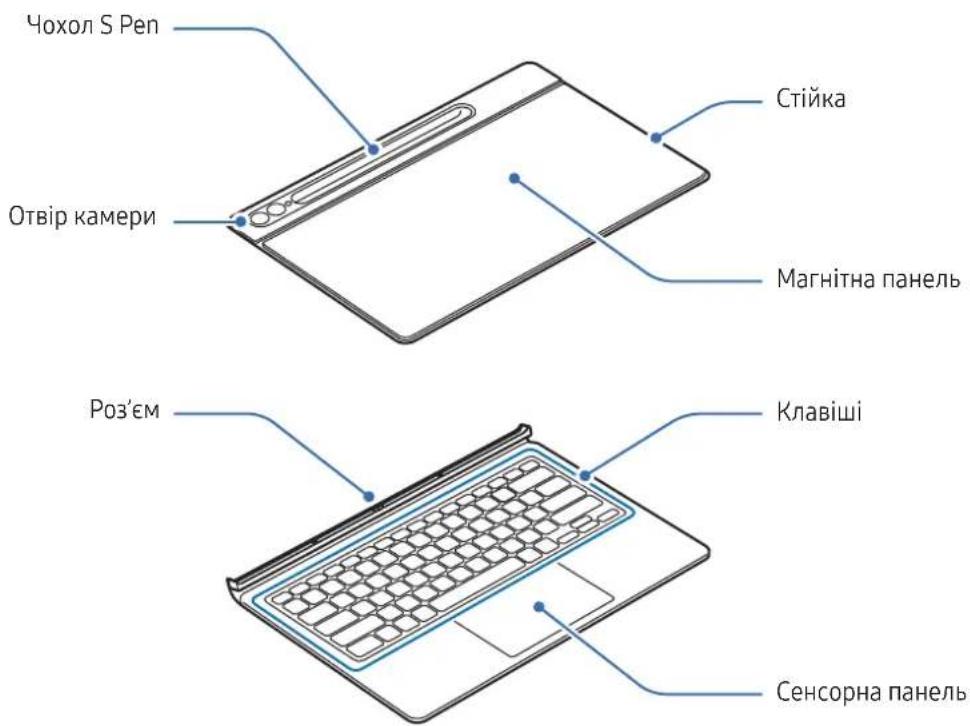

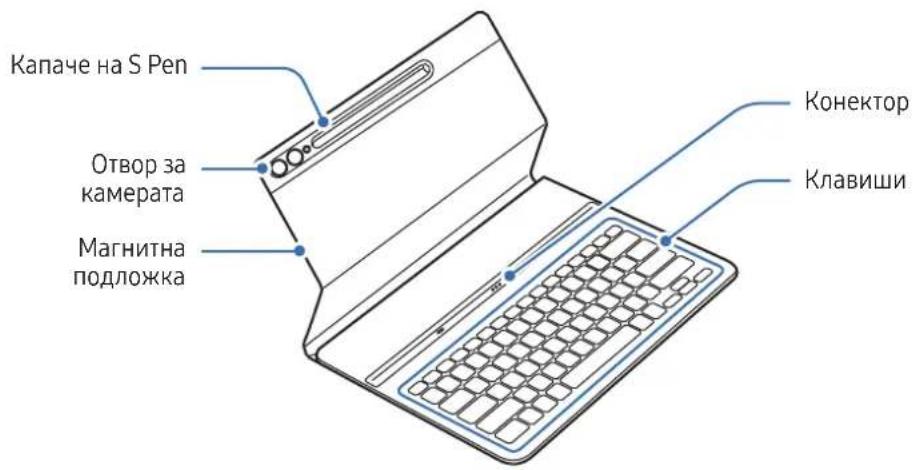

Device layout

▶ EF-DX720, EF-DX820, EF-DX920:

▶ EF-DX725, EF-DX825, EF-DX925:

Using the keyboard

Attaching the keyboard

▶ EF-DX720, EF-DX820, EF-DX920:

1. Line up the connectors of the tablet and the keyboard, and then attach the tablet to the keyboard. 2. Attach the cover and check that the camera fits the camera hole. If it is crooked, detach it and then attach it again.

You will immediately be able to use the keyboard.

▶ EF-DX725, EF-DX825, EF-DX925:

1. Check the location of the camera and the camera hole, and then align each corner of the upper part of the cover with the tablet. 2. Attach the upper part of the cover first, and then press the rest part down.

3. Line up the connectors of the tablet and the keyboard, and then attach the tablet to the keyboard.

You will immediately be able to use the keyboard.

• Do not apply excessive pressure on the keyboard while covering the tablet's screen. Doing so may cause screen damage.
• If the tablet and the keyboard connectors are dirty, the keyboard may not be recognised or work properly.
• While moving to another place with the tablet, close the keyboard. If you move while the keyboard is opened, the tablet may separate and be damaged. • Use the product on a flat surface.

You can use the keyboard as a screen cover. The screen turns off when you cover it with the keyboard, and it turns on when you open the keyboard.

Adjusting the tablet angle (EF-DX725, EF-DX825, EF-DX925)

You can adjust the tablet angle with the product's stand. Flip out and adjust the stand until you find the desired angle.

• Do not excessively tilt or apply too much pressure to the stand. Doing so may cause damage or deform it.
• Do not apply pressure to the tablet's screen while the angle of the stand is adjusted low. Doing so may cause the stand to fall over.

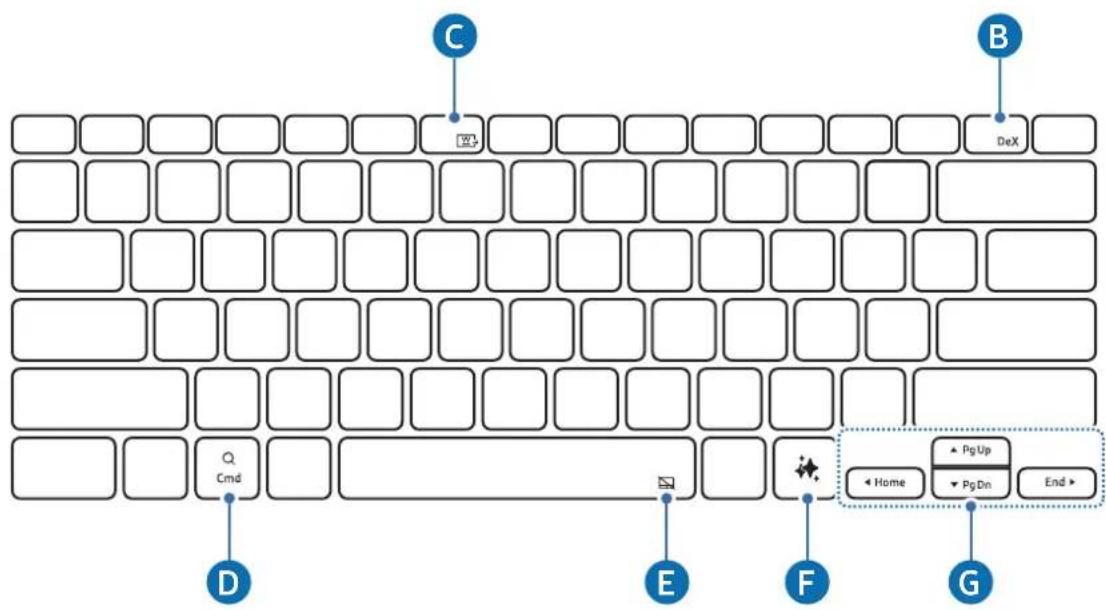

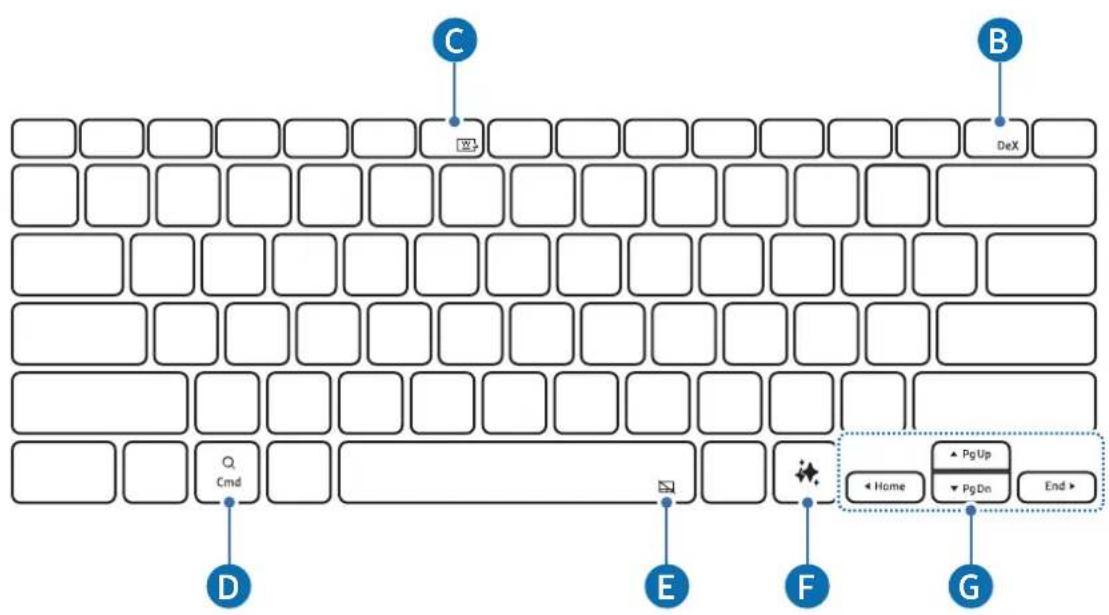

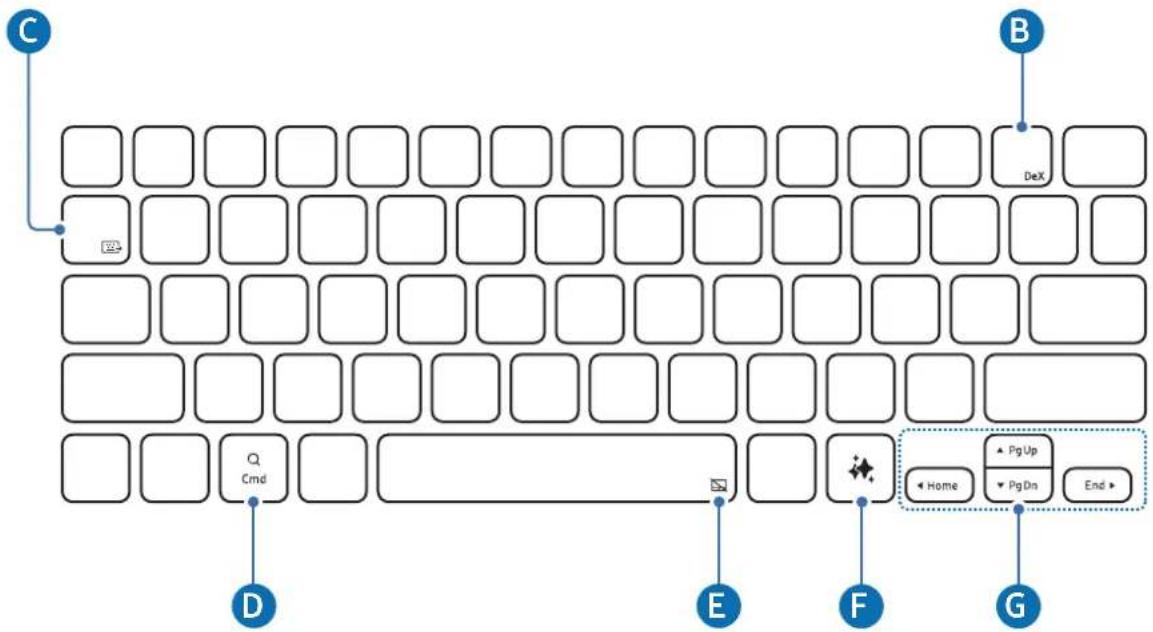

Using the keys

Set the input language on the tablet before you use the keyboard. For more information about setting the input language, refer to the tablet's user guide.

▶ EF-DX720, EF-DX725:

▶ EF-DX820, EF-DX825:

▶ EF-DX920, EF-DX925:

A	·[Fn] + [APP1]/[APP2]/[APP3]: Open the favourite apps. (EF-DX920, EF-DX925)To save an app to favourites, open the app you want to save and press and hold the Fn key and the APP1/APP2/APP3 key for 3 seconds.
B	·[Fn] + [DeX]: Start or end Samsung DeX.For more information, refer to the tablet's user guide.
C	·[Fn] + [Share keyboardYou can use the keyboard on other devices that are connected to the tablet.For more information, refer to the tablet's user guide.
D	·Open the Apps screen.Depending on the operating system version of the connected tablet, the Assistant app may be opened.
E	·[Fn] + [Turn the touchpad on or off. (EF-DX725, EF-DX825, EF-DX925)
F	·Launch AI assistant.Press Alt key and Key simultaneously to change the default AI assistant app.

• ▲ / ▼ / ◀ / ▶: Move the cursor.
• [Fn] + [▲]: Page Up
• [Fn] + [▼]: Page Down
• [Fn] + [◀]: Home
• [Fn] + [▶]: End

Using the touchpad (EF-DX725, EF-DX825, EF-DX925)

You can use the touchpad to control the cursor on the tablet screen or use the additional features.

Actions Functions
Clicking/Tapping	• Click
Dragging	• Move the cursor.
Holding and dragging	• Move the selected object.
Tapping with two fingers	• Open the context menu.
Dragging with two fingers	• Scroll the page.
Spreading/Pinching	• Zoom in / Zoom out
Dragging up/down with three fingers	• Recents/Home
Dragging left/right with three fingers	• Switch between apps.
Tapping with three fingers	• Back

Storing the S Pen

1 Attach the S Pen to the tablet's S Pen charger as shown in the image.

Align the S Pen properly with the S Pen charger. If the S Pen is incorrectly attached, the S Pen cover may not be closed.

2 Cover the S Pen with the S Pen cover.

Replacing the S Pen cover

The product's S Pen cover is interchangeable. When changing the S Pen cover, press the camera hole of the S Pen cover and remove it.

To attach the S Pen cover, align the S Pen cover with the product's S Pen cover groove and push the edge until it clicks into place.

Usage notices

Precautions for using the product

Please read this guide before using the product to ensure safe and proper use.

• Images may differ in appearance from the actual product. Content is subject to change without prior notice.
• The product is compatible with the Galaxy Tab S9, S9 FE, S9+, S9 Ultra, S10+, S10 Ultra.
• Do not expose the product to humidity, solvents or high temperatures. Doing so may stain, wrinkle, discolour or distort it.
• If there is debris on the product's attachment surface, wipe the surface clean before using the product.
• Avoid placing the product in hot or humid environments. If the product is exposed to direct sunlight, its colour or form may change.
• Be careful not to scratch the product with sharp objects such as nails.
• When using this product, some customers may experience allergic reactions, such as itching, eczema, or swelling. If you experience any of these symptoms, stop using the product and consult a physician.
• While using the product, be cautious to prevent scratches or damage from debris.
• Your product contains magnets. Keep it away from credit cards, implanted medical devices, and other devices that may be affected by magnets. In the case of medical devices, keep your product more than 15 cm apart. Stop using your product if you suspect any interference with your medical device and consult your physician or your medical device manufacturer.
• This product includes certain free/open source software. The licence information of the open source software used in this product can be found at opensource.samsung.com.

Instructional icons

Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to your product or other equipment Notice: notes, usage tips, or additional information

Notes on package contents and accessories

Check the product box for the following items:

• Product
• Quick start guide

• The items supplied with the product and any available accessories may vary depending on the region or carrier.
• Appearances and specifications are subject to change without prior notice.
• You can purchase additional accessories from Samsung website. Make sure they are compatible with the product before purchase.
• Use Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty.
• Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website.

Appendix

FCC Part 15.19 (USA Only)

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Part 15.105 (USA Only)

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

ISED Notice (Canada Only)

This device complies with ISED (Innovation, Science and Economic Development Canada) licence exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.

Samsung Electronics America, Inc. (USA Only)

85 Challenger Road,

Ridgefield Park, New Jersey, 07660

Phone: 1-800-SAMSUNG (726-7864)

Copyright

Copyright © 2024 Samsung Electronics Co., Ltd.

Copyright © 2024 Samsung Electronics America, Inc. (USA Only)

This guide is protected under international copyright laws.

No part of this guide may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system.

Trademarks

• SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics Co., Ltd.
• All other trademarks and copyrights are the property of their respective owners.
