Product Type	Air Purifier
Brand	Acer
Model	Acerpure Cool AC551-50W
Dimensions (H x W x D)	400 x 200 x 400 mm
Weight	5 kg
Power Supply	AC 220-240V, 50/60Hz
Power Consumption	50 W
Coverage Area	Up to 30 m²
CADR (Clean Air Delivery Rate)	200 m³/h
Filtration Stages	Pre-filter, HEPA H13, Activated Carbon
HEPA Filter Type	H13 Grade
Fan Speeds	4 speeds (Sleep, Low, Medium, High)
Auto Mode	Yes, with air quality sensor
Timer	1-8 hours
Air Quality Indicator	LED ring (Green, Yellow, Red)
Noise Level	25-50 dB
Filter Replacement Indicator	Yes
Child Lock	Yes
Maintenance	Clean pre-filter every 2 weeks; replace HEPA/carbon filter every 6-12 months
Safety	Overheat protection, tip-over switch
Spare Parts	HEPA filter, activated carbon filter, pre-filter available
Reparability	Filter replacement by user; other repairs by authorized service
General Information	Designed for small to medium rooms; energy efficient operation

Frequently Asked Questions - Acerpure Cool AC551-50W ACER

How often should I replace the HEPA filter?

The HEPA filter should be replaced every 6 to 12 months depending on usage and air quality. The filter replacement indicator will alert you when it's time.

Can I wash the HEPA filter?

No, the HEPA filter is not washable. Only the pre-filter can be cleaned with a vacuum or by rinsing with water (let it dry completely before reinstalling).

How do I clean the pre-filter?

Remove the pre-filter and vacuum it or rinse under running water. Make sure it is completely dry before placing it back.

What does the LED ring color mean?

Green indicates good air quality, yellow moderate, and red poor air quality. The purifier will adjust fan speed automatically in auto mode.

Is the purifier safe to leave on overnight?

Yes, the purifier has a sleep mode with low noise and dimmed lights. It is designed for continuous operation and features overheat protection.

How do I reset the filter replacement indicator?

After replacing the filter, press and hold the filter reset button (usually the power button or a dedicated button) for 3-5 seconds until the indicator turns off.

What is the maximum room size for this purifier?

The Acerpure Cool AC551-50W is effective for rooms up to 30 m² with a CADR of 200 m³/h.

Can I use essential oils with this purifier?

No, adding essential oils can damage the filters and void the warranty. The purifier is not designed for aromatherapy.

Why is the purifier making a rattling noise?

Check if the filters are properly installed and if the pre-filter is clean. Also ensure there are no foreign objects inside the air intake.

How do I enable the child lock?

Press and hold the fan speed button (or a dedicated lock button) for 3 seconds. The child lock icon will appear on the display. Repeat to unlock.

USER MANUAL Acerpure Cool AC551-50W ACER

acerpure cool Series

2-in-1 Air Circulator and Purifier

User Manual

User Manual

Model: AC551-50W

User Manual

Thank you for purchasing this product. Please read this manual carefully, use this product correctly, and store it properly.

Table of Contents

Safety Instructions

05

Product Introduction

06

Product Overview

07

Function Buttons

08

Panel Introduction

09

Wi-Fi connection - acerpure Life

11

Disassembling and Maintenance

12

Checking Air Quality

13

Battery Precautions

13

Before Calling Customer Service

14

Product Specifications and Company Information

15

Safety Instructions

Prohibited

Attention

	This product is for home and office useDo not use it for other purposes.The 2-in-1 Air Circulator and Purifier shall be used for temperate climates and tropical climates.	Before using, check the power cord and plug for damage.To avoid poor contact, do not twist or pull the power cord.
	Before using, please check if the voltage on your power socket is compatible with the voltage label on the product.	Turn off the power before pulling out the plug.Do not touch the power plug with wet hands to avoid the risk of electric shock.
	Do not use this product where foreign objects, such as curtains, may be sucked into the air circulator in order to prevent product damages.	Use of this product without proper assembly is strictly prohibited; it is also prohibited to insert your hand or sharp objects into the guard of the air circulator in order to prevent accidents from occurring. Children should be supervised to ensure they do not play with electrical appliances.
	Do not hang clothes on the guard of the air circulator, and do not use the air circulator at places with barriers or unstable places.	This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
	Do not spray liquids such as volatile agents or insecticides on this product.	Do not use this product at places with high temperature (over 40°C), high humidity (such as bathrooms), dusty or where acid-base oils can easily spill.
	If you do not use the product for long periods of time, please unplug the power plug, especially when there is inclement weather such as thunderstorms, lightning, and other hazards. Please turn off the power immediately and pull out the plug.	This product only requires external cleaning and maintenance; do not clean the surface with rough cleaning tools, and do not rinse it with water directly.
	If the product was accidentally immersed in water, please stop using it immediately and contact customer service.	If the product is operating abnormally, such as giving off noise, smoke, or odors, please turn off the power immediately, unplug the product, and contact customer service.
	If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.	For customer service contact information, please see the company information at the end of this manual.

*Ensure that the fan is switched off from the supply mains before removing the guard.

Product Introduction

Product accessories

1

Machine Body

• Filter

5 Power Cord

3

Remote Control with Battery (CR2032)

User Manual & Warranty Card

Remote control battery installation

Open

1. Remove the battery cover by pressing the left button lightly and pulling the battery cover down.

Install Close

1. Place the battery positive (+) side up.

1. Push the battery cover back to its original outlet and close it completely.

Remote control precautions

• The remote control must face the receiver directly (Face the remote control downwards and aim it at the operation panel for use).
• The usage range of the remote control is approximately within 500cm to the front of the receiver; if the remote control is not faced towards the receiver, its usage range will be reduced.
• Do not place any obstacles between the receiver and the remote control.
• Please keep the remote control properly; avoid impacts and dropping. Please remove the battery when not using the remote control, and keep it in a safe place.

1 Circulation Fan Front Guard Circulation Fan Rear Guard 2 Air Outlet Remote Control Magnet 7 3 Control Panel Dust (PM1.0 & PM2.5) 8 d Gas Sensor (VOCs) 4 LCD Display Screen Filter Cover Han 9 5 Air Inlet 4-in-1 HEPA Filter 10

Function Buttons

Power ON/OFF

You can start or stop using this product.

*The anion function is released at the same time when the air purifier is powered on.

*When using this product for the first time (after power is disconnected, each time power is reconnected is considered using for the first time), please wait for 90 seconds for the motor and sensor to calibrate. While the motor is calibrating, this product will swing to the left and right automatically, and the circulation fan will swing upwards and downwards.

- Wi-Fi Functions

Before product registration: Press and hold down the power button for more than 3 seconds to activate the Wi-Fi product registration mode. - Reset and disable: After enabling Wi-Fi, press and hold the power button for more than 3 seconds to reset and disable Wi-Fi.

Purifier Speed

This product has a total of four stages of purifier speeds (Smart Mode, Low, Middle, High, and Turbo Mode), you can adjust the purifier strength of this product according to your needs.

*Smart Mode: The purifier speed strength (low, middle and high) is adjusted automatically based on the air quality status (green light, yellow light, red light).

- Lock Function

Press and hold down the purifier speed button for 3 seconds to enable the lock function; press and hold it down for 3 seconds again to cancel the lock function.

Circulator Speed

This product has 10 different speeds. You can choose your desired speed according to you needs. When you press it the 11th time, the air circulator will be turned off.

Off Timer

You can preset the product to shutdown automatically after 1 hour, 2 hours, 4 hours, 8 hours, and 12 hours.

- Quiet Mode

Press and hold down the off timer button for 3 seconds to enable sleep mode; press and hold it down for 3 seconds again to cancel quiet mode.

Please note that after quiet mode is enabled, the display panel of this product will go off automatically after 15 seconds, and the touch panel will also be in silent mode.

Up and Down Swing Mode

It allows you to set the air circulator of this product to swing up and down; pressing it a second time will stop it from swinging.

Left and Right Swing Mode

It allows you to set the body of this product to swing left and right; pressing it a second time will stop it from swinging.

Operating Air Quality Display

The initial value displayed on the panel of this product is PM2.5. By using this button on the remote control, it can switch to display the PM1.0 value, and pressing it a second time will switch off the air quality display panel.

Turning off the Filter Replacement Indicator

When the filter of this product needs to be replaced, the filter replacement indicator of this product will light up automatically. After replacing the filter, press and hold down the power button and the purifier wind speed button simultaneously for 3 seconds to turn off the filter replacement indicator.

1 Smart Mode

When smart mode is enabled, the Smart icon on the panel will always stay on.

2 Timer Mode

*Under timer mode, press the off timer button and display countdown screen, then press it again to cancel timer mode.

3 Lock Mode

After lock mode is enabled, it will light up constantly on the display panel. When disabled, ⊗ will appear and then it will no longer be displayed on the panel.

4 Wi-Fi Mode

When the Wi-Fi function is enabled, the lights will flash; after the smart device is successfully connected, it will stay lit on the display panel.

5 PM2.5/PM1.0 Value Display

The initial value displayed on the panel of this product is PM2.5; the remote control can be used to turn to display the PM1.0 value.

6 Dust Status Display

This product uses three color lights, green, yellow and red to display the PM2.5/PM1.0 dust concentration status (good, moderate, poor).

7 Gas Status Display

This product uses three color lights, green, yellow and red to display the VOCs status (good, moderate, poor).

Introduction to other icon displays

Circulator Speed

Based on the circulator fan speed strength selected, the value (1-10) will be displayed on the panel.

Left and Right Swing Mode

After enabling the left and right swing mode, it will be displayed on the panel.

Quiet Mode

After enabling quiet mode, it will be displayed on the panel.

My Favorite Mode

You can set frequently used modes as My Favorite on the APP, after this mode is enabled, it will be displayed on the panel.

Purifier Speed

Based on the purifier speed selected, the value (Smart, 1, 2, 3, Turbo) will be displayed on the panel.

Up and Down Swing Mode

After enabling the up and down swing mode, it will be displayed on the panel.

Firmware Update

When the firmware of the product is updating, it will be displayed on the panel.

When the firmware of the product is being updated, do not shut down the product or unplug the power cord.

Abnormality Warning

When the filter cover is not covered properly on the product, this abnormality warning will display on the panel.

Filter Replacement Indicator

Please replace the filter when this indicator lights up.

⁵ The filter health will be displayed before this product shuts down completely.

Wi-Fi connection—acerpure Life

Install the acerpure Life app on your mobile device to add convenient features.

Installing acerpure Life

Find and install the acerpure Life app from the App Store or Google Play on your mobile device.

Using the acerpure Life

This function is only applicable to products with Wi-Fi function.

1. Check that your mobile device is compatible with the app, is switched on, and is connected to a Wi-Fi network. 2. Open the acerpure Life app and follow the instructions to create a new account if you do not already have one.

• Before product registration: Press and hold the power button for more than 3 seconds to activate the Wi-Fi product registration mode.
• Reset and disable: After enabling Wi-Fi, press and hold the power button for more than 3 seconds to reset and disable Wi-Fi.

3. Follow the on-screen instructions to pair your appliance with the acerpure Life app.

Note

• Wi-Fi only supports Wi-Fi 4 2.4 GHz frequency. - When registering the product, make sure that the Wi-Fi connection of the mobile device is on. - If possible, install the wireless router close to the product. The signal strength depends on the location and distance from the router, and will affect the data transmission rate from the router to the product. - Contact your Internet service provider for assistance with issues like signal strength and network settings. - For best results, set the security protocol on the router to WPA2. If the WEP protocol is used, the product may fail to register on the network. - Set the wireless network name (SSID) to any alphanumeric combination. For best results, do not use special characters. The SSID is what appears in the list when you search for available Wi-Fi networks on your mobile device. - Connect only to wireless networks you are authorized to use. Unauthorized Wi-Fi connections are illegal and may subject you to legal action. • These instructions are accurate at the time of publication. The acerpure Life app may be changed without prior notice to users.

Disassembling and Maintenance

Filter Replacement

The appliance must be disconnected from the supply main.

1. After switching off the power and unplugging the power plug, pull the handle on the filter cover behind the product backward.

1. Remove the filter and replace it with a new filter.

1. Place the filter cover back onto the product.

* The recommended replacement time for the filter is after 3000 hours of use. * When the filter replacement indicator lights up, please remove the filter and replace or clean the filter based on the filter's cleanliness. * After installing the filter back into this product, press and hold down the power button and purifier wind speed button simultaneously for 3 seconds to turn off the filter replacement indicator. * Please avoid pulling the power cord during disassembly to prevent the power cord from breaking. * When using this product for the first time or replacing a new filter, please remove the packaging bag of the filter first and then start using this product.

Circulation Fan Removal

1. Unscrew the screws below the fan.

1. Rotate the guard of the fan in a counter-clockwise direction and remove the guard.

1. Rotate the guard of the fan blade and remove the fan blade.

Maintenance

This product only requires general external cleaning and maintenance (as shown in the figure).

Do not wipe with thinner, toluene, acidic cleansers, lamp oil, alcohol, or chemical cloth in order to avoid discoloration or deterioration.

Please note: After maintenance and cleaning, wait for the product to fully dry before connecting power to use again or storing. If the product needs to be stored, please place the product back into the packaging box in the original packaging order, and place it at a dry location for safekeeping.

Use a vacuum cleaner to remove the dust from the air outlet and inlet.

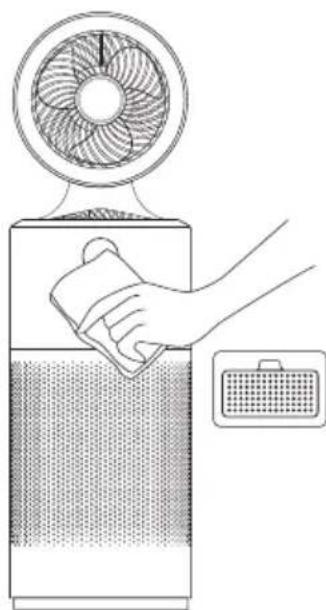

Use a soft cloth to wipe the exterior and the sensor cover at the back of the product.

You can learn the air quality of the room used based on the air quality indicator of this product. The indicator colors in the table below represent the cleanliness of PM2.5, PM1.0 and Gas (VOCs).

Indicator Color PM2.5 & PM1.0 (μg/m3) Gas (VOCs) Recommended Purifier Speed
Green 0~15 Good Low
Yellow 16~35 Moderate Middle
Red >35 Poor High

Battery Precautions

• Do not place the battery within a distance that infants and young children can reach. If you, or a child accidentally swallows the battery, please consult a doctor immediately.
• In the unlikely event that the liquid leaking from the battery sprays into your eyes, do not rub your eyes, and see a doctor immediately after washing with water. Please note that this may cause blindness.
• If the liquid leaked from the battery gets on your skin or clothing, please wash the affected area with water immediately. Please note that this may leave a stain on clothes.
• If you want to throw the battery away, please follow the garbage classification method in your area (please use transparent tape to wrap the "+" and "-" sides when discarding).
• Please do not attempt to recharge non-rechargeable batteries.
• Please do not mix different battery types, or new and used batteries.
• Please do not insert batteries with the incorrect polarity.
• Please safely dispose of exhausted batteries.
• If the appliance is to be stored unused for a long period of time, the batteries should be removed.
• Please do not short-circuit supply terminals.
• WARNING: Keep out of reach of children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 h of ingestion. Seek medical attention immediately.

Before Calling Customer Service

If you find a problem with the product, please check the following before contacting the customer service.

Problem Possible cause Solution
Product fails to start.	The power plug may not be plugged into the outlet.	Please make sure the power is plugged into the outlet.
The buttons on the control panel do not respond.	The lock function may be on.	Please press and hold down the purifier speed button for 3 seconds to disable the lock function.
Indoor air keeps showing a red light indicator and cannot be purified.	There may be too much dust or particles accumulated in the filter.	Please clean the filter of the purifier properly, or replace the filter directly.
	There may be other debris around the product.	Please remove the sundries around the product.
	The product is placed in the corner.	Please move the product and place it elsewhere.
	There may be too much ventilation.	Please place the product in a suitable indoor space for use, and avoid placing it next to a ventilated window.
	The indoor air may be severely polluted.	Please ventilate the room first and then use this product.
The product is making a loud noise.	Dust may have accumulated in the circulating fan.	Please clean the guard of the air circulator properly.
	There may be items stuck in the circulator fan.	Please clean the foreign object from the air circulator guard.
	The floor and tabletop where the product is placed is uneven or unstable.	Place move the product to a flat floor or table top.
The product cannot connect with the acerpure Life app.	The power plug may not plugged in the outlet properly.	Please plug the power plug of this product in the outlet correctly.
	The Wi-Fi (wireless router) connected to the product may not be working properly.	Please turn off the wireless router and switch it on again.
		Please confirm whether the wireless router has internet connection problems.
Cannot register or operate the product from the acerpure Life app.	The Wi-Fi (wireless router) connected to the product may not be working properly.	Please place the wireless router closer to the product.
	The Wi-Fi (wireless router) connected to the product may not be working properly.	Please turn off the wireless router and turn it on again.
		Please confirm whether the wireless router has internet connection problems.
The product and acerpure Life app have different dust concentrations.	They may be checking for different dust concentrations.	Please check whether the value displayed on the product panel is the same PM1.0 or PM2.5 displayed on the acerpure Life app.
	The acerpure Life app may not be the latest version.	Please go to the Google Play Store or Apple App Store to update the acerpure Life app to the latest version.
The remote control cannot be operated.	The battery may be dead.	Please replace the battery.(Applicable model: CR2032)
	The remote control may not be pointed at the product.	Please change the angle and make sure the remote control facing the receiver directly.

Product and filter specifications

Product specifications
Product name 2-in-1 Air circulator and Purifier
Product model AC551-50W
Rated voltage 220-240V/50Hz
Rated power 65W
Net weight 6.34 kg
Product dimensions 253 x 253 x 850mm
Place of origin China

Company information

acerpure

www.acerpure.com

User Manual

Main Unit

• Filter

5 Power Cord

3

•

User Manual

Main Unit

•

Filter 5 Power Cord

3 Remote Control +

Applicable CR2032 Coin-type lithium battery The image is too blurry to recognize any text content.

Manual + Warranty Card

Remote Control Precautions

Power On/Off

You can start or stop using this product.

The negative ion function automatically releases when the product is activated.

Air purifier fan speed intensity

1. Remove the filter and replace it with a new one.

1. Replace the filter cover back onto the product.

1. Unscrew the screw under the fan.

1. Rotate the fan cover counterclockwise and remove it.

1. Unscrew the fan front cover and remove the fan.

Maintenance

Use a vacuum cleaner to remove dust from the exhaust and intake vents.

Wipe the exterior and the sensor cover on the back of the product with a soft cloth.

Check air quality
