MK-F510 - Food Processor PANASONIC - Free user manual and instructions

Product Type	Food Processor
Brand	Panasonic
Model	MK-F510
Motor Power	1000 W
Bowl Capacity	3.5 L
Housing Material	Plastic
Blade Material	Stainless Steel
Speed Settings	2 speeds + Pulse
Functions	Slicing, shredding, chopping, mixing, dough kneading, blending
Safety Lock	Yes, lid lock
Non-Slip Feet	Yes
Cord Length	1.2 m
Voltage	220-240 V
Frequency	50/60 Hz
Weight	4.5 kg
Dimensions (W x D x H)	28 x 25 x 40 cm
Accessories Included	Slicing disc, shredding disc, french fry disc, dough hook, chopping blade, spatula
Dishwasher Safe Parts	Yes, all removable parts
Cleaning Recommendation	Wipe motor base with damp cloth
Spare Parts Availability	Through Panasonic service centers

Frequently Asked Questions - MK-F510 PANASONIC

Can I grind coffee beans in the MK-F510?

No, the MK-F510 is not designed for grinding hard items like coffee beans. Use it for softer foods like vegetables, fruits, and dough.

Is the bowl and lid dishwasher safe?

Yes, all removable parts including the bowl, lid, discs, and blades are dishwasher safe. Place them on the top rack for best results.

Can I process hot liquids in the food processor?

No, do not process hot liquids or foods above 60°C (140°F) as they can cause pressure buildup and damage the seal. Let them cool first.

How do I lock the lid correctly?

Align the lid arrow with the unlock symbol on the bowl, then turn clockwise until it clicks and the arrow points to the lock symbol. The machine will not start if not locked.

What should I do if the motor stops during use?

The motor has a thermal safety cut-off. Turn off and unplug, let it cool for 20-30 minutes. Reduce food load and avoid overfilling.

Can I use the food processor to knead heavy dough?

Yes, the 1000W motor can handle dough up to 1 kg of flour. Use the dough hook on low speed and do not exceed 2 minutes continuous kneading.

Why does the blade not spin?

Check that the bowl is locked onto the base and the lid is properly closed. Also ensure the blade is correctly seated on the drive shaft.

How do I clean the motor base?

Unplug the unit and wipe the base with a soft, damp cloth. Do not immerse in water or use abrasive cleaners. Dry thoroughly before use.

What is the maximum capacity for liquid?

Do not fill the bowl beyond the MAX line, typically 2 liters for liquids. Overfilling can cause leaks and motor strain.

Can I purchase spare discs separately?

Yes, spare parts are available through Panasonic service centers or authorized dealers. Use only genuine Panasonic accessories.

USER MANUAL MK-F510 PANASONIC

Operating Instructions

Food Processor

(Household Use)

Model No.

MK-F510

MK-F310

MK-F510MK-F310

Thank you for purchasing this Panasonic product.

Please read these instructions carefully in order to use the product correctly and safely.
Before using this product please give your special attention to "Safety Precautions" and "Important Information" (P. EN2 - EN5).
Please keep this Operating Instructions for future use.
Panasonic will not accept any liability if the appliance is subject to improper use, failure to comply with these instructions.

Contents

Safety Precautions......EN2
Important Information......EN5
Parts Names and Instructions......EN6
Overload and Overheating Protection ....EN7
Safety Lock....EN7
Food Processor....EN8

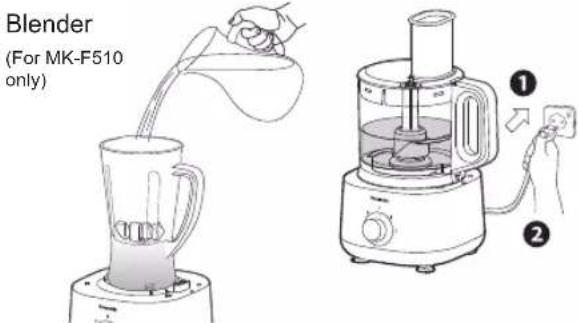

Blender (for MK-F510 only)......EN14
Dry Mill (for MK-F510 only)......EN15
After Use......EN16
Troubleshooting......EN18
Specifications....EN19

Safety Precautions

Please make sure to follow these instructions.

In order to prevent accidents or injuries to the user, other people, and damage to property, please follow the instructions below.

The following signals indicate the degree of harm and damage when the product is misused.

WARNING:

Indicates potential hazard that could result in serious injury or death.

CAUTION:

Indicates potential hazard that could result in minor injury or property damage.

■ The symbols are classified and explained as follows.

This symbol indicates prohibition.

This symbol indicates requirement that must be followed.

WARNING

To prevent electric shock, fire caused by short circuit, smoke, scald or injury.

- Do not allow infants and children to play with the packaging material. (It may cause suffocation.)

- Do not disassemble, repair or modify this appliance.

→ Contact Panasonic Service Centre for inspection or repair.

EN2

WARNING

● Do not damage the power cord or power plug.

The following actions are strictly prohibited:

Modifying, touching on or placing near heating elements or hot surfaces, bending, twisting, pulling, hanging/pulling over sharp edges, putting heavy objects on top, bundling the power cord or carrying the appliance by the power cord.

• Do not plug or unplug the power plug with wet hands.
• Do not use the appliance if the power cord or power plug is damaged or the power plug is loosely connected to the outlet.

If the power cord is damaged, it must be replaced by the manufacturer, its service centre or similarly qualified person in order to avoid a hazard.

→ Insert the power plug firmly.

- Do not immerse the motor housing, power cord or power plug in water, or splash it with water and/or any liquid.

● This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

• Keep the appliance and its power cord out of reach of children.
  ● Dust off the power plug regularly.

→ Unplug the power plug, and wipe with a dry cloth.

● Discontinue using the appliance immediately and unplug in the unlikely event that this appliance stops working properly.

e.g. for abnormal occurrences or breaking down

The power plug or the power cord become abnormally hot.
●The appliance power fails.
The motor housing is deformed, has visible damage or is abnormally hot.
There is crack on the bowl or other parts.
There is an unpleasant odour.
There is abnormal turning noise while in use.
There is another abnormality or failure.

→ Contact Panasonic Service Centre for inspection or repair.

● Make sure the voltage indicated on the label of the appliance is the same as your local supply.

Also avoid plugging other devices into the same outlet to prevent electric overheating.

However, if you are connecting a number of power plugs, make sure the total wattage does not exceed the rated wattage of the outlet.

- Be careful if hot liquid is poured into the blender jug or bowl as it can be ejected out of the appliance due to a sudden steaming.

Safety Precautions

Please make sure to follow these instructions.

CAUTION

To prevent electric leakage, electric shock, fire caused by short circuit, scald, injury or property damage.

● Do not use the appliance on the following places.

●On uneven surfaces, on carpets or tablecloths etc.

Place where it may be splashed with water or near a heat source.

Near any open water sources such as bathtubs, sinks, or other containers.

Near a wall or furniture.

→ Place the appliance on a firm, dry, clean flat worktop.

- Do not leave the appliance unattended when it is in operation.

- Do not try to remove the bowl lid or blender lid when the appliance is still operating.

- Do not blend or place over 60 °C ingredients into blender jug, mill container or bowl.

- Do not use hot water (over 60 °C) for cleaning purpose or fire to dry the appliance.

- Do not put any liquids or wet ingredients into the mill container.

- Do not open the lid and put your fingers or utensils such as spoon or fork into the blender jug while the appliance is operating. (For MK-F510 only)

● Do not stretch the mill gasket to avoid deforming. (For MK-F510 only)

- Do not replace any parts of the appliance with non-genuine spare parts.

- Do not carry the appliance by holding the power cord, bowl, blender jug or mill container.

- Do not insert any objects in the gaps of the appliance.

- Do not process more than the maximum capacity marked on each container respectively. Follow the recommended ingredient amount for processing. (P. EN19 "Specifications")

● Do not push the safety pin with any implement, such as thin stick etc. (P. EN7)

● Unplug the plug when the appliance is not in use.

- Remove the bowl before lift up the motor housing from the table.

● Make sure to hold the power plug when unplugging it. Never pull on the power cord.

● Beware not to trip over or get caught in the power cord while in use.

- In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

● Care shall be taken when handling the sharp blades, emptying the bowl, blender jug, mill container and during cleaning. Do not clean blades by bare hand.

● Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling, moving or cleaning.

- Switch off the appliance and disconnect from supply before changing attachments or approaching parts that move in use.

- Ensure to operate and rest the appliance as stated on specification table. (P. EN19 "Specifications")

- Ensure to clean the appliance especially surfaces in contact with food after use. (P. EN16-EN17 "After Use")

● This product is intended for household use only.

EN4

Important Information

Do not use the appliance outdoors.
- Do not use the appliance for commercial purpose.
Do not place the mill container on any heat sources or in a microwave.
- Do not drop the appliance or attachments to avoid damaging it.
- Do not wrap the power cord around the motor housing.
Make sure the parts or attachments are set firmly before use.
Do not operate the appliance without ingredients.
Be sure the mill gasket are attached properly to prevent leakage.
- Do not use prohibited ingredients as stated in this instructions.

Prohibited Ingredients:

Attachments Description
Knife Blade	Hard ingredient (e.g. coffee beans, dried soybeans, frozen food, dried squid, and etc.), viscous ingredients.
Slicing Blades, Shredding Blades and French Fry Blade	Ingredients with high hard fiber concentrations (e.g. hard vegetables, frozen food, turmeric, ginger, chocolate), viscous ingredients (e.g. ham), ingredients that are too soft (e.g. lettuce, tomato, peach).
Kneading Blade (For MK-F510 only)	Ingredients not suited for dough making, e.g. meat, vegetables, nuts, sauces, spreads.
Whipping Blade Any other ingredients aside from egg whites and fresh cream.

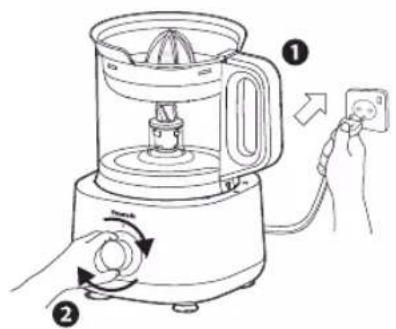

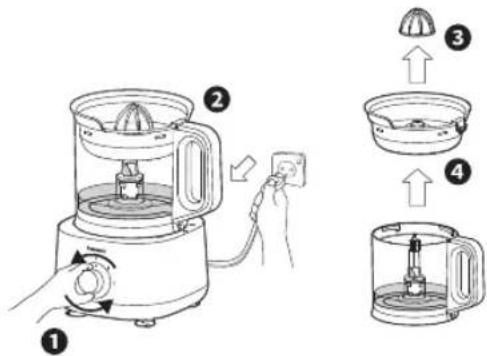

Citrus Press (For MK-F510 only)	Any other ingredients aside from citrus fruits, e.g. apple, kiwi and etc.
Blender (For MK-F510 only)	Hard ingredients (e.g. turmeric, dried soybeans, frozen food), highly sticky ingredients (e.g. meat, fish), ingredients with low water content, (e.g. boiled potatoes), or just ice cubes, and etc.
Dry Mill (For MK-F510 only)	Hard nuts (e.g. various nuts), dried fruit (e.g. raisins), ingredients with high hard fiber concentration (e.g. vegetables, turmeric), moist ingredients (e.g. boiled egg), liquids and meat.

Parts Names and Instructions

Food Processor

1. Food Pusher
2. Feeding Tube
3. Bowl Lid
4. Whipping Blade
5. Knife Blade

6. Kneading Blade

7. Blade Stand

8. Shredding Blade
9. Slicing Blade
10. French Fry Blade
11. Citrus Cone

12. Citrus Strainer

13. Blender Lid

14. Blender Jug
15. Mill Container
16. Mill Gasket
17. Mill Container Base

18. Bowl

19. Drive Shaft

20. Motor Housing
21. Rubber Sucker
22. Power Cord
23. Power Plug *
24. Blade Storage Stand

* The shape of the plug may vary from illustration.

EN6

Overload and Overheating Protection

In case of overload and overheating, the protection device is triggered to stop operation and it is not abnormal. After rotation stops, follow the below steps:

Do not use the appliance repeatedly without any countermeasure.

1. Turn the rotary switch to "0" position, unplug the appliance.

2. Remove the bowl/blender jug/mill container from the motor housing. Reduce the ingredients to less than half. (For blender jug, it also can add liquid.)

Remove the prohibited ingredient if used.

1. Reset the bowl/blender jug/mill container, start blending again. (P. EN11 - EN15)

If the appliance still does not operate after performing the above, the overheating protection has been activated. Turn the rotary switch to "0" position, unplug and rest the appliance for about 15 minutes or more (until motor housing returns to a normal temperature) to release overheating protection before using again.

(If appliance still does not operate, contact Panasonic Service Centre for inspection or repair.)

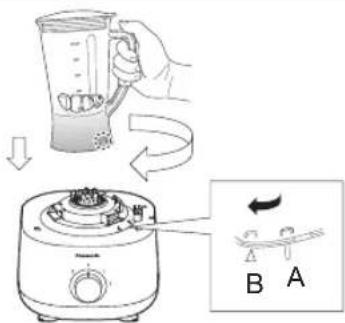

Safety Lock

The safety pin is designed to prevent the appliance from switching on when

• The bowl lid or citrus strainer and the bowl are not fully locked to each other.
• The bowl, blender jug or mill container are not fully locked to the motor housing.

Note:

Do not push the safety pin and safety lever with any instrument, stick etc.

Do not pour liquids or ingredient at the safety pin and safety lever area.

Keep the safety pin and safety lever area clean to avoid foreign particles accumulate on the area.

Actions above ensure the safety pin and safety lever function properly. If not followed, it will damage the parts related to the safety pin and safety lever.

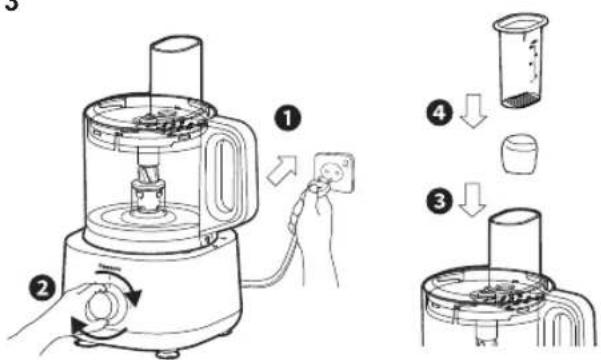

Food Processor

Before Use

Clean all detachable parts before using the appliance for the first time or when you have not used it for a while, and then assemble them securely. (P. EN11-EN13 "How to Use" and P. EN16-EN17 "After Use") Unplug when assembling the unit. Before plugging in, ensure that the rotary switch is in the OFF position "0". Please refer to page EN17 under "Storing" on how to re-position the motor housing.

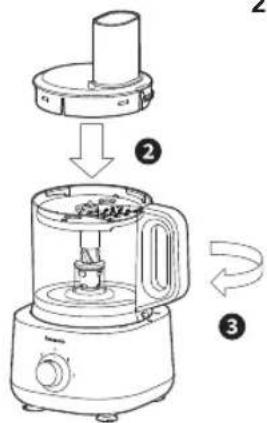

1. Place the bowl on top of the motor housing until the mark aligns as shown in A.

2. Turn the bowl clockwise until a "click" sound is heard. Ensure that the triangle mark on the bowl is aligned with the rectangle mark on the motor housing as seen in B.

To disassemble, follow the assembly steps in reverse.

Ingredient Preparations for Knife Blade

Function Ingredient Speed Quantity				Operating Time (approx.)	Preparation Method
Mince	Meat	2	50 ~ 400 g5	~ 40 sec		Remove all skin, bones, and tendons, cut into 2 ~ 3 cm cubes.
	Fish		50 ~ 500 g5	~ 20 sec
Chop	Onion	P(PULSE)	150 ~ 500 g	4 ~ 9 times		Peel skin, cut into 2 ~ 3 cm cubes.
	Garlic	2	5 ~ 500 g	5 ~ 30 sec		Peel skin.
	Carrot		50 ~ 450 g	10 ~ 30 sec		Peel skin, cut into 2 ~ 3 cm cubes.
	Italian Parsley		5 ~70 g	10 ~ 40 sec		Remove stalk.
	Mushroom		30 ~ 250 g3	~ 15 sec		Cut into 2 ~ 3 cm cubes.
Crush	Parmesan Cheese	2	10 ~ 200 g	10 ~ 60 sec		Cut into 2 ~ 3 cm cubes.
Mash	Boiled Potato	P(PULSE)	100 ~ 400 g	15 ~ 90 sec		Cut into 2 ~ 3 cm cubes. Do not overprocess.
Frozen (Dessert Make)	Frozen Banana	2	250 ~ 450 g	40 ~ 120 sec		1 ~ 2 cm width, half frozen condition, i.e. toothpick can pierce.
Grind	Peanuts	2	10 ~ 200 g	15 ~ 40 sec		Remove peanut shell and skin.
Paste	Roasted Peanuts	2	100 ~ 400 g	6 ~ 13 min		Remove peanut shell and skin.
Crumb	Soft White Bread	2	10 ~ 200 g	15 ~ 60 sec		Slice soft bread into 6 to 8 pieces.
Knead (for confectionery)	Flour	2	~ 300 g	~ 120 sec		Use for making confectionery such as sweets and cakes.

EN8

Recipes

Meat Loaf

Speed: 2

Operating Time (approx.):

30 sec \~ 1 min

Onion	100 gcut into 2-3 cm cubes.
Loaf 1 slice
Beef/Lamb	400 gcut into 2-3 cm cubes.
Egg 1
Milk 1 tablespoon
Salt 1/2 teaspoon
Pepper Appropriate amount
Nutmeg powder	Appropriate amount

Method

1. Place knife blade and all ingredients in bowl in the order listed.
2. Rotate the switch to speed 2 and operate for 30 second to 1 minute.
3. Form the minced mixture into a loaf shape and place into a baking tin, approximately 8 cm high x 17 cm long x 10 cm wide. Place in an oven preheated to 200°C, and bake for approximately 30-40 minutes.

Mayonnaise

Speed: 2

Operating Time (approx.):

20 \~ 30 sec

Egg	1 at room temperature
Vinegar 1 1/2 tablespoons
Salt 1/2 teaspoon
Sugar 1/2 teaspoon
Yellow mustard	1 teaspoon
Pepper	Approximate amount
Salad oil 200 mL

Method

1. Place all ingredients in bowl except salad oil.
2. Rotate the switch to speed 2.
3. Pour the salad oil into the feeding port slowly.
4. After pouring all the salad oil, continue mixing for another 20-30 seconds.

Thousand Island dressing
Speed: 2 Operating Time (approx.): 30 sec \~ 2 min

Onion	150 gcut into 2-3 cm cubes.	Lemon Juice 2 tablespoons
Italian Parsley	10 gremoved from the stem.	Milk 2 tablespoons
Mayonnaise	100 g	Salt Appropriate amount
Ketchup	30 g	Pepper Appropriate amount

Method

1. Place the knife blade in bowl and add onion and parsley.
2. Rotate the switch to speed 2 and operate for 30 second to 2 minutes.
3. Mix all the remaining ingredients in another container by hand and add chopped onions and parsley to mix further.

Ingredient Preparations for Kneading Blade (for MK-F510 only)

Function Ingredient Speed			Max Single Use	Operating Time (approx.)	Preparation Method
Knead (for bread)	Bread Flour	2	300 g	~ 120 sec	Mix yeast with water and add during the processing of dough (adding yeast directly before processing may result in flaking and premature rising). If dough mix still appears flaky after initial processing, add 1 tsp of water into the mix. When large vibrations occur due to dough mix wrapping around the drive shaft, add 1 tbsp of flour. Do not reprocess the dough after the process is complete, if the dough is not satisfactory, knead by hand. Reference Recipes (Ingredients amount can be adjusted according to personal flavor) Bread Flour 300 g, Unsalted Butter 20 g, Salt 3.2 g, Sugar 12 g, Egg 50 g, Yeast Liquid (Dry Yeast 6 g, 30~35°C Warm Water 120 mL)
	Liquid		160 ~ 200 mL

Ingredient Preparations for Whipping Blade

Function Ingredient Speed Max Single Use				Operating Time (approx.)	Preparation Method
Whip	Egg White	2	2 ~ 6 pcs	50 sec ~ 3 min		Separate the egg white from the yolk for a smooth meringue.
	Cream		100 ~ 300 mL	20 sec ~ 1 min		Use fresh cream of fat content 35% or higher at 5 °C.

EN9

Food Processor

Before Use

Ingredient Preparations for Slicing Blade

Function	Ingredient Speed Max		Single Use	Operating Time (approx.)	Preparation Method
Slice	Cucumber	2	~700 g	-		Cut ingredients till they are small enough to fit into the feeding tube.
	Onion		~700 g
	Carrot		~600 g
	Potato		~600 g		[GD8D]
	Cabbage		~400 g

Ingredient Preparations for Shredding Blade

Function	Ingredient Speed	Max	Single Use	Operating Time (approx.)	Preparation Method
Shred	Cucumber	2500 g	~ 500 g	-		Cut ingredients till they are small enough to fit into the feeding tube.
	Carrot		~ 500 g
	Potato		~ 600 g
	Cheese ~				[KZAT]	Cut ingredients till they are small enough to fit into the feeding tube. Do not use hard ingredients such as Parmesan.

Ingredient Preparations for French Fry Blade

Function	Ingredient Speed	Max	Single Use	Operating Time (approx.)	Preparation Method
French fries	Potato	2	~800 g	-	[8ST6]	Cut ingredients till they are small enough to fit into the feeding tube.
Shred	Cabbage	1	~500 g		[SATA]

Ingredient Preparations for Citrus Press Attachment (For MK-F510 only)

Function I	Ingredient Speed Max		Single Use	Operating Time (approx.)	Preparation Method
Squeeze	Citrus Fruit	1	1000 mL	-		Cut fruit into halves.

EN10

How to Use - Knife Blade • Kneading Blade • Whipping Blade -

1

Place the knife blade (kneading blade or whipping blade) into the bowl.

Note:

For the blades, ensure that the drive shaft is protruding from the blade after insertion.

3

Plug-in the plug into the socket and turn the rotary switch to select the speed required (Refer to "Ingredient Preparations" at page EN8-EN9).

2

Put the ingredients into the bowl. Place the bowl lid on top of the bowl and turn it clockwise until a "click" sound is heard. Insert the food pusher into the feeding tube. Attach the bowl assembly onto the motor housing as seen in page EN8.

4

After the processing is completed, return the rotary switch to OFF position "0" and unplug from the socket. Remove the knife blade from the bowl before removing the processed ingredients.

Note:

Always ensure that the knife blade is inserted before adding ingredients into the bowl.

Do not insert hot ingredients into the bowl for processing. Always ensure that the ingredients are sufficiently cooled before inserting, i.e. boiled potato.

Do not exceed the stated amount of ingredients for the kneading blade as abnormal vibration may occur. (For MK-F510 only)

Do not overprocess the whipping cream, it may break down to form clumps of butter.

Using different brands of whipping cream will have varying results. It is recommended to process until the cream is sufficiently whipped.

Depending on the speed and amount of ingredients used, there will be significant vibrations present. In that case, hold down the bowl lid with both hands to support it during its operation.

For kneading, do not reprocess after the dough has formed the first time. (For MK-F510 only)

High amounts of butter and sugar in the dough may cause abnormal vibration when using the kneading blade. (For MK-F510 only)

Using flour other than bread flour on the kneading blade may cause abnormal vibration. Before processing, remove 1 \~ 2 tbsp of water from the total amount stated and add the water little by little during processing if necessary. (For MK-F510 only)

Food Processor

How to Use - Shredding Blade • Slicing Blade • French Fry Blade -

1

Fit the projected detent of the desired blade onto the blade stand and ensure it is seated properly. Push down on the dimple on the blade as seen above until a "snap" sound is heard.

Note:

Beware of the sharp edges on the blades while inserting into the blade stand.

To remove the blade, turn over the blade stand and push down on the reverse side of the dimple on the blade.

2

Insert finger and thumb into the finger holes to grip the blade stand. Place the assembled blade stand into the bowl. Attach the bowl to the motor housing as seen in page EN8, then place the blade stand into the bowl. Place the bowl lid on top of the bowl and turn it clockwise until a "click" sound is heard.

Note:

Ensure that the drive shaft is protruding from the blade stand after insertion.

3

Plug-in the plug into the socket and turn the rotary switch to select the speed required (Refer to the "Ingredient Preparations" at page EN10). Insert the ingredients into the feeding tube and push down with the food pusher.

4

After the processing is completed, return the rotary switch to OFF position "0" and unplug from the socket. Remove the blade stand from the bowl before removing the processed ingredients.

Note:

When using long and narrow ingredients, place it against the front wall of the feeding tube as indicated in Figure 1, for support while in operation to avoid uneven processing. Dispose of any remaining lumps of unprocessed ingredients. Align high fibre ingredients as indicated in Figure 2 for a consistent processing result.

Front Wall

Figure 1 Figure 2

EN12

How to Use - Citrus Press Attachment (For MK-F510 only) -

1

Place the citrus strainer onto the bowl. Turn it clockwise until a "click" sound is heard. Attach the citrus cone onto the drive shaft.

2

Attach the bowl assembly onto the motor housing as seen in page EN8. Plug-in the plug into the socket and turn the rotary switch to select the speed required.

3

Place the half cut fruit with the cut side on top of the citrus cone and press down firmly to extract juice.

4

After the processing is completed, return the rotary switch to OFF position "0" and unplug from the socket. Remove the citrus press attachment from the bowl before removing the processed ingredients.

Note:

Always ensure that the citrus cone is placed onto the citrus strainer before usage.

Stop the processing periodically to remove the pulp remaining on the citrus strainer to ease the juice extraction process.

k is not recommended to operate the citrus press attachment at speed 2.

Blender (for MK-F510 only)

Before Use

1. Place the blender jug on top of the motor housing. Ensure that the mark on the blender jug is aligned with the triangle mark on the motor housing as seen in position A.

2. Turn the blender jug clockwise until a "click" sound is heard. Ensure that the mark on the blender jug is aligned with the rectangle mark on the motor housing as seen in B.

To disassemble, follow the assembly steps in reverse.

Ingredient Preparations for Blender

Function	Ingredient	Speed	Max Single Use	Operating Time (approx.)	Preparation Method
Liquidize Fruit, Vegetable 2 1 L ~		2 min				Cut into 1 cm cubes.

How to Use

1

Insert ingredients into the blender jug and close with the blender lid. Attach the blender attachment onto the motor housing as seen above. Plug-in the plug into the socket and turn the rotary switch to select the speed required.

2

After the processing is completed, return the rotary switch to OFF position "0" and unplug from the socket. Remove the blender attachment from the motor housing and proceed to remove the ingredients.

Note:

Maximum working capacity: 1 L.

Prohibited ingredients for blender jug: Refer to page EN5.

It is not recommended to blend hard and viscous ingredients. However, if necessary, cut the hard ingredients into small pieces (e.g. cut carrot into 1cm³ cubes) and fill the blender jug with the ingredients not exceeding half its rated capacity.

Do not fill exceeding the maximum level and reduce ingredients when appliance makes abnormal sound or vibration during operation.

Add in soft ingredients (fruits, vegetables) into the blender jug before adding in other ingredients.

If the blender blade gets stuck, switch off immediately and unplug. Do not attempt to proceed to unstuck the ingredients with your fingers, use an object like a rubber spatula instead.

During blending, there is a possibility that the ingredients will splash out of the blender lid hole. In the event that it splashes out, wipe it off with a dry cloth.

Do not operate exceeding the rated operation duration (3 min ON, 1 min OFF).

EN14

Dry Mill (for MK-F510 only)

Before Use

Ingredient Preparations for Dry Mill

Function Ingredient Speed			Max Single Use	Operating Time (approx.)	Preparation Method
Grind	Coffee Bean	2 Till	Max Level ~ 60 sec -
	Pepper

How to Use

1

Turn the mill container upside down and fill in the ingredients without exceeding the maximum level indicated. Place the mill container base into the mill container and turn it clockwise until a "click" sound is heard.

3

After the processing is completed, return the rotary switch to OFF position "0" and unplug from the socket. Remove the dry mill attachment from the motor housing and proceed to remove the ingredients.

2

Attach the dry mill attachment onto the motor housing. Turn the dry mill attachment clockwise until a "click" sound is heard. Plug-in the plug into the socket and turn the rotary switch to select the speed required.

4

Turn the mill container base anticlockwise to unlock and lift up from the mill container.

Note:

While removing the ingredients, be careful of the cutting blades.

Do not operate exceeding the rated operation duration (1 min ON, 2 min OFF).

Prohibited ingredients: Refer to page EN5.

Do not operate the unit with empty dry mill.

Do not fill exceeding the maximum level and reduce ingredients when the appliance makes an abnormal sound or vibrates during operation.

EN15

After Use

Cleaning

Pre-wash

The pre-wash enables easier cleaning. It can be used for the knife blade and blender attachment. To pre-wash, simply follow the steps below.

1 Food Processor

Put the used attachment inside the bowl, fill the bowl with water until the attachment is submerged in water (max. 500 mL). Place the bowl lid on top of the bowl and turn it clockwise until a "click" sound is heard.

For the blender attachment, fill 500 mL of water into the blender jug and cover with the blender lid. Plug-in the plug into the socket.

2

Food Processor: Turn the rotary switch to "P" 5 \~ 10 times.

Blender: Turn the rotary switch to select speed 2 and operate for 10 \~ 20 seconds.

3

Return the rotary switch to OFF position "0" and unplug from the socket. Remove the attachments and proceed for cleaning.

Bowl: When cleaning, if ingredients falls into the handle hole accidentally, turn the bowl upside down, then rinse it out with water.

Running Water	✓ ✓ ✓	✓ ✓ ✓
Dishwasher	× ✓ ✓	✓ ✓ ✓
Well-wrung Damp Cloth	✓ ✓ ✓	✓ ✓ ✓
Brush (Not included with this product.)	× × × ×	× × ✓
Scouring Pad	× × × ×	× × ×
Soft Sponge	✓ ✓ ✓	✓ ✓ ✓
Note	Do not place these items near the dishwasher heater area as high temperatures may damage the parts.		----
	Wash these items by rinsing them under running water. Use neutral kitchen detergent if necessary. Proceed to wipe them dry with a clean cloth.

EN16

Running Water	✓ ✓ ✓	✓ ✓ ✗ ✗
Dishwasher	✓ ✓ ✓	✓ ✗ ✗ ✗
Well-wrung Damp Cloth	× × ×	× × × ✓
Brush (Not included with this product.)	✓ ✓ ✓	✓ ✓ ✓ ✗
Scouring Pad	× × ×	× × × ✗
Soft Sponge	× × ×	× × × ✓
Note	Wash these items by rinsing them under running water, and clean carefully with a brush. Use neutral kitchen detergent if necessary.					The mill container base must not be washed, use a brush to clean.	Wipe off any dirt or stains with a clean damp cloth (including rubber suckers).
	These items are extremely sharp and should be handled with extra care while cleaning. Avoid hitting these items on hard objects during the cleaning process.						Never use corrosive liquids (e.g. alcohol, thinner, etc.) to clean the motor housing.

Storing

Ensure all attachments and the bowl are removed from the motor housing prior to storage.

1

2

To release the rubber suckers suction of the motor housing by the following steps:

First, pull up the ears of the 2 rubber suckers on the back with your hands, and then lift the tail of the body to leave from the desktop. 2nd, pull up the ears of the front 2 rubber suckers, and then lift the whole body away from the desktop.

Store the knife blade inside the bowl. The blade storage stand is included to store the slicing blade, the shedding blade and French fry blade. Place blade storage stand into the bowl. Note:

When storing, in order to avoid injury, grip the projected detent of blade and align the circle on the blade with the circle on the blade storage stand, then put it into the blade storage stand.

EN17

Troubleshooting

Check following points before calling or arranging for repair.

Problem Cause and A

The appliance does not turn on.

The plug is loose in the outlet. Plug in firmly into the outlet.

The appliance does not operate even when the rotary switch is activated.

The bowl, blender attachment, dry mill attachment is not properly locked onto the motor housing. Ensure that the mark on the attachments are aligned with the rectangular mark on the motor housing as seen in page EN8 and page EN14.

The bowl lid is not fully locked onto the bowl. Fully secure the bowl lid onto the bowl. (P. EN7)

The ingredients are jammed. Remove the ingredients carefully and ensure that the amount used is as stated.

The appliance suddenly stops during operation.

The protection device of overload or overheating is activated. Refer to "Overload and Overheating Protection" for inspection. (P. EN7)

The safety lock is triggered. (Refer to page EN7)

Abnormal vibration during operation may offset the safety lock engagement. Ensure that the ingredients used and the amount are as stated. Lock the bowl lid or citrus strainer onto the bowl firmly, and ensure that the bowl, blender attachment, or dry mill attachment is locked firmly onto the motor housing.

There is abnormal vibration and noise during operation.

The rubber suckers and/or the work top are not clean. Wipe off any dirt or stains with a clean damp cloth. The rubber sucker is only effective when placed on a clean, smooth and flat surface.

The ingredients used for processing are either too much or too hard. Ensure that the ingredients used are as stated, reduce the ingredients if it is over the stated amount.

The texture and consistency of the processed ingredients do not turn out well.

Some ingredients might be too difficult to process raw, e.g. pumpkin. Precook might be necessary to soften the ingredients before processing, i.e. until a fork can easily pierce.

Ingredient size is not according to the preparation method. Prepare accordingly to follow the size stated.

Processing certain ingredients at the same time may result in lumps remaining for frozen function.

The maximum ingredient amount and processing duration are meant to serve as a guideline. As a result, lesser ingredient amount and different ingredients affect the performance.

Process the ingredients with a suitable duration till the desired texture and consistency.

EN18

Specifications

	Food Processor		Blender & Dry Mill(For MK-F510 only)
Power supply	220 - 240 V ~50 - 60 Hz
Power consumption	270 - 300 W
Rated time	2 minutes ON, 4 minute OFF		Blender: 3 minutes ON,1 minute OFFDry Mill: 1 minute ON,2 minutes OFF
	With exception for the stated on "Ingredient Preparations" pages.(See page EN8-EN10, EN14-EN15.)
Capacity (approximately)	Bowl Capacity: 2.4 LMaximum working capacity :Minced Meat = 400 gMinced Fish = 500 gChopped Vegetable (Onion) = 500 g		Blender Capacity: 1.35 LMaximum working capacity :Blender = 1 LDry Mill = 50 g (Coffee Beans)
Dimensions (approximately)(H x D x W)	407 x 255 x 235 mm		Blender: 377 x 255 x 235 mmDry Mill: 275 x 255 x 235 mm
Weight.(approximately)	3.0 kg		Blender: 2.1 kgDry Mill: 1.9 kg
Attachment & Accessories	MK-F510MK-F310	Knife Blade, Whipping Blade, Blade Stand,Shredding Blades, Slicing Blades,French Fry Blade and Blade Storage Stand
	MK-F510	Kneading Blade and Citrus Press Attachment	Blender Attachment, Dry mill Attachment

مشخصات

2

1

2

4

3

2

4

4

3

2

4

ملاحظة:

Increasing Mathematics in the Wages. Subjecting the Wages of the Wages, we must be to determine by the Wages of the Wages. The Wages are not only a minimum value of 100%.

2

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

-

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

●

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

●

[Non-Text]

●

[Non-Text]

●

(五)

-

AR4

تحذیر

Manufacturer: Panasonic Manufacturing (Xiamen) Co., Ltd.

No.17, Chuangxin Road, Torch Hi-tech Industrial

Development Zone, Xiamen, Fujian, P.R.China

Jebel Ali Dubai United Arab Emirates

* For GSO Member Countries

© Panasonic Manufacturing (Xiamen) Co., Ltd. 2022

Printed in China
