Product Type	Built-in Electric Oven
Brand	Enders
Model	Aurora
Energy Source	Electric
Dimensions (H x W x D)	595 x 595 x 545 mm
Weight	30 kg
Power Consumption	3.0 kW
Mains Connection	230 V / 16 A
Heating Functions	Conventional Heat, Grill, Fan-Assisted, Bottom Heat, Defrost
Temperature Range	50 °C - 275 °C
Timer	Digital Timer with Programmable End of Cooking
Interior Light	Yes, with automatic switch-off
Safety Features	Child Lock, Cool Touch Door, Automatic Shut-Off
Cleaning	Enamel Interior, Easy-Clean Door
Spare Parts	Available from Enders Customer Service
Warranty	2 years

Frequently Asked Questions - Aurora Enders

How do I preheat the Aurora oven?

Select the desired heating function and set the temperature using the temperature knob. The oven will indicate when it reaches the set temperature.

What does the child lock do and how to activate it?

The child lock prevents accidental operation. Press and hold the lock button for 3 seconds to activate or deactivate.

How to clean the oven interior?

Use a damp cloth with mild detergent. Avoid abrasive cleaners. For stubborn stains, use the self-cleaning cycle if available, or a commercial oven cleaner.

What should I do if the oven does not heat?

Check the power supply, ensure the timer is set correctly, and verify that the child lock is not engaged. If the problem persists, contact Enders service.

Can I use aluminum foil in the oven?

Yes, but do not cover the bottom or heating elements. Use foil only on baking trays or to wrap food.

How to replace the oven light bulb?

Disconnect power, remove the glass cover, and replace with a 300°C heat-resistant bulb (e.g., E14). Reassemble and reconnect.

What do error codes E1, E2 mean?

E1 indicates a sensor fault, E2 indicates overheating. Try resetting by disconnecting power for 10 minutes. If the error persists, call service.

How do I set the timer for delayed cooking?

Press the timer button, set the end time using the +/- buttons, select cooking function and temperature. The oven will start automatically.

Is the oven door removable for cleaning?

Yes, open the door fully, lift the latches, and gently close until it releases. Clean with mild soapy water.

Where can I find the user manual for the Enders Aurora?

You can download the PDF manual from notice-facile.com or the Enders official website.

USER MANUAL Aurora Enders

Do not use the grill in enclosed and/or living spaces such as houses, tents, caravans, campervans and boats. Risk of carbon monoxide poisoning.

CONTENTS

ABOUT THIS TABLE GRILL 3

SYMBOLS IN THIS MANUAL 3

UNPACKING THE TABLE GRILL 4

SAFETY INSTRUCTIONS

DESCRIPTION OF PARTS/SCOPE OF DELIVERY

BASIC DESIGN

CLEANING THE TABLE GRILL 10

SAFETY INSTRUCTIONS

DISPOSING OF THE TABLE GRILL 10

ACCESSORIES 11

WARRANTY 12

MANUFACTURER 12

ABOUT THIS TABLE GRILL

Congratulations on purchasing this Enders product!

Before assembling and operating the device, read and observe these instructions for use and the safety instructions. Only use the product as described in these instructions, to prevent accidental injury or damage.

Keep these instructions for future reference. If the item is given to someone else, please also pass on these instructions.

We hope you enjoy using your Enders device.

SYMBOLS IN THIS MANUAL

This symbol stands for the signal word CAUTION and warns you of possible injuries or material damage as well as damage to the device.

To avoid scratching the device, do not use a blade or similar sharp objects to open the packaging.

Useful tips and information.

UNPACKING THE TABLE GRILL

SAFETY INSTRUCTIONS

Risk of death by suffocation/swallowing. Keep the packaging material out of reach of children and dispose of it immediately. Also keep small parts out of their reach.

■ Remove all packaging materials and protective films from the individual parts before starting with the assembly.

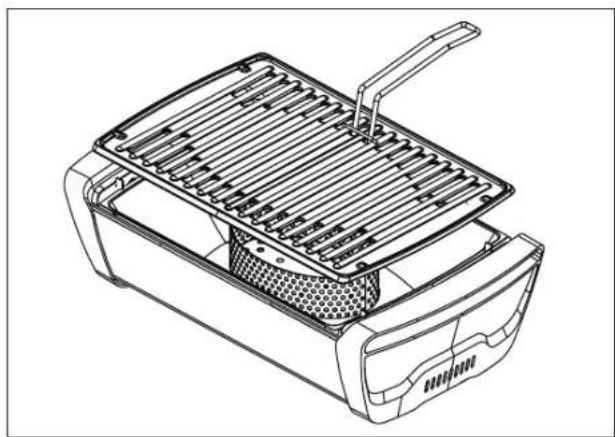

DESCRIPTION OF PARTS/SCOPE OF DELIVERY

No. Description AURORA Quantity
1 Body 1
2 Reflector trough 1
3 Ignition bowl 1
4 Charcoal container 1
5 Grease guard 1
6 Enamelled grill grate 1
7 USB cable (5 V DC) 1
8 Grate lifter 1

No.	Description AURORA MIRROR	Quantity
1	Body 1
2	Reflector trough 1
3	Ignition bowl 1
4	Charcoal container 1
5	Grease guard 1
6	Enamelled cast grate	1
7	USB cable [5 V DC] 1
8	Grate lifter 1
	with mood lighting

BASIC DESIGN

■ CAUTION! Do not move this grill during operation as it becomes very hot!
- Do not use in enclosed spaces! There is a risk of carbon monoxide poisoning when grilling indoors.
■ CAUTION! Do not use alcohol or petrol for lighting or relighting the grill! Only use ignition aids that comply with EN 1860-3!
■ CAUTION! Keep away from children and pets!
■ CAUTION! For safety reasons, the device may only be ignited with ignition paste. Make sure that no ignition paste gets into the air duct. Do not use a charcoal starter or anything similar!
- Do not remove the charcoal from the charcoal container after lighting.
- Do not place food on the grill until the fuel is covered with a layer of ashes!
■ Never leave the hot grill unattended.
■ Never touch metal parts; they can be very hot.
■ Make sure that the grate is always correctly positioned on the supports.
■ Never operate the charcoal grill without the grease guard (part no. 5).
Dab excess fat/marinade off the food before grilling. This does not diminish the taste of the grilled food; it is purely to prevent a grease fire.
To avoid a grease fire and to prevent grease from flowing into the interior, make sure that any grease dripping from the grill does not exceed the "max" mark.
- Let the grill cool down completely before cleaning.
- Please always choose a safe, level surface in a suitable location to use the grill.

The device should not be transported while warm.
We recommend that the grill be heated up before first use and that the fuel burns for at least 30 minutes.
The charcoal container has a maximum capacity of 150 g for Enders Beech Charcoal.
- Do not use this grill near flammable objects.
■ Do not use aerosol sprays near the device.
■ Make sure that the live parts do not get wet.
- Do not allow the enamelled cast grates to come into contact with highly acidic food.
To prevent damage to the coating of the enamelled grill grate due to thermal shock, never place very cold or frozen food on it! (Only applies to grill grates.)
■ Do not allow children to play with the device.
- Do not allow children to carry out cleaning or user maintenance.

BATTERY OPERATION FIRE AND EXPLOSION HAZARD

Danger for children and persons with reduced physical, sensory or mental capabilities (e.g. partially disabled people, elderly people with reduced physical and mental capabilities) or a lack of experience and knowledge (e.g. children).

• Keep the device away from children younger than 8 years of age.
  Children over 8 years of age may only switch the device on and off if they are supervised or have been instructed in the safe use of the device and have understood the dangers involved.
  ■ CAUTION: Risk of explosion if batteries are not handled properly.
  Batteries must not be charged, reactivated by other means, taken apart, thrown into fire, heated or short-circuited. Otherwise there is an increased risk of explosion and leakage, and gases may escape!

- Avoid contact of the battery fluid with skin, eyes and mucous membranes In case of contact, rinse the affected areas immediately with plenty of clean water and consult a doctor immediately.

■ Safe handling of the batteries must be ensured: only commercially approved AA/LR6 batteries in perfect condition may be used.

■ CAUTION! Do not use rechargeable batteries. The temperature in the battery compartment can be very high.

■ CAUTION! Batteries may only be changed when the device has cooled down.

If necessary, clean the battery and device contacts before inserting them.

■ Remove the batteries from the grill when they are flat or if you do not intend to use the grill for a long time. This way you avoid damage that can be caused by battery leakages.

Do not expose batteries to extreme conditions, e.g. by storing them on heaters or in direct sunlight. Increased risk of leakage!

FIRE AND EXPLOSION HAZARD

Alternatively, the table grill can also be operated with a certified power bank.

■ CAUTION! Do not place the power bank too close to the long side of your table grill.
■ CAUTION! Only power banks certified according to EN 60950-1 and EN 62368-1 may be used.

1. Open the battery compartment lock on the outside of the grill. To lock or unlock the battery compartment, press lightly against the handle. The battery compartment can be pulled out for removal. Insert four AA/LR6 batteries. Please ensure the correct polarity. Slide the battery compartment back into the side panel and close it.

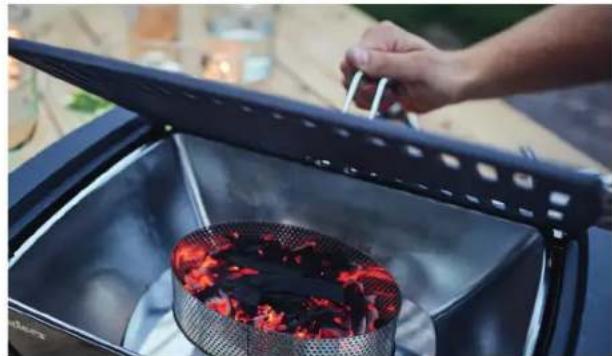

2. Fill the charcoal container completely to the brim with Enders Beech Charcoal (max. 150 g).
3. Apply an even, approximately 10 mm-wide ring of the Enders Ignition Paste around the hole of the ignition bowl (approx. 20 ml). The ignition bowl is positioned in the designated recess.

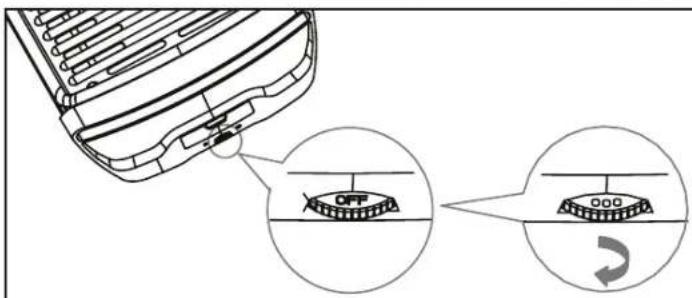

4. Switch on the fan control knob on the exterior and turn it to the highest level to begin with (three-dot position). To prevent the flame from being smothered during the ignition process, the fan must remain switched on until the charcoal is glowing completely.

SETTING 3
Ignition setting and full load

AURORA/AURORA MIRROR FEATURES

SAFETY INSTRUCTIONS

■ CAUTION: Do not switch the LED ambient light on and off during operation!

■ Make sure that the live parts do not get wet.
■ Do not allow the enamelled cast grates to come into contact with highly acidic food.

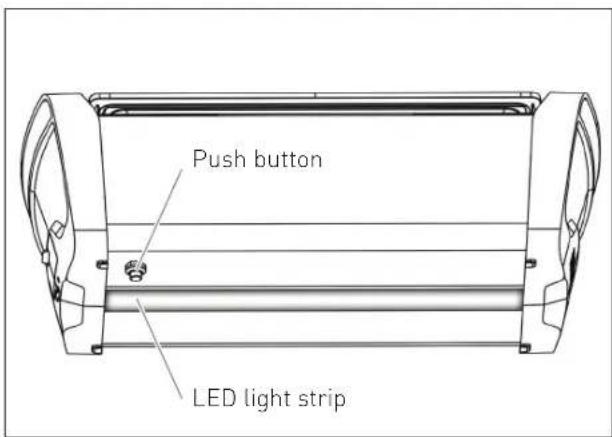

■ The LED light can be switched on and off with a push button underneath the device.

LED MOOD LIGHT

(ONLY AURORA MIRROR) GRATE LIFTER

CLEANING THE TABLE GRILL

SAFETY INSTRUCTIONS

Despite careful processing of all individual parts, individual components may have sharp edges. For this reason, wear safety gloves to prevent cuts.
■ Hot surface: wait until the charcoal grill has cooled down sufficiently before cleaning.
■ Do not use flammable cleaning agents.
■ Make sure that the live parts do not get wet.

To avoid a grease fire and to prevent grease from flowing into the interior, make sure that any grease dripping from the grill does not exceed the "max" mark.
- Do not allow children to carry out cleaning or user maintenance.

■ Clean the grill completely after each use.
■ Do not use abrasive or chlorinated cleaning agents.
■ Use a mild detergent and warm water to clean the varnished body and plastic parts. Then dry the surface with a soft cloth.

The reflector trough, the charcoal container, the grease guard and the ignition bowl can be easily cleaned of grime and grease residues with Enders Rack Cleaner/Barbecue Cleaner. All four components are made of stainless steel and therefore also dishwasher safe.
■ We recommend Enders Rack Cleaner/Barbecue Cleaner for cleaning the grill grate.
■ Dry the grill completely before the next use.

DISPOSAL

The product packaging is made of recyclable materials. Please dispose of packaging according to material type in the designated collection containers.

If you no longer wish to keep the article, do not throw it in the household waste. Ask your local waste disposal company or municipal administration about possibilities for environmentally friendly and resource-conservative disposal.

Empty batteries must be disposed of in accordance with the legal regulations (BattG). Empty batteries must not be disposed of with household waste. As a consumer, you are legally obliged to dispose of all rechargeable and non-rechargeable batteries, whether they contain harmful substances* or not, at a collection point in your community, district or retail outlet so that they can be disposed of in an environmentally friendly manner.

*marked with: Cd = cadmium, Pb = lead

Only dispose of used charcoal in metal or other non-flammable containers intended for this purpose. Do not place them in plastic containers or other containers made of flammable materials.

OPTIONALLY AVAILABLE ACCESSORIES

IGNITION PASTE 200 ML

Item no. 1386

BEECH CHARCOAL 1 KG

Item no. 1383

AURORA BAG

With the gymstyle bag for the Aurora, you can easily transport your grill from A to B. The included carrying case keeps the grill from getting the inside of the bag dirty.

■ Bag made of tough and easy to clean nylon
The individually adjustable straps make it comfortable to carry

Item no. 1389

WARRANTY

We grant a 2-year warranty on the functioning of the device. The proper handling of the device and official proof of the date of purchase are required for the warranty to be applicable.

The warranty expires at the end of the warranty period or immediately if you make any modifications to the device yourself. No modifications may be carried out on components that have been sealed by the manufacturer or their representative!

If, despite our quality checks, your product should be defective, please do not bring it back to the retailer but contact the service directly. By doing so, we can ensure a quick processing of your complaint.

Service:

www.enders-germany.com

Please fill in the form and keep the warranty card and proof of purchase for further questions!

Model name

Item number Manufacturer

Serial number (see back of device)

Purchase date

Place of purchase

MANUFACTURER

Enders Colsman AG

Subject to colour variations and technical modifications for the purpose of product improvement.

Attach proof of purchase
