SC-SS0014-GS - Sauna SteamSpa - Free user manual and instructions

Product Type	Infrared Sauna
Model	SC-SS0014-GS
Brand	SteamSpa
Dimensions (External)	120 x 120 x 190 cm
Weight	100 kg
Power Supply	220-240V / 50-60Hz
Power Consumption	3000 W
Heater Type	Carbon Fiber Infrared
Number of Heaters	6
Temperature Range	30-70 °C
Timer	0-60 minutes
Capacity	2-3 persons
Material	Canadian Hemlock Wood
Seats Included	2 benches, 1 backrest
Lighting	LED Chromotherapy
Audio System	Bluetooth Speaker
Control Panel	Digital touchscreen
Cleaning	Wipe with damp cloth; mild soap
Safety Features	Auto shut-off, overheat protection
Spare Parts Availability	Heaters, control board, glass door
Warranty	1 year limited
Manual Languages	English, French, Spanish, German

Frequently Asked Questions - SC-SS0014-GS SteamSpa

How long does it take to heat up the sauna?

Heating time is typically 15-30 minutes depending on ambient temperature and desired heat level.

Can I install the sauna outdoors?

It is designed for indoor use only. Outdoor installation may damage the wood and electronics.

What is the recommended cleaning routine?

Wipe the interior with a damp cloth after each use. Use mild soap for stains. Avoid harsh chemicals.

Does the sauna require assembly?

Yes, some assembly is required. The manual includes step-by-step instructions and all necessary hardware.

What type of wood is used?

The sauna is made from Canadian Hemlock wood, known for its durability and low resin content.

How many people can use it at once?

The sauna can comfortably accommodate 2-3 persons.

What safety features does it have?

It includes auto shut-off timer and overheat protection to ensure safe operation.

Can I connect my phone via Bluetooth?

Yes, it has a built-in Bluetooth speaker to play music from your phone.

What is the power requirement?

It requires a 220-240V outlet with a dedicated circuit of at least 15 amps.

How do I get spare parts?

Spare parts such as heaters, control boards, and glass doors can be ordered through the manufacturer or authorized dealers.

USER MANUAL SC-SS0014-GS SteamSpa

INFRARED SAUNA USER GUIDE

MODELS

SC-SS0014-GS

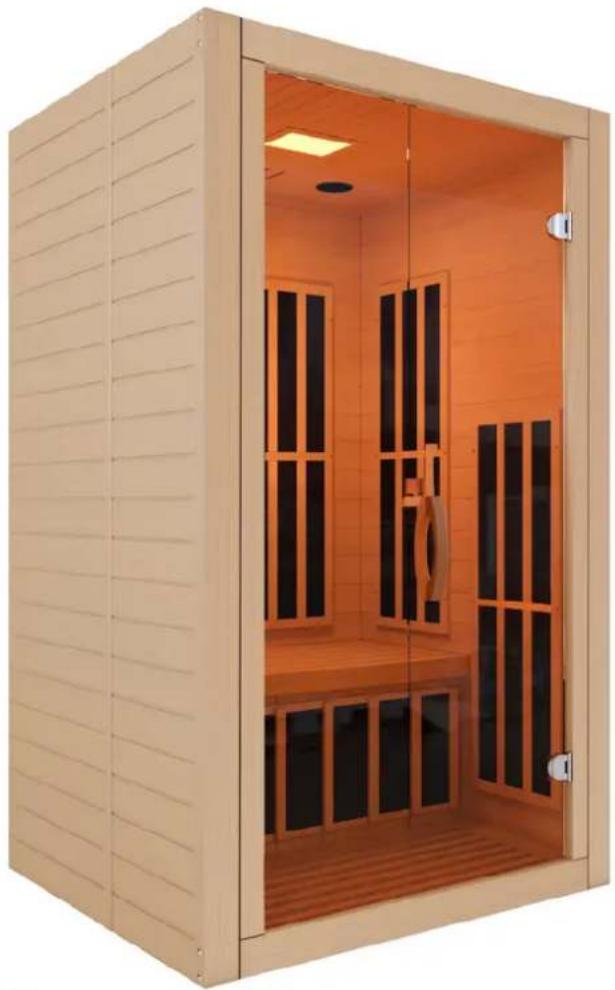

Exterior view of a beige bamboo-style exercise chamber with open doors and black windows (no text or symbols visible)

DON'T WAIT! REGISTER NOW!

Register your product within 90 days to ensure your sauna is recognized as an official purchase and is eligible for warranty coverage.

Mail in the completed registry card or register online at www.SteamSpa.com/register.

PRODUCT REGISTRATION\*

IMPORTANT: Your warranty will not be recognized unless this card is fully completed and returned or online registration is completed.

To ensure that your warranty is registered and confirmed please do one of the following:

1. Register online at www.SteamSpa.com/register. You will be asked to fill out the same information you would in the registration card. Registering online is fast, secure and ensures we receive your information.
2. Complete, cut-out and mail the registration card below. By your returning card we confirm the date of purchase for your new product. This confirmation will allow us to process any warranty claims.

Mail the card to: 5701 NW 35 Avenue, Miami, FL 33142

CUT ALONG DOTTED LINE.

Product Registration Card

Name ...... Address ......

Date of Purchase.... Order or Purchase #.... SKU or Model #....

I have read the Owner's Guide carefully and understand and agree that any installation, operation or maintenance of the sauna and accessories must be done strictly in accordance with instructions and guidelines contained in the owner's manual and installation guide.

Signature.... Date....

IMPORTANT WARRANTY INFORMATION!

WARRANTY AND REPAIR GUIDELINES

SteamSpa warrants that this sauna unit will be free from manufacturer defects and malfunctions. For terms and conditions please refer to latest SteamSpa Warranty at www.SteamSpa.com/warranty.

Please be advised failure to comply with any of the following will VOID the warranty.

1. Sauna must registered within 90 days of delivery. See www.SteamSpa.com/register.

Warranty Period:

This product is covered under warranty for a period of one year, commencing from the date of purchase.

For further information or assistance, visit www.SteamSpa.com/warranty or call 1-800-856-0172.

TABLE OF CONTENTS

USER INSTRUCTIONS ....3

WARNING 3

ASSEMBLY TIPS....5

SPECIFICATIONS 6

PRODUCT SIZE CHART....6

COMPONENTS....7

INSTALLATION 8

INSTRUCTIONS FOR USE....15

SUGGESTIONS ......17

TROUBLE SHOOTING 18

IMPORTANT!

● Malfunctions, damages, part replacements and labor resulting from improper installation, negligence, or lack of care and maintenance will NOT be covered under the SteamSpa Warranty.
● PRIOR TO INSTALLATION, ENSURE THAT THE PRODUCT IS POWERED OFF.

Thank You for choosing SteamSpa for health, beauty and relaxation. Now you can enjoy your own private sanctuary in the comfort of your own home.

USER INSTRUCTIONS

1. Check for visible damages upon delivery of sauna. Any damages to packaging should be reported immediately to shipping company delivery representative and SteamSpa's Customer Service Dept.
2. Check model and accessories are correct, including voltage input. Any discrepancies are to be reported to SteamSpa's Customer Service Dept. within 48 hours of delivery.
3. Read installation instructions in detail for a secure and effective installation of SteamSpa sauna.
4. SteamSpa shall not be responsible for product damage or malfunction caused by self-installation or installation procedures which do not comply with user manual.
5. SteamSpa saunas are for indoor use only.

WARNING

Please read carefully before using sauna

● DO NOT use the sauna product with any of the following Health Conditions:

1. Any type of respiratory condition
2. Any type of a heart condition
3. High or low blood pressure
4. Pregnancy
5. Any skin disease or disorders
6. After or while drinking alcohol or alcoholic beverages
7. Hemophilia or are prone to bleeding

Check with your doctor regarding the use of this product if you have any other health conditions.

● Hyperthermia occurs when the internal temperature of the body reaches a level several degrees above the normal body temperature of 98.6^ F ( 37^ C). The symptoms of hyperthermia include an increase in the internal temperature of the body, dizziness, lethargy, drowsiness, and fainting. The effects of hyperthermia include:

a. Failure to preceive heat
b. Failure to recognize the need to exit, or Physical inability to exit the room
c. Unawareness of impending hazard
d. Fetal damage in pregnant women
e. Unconsciousness

WARNING

Please read carefully before using sauna

● Children must use the sauna under the care of an adult. For safety, do not play with it.
- Do not insert objects such as fingers or sticks into the heating tube plate to prevent danger.
● Never pour water in the sauna especially the heating board.
● Do not place items inside or on top of the sauna.
- Do not touch any electrical components with wet hands to prevent electric shock.
- Do not use the sauna during thunderstorms to prevent electric shock.
● Do not tilt the sauna, do not use sharp objects to strike the sauna.
● Shut down the sauna for half an hour after 4 hours of continuous use.
● Do not operate the sauna in a long-term high temperature environment.
- Do not use after intense exercise, wait until the body temperature returns to normal before using.
● If you feel any discomfort, please stop using immediately.
● Mind your head when getting in and out of the sauna.
● Do not sleep inside when the sauna turned on.
● Do not use any bath products in the sauna.
● To avoid burns, do not touch the heating element.
● Please keep the seat timber and floor heater dry to avoid damage!
● Do not take pets into the sauna room.
- Do not spray water on the radiators, This may result in electric shock or damage to the radiators.
● Do not touch the light bulb in use.
- If the bulb needs to be changed, unplug the sauna and let the bulb cool down before changing it.
● Do not use the sauna room if you have a trauma, eye disease or burns.
● Do not install shower heads or water spray devices above or inside the sauna.

Covering the heater or infrared emitter causes fire risk!

ASSEMBLY TIPS

Before you begin, read all assembly instructions and safety warnings carefully.

● This sauna requires at least 2 adults to complete assembly.
- Remove all of the contents from the package and check that you have all parts shown in the component list.
● NOTICE: Some parts may be pre-installed / pre-assembled.
● This manual is used for the assembly of several sauna models, some figures or drawings may not look exactly like your sauna.
● Protect the wood surface of sauna during assembly to avoid damage.
- Keep this manual for future reference.

ELECTRICAL REQUIREMENTS

• It is recommended to consult a licensed electrician and check local ordinances before installing any sauna.
  ● This sauna requires that receptacle and circuit breaker specifications are 15 amp.
  ● Electrical modifications may be required to adapt 15 amp current.
  ● This sauna requires a dedicated circuit, other appliances may not share the same outlet as the sauna.

Simple line drawing of a rectangular socket with three vertical slots and two dots, no text or symbols present.

CHOOSING A LOCATION

● This sauna should be placed INDOORS on a dry, level surface only.
● There should be a minimum of 5 inches clearance between the sauna and any wall.
● Make sure the main power cord will reach the outlet and remains easy to access.
● The sauna should only be used in a dry location, moisture will damage the wood and electrical components.
- Keep the sauna away form any potential hazards including water sources, flammable objects and combustible materials.

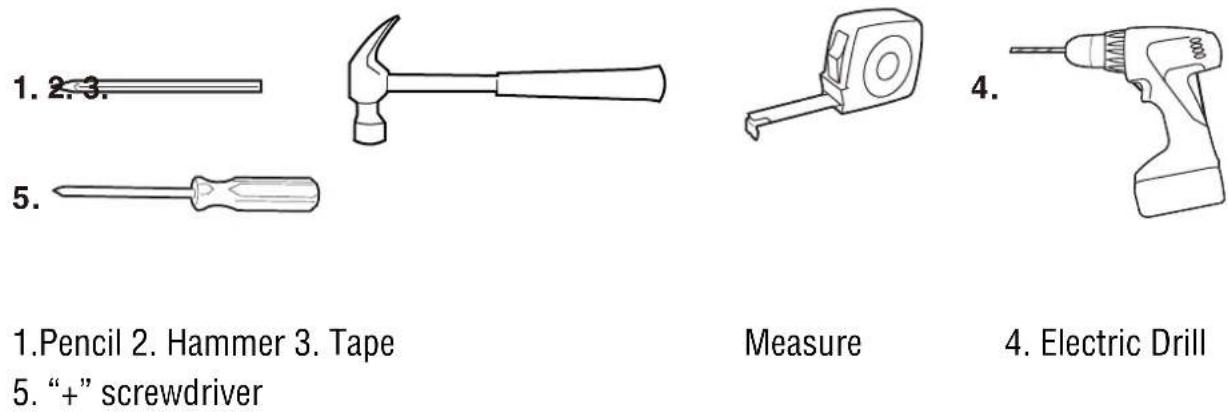

RECOMMEND TOOLS

SPECIFICATIONS

SPECS	SC-SS0014-GS
Assembled Tent Dimensions(L x W x H)	46" x 40" x 74.8" (1168 x 1016 x 1900mm)
Power	1725 Watts
Maximum Temperature	151°F (66°C)
Voltage	120V AC / 60Hz
Function	Control panel with temp adjust and timer, Audio with Bluetooth/AUX IN, Color LED light, Oxygen ionizer

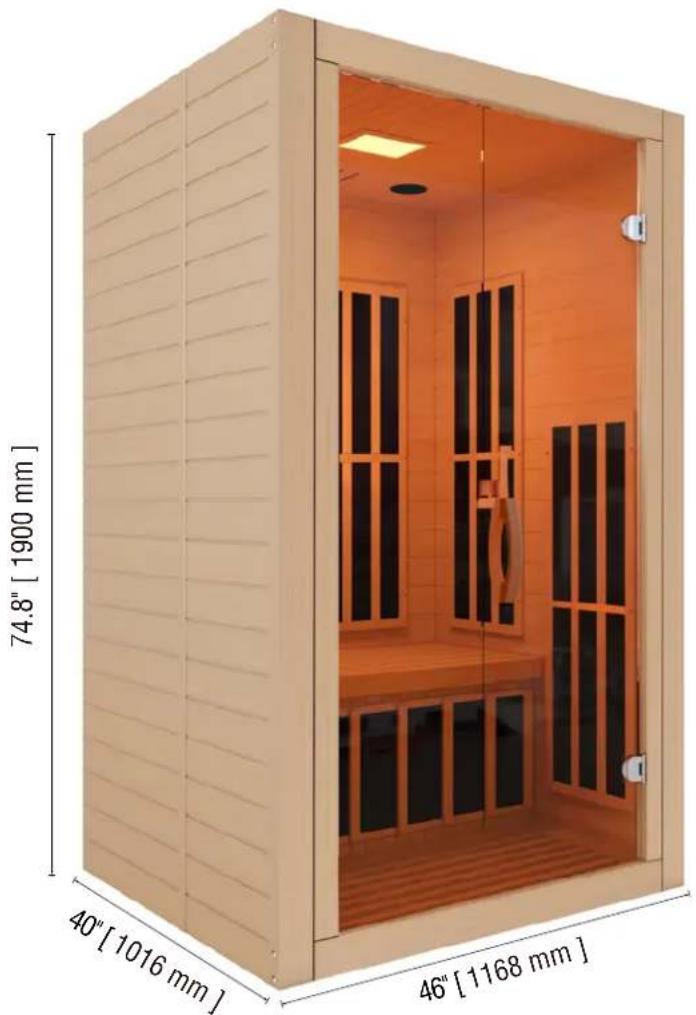

PRODUCT SIZE CHART

Exterior view of a beige bamboo-style water bath chamber with labeled dimensions (40", 46", 74.8") and interior panel (no text or symbols on the chamber itself)

COMPONENTS

1 Duster cover
2 Top board
3 Ventilation
4 Light
5 Control panel
6 Front board
7 Door glass
8 Handles with screw (x2)
9 Hinge
10 Left board
11 Control box
12 Back board
13 Right board
14 Bench
15 Bench front board
16 Bench heating unit
17 Foot rest board
18 Bottom board

Accessories

	Items	Qty.Parts
1	Self-tapping Screw(5*40)	6
2	Self-tapping Screw(3.5*25)	2
3	Self-tapping Screw(3*18)	13
4	Self-tapping Screw(3*16)	2

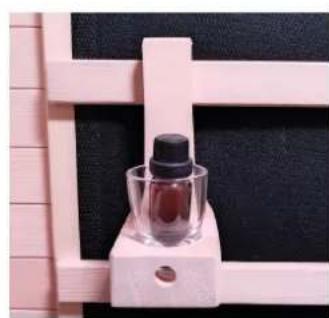

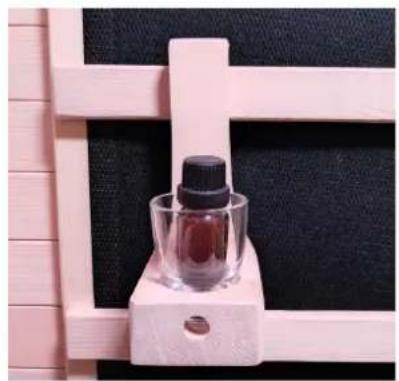

5	Aroma Therapy Kit 1

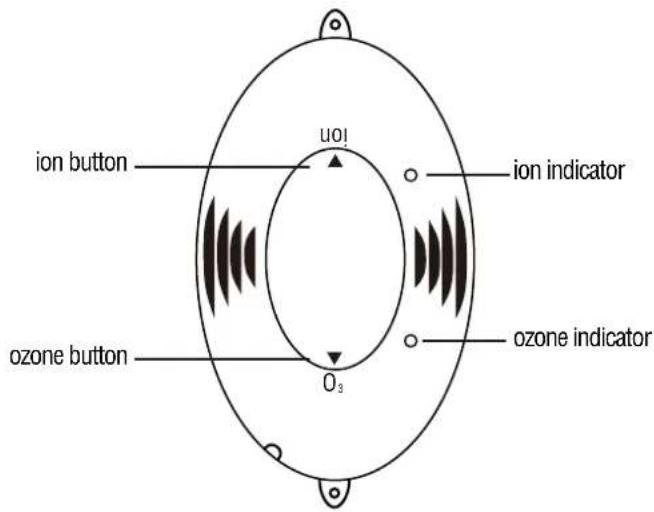

6	Oxygen ionizer	1
7	AUX cable	1

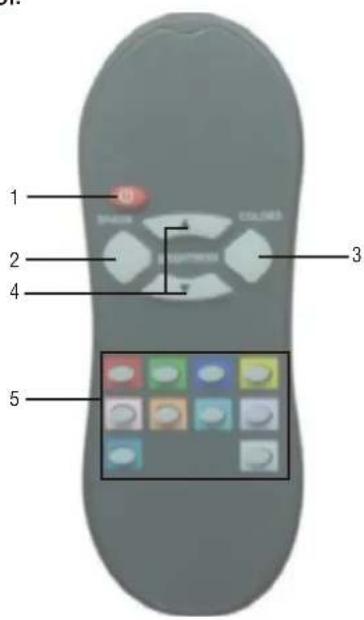

8	Remote control	1
9		1MP3 Shelf

NOTICE: Prepare two AAA batteries for remote control.

Pink lipstick holder with black cap mounted on a white stand against a dark background (no text or symbols visible)

5

Close-up of a metallic circular device with control knob and buttons, placed on a wooden surface (no visible text or symbols)

6

7

8

Hand holding a wall-mounted shelf with a wooden rack, against a plain wall (no text or symbols visible)

9

INSTALLATION

NOTICE:

Please read WARNING and ASSEMBLY TIPS section before installing the sauna.

The figures and drawings are used for the assembly guide only, parts and accessories may not be consistent with your sauna.

INSTALLATION

1. Find a location to place the Bottom board [18], see ASSEMBLY TIPS for details. Then Attach the Front board [6] to the Bottom board by lining up the Front board with the edge in front of the Bottom board. (Fig 1)

Diagram showing a wooden vent with slatted base transforming into an open orange interior (no text or symbols)

Fig 1

1. There are two kinds of buckles during whole installation, install as shown. (Fig 2)

Outer buckle installation

Hanging buckle installation

Fig 2

INSTALLATION

1. Attach the Right board [13] to the Front board by aligning the buckles and sliding the Right board down, locking it into place. (Fig 3)

2. Attach the Left board [10] to the Front board by aligning the buckles and sliding the Left board down, locking it into place. (Fig 4)

3. Attach the Back board [12] to the Bottom board by aligning the buckles of Left board and Right board, and sliding the Right board down, locking it into place. (Fig 5)

Exterior view of an orange cabinet door with slatted base and side panel (no text or symbols)

Fig 3

Interior view of a simple orange elevator with slats and ventilation grilles (no text or symbols)

Fig 4

Interior view of an empty orange room with vertical black bars and a small wall-mounted plaque (no text or symbols visible)

Fig 5

INSTALLATION

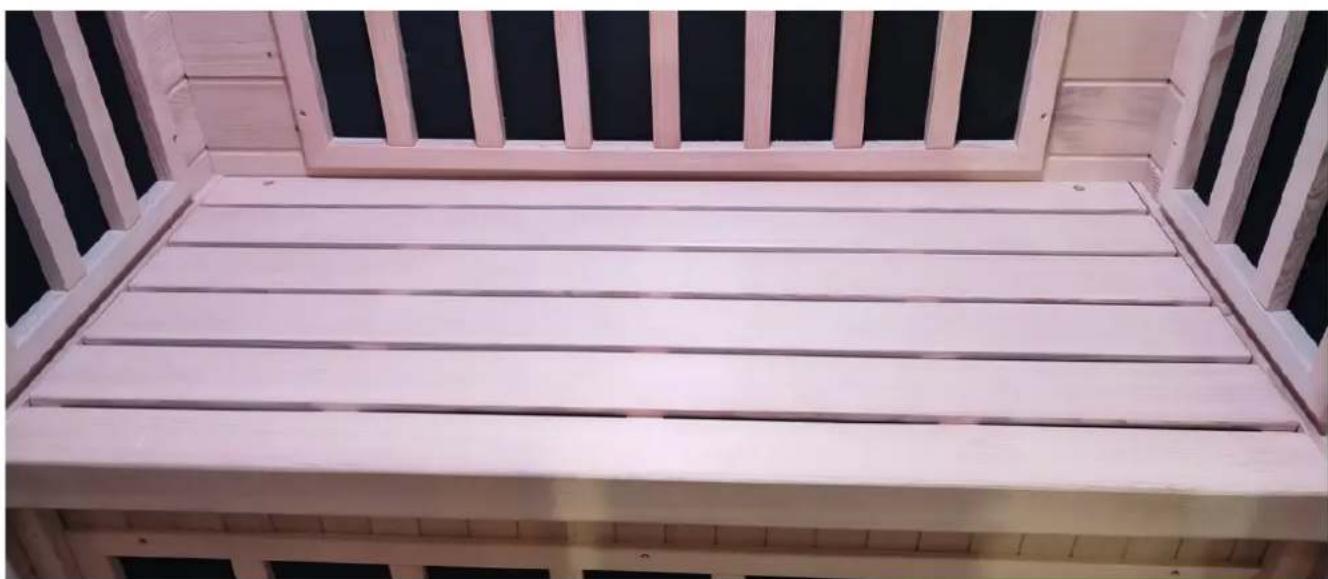

1. Slide the Bench front board [15] into the grooves on Left and Right board at an angle as shown (Fig 6), connect the power cable as shown (Fig 7).

Interior view of a wooden cabin with two compartments filled with black plates and a hand holding a tool (no visible text or symbols)

Fig 6

Line drawing of a plug with two connectors (no text or symbols)

Fig 7

1. Put the Bench [14] over the Bench front board and push it forward to Back board, fix Bench with Self-tapping screw(5*40).

Wooden bench with horizontal slats and vertical bars, no visible text or symbols

Fig 8

INSTALLATION

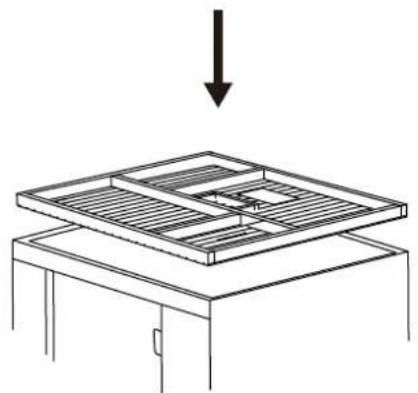

1. Lead the wires in the sauna to the top, Install the Top board [2] at the top of the sauna (Fig 9), and let wires through the groove of Top board.

Diagram of a structural frame with an arrow indicating downward force or compression (no text or symbols present)

Fig 9

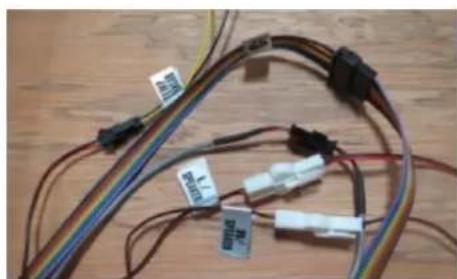

1. Every connection cable or plug has a corresponding pair, find male and female with the same label (like "Control") and plug in correctly, then connect electrical cord from heating panel to Control box [11], HT1 for Left board, HT2 for Back board, HT3 for Right board, HT4 for Bench heating unit [16], HT5 for Bottom board.

Exterior view of a white industrial electrical enclosure with visible wiring and mounting holes (no readable text or symbols)

Coiled multicolored cable with a black connector, placed on a wooden surface (no text or symbols visible)

Coiled electronic components with various connectors and labels, laid on a wooden surface (no readable text or symbols)

Fig 10

1. Find the wire from back board through the hole on the Back board, and connect the Oxygen Ionizer (independent parts), then use Electric drill to fix the Oxygen ionizer on the Back board with self-tapping screws (3*16). (Fig 11)

Close-up of hands holding a black cable with a metallic object, no visible text or symbols

Fig 11

INSTALLATION

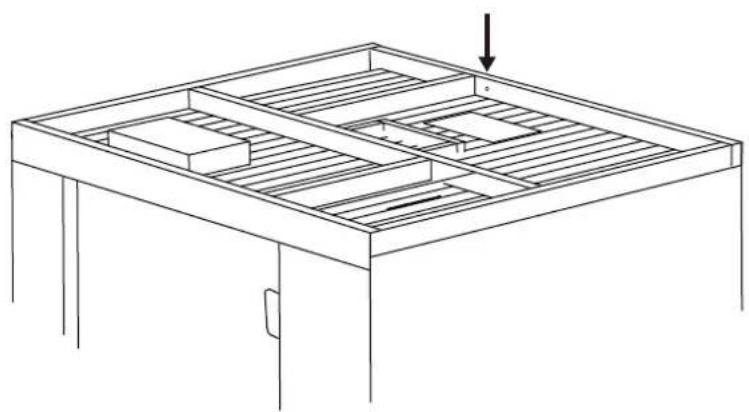

1. There are some holes at the edges around the Top board, use Self-tapping screws (5*40) to fix the Top board. (Fig 12)

Line drawing of a structural frame with slatted panels and a downward arrow indicating force or movement (no text or symbols)

Fig 12

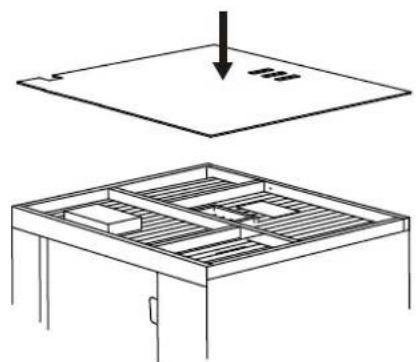

1. Put the Duster cover [1] on the Top board, then fix the Duster cover with self-tapping screws (3*18) at the four corners. (Fig 13)

NOTICE: If the duster cover in the package comes in two pieces, you need to fix screws at the optional positions as shown.

Technical line drawing showing a structural assembly with an arrow pointing to a component and a grid-like structure below (no text or symbols)

Fig 13

1. Seperate Handles [8] by unscrewing screws on the screw side.

Screw side is for inside of Door glass [7], another side is for outside.

Put the both handle align with the holes in Door glass, and fix the handle with screws at the wooden handle. (Fig 14)

Close-up of a wooden handle with a circular orange object on a light surface, next to a small window (no text or symbols visible)

Fig 14

INSTALLATION

1. Enter the sauna and remove the protective covering from the temperature sensor, ensure the sensor is vertical and pointing downward. (Fig 15)

2. (Optional) You can fix the MP3 shelf on the Left board near the AUX Input on ceiling with self-tapping screw (3.5*25). (Fig 16)

3. (Optional) You can hang the Aroma Therapy Kit on Left board or Right board as shown. (Fig 17)

4. Plug the main electrical cord into a dedicated outlet. NOTICE: The power outlet should be dedicated to the sauna. Do not share it with other appliances.

Fig 15

Hand holding a wooden wall-mounted shelf against a wall, no text or symbols visible

Fig 16

Close-up of a small glass vial with black cap mounted on a wooden frame against a dark textured background (no text or symbols visible)

Fig 17

INSTRUCTIONS FOR USE

Congratulations, the assembly of the sauna is now complete, Please review instructions, warnings & suggestions before using.

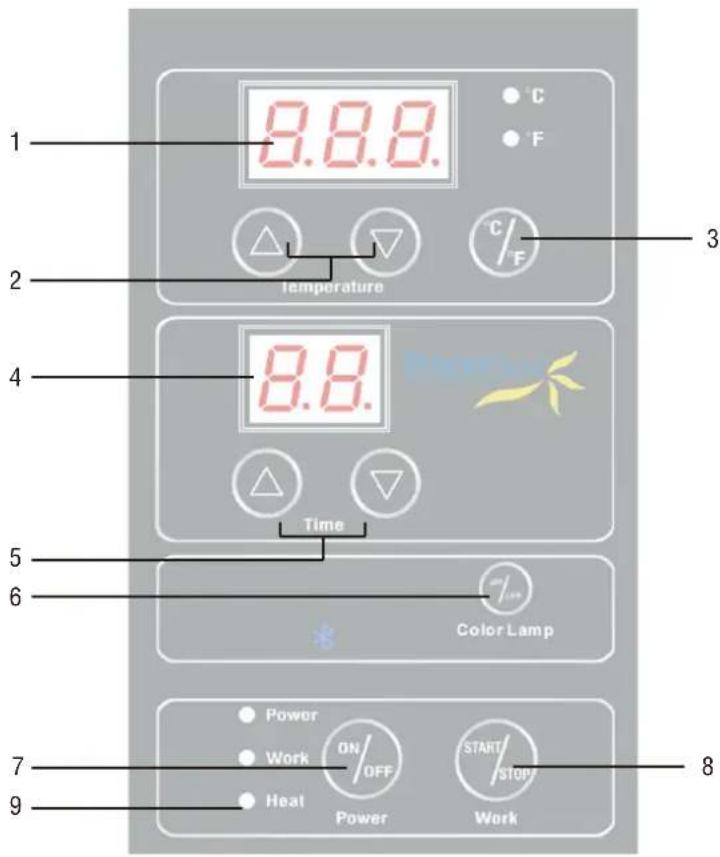

1 Temp display screen Display temp in sauna room.
2 Temperature setting button Press the button to adjust the heater temperature. Temperature range is 77-151°F [25-66°C].
3 Temp unit switch button Press the button to switch temp unit display at screen.
4 Timer display screen Display the countdown time.
5 Timer control button Press the button to set the timer, the time limit is 90 minutes. NOTICE: After the countdown is complete, you need to restart the panel to start the next sauna.
6 Color light switch button Press the button to switch color light ON/OFF. NOTICE: Switch on the color light on panel before using remote control.
7 Power button Press the button to switch sauna ON/OFF.
8 Work button Press the button to switch sauna heater ON/OFF.
9 Indicator Power: When the sauna is ON, the indicator will turn on. Work: When the sauna begin to heating, the indicator will turn on. Heat: When the heater is working, the indicator will turn on.

AUX Input

Use the Aux cable to connect the audio device with 3.5mm audio jack and AUX Input at sauna. Control the audio device to play music.

Bluetooth

When the sauna is ON, use devices that support Bluetooth audio playback(e.g. smartphone), find the bluetooth device called "Bluetooth", click to connect. If connect successful, the sauna will play the prompt tone, then you can use audio device to play music and control the volume.

INSTRUCTIONS FOR USE

Oxygen ionizer

1. Press ion button to turn ON/OFF ion function.
2. Press ozone button to turn ON/OFF ozone function.

Color light remote control

NOTICE: Switch on the color light on control panel before using remote control.

1 Power button
Press the button to switch color light ON/OFF.
2 Shade button
When color light turn on, press the button, the light will go through a sequence of colors.
3 Colors button
When color light turn on, press the button once time, the color light will change the color one time.
4 Brightness button
When color light turn on, press to adjust the brightness of light.
5 Select color button
When color light turn on, press to adjust the color of light.

SUGGESTIONS

Before using

1. Please be sure to follow the instruction manual before operations.
2. A hot shower or bath prior to the start of your sauna session, will help promote perspiration.

During using

1. STAY HYDRATED! Remember to drink plenty of water before, during and after your sauna.
2. A normal sauna session should last 30 minutes or less.
3. Perspiration will begin within 15-25 minutes.
4. Open the ceiling vent or door to allow fresh air into the sauna.
5. Ceiling vent can be adjusted in the sauna.
6. When activated, the ozone/ionizer may a produce a distinct odor.

After use

1. Always remember to unplug your sauna after each use.
2. Open the door to let the heat and humid water vapor dissipate and keep the sauna cabin dry.
3. Make sure to wipe any sweat from the sauna walls and surfaces. We recommend using a towel.

Clean wood parts

1. Use a wrung wet towel to wipe down the cabin's outer and inner surface. Additionally, we recommend running a small vacuum cleaner on the inner surfaces.
2. Avoid the use of any organic based cleaners such as gasoline or alcohol on the sauna's wooden surfaces.
3. Avoid using any sharp or abrasive materials to prevent scratching the wooden surfaces.

Cleaning glass parts

1. Use soft materials to wipe the glass such as a micro-fiber washcloth.
2. Stubborn stains can be wiped with a damp cloth, then dry with a dry cloth.
3. Void using any sharp or abrasive materials to prevent scratching the glass surfaces.

Transportation and storage

1. Avoid water, snow and intense impact during the transportation.
2. Do not store it in a humid environment.
3. The northern climate is relatively dry, keep the wood parts humid, for example, wipe the product with a wrung wet towel.

TROUBLE SHOOTING

SYMPTOM	POSSIBLE CAUSES	RECOMMENED ACTIONS
Indicator light for the power not working.	The connector is not connected properly.	Check the connector.
	No power supply input.	Contact SteamSpa service.
	The indicator light is broken.
Light is not working.	Wire is not well connected.	Check the connecting wire.
	The light is damaged.	Contact SteamSpa service.
Infrared Heater not heating up.	The heater is broken.	Contact SteamSpa service to replace heater.
	The wire junction or the heater's wire is loosened.	Check and tighten the connection.
	The temperature sensor is broken.	Contact SteamSpa service.
Odor from the sauna.	The circuit's problems, or foreign matter is heating.	1) There is foreign matter around, remove it.2) Heater is over heated or some parts are damaged, cut off the power supply, contact SteamSpa service.
Cannot play music or radio.	Bluetooth device connect failed.	Change another Bluetooth audio device.
	AUX Input cannot play music.	Change another AUX input audio device or AUX cable.
