BDL-A0218 - Garden hose Aqua Joe - Free user manual and instructions

Product Type	Garden Hose
Brand	Aqua Joe
Model	BDL-A0218
Length	15 meters (50 feet)
Inner Diameter	1.27 cm (1/2 inch)
Material	Reinforced Rubber
Maximum Pressure	200 PSI
Fittings	3/4 inch Male/Female Brass
Color	Green with Yellow Stripes
Weight	1.8 kg
Recommended Use	Garden watering, car washing
UV Resistance	Yes, UV treatment
Warranty	2 years
Operating Temperature	-10°C to 50°C
Maintenance	Rinse with clear water after use
Cleaning	Soapy water, avoid solvents
Storage	Protected from frost and sunlight
Safety	Do not use for hot water
Spare Parts	Replacement fittings available
Repairability	Repairable with seal kits
Box Contents	1 hose, 2 sealing gaskets

Frequently Asked Questions - BDL-A0218 Aqua Joe

What is the length of the Aqua Joe BDL-A0218 hose?

The hose measures 15 meters (50 feet).

Is the hose UV resistant?

Yes, it has a UV treatment to resist sunlight.

What is the inner diameter of the hose?

The inner diameter is 1.27 cm (1/2 inch), standard for most fittings.

What fittings are provided?

The hose comes with 3/4 inch male/female brass fittings.

Can I use this hose for hot water?

No, it is designed for cold water only. Max temperature 50°C.

How do I maintain the hose?

Rinse it with clear water after each use and store it away from frost.

Is the hose guaranteed?

Yes, 2 years warranty against manufacturing defects.

What is the maximum supported pressure?

The hose withstands up to 200 PSI (approximately 13.8 bar).

Can I repair a leak on this hose?

Yes, it is possible to use a repair kit to replace the fittings.

Where can I buy spare parts?

Fittings and gaskets are available from Aqua Joe or authorized dealers.

USER MANUAL BDL-A0218 Aqua Joe

INDESTRUCTIBLE METAL BASE

TURBO OSCILLATING

SPRINKLER

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

If you have any questions or comments,

please call the Snow Joe® + Sun Joe® customer service department at:

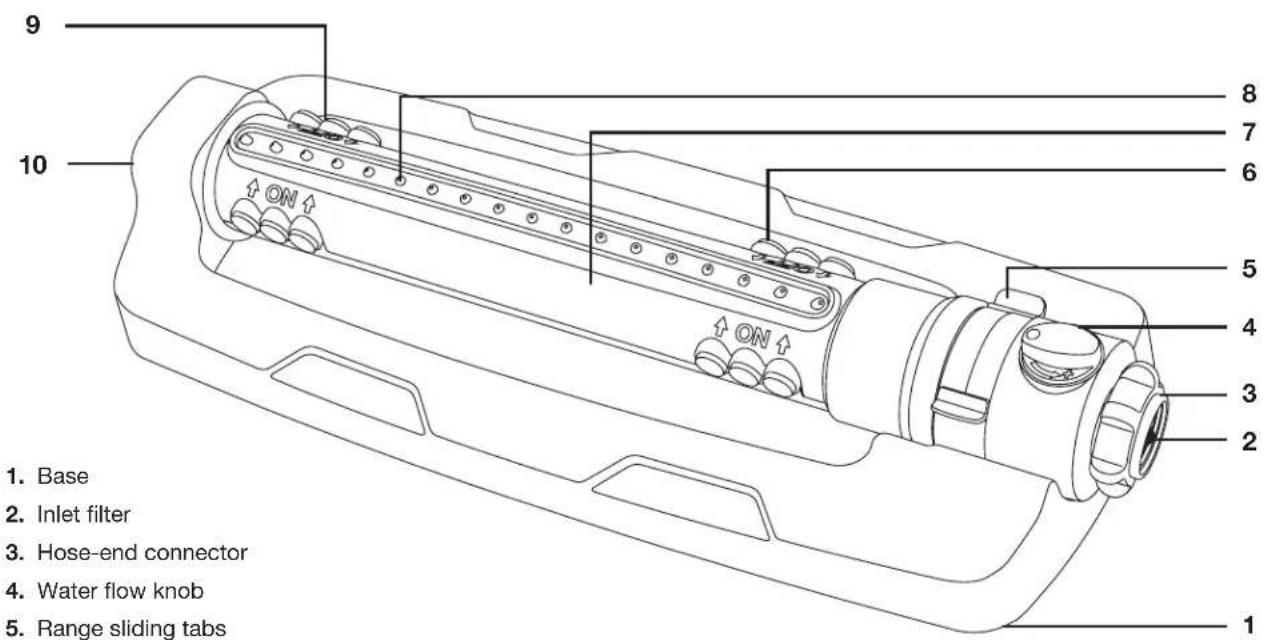

Read the owner's manual and safety rules carefully before using your oscillating sprinkler. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

1. Base
2. Inlet filter
3. Hose-end connector
4. Water flow knob
5. Range sliding tabs
6. Spray range adjusters 1
7. Oscillator tube
8. Spray nozzles (18)
9. Spray range adjusters 2
10. Cleaning pin

Technical Data

Nozzle Heads 18

Adjustable Range Control ....Yes

Adjustable Width Control ....Yes

Coverage Max 4500 sq ft (418 m²)

Spray Distance Max 72.2 ft (22 m)

Spray Width Max 62.3 ft (19 m)

Max Pressure ^* 120 PSI

Max Flow 6.2 GPM (23.5 l/min)

Fitting Size......Standard Garden Hose

Net Weight.... 2.2 lbs (1 kg)

Operation

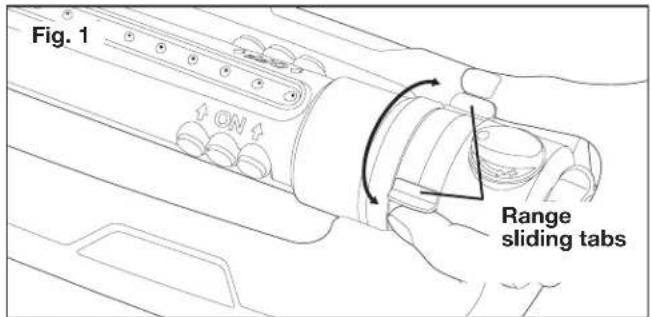

1. Use range sliding tabs to select desired position and take advantage of the sprinkler's adjustable range control (Fig.1).

For full coverage, spread the tabs apart (Fig. 2). For a narrower range, bring the tabs closer together (Fig. 3). Bring both tabs fully to either the left (Fig. 4) or the right (Fig. 5) for coverage on either side.

Diagram showing airflow or particle trajectories around a rectangular plane, labeled 'Fig. 2' (no text or symbols on the diagram itself)

Diagram showing wave propagation around a shaded rectangular region, labeled 'Fig. 3' (no text or symbols on the diagram itself)

Diagram showing a shaded plane with curved arrows indicating direction, labeled 'Fig. 4' (no text or symbols on the diagram itself)

Diagram showing light rays reflecting off a flat surface, labeled 'Fig. 5' (no text or symbols on the diagram itself)

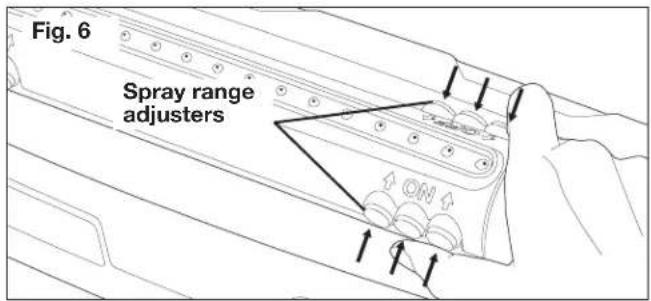

1. Use spray range adjusters to select desired position and take advantage of the sprinkler's adjustable width control (Fig. 6). This sprinkler system has 6 individually adjustable nozzles to tailor width from 18 to 12 nozzles. Refer to (Fig. 7) to see the different options.

Four diagrams showing wave propagation from a rectangular surface, with arrows indicating direction and shading (no text or symbols)

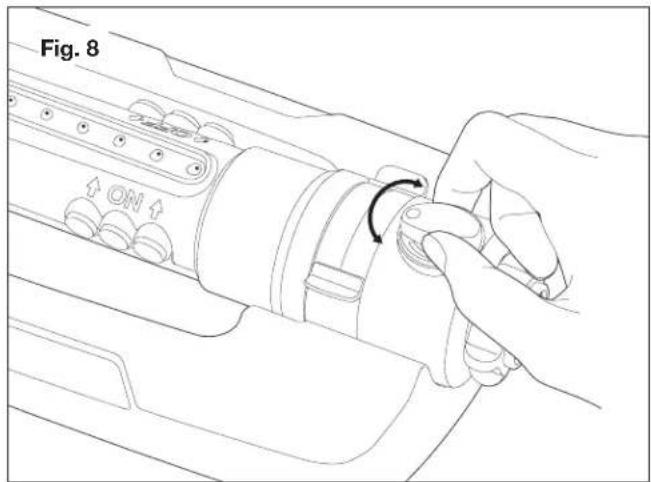

1. Increase or decrease water flow with the water flow knob (Fig. 8).

Connecting to the Garden Hose

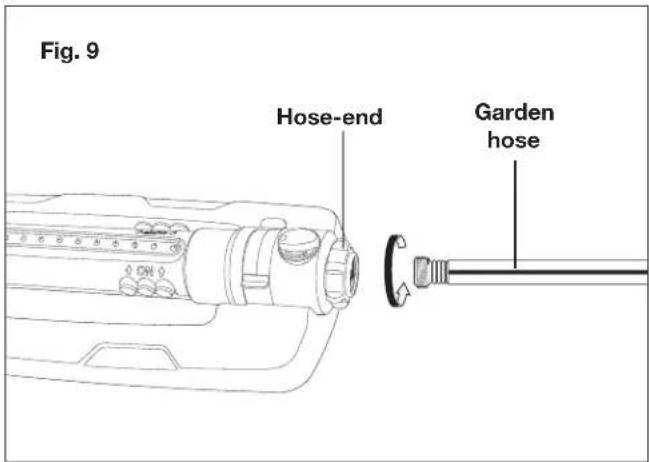

Attach your garden hose to the hose-end connector. (Fig. 9).

Watering Tips

Water only when necessary, preferably in the morning to minimize water loss through evaporation. To promote deep root growth, water deeply but as infrequently as possible. Watch water application to avoid water run-off.

Maintenance + Care

Follow the steps below if the sprinkler stops working or exhibits poor water quality due to debris or dirt build-up.

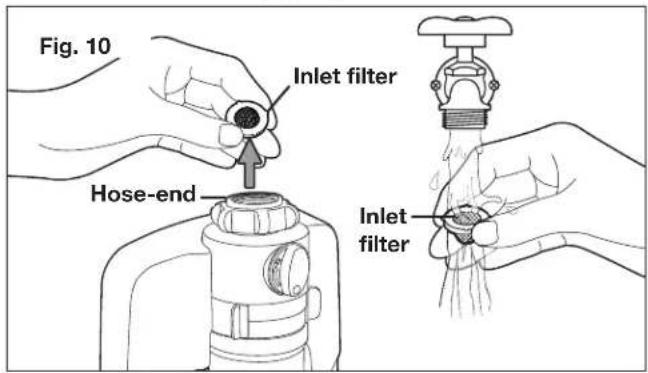

1. Remove the inlet filter from the hose-end of the oscillator and run under water (Fig. 10).

1. Remove the cleaning pin from the opposite end of the oscillator (Fig. 11).

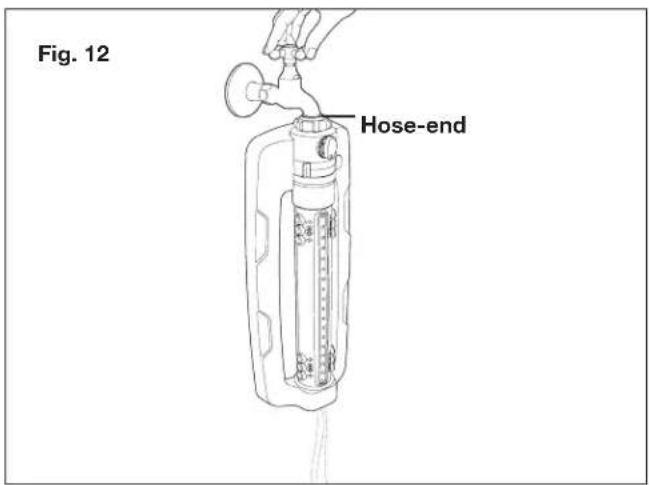

1. To flush, connect the oscillator to a spigot. Turn on the faucet and while the water continues running, spin the tube gently back and forth for few minutes. Then screw the inlet filter firmly back in place (Fig. 12)

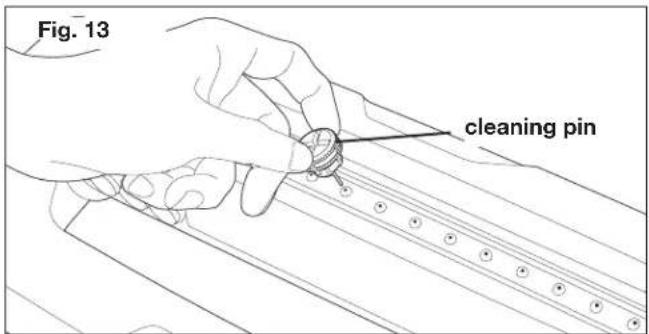

1. Use the provided cleaning pin to clear any clogs from the spray nozzles. Fit cleaning pin firmly back in place before using the sprinkler (Fig. 13).

Storage

Drain the sprinkler after use. DO NOT allow water to freeze in the sprinkler.

Service + Support

If your Aqua Joe ^® AJ-OMS18-TRB oscillating sprinkler requires service or maintenance, please call Snow Joe ^® + Sun Joe ^® customer service at 1-866-SNOWJOE (1-866-766-9563) for assistance.

Model + Serial Numbers

When contacting the company or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the sprinkler. Copy these numbers into the space provided below.

Abstract gray logo design with a stylized S-like shape inside an oval (no text or symbols)

SNOW JOE® + SUN JOE® CUSTOMER PROMISE

ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe ^® , Sun Joe ^® , or Aqua Joe ^® product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.

OUR WARRANTY:

Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe's authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there's an issue with a specific part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that!

This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

PRODUCT REGISTRATION:

Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs.

WHO CAN SEEK LIMITED WARRANTY COVERAGE:

This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product.

WHAT IS NOT COVERED?

This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).
