USER MANUAL GX-H12A PANASONIC

Rectangular-shaped Inductive Proximity Sensor

Amplifier Built-in

GX-F/H SERIES

Related Information

☒ General terms and conditions....P.1 ☒ Glossary of terms....P.1009~

☒ Sensor selection guide....P.11~ / P.647~ ☒ General precautions....P.1012~

Industry No. 1* in stable sensing

* Based on research conducted by SUNX as of August 2007 among equivalent rectangular Inductive sensors.

Can be installed with ample space

This sensor has the longest stable sensing range among the same level of rectangular inductive proximity sensors in the industry. It is easy to install the sensor.

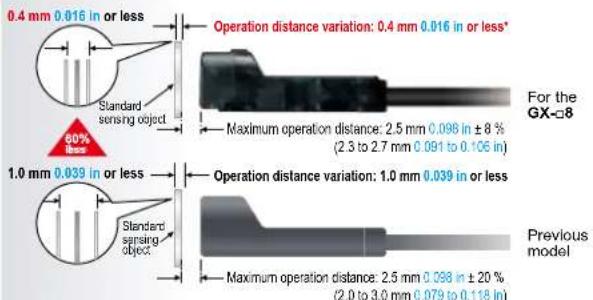

Variation at the maximum operation distance is within ±8 %

Thorough adjustment and control of sensing sensitivity greatly reduces individual sensor differences and variations.

The work of adjusting sensor positions when using multiple sensors and when sensors have been replaced is much easier.

* Not including temperature characteristics. GX- 12 has a variation of 0.64 mm 0.025 in or less for a maximum operation distance of 4 mm 0.158 in

Temperature characteristics vary within ±8 %

Components such as the sensor coil and core and product design have been totally revised to provide excellent temperature characteristics. Stable sensing can be obtained regardless of the time of day or the yearly season.

APPLICATIONS

Muting control of light curtains

Positioning processing equipment

Positioning metal pallets

ENVIRONMENTAL RESISTANCE

10 times the durability! (Compared to previous models)

The new integrated construction method used provides shock resistance of 10,000 m/s² (approx. 1,000 G in X, Y and Z directions for three times each), and vibration resistance clears durability tests of between 10 and 500 Hz (3mm 0.118 in amplitude in X, Y and Z directions for 2 hours each). In addition, resistance to impulse noise is approx. three times greater than for previous models.

Highly resistant to water or oil! IP68g* protective construction

The new integrated construction method used improves environmental resistance performance. The IP68g prevents damage to the sensor by stopping water and oil getting inside.

* For details, refer to the "Specifications" (p.652~)

Sensing presence of metallic objects on a part feeder

Vibration resistance: 500 Hz

FUNCTIONS

Indicators are easy to see over a wide field of view

A prism with a wide field of view has been developed. This has greatly improved the visibility of the operation indicators.

GX-H□

GX-F

MOUNTING

Tightening strength increased with no damage!

A metal sleeve has been inserted. It is possible to tighten up to 0.7 N·m *.

* Maximum tightening torque for M3 screw.

Conductor thickness doubled to make wiring much easier! (GX-8 only)

The conductor's thickness was doubled for the GX-8. This makes it easier to handle and perform crimping work on the cables. In addition, the tensile strength of the crimping area has become higher.

FIBER SENSORS

LASER SENSORS

PHOTOELECTRIC SENSORS

MICRO PHOTOELECTRIC SENSORS

AREA SENSORS

SAFETY COMPONENTS

PRESSURE SENSORS

INDUCTIVE PROXIMITY SENSORS

PARTICULAR USE SENSORS

SENSOR OPTIONS

WIRE-SAVING SYSTEMS

MEASUREMENT SENSORS

STATIC CONTROL DEVICES

LASER MARKERS

SelectionGuideAmplifierBuilt-in

GX-F/H

GXL

GL

GX-U / GX-FU /GX-N

GX

Amplifier-separated

GA-311 / GH

OtherProducts

ORDER GUIDE

GX-8 type

Type Appearance (mm in) Sensing range (Note 1)			Model No. (Note 2)	Output Output operation
NPN output	Front sensing		Maximum operation distance2.5 mm 0.098 in(0 to 2.1 mm 0 to 0.083 in)Stable sensing range	GX-F8A	NPN open-collector transistor
				GX-F8AI
				GX-F8B
				GX-F8BI
	Top sensing			GX-H8A
				GX-H8AI
				GX-H8B
				GX-H8BI
PNP output	Front sensing			GX-F8A-P	PNP open-collector transistor
				GX-F8AI-P
				GX-F8B-P
				GX-F8BI-P
	Top sensing			GX-H8A-P
				GX-H8AI-P
				GX-H8B-P
				GX-H8BI-P

Notes: 1) The maximum operation distance stands for the maximum distance for which the sensor can detect the standard sensing object. The stable sensing range stands for the sensing range for which the sensor can stably detect the standard sensing object even if there is an ambient temperature drift and/or supply voltage fluctuation. 2) "1" in the model No. indicates a different frequency type.

GX-12 type

Type Appearance (mm in) Sensing range (Note 1)				Model No. (Note 2)	Output Output operation
NPN output	Front sensing		Maximum operation distance4.0 mm 0.157 in(0 to 3.3 mm 0 to 0.130 in)Stable sensing range	GX-F12A	NPN open-collector transistor	Normally open
				GX-F12AI
				GX-F12B		Normally closed
				GX-F12BI
	Top sensing			GX-H12A		Normally open
				GX-H12AI
				GX-H12B		Normally closed
				GX-H12BI
PNP output	Front sensing			GX-F12A-P	PNP open-collector transistor	Normally open
				GX-F12AI-P
				GX-F12B-P		Normally closed
				GX-F12BI-P
	Top sensing			GX-H12A-P		Normally open
				GX-H12AI-P
				GX-H12B-P		Normally closed
				GX-H12BI-P

Notes: 1) The maximum operation distance stands for the maximum distance for which the sensor can detect the standard sensing object. The stable sensing range stands for the sensing range for which the sensor can stably detect the standard sensing object even if there is an ambient temperature drift and/or supply voltage fluctuation. 2) "1" in the model No. indicates a different frequency type.

OPTIONS

Designation Model No. Description

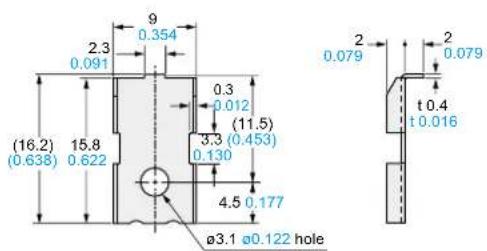

Sensor mounting bracket	MS-GXL8-4	Mounting bracket for GX-8 type

Sensor mounting bracket

MS-GXL8-4• 1 pc. each of M3 (length: 12 mm 0.472 in) truss head screw, nut, spring washer and plain washer is attached.

SPECIFICATIONS

GX-8 type

Type		NPN output PNP output
Item Top Setting (Note 2)	Front sensing	GX-F8A(I) GX-F8B(I)	GX-F8A(I)-P GX-F8B(I)-P
	GK-H8B(I) GX-H8A(I)-P GX-H8B(I)-P
Max. operation distance (Note 3)		2.5 mm 0.098 in ± 8 %
Stable sensing range (Note 3) 0 to 2.1 mm 0 to 0.083 in
Standard sensing object iron sheet: 15 × 15 × t 1 mm 0.591 × 0.591 × t 0.039 in
Hysteresis 20 % or less of operation distance (with standard sensing object)
Repeatability		Along sensing axis, perpendicular to sensing axis: 0.04 mm 0.002 in or less
Supply voltage		12 to 24 V DC+10-15 % Ripple P-P 10 % or less
Current consumption		15 mA or less
Output		NPN open-collector transistorMaximum sink current: 100 mAApplied voltage: 30 V DC or less (between output and 0 V)Residual voltage: 1 V or less (at 100 mA sink current)0.4 V or less (at 16 mA sink current)		PNP open-collector transistorMaximum source current: 100 mAApplied voltage: 30 V DC or less(between output and +V)Residual voltage: 1 V or less (at 100 mA source current)0.4 V or less (at 16 mA source current)
Utilization category		DC-12 or DC-13
Output operation		Normally open	Normally closed	Normally open	Normally closed
Max. response frequency		500 Hz
Operation indicator		Orange LED (lights up when the output is ON)
Environmental resistance	Pollution degree	3 (Industrial environment)
	Protection	IP68 (IEC), IP68g (JEM) (Refer to p.1010 for details of standards.) (Note 4, 5)
	Ambient temperature	-25 to +70 °C -13 to +158 °F, Storage: -40 to +85 °C -40 to +185 °F
	Ambient humidity	45 to 85 % RH, Storage: 35 to 95 % RH
	EMC	EN 60947-5-2
	Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure
	Insulation resistance	50 MΩ, or more, with 500 V DC megger between all supply terminals connected together and enclosure
	Vibration resistance	10 to 500 Hz frequency, 3 mm 0.118 in amplitude in X, Y and Z directions for two hours each
	Shock resistance	10,000 m/s2 acceleration (1,000 G approx.) in X, Y and Z directions for three times each
Sensing range variation	Temperature characteristics	Over ambient temperature range -25 to +70 °C -13 to +158 °F: Within ± 8 % of sensing range at +23 °C +73 °F
	Voltage characteristics	Within ±2 % for +10-15 % fluctuation of the supply voltage
Material		Enclosure: PBT, Indicator part: Polyester
Cable		0.15 mm2 3-core oil, heat and cold resistant cabtyre cable, 1 m 3.281 ft long
Cable extension		Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.
Net weight		Front sensing type: 15 g approx., Top sensing type: 20 g approx..

Notes: 1) Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 °C +73.4 °F. 2) "I" in the model No. indicates a different frequency type. 3) The maximum operation distance stands for the maximum distance for which the sensor can detect the standard sensing object. The stable sensing range stands for the sensing range for which the sensor can stably detect the standard sensing object even if there is an ambient temperature drift and/or supply voltage fluctuation. 4) SUNX's IP68 test method

① Immerse at 0 m below 0 °C +32 °F water surface and leave for 30 min. Then, immerse at 0 m below +70 °C +158 °F water surface and leave for 30 min.

⑦ Regard the heat shock test in as one cycle and perform 20 cycles.

③Leave in water at a depth of 1 m 3.281 ft in water for 500 hours.

④ After tests ① to ③ Insulation resistance, voltage withstandability, current consumption, and sensing ranges must meet the standard values.

5) If using the sensor in an environment where cutting oil droplets splatter, the sensor may deteriorate due to added substances in the oil.

SPECIFICATIONS

GX-12 type

Type NPN output PNP output
Item Top sensing No. (Note 2)	Front sensing	GX-F12A(I) GX-F12B(I) GX-F12A(I)-P GX-F12B(I)-P
	GNG GX-H12A(I) GX-H12B(I) GX-H12A(I)-P GX-H12B(I)-P GX-H12A(I)-P GX-H12B(I)-P GX-H12A(I)-P GX-H12B(I)-P GX-H12A(I)-P GX-H12B(I)-P GX-H12A(I)-P GX-H12B(I)-P GX-H12A(I)-P GX-H12B(I)-P GX-H12A(I)-P GX-H12B(I)-P GX-H11-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10 -10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-10-
Max. operation distance (Note 3)		4.0 mm 0.158 in ± 8 %
Stable sensing range (Note 3) 0 to 3.3 mm 0 to 0.130 in
Standard sensing object iron sheet: 20 × 20 × t 1 mm 0.787 × 0.787 × t 0.039 in
Hysteresis 20 % or less of operation distance (with standard sensing object)
Repeatability Along sensing axis, perpendicular to sensing axis: 0.04 mm 0.002 in or less
Supply voltage		12 to 24 V DC+10-15 % Ripple P-P 10 % or less
Current consumption 15 mA or less
Output		NPN open-collector transistorMaximum sink current: 100 mAApplied voltage: 30 V DC or less (between output and 0 V)Residual voltage: 1 V or less (at 100 mA sink current)0.4 V or less (at 16 mA sink current)		PNP open-collector transistorMaximum source current: 100 mAApplied voltage: 30 V DC or less(between output and +V)Residual voltage: 1 V or less (at 100 mA source current)0.4 V or less (at 16 mA source current)
Utilization category		DC-12 or DC-13
Output operation		Normally open	Normally closed	Normally open	Normally closed
Max. response frequency		500 Hz
Operation indicator		Orange LED (lights up when the output is ON)
Environmental resistance	Pollution degree	3 (Industrial environment)
	Protection	IP68 (IEC), IP68g (JEM) (Refer to p.1010 for details of standards.) (Note 4, 5)
	Ambient temperature	-25 to +70 °C -13 to +158 °F, Storage: -40 to +85 °C -40 to +185 °F
	Ambient humidity	45 to 85 % RH, Storage: 35 to 95 % RH
	EMC	EN 60947-5-2
	Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure
	Insulation resistance	50 MΩ, or more, with 500 V DC megger between all supply terminals connected together and enclosure
	Vibration resistance	10 to 500 Hz frequency, 3 mm 0.118 in amplitude in X, Y and Z directions for two hours each
	Shock resistance	10,000 m/s2 acceleration (1,000 G approx.) in X, Y and Z directions for three times each
Sensing range variation	Temperature characteristics	Over ambient temperature range -25 to +70 °C -13 to +158 °F: Within ±8 % of sensing range at +23 °C +73 °F
	Voltage characteristics	Within ±2 % for +10-15 % fluctuation of the supply voltage
Material		Enclosure: PBT, Indicator part: Polyester
Cable		0.15 mm2 3-core oil, heat and cold resistant cabtyre cable, 1 m 3.281 ft long
Cable extension		Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.
Net weight		Front sensing type: 20 g approx., Top sensing type: 20 g approx..

Notes: 1) Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 °C +73.4 °F. 2) "I" in the model No. indicates a different frequency type. 3) The maximum operation distance stands for the maximum distance for which the sensor can detect the standard sensing object. The stable sensing range stands for the sensing range for which the sensor can stably detect the standard sensing object even if there is an ambient temperature drift and/or supply voltage fluctuation.

4) SUNX's IP68 test method

① Immerse at 0 m below 0 °C +32 °F water surface and leave for 30 min. Then, immerse at 0 m below +70 °C +158 °F water surface and leave for 30 min.

② Regard the heat shock test in as one cycle and perform 20 cycles.

③ Leave in water at a depth of 1 m (3.281 ft) for 500 hours.

④ After tests ① to ③, insulation resistance, voltage withstandability, current consumption, and sensing ranges must meet the standard values.

5) If using the sensor in an environment where cutting oil droplets splatter, the sensor may deteriorate due to added substances in the oil.

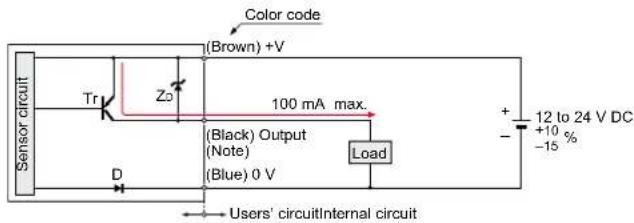

I/O CIRCUIT DIAGRAMS

GX- NPN output type

Note: The output does not incorporate a short-circuit protection circuit. Do not connect it directly to a power supply or a capacitive load. Symbols: D: Reverse supply polarity protection diode ZD1, ZD2: Surge absorption zener diode Tr: NPN output transistor

GX- PNP output type

Note: The output does not incorporate a short-circuit protection circuit. Do not connect it directly to a power supply or a capacitive load. Symbols: D: Reverse supply polarity protection diode ZD: Surge absorption zener diode Tr: PNP output transistor

SENSING CHARACTERISTICS (TYPICAL)

GX-8 type

Sensing field Correlation between sensing object size and sensing range

As the sensing object size becomes smaller than the standard size (iron sheet 15 × 15 × t 1 mm (0.591 × 0.591 × t 0.039 in)), the sensing range shortens as shown in the left figures.

GX-12 type

Sensing field Correlation between sensing object size and sensing range

As the sensing object size becomes smaller than the standard size (iron sheet 20 × 20 × t 1 mm (0.787 × 0.787 × t 0.039 in)), the sensing range shortens as shown in the left figure.

PRECAUTIONS FOR PROPER USE

Refer to p.1012~ for general precautions.

• Never use this product as a sensing device for personnel protection.
• In case of using sensing devices for personnel protection, use products which meet laws and standards, such as OSHA, ANSI or IEC etc., for personnel protection applicable in each region or country.

Mounting

GX-8 type

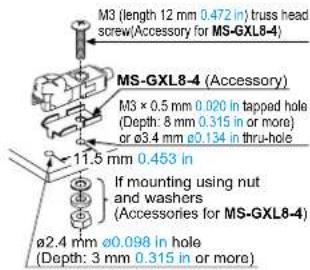

• Make sure to use a M3 (length: 12 mm 0.472 in or more) truss head screw. The tightening torque should be 0.7 N·m or less. (Do not use a flat head screw or a pan head screw.)

GX-12 type

- The tightening torque should be 0.7 N·m or less. - To mount the sensor with a nut, the mounting hole diameter should be ø3.4 mm ø0.134 in. Further, the hole in which the boss is inserted should be ø2.5 mm ø0.098 in and 3 mm 0.118 in, or more, deep.

Influence of surrounding metal

- When there is a metal near the sensor, keep the minimum

Top sensing type

	GX-F8 GX-F12
A 7	4 mm 0.291 in 7.1 mm 0.280 in
B 8	mm 0.315 in 20 mm 0.787 in
C 3	mm 0.118 in 7 mm 0.276 in

	GX-H8	GX-H12
D 4	mm 0.157 in 7 mm	0.276 in
E 10	mm 0.394 in 20 mm	0.787 in
F 3	mm 0.118 in 3 mm	0.118 in
G 3	mm 0.118 in 3 mm	0.118 in

Mutual interference prevention

- When two or more sensors are installed in parallel or face to face, keep the minimum separation distance specified below to avoid mutual interference.

		H	J
GX-F8	Between "I" type and non "I" type	0 mm (Note 2)	15 mm 0.591 in
	Between two "I" types or two non "I" types	20 mm 0.787 in	35 mm 1.378 in
GX-H8	Between "I" type and non "I" type	0 mm (Note 2)	15 mm 0.591 in
	Between two "I" types or two non "I" types	20 mm 0.787 in	35 mm 1.378 in
GX-F12 GX-H12	Between "I" type and non "I" type	0 mm (Note 2)	25 mm 0.984 in
	Between two "I" types or two non "I" types	25 mm 0.984 in	50 mm 1.969 in

Notes: 1) "I" in the model No. specifies the different frequency type. 2) Close mounting is possible for up to two sensors. When mounting three sensors or more at an equal spacing, align the model with "I" and the model without "I" alternately. The minimum value of dimension "H" should be as given below. GX-8 type: 6mm 0.236 in GX-12 type: 6.5mm 0.256 in

Sensing range

- The sensing range is specified for the standard sensing object. With a non-ferrous metal, the sensing range is obtained by multiplying with the correction coefficient specified below. Further, the sensing range also changes if the sensing object is smaller than the standard sensing object or if the sensing object is plated.

Correction coefficient

Metal\Model No.	GX-8 type GX-12 type
Iron 1 1
Stainless steel (SUS304)	0.76 approx. 0.79 approx.
Brass	0.50 approx. 0.56 approx.
Aluminum	0.48 approx. 0.53 approx.

Others

• The output does not incorporate a short-circuit protection circuit. Do not connect it directly to a power supply or a capacitive load.
• Do not use during the initial transient time (50 ms) after the power supply is switched on.

DIMENSIONS (Unit: mm in)

The CAD data in the dimensions can be downloaded from the SUNX website: http://www.sunx.com

GX-F8 Sensor

GX-F12 Sensor

GX-H8 Sensor

GX-H12 Sensor

Sensor mounting bracket for GX-8 type (optional)

MS-GXL8-4

Mounting hole dimensions

Material: Stainless steel (SUS304). One each of M3 (length 12 mm / 0.472 in) truss head screw, nut, spring washer, and plain washer are included.

FIBER SENSORS

LASER SENSORS

PHOTOELECTRIC SENSORS

MICRO PHOTOELECTRIC SENSORS

AREA SENSORS

SAFETY COMPONENTS

PRESSURE SENSORS

INDUCTIVE PROXIMITY SENSORS

PARTICULAR USE SENSORS

SENSOR OPTIONS

WIRE-SAVING SYSTEMS

MEASUREMENT SENSORS

STATIC CONTROL DEVICES

LASER MARKERS

Selection Guide

Amplifier Built-in

GX-F/H

GXL

GL

GX-U/GX-FU/GX-N

GX

Amplifier-separated

GA-311/GH

Other Products
