Product Type	Tumble Dryer
Brand	Gorenje
Model	DPNA92WIFI
Capacity (kg)	9.0
Drying Technology	Heat Pump
Energy Efficiency Class	A++
WiFi Connectivity	Yes (HomeWiz compatible)
Dimensions (HxWxD) mm	845 x 596 x 614
Weight (kg)	45
Power Supply	220-240V, 50Hz, 10A
Power Consumption (kWh/year)	245
Number of Programs	15
Drying Levels	3 (Iron Dry, Cupboard Dry, Extra Dry)
Sensor Drying	Yes (AutoDry)
Anti-Crease Function	Yes (120 min)
Delayed Start	Yes (up to 24h)
Child Lock	Yes
Filter Cleaning Indicator	Yes
Condenser Cleaning Indicator	Yes
Water Tank Full Indicator	Yes
Noise Level (dB)	65
Condenser Type	Self-cleaning
Drum Volume (L)	118
Control Type	Electronic (LED display)
Reversible Door	Yes
Energy Star Certified	Yes

Frequently Asked Questions - DPNA92WIFI GORENJE

How do I connect the dryer to WiFi?

Download the HomeWiz app, create an account, and follow the in-app instructions. Ensure WiFi is enabled on the dryer via the settings menu.

What does the filter cleaning indicator mean?

It means the lint filter needs cleaning. Remove the filter, clean it under running water, dry it, and reinsert. This ensures efficient drying.

How often should I clean the condenser?

The condenser should be cleaned when the indicator lights up (usually every 30 cycles). Follow the manual to access and rinse the condenser unit.

Can I dry wool or delicate items?

Yes, the dryer has a dedicated wool program and a delicates program with low temperature. Always check garment care labels.

What is the maximum load for the eco program?

The Eco program is optimized for full loads up to 9 kg. Half loads may reduce efficiency.

Why is the drying time longer than expected?

Possible reasons: heavy load, cotton items, high moisture extraction, or clogged filter/condenser. Ensure proper ventilation and clean filters.

How do I activate the child lock?

Press and hold the Child Lock button (padlock icon) for 3 seconds. A lock symbol appears on the display. Repeat to deactivate.

What does error code E41 mean?

E41 indicates a communication error between the control board and the display. Try unplugging for 10 minutes. If persists, contact service.

Can I install the dryer in a cupboard?

Yes, but ensure adequate ventilation. The manual specifies minimum clearance for airflow (50mm sides, 100mm rear). Heat pump models require less ventilation.

How do I drain the water tank?

Pull out the water tank from the bottom right, empty it into a sink, and slide it back in. The indicator will turn off. Alternatively, use a drain hose (optional).

USER MANUAL DPNA92WIFI GORENJE

DETAILED INSTRUCTIONS

FOR USE OF A DRYER

Life is complicated today. Let's make at least laundry care simple! Your new dryer uses innovative technology and the latest achievements in laundry care to help you simplify your daily household chores.

The technology offers the gentlest care for any garment, with minimum creasing. Moreover, your new dryer is also friendly to the environment as it uses power in the most economical way possible.

This dryer is intended solely for household use. Please do not use it to dry clothes that are not suitable for machine drying.

The following symbols are used throughout the manual and they have the following meanings:

INFORMATION!

Information, advice, tip, or recommendation

WARNING!

Warning - general danger

ELECTRIC SHOCK!

Warning - danger of electric shock

HOT SURFACE!

Warning - danger of hot surface

DANGER OF FIRE!

Warning: danger of fire

It is important that you carefully read the instructions.

Contents

SAFETY PRECAUTIONS 5

Danger of hot surface 11

Safety 12

DESCRIPTION OF THE DRYER 13

Technical data 14

Control unit 15

Selecting the room 17

Dryer placement 17

Adjusting the dryer feet 20

Draining the condensate 21

Connecting to the power mains 22

Moving and transport after installation 23

Step 1: Heed the labels on the laundry

Switching on the dryer

Loading the dryer

Step 3: Choosing the drying programme

Program chart

DrySync function

Remote control of your dryer using the app

Step 4: Selecting extra functions

Step 5: Starting the drying programme

Step 6: End of the drying programme

Interruptions

Changing the program/functions

Adding laundry after the start of the program

Saving personal settings

AdaptTech

Personal settings menu 44

Cleaning the door net filter in the door 46

Cleaning the heat pump filter 47

Cleaning of the heat exchanger 48

Emptying the condensate tank 49

Cleaning the dryer 50

TROUBLE-SHOOTING 51

What to do ...? 51

Troubleshooting and error table 51

Sounds 54

Service 55

56TIPSFOF 57TYPICAL 9 kg 57 Low standby mode 58 DISPOSAL 61

Carefully read the instructions for use before using the dryer.

Please, do not use the dryer without reading and understanding these instructions for use first.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by person responsible for their safety.

These instructions for use of a dryer are supplied with different types or models of dryers. Therefore, they may include descriptions of settings or equipment that are not available in your dryer.

The maximum mass of dry textile material in kilograms to be used in the appliance.

Failure to observe the instructions for use or inappropriate use of the dryer may result in damage to the laundry or the appliance, or injury to the user. Keep the instruction manual handy, near the dryer.

Instructions for use are available on our website at www.gorenje.com.

Your dryer is intended solely for household use. If the dryer is used for professional, for-profit purpose or purpose exceeding normal use in a household, or if the dryer is used by a person who is not a consumer, the warranty period shall be equal to the shortest warranty period required by relevant legislation.

Follow the instructions for correct installation of the Gorenje dryer and connection to the power mains (see chapter »INSTALLATION AND CONNECTION«).

All and any repairs or maintenance tasks on the dryer should only be done by trained experts. Unprofessional repair may result in an accident or major malfunction.

ELECTRIC SHOCK!

To avoid danger, a damaged power cord may only be replaced by the manufacturer, a service technician, or an authorized person.

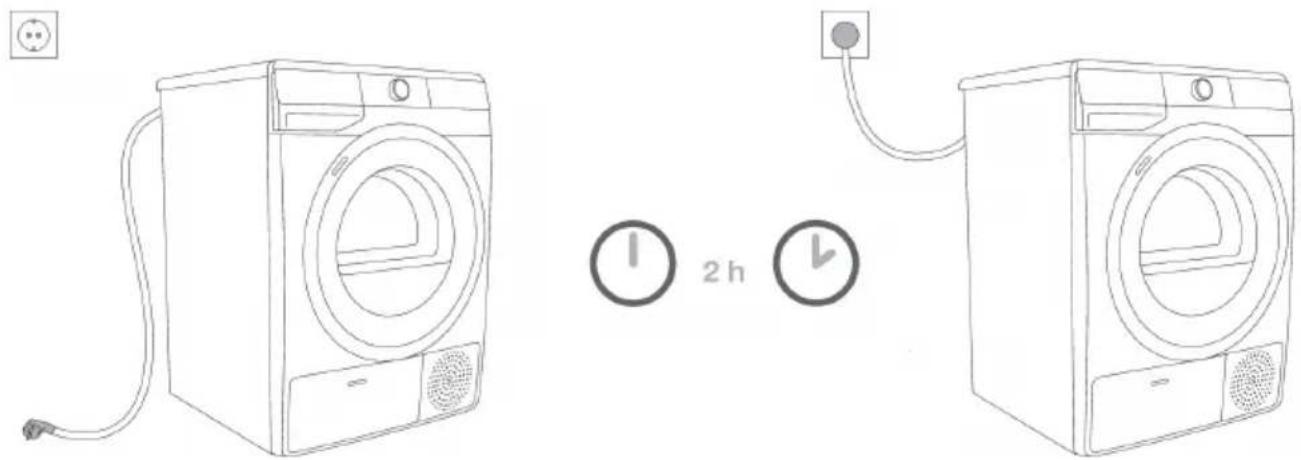

After installation, the dryer should stand still for two hours before it is connected to the power mains.

WARNING!

Do not connect the dryer to power mains using an external switching device such as a programme timer, or connect it to power mains that is regularly switched on and off by the power supply provider.

The dryer shall not be connected to the power mains using an extension cord.

Do not connect the tumble dryer to an electrical outlet intended for an electric shaver or a hairdryer.

In case of a defect, only use approved spare parts by authorized manufacturers.

In case of incorrect dryer connection, incorrect use, or servicing by an unauthorized person, the user shall bear the cost of any damage, as such damage shall not be covered by warranty.

Always use the hoses supplied with the dryer.

Install the dryer in a room with adequate ventilation and a temperature between 15°C and 25°C.

At least two persons are required to install the tumble dryer on top of a washing machine.

Place the dryer on a level and stable solid (concrete) base.

The appliance must not be installed behind a lockable door, a sliding door, or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.

Never block the air exhaust (evacuation opening).

For appliances with ventilation openings in the base, a carpet must not obstruct the openings.

The air in the room where the dryer is installed may not contain industrial dust particles.

Adequate ventilation has to be provided to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.

The lint must not be allowed to accumulate around the tumble dryer.

In the appliance enclosure or in the built-in structure, keep ventilation openings clear of obstruction.

The appliance may not be in contact with a wall or adjacent furniture.

After installation, let the dryer rest still for 24 hours before using it. If the dryer has to be laid down on one of the sides during transport or servicing, place it with its left side, viewing from the appliance front, downwards.

Do not dry unwashed items in the tumble dryer.

Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

DANGER OF FIRE!

Remove all objects from pockets such as lighters and matches.

If the condensate tube is blocked or clogged, then tumble dryer operation is stopped (see chapter »PAUSING AND CHANGING THE PROGRAMME/Full condensate tank«).

Before moving the dryer or before storing it in a non-heated room during the winter, the condensate tank has to be emptied.

That the lint trap has to be cleaned frequently, if applicable. Clean the dryer filters after each drying cycle. If you have removed the filters, replace them before the next drying cycle.

Do not use any solvents or cleaning agents that could damage the dryer (please observe the recommendations and warnings provided by the manufacturers of the cleaning agents).

Never add chemicals or fragrances into the condensate tank (see chapter »DESCRIPTION OF THE DRYER and EMPTYING THE CONDENSATE TANK«).

After the drying process, unplug the dryer power cord from the power outlet.

The dryer uses a heat pump system to heat the air.

The system consists of a compressor and a heat exchanger. When the dryer is started, compressor operation (the sound of flowing liquid) or flow of refrigerant may be louder as long as the compressor operates. This is not a sign of malfunction and it will not affect useful life of the dryer. In time and with use of the dryer this noise will become quieter.

The warranty does not cover consumables, minor deviations in colour, increased noise that results from appliance age and which does not affect the functionality of the dryer, and aesthetic defects on components, which do not affect the dryer's functionality and safety.

WARNING! Child safety

Children should be supervised to ensure that they do not play with the appliance.

Children of less than 3 years should be kept away unless continuously supervised.

Prevent your children and pets from entering the dryer drum.

Before closing the dryer door and running the programme, make sure there is nothing except laundry in the drum (e.g. if a child climbed into the dryer drum and closed the door from the inside).

Activate the Childlock. See chapter »STEP 4: SETTING THE EXTRA FUNCTIONS / Childlock«.

The dryer is made in compliance with all relevant safety standards.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Danger of hot surface

HOT SURFACE!

At higher drying temperatures, the door glass will heat up. Be careful to avoid burns. Make sure children do not play near the door glass.

The back of the dryer may get very hot during operation. Wait for the dryer to cool down completely before touching its backside.

If you opened the dryer door during the drying process, the clothes may be very hot and there is a risk of burning.

Never stop the drying process before it is completed; if you do interrupt the cycle for any reason, be careful when removing the laundry from the drum as it is very hot. Quickly remove the laundry from the drum and spread it to allow it to cool down as quickly as possible.

Safety

DANGER OF FIRE!

Only use the dryer to dry laundry that was washed with water. Do not dry any laundry that was washed or cleaned with flammable cleaners or substances (such as gasoline, trichloroethylene, etc.) as this may result in an explosion.

The tumble dryer is not to be used if industrial chemicals have been used for cleaning.

The dryer is protected with an automatic switch-off system in case of overheating. This system will switch off the dryer if the temperature is too high.

If the net filter is clogged, the overheating automatic switch-off system may be activated. Clean the filter, wait for the dryer to cool down, and try running it again. If the dryer still fails to start, call a service technician.

Do not damage the refrigerant circuit.

The refrigerant R290 in this appliance is environmentally friendly yet combustible and may ignite if it comes into contact with open flames or ignition sources. Keep naked flames and ignition sources away from the appliance.

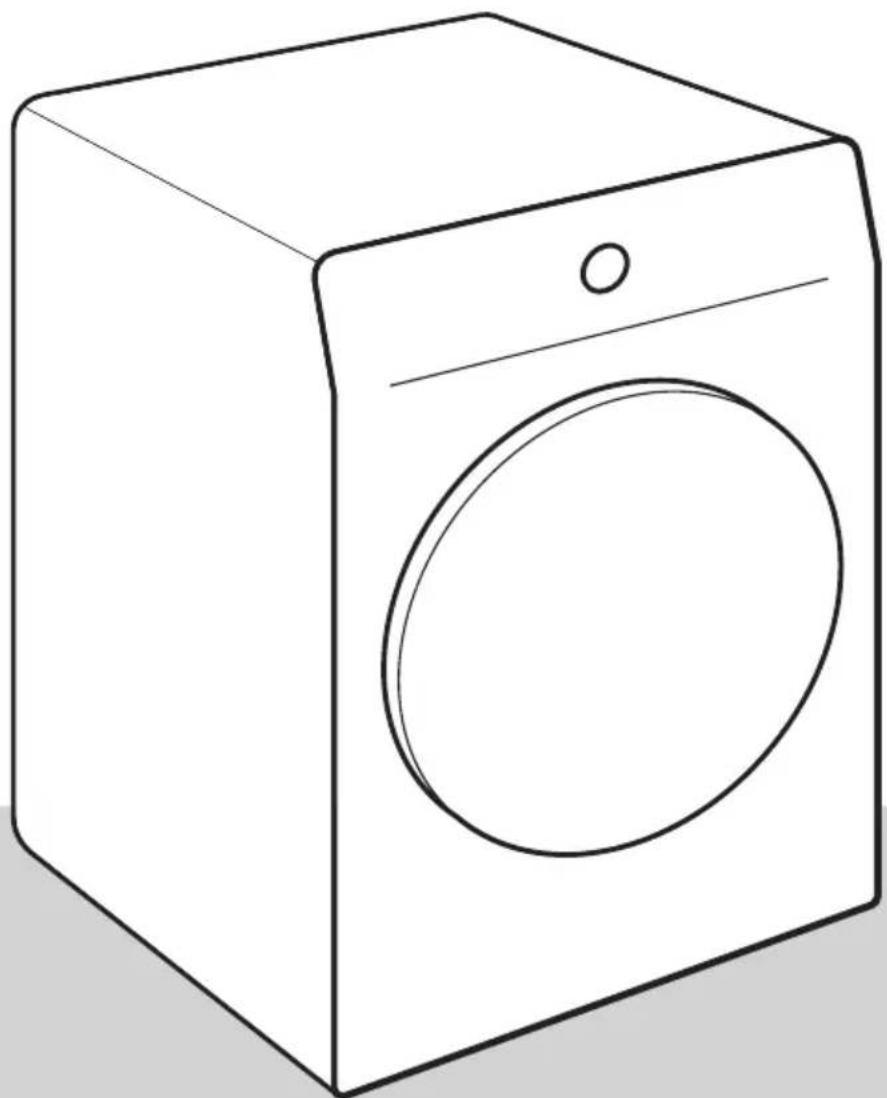

DESCRIPTION OF THE DRYER

FRONT

1. Condensate tank
2. Dryer on/off and program selector knob
3. Touch control unit
4. Door 5. Net filter 6. Air vent
5. Heat pump filter 8. Rating plate

BACK

1. Power cord 2. Condensate discharge hose
2. Adjustable feet

Technical data

(depending on the model)

Rating plate with basic information about the dryer is located on the inner side of the dryer door (see chapter »DESCRIPTION OF THE DRYER«).

	600mmWidth
	850mmHeight
	625mmDryerdepth(a)
	653mmDepthwithdoorclosed
	1134mmDepthwithdooropen(b)
	XX/YYkg(dependingonthemodel)Weight
	SeeratingplateRatedvoltage
	SeeratingplateFuse
	SeeratingplateNominalpower
	SeeratingplateQuantityofrefrigerant
	R290Typeofrefrigerant
	SeeratingplateMaximumload

Rating plate

Control unit

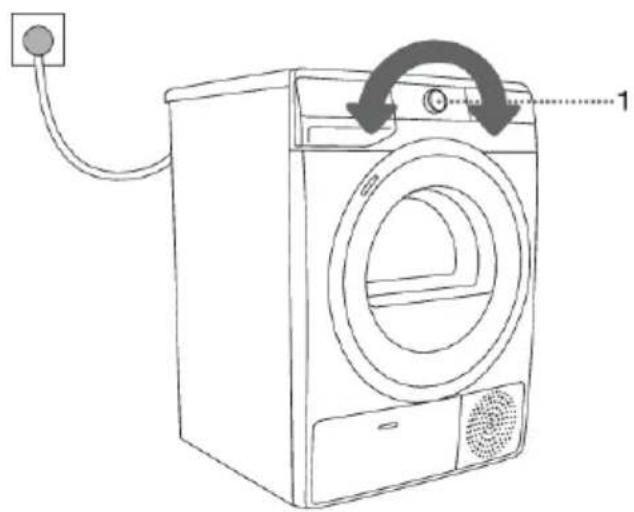

1 Dryer ON/OFF and PROGRAM SELECTOR KNOB.

To TURN ON the dryer, rotate the program selector knob in either direction.

To TURN OFF the dryer, rotate the program selector knob to position OFF.

To SELECT a drying program, rotate the knob in either direction.

The indicator light next to the selected program lights up.

The selected operating time of the function will light up.

3+5 Child lock ON/OFF

Press positions 3+5 and hold them for 3 seconds.

4 CHILDLOCK symbol lighting

Option to set the drying time.

6 Illumination of the SOUND OFF symbol

7 DELAY END (DELAYING THE END OF THE DRYING PROGRAM)

Option to set the time when the drying will end.

5+7 Sound ON/OFF

Press positions 5+7 and hold them for 3 seconds.

8 NATURE DRY (LOWER TEMPERATURE)

Option to dry at a lower temperature.

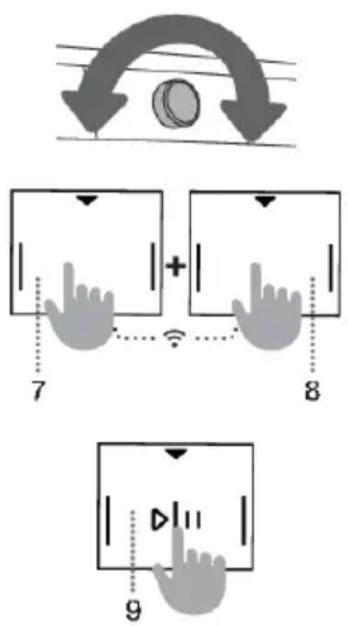

7+8 SWITCHING ON/OFF the Wi-Fi connection

Press positions 7+8 and hold them for 3 seconds.

9 START/PAUSE BUTTON ▷||

The button has 4 functions:

• START - starting the drying programme (start the programme with a brief press on the button); • PAUSE - pause the drying programme (briefly press the button again to temporarily stop appliance operation);
• SAVING PERSONAL SETTINGS (hold the key for 3 seconds).
• Activating REMOTE START

When the appliance is turned on, the indicator on the button lights up.

10 Lighting of the symbol REMOTE START 11 Lighting of the symbol CONNECT (CONNECTION) 12 Lighting of the symbol CLEAN THE FILTER 13 The following is displayed on the DISPLAY UNIT:

• Available functions; - Time remaining to programme completion; • Information for the user.

14 Lighting of the symbol ⚙ EMPTY THE CONDENSATE TANK

INSTALLATION AND CONNECTION

INFORMATION!

Remove all packaging. When removing the packaging, make sure not to damage the dryer with a sharp object.

Selecting the room

INFORMATION!

The dryer may not be in contact with a wall or adjacent furniture. For optimum dryer operation, we recommend observing the clearance from the walls as indicated in the figure. In case of failure to heed the required minimum clearance, the dryer may overheat.

INFORMATION!

Vents on the back wall and the air exhaust opening on the front side of the dryer should never be obstructed.

The room in which you will install the dryer should be sufficiently ventilated, with a temperature between 15°C and 25°C. Dryer operation at a lower environment temperature may result in condensate accumulation in the dryer interior. Do not place the dryer in a place where there is danger of freezing. Frozen water in the condensate tank and pump may damage the dryer.

The dryer emits heat. Therefore, do not place it in a very small room, as the drying process may take longer due to limited amount of available air.

Lighting in the room should be sufficient to allow reading the information on the display unit on the control panel.

Dryer placement

If you also have a Gorenje dryer of corresponding (same) dimensions, it can be placed on top of the Gorenje washing machine; in this case, vacuum feet must be used and wall fixing bracket. Alternatively, the dryer can be placed next to the washing machine (figures 1 and 3).

If your Gorenje washing machine is smaller (minimum depth 545mm) than your Gorenje dryer, then the dryer support has to be purchased extra (figure 2). The supplied vacuum feet must be used; they are designed to prevent the dryer from slipping.

Additional equipment: tumble dryer bracket (a), vacuum feet (b) (if not supplied) and wall fixing bracket (c), can be purchased at the service centre.

The surface on which the appliance is placed should be clean and level.

Gorenje washing machine onto which you intend to place the Gorenje dryer should hold the weight of the Gorenje dryer (see chapter »WASHING MACHINE DESCRIPTION/Technical information«).

INFORMATION!

At least two persons are required to install the tumble dryer on top of a washing machine.

Opening the dryer door (top view)

See chapter »DESCRIPTION OF THE DRYER/Technical information«.

a=625mm

b=1134mm

WARNING!

The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.

WARNING!

For appliances with ventilation openings in the base, a carpet must not obstruct the openings.

INFORMATION!

After installation, wait for 24 hours without moving the appliance before using it for the first time. If the dryer has to be laid down on one of its sides during transport or servicing, place it with its left side, viewing from the appliance front, downwards.

Adjusting the dryer feet

Level the dryer in longitudinal and transverse direction by rotating the adjustable feet which allow levelling by +/- 1 cm. Use a spirit level and spanner No. 22.

INFORMATION!

The floor on which the dryer is placed must have a concrete base. It should be clean and dry; otherwise, the dryer may slide. Also clean the adjustable feet.

INFORMATION!

The dryer must stand level and stable on a solid base.

INFORMATION!

Incorrect levelling of the dryer with the adjustable legs may cause vibration, appliance sliding across the room, and loud operation. Incorrect levelling of the dryer shall not be subject to warranty.

INFORMATION!

Sometimes, unusual or louder noise may appear during appliance operation; these are mostly the result of improper installation.

Draining the condensate

During the drying process, an indicator light (symbol (14), is lit on the display unit) warns when the condensate tank is full and needs to be emptied.

To avoid emptying the condensate tank, run the condensate discharge hose located at the back of the appliance directly into a drain.

1. Release the hose from the holder on the back wall of the dryer (left-hand side, below the top cover).

2. Run the hose into a drain at a height of no more than 80 cm from the floor.

INFORMATION!

If you decide to run the condensate drain hose into a drain, make sure the hose is securely fastened. This will prevent any water spillage which could result in unexpected damage.

WARNING!

Always use the hoses supplied with the dryer.

Connecting to the power mains

ELECTRIC SHOCK!

After installation, the dryer should stand still for two hours before it is connected to the power mains; this allows the dryer to stabilize.

Connect the dryer to a grounded power outlet. After installation, the wall outlet should be freely accessible. The outlet should be fitted with an earth contact (in compliance with the relevant regulations).

Information on your dryer is indicated on the rating plate (see chapter »DESCRIPTION OF THE DRYER/Technical information«).

ELECTRIC SHOCK!

We recommend using over-voltage protection to protect the appliance in case of a lightning strike.

WARNING!

The dryer shall not be connected to the power mains using an extension cord.

INFORMATION!

Do not connect the tumble dryer to an electrical outlet intended for an electric shaver or hair dryer.

INFORMATION!

Any repair and maintenance pertaining to safety or performance should be done by trained experts.

INFORMATION!

A damaged power cord may only be replaced by a person authorized by the manufacturer.

Moving and transport after installation

After every drying cycle, a small amount of condensed water will remain in the dryer. Switch on the dryer and choose one of the programmes, then let the appliance operate for approximately half a minute. This will pump out the remaining water and prevent damage to the dryer during transport.

If the dryer cannot be transported in the upright position, tilt it to the left side.

ELECTRIC SHOCK!

After transport, the dryer should be left to stand still for at least two hours before it is connected to the power mains. The appliance should be installed and connected by a trained technician.

INFORMATION!

If the appliance was not transported in compliance with the instructions, the dryers should be left to stand still at least 24 hours before it is reconnected to the power mains.

Failure to do so may result in a heat pump failure which shall not be covered by the warranty.

Be careful not to damage the cooling system (see chapter »INSTALLATION AND CONNECTION/Dryer placement«).

ELECTRIC SHOCK!

Carefully read the instructions for use before connecting the dryer. Repair or any warranty claim resulting from incorrect connection or use of the dryer shall not be covered by the warranty.

INFORMATION!

The belt may only be replaced by a service technician authorized by the manufacturer, who can supply the original spare part with the code OPTIBELT EPH 1906, code 104265; OPTIBELT 8 EPH 1941, code 160165; POLY-V 7 PH 1956 HUTCHINSON, code 562038; HUTCHINSON 8 PH E 1942, code 270313 (depending on the model).

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

Make sure the dryer is disconnected from the power mains; then, open the door by pulling the left side of the door towards you (figures 1 and 2).

Before using the dryer for the first time, clean the dryer drum using a soft damp cotton cloth and water (figure 3).

3

WARNING!

Do not use any solvents or cleaning agents that could damage the dryer (please observe the recommendations and warnings provided by the manufacturers of the cleaning agents).

Connecting the appliance to the ConnectLife application

ConnectLife is a smart home platform that connects people, devices and services. The ConnectLife application includes advanced digital services and carefree solutions that allow users to monitor and control appliances, receive notifications from a smartphone, and update software (supported features may vary depending on your appliance and the region/country in which you are located).

To connect your smart device, you need a home Wi-Fi network (only 2.4 GHz networks are supported) and a smartphone equipped with the ConnectLife application.

To download the ConnectLife application, scan the QR code or search for ConnectLife in your favorite app store.

1. Install the ConnectLife application and create an account.
2. In the ConnectLife application, go to the "Add device" menu and select the appropriate type of device. Then scan the QR code (it can be found on the nameplate of the appliance; you can also enter the AUID/SN number manually).
3. The application then guides you through the entire process of connecting the appliance to your smartphone.
4. After a successful connection, the appliance can be operated remotely via the mobile application.

Useful tips for your smart device

Where to find the QR code for the devices required by the app during the installation process?

The QR code can be found on the warranty card and on the rating plate of the appliance.

How to enable Wi-Fi on the device?

Check that the appliance is switched on; the programme selection button can be in any position. Then do the following:

• In the ConnectLife app, open the add device menu.
• Follow the instructions in the application ConnectLife, where you will pair your phone and appliance and add the appliance to your home Wi-Fi network. - Select the type of appliance. - Scan the QR code (it can be found on the warranty card or on the rating plate of the appliance).
• On the appliance: - Simultaneously press the positions (7+8). A countdown will start 3-2-1 and will appear on the appliance. - Press the button (8) to switch on Wi-Fi; the display will show
• Press the button (9) START/PAUSE. The display will show [on]

- Press again the button (9) START/PAUSE. A 5 minute countdown will begin on the appliance.

- In the ConnectLife app, instructions will guide you through the process of entering the appropriate data for your appliance to connect to your home network.

How to enable remote start of the appliance?

Move the programme selection button to ConnectLife/REMOTE CONTROL (remote control).

Press the (9) START/PAUSE button (the door must be closed).

How to add a user?

Check that the appliance is switched on; the programme selection button can be in any position. Then do the following:

- In the ConnectLife app, open the add device menu.

• Follow the instructions in the application ConnectLife where you will pair the phone and the appliance. - Select the type of appliance.
• Scan the QR code (it can be found on the warranty card or on the rating plate of the appliance).

- On the appliance:

• Simultaneously press the positions (7+8). A countdown will start 3-2-1 and will appear on the appliance.
• Press the button (8); the display will show.
• Press the button (9) START/PAUSE. A 3-minute countdown will start on the appliance.

- You can then complete and confirm the setting in the app.

How to remove the users (UnPair)?

Check that the appliance is switched on; the programme selection button can be in any position. Then do the following:

On the appliance:

• Simultaneously press the positions (7+8). A countdown will start 3-2-1 and will appear on the appliance. • Repeatedly press (8); until the display shows.
• Press the button (9) START/PAUSE. A 1 minute countdown will start on the appliance.

INFORMATION!

This step will remove all active users of the appliance. If you want to operate the appliance remotely again, you will need to repeat the process of adding a user.

Which Wi-Fi router can be used?

Only 2,4 GHz networks are supported. If the ConnectLife app cannot find your local network during the connection set-up process, check the following:

• your router is operating at the frequency of 2.4 GHz,
• your network is hidden, and • your signal is strong enough.

Do you have more questions?

Please visit us at www.connectlife.io or contact us at [e-mail].

Remotely upgrading the software

Check the software update options in the app Connect Life.

DRYING PROCESS, STEP BY STEP (1-6)

Step 1: Heed the labels on the laundry

Normalwash;Sensitivelaundry
	Max.washingtemp.95°C		Max.washingtemp.40°C			Handwashonly
	Max.washingtemp.60°C		Max.washingtemp.30°C			Donotwash
Bleaching
					BleachingnotallowedBleachingincoolwater
Drycleaning
					PetroleumsolventR11,R113Drycleaningwithallage
	Drycleaninginkerosene,purealcohol,andR113				Drycleaningnotallowed
Ironing
					Hotironing,max.110°CHotironing,max.200°C
					IroningnotallowedHotironing,max.150°C
Drying
					HightemperatureDryflat(placeonaflatsurface)
[DSAA]					LowtemperatureDripdry
					TumbledryingnotallowedLinedry

Step 2: Preparing for the laundry drying process

1. Sort the laundry by type and thickness of the fabric (see PROGRAMME TABLE).
2. Close the buttons and zips, tie any ribbons, and turn the pockets inside out.
3. Place very sensitive clothes in a special-purpose laundry bag.

(The special-purpose laundry bag is available as an optional accessory.)

Drying laundry made of particularly delicate fabrics that may be deformed is not recommended. The following types of laundry may not be dried in the dryer as this may cause your garments to deform:

• leather garments and other leather products, • garments that are waxed or treated in any other way, • garments with major wooden, plastic, or metal parts; • garments with spangles; • garments with metal parts subject to rusting.

Switching on the dryer

Connect the dryer to the power mains by plugging in the power cord.

To turn on the dryer, rotate the program selector knob (1) to any position (figure 1).

With some models, the dryer drum is lit as well (figure 2).

(The light in the dryer drum is not suitable for any other use.)

INFORMATION!

The light in the dryer drum may only be replaced by the manufacturer, a service technician, or an authorized person.

1

2

Loading the dryer

Open the dryer door by pulling the left side of the door towards you (figure 1).

Insert the laundry into the drum (after making sure the drum is empty) (figure 2).

Close the dryer door (figure 3).

1

2

3

INFORMATION!

Do not insert laundry into the dryer if it has not been wrung or spun (recommended minimum spinning cycle: 800 rpm).

Do not overload the drum! See PROGRAMME TABLE and observe your nominal load as indicated on the rating plate.

If the dryer drum is overloaded, the laundry will be more wrinkled and perhaps unevenly dried.

INFORMATION!

When drying larger items (bedding, towels, tablecloths, etc.), loosen them and then insert them into the dryer drum.

Step 3: Choosing the drying programme

Select the programme by rotating the programme selector knob (1) in either direction (depending on the type of laundry and the desired level of dryness). See PROGRAMME TABLE.

The signal light next to the selected programme lights up.

INFORMATION!

The programme selector knob (1) will not rotate automatically during operation.

Programme chart

ProgramDrynesslevels		load	ProgrammedescriptionMax.
Cotton(Cotton)
	(Cupboarddry)	9kgStorag	Asethisprogrammeforthickernon-sensitivecotton laundry.Afterdrying,itwillbedryandreadytobestored inthecupboard.
		9kgStand	Asethisprogrammeforthickernon-sensitivecotton laundryofapproximatelythesamethickness.After drying,itwillbedry.
	(Moistforironing)	9kgIron	Usethisprogramfornon-sensitivecottonlaundry.After drying,itwillbereadyforironing.
	Mix(Mixedlaundry)	3,5kg	Theprogramisusedfordryingcottonandsynthetic laundryatthesametime.NATUREDRYdryingatalowertemperaturethatis friendliertoyourlaundry.
	(Synthetics)	3,5kgSyn	Theprogramisusedfordryingsyntheticandblended textiles.
	(Wool)	2kgWool	Thisshortprogramisintendedforsofteningorfluffing ofclothesmadeofwoolandsilk,whichhavetobedried thoroughlyaccordingtomanufacturer'sinstructions.
[Y46S]	(Bedding)	5kgBedding	Thisprogrammeforlargeritems.Whenthe programmeiscomplete,theywillbedry.Adjusteddrum rotationpreventsthelaundryfromtangling.
	(Timedprogram)	4kgTime	Usethisprogrammefornon-sensitivelaundrythatisstill slightlymoistandhastobethoroughlydried.Inthetime programme,remainingmoistureisnotdetected automatically.Ifthelaundryisstilldampafterthe programmeiscomplete,repeattheprogramme;ifitis toodryandthereforecreasedandroughtotouch,the dryingtimeyouselectedwastoolong.
	Baby(Babyclothes)	4 kg	Usethisprogrammetodrybabyclothes.Clothesdried withthisprogrammeareusuallynormallydry.NATUREDRYdryingatalowertemperaturethatis friendliertoyourlaundry.
[ZBY4]	Sensitive(Delicate)	1 kg	Usethisprogrammetodryhighlydelicatelaundrymade ofsyntheticfibres,whichmaybeslightlymoistafterthe dryingprocess.Werecommendusingaspecial-purpose laundrybag.NATUREDRYdryingatalowertemperaturethatis friendliertoyourlaundry.
[BWHK]	Shirts(Shirts)Sports(Sportswear)	2 kg3 kg	Usethisprogramtodryshirtsandblouses.Adjusted drumrotationpreventsthelaundryfromcreasing.NATUREDRYdryingatalowertemperaturethatis friendliertoyourlaundry.Usethisprogrammeforclothingwithamembrane,for sportswearmadeofmixedmaterials,andbreathable fabrics.NATUREDRYdryingatalowertemperaturethatis friendliertoyourlaundry.
	(Fast89')	4kgFast89Theprogramissuitableforsmalleramountsoflaundry thatyouwishtodryquicklyandefficiently.
		4kgExtraHygjendryingprogramdurationandoverheatingofthe fabricresultsinhigherdryingtemperature(above60°C), whichreducestheamountofmicrobesandallergens onthegarments.Thisdryingprogramshouldnotbe usedfordelicateitemsanditemsthatarenotsuitable formachinedrying.
	Remotecontrol(Remotecontrol)		UsetheRemotecontrolprogrammetoremotelycontrol yourappliance(usingyourphone).Youcanselectall programsavailableofyourappliance(seechapters »BEFOREFIRSTUSE/Settingupthefirstconnectionof yourappliancetotheWi-Finetwork«and»WASHING STEPS/1-6/Step3:Remotecontrolofyourdryerusing theapp«).

* Standard programme for cotton laundry pursuant to the currently effective regulation EU 392/2012 ^* As tested at the manufacturer's laboratory; comparison between NATUREDRY drying programme and normal drying programme with a heat pump.

If your laundry is not dried to the desired dryness level, use extra functions or use a more suitable programme.

DrySync function

The DrySync function allows communication between the washing machine and the dryer. When the washing machine completes the washing cycle, the suggested drying programme appears automatically on the dryer, based on the washing programme that was used. This function can only be activated or deactivated in the ConnectLife mobile app. Animation on the knob will indicate that the function is activated, and SnC will appear simultaneously on the appliance. The DrySync function can only operate between two connectible appliances of the same brand.

Remote control of your dryer using the app

INFORMATION!

See chapter DRYING PROCESS, STEP BY STEP (1-6) and observe steps 1 and 2.

On the appliance:

1. Close the dryer door.
2. Rotate the program selector knob to position ConnectLife/REMOTE CONTROL (Remote control).
3. Press the position (9) START/PAUSE. Remote control indicator

REMOTE START will be activated.

The appliance switches to standby mode. The appliance can then be remotely controlled for the next 24 hours or until the appliance door is opened. Opening the appliance door will disable REMOTE CONTROL (ConnectLife).

Continue operating the appliance in the ConnectLife app, where you can choose from several options (selection, launch, and monitoring and stopping of the programme, amongst other additional settings).

INFORMATION!

The drying process can be controlled/monitored from the app.

INFORMATION!

Dryer operation can be interrupted or stopped via the application by selecting STOP/PAUSE or by opening the dryer door.

INFORMATION!

You can also control your appliance from your phone if you are not connected to the same Wi-Fi network as your appliance (the phone only needs an active internet connection). This means you can also control your appliance when you are away from home.

INFORMATION!

You can operate the appliance with multiple devices. You can control and monitor the operation of the appliance with any phone connected to the appliance, regardless of which user has initiated the drying process. The appliance can be connected to/controlled simultaneously with several ConnectLife user accounts.

INFORMATION!

After you have started the appliance from your phone, a person located next to the appliance can take over and manually turn off or control the appliance; the app will notify you in such case. In such case, controlling the appliance remotely from your phone is no longer possible. If you wish to control the appliance from your phone again, all required steps must be repeated.

Step 4: Selecting extra functions

INFORMATION!

Activate/deactivate the functions by pressing the selected function (before pressing the (9) START/PAUSE button).

Adjust the settings by pressing the relevant function button (just before pressing the (9) START/PAUSE button).

Functions that can be changed or adjusted with the selected drying programme are partly lit (dimmed).

Certain settings cannot be selected with some programmes. Such settings will not be lit, and the button will flash when pressed (see FUNCTION TABLE).

Description of function indicators for the selected drying programme:

• Lit (Basic/preset setting); - Dimmed (Functions that can be adjusted) and - Unlit (Functions that cannot be selected).

Three higher dryness levels and drying times are available. The extra functions (2a) (1, 2, 3) allow selecting a higher dryness level while extending the drying time. The light on these selected drying modes will be lit up.

ANTI-CREASE (CREASE PREVENTION)

If you do not remove the laundry from the dryer immediately after the completion of the drying programme, we recommend using the (3) ANTI-CREASE (CREASE PREVENTION) function. This function has been selected before the start of the drying process.

Press on the position (3) ANTI-CREASE (CREASE PREVENTION) to choose between 1h, 2h, and 3h duration (3a) or deactivating this function. When you open the dryer door after the completion of the drying programme, the function is automatically deactivated. The function is also deactivated if you press the (9) START/PAUSE key after the completion of the programme.

If you press any key (except DELAYEND and START/PAUSE) while setting the DELAYEND (DELAYING THE END OF THE DRYING PROGRAMME) function, then DELAYEND will be reset. Therefore, before setting the DELAYEND, all other desired functions have to be set first.

Settings procedure:

• Select the desired programme and extra functions.
• Press the (7) DELAYEND position (DELAYING THE END OF THE DRYING PROGRAM) to activate the function.
• Repeatedly press this position to set the desired drying completion time (with 30-minute increments up to 6 hours, and 1-hour increments thereafter, up to 24 hours).
• The function is activated when the (9) START/PAUSE.

The dryer starts counting down the time. When the count down reaches the drying programmed duration (e.g. 2:30), the drying programme starts automatically.

To stop or change the drying end delay, rotate the drying programme selector knob (1) to position OFF for at least 1 second.

When the dryer is turned on the next time, you can set a new drying completion delay time.

To quickly cancel the programme completion delay, press the position (7) DELAYEND (DELAYING THE END OF THE DRYING PROGRAMME) and hold it for 3 seconds. The drying programme starts immediately.

Example of function setting:

If you wish the drying programme to end at 6:00 in the morning and it is now 21:00, then set the DELAYEND (DELAYING THE END OF THE DRYING PROGRAM) to 9 hours.

NATUREDRY (LOWER TEMPERATURE)

Press the (8) NATUREDRY (LOWER TEMPERATURE) position to choose drying at a lower temperature that is friendlier to your laundry.

Drying laundry at a lower temperature than normal in order to reduce the possibility of shrinkage. During the drying process, the temperature is decreased by means of accurate control of heat pump operation and an additional temperature sensor. Therefore, shrinkage of clothes with this program can be up to 50% lower than with normal drying at a normal drying temperature (depending on the garments and type of fabric). The program is intended for garments that may be dried in a dryer.

INFORMATION!

Some functions are not available and cannot be selected with certain programmes; an acoustic signal and a flashing light will indicate such cases (see EXTRA FUNCTION TABLE).

SETTINGS USING A COMBINATION OF TWO BUTTONS PRESSED SIMULTANEOUSLY

If the child lock is activated, programme or additional functions cannot be changed. The child lock remains active after the dryer is switched off. Therefore, it has to be deactivated before a new programme can be selected. It can also be switched on or off during the drying process.

SOUND OFF

To switch off, or mute, the appliance sounds, simultaneously press the positions (5) TIMED DRY (TIMED DRYING) and (7) DELAY END (DELAYING THE END OF THE DRYING PROGRAM) and hold them for at least 3 seconds until the symbol (6) lights up or goes off, respectively.

To reactivate the sound, simultaneously press the positions (5) and (7) and hold them for at least 3 seconds. If you turn off the sound, then there is no audible signal at the end of a drying programme.

Wi-Fi MENU

The Wi-Fi menu is used for connecting the appliance and for remote control.

Rotate the programme selector knob (1) to any position, except position OFF.

Simultaneously press the positions (7) DELAY END (DELAYING THE END OF THE DRYING PROGRAMME) and (8) NATURE DRY (LOWER TEMPERATURE) and hold them for 3 seconds to enter the Wi-Fi settings menu.

You can take one step back by simultaneously pressing the positions (7) and (8) and holding them for 3 seconds.

Use the (8) NATURE DRY (LOWER TEMPERATURE) key to select the available functions; use the (9) START/PAUSE key to confirm your selection.

Available settings:

• OFF/On: turning appliance connectivity off or on. - Con: the appliance is ready for connecting to a Wi-Fi network for 5 minutes. - PAr: the appliance can be connected to the ConnectLife app for 3 minutes. The function will only be active if you have already connected the appliance to your Wi-Fi network. - UnP: Remove (unpair) all users.

INFORMATION!

After disconnecting the dryer from the power mains, all settings will be set to their default factory values, except for the acoustics signal loudness, anti-crease, and child lock settings.

INFORMATION!

The functions CHILD LOCK and SOUNDS OFF cannot be activated or deactivated 10 seconds after turning on.

Extra function table

Programmes		EXTRADRY (DRYNESSLEVEL)	ANTICREASE (CREASEPREVENTION)	TIMEDRY (TIMEDDRYING)	DELAYEND (DELAYINGTHEENDOF THEDRYINGPROGRAM)	NATUREDRY (LOWERTEMPERATURE)
Cotton(Cotton)
	Storage (Cupboarddry)	●	●		●
	Standard* □	●	●		●
	Iron (Moistforironing)	●	●		●
—	Mix 📋 (Mixedlaundry)	●	●		●	●
[B35C] —	Synthetic (Synthetics)	●	●		●
	Wool (Wool)
	Bedding (Bedding)	●	●		●
[B355]	Time (Timedprogram)		●	●
	Baby 🎨 (Babyclothes)	●	●		●	●
	Sensitive 🎨 (Delicate)	●	●		●	●
—	Shirts 🎨 (Shirts)	●	●		●	●
—	Sports 🎨 (Sportswear)	●	●		●	●
	Fast89' (Fast89')		●		●
	ExtraHygiene	●	●

• Additional functions can be used

If your laundry is not dried to the desired dryness level, use extra functions or use a more suitable programme.

Step 5: Starting the drying programme

Press the (9) START/PAUSE key.

TIME REMAINING TO PROGRAMME COMPLETION or DELAY END (DELAYING THE END OF THE DRYING PROGRAM) time (if set) will appear on the display. Symbols will be lit on the selected functions.

If the TIME REMAINING UNTIL PROGRAMME COMPLETION flashes three times on the display unit, and there is an audible signal, this means that the dryer door is open or not closed tightly. Close the dryer door and press the key (9) START/PAUSE again to resume the drying programme.

Step 6: End of the drying programme

At the end of the drying programme, ("End") will appear on the display unit, the two red indicator lights will light up, the (9) START/PAUSE button light will flash, and the light for the selected time of ANTI-CREASE (CREASE PREVENTION) (3a) function, if activated or selected, will flash.

1. Open the dryer door.
2. Clean the filters (see section »CLEANING«...).
3. Take the laundry from the drum. 4. Close the door!
4. Switch off the dryer (rotate the program selector knob (1) to the OFF position).
5. Empty the condensate tank.
6. Unplug the power cord from the outlet.

INFORMATION!

After the end of the drying programme, immediately remove the laundry from the dryer to prevent it from creasing again.

WARNING!

The final drying cycle includes a cooling down stage without heater operation. It makes sure the laundry is of suitable temperature at the end of the program and that it can be taken from the dryer without risk of touching hot clothes.

INTERRUPTIONS AND CHANGING THE PROGRAMME

Interruptions

Interrupting the programme process

Press the (9) START/PAUSE button to pause/resume a programme.

To stop and cancel the drying programme, press the (9) START/PAUSE button and hold it for 3 seconds. The selected programme will stop, and the dryer will start to cool down. Cooling down time depends on the selected programme. After this process, the drying programme can be selected again.

Open door

If the dryer door is opened during the drying process, the drying cycle will be interrupted.

When the door is closed and the (9) START/PAUSE button is pressed, the drying will resume from the point at which it was interrupted.

HOT SURFACE!

The dryer door will heat up during the drying process. Make sure you do not burn yourself when opening the dryer door.

Full condensate tank

When the condensate tank is full, the drying cycle will pause (this symbol lights up).

Empty the condensate tank (see chapter "CLEANING AND MAINTENANCE / Emptying the condensate tank").

Press the (9) START/PAUSE button to resume the drying programme from the point at which it was interrupted.

Power supply failure

When power supply is resumed, will appear on the display unit; the signal light on the (9) START/PAUSE button will flash.

To resume the drying process, press the (9) START/PAUSE button!

Changing the program/functions

Turn off the dryer by rotating the program selector knob (1) to position OFF. Turn it back on again by rotating the program selector knob (1) to any program.

Select another program/function and press the (9) START/PAUSE button again.

Adding laundry after the start of the program

Open the dryer door and press the (9) START/PAUSE button. Insert the laundry and press the button (9) START/PAUSE.

Drying time may be extended.

HOT SURFACE!

When loading the laundry, make sure you do not burn yourself when you open the dryer door.

Saving personal settings

Initial settings may be changed.

When the program and additional functions are selected, you may store such combination by pressing the (9) START/PAUSE button and holding it for (9) seconds. A signal light on the (9) START/PAUSE button and an acoustic signal will confirm your selection. Indication »saved« will appear briefly on the display unit (13).

Press the (9) START/PAUSE button to start the drying process.

The changed combination will appear every time you switch on the dryer.

Follow the same procedure to change a previously saved combination.

AdaptTech

When a drying programme setting is used three times in a row, this setting is stored as default and will always be suggested when you select that drying programme – this is called the ADAPTTECH function. If you manually store the settings of a drying programme, the ADAPTTECH function on this programme is deactivated.

Personal settings menu

To turn on the dryer, rotate the program selector knob (1) to any position. To open the personal settings menu, simultaneously press on the positions (2) EXTRA DRY (DRYNESS LEVEL) and (5) TIME DRY (TIMED DRYING), and hold them for 3 seconds. The symbols (3) ANTICREASE (CREASE

PREVENTION), (12) CLEAN THE FILTER ⚙, and (14) CONDENSATE TANK ⚙ will light up on the display unit.

Number 1 will appear on the display unit, indicating the settings function. Rotate the programme selector knob (1) in either direction to choose the function to change. Number 1 indicates sound settings and number 2 indicates resetting of Personal programme settings to factory defaults. If the desired settings are not selected in 20 seconds, the programme will automatically return to main menu.

Press on the position (3) ANTICREASE (CREASE PREVENTION) to confirm the desired functions and their relevant settings. Press on the position (2) EXTRA DRY (DRYNESS LEVEL) to go back one step.

The acoustic signal volume can be set at four levels (0 means the sound is off; 1 means that the button sound is activated; 2 means low volume, and 3 means high volume). Choose the volume level by rotating the programme selector knob (2) to the left or to the right. The lowest setting means that the acoustic signal is switched off.

CLEANING AND MAINTENANCE

ELECTRIC SHOCK!

Before cleaning, make sure to switch off the dryer and disconnect it from the power mains (unplug the power cord from the outlet).

The dryer is fitted with a filtering system consisting of several filters that prevent any impurities from entering the heat exchanger system.

1 Net filter

2 Heat pump filter

3 Condensate tank

INFORMATION!

The dryer may never be operated without the filters in place or with damaged filters, as an excessive amount of accumulated fibres from the fabric could cause malfunction or failure of the dryer.

Cleaning the door net filter in the door

INFORMATION!

Clean the net filter after each drying cycle.

1 Open the filter housing. 2 Pull out the net filter. 3 Gently scrape the filter to remove the lint, i.e. the lining of fibres and threads, with your hand or with a cloth. 4 If necessary, clean the filter housing and door gasket as well. 5 Insert the net filter and close the filter housing.

INFORMATION!

Make sure you do not pinch your fingers with the filter cover.

Cleaning the heat pump filter

INFORMATION!

During cleaning, some water may be spilled. It is therefore recommended to place an absorbent cloth on the floor.

1. Open the outside cover. Hold the levers on the inside cover and rotate them as indicated by the arrows.

2. Remove the inside cover along with the heat pump filter.

3. Detach the front filter part from the heat pump filter housing and open it. Push the foam part of the filter out from the housing. Use a damp cloth to clean the heat pump filter mesh.

4, 5. Wash the sponge filter under running water and dry it, or vacuum the dust and lint from the filter. Replace the clean sponge filter into the filter housing.

INFORMATION!

Insert the heat pump foam filter into the housing and close the outer cover (push it upwards toward the machine until it latches into place).

INFORMATION!

The heat pump filter has to be correctly inserted into its slot. Otherwise, the heat exchanger installed inside the dryer may be clogged or damaged.

INFORMATION!

Clean the foam filter at least after every five drying cycles.

Cleaning of the heat exchanger

WARNING!

Do not touch the inner metal parts of the heat exchanger with bare hands. Danger of injury on sharp parts. Use appropriate protection gloves when cleaning the heat exchanger.

WARNING!

Incorrect cleaning of the metal fins of the heat exchanger can permanently damage the tumble dryer. Do not press on the metal fins with hard objects like for example the plastic tube of a vacuum cleaner.

The dust and dirt in the metal fins of the heat exchanger can be cleaned with a vacuum cleaner and a soft brush attachment.

Access to the heat exchanger is possible when the heat pump filter is removed as is described in the chapter “Cleaning the heat pump filter”.

Without pressing, gently move the brush attachment only in the direction of the metal fins from top to bottom. Too much pressure can damage or bend the metal fins of the heat exchanger.

INFORMATION!

We recommend you clean the heat exchanger at least every twelve months.

Emptying the condensate tank

INFORMATION!

Empty the condensate tank after each drying cycle.

If the condensate tank is full, the drying programme will be paused automatically.

Symbol (14) will light up on the display unit, indicating that the condensate tank should be emptied.

1 Pull out the condensate tank from the dryer (using both hands as shown in the figure), then turn it upside down over a washbasin, sink, or any suitable vessel.

2, 3 Empty the

condensate tank. Pull out the spout at the opening for easier emptying. Replace the condensate tank.

INFORMATION!

Water from the condensate tank is not drinkable. If thoroughly filtered, it can be used for ironing.

WARNING!

Never add chemicals or fragrances into the condensate tank.

It is not necessary to empty the condensate tank if the drain hose is connected directly to a drain (see chapter "INSTALLATION AND CONNECTION / Draining the condensate").

Cleaning the dryer

ELECTRIC SHOCK!

Always disconnect the dryer from the power mains before cleaning.

Clean the dryer exterior using a soft damp cotton cloth.

WARNING!

Do not use any solvents or cleaning agents that could damage the dryer (please observe the recommendations and warnings provided by the manufacturers of the cleaning agents).

Wipe all parts of the dryer with a soft cloth until dry.

INFORMATION!

Do not clean the dryer with a jet of water!

TROUBLE-SHOOTING

What to do...?

Disturbances from the environment (e.g. the power grid) may result in various error reports (see TROUBLESHOOTING TABLE). In such case:

• Switch off the dryer and wait at least one minute.
• Switch on the dryer and repeat the drying programme.
• Most errors during operation can be resolved by the user (see TROUBLESHOOTING TABLE).
• If the error occurs again, call an authorized service unit.
• Repairs may only be carried out by an adequately trained person.

Repair or any warranty claim resulting from incorrect connection or use of the dryer shall not be covered by the warranty. In such cases, the cost of repair shall be charged to the user.

Troubleshooting and error table

		Whatodo?CauseProblem/Error
Themachinewill notstart.	switchedon.	•Checkwhetherthemainswitchison.Themainswitchisn
	poweroutlet.•Checkifthepower	•Checkthefuse.•Thereisnovoltageinthe cordplugiscorrectly insertedintothepoweroutlet.
Thereisvoltage intheoutlet,but thedrumdoes notspinandthe appliancedoes notwork.		•Checkifthedoorisclosedproperly.Opendoor.
	Thecondensatetankisfull.	•Emptythecondensatetank(seechapter »CLEANINGAND MAINTENANCE/Emptyingthe condensatetank«).
	•Perhapsthe DELAYEND (DELAYINGTHEENDOF THEDRYINGPROGRAM) functionwasset.•Programwasnotstartedin accordancewiththe instructions.	•Tocancelthestartdelay,pressonthe position(7) DELAYEND (DELAYING THEENDOFTHEDRYINGPROGRAM) andholdfor3seconds. Re-readtheinstructionsforuseagain.
Theappliance stopsheating completely duringa programme.	•Thenetfiltermaybe clogged.Asaresult,the temperatureinthedryer rises,whichinturncauses overheating,andtherefore heatingisswitchedoff.	•Cleanthenetfilter(seechapter »CLEANINGAND MAINTENANCE/Cleaningthenetfilter inthedoor«).•Waitfortheappliancetocooldown,and tryrunningitagain.Ifthedryerstillfails tostart,callaservicetechnician.
Aslighthitting noiseappears.	Ifthedryerisoutofusefora longperiodoftime,the supportelementsareunder stressatthesamepoint.	•Thenoisewillsubsidewithoutany intervention.
Thedooropens duringdrying.	(toomuchlaundryinthe drum).	•Reducetheamountoflaundry.Excessiveload
Unevenlydried laundry.	Laundryofvaryingtypesand thickness,orexcessive amountoflaundry.	•Makesureyouhavesortedthelaundry bytypeandthickness,whetheryouhave addedasuitableamountoflaundryto thedrum,andwhetheryouhave selectedasuitableprogramme(see PROGRAMMETABLE).
Laundrynot driedordrying takestoolong	Filtersarenotclean.	•Cleanthefilters(seechapter »CLEANINGANDMAINTENANCE«).
	•Dryerisplacedinaclosed room;roomthatistooocold; orroomthatistooosmalland theairoverheatsasaresult.•Checkifthetemperatureintheroom wherethedryerisinstalledistoohigh ortoolow.	•Makesurethereisadequatesupplyof freshairtothedryer;forexample,open thedoorand/orwindow.
	Laundrywasnotsufficiently wrungorspun.	•Iftheloadisstillwetaftercompleted dryingcycle,anappropriatedrying programshouldberunagain(after cleaningfilters).
	Amountoflaundrydriedin theapplianceistoolargeor insufficient.	•Useasuitableprogramoreextra functions.
	•Laundry(suchasbedding) getstangledintolargeballs.	•Closethebuttonszippersonthe laundrybeforedrying.Selectasuitable programme(e.g.theprogramBedding). •Afterthedryingprocess,loosenthe laundryandselectanadditionaldrying programme(e.g.Time(Timeddrying program)).
Drumlighting error (dependingonthe model)	Thereisnolightingwhenthe dryerdoorisopened.	•Disconnectthedryerfromthepower mainsandcallanauthorizedserviceunit.Whattodo?CauseProblem/Error
Theappliance cannotbe controlled remotely	Applianceremotecontrolis notactivatedorenabled.	••CheckiftheWi-Fisymbolonthe applianceislit,andsettheprogram selectorknob(1)topositionREMOTE CONTROL(ConnectLife).
Theappliance willnotconnect totheWi-Fi network	Theappliancecannotfind yourWi-Finetwork.	••Checkwhether2.4GHznetworkis activatedonyourrouterandwhetherthe Wi-Fisignalattheapplianceisstrong enough.

Errors indicated on the display unit may include the following:

Problem/Error		anddescriptionoferror	Whattodo?Indicationonthedisplayunit
			Callservicecentre.Controlunitfailure
			Callservicecentre.Temperaturesensorfailure
			Callservicecentre.Communicationerror
			Callservicecentre.Pumperor
		Systemoverheating	Cleanthefilters.Seechapter»CLEANING ANDMAINTENANCE/Cleaningthenetfilter inthedoor«orcallaservicetechnician.
		Controlunitfailure	Disconnectthetumbledryerfromthepower supply. Callservicecentre.
		Theappliancecannotbe connectedtotheWi-Fi network	Theerroronlyaffectstheoptiontoremotely controlyourdryingprogramme(remote control).Itdoesnotaffectthedryingprocess onotherprogrammes. Callaservicetechnician.

Warnings indicated on the display unit may include the following:

Warning		anddescriptionofwarning	Whattodo?Indicationonthedisplayunit
		Condensatetankwarning	Emptythecondensatetankbeforeresuming theprogramme(seechapter»CLEANINGAND MAINTENANCE/Emptyingthecondensate tank«).
			Dryinginterruptedduetopowersupplyfailure.Pow Pressthe(9)START/PAUSEbutton to restartorresumethedryingprogramme.
		Attheendofthedrying programme,(End)will appearonthedisplayunit.Tworedsymbolsandwill lightup.Thisisnotafault;itisjusta warningthatthefiltersneedto becleanedafterdrying.	Cleanthefiltersandemptythecondensate tank.

Write down the error code (e.g. E0, E1), switch off the dryer, and call the nearest authorized service (call centre).

Sounds

INFORMATION!

In the initial drying stage during drying, the compressor and the heat pump cause noise; this, however, does not affect the tumbled dryer operation.

Humming sound: compressor noise; the noise level depends on the program and the drying stage.

Buzzing sound: the compressor is occasionally ventilated.

Pumping or liquid flowing sound: the pump is pumping the condensate into the condensate tank.

Clicking sound: start of automatic cleaning of the heat exchanger (compressor).

Rumbling or rattling noise: during drying when the laundry also includes hard parts (such as buttons, zippers, etc.)

Service

Before calling a service technician

When you contact a service centre, please state your dryer's type (1), code/ID (2), model number (3), and serial number (4).

Dryer type, code, model, and serial number can be found on the rating (type) plate on the inner side of the dryer door.

WARNING!

In case of a failure, only use approved spare parts by authorized manufacturers.

WARNING!

Repair or any warranty claim resulting from incorrect connection or use of the dryer shall not be covered by the warranty. In such cases, the costs of repair shall be charged to the user.

INFORMATION!

The warranty does not cover errors or failures resulting from disturbances from the environment (lightning strike, power grid failures, natural disasters, etc.).

Additional equipment and accessories for maintenance can be viewed on our website at: www.gorenje.com

TIPS FOR DRYING AND ECONOMIC USE OF YOUR DRYER

The most economical way of drying is to dry the recommended amount of laundry each batch (see PROGRAMME TABLE).

Drying laundry made of particularly delicate fabrics that may be deformed is not recommended.

Use of conditioner in the washing cycle is not necessary as the laundry is soft and smooth after drying in the dryer. Drying time will be shorter and power consumption will be lower if the garments are thoroughly wrung or spun before drying. By selecting the appropriate drying programme, you will avoid over-drying your laundry and problems with ironing or shrinkage of fabric.

Regular cleaning of the filters will lead to optimum drying time and minimum power consumption.

When drying smaller amounts of laundry or individual garments, the sensor may not perceive the actual level of moisture in the laundry. In such cases, it is recommended to dry smaller items or amounts with programmes for dryer laundry or with the timed programme.

TYPICAL CONSUMPTION TABLE

The table lists the values for drying time and power consumption for drying of a test batch of laundry with various spinning rpm in the washing machine.

9 kg

	LoadProgram	Spinning [rpm]	Electric energy consumption [kWh]	Dryingtime [min]
			9 kg
				2152,141000TotalC
				1301,321400Partial
				1241,181000Low
				1101,081400Low
				1501,461000TotalC
				950,881400Partial
				700,691400Low
				600,591000PartialS

Program	Amountoflaundry max./halfload [kg]	Programme duration [min.]	Electricenergy consumption [kWh]
		CottonStandard,4/1,18215/1249/4,5

Standard programmes for cotton laundry in compliance with the currently effective regulation EU 392/2012

The Cotton Standard programme □, is intended for drying of normally wet cotton laundry. It is the most efficient programme for drying cotton laundry in terms of power consumption.

Due to deviations in terms of type and amount of laundry, power supply oscillation, and environment temperature and humidity, the values measured at the end user may differ from the ones stated in the table.

Low standby mode

If you do not run any program or choose any settings after switching on the dryer (program selector knob (1)), the display unit will be switched off after 5 minutes and switched to standby mode in order to save energy.

The display unit can be reactivated by rotating the program selector knob. If you do not do anything for 5 minutes after the end of a program, the display unit will be switched off to save power.

	<0,5Po=weightedpowerwhenoff[W]
	<0,5PI=weightedpowerwheninstand
	5,00TI=standbytime[min]

Appliance with a wireless connection uses less than 2 W of electric energy in standby mode.

INFORMATION!

Low mains voltage and different drying loads may affect the drying time; the remaining time displayed is adjusted accordingly during the drying process.

PRODUCT ENERGY LABEL AND PRODUCT FICHE

(depending on the model)

PRODUCT FICHE according to EU Regulation No. 392/2012

(depending on model)

Legend

		XXXXXXModelA
		YES=YES;NO=NOCondenser YES=YES;NO=NOVentedtuml
		YES=YES;NO=NOAutomatic
		YES=YES;NO=NO»EUEcolab
E	(Edry)[kWh]	X,XXEnergycor
F	load (Edry1/2)[kWh]	X,XXEnergycor
	0)[W]G	X,XXPowercon:
	p[W]H	X,XXPowercon:
		XXTheduratic
J	Standardcottonprogramme,usedatfullandpartialloadisthe standarddryingprogrammetowhichtheinformationinthelabel andtheficherelates.CottonStandardprogramisintendedfor dryingofnormallywetcottonlaundry.Intermsoftotalenergy consumption,itisthemostefficientprogramfordryingcotton laundry.
K	ofthestandardcottonprogramme atfullandpartialload[min]	XXWeightedp
L	dry andpartialload (Tdry1/2)[min]
	dry /(Cdry1/2)M	XX/XXProgramm
	tN	XX/XXAverageco
		XXWeightedc
		YES=YES;NO=NOBuilt-inapp

Based on 160 standard drying cycles with the Cotton Standard (Cotton Standard) program at full and half load, pursuant to the currently effective Regulation 392/2012/EU on energy labelling of household tumble dryers, measured according to EN 61121.

Actual power consumption will depend on the way the appliance is used.

On a scale from D (the least efficient) to A+++ (the most efficient).

DISPOSAL

Packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed without any hazard to the environment. To this end, packaging materials are labelled appropriately.

The symbol on the product or its packaging indicates that the product should not be treated as normal household waste. Take the product to an authorized collection centre for waste electric and electronic equipment processing.

When disposing of the appliance at the end of its useful life, remove all power cords, and destroy the door latch and switch to prevent the door from locking or latching (child safety).

Correct disposal of the product will help prevent any negative effects on the environment and health of people, which could occur in case of incorrect product removal. For detailed information on removal and processing of the product, please contact the relevant municipal body in charge of waste management, your waste disposal service, or the store where you bought the product.

gorenje

GORENJE gospodinjski aparati, d.o.o. Address: Partizanska 12, 3320 Velenje, Slovenia Phone: [phone] Fax: [phone] www.gorenje.com
