VCW 41314 WI - Vacuum Cleaner BEKO - Free user manual and instructions

Product Type	Cylinder Vacuum Cleaner
Dimensions (H x W x D)	430 x 290 x 260 mm
Weight	5.4 kg
Power Consumption	700 W
Dust Capacity	2.5 L (bagged)
Filtration System	HEPA 13 filter
Noise Level	78 dB(A)
Cord Length	6 m
Hose Length	1.5 m
Included Accessories	Crevice tool, dusting brush, upholstery nozzle, floor brush
Telescopic Tube	Yes, stainless steel
Automatic Cord Rewind	Yes
Variable Suction Control	Electronic slider on handle
Filter Maintenance	Washable HEPA filter (every 3 months)
Dust Bag Change Indicator	Yes, mechanical
Safety Features	Thermal overload protection, auto shut-off
Spare Parts Availability	Yes, dust bags (Type F), HEPA filter (Type G), accessories
Repairability Index	7.5/10 (spare parts available for 5 years)
Energy Efficiency Class	A

Frequently Asked Questions - VCW 41314 WI BEKO

How do I change the dust bag?

Open the front cover, remove the full bag, insert a new Type F dust bag, and close the cover securely.

How often should I clean the HEPA filter?

Wash the HEPA filter under cold water every 3 months. Let it dry completely before reinserting.

What accessories are included?

The package includes a crevice tool, dusting brush, upholstery nozzle, and a combined floor brush.

Can I use the vacuum without a bag?

No, this model requires a Type F dust bag. Do not operate without a bag to avoid motor damage.

How do I adjust suction power?

Use the electronic slider on the handle to adjust suction power from low (for curtains) to high (for carpets).

What is the cord length and does it rewind automatically?

The cord is 6 meters long. It rewinds automatically when you press the rewind button on the unit.

How do I clean or replace the floor brush?

Remove the brush by sliding the release switch. Clean hair/debris from the bristles and replace if worn.

What should I do if suction drops?

Check if the dust bag is full, the HEPA filter is clogged, or there is a blockage in the hose/tube. Clean or replace as needed.

Is the vacuum suitable for pet hair?

Yes, with the included turbo brush (if available) or standard floor brush, it handles pet hair effectively.

Where can I purchase spare parts?

Authorized Beko service centers and online stores sell Type F bags, Type G HEPA filters, and other accessories.

USER MANUAL VCW 41314 WI BEKO

Wet & Dry Vacuum Cleaner

User Manual

Info & Service Toll-Free

Home Appliances

0800 100 2356

PT BEKO APPLIANCES INDONESIA

The Plaza Office Tower, 22th Floor F2-F3, Jakarta 10350

VCW 41314 WI

EN - TH - ID

CE

Number:

Please read this guide first!

Dear Customer,

Thank you for choosing a Beko product. We would like you to achieve the optimal efficiency from this high quality product which has been manufactured with the state of the art technology. Please make sure you read and understand this guide and supplementary documentation fully before use and keep it as a reference. Include this guide with the unit if you hand it over to someone else. Observe all warnings and information herein and follow the instructions.

Symbols and their meanings

The following symbols have been used throughout this guide:

i	Important information and beneficial advices regarding the usage of the device.
!	WARNING:Warnings about dangerous situations regarding safety of life and property.
	Protection class against electric shock.
	Motorized cleaning head for water suction cleaning.

CONTENTS

ENGLISH 03-12

1 Important safety and environmental instructions

This section contains safety instructions to prevent hazards that can result in injury or property damage. Any warranty is void if these instructions are not followed.

1.1 General safety

• This appliance complies with international safety standards. - This appliance can be used by children 8 years old and over, people with physical, sensory or mental challenges or people with lack of experience or knowledge; as long as control is ensured or information is provided regarding safe usage of the device and the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unattended children.

• Do not use the appliance if the power cord or the appliance is damaged. Contact authorized service.
• Keep the appliance and its cable out of the reach of children under 8 years of age.
• Do not power your device with a multi socket.
• Your mains power supply should be in line with the specified information on the type tag of the appliance.
• Do not use the appliance with an extension cord. • To prevent damage to the power cord, prevent it from being pinched, crimped, or rubbed against sharp edges.
• Do not touch the plug of the appliance with damp or wet hands while the appliance is plugged in.
• Do not pull on the cord while unplugging the appliance.

1 Important safety and environmental instructions

- Do not vacuum flammable materials and ensure that the cigarette ashes are cooled down before vacuuming them.

- Protect the appliance against precipitation, humidity, and heat sources.

- Do not use the appliance in or near explosive or flammable environments and substances.

- Unplug the appliance before cleaning and maintenance.

• This product is not designed for commercial use; it is intended for use at home and in applications as follows:

- In the staff kitchens of stores, offices, and other working environments,

- In farmhouses,

- By customers in hotels, motels, or other accommodation facilities;

- In hostels, or similar environments.

- Bed and breakfast environments.

- Do not immerse the appliance or its power cord in water for cleaning.

- Do not disassemble the appliance.

- Use only original parts or parts recommended by the manufacturer.

• To prevent blockage of the filter or damage to the motor, do not vacuum cement, plaster, or fragments of compressed paper.

- Do not use the appliance without filters, as it may get damaged.

- If you keep the packaging materials, keep them out of the reach of children.

• This appliance is not intended to be used by persons, including children, with physical, sensory, or

1 Important safety and environmental instructions

mental disabilities or those who have not adequate experience and knowledge regarding its use, unless they are under the supervision of a person responsible for their safety or they are informed about the operation of the appliance.

• Children shall be supervised to prevent them from playing with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its agent, or a similarly qualified person in order to avoid hazard.
• Keep your fingers, hair, and loose clothes away from moving parts or clearances while vacuuming.
• Do not short circuit the supply terminals. • This appliance shall not be operated by children or people with limited physical, sensory, or cognitive skills, or people with lack of experience and knowledge, unless they are under supervision or they are provided with the relevant instructions. • Children shall be supervised to prevent them from playing with the appliance.
• Do not put weight on the appliance. Make sure that children and domestic animals do not get on the appliance.
• Do not run the appliance on high surfaces like tables or chairs.

1 Important safety and environmental instructions

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

1.2 Compliance with the WEEE regulations and waste disposal

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Packaging information

The product's packaging is made of recyclable materials, in accordance with the National Legislation.

Do not dispose of the packaging waste with the household waste or other wastes, dispose it to the packaging collection areas specified by local authorities.

2 Overview

Accessories List:

6

2 Overview

2.1 Controls and components

1. Cover handle
2. Blower
3. HEPA Filter
4. Locking Latch
5. Dirt tank
6. Wheel
7. Base
8. Suction inlet
9. Top cover
10. ON/OFF Switch

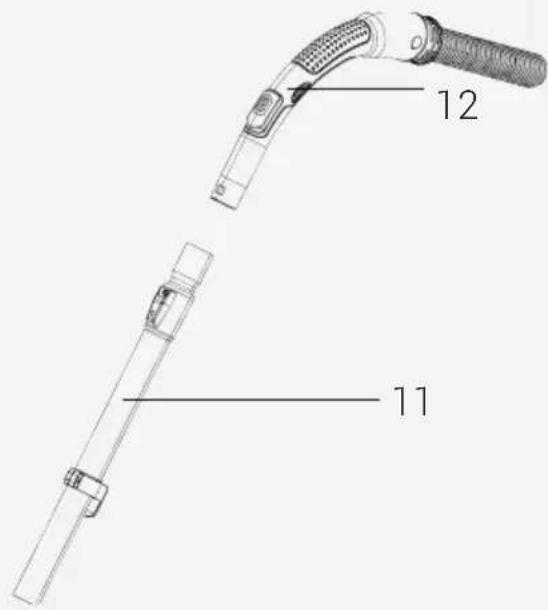

11. Tube
12. Tube handle

2.2 Technical data

Rating Power: 1400W nominal

: 1700W max

Power

Power source: 220-240V~ 50-60Hz

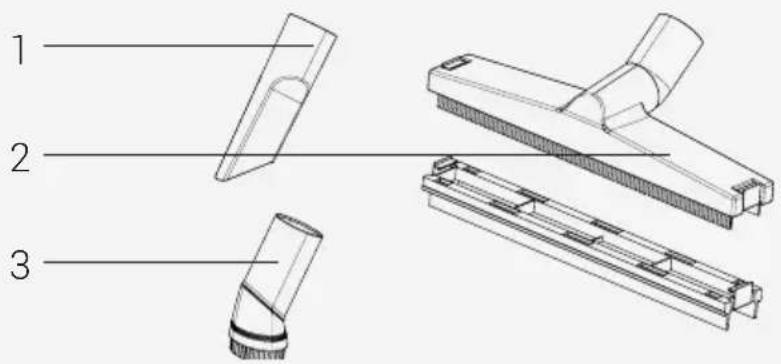

Accessories List

1. Crevice tool
2. Water brush
3. Dust brush
4. Round brush

Values supplied with the instrument or accompanying documentation are laboratory readings per relevant standards. These values may differ depending on operation and ambient conditions.

3 Operation

This appliance is intended for domestic use only and not for commercial applications.

Wheels: Insert the big wheel and the small wheel into the hole of the base.

Hose: Insert the hose connection wand into the hose inlet.

Aluminum tube: To use the aluminum tube, insert the tube into the end of the hose.

Floor Brush: Choose the brush pedal to floor or carpet, then insert to the suction hole of the aluminum tube

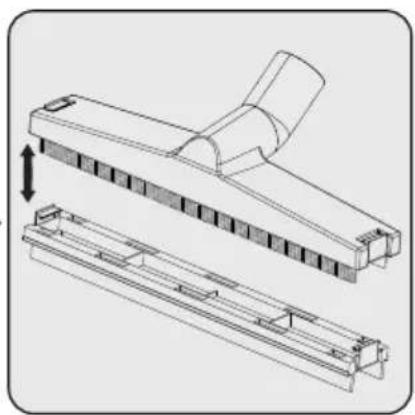

2 in 1 water brush: When wet use, please assemble the bottom plate; When dry use, please dissemble the plate and use the bristle to clean directly.

Blower Function:

Insert the hose connector into the blower outlet, then you can use the blower function to blow dust or leaves.

Power Cord Storage:

Wind the power cord and place it on the cord storage hook.

Cord storage hook

3 Operation

WARNING: Always work with HEPA filter during wet as well as dry vacuum cleaning!

WARNING: Work only with a dry HEPA filter and filter bag.

If the suction power is weak, change the filter bag.

Do not use dry vacuum with ashes and soot.

Wet vacuum cleaning

WARNING: Do not use the filter bag!

Before picking up liquids, always remove the filter bag and check that the float works properly. If foam develops or liquid emerges from the machine, stop work immediately and empty the dirt tank.

Empty The Dirt Tank

Pull outward to release the locking latch on both sides of the dirt tank (Note: Be sure to unplug the power cord beforehand!)

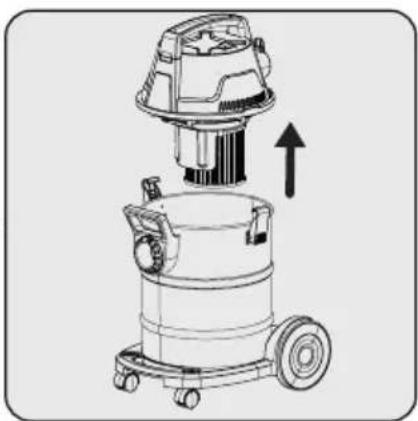

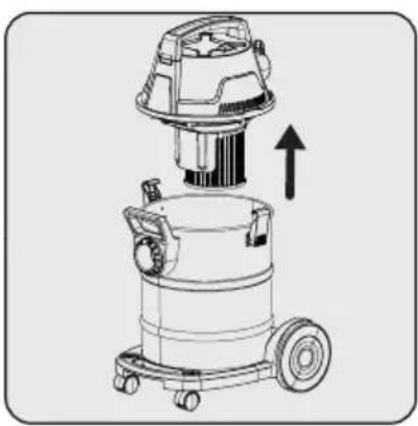

Take off the top cover, remove the filter bag, HEPA filter and pat the dust off them.

4 Cleaning and maintenance

WARNING: Turn off the appliance and remove the mains plug prior to any care and maintenance work. Repair works may only be performed by the authorized customer service.

WARNING: Do not use abrasives, glass or universal cleaners! Never immerse the appliance in water, especially the motor. Dry filters completely in the air.

• Clean the appliance and accessory parts made of plastic with clean water and squeeze the water out.
• Don't clean them with a washing machine.
• If required, rinse the container and accessories with water properly and dry them before reuse.
• Only clean the HEPA filter under running water; do not wipe or brush. Let it dry completely before installation.

5 Trouble shooting

If the cleaning power of the appliance deteriorates please check the following.

• Accessories, suction hose or suction tube are clogged, please remove the obstruction.
• Filter bag is full, install new filter bag.
• HEPA filter is blocked, clean under running water if necessary.
• Replace damaged HEPA filter.

Cord storage:

- bed and breakfast environment

Floor brush: Select the brush pedal for floor or carpet, then insert it into the suction hole of the aluminum tube.
